Model Whirlpool ET17JKXBW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER
04 - UNIT

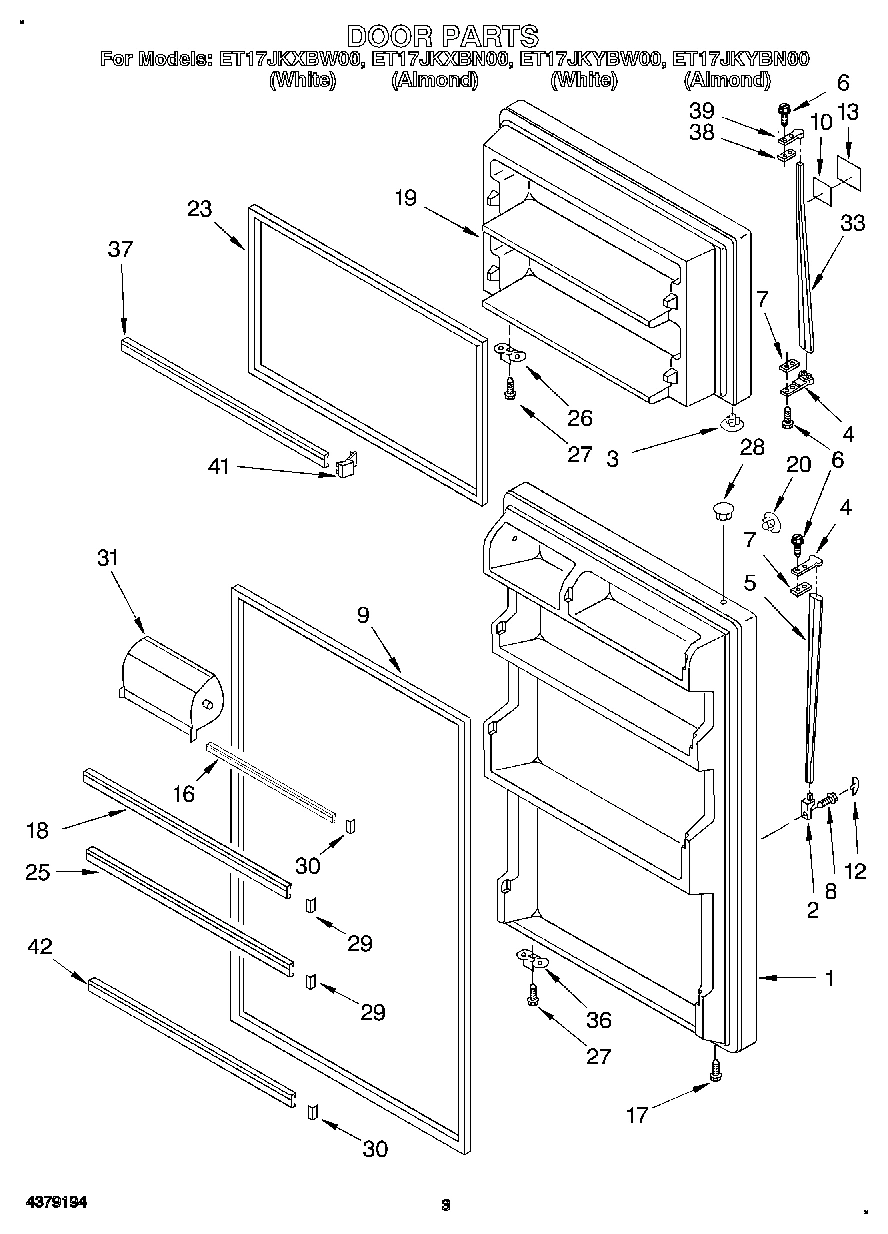

02 - DOOR

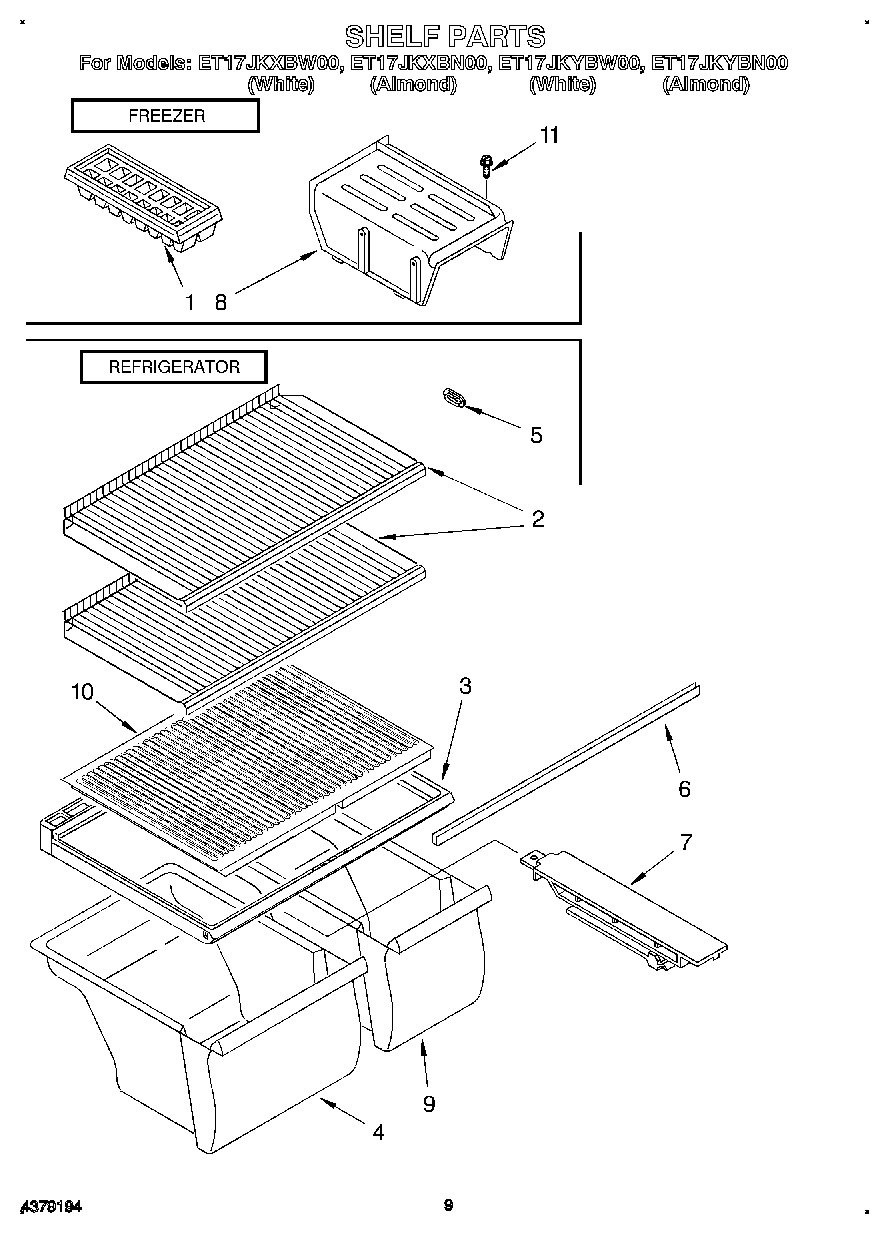

05 - SHELF, LIT/OPTIONAL

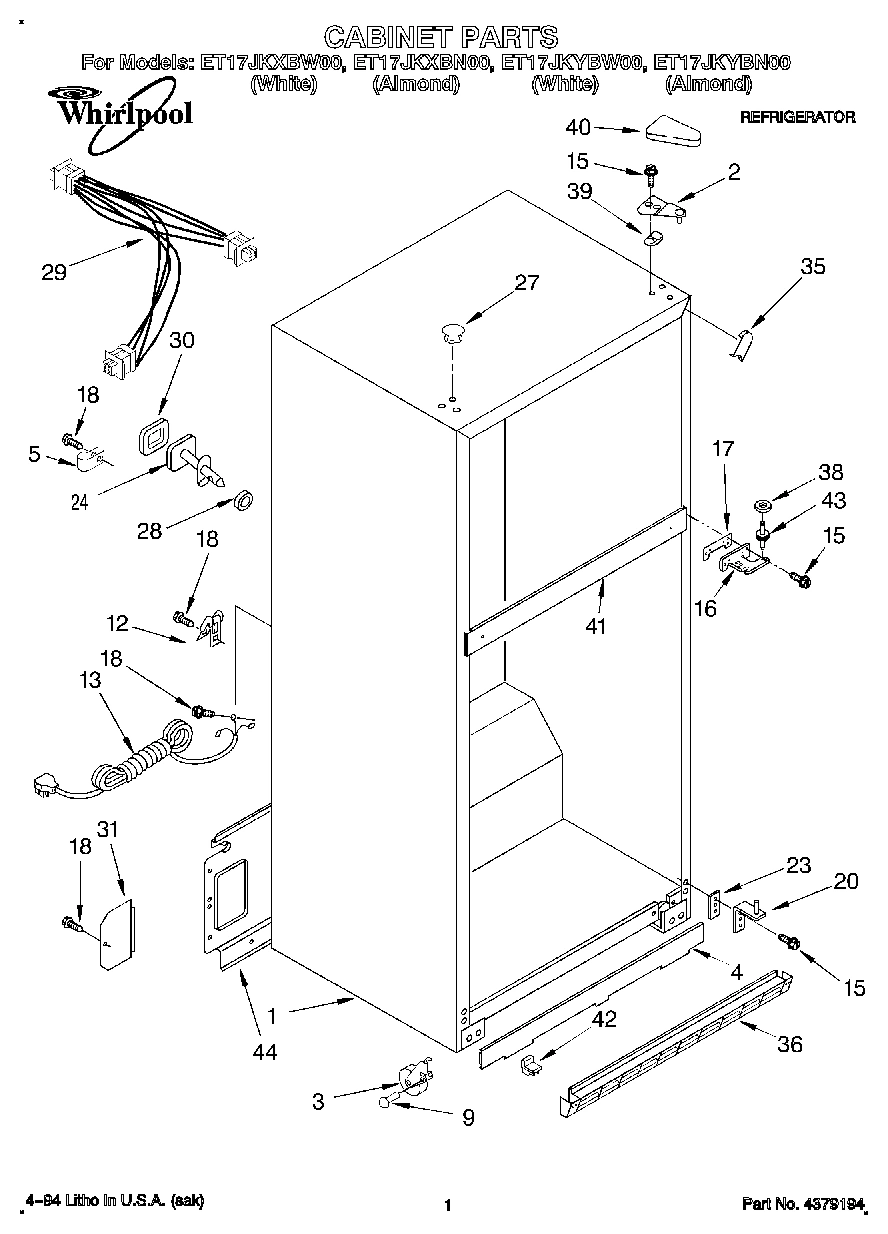

01 - CABINET
Common parts from model Whirlpool ET17JKXBW00 TOP MOUNT REFRIGERATOR
Torx WPL 1117510 Contact Us For Availability
WPL LIT2166248 WPL LIT2166248 Contact Us For Availability
WPL LIT2166259 WPL LIT2166259 Contact Us For Availability
WPL LIT2166260 WPL LIT2166260 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2171270 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI43103A9 Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Front Rail Cover (White) WPL 4386879 Contact Us For Availability
4
Front Rail Cover (Almond) WPL 4386880 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
8
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
9
Door Gasket, Magnetic (Mist Beige) WPL 2159087 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
11
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 938384 Contact Us For Availability
11
Door Reversal Instructions WPL 2172516 Contact Us For Availability
11
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
11
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
11
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
11
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
11
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability
13
Overload WPL 2154758 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
15
Module WPL 2163892 Contact Us For Availability
16
Trim, Door Shelf WPL 2159244 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159446 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159447 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI43108A6 Contact Us For Availability
23
Door Gasket, Magnetic (Mist Beige) WPL 2159497 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL 2166175 Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Also Order) WPL 2162441 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI43104A6 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI43105A9 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Handle, F.C. (White) WPL 2159453 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2159471 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Heat Exchanger WPL 2163759 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Clip, Compressor (4) WPL 2163787 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2172685 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI43106A5 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
42
Trim, Door WPL 2159456 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2172676 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
