Model Whirlpool ET17JKXBN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

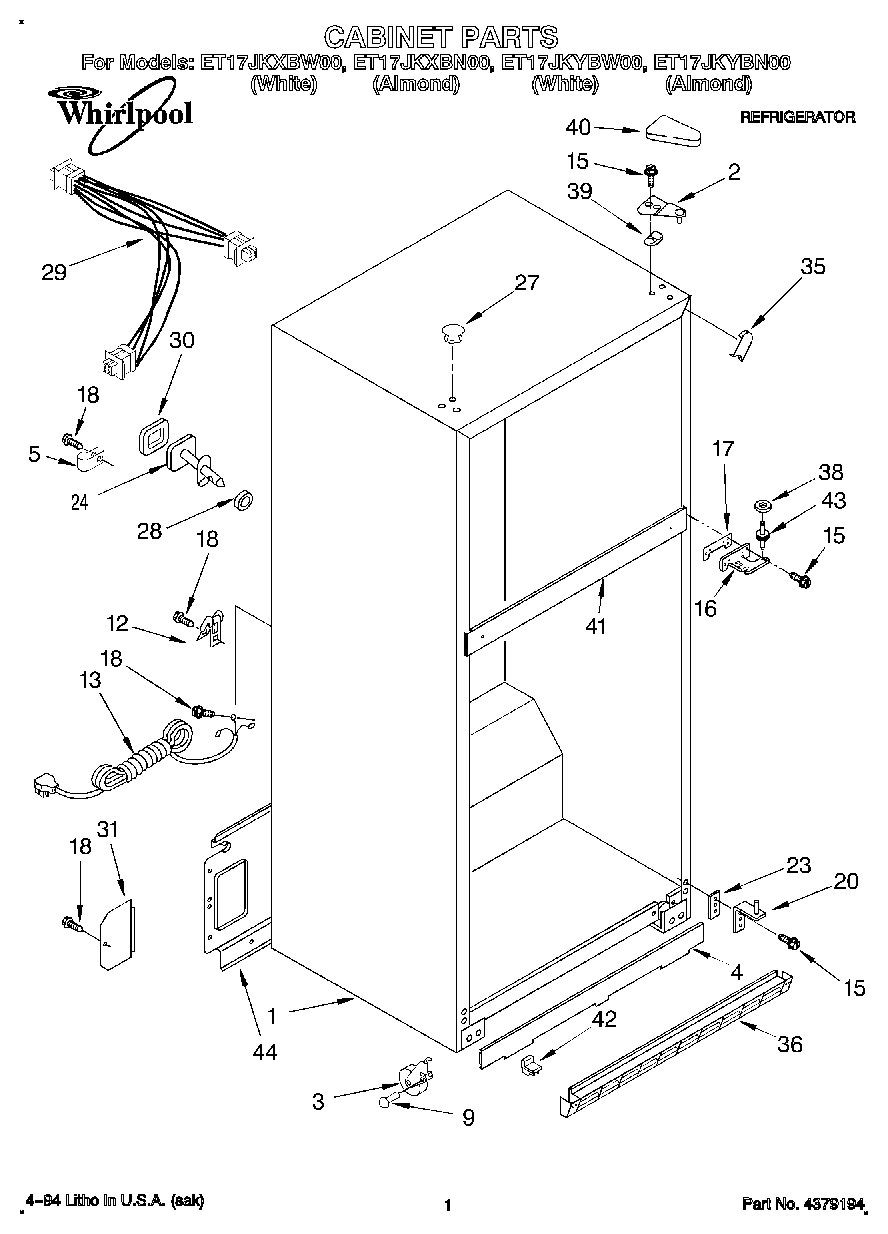

01 - CABINET

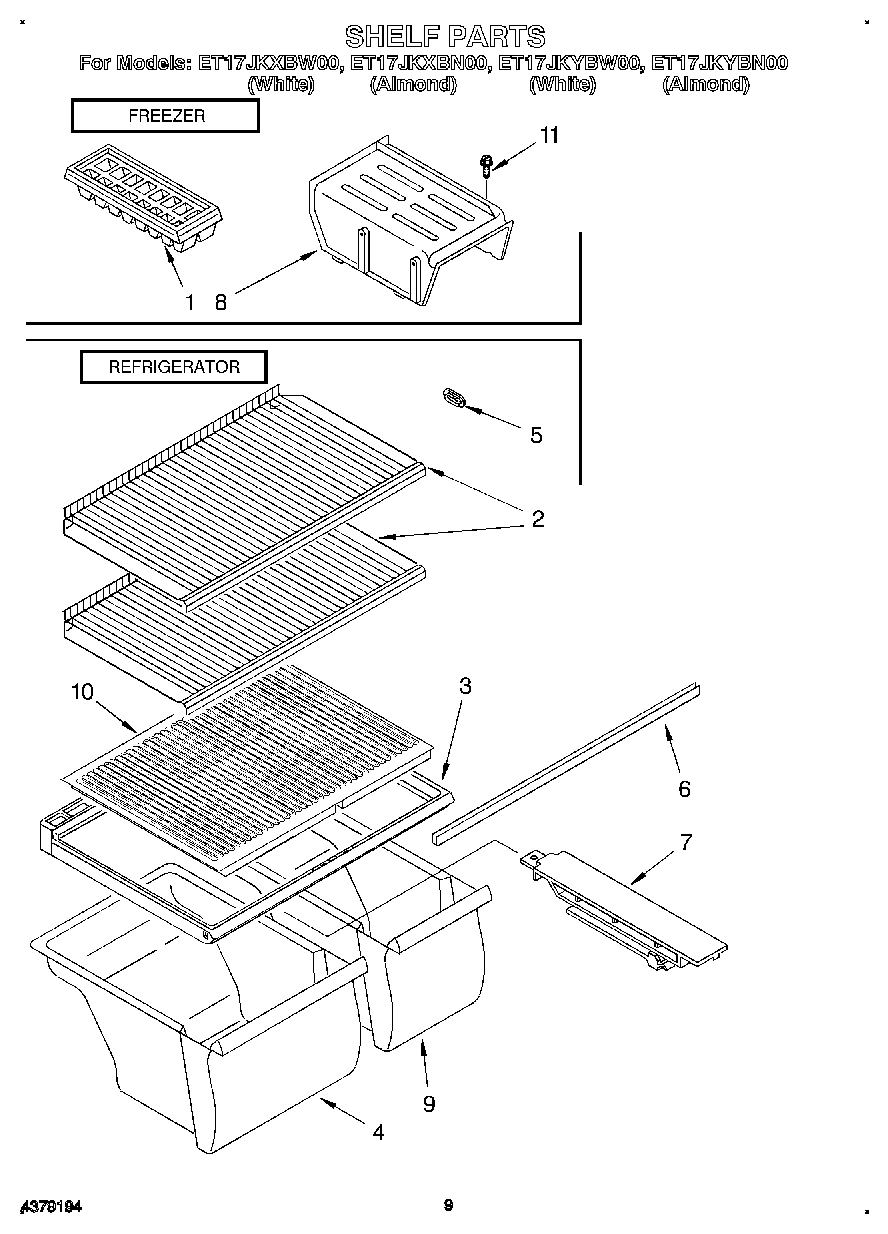

05 - SHELF, LIT/OPTIONAL
03 - LINER
02 - DOOR
04 - UNIT
Common parts from model Whirlpool ET17JKXBN00 TOP MOUNT REFRIGERATOR
Torx WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43101A5 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2171270 Contact Us For Availability
1
Support Plate, Compressor WPL 2163778 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Timer, Defrost WPL 2154983 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2166176 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172589 Contact Us For Availability
8
Support, Air Baffle (Bottom) WPL 2174612 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
9
Door Gasket, Magnetic (Mist Beige) WPL 2159087 Contact Us For Availability
9
Support, Air Baffle (Top) WPL 2174613 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Fan Motor WPL 2163766 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
11
Door Reversal Instructions WPL 2172516 Contact Us For Availability
11
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
11
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
11
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
11
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
11
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 938384 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
12
Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
13
Overload WPL 2154758 Contact Us For Availability
14
Screw WPL 486214 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Module WPL 2163892 Contact Us For Availability
16
Cover-Evaporator WPL 2163816 Contact Us For Availability
16
Trim, Door Shelf WPL 2159244 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159446 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159447 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI43102A9 Contact Us For Availability
22
Control Knob WPL 2163800 Contact Us For Availability
23
Air Tower WPL 2172574 Contact Us For Availability
23
Door Gasket, Magnetic (Mist Beige) WPL 2159497 Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Compressor (Also Order) WPL 2162441 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
33
Handle, F.C. (White) WPL 2159453 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2159471 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Heat Exchanger WPL 2163759 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Clip, Compressor (4) WPL 2163787 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2172685 Contact Us For Availability
42
Trim, Door WPL 2159456 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2172676 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
