Model Whirlpool ET16JMXBW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

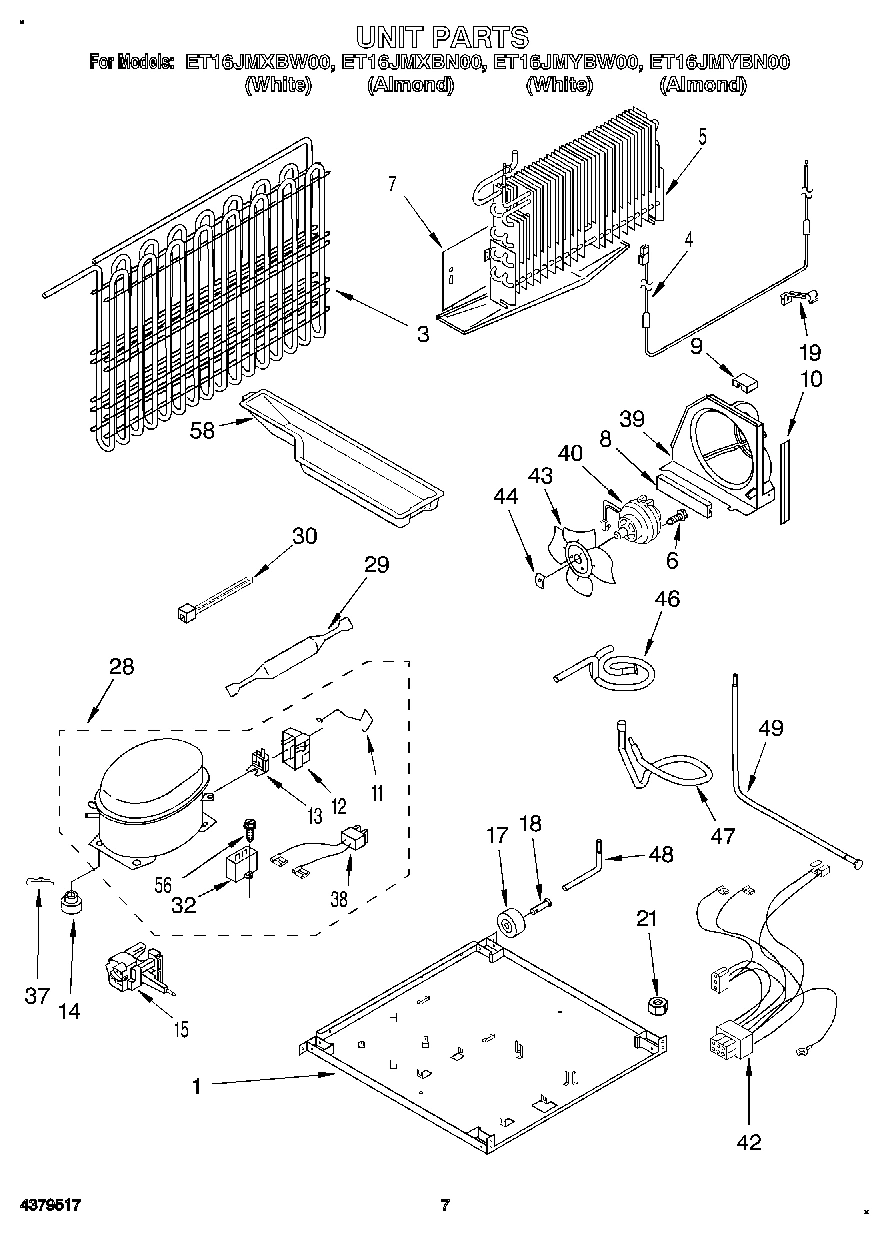

04 - UNIT

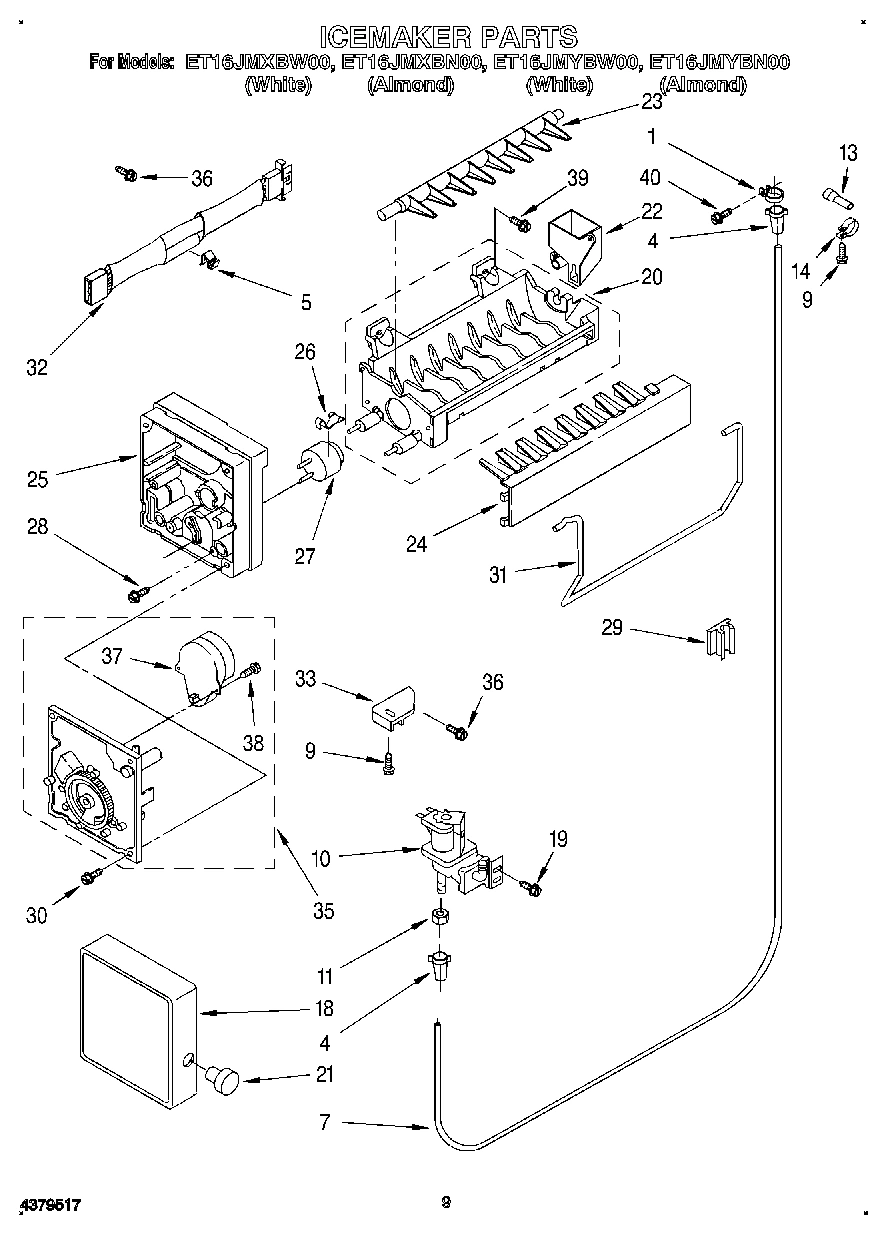

05 - ICEMAKER
06 - SHELF, LIT/OPTIONAL
01 - CABINET
02 - DOOR
03 - LINER
Common parts from model Whirlpool ET16JMXBW00 TOP MOUNT REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
Service & Wiring S WPL LIT2166248 Contact Us For Availability
WPL LIT2166259 WPL LIT2166259 Contact Us For Availability
WPL LIT2170974 WPL LIT2170974 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42855A8 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2171270 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42860A2 Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Timer, Defrost WPL 2154983 Contact Us For Availability
5
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Shelf, Ice Tray WPL 483210 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
10
Fan Motor WPL 2163766 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
12
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
12
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
12
Door Reversal Instructions WPL 2172516 Contact Us For Availability
12
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
12
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
12
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
12
Trim Ice Cube Pan WPL 837122 Contact Us For Availability
12
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
14
Screw WPL 486214 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Trim, Door Shelf WPL 2159244 Contact Us For Availability
16
Cover-Evaporator WPL 2163816 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159446 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159447 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
22
Control Knob WPL 2163800 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Door Gasket, Magnetic (Mist Beige) WPL 2159056 Contact Us For Availability
23
Air Tower WPL 2172574 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI42856A8 Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI42857A4 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI42858A5 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
33
Handle, F.C. (White) WPL 2159453 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2159471 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI42859A9 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
42
Trim, Door WPL 2159456 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
