Model Whirlpool ET16JMXBN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - DOOR
03 - LINER

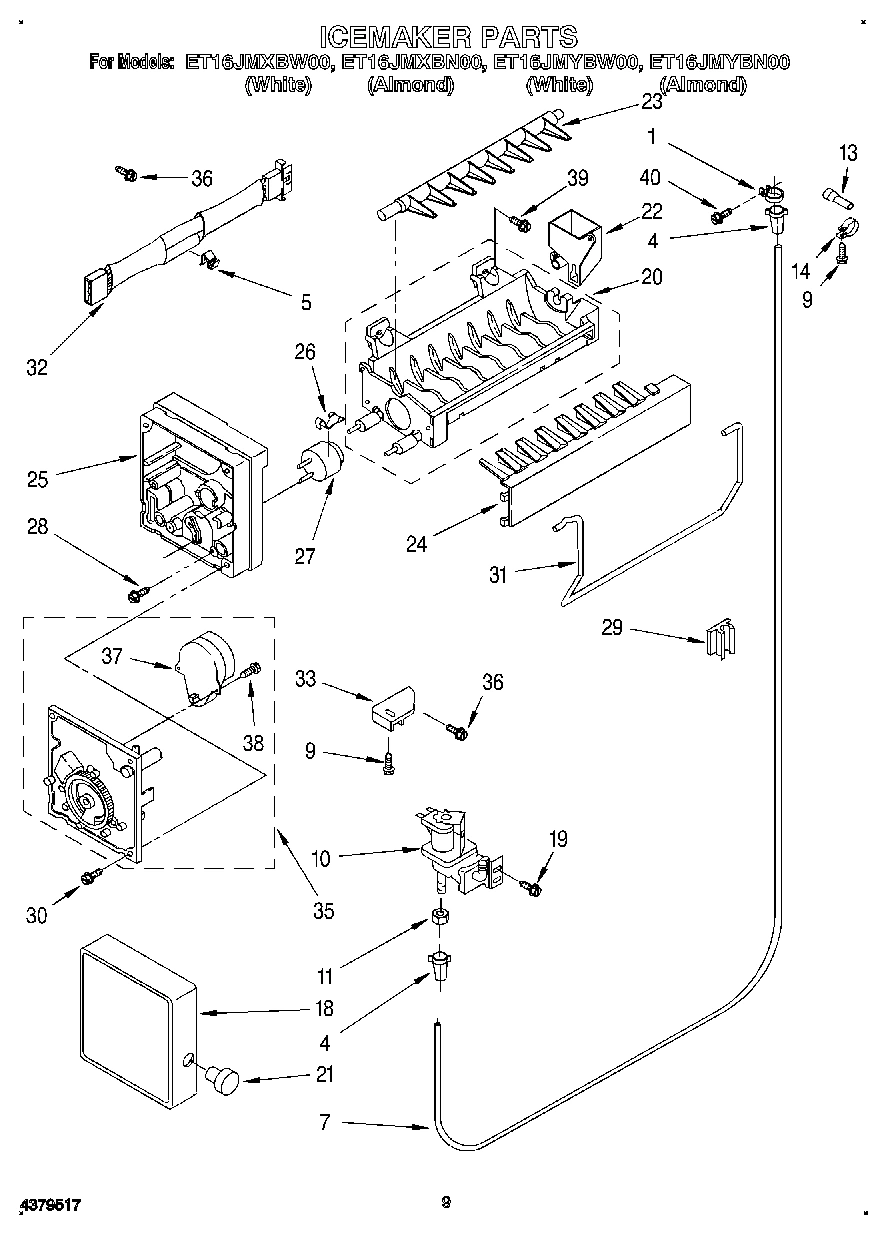

05 - ICEMAKER

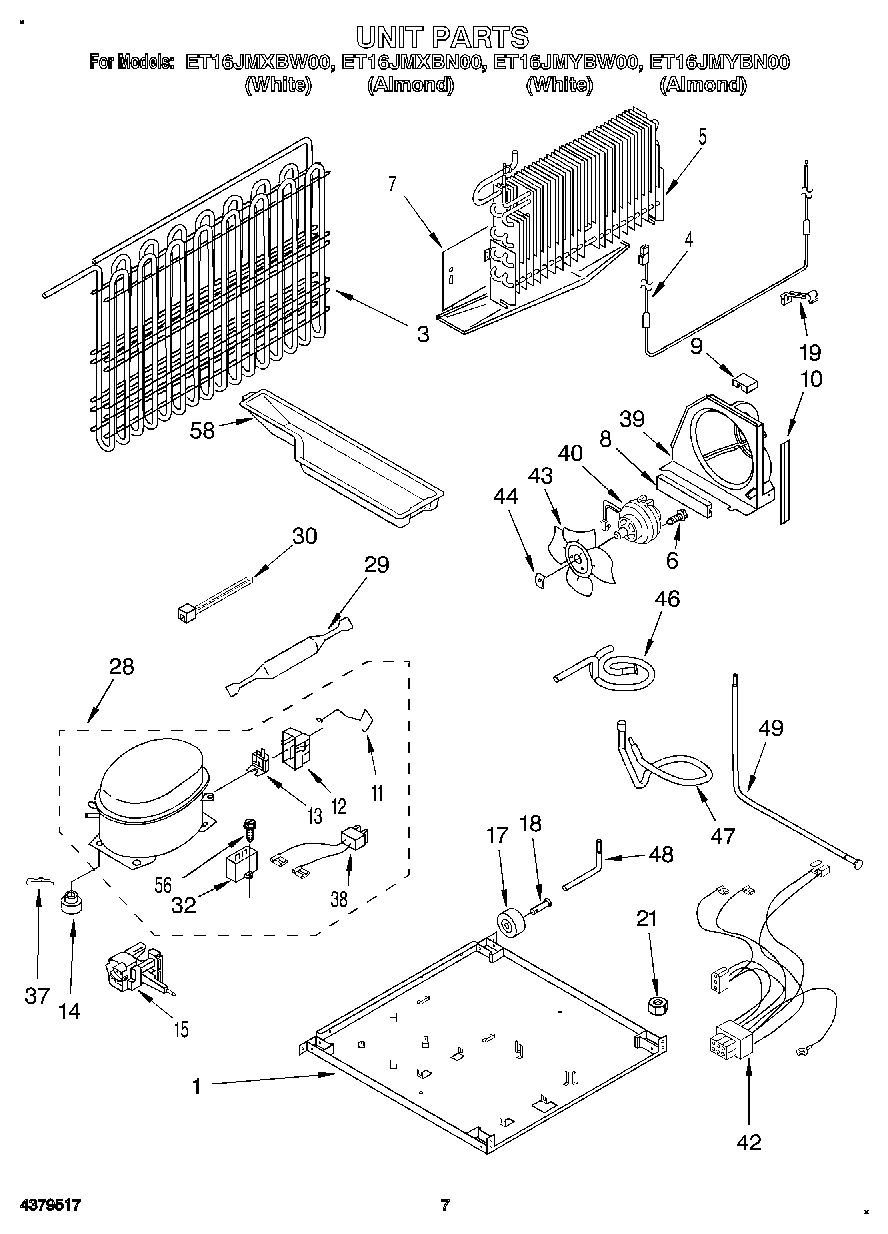

04 - UNIT

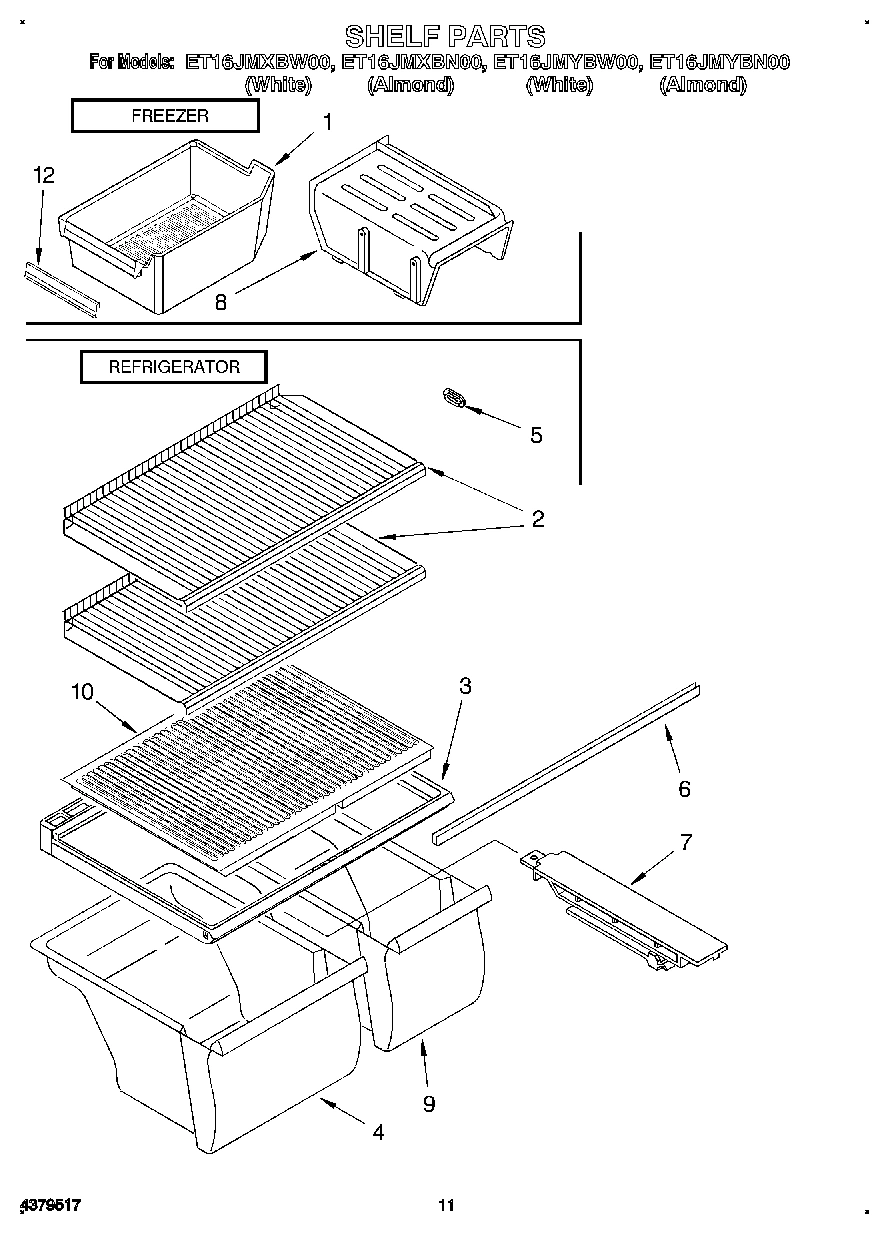

06 - SHELF, LIT/OPTIONAL

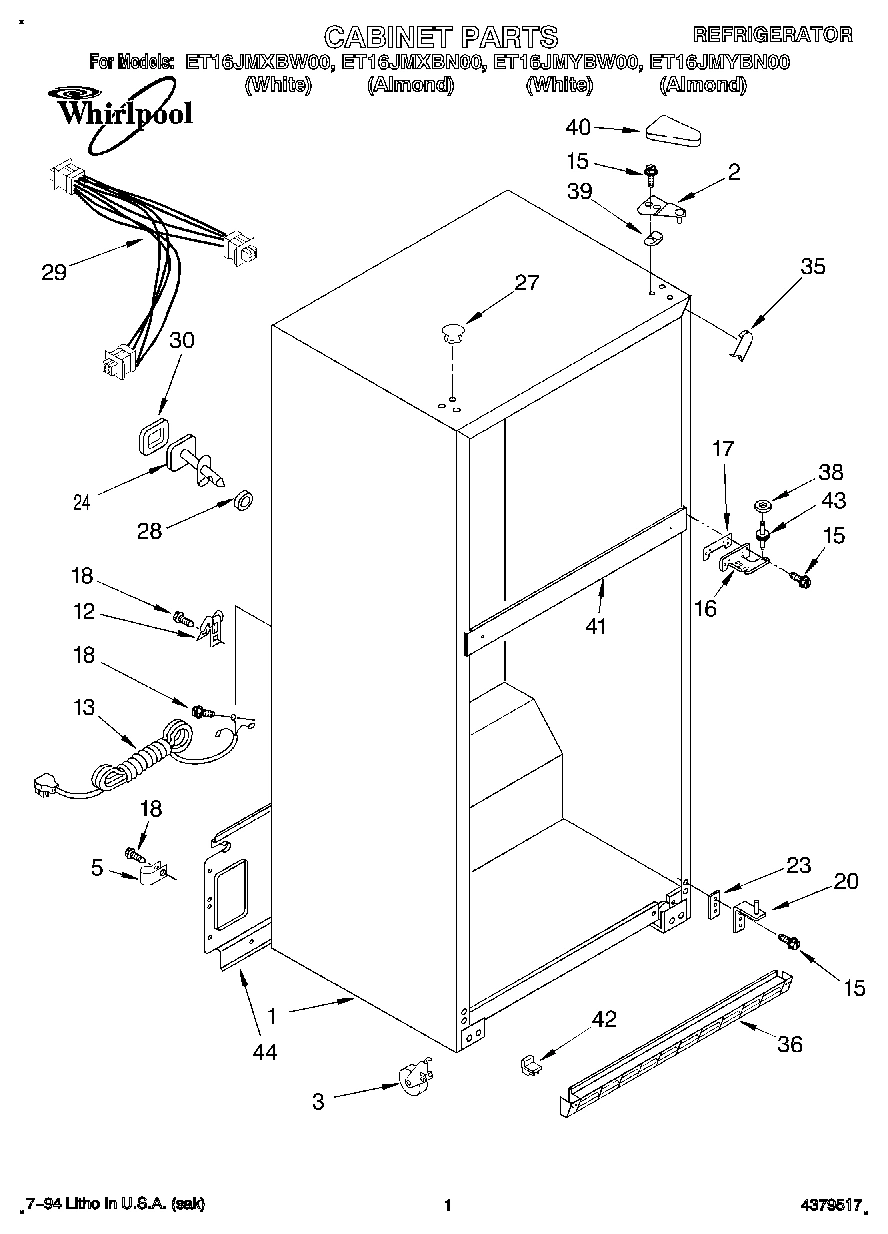

01 - CABINET
Common parts from model Whirlpool ET16JMXBN00 TOP MOUNT REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
Service & Wiring S WPL LIT2166248 Contact Us For Availability
WPL LIT2166259 WPL LIT2166259 Contact Us For Availability
WPL LIT2170974 WPL LIT2170974 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Support Plate, Compressor WPL 2163778 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42841A8 Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
5
Evaporator Assy. WPL 2166176 Contact Us For Availability
5
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172589 Contact Us For Availability
8
Support, Air Baffle (Bottom) WPL 2174612 Contact Us For Availability
8
Shelf, Ice Tray WPL 483210 Contact Us For Availability
9
Support, Air Baffle (Top) WPL 2174613 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 938384 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
12
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
12
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
12
Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability
12
Door Reversal Instructions WPL 2172516 Contact Us For Availability
12
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
12
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
12
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
12
Trim Ice Cube Pan WPL 837122 Contact Us For Availability
12
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Overload WPL 2154758 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
15
Module WPL 2163892 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI42847A7 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI42842A3 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 32, 38 WPL 2162441 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI42843A4 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI42844A8 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Clip, Compressor (4) WPL 2163787 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2172685 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI42845A3 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
