Model Whirlpool ET14JMYAW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - DOOR
03 - LINER, LIT/OPTIONAL

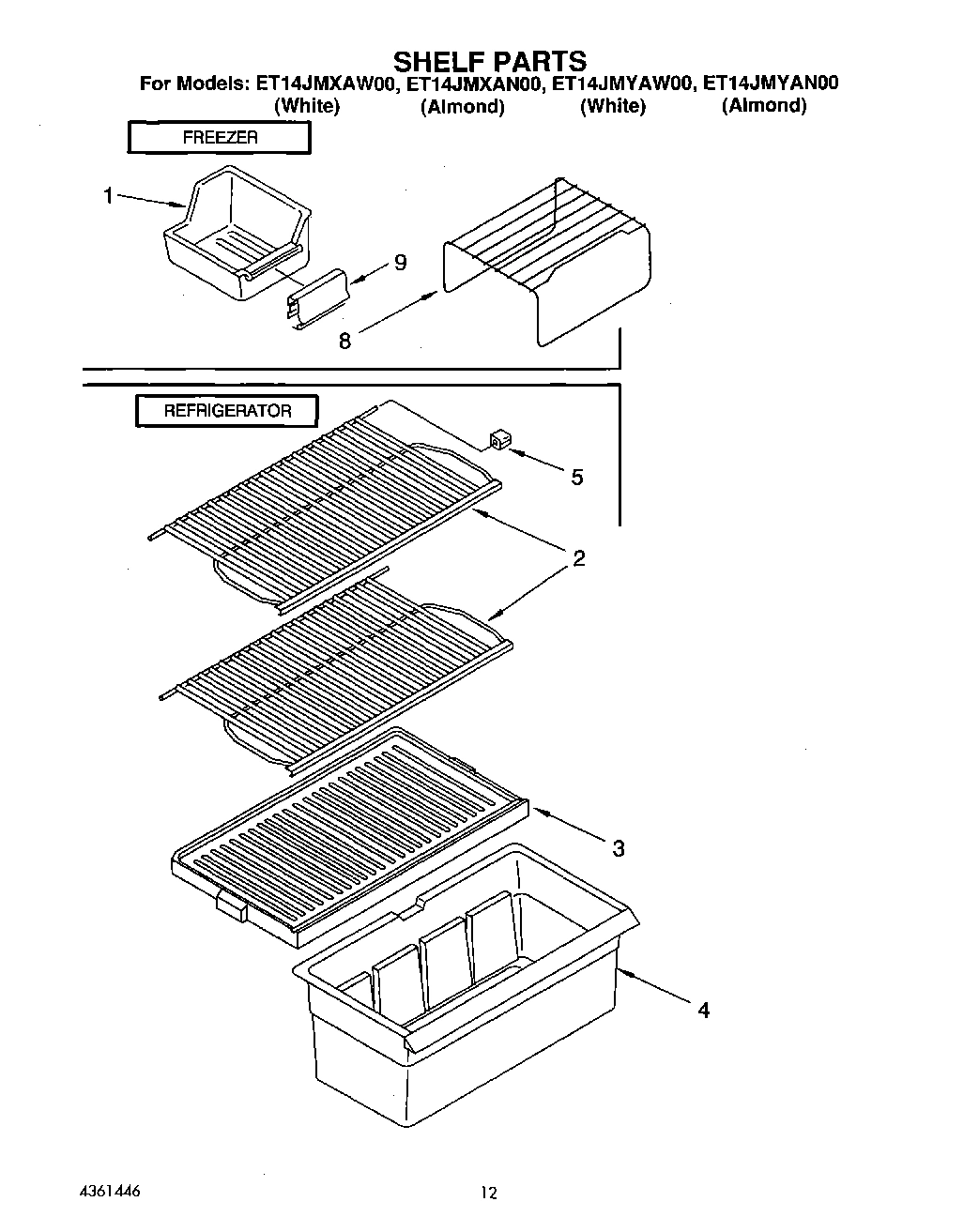

06 - SHELF

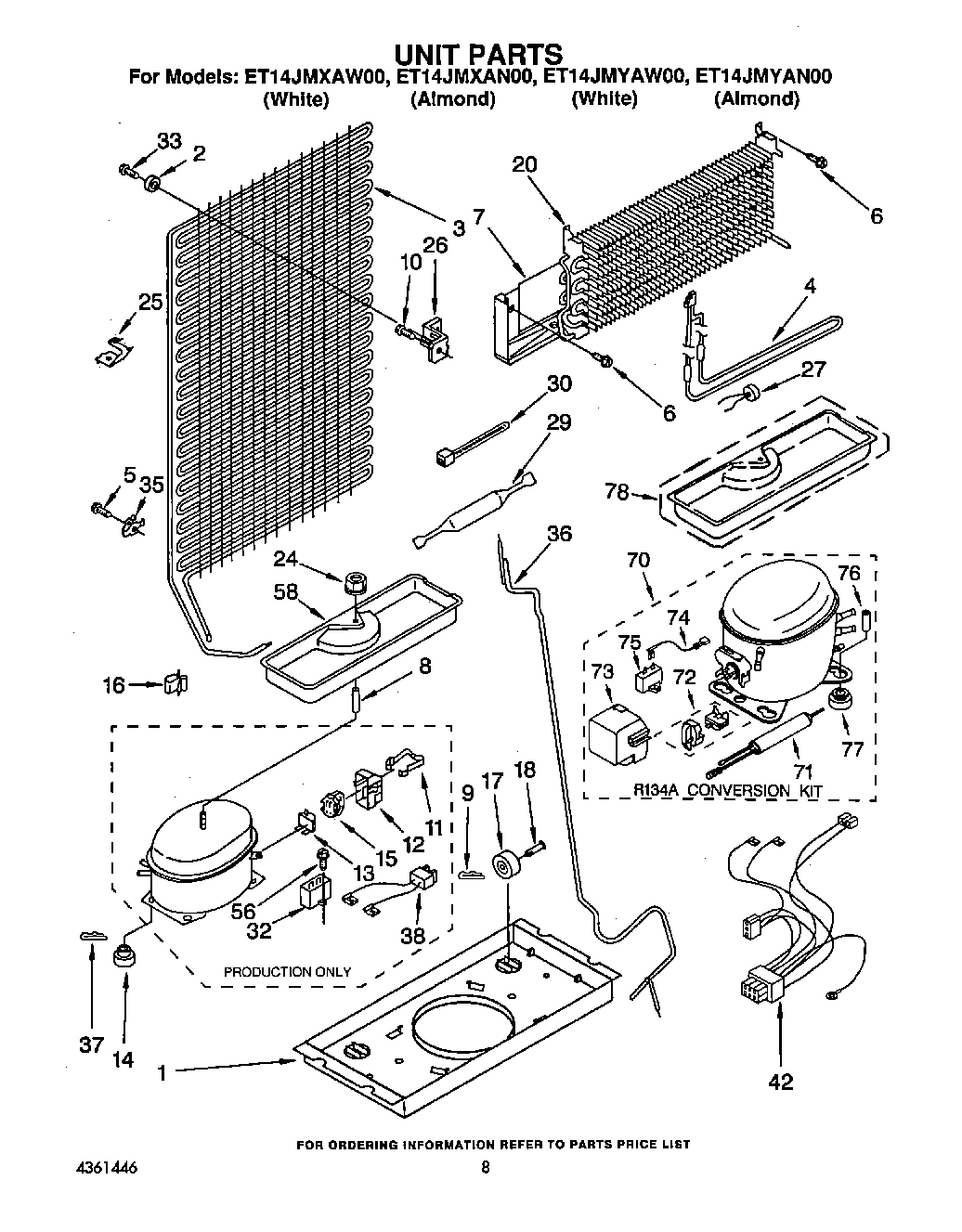

04 - UNIT

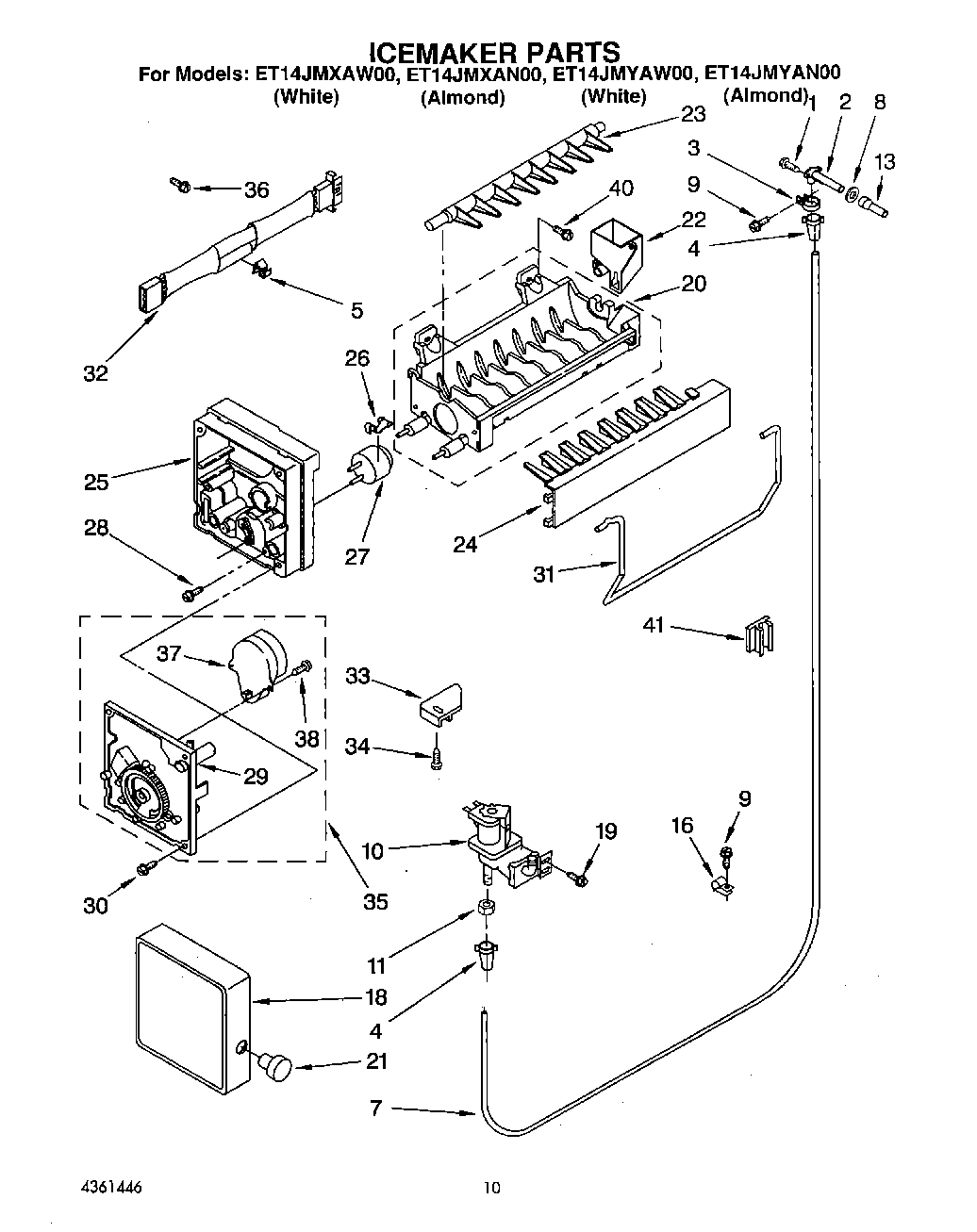

05 - ICE MAKER

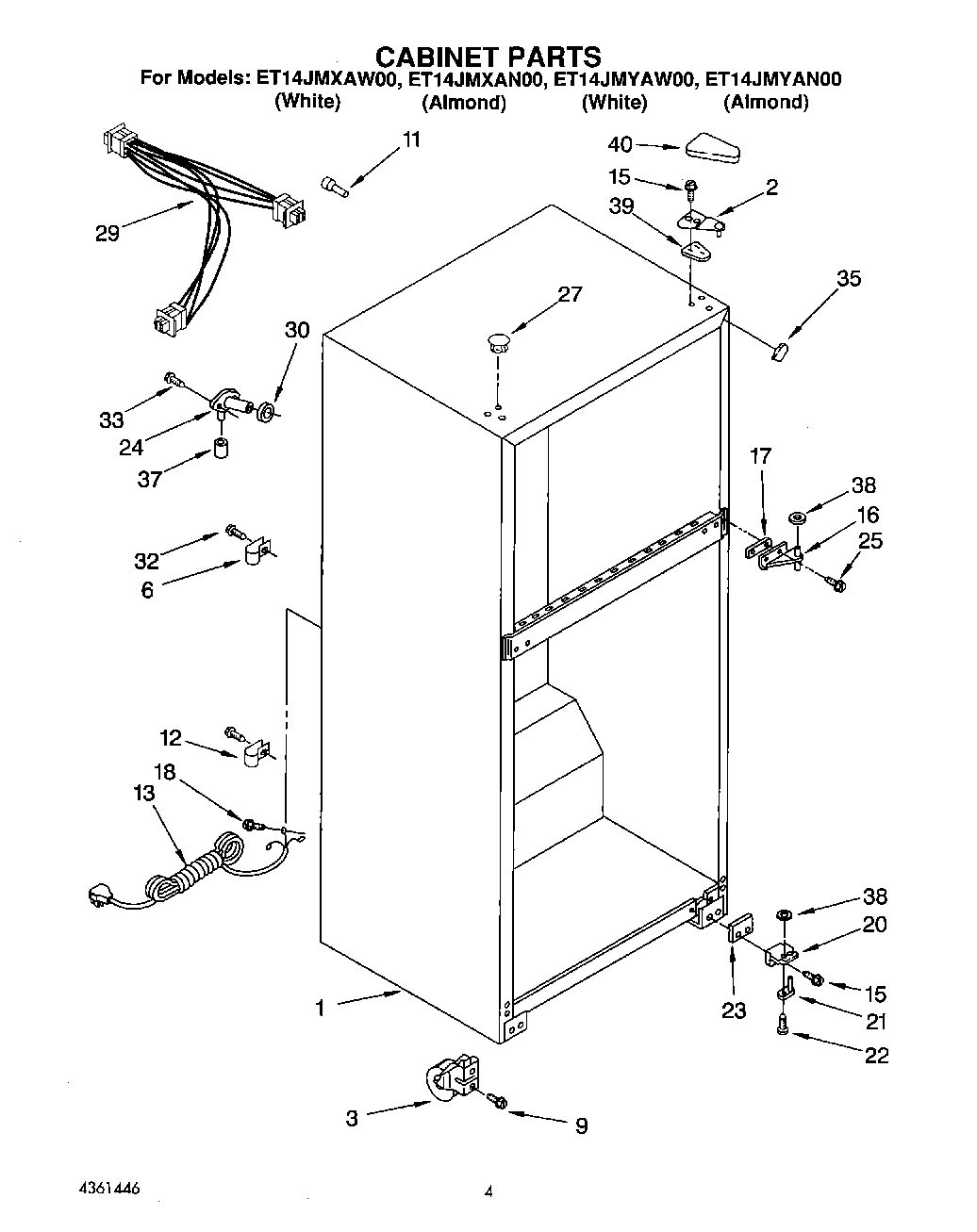

02 - CABINET
Common parts from model Whirlpool ET14JMYAW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42310A1 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
3
Roller-Front WPL 9790461 Contact Us For Availability
4
Pan, Crisper WPL 9790377 Contact Us For Availability
5
Thimble WPL 9791835 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield WPL 9791383 Contact Us For Availability
8
Spacer WPL 1105130 Contact Us For Availability
9
Trim, Ice Pan WPL 837142 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
9
Screw (2) WPL 9791768 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Tube, Water Inlet WPL 836490 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Nameplate WPL 2152334 Contact Us For Availability
13
Overload) (Service (Includes Relay) WPL 1108114 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2154758 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
15
Relay (See Overload) WPL ARI42312A3 Contact Us For Availability
17
Shim, Hinge Center WPL 9791480 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
19
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
19
Screw WPL 489327 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
23
Shim, Bottom Hinge WPL 9791716 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
27
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
27
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 9790418 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
35
Corner Filler (Almond) WPL 2166004 Contact Us For Availability
36
Heat Exchanger WPL 9791825 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
39
Shim WPL 2157272 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388007 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
Start Kit WPL 482278 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
