Model Whirlpool ED25PWXAW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

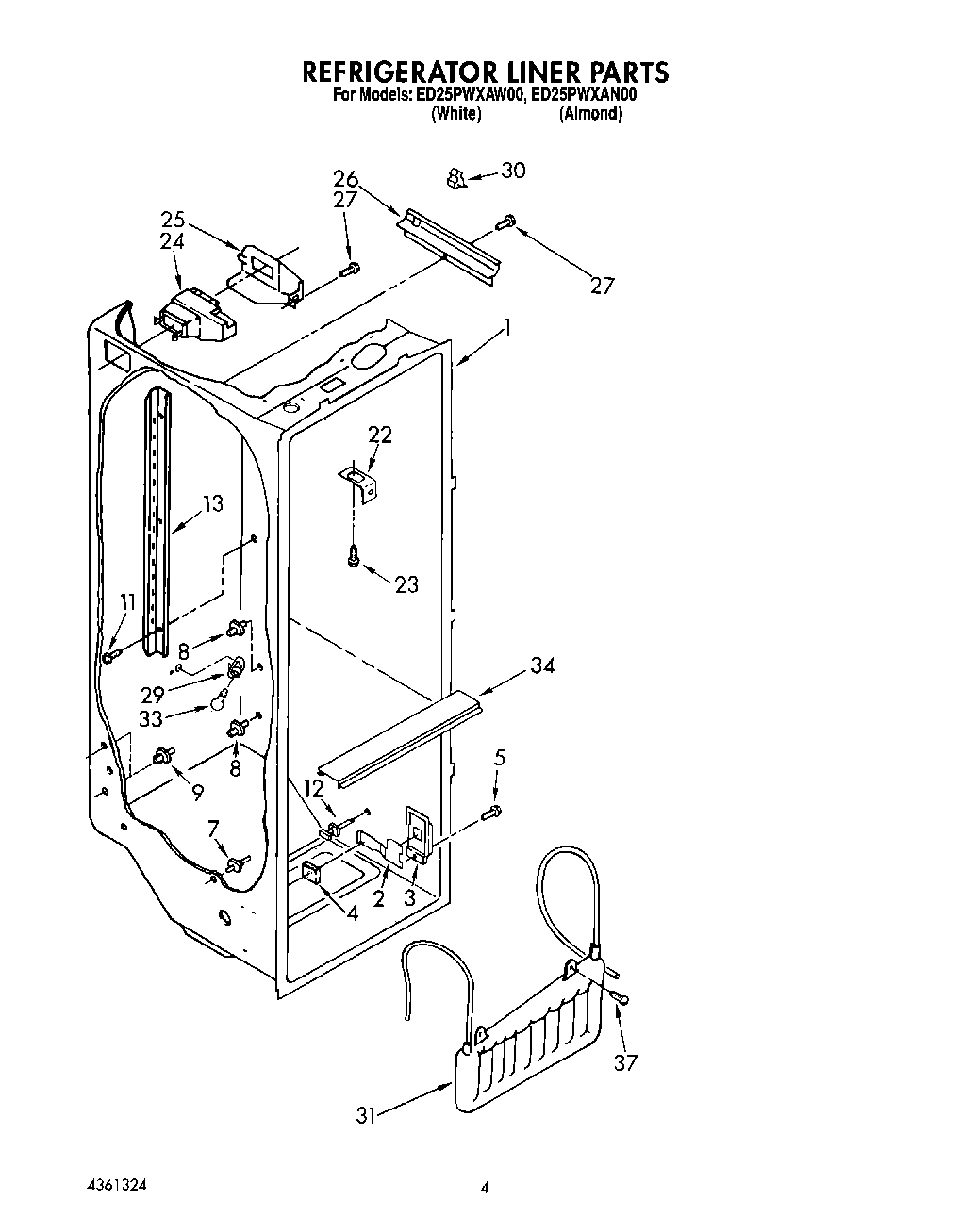

03 - REFRIGERATOR LINER

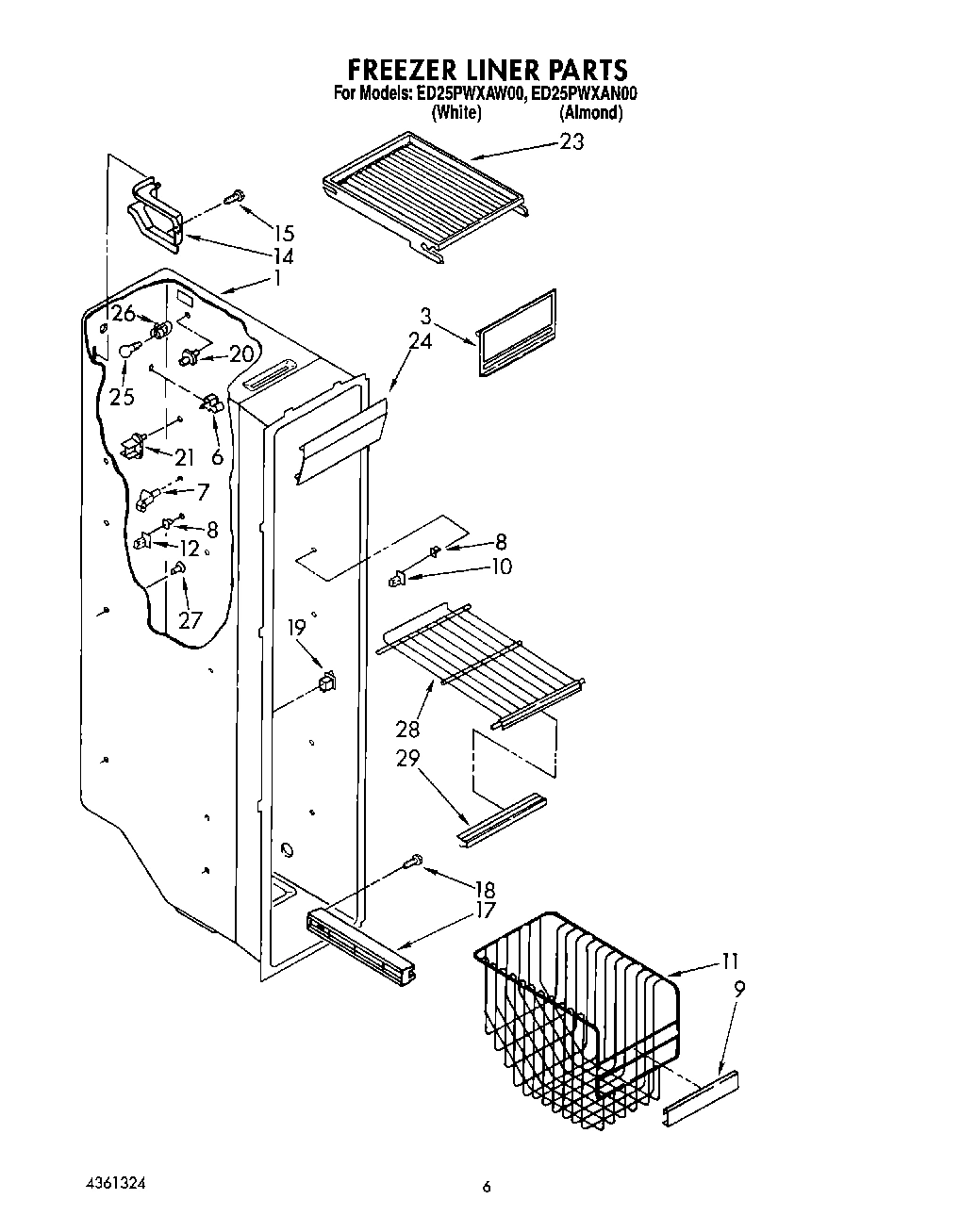

05 - FREEZER LINER

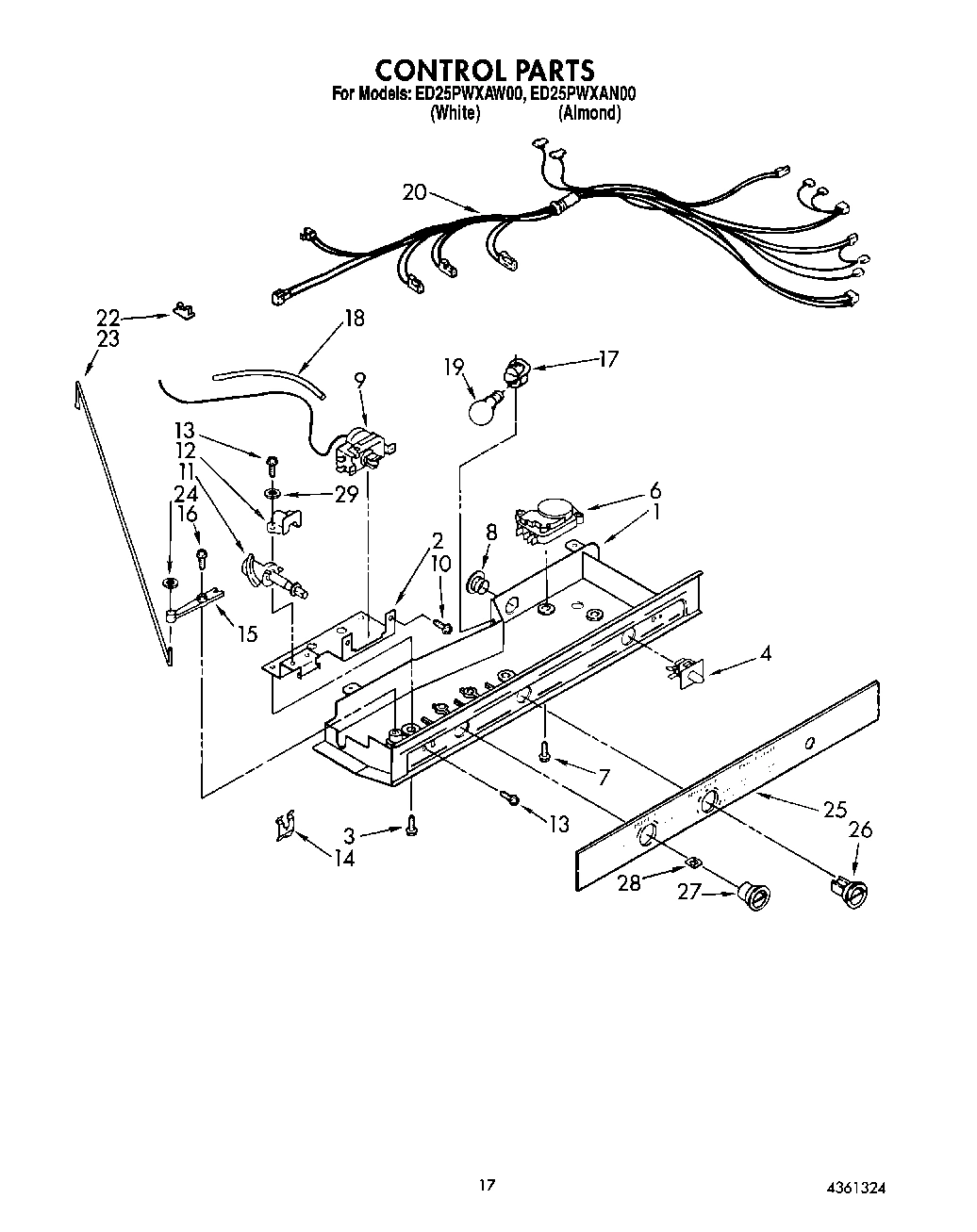

12 - CONTROL

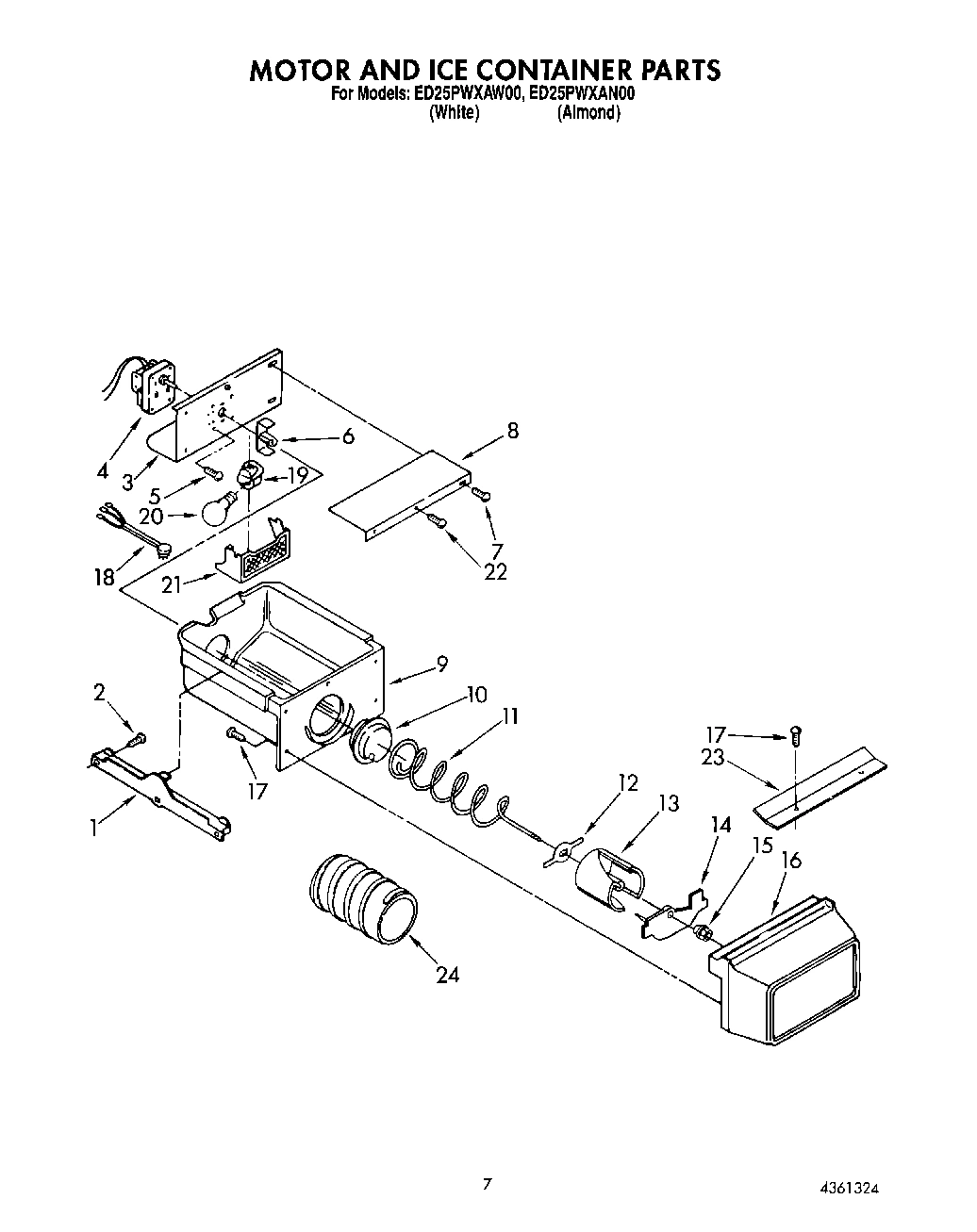

06 - MOTOR AND ICE CONTAINER

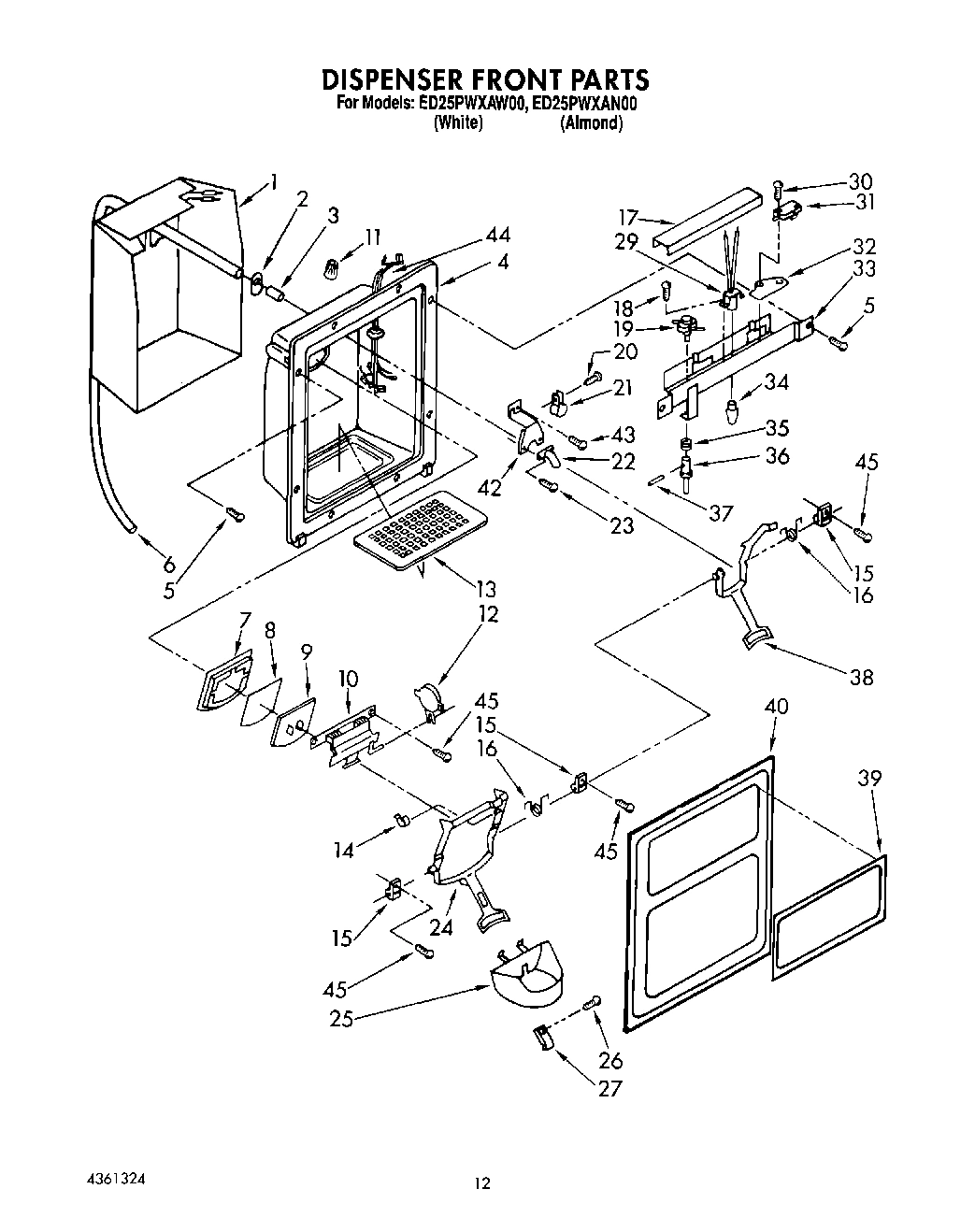

09 - DISPENSER FRONT

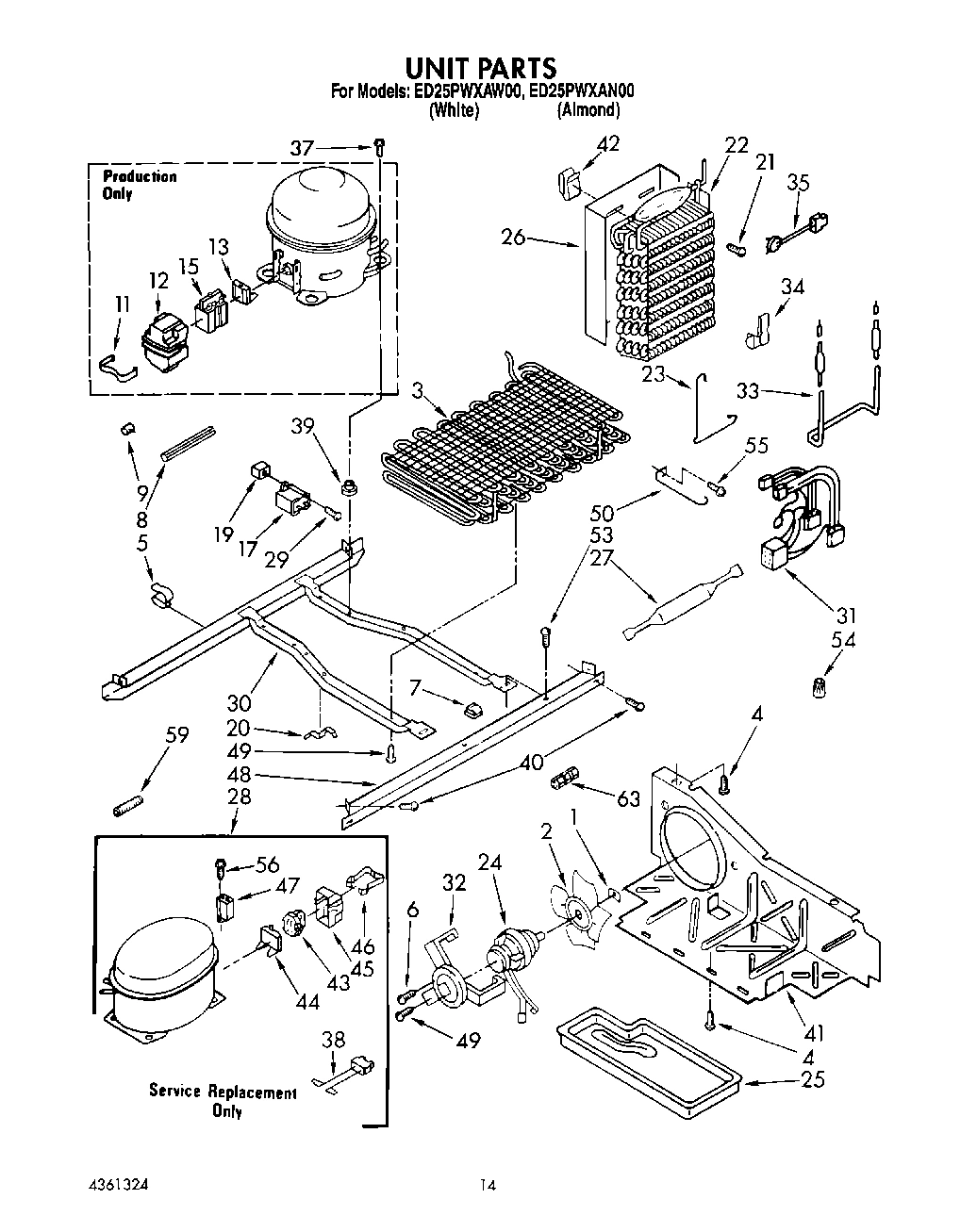

10 - UNIT

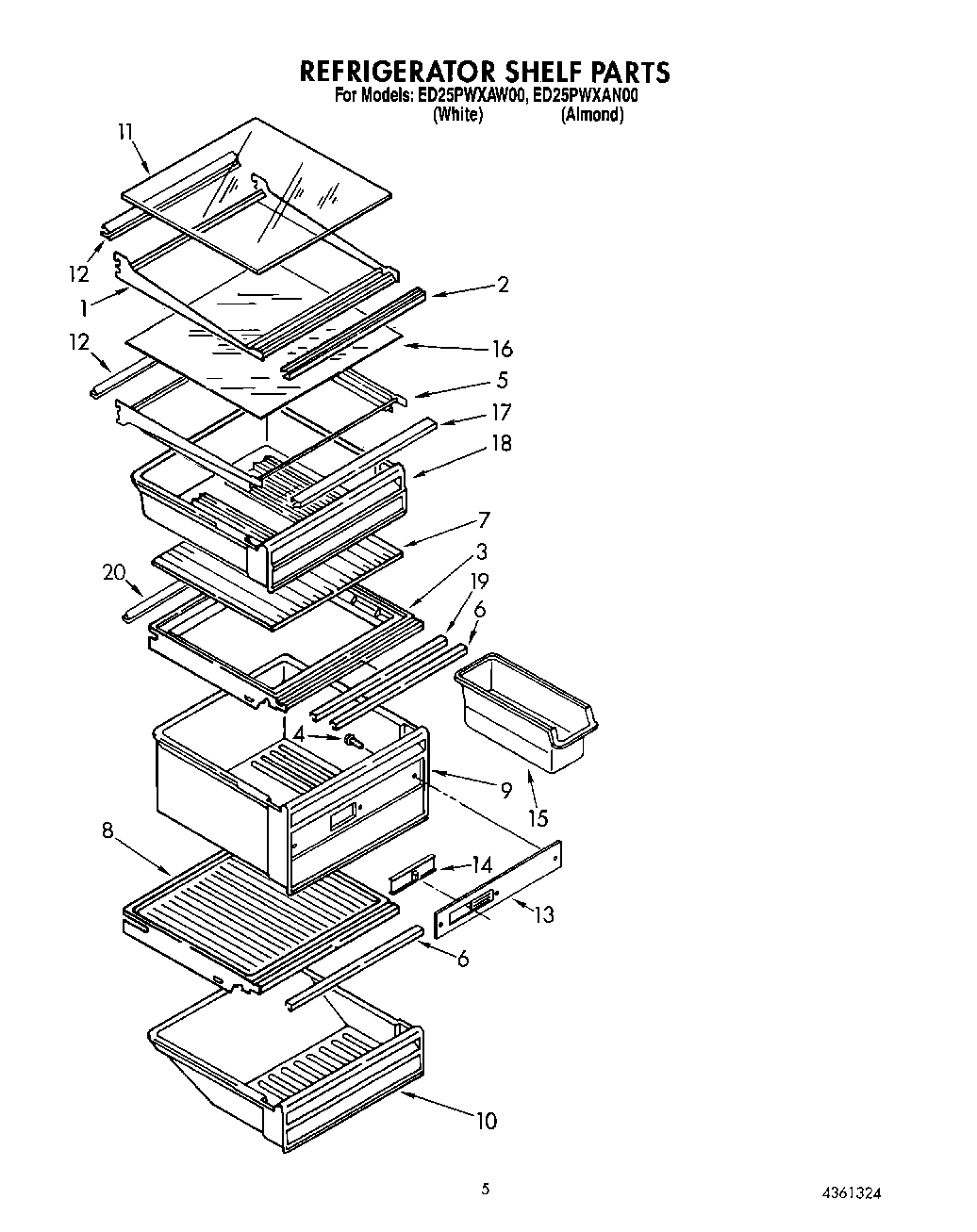

04 - REFRIGERATOR SHELF

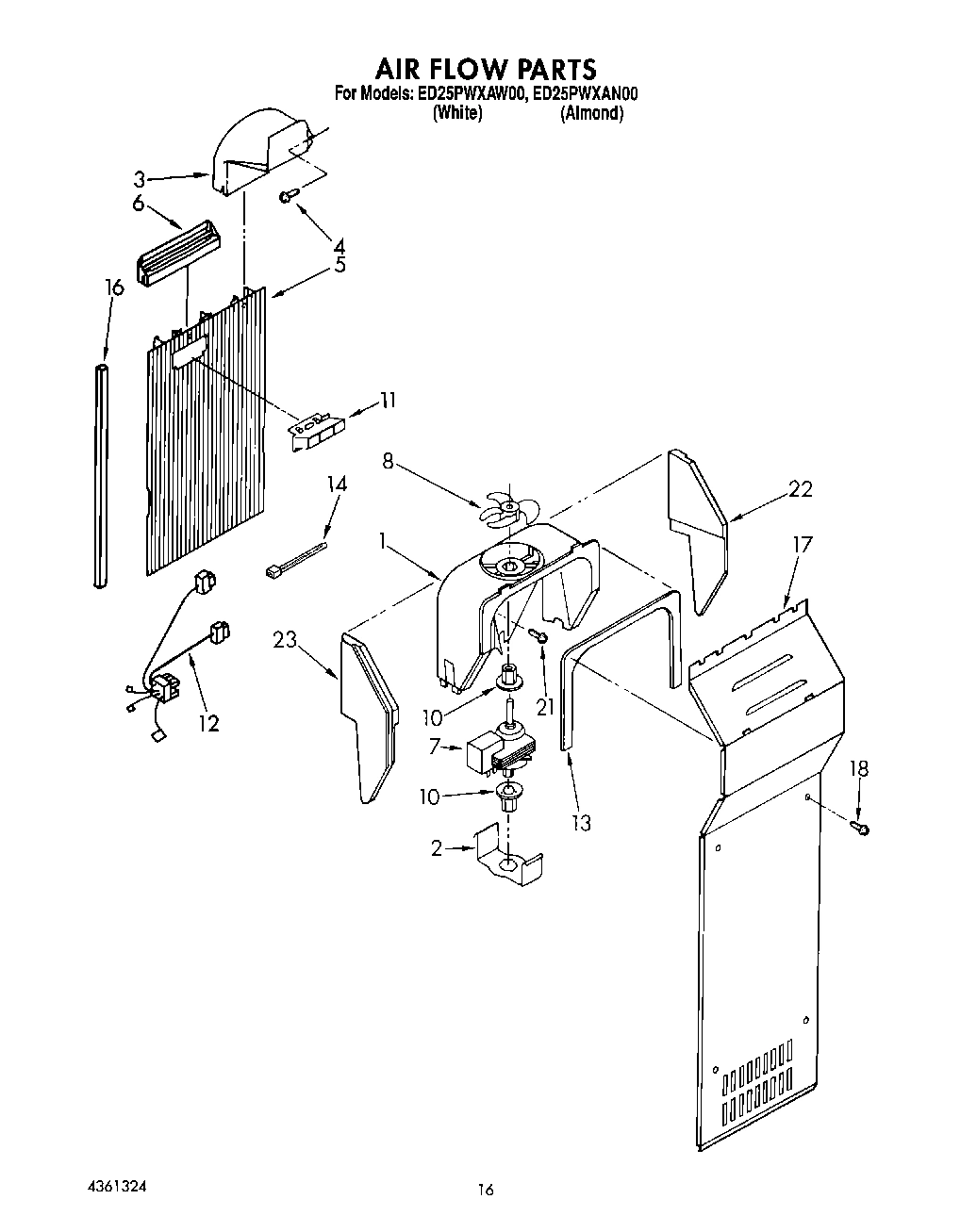

11 - AIR FLOW

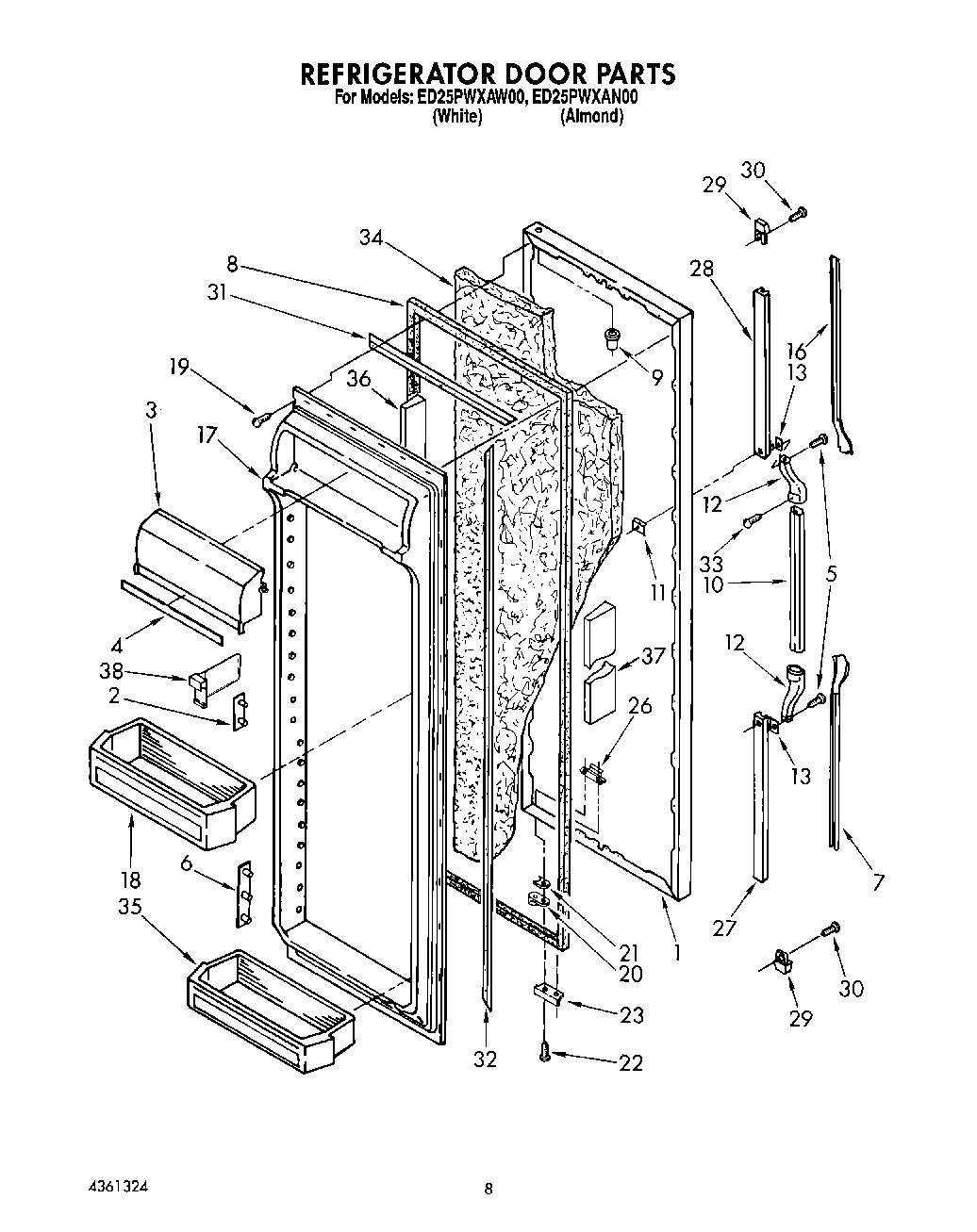

07 - REFRIGERATOR DOOR

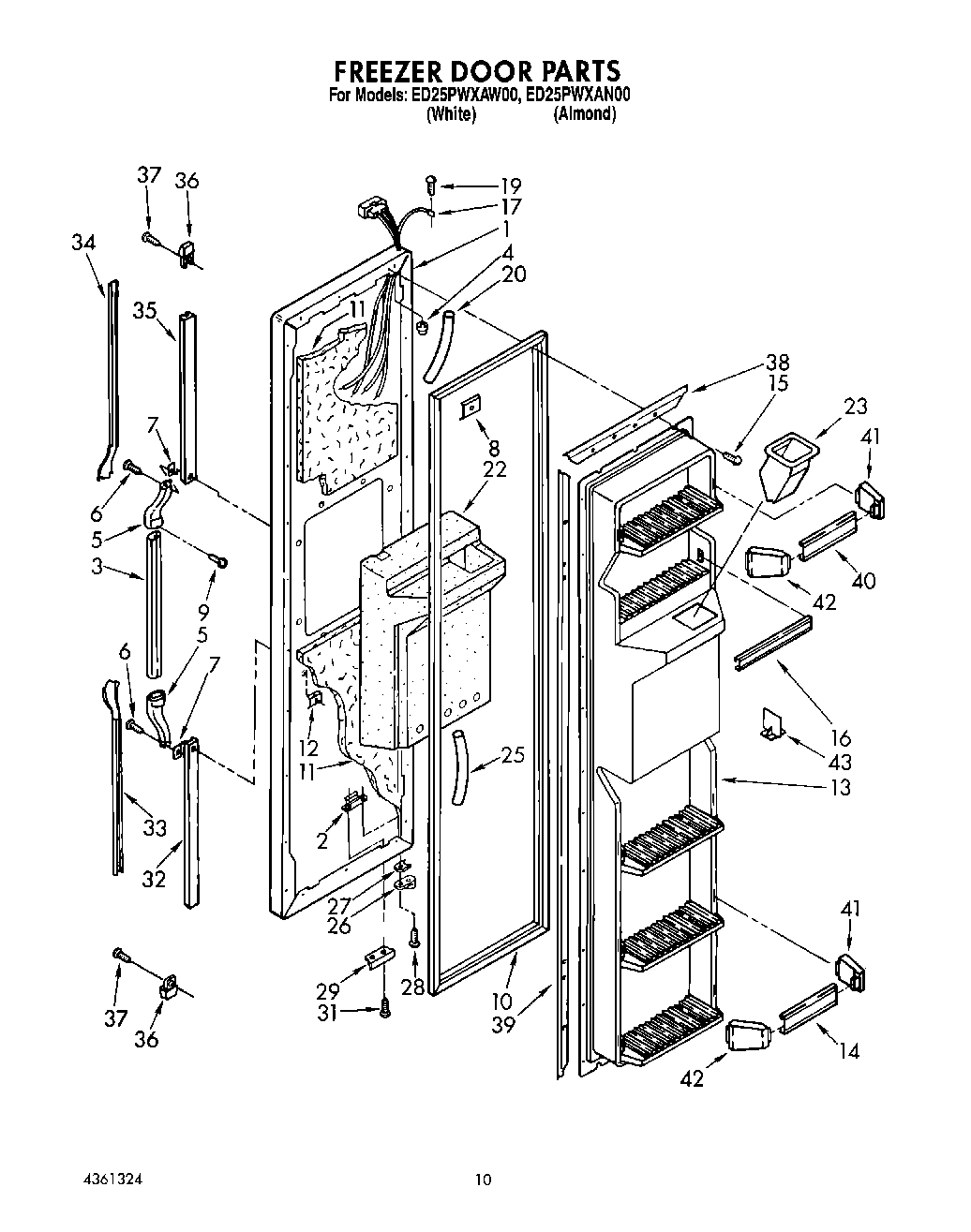

08 - FREEZER DOOR

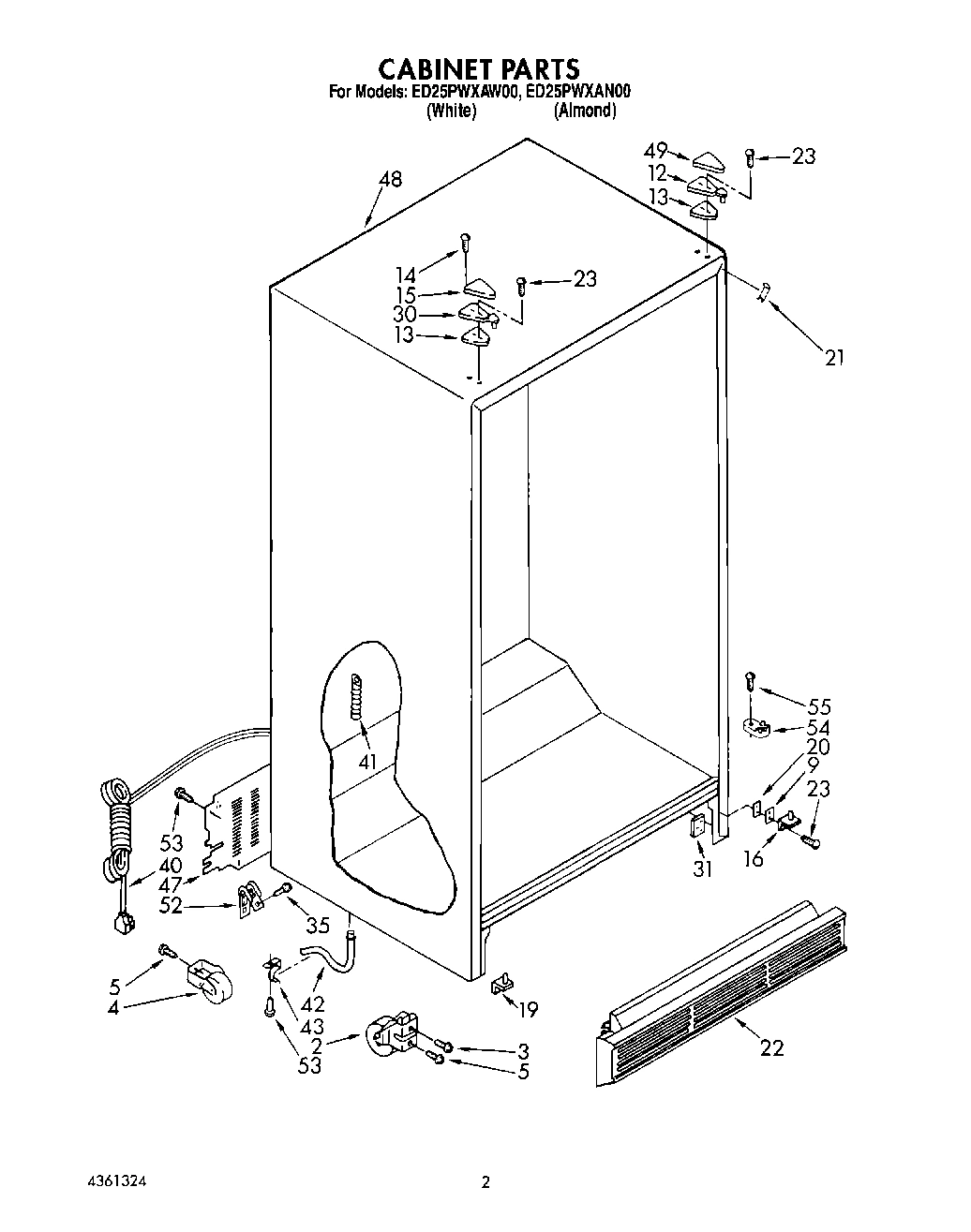

02 - CABINET

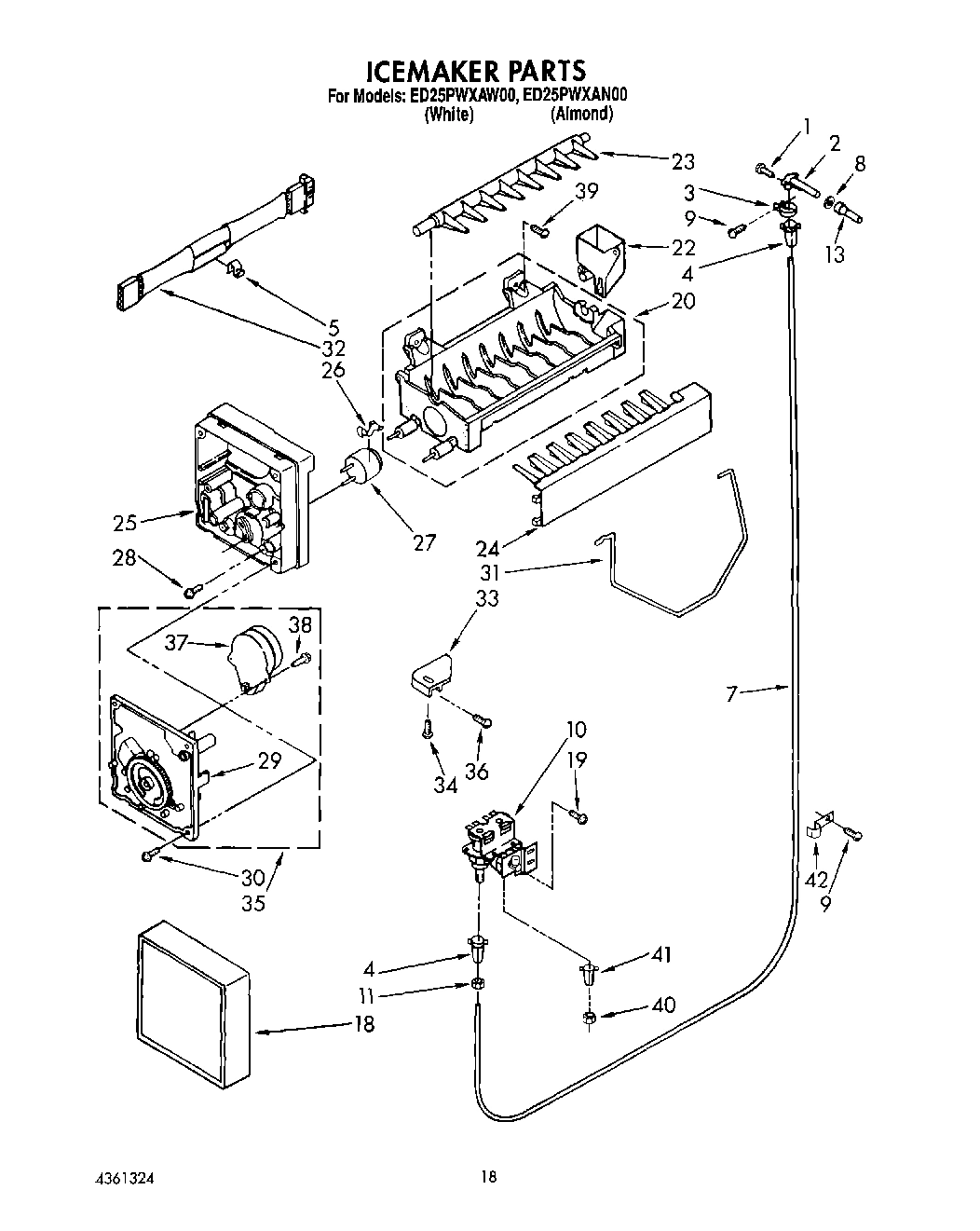

13 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED25PWXAW00 SIDE BY SIDE REFRIGERATOR
WPL LIT2148824 WPL LIT2148824 Contact Us For Availability
WPL LIT2155588 WPL LIT2155588 Contact Us For Availability
WPL LIT2160159 WPL LIT2160159 Contact Us For Availability
WPL LIT4361324 WPL LIT4361324 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1118413 Contact Us For Availability
1
Refrigerator Door (White) WPL 1110642 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 34 WPL 1110645 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1110652 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1110655 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Trim, Shelf WPL 1114302 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2148702 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Screw (3) WPL 489226 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Pan Shelf & Slide Assembly WPL 2148122 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Pin Plate (10) WPL 1116986 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1127309 Contact Us For Availability
9
Stud (2) WPL 1115290 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Pan, Crisper WPL 2148980 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Screw (4) WPL 489022 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Pan, Meat WPL 2148192 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1127310 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Glass, Shelf WPL 2148237 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Reflector, Shelf WPL 1114306 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154757 Contact Us For Availability
13
Front, Crisper Pan WPL 2148378 Contact Us For Availability
13
Panel, Interior Door WPL 1124969 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Slide WPL 1116718 Contact Us For Availability
14
Trim, Shelf (3) WPL 2148320 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI146050A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2148312 Contact Us For Availability
16
Glass, Shelf WPL 2148300 Contact Us For Availability
16
Trim, Door Shelf WPL 2148321 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Trim, Shelf WPL 2148301 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Panel, Interior Door WPL 1124842 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Snack Bin WPL 2148005 Contact Us For Availability
18
Shelf Bin (2) WPL 2163336 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
Insulation, Dispenser WPL 1115345 Contact Us For Availability
22
Grille WPL 1129054 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Deflector, Ice Container WPL 1119043 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
30
Screw, 4-40 x 3/4 (4) WPL 488362 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
31
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Insert, Handle (White) WPL 1119373 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Shelf Bin (2) WPL 2163337 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
37
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
38
Divider, Bin WPL 2152336 Contact Us For Availability
38
See Complete Cross-reference Listing WPL 4314268 Contact Us For Availability
38
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150339 Contact Us For Availability
40
Trim, Door Shelf WPL 2148319 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression 5/16`` WPL 1129179 Contact Us For Availability
41
End Cap, Trim (4) WPL 1115364 Contact Us For Availability
41
Insert, Tube WPL 1129177 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
End Cap, Trim (4) WPL 1115333 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Divider, Shelf WPL 1114380 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 2161317 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI146047A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
