Model Whirlpool ED22UQXGW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

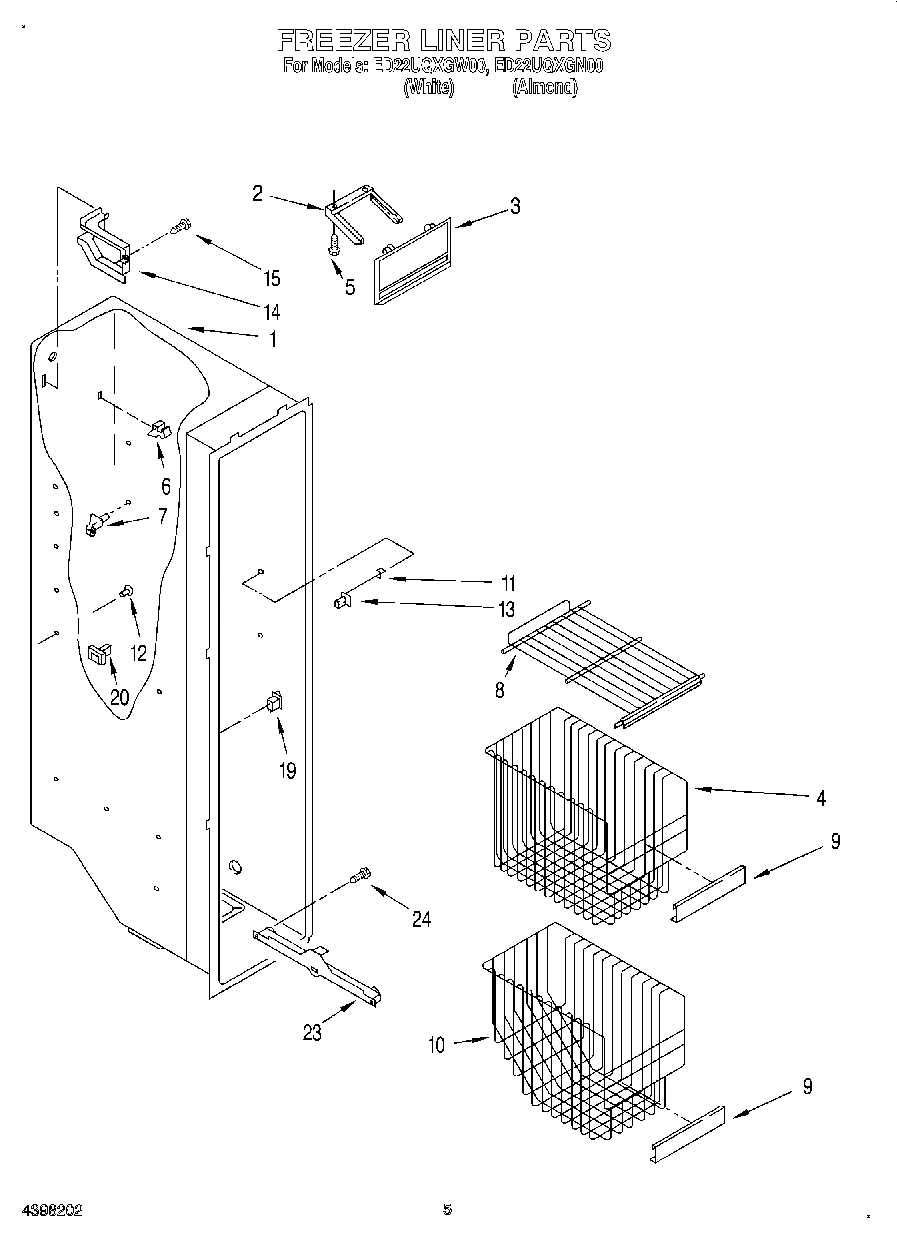

04 - FREEZER LINER

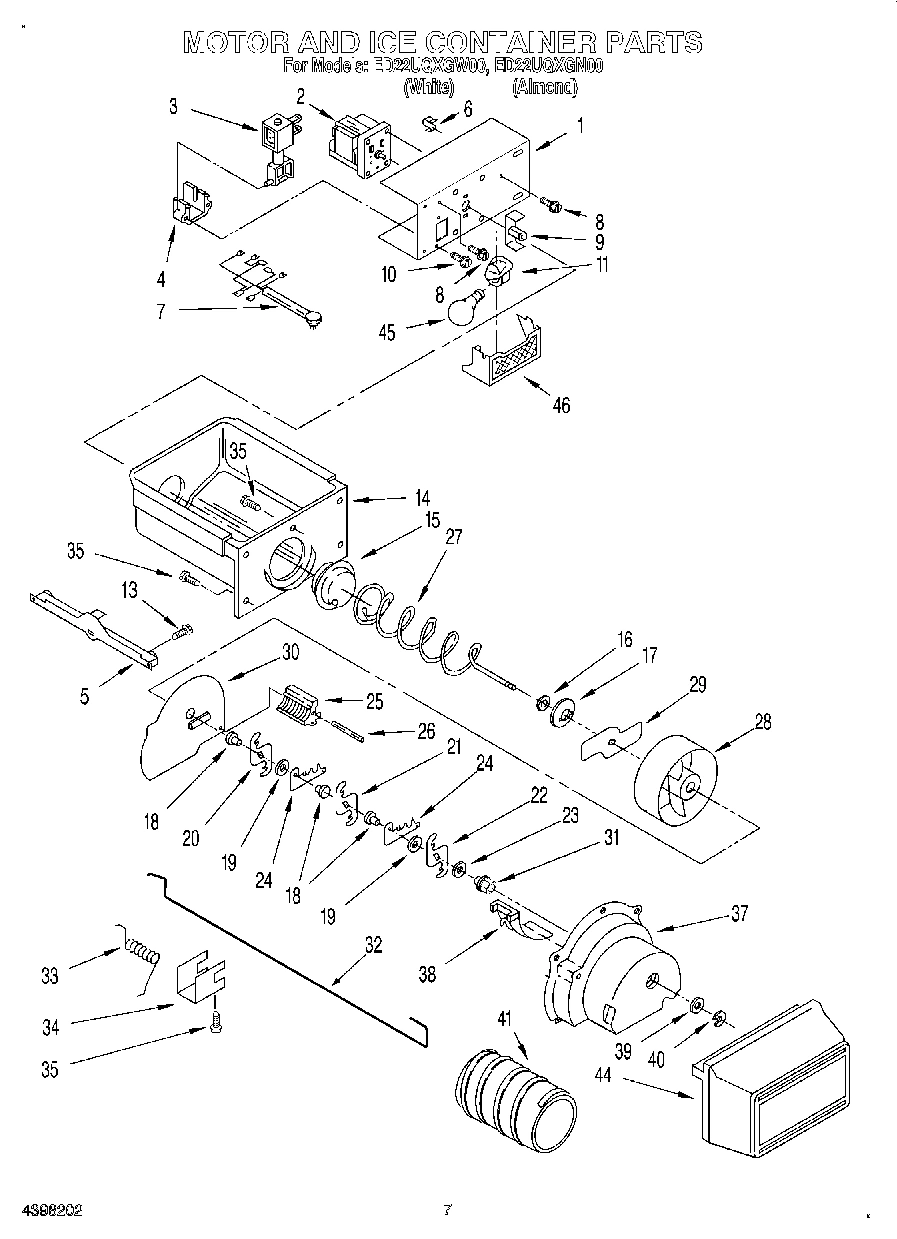

06 - MOTOR AND ICE CONTAINER
11 - ICE MAKER
05 - AIR FLOW
12 - CONTROL, LIT/OPTIONAL
01 - CABINET
03 - REFRIGERATOR SHELF
08 - FREEZER DOOR
09 - DISPENSER FRONT
02 - REFRIGERATOR LINER
07 - REFRIGERATOR DOOR
10 - UNIT
Common parts from model Whirlpool ED22UQXGW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27195A8 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194275W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Shelf Bin (3) WPL 2194917 Contact Us For Availability
5
Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability
5
Extension, Bottom (White) WPL 2194970W Contact Us For Availability
7
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Extension, Top (Almond) WPL 2194972N Contact Us For Availability
10
Extension, Top (White) WPL 2194972W Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180355 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180356 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI27198A2 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194569N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194569W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate (Includes Power Cord) WPL 2194746 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
KI WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
