Model Whirlpool ED22PSQDW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

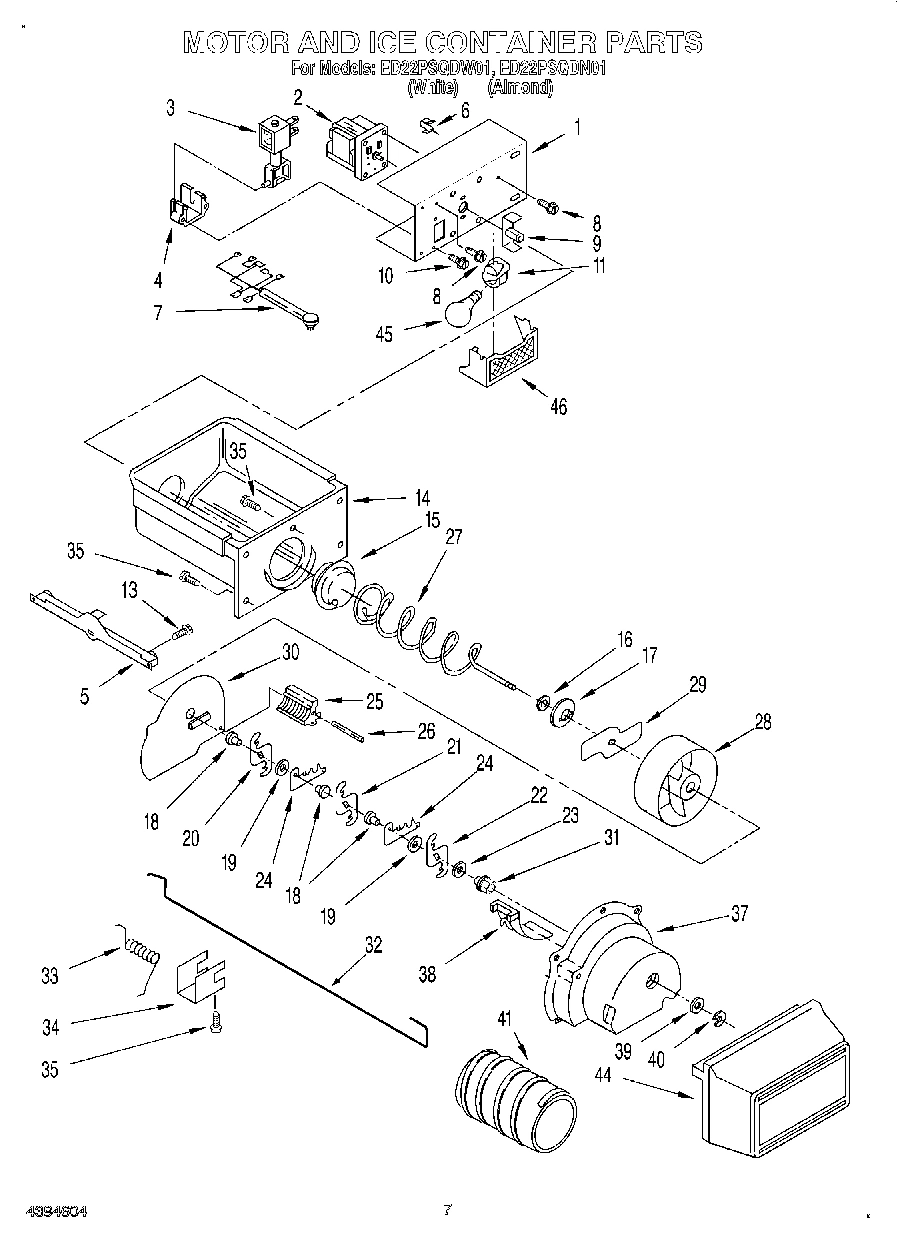

06 - MOTOR AND ICE CONTAINER

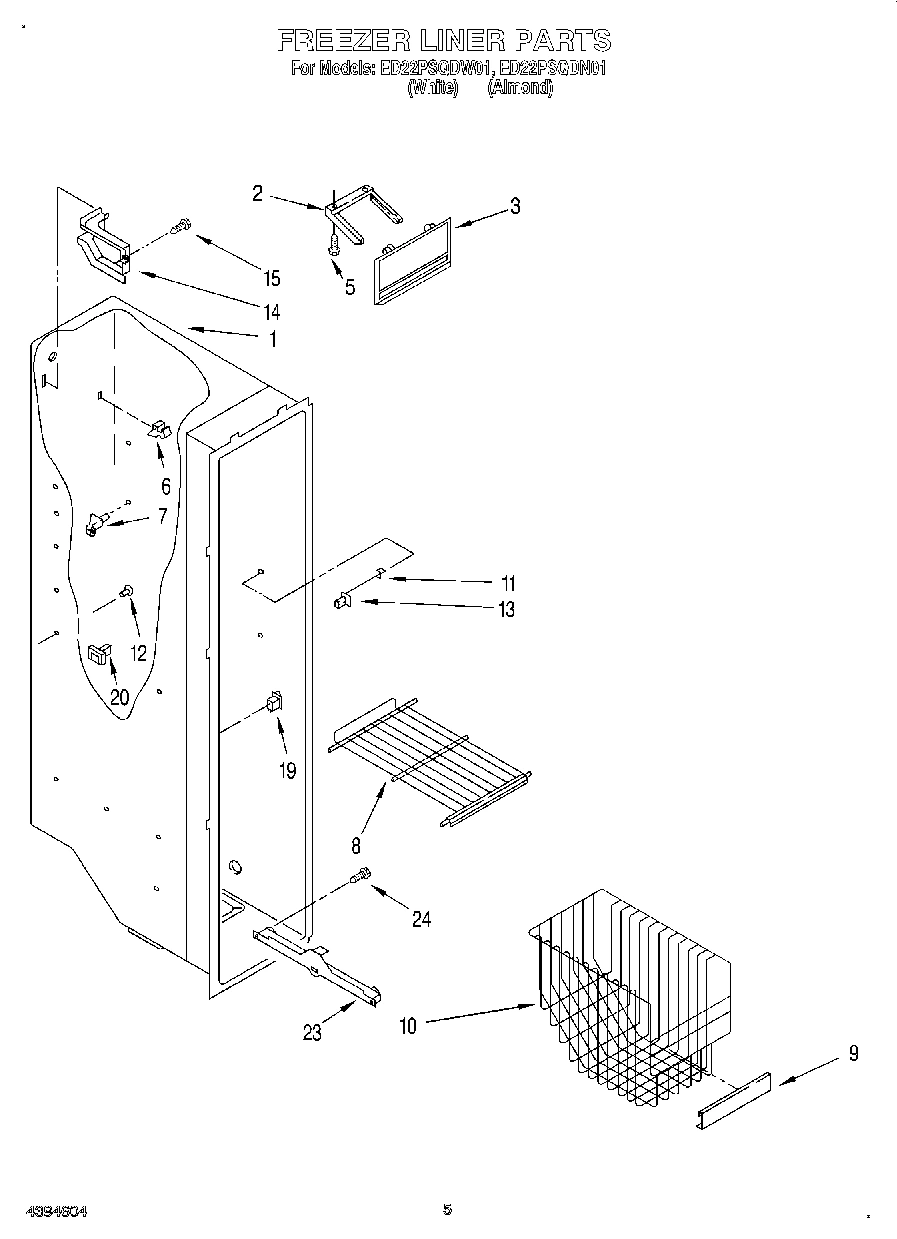

04 - FREEZER LINER
05 - AIR FLOW
02 - REFRIGERATOR LINER
03 - REFRIGERATOR SHELF

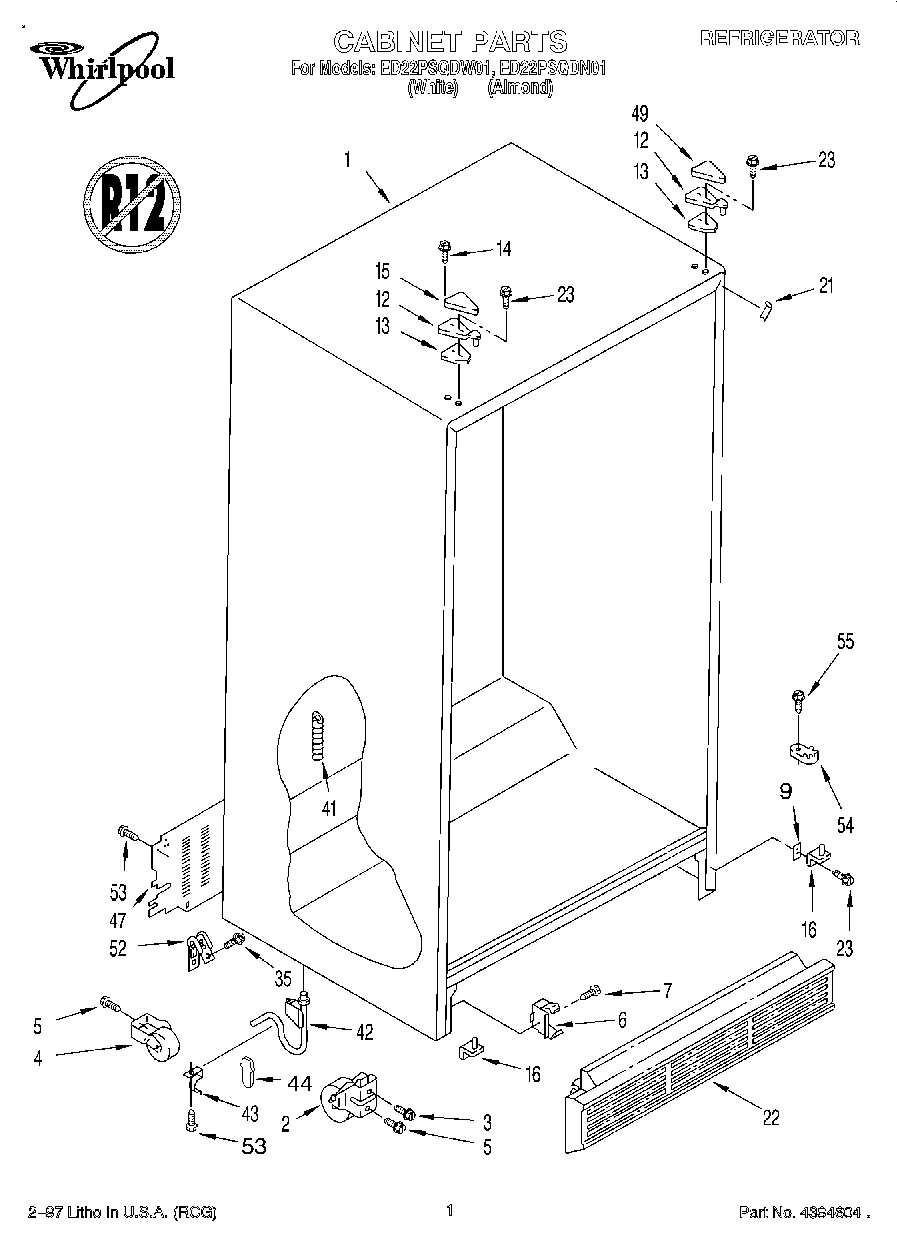

01 - CABINET

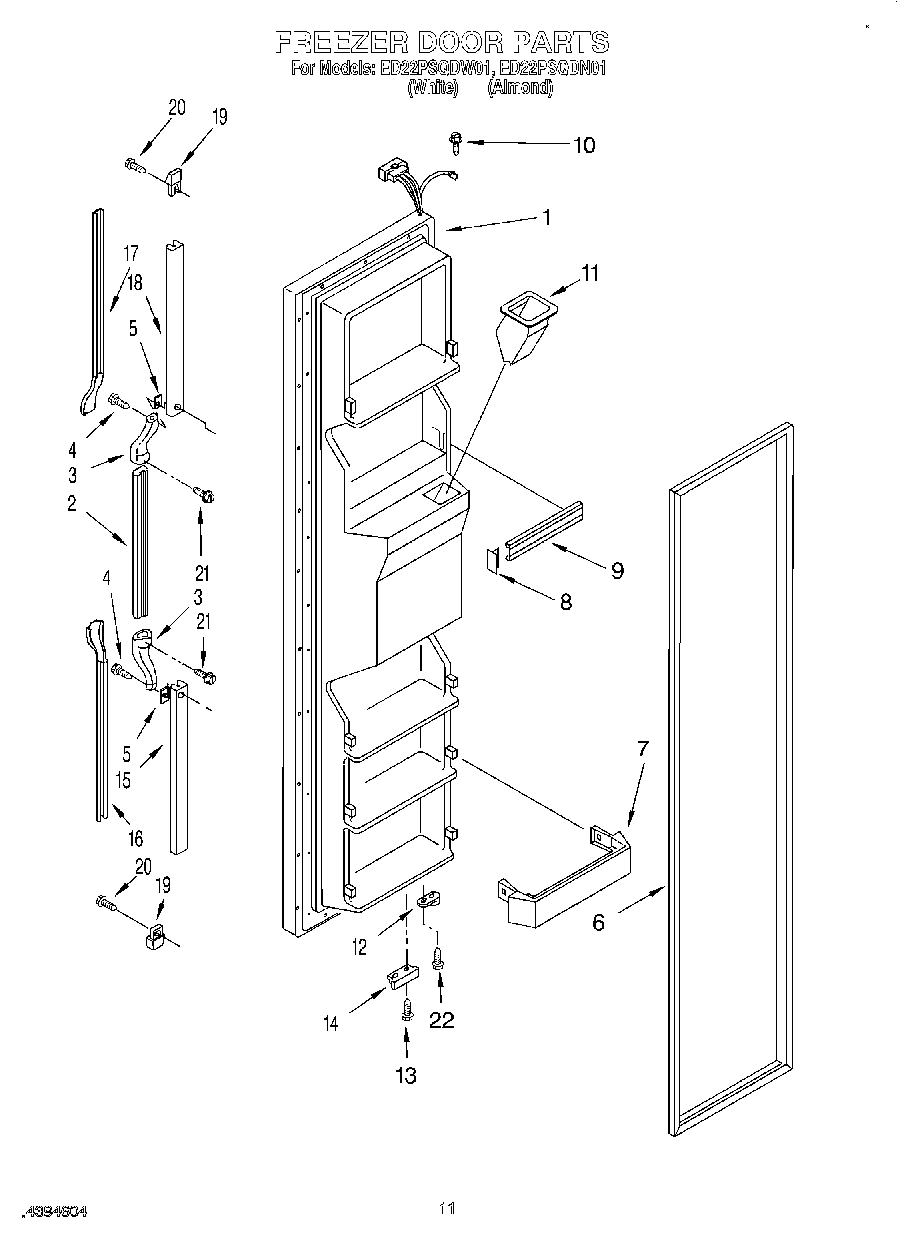

08 - FREEZER DOOR
11 - ICEMAKER

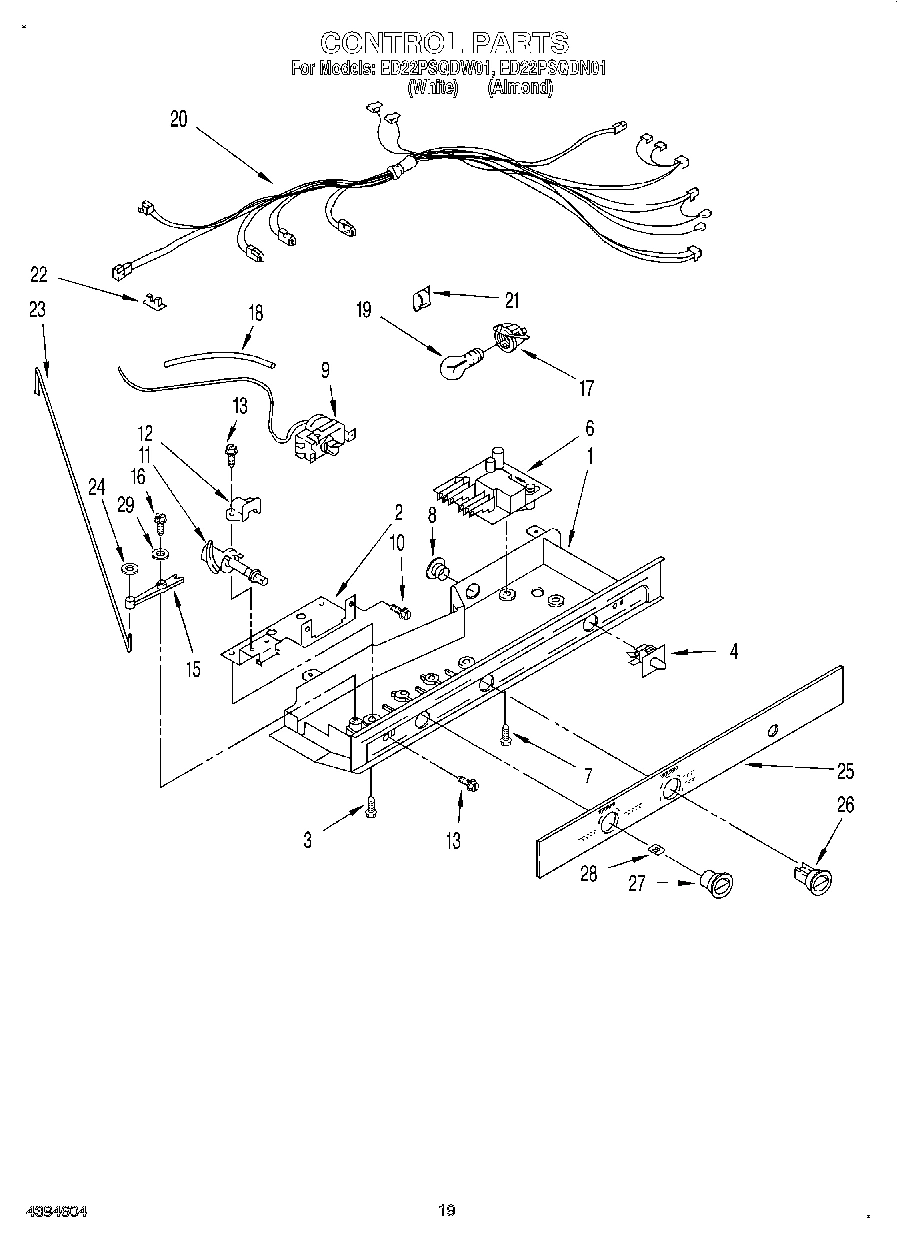

12 - CONTROL, LIT/OPTIONAL
10 - UNIT

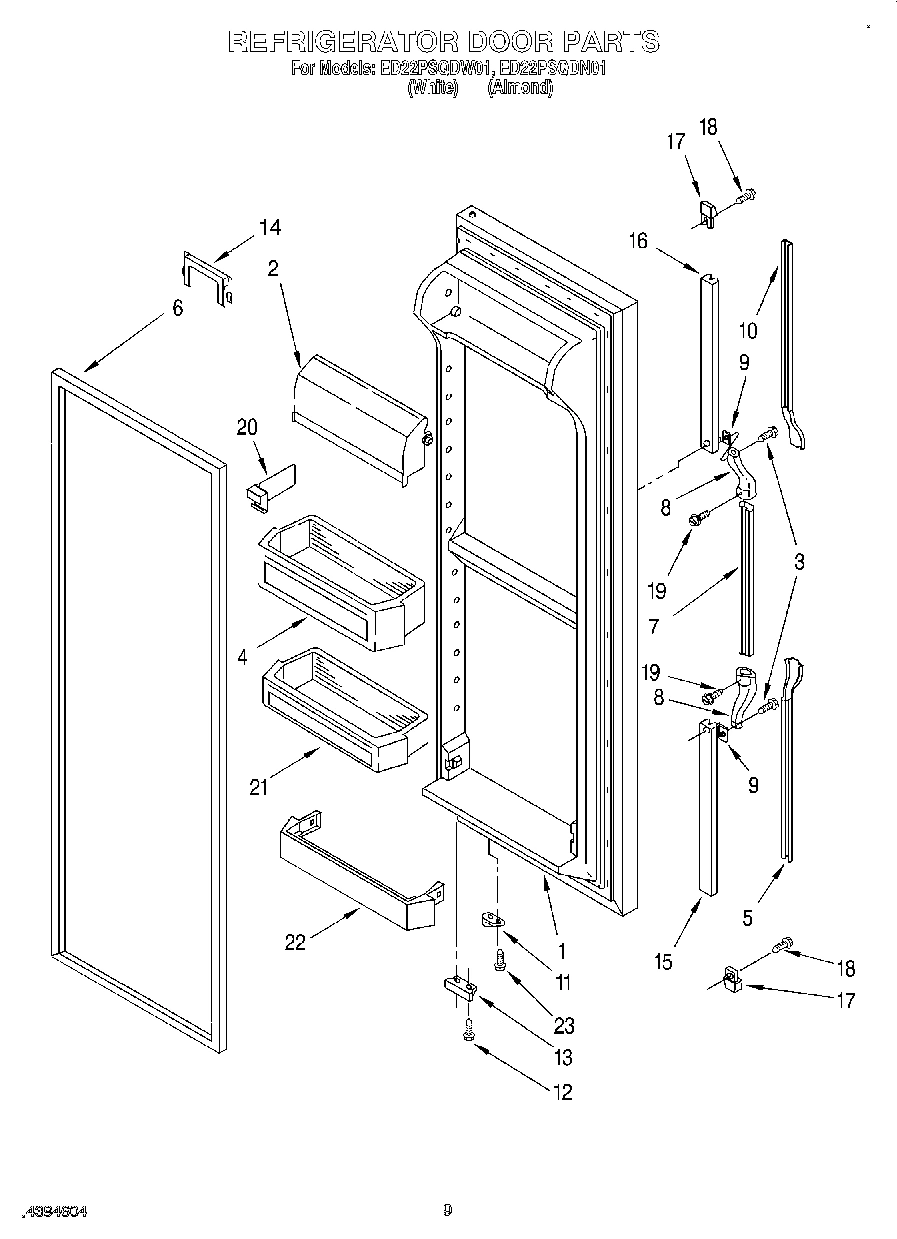

07 - REFRIGERATOR DOOR

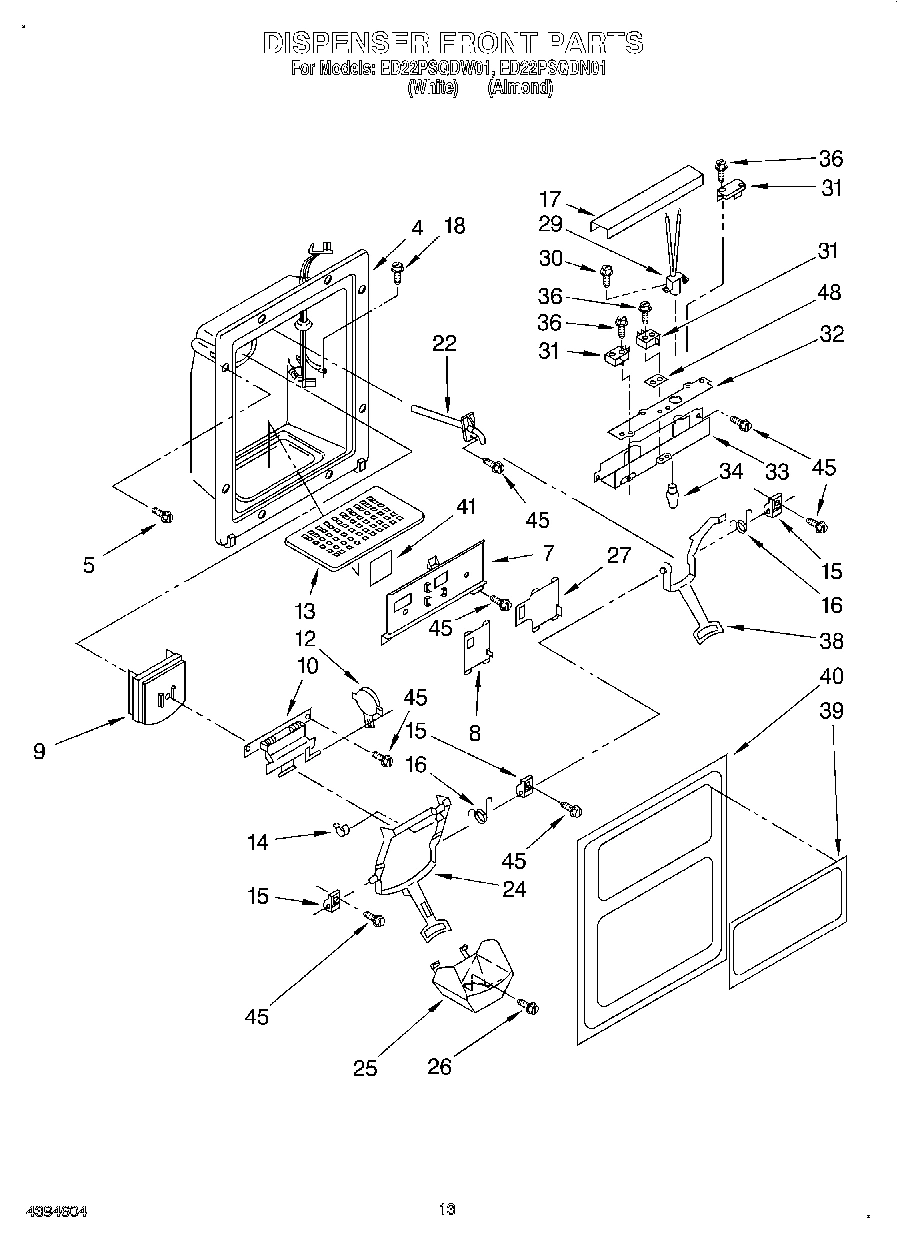

09 - DISPENSER FRONT
Common parts from model Whirlpool ED22PSQDW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175293 WPL LIT2175293 Contact Us For Availability
WPL LIT2176079 WPL LIT2176079 Contact Us For Availability
WPL LIT2194920 WPL LIT2194920 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194787N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194787W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI26797A9 Contact Us For Availability
5
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
5
Insert, Handle (White) WPL 2194773W Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
7
Handle, Center (White) WPL 2194767W Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
10
Insert, Handle (White) WPL 2194774W Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Bracket, Door Stop WPL 2155331 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI26798A2 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 2194770 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 2194771 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2195015 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Harness, Intermediate (Includes Power Cord) WPL 2194876 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
KIT, F WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes No. 39) (Almon WPL 2198153N Contact Us For Availability
40
Front Cover, Housing (Includes No. 39) (White WPL 2198153W Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
