Model Whirlpool ED22PFXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER LINER

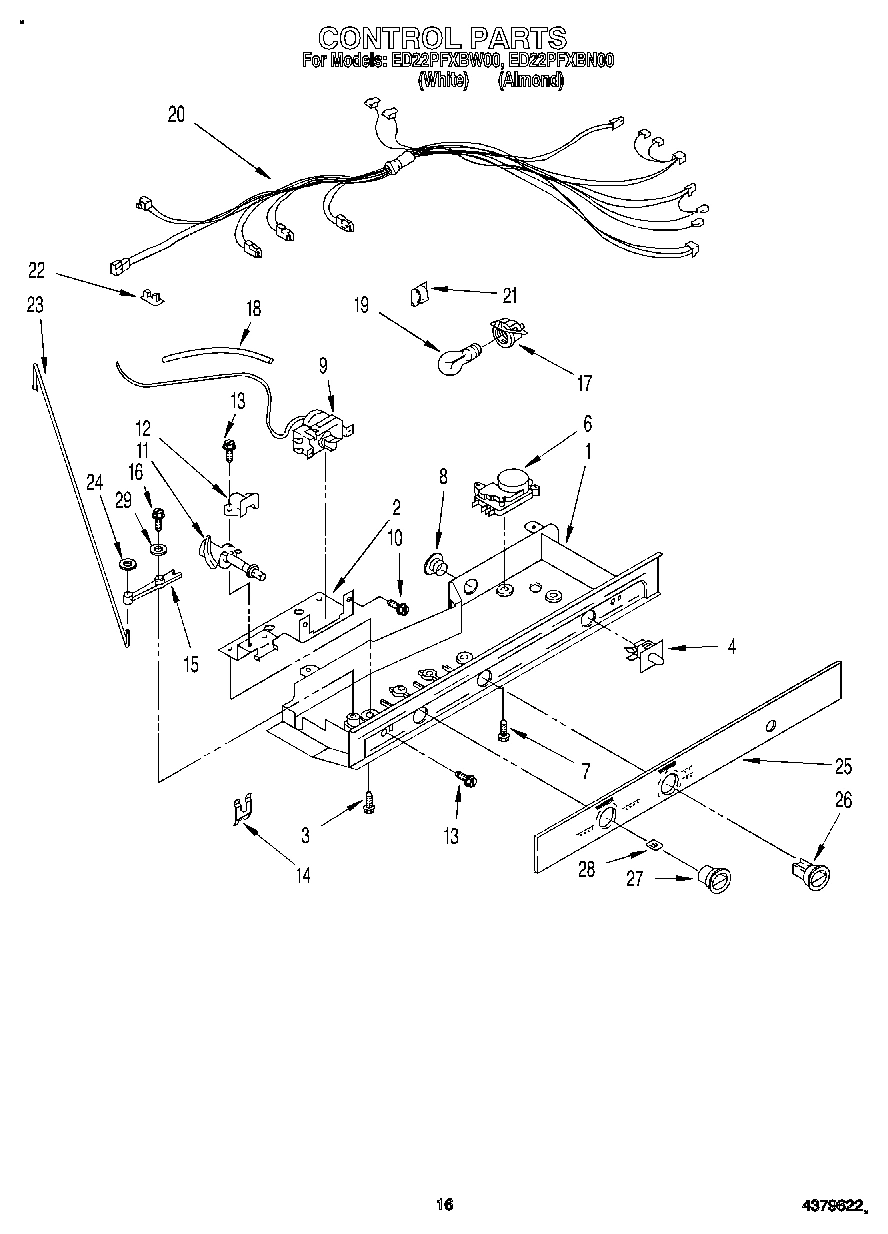

11 - CONTROL

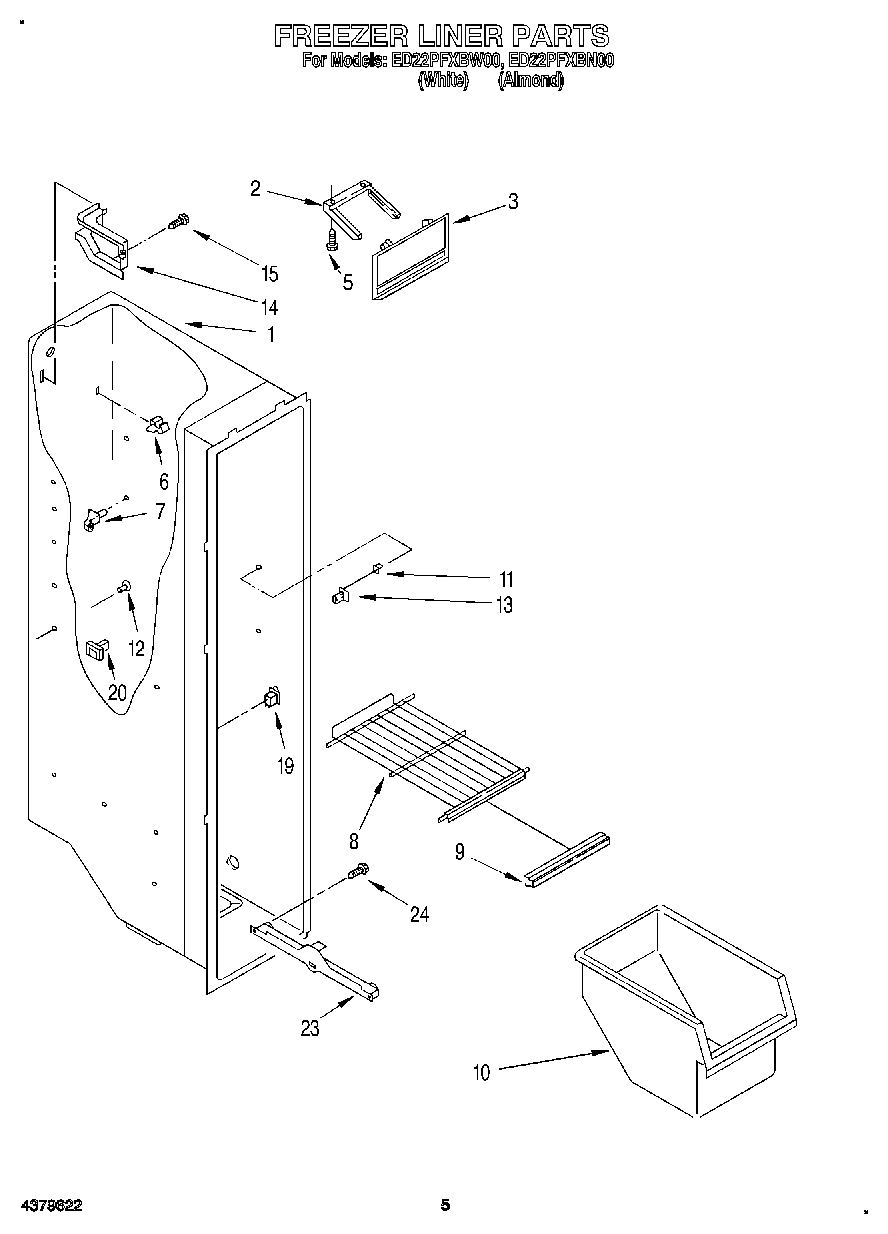

05 - FREEZER INTERIOR
06 - REFRIGERATOR DOOR
01 - CABINET
03 - REFRIGERATOR SHELF
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER
09 - UNIT
07 - FREEZER DOOR
08 - DISPENSER FRONT
Common parts from model Whirlpool ED22PFXBW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2171844 WPL LIT2171844 Contact Us For Availability
WPL LIT2175983 WPL LIT2175983 Contact Us For Availability
WPL LIT2175985 WPL LIT2175985 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145537A Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2177121 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2177212 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174749 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Handle, Center WPL 1118417 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI145539A Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI145540A Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Meat Pan WPL 2170932 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Cover WPL 2170949 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop WPL 2155334 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert WPL 1119360 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Relay (See Overload) WPL ARI145541A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
16
Insert, Handle (White) WPL 1119361 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Insert, Handle (White) WPL 1119367 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Retainer, Insert WPL 1119366 Contact Us For Availability
18
Snack Bin WPL 2170938 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
woodgrain handle insert WPL 4210445 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
22
Black Handle Insert WPL 4319080 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177143 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser WPL 2177148 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
front cover, housing (includes item 39) WPL 2150340 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI145536A Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
E WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
