Model Whirlpool ED22HDXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

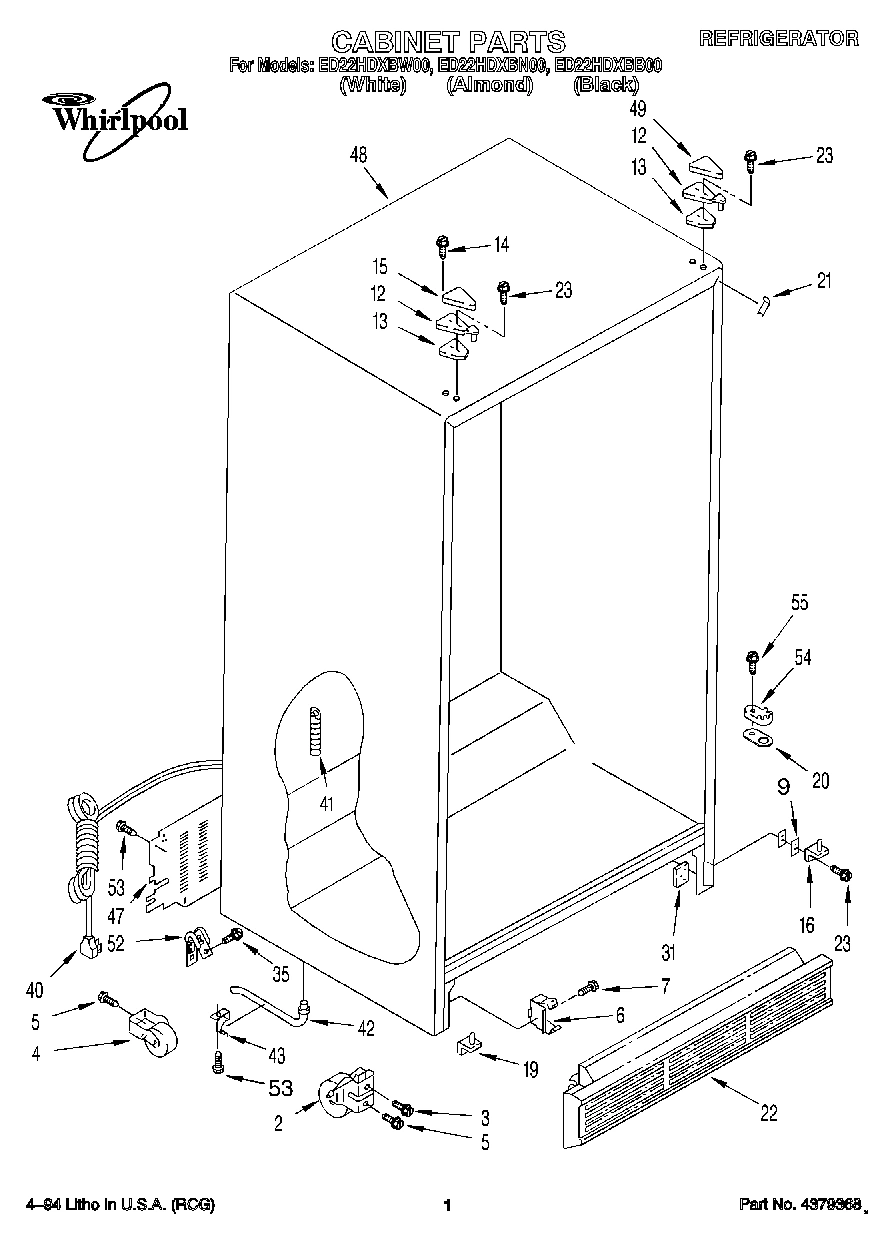

01 - CABINET

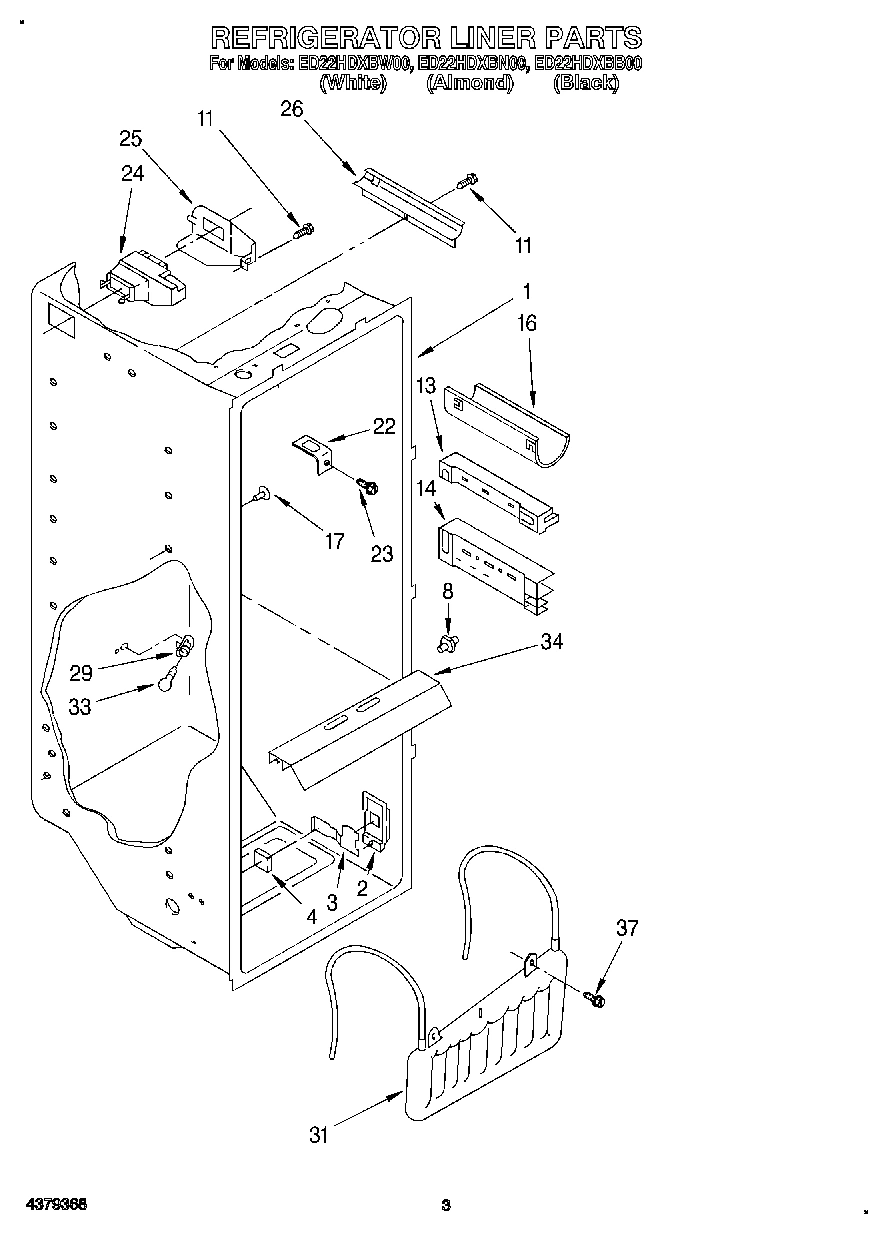

02 - REFRIGERATOR LINER

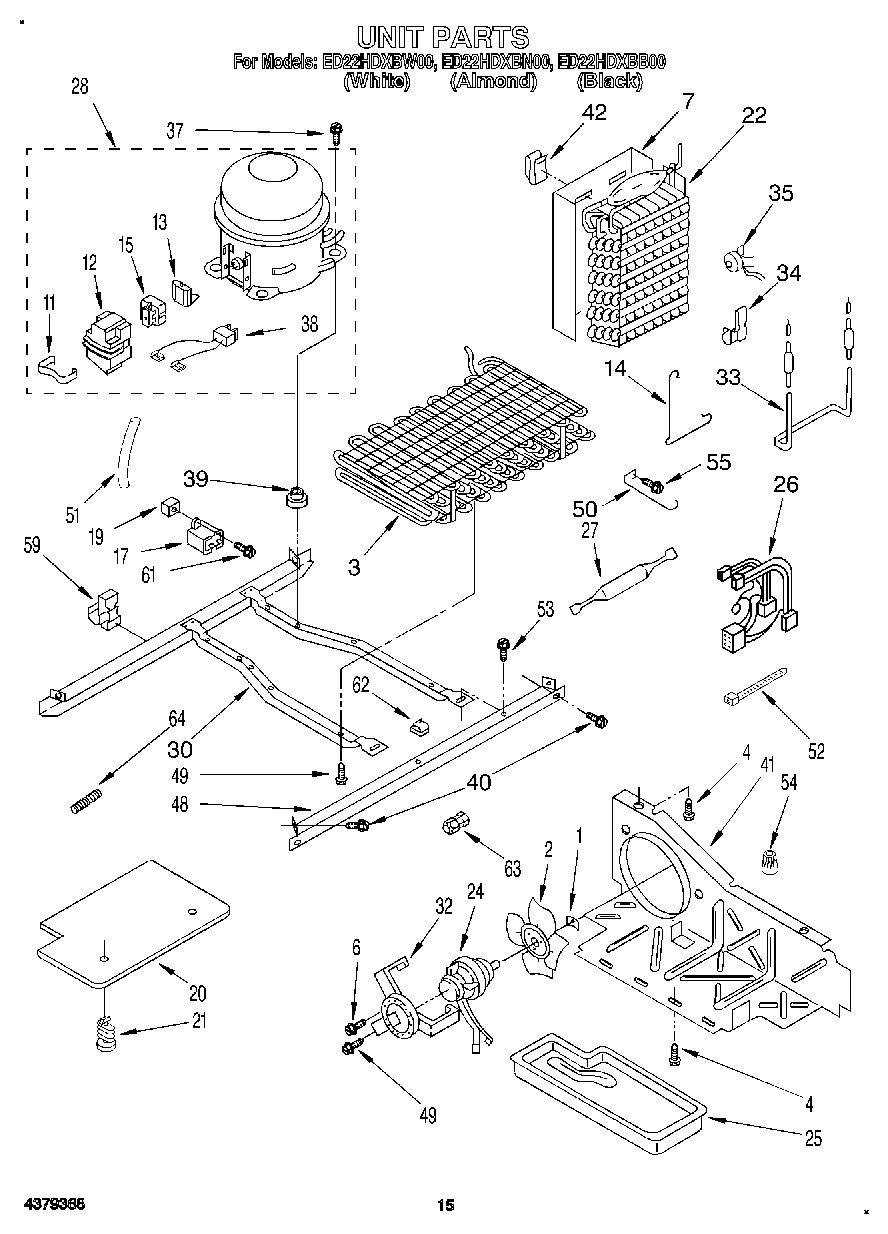

10 - UNIT

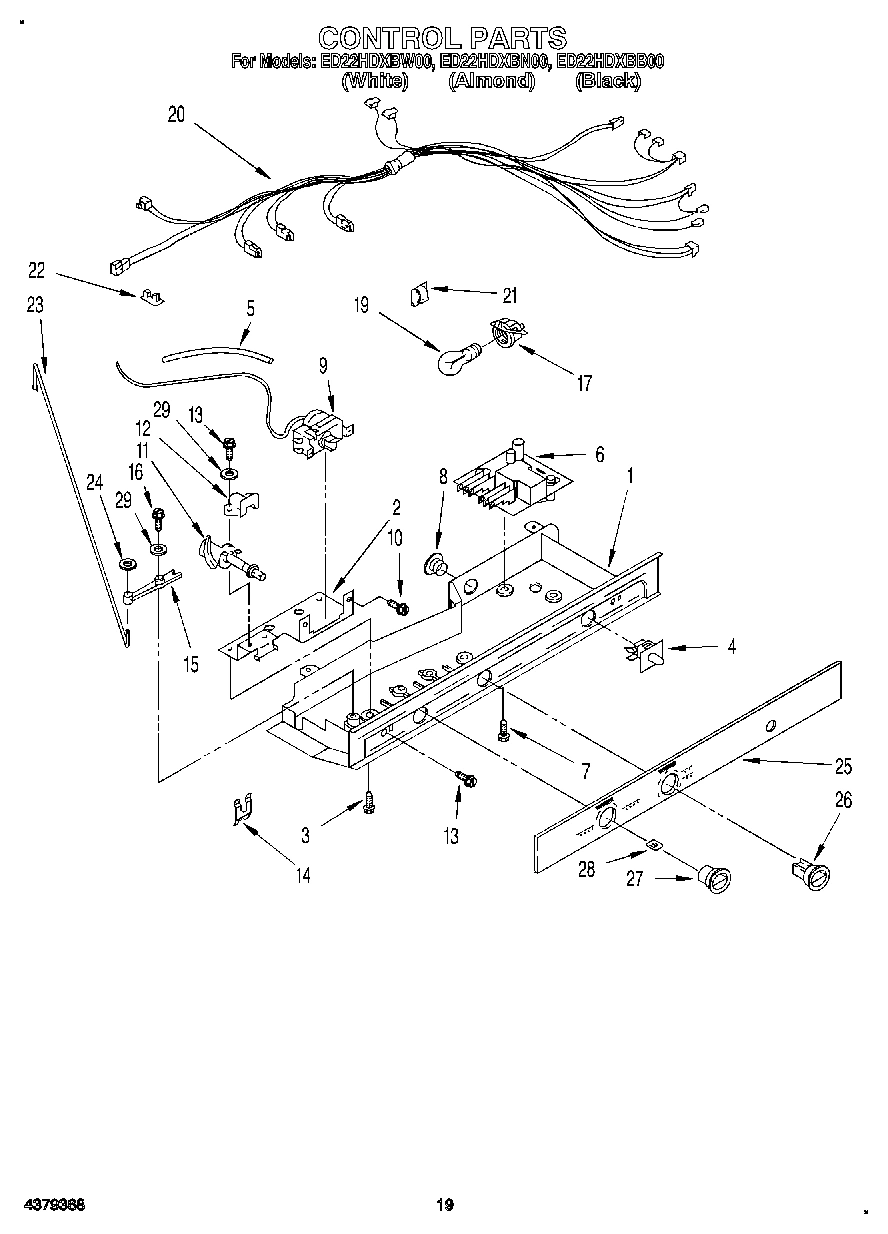

12 - CONTROL, LIT/OPTIONAL

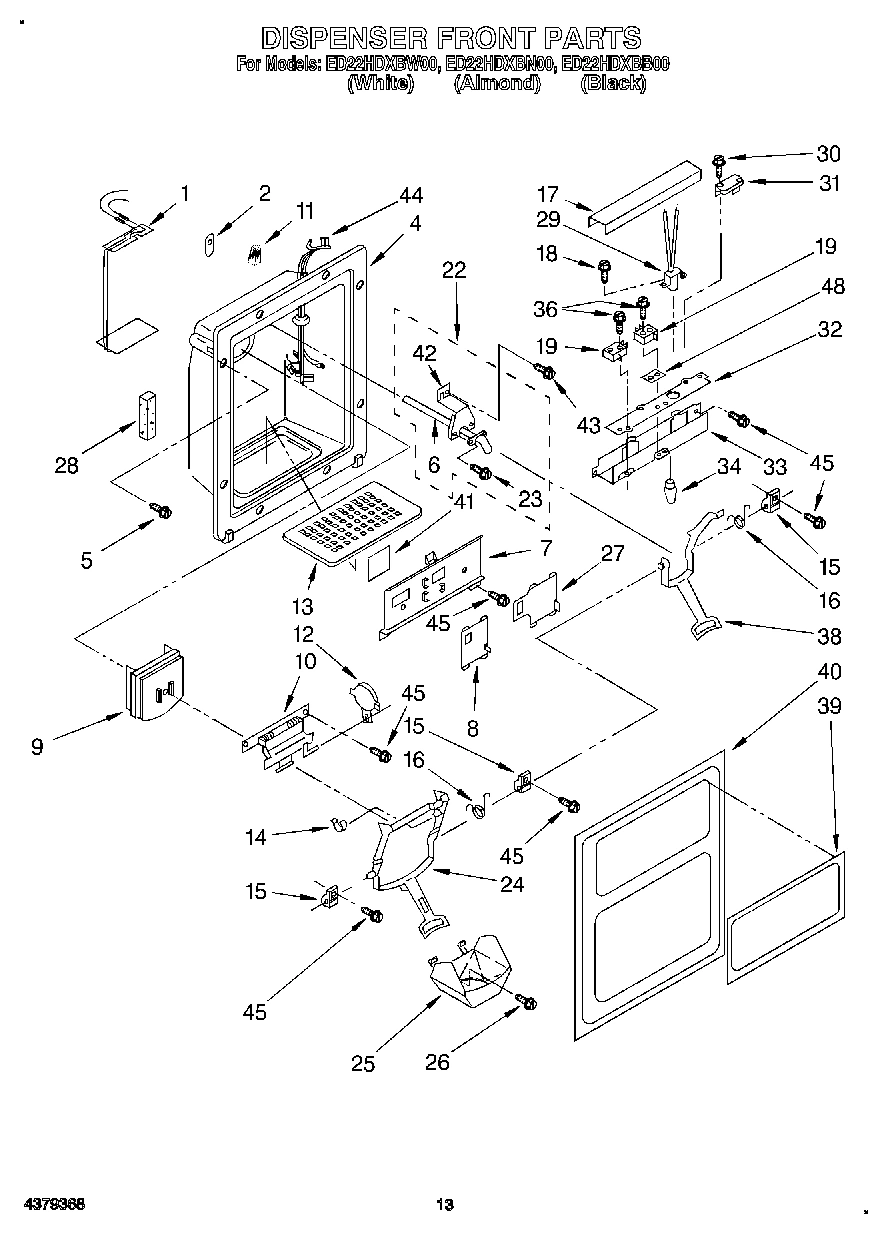

09 - DISPENSER FRONT

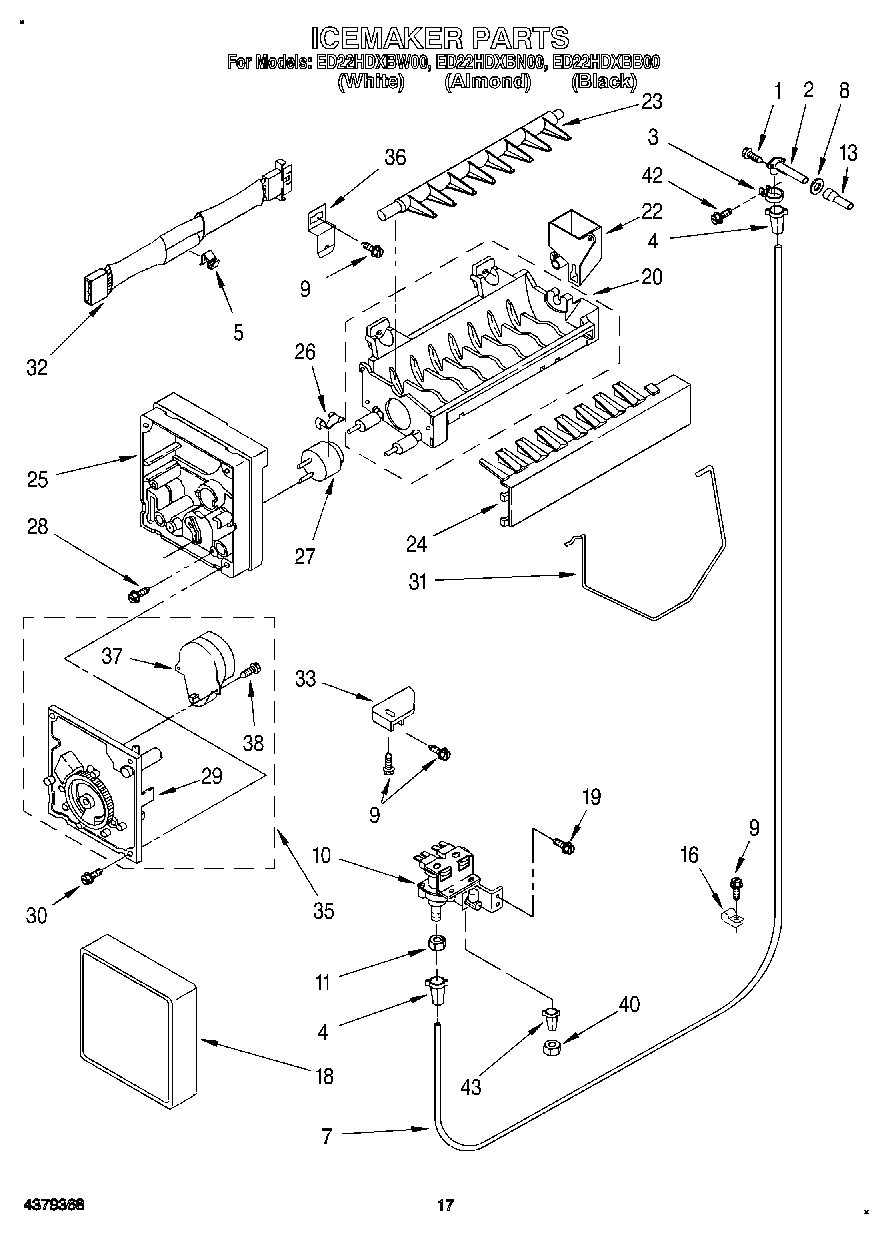

11 - ICEMAKER

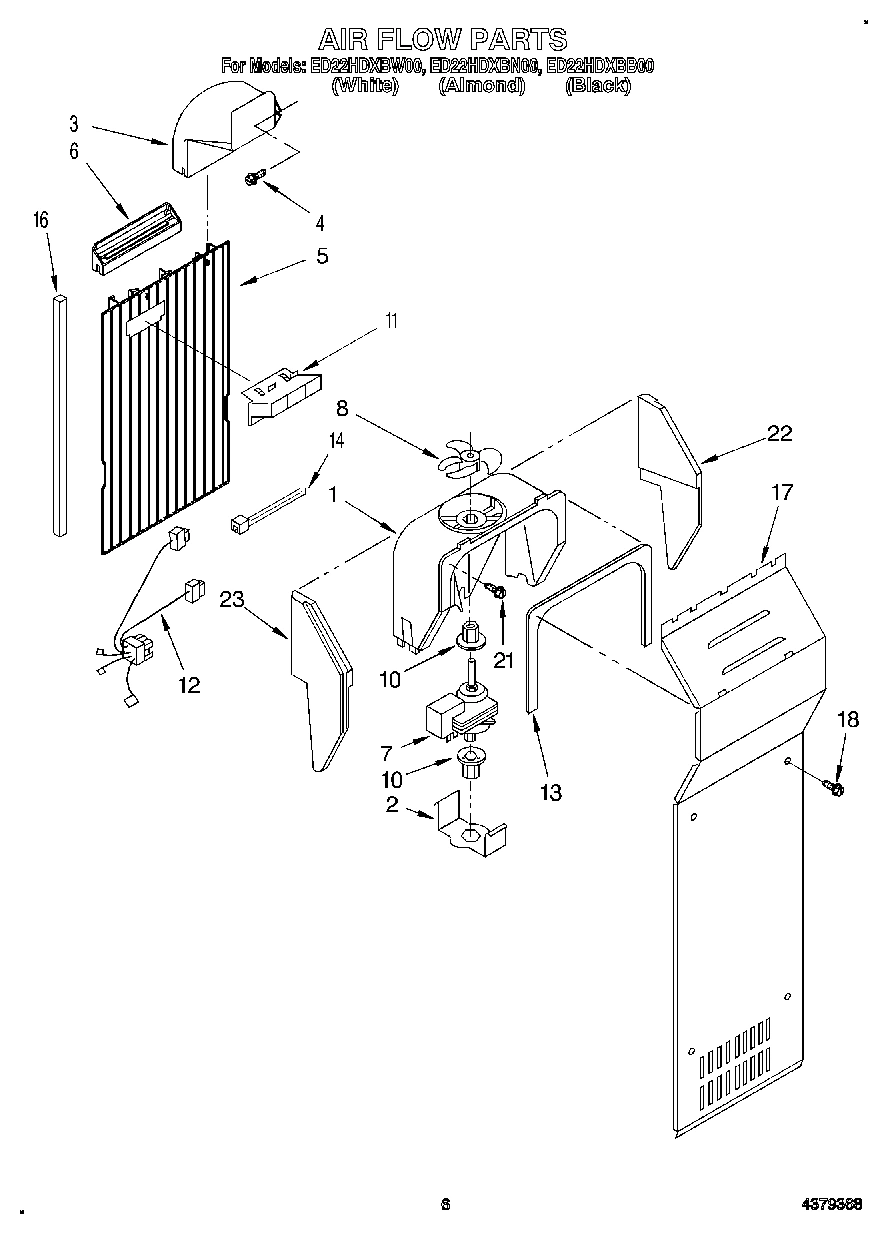

05 - AIR FLOW

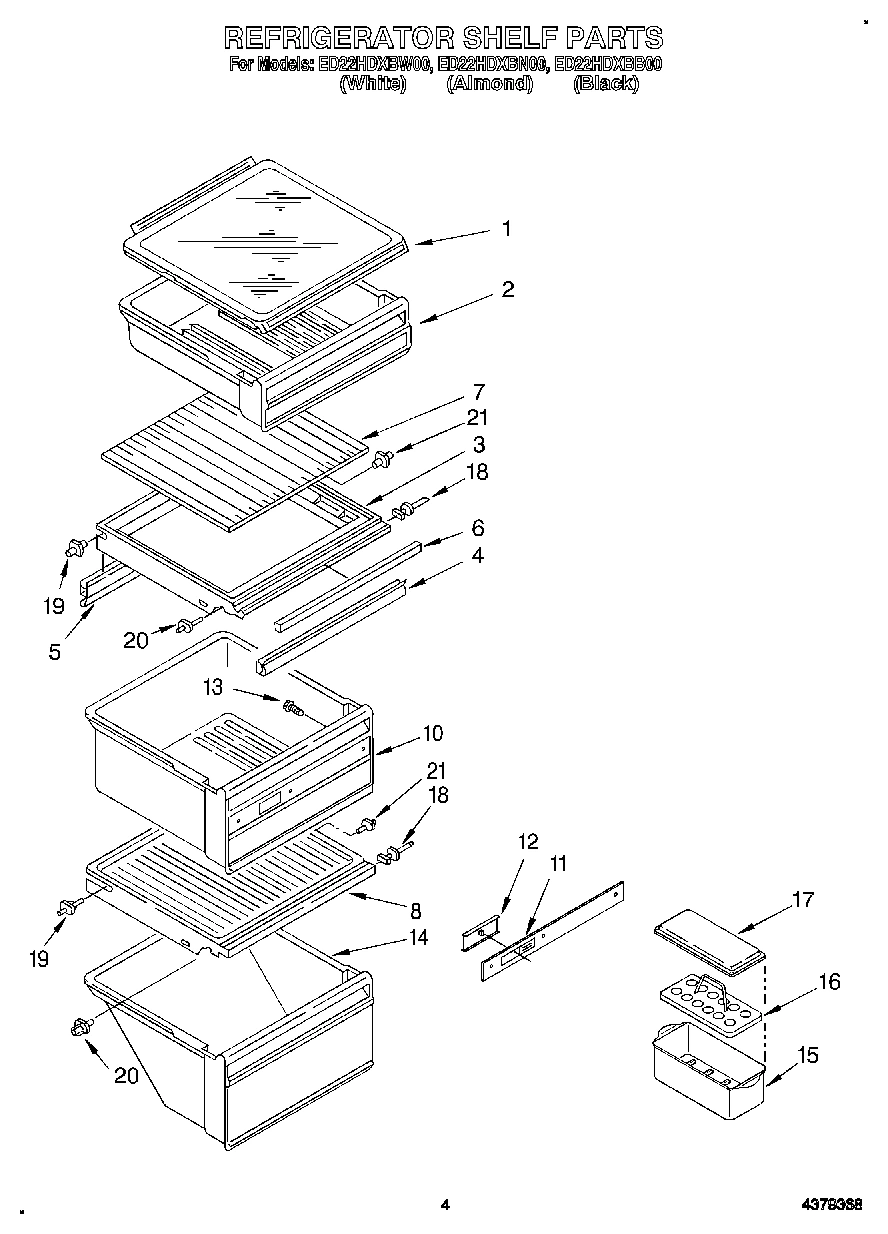

03 - REFRIGERATOR SHELF

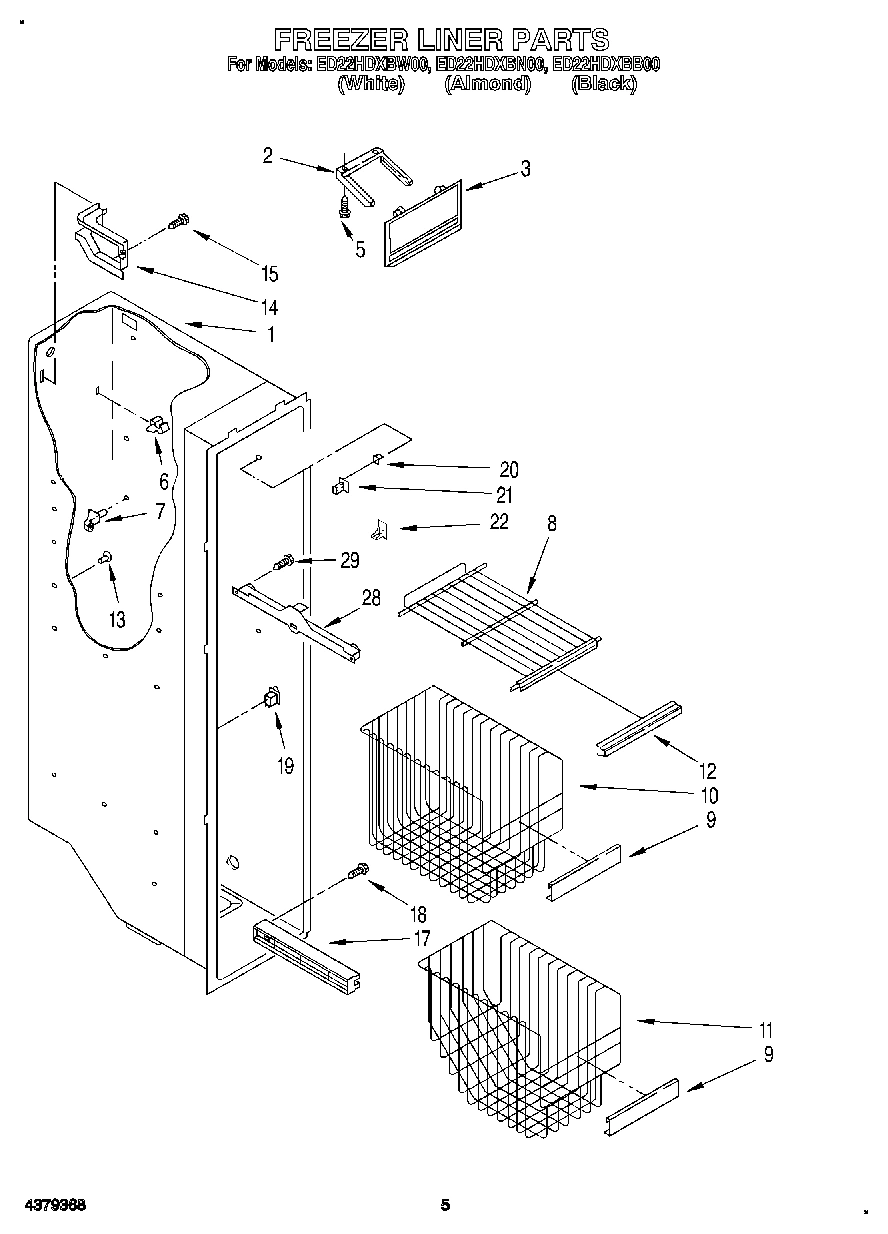

04 - FREEZER LINER

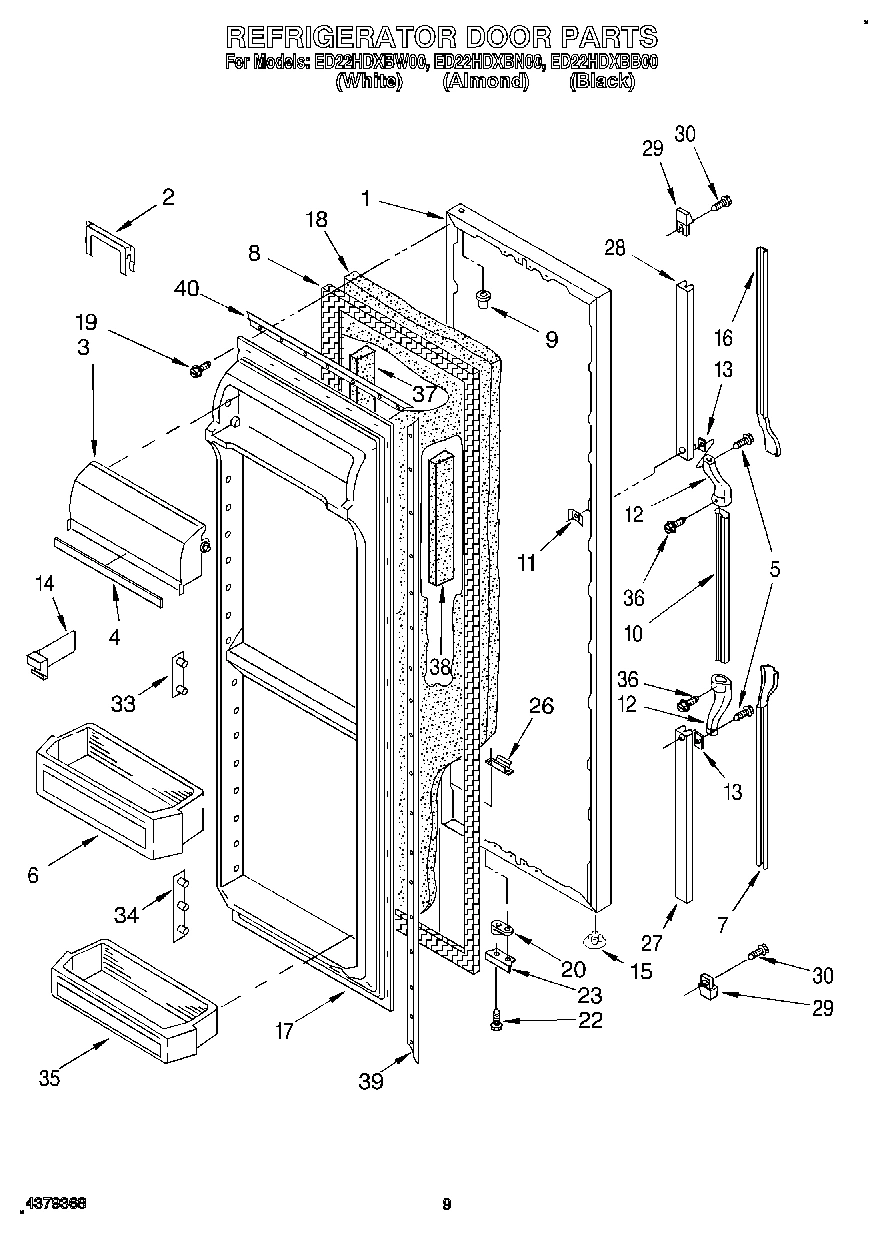

07 - REFRIGERATOR DOOR

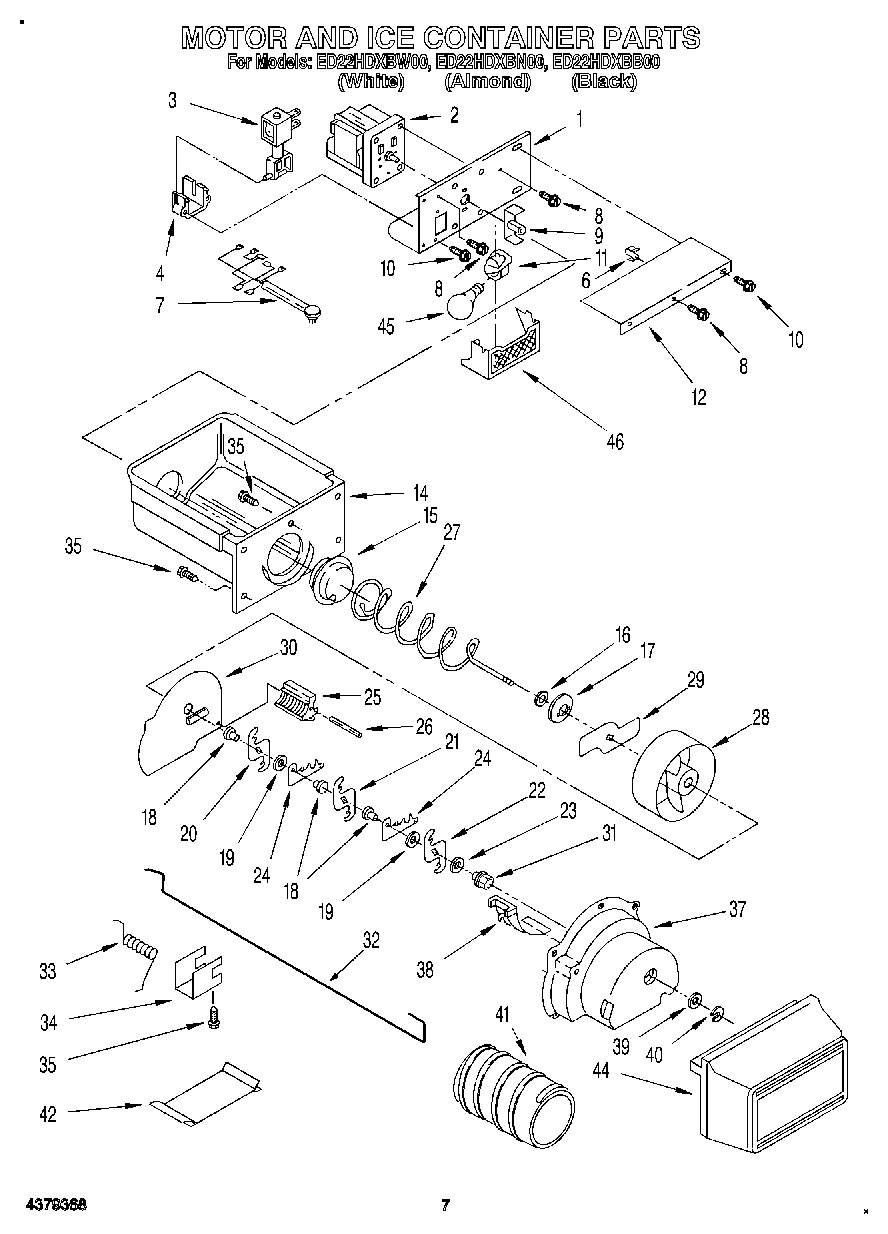

06 - MOTOR AND ICE CONTAINER

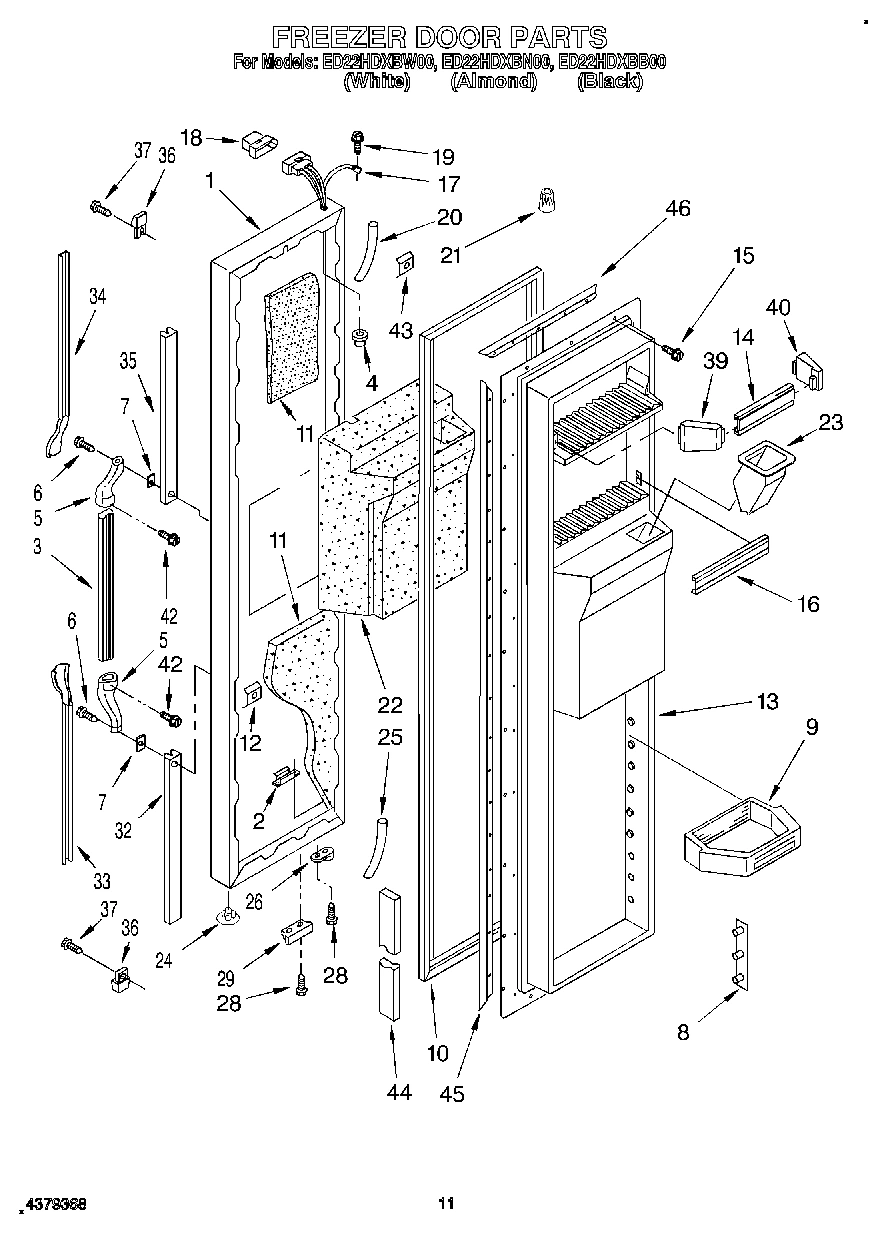

08 - FREEZER DOOR
Common parts from model Whirlpool ED22HDXBW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145485A Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2156067 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2156070 Contact Us For Availability
1
Refrigerator Door Panel (Black (Also Order It WPL 2159488 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2156127 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 2156130 Contact Us For Availability
1
Freezer, Door Panel (Black (Also Order Item 1 WPL 2159487 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Snack Bin WPL 2170578 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Retainer, Bottle WPL 2163566 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Ice Compartment WPL 2162945 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center (Black) WPL 1118417 Contact Us For Availability
3
Handle, Center (White) WPL 1124713 Contact Us For Availability
3
Handle, Center (Almond) WPL 943079 Contact Us For Availability
4
Housing, Dispenser (White) WPL 2157623 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 2159158 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 2159159 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Trim, Compartment Door WPL 2162896 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI145486A Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Trim, Crisper Cover WPL 2162845 Contact Us For Availability
6
Shelf Bin (2) WPL 2162889 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Glass, Crisper Cover WPL 2162983 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Shelf WPL 2155640 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Trim, Basket WPL 2162835 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (3) WPL 2162890 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Pan, Crisper WPL 2162860 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Front, Crisper Pan WPL 2162854 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Slide, Humidity Control WPL 2162849 Contact Us For Availability
12
Trim, Shelf WPL 2162938 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Screw (3) WPL 489268 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Meat Pan WPL 2162932 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Trim, Door Shelf WPL 2162838 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 2162830 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover WPL 2164374 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Shelf Stud WPL 1115290 No Longer Available
20
Spacer, Hinge WPL 987179 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Grille (Black) WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 2156044 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
24
Hole Plug WPL 2151653 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Screw (Stainless) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPO WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
29
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
WPL 2147164 WPL 2147164 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
WPL 2147163 WPL 2147163 Contact Us For Availability
33
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
34
Insert, Handle (Black) WPL 1118436 Contact Us For Availability
34
Insert, Handle (White) WPL 1119367 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Shelf Bin (2) WPL 2162888 Contact Us For Availability
36
WPL 489155 WPL 489155 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
39
WPL 2150319 WPL 2150319 Contact Us For Availability
39
WPL 2162923 WPL 2162923 Contact Us For Availability
39
WPL 2162924 WPL 2162924 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
40
WPL 2148705 WPL 2148705 Contact Us For Availability
40
WPL 2162925 WPL 2162925 Contact Us For Availability
40
WPL 2162927 WPL 2162927 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Screw WPL 489022 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171262 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
45
Gasket Retainer, WPL 1117766 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
WPL 1117767 WPL 1117767 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
