Model Whirlpool ED22DQXAW11 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - AIR FLOW
01 - CABINET

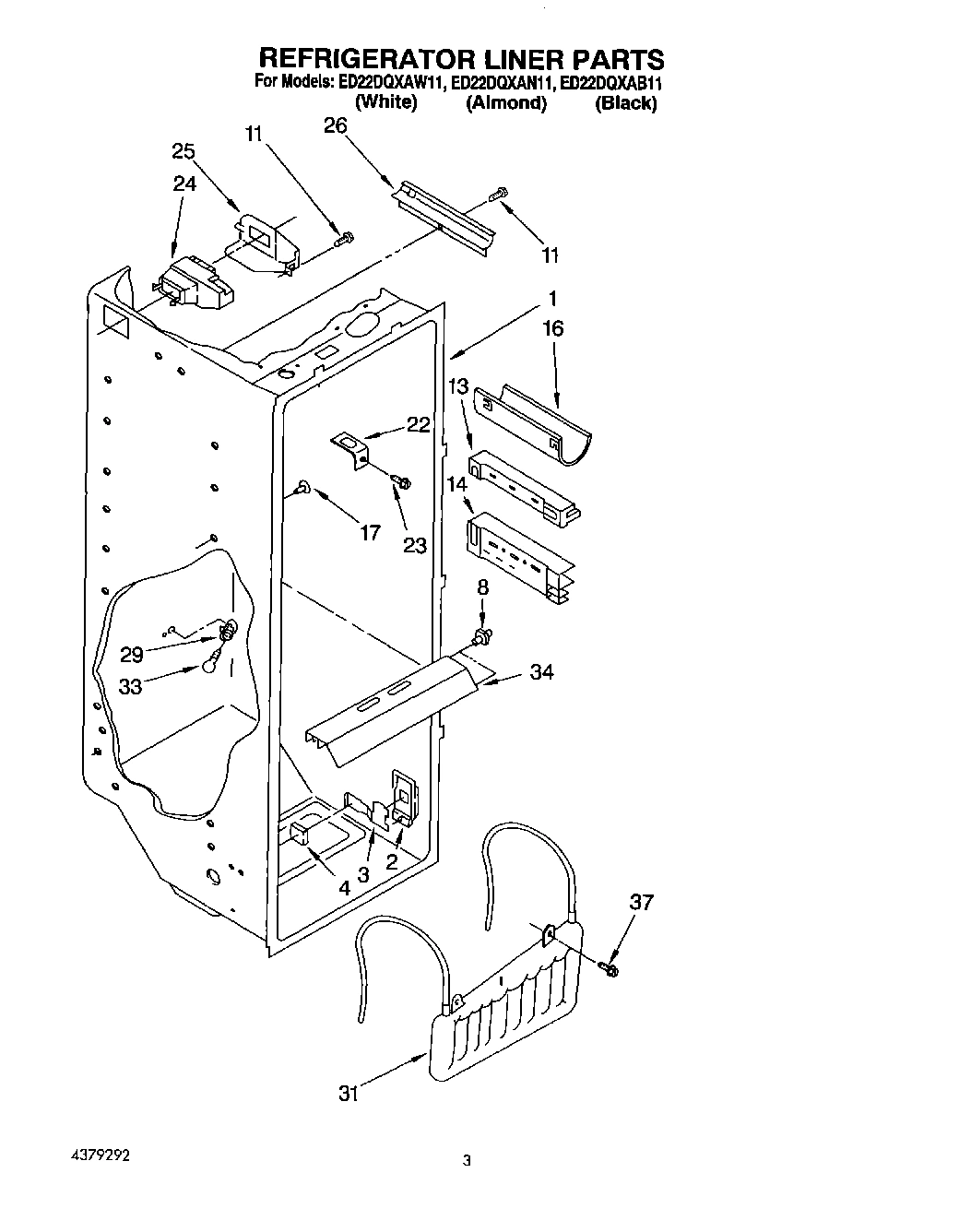

02 - REFRIGERATOR LINER

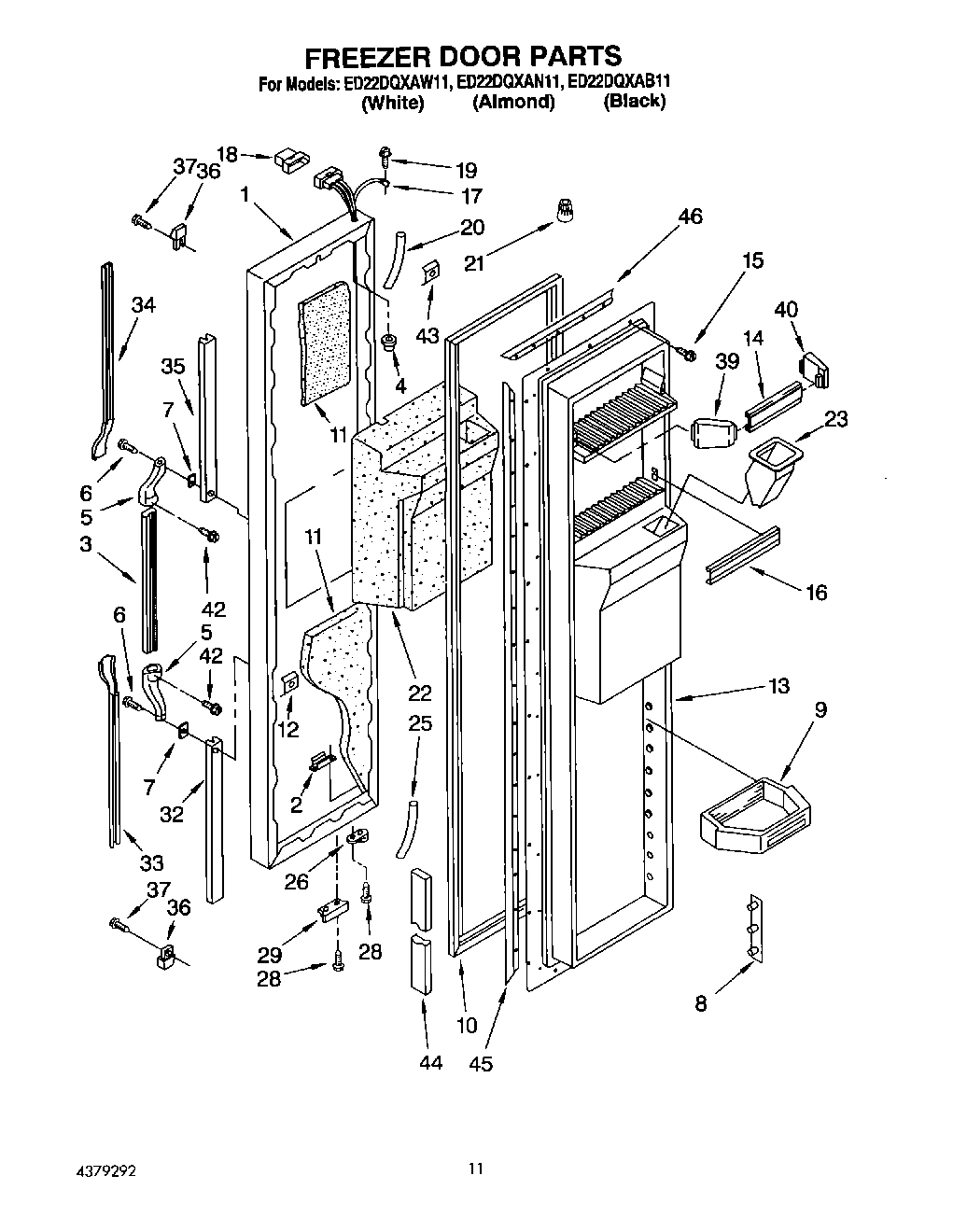

08 - FREEZER DOOR

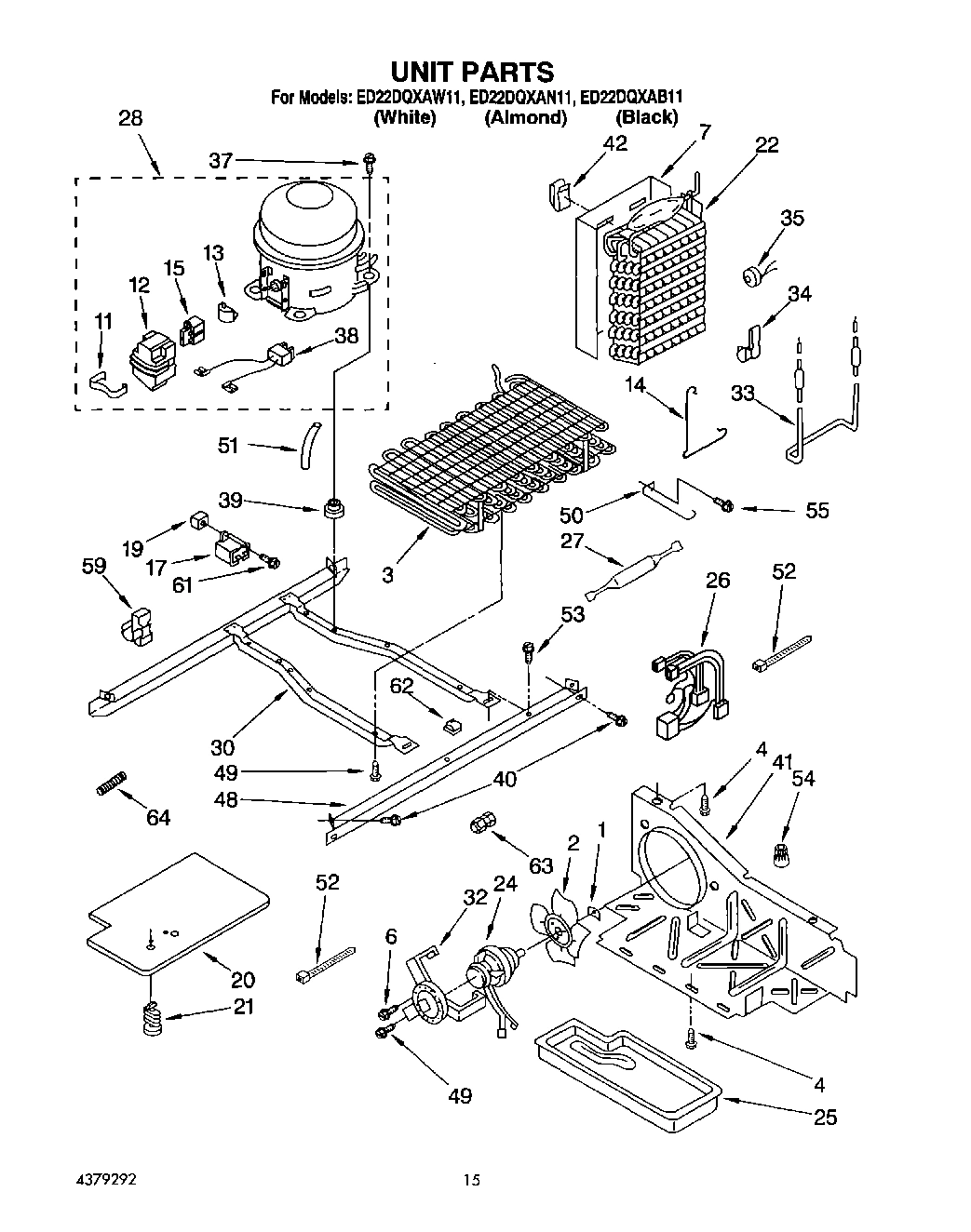

10 - UNIT

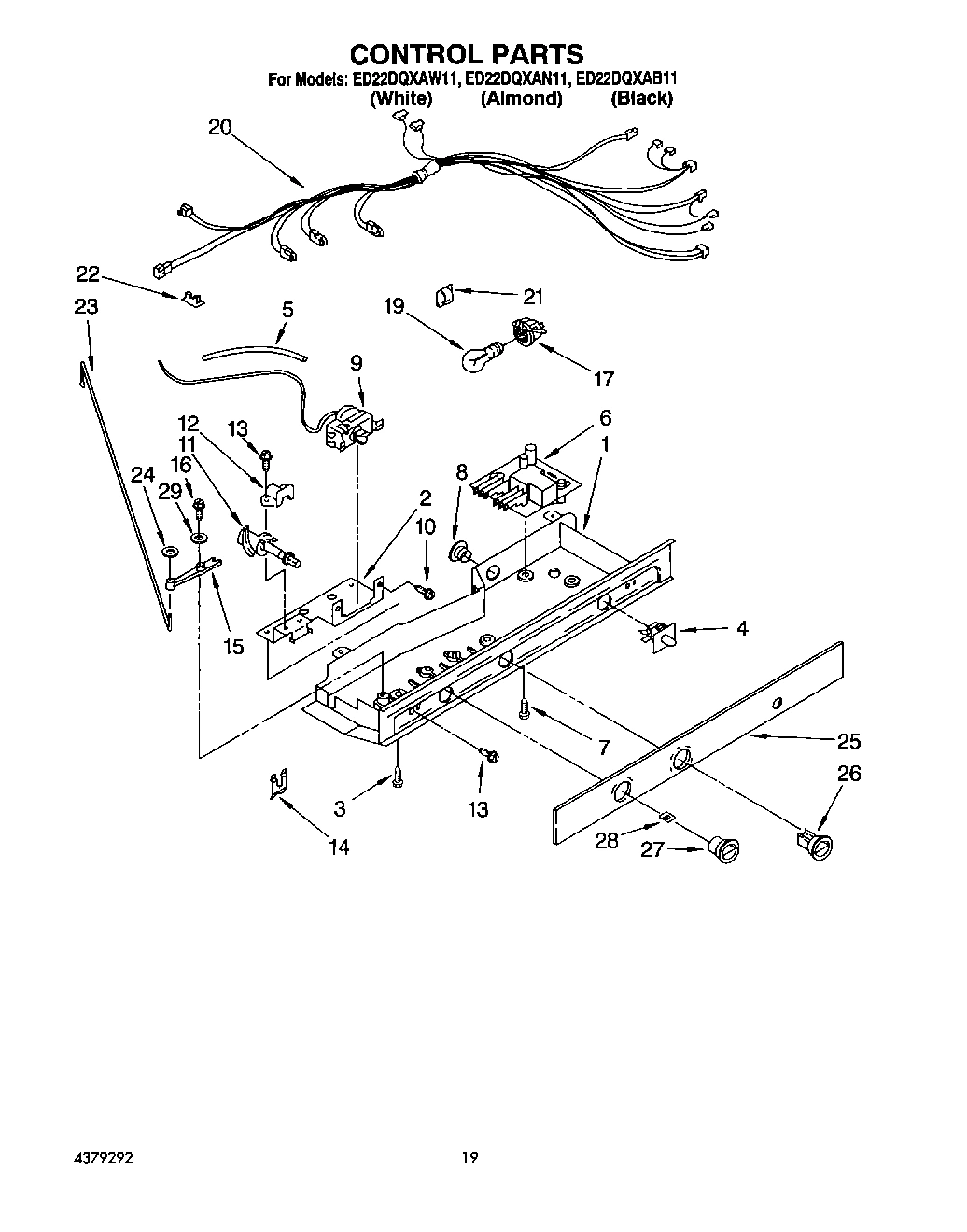

12 - CONTROL, LIT/OPTIONAL

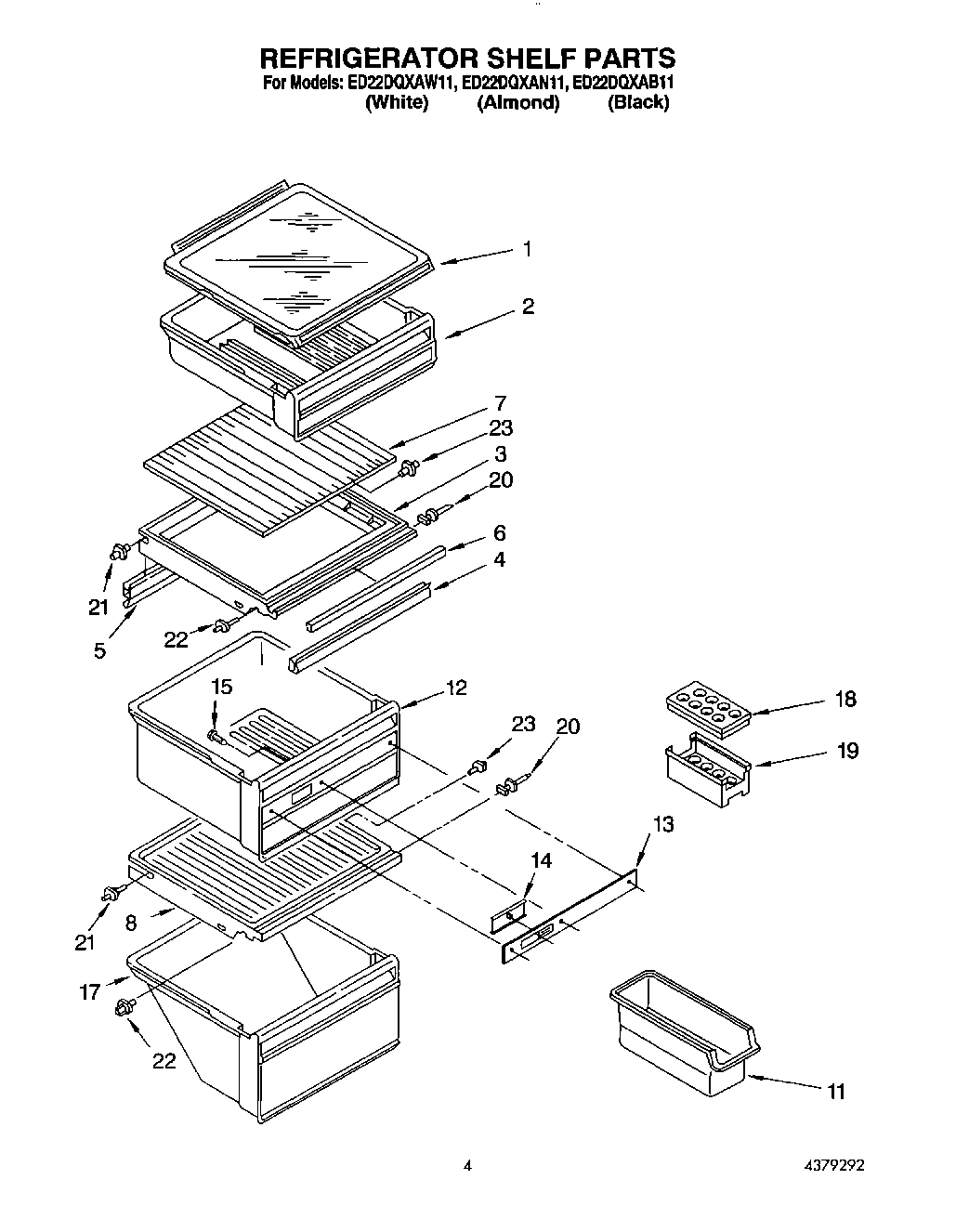

03 - REFRIGERATOR SHELF

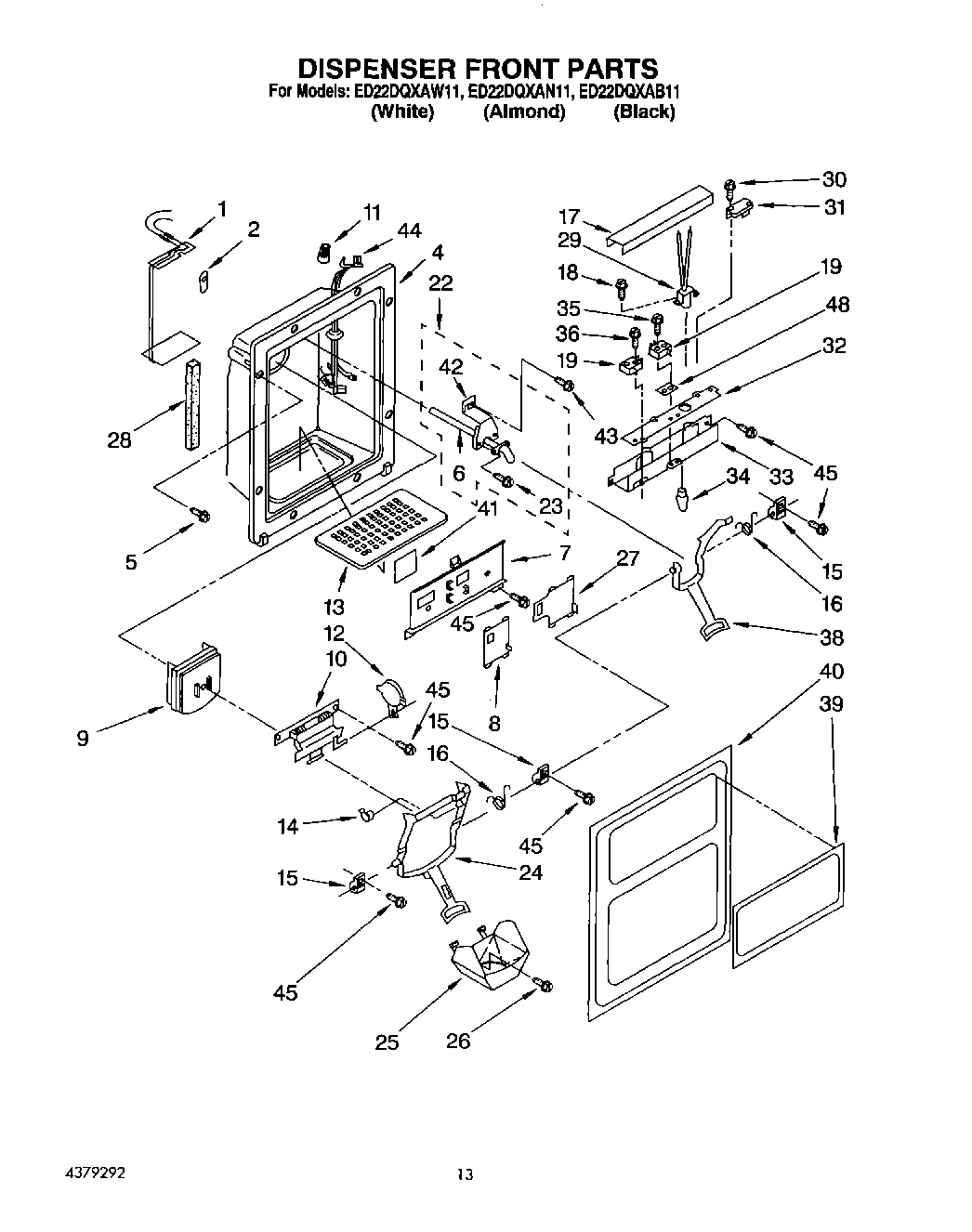

09 - DISPENSER FRONT
11 - ICEMAKER
07 - REFRIGERATOR DOOR

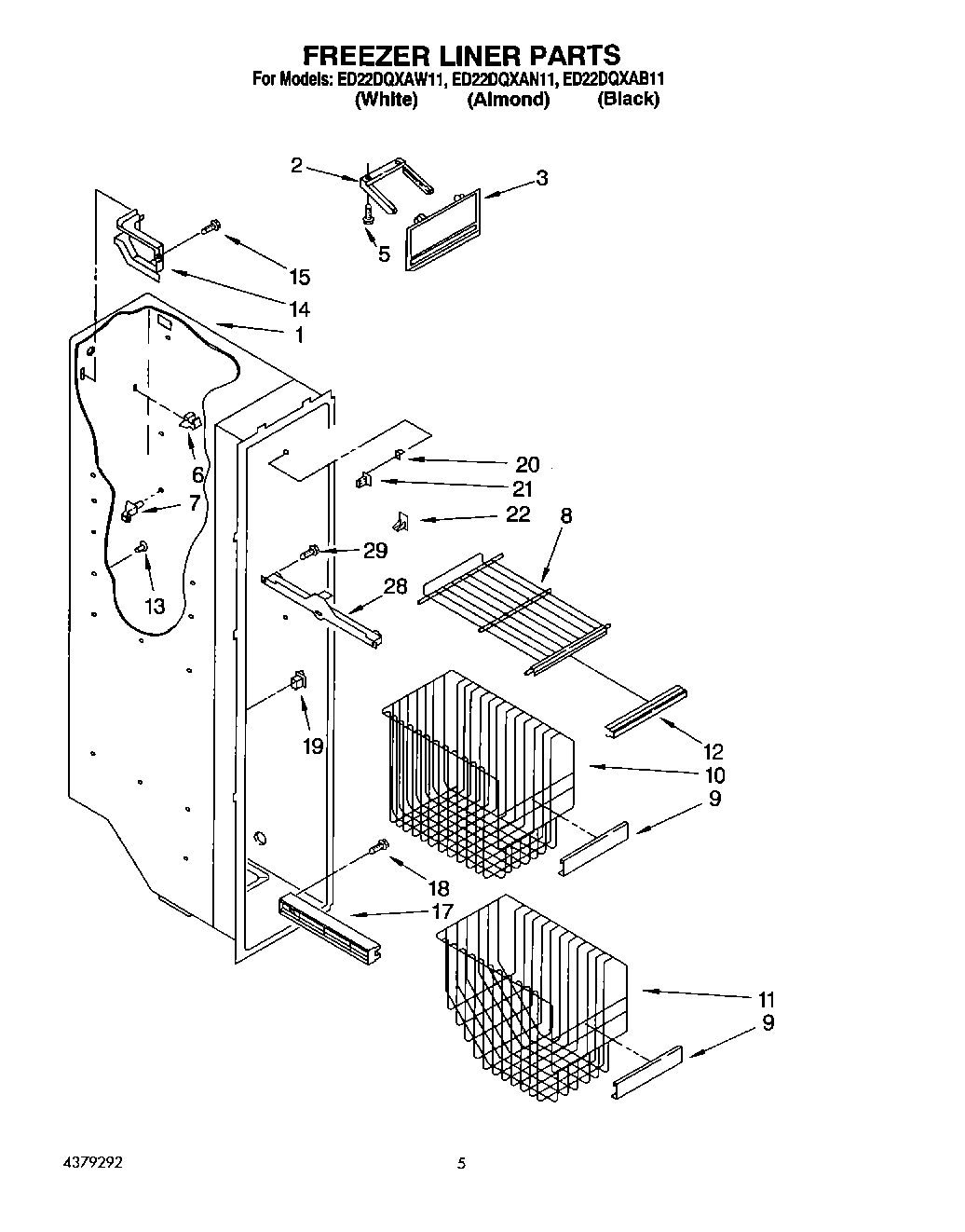

04 - FREEZER LINER

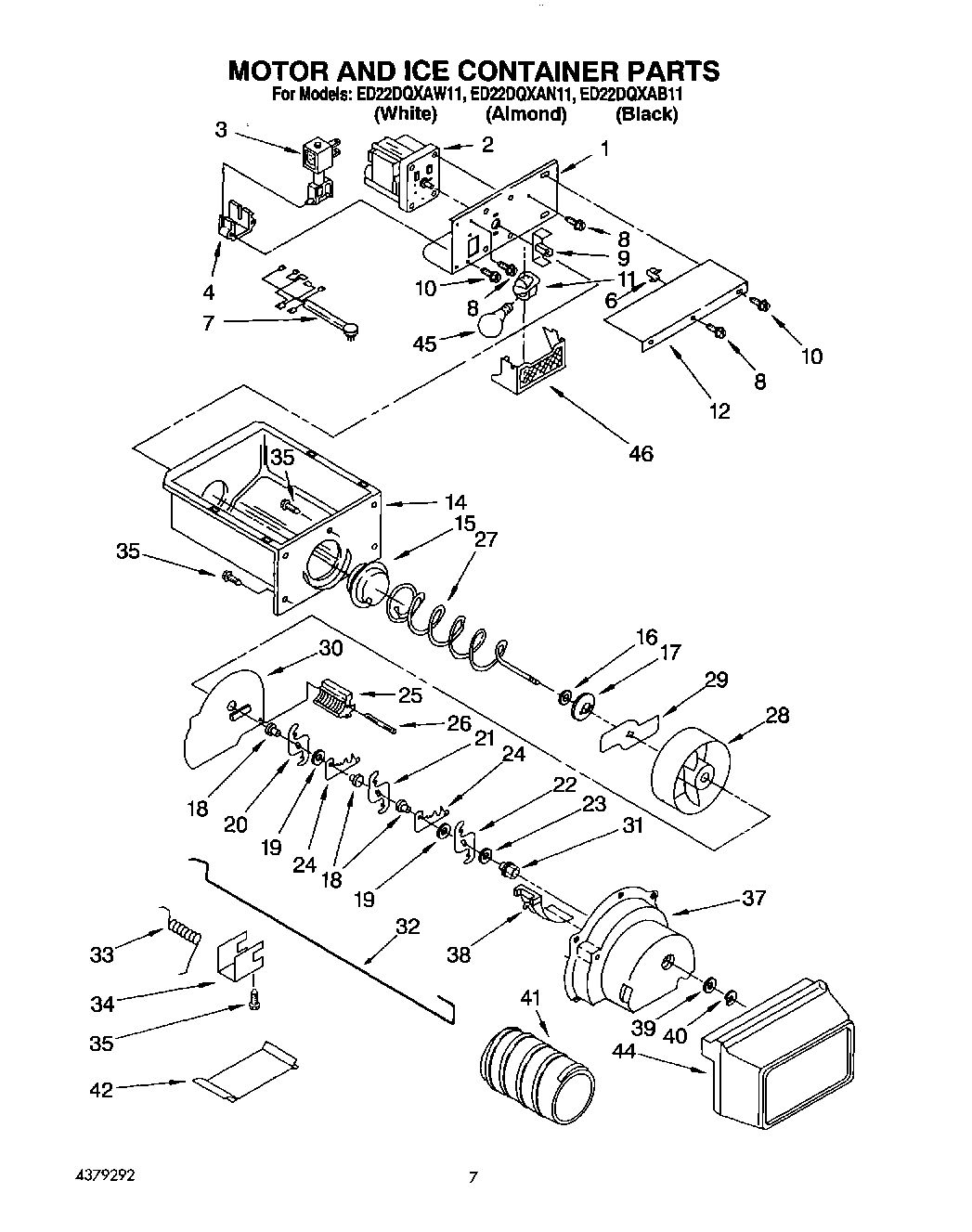

06 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool ED22DQXAW11 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL 2153725 WPL 2153725 Contact Us For Availability
WPL LIT2162750 WPL LIT2162750 Contact Us For Availability
WPL LIT2162969 WPL LIT2162969 Contact Us For Availability
WPL LIT2169109 WPL LIT2169109 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 4362041 Contact Us For Availability
1
Refrigerator Door Panel (Black (Also Order It WPL 4362043 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145315A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Door, Ice Compartment WPL 2149091 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI145316A Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Shelf WPL 2155640 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Trim, Basket WPL 2149088 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle, Center (Black) WPL 1118417 Contact Us For Availability
10
Handle, Center (White) WPL 1124713 Contact Us For Availability
10
Handle, Center (Almond) WPL 943079 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Trim, Shelf WPL 2149090 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Front, Crisper Pan WPL 2162712 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI145317A Contact Us For Availability
15
Screw (3) Control WPL 489268 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Insert, Handle (White) WPL 1119367 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
16
Insert, Handle (Black) WPL 1118436 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Capacitor WPL 2154565 Contact Us For Availability
17
Meat Pan WPL 2162710 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Egg Container, Top WPL 1107388 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Egg Container, Bottom WPL 1107384 Contact Us For Availability
20
Spacer, Hinge WPL 987179 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Shelf Stud WPL 1115290 No Longer Available
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Grille (Black) WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
23
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
26
Screw (Stainless) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPO WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
35
Shelf Bin (2) WPL 1124847 Contact Us For Availability
36
Screw WPL 489022 Contact Us For Availability
36
Scr WPL 489155 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
39
WPL 2150318 WPL 2150318 Contact Us For Availability
39
WPL 2150319 WPL 2150319 Contact Us For Availability
39
WPL 2162690 WPL 2162690 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
40
WPL 2148705 WPL 2148705 Contact Us For Availability
40
WPL 2150314 WPL 2150314 Contact Us For Availability
40
WPL 2162701 WPL 2162701 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Containter WPL 2149005 Contact Us For Availability
46
WPL 1117767 WPL 1117767 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
