Model Whirlpool ED22DQXAB00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

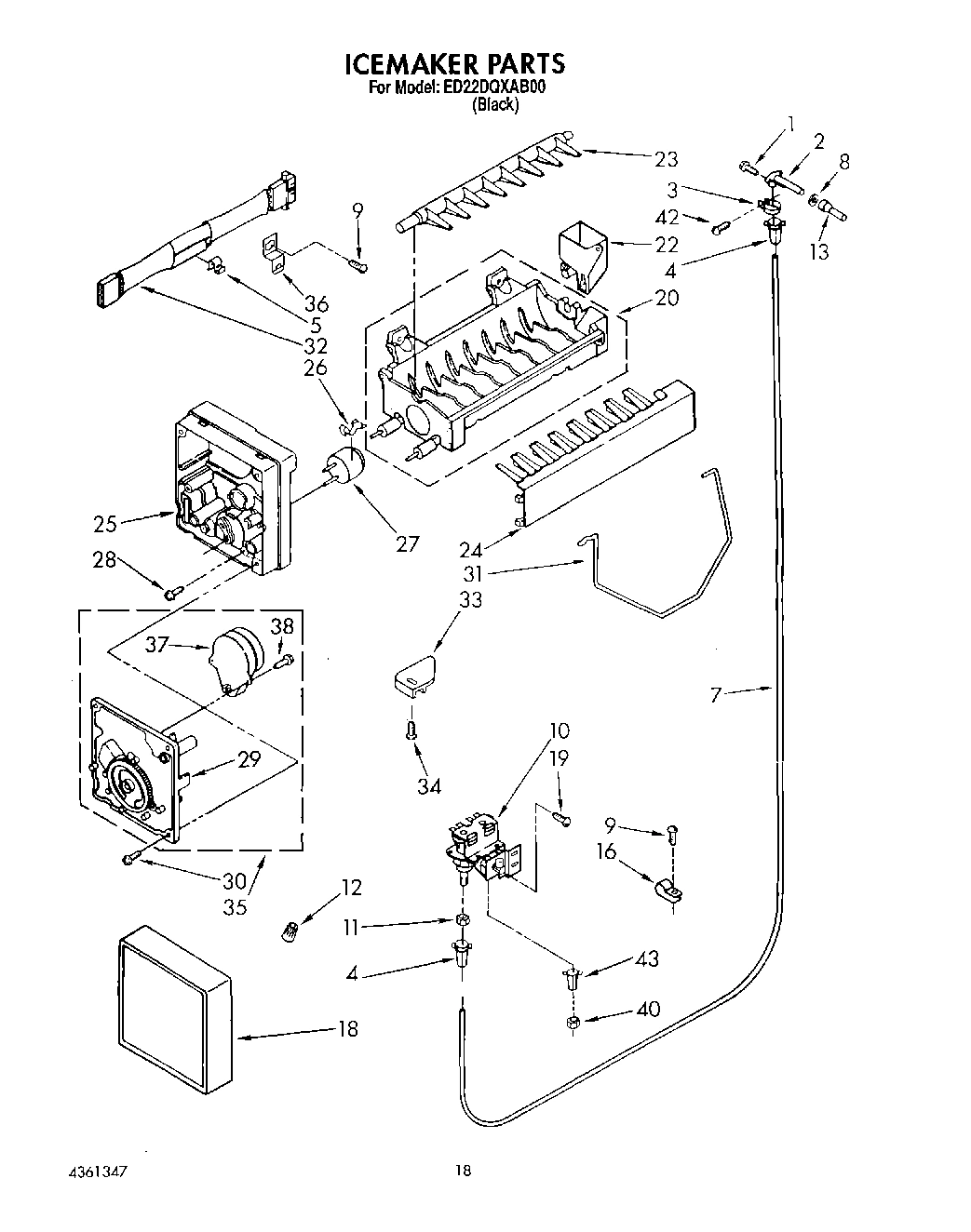

Common parts from model Whirlpool ED22DQXAB00 SIDE BY SIDE REFRIGERATOR
 1


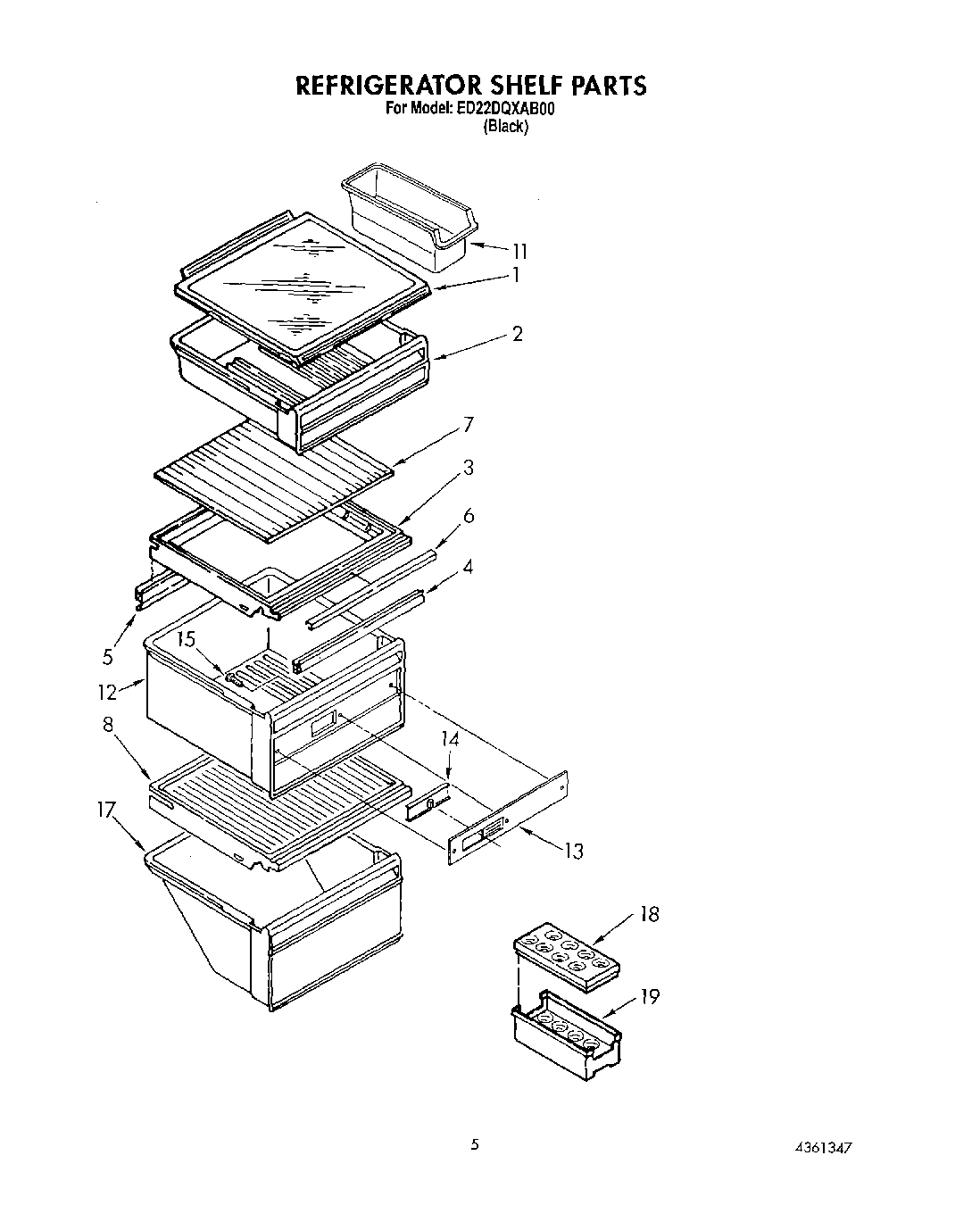

Shelf Assembly, Glass Sliding (3) WPL  2162564 Contact Us For Availability
  1


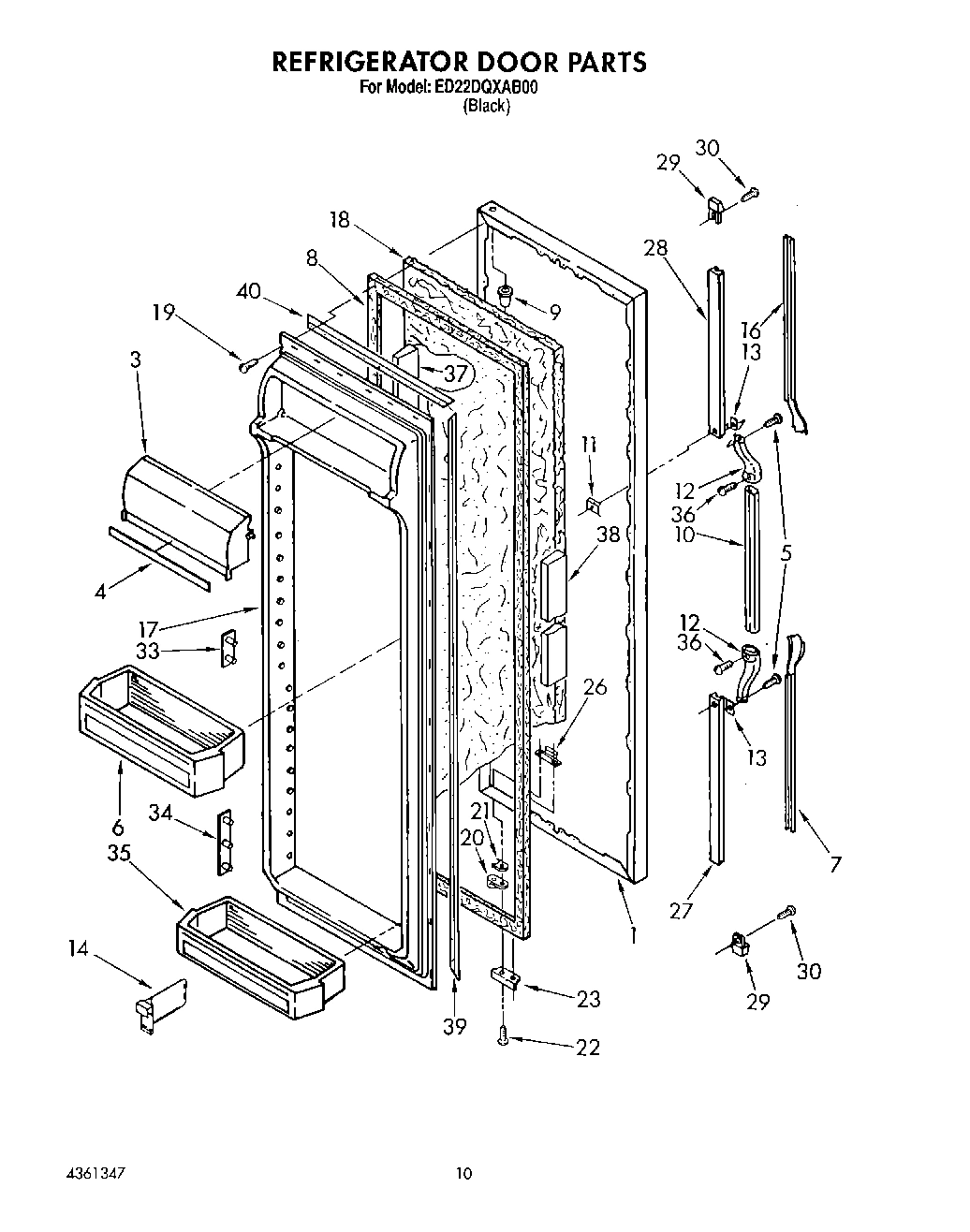

Refrigerator Door (Also Order Item 18) WPL  2162670 Contact Us For Availability
  1


Heater, Dispenser WPL  2154789 Contact Us For Availability
  1


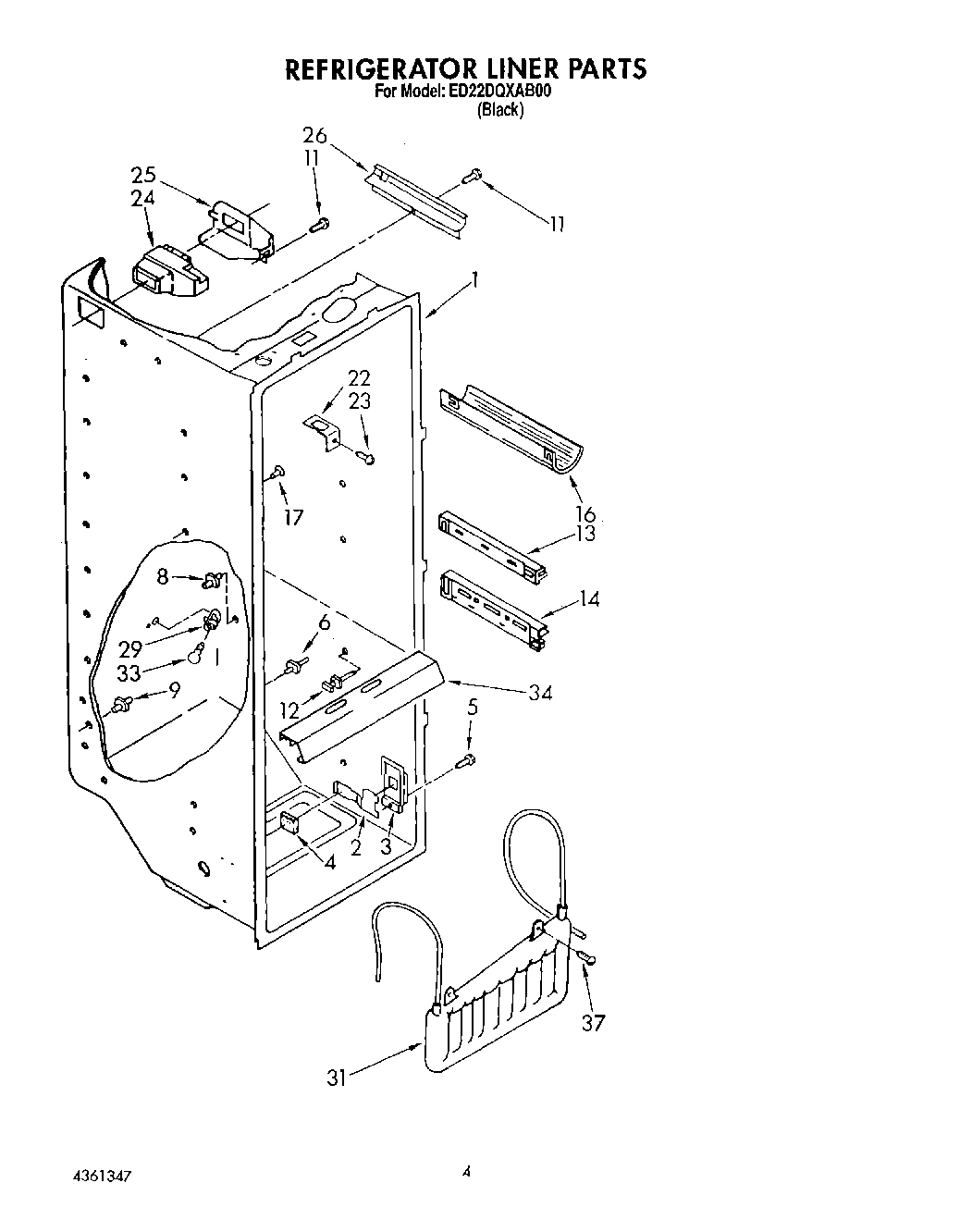

Liner (Not A Serviceable Part) WPL  ARI145280A Contact Us For Availability
  2


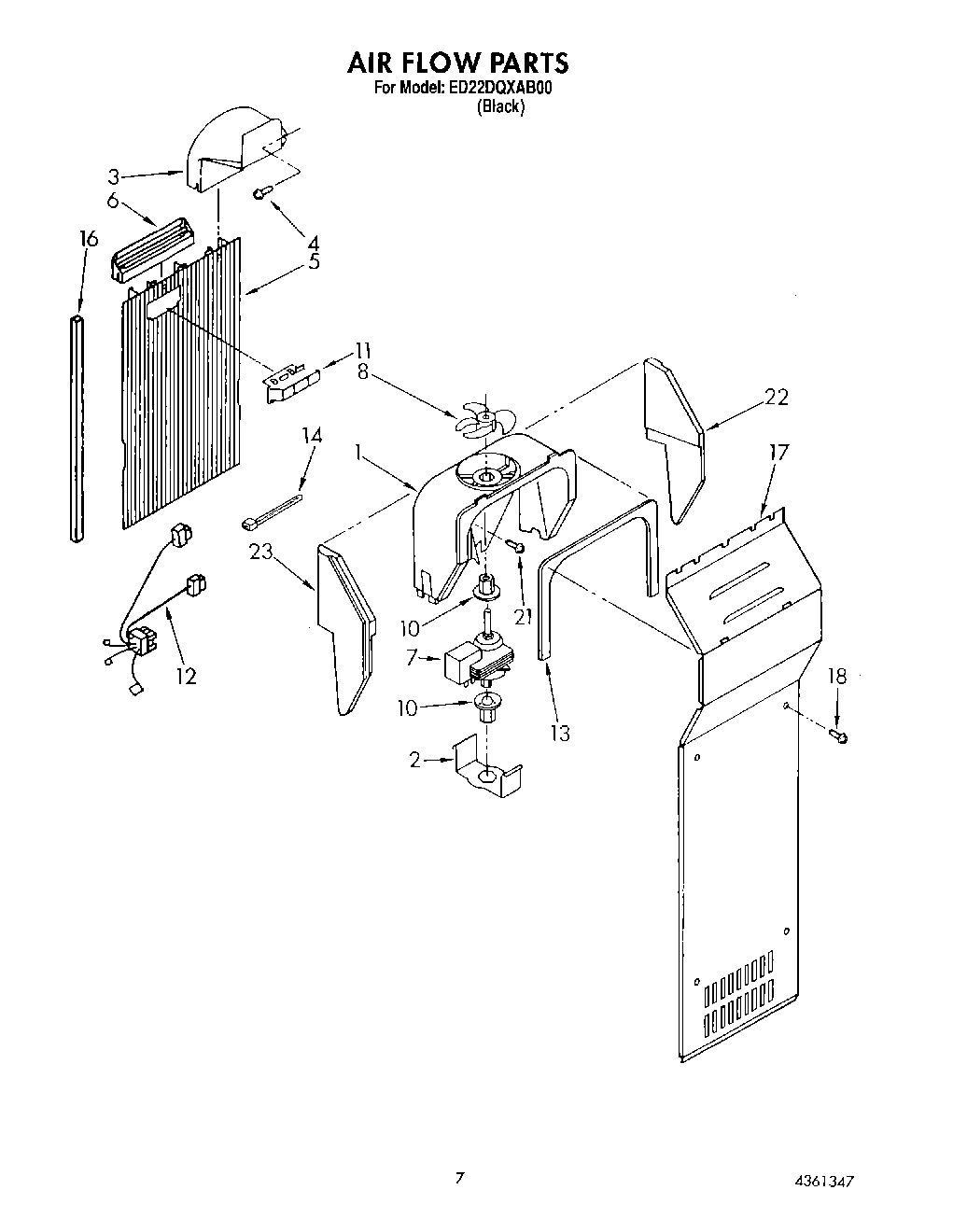

RETAINER, FAN MOTOR WPL  2155590 Contact Us For Availability
  2


Fan, Blade WPL  1108179 Contact Us For Availability
  2


Mounting Bracket WPL  1110629 Contact Us For Availability
  2


Snack Bin WPL  1124829 Contact Us For Availability
  2


Grommet WPL  987048 Contact Us For Availability
  2


Escutcheon, Meat Pan Control WPL  985468 Contact Us For Availability
  3


Air Scoop WPL  2161231 Contact Us For Availability
  3


Door, Compartment WPL  2148847 Contact Us For Availability
  3


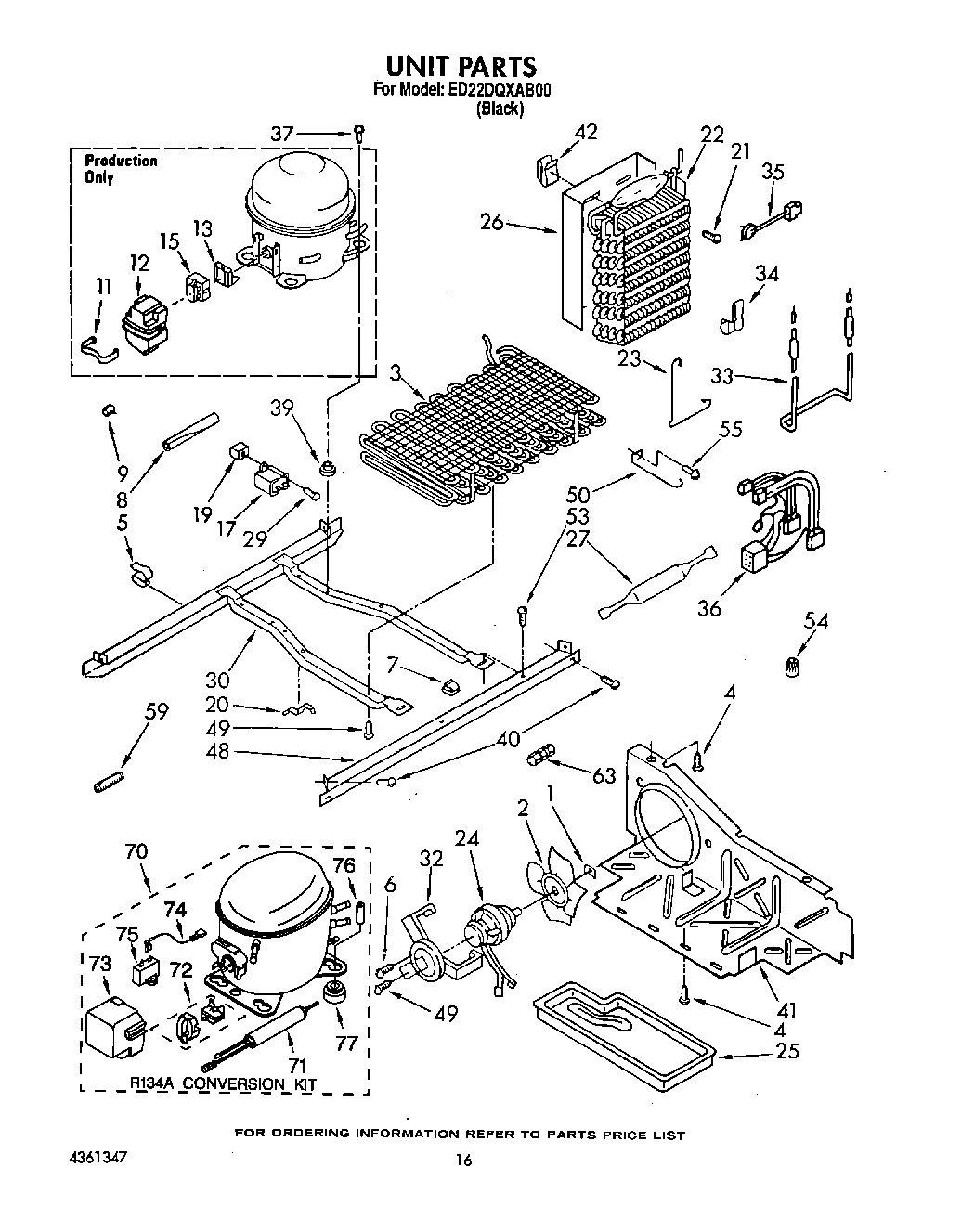

Condenser Assembly WPL  2154010 Contact Us For Availability
  3


Slide, Meat Pan Control WPL  984102 Contact Us For Availability
  4


Gasket, Crisper (Front) WPL  1115291 Contact Us For Availability
  4


Trim, Compartment Door WPL  1118208 Contact Us For Availability
  4


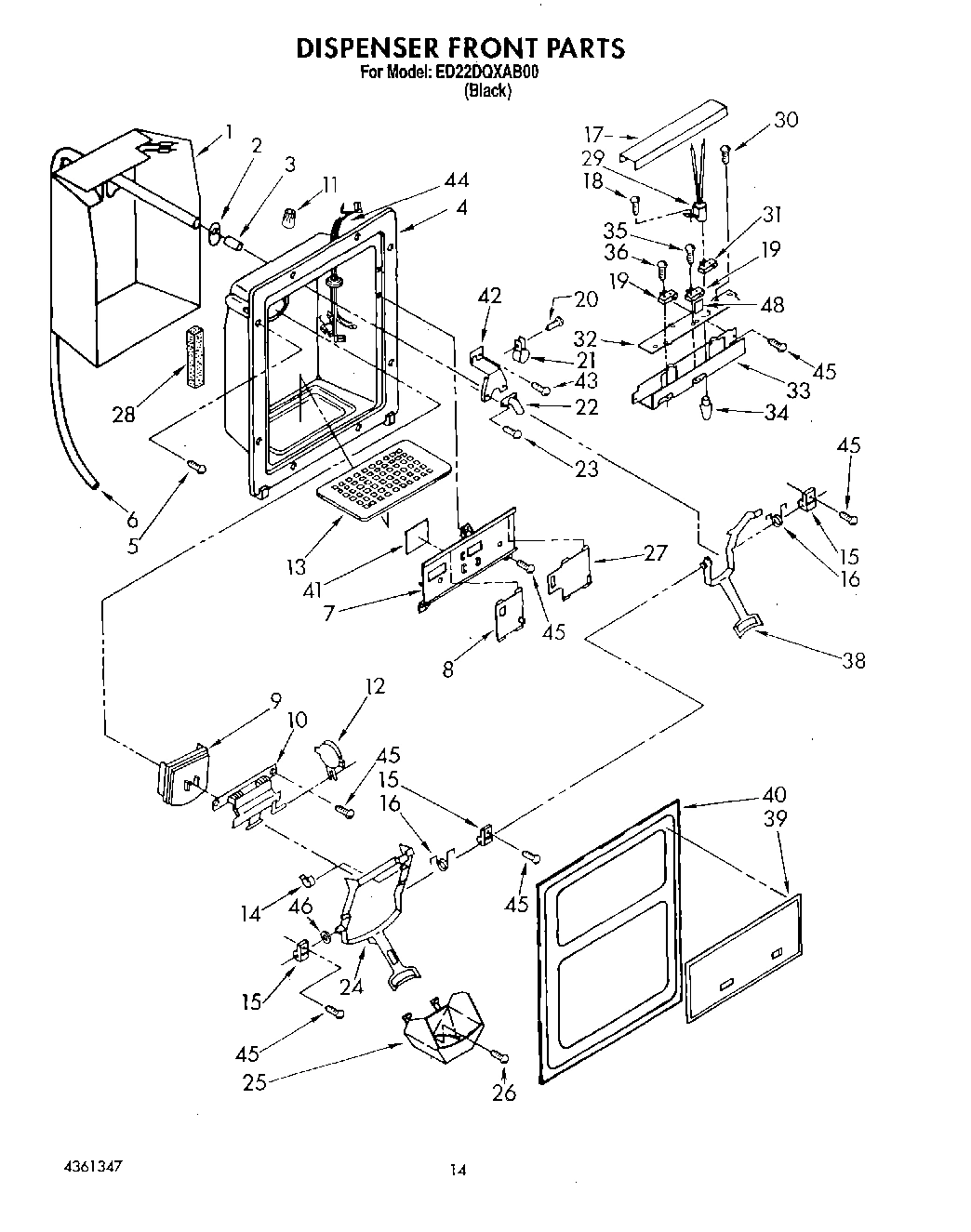

Housing, Dispenser WPL  1107943 Contact Us For Availability
  4


Pad, Foam WPL  992358 Contact Us For Availability
  5


Screw (2) WPL  487523 Contact Us For Availability
  5


Gasket, Crisper (Rear) WPL  1121385 Contact Us For Availability
  5


Clip, Wire WPL  2155658 Contact Us For Availability
  5


Screw 8-15 x 1/2 WPL  486214 Contact Us For Availability
  6


Shelf Bin (2) WPL  1124846 Contact Us For Availability
  6


Trim, Crisper Cover WPL  1119190 Contact Us For Availability
  6


Diffuser, Air Duct WPL  2149544 Contact Us For Availability
  7


Glass, Crisper Cover WPL  1114687 Contact Us For Availability
  7


Wiring Assembly, Ice Dispenser WPL  2149192 Contact Us For Availability
  7


insert, handle WPL  1118436 Contact Us For Availability
  7


Frame, Slides WPL  2152716 Contact Us For Availability
  7


Clip, Tube (3) WPL  934011 Contact Us For Availability
  8


Shelf WPL  2155640 Contact Us For Availability
  8


Slide, Cube/Crush Switch WPL  2152719 Contact Us For Availability
  9


Stud (4) WPL  1115290 No Longer Available
  9


Door, Ice WPL  2147168 Contact Us For Availability
  9


Trim, Basket WPL  2149088 Contact Us For Availability
  9


Cap, Hinge Sleeve WPL  509929 Contact Us For Availability
  10


Door Mechanism Assembly (Includes Item 9) WPL  2147167 Contact Us For Availability
  10


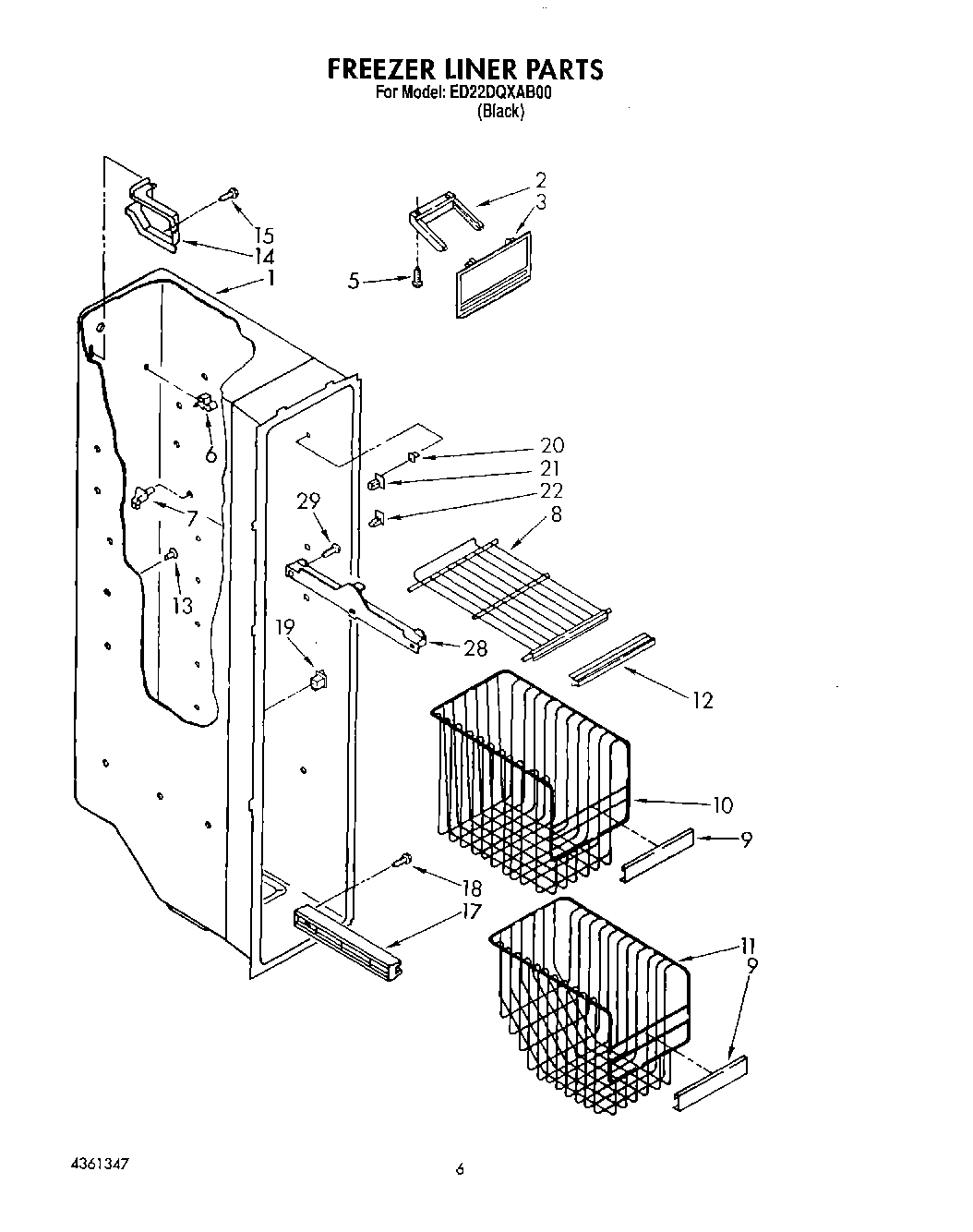

Basket, Tall WPL  2152087 Contact Us For Availability
  10


Grommet, Fan (2) WPL  2155589 Contact Us For Availability
  10


Handle, Center WPL  1118417 Contact Us For Availability
  11


Basket, Slope WPL  2152089 Contact Us For Availability
  11


Screw Anchor (2) WPL  941242 Contact Us For Availability
  11


Spring, Relay Case WPL  943322 Contact Us For Availability
  12


Trim, Shelf WPL  2149090 Contact Us For Availability
  12


Pan, Crisper WPL  2162711 Contact Us For Availability
  12


Harness, Fan Evaporator, And Heater, Bi-Metal WPL  2161327 Contact Us For Availability
  12


End Cap, Center Handle WPL  1119359 Contact Us For Availability
  12


Case, Relay WPL  1105055 Contact Us For Availability
  13


Track, Shelf (Right Side (2)) WPL  1114632 Contact Us For Availability
  13


Grille, Overflow WPL  983900 Contact Us For Availability
  13


Track, Shelf (Left Side (2)) WPL  1114633 Contact Us For Availability
  13


Shim, Hinge Top WPL  1123515 Contact Us For Availability
  13


Grommet WPL  1110779 Contact Us For Availability
  13


Front, Crisper Pan WPL  2162712 Contact Us For Availability
  13


Shim WPL  935075 Contact Us For Availability
  13


Tube, Water Inlet WPL  2155247 Contact Us For Availability
  13


Overload (Includes Relay) WPL  2154857 Contact Us For Availability
  14


Track, Shelf (Right Side) WPL  1115264 Contact Us For Availability
  14


Track, Shelf (Left Side) WPL  1115265 Contact Us For Availability
  14


Cover, Wiring WPL  2155572 Contact Us For Availability
  14


Slide, Humidity Control WPL  2148524 Contact Us For Availability
  14


Divider, Bin WPL  2152335 Contact Us For Availability
  14


Clip, Bearing (2) WPL  987917 Contact Us For Availability
  15


Pivot Arm WPL  1110559 Contact Us For Availability
  15


Screw (3) Control WPL  489268 Contact Us For Availability
  15


Bearing, Lever (3) WPL  983697 Contact Us For Availability
  15


Relay (See Overload) WPL  ARI145282A Contact Us For Availability
  16


Spring, Lever (2) WPL  983696 Contact Us For Availability
  16


Stop, Cone WPL  1118480 Contact Us For Availability
  16


Insert, Handle WPL  1118435 Contact Us For Availability
  16


Wine Rack WPL  1124828 Contact Us For Availability
  17


Shelf Track (Right Side (4)) WPL  1126354 Contact Us For Availability
  17


Shelf Track (Left Side (4)) WPL  1126355 Contact Us For Availability
  17


Feeder Cone WPL  1119074 Contact Us For Availability
  17


Meat Pan WPL  2162710 Contact Us For Availability
  17


Panel, Interior Door WPL  1129278 Contact Us For Availability
  17


Shield, Wiring WPL  2147165 Contact Us For Availability
  18


Foam Insulation (Required When Replacing Exte WPL  876029 Contact Us For Availability
  18


Egg Container-Top WPL  2164174 Contact Us For Availability
  18


Cover WPL  628355 Contact Us For Availability
  19


Egg Container- Bottom WPL  2164173 Contact Us For Availability
  19


Screw Grommet WPL  509812 Contact Us For Availability
  20


Spacer, Hinge WPL  987179 Contact Us For Availability
  20


Stud WPL  946355 Contact Us For Availability
  20


Clip, Unit Cover (2) WPL  548744 Contact Us For Availability
  21


Stud, R.S. Front WPL  946356 Contact Us For Availability
  22


Stud, L.S. Rear WPL  1106982 Contact Us For Availability
  23


Bracket, Door Stop WPL  1115906 Contact Us For Availability
  23


Clamp WPL  2161329 Contact Us For Availability
  24


Fastener, Push-On WPL  489285 Contact Us For Availability
  24


Blade, Fixed (2) WPL  1119009 Contact Us For Availability
  24


Lever, Ice Dispenser WPL  1127421 Contact Us For Availability
  25


Guide, Ice WPL  1119035 Contact Us For Availability
  25


Tray, Evaporator WPL  2154114 Contact Us For Availability
  26


Tap Plate WPL  988402 Contact Us For Availability
  26


Screw WPL  489197 Contact Us For Availability
  26


Heat Shield WPL  2149293 Contact Us For Availability
  27


Retainer, Insert (Bottom) WPL  1119360 Contact Us For Availability
  27


Slide, Light Switch WPL  2152724 Contact Us For Availability
  27


Cement Alumilastic) WPL  542369 Contact Us For Availability
  28


Retainer, Insert WPL  1119366 Contact Us For Availability
  28


Seal WPL  482672 Contact Us For Availability
  29


End Cap (2) WPL  2156220 Contact Us For Availability
  29


Lamp Holder WPL  2147131 Contact Us For Availability
  29


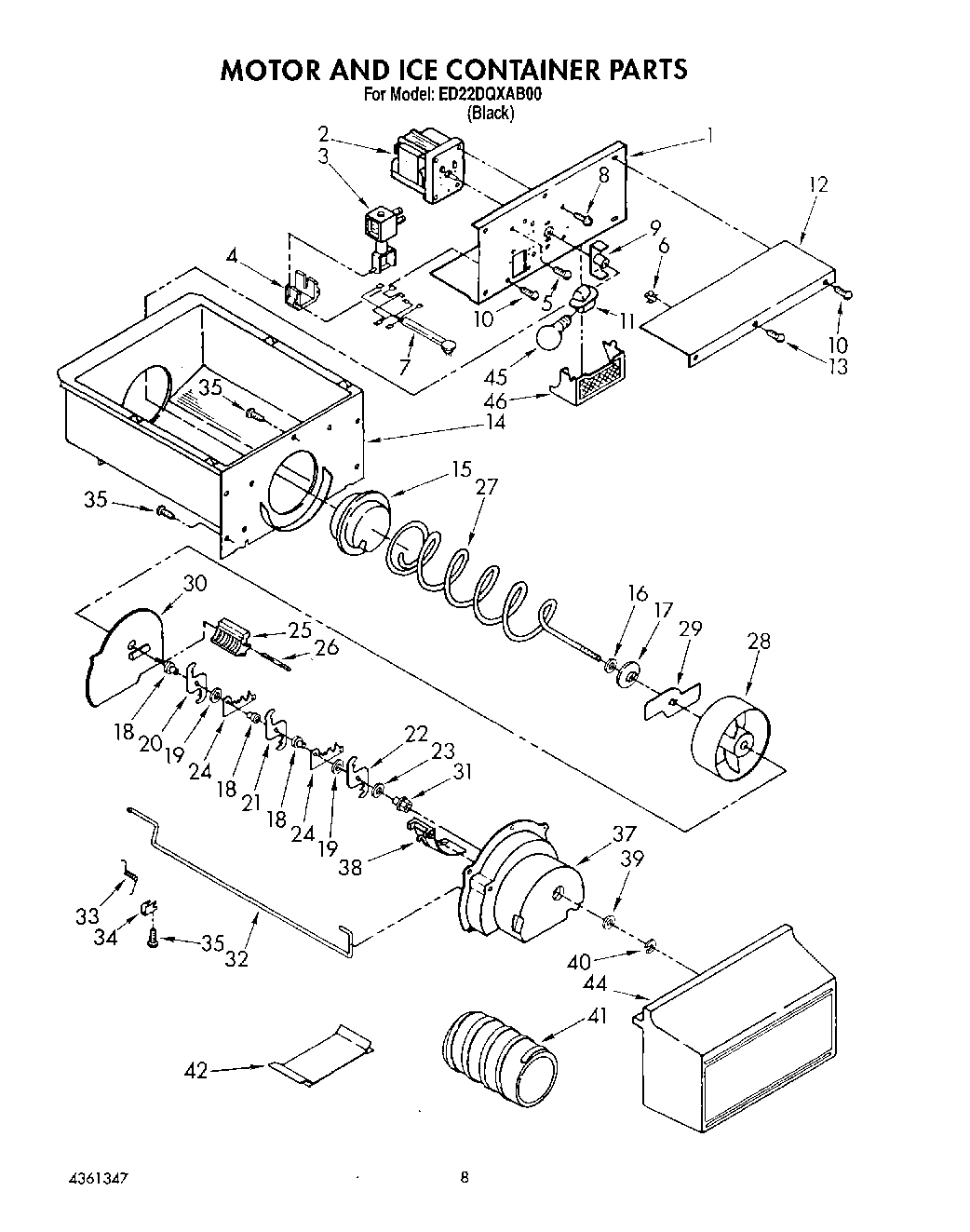

Motor Module WPL  628352 Contact Us For Availability
  30


Screw, 10-32 x 5/8 (2) WPL  489075 Contact Us For Availability
  30


Screw, 4-4- x 9/16 (2) WPL  488361 Contact Us For Availability
  31


Switch, Water WPL  841336 Contact Us For Availability
  32


Insulator, Control Bracket WPL  2147164 Contact Us For Availability
  32


Fan, Motor Bracket WPL  2162062 Contact Us For Availability
  33


Pin Plate (6) WPL  1118048 Contact Us For Availability
  33


Bracket, Control WPL  2147163 Contact Us For Availability
  33


Heater, Defrost WPL  2162079 Contact Us For Availability
  34


Pin Plate (8) WPL  1116986 Contact Us For Availability
  34


Screw, 8-32 x 27/64 WPL  489365 Contact Us For Availability
  34


Clip WPL  2161330 Contact Us For Availability
  34


Light Lens WPL  1115330 Contact Us For Availability
  35


Shelf Bin (2) WPL  1124847 Contact Us For Availability
  35


Screw (2) WPL  489360 Contact Us For Availability
  36


Screw, 6-20 x 3/8 (4) WPL  489022 Contact Us For Availability
  36


Screw, WPL  489155 Contact Us For Availability
  36


Clip, Support (2) WPL  2155021 Contact Us For Availability
  36


Unit, Harness WPL  2149199 Contact Us For Availability
  37


Door Dike, Hinge Side WPL  1115379 Contact Us For Availability
  37


Screw WPL  489387 Contact Us For Availability
  37


Screw (2) WPL  488280 Contact Us For Availability
  38


Door Dike, Handle Side WPL  1119055 Contact Us For Availability
  38


Lever, Water Dispenser WPL  1115349 Contact Us For Availability
  39


Gasket Retainer, Side (2) WPL  1117766 Contact Us For Availability
  39


Plaque, Front Cover WPL  2150319 Contact Us For Availability
  39


Grommet (4) WPL  2162067 Contact Us For Availability
  40


Gasket Retainer, Top & Bottom WPL  1118301 Contact Us For Availability
  40


Front Cover, Housing WPL  2148705 Contact Us For Availability
  40


Nut, Compression WPL  1129179 Contact Us For Availability
  41


Heat Shield, Frame WPL  2147172 Contact Us For Availability
  42


Housing Filler WPL  2152700 Contact Us For Availability
  42


Bracket, Water WPL  987049 Contact Us For Availability
  42


Clip, Heat Shield WPL  2155547 Contact Us For Availability
  43


Screw, 8-18 x 3/4 WPL  488316 Contact Us For Availability
  43


Insert WPL  1129177 Contact Us For Availability
  44


Front Cover, Ice Containter WPL  2149005 Contact Us For Availability
  44


Wiring Harness, Door WPL  2147166 Contact Us For Availability
  46


Light Lens, Dispenser WPL  983359 Contact Us For Availability
  46


Washer WPL  489336 Contact Us For Availability
  48


Spacer WPL  625834 Contact Us For Availability
  48


Unit Mounting Rail WPL  2149717 Contact Us For Availability
  49


Hinge Cover WPL  2155938 Contact Us For Availability
  49


Screw WPL  488624 Contact Us For Availability
  54


Wire Connector WPL  227991 Contact Us For Availability
  59


Spring-Tube WPL  983659 Contact Us For Availability
  70


Compressor (Includes Items 71, 72, 73, 74, 75 WPL  4388006 Contact Us For Availability
  76


Sleeve WPL  4387559 Contact Us For Availability
  77


VALVE, ACCESS (5/8``) WPL  978029 Contact Us For Availability
  77


VALVE, ACCESS (1/2``) WPL  978028 Contact Us For Availability
  100


TAPE, VINYL (3/4 X 108``) WPL  479502 Contact Us For Availability
  100


WPL  799344 WPL  799344 Contact Us For Availability
  100


Leveler, Enamel (13 Oz. Spray Can) WPL  350941 Contact Us For Availability
  100


Transformer (115-230 Volt) WPL  515393 Contact Us For Availability
  100


CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL  542639 Contact Us For Availability
  100


WPL  799340 WPL  799340 Contact Us For Availability
  100


WPL  799833 WPL  799833 Contact Us For Availability
  100


WPL  978883 WPL  978883 Contact Us For Availability
 × ![]()
