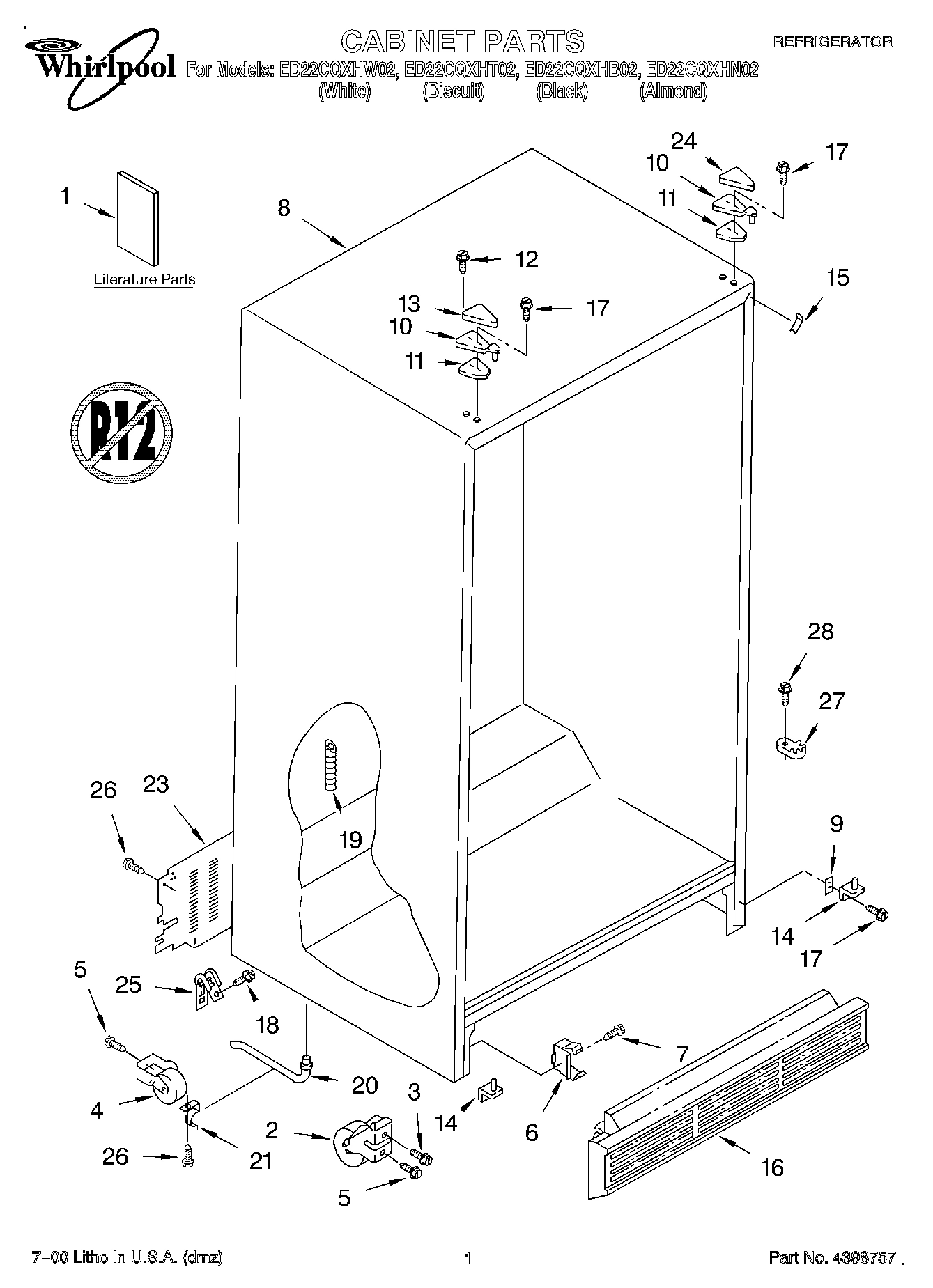

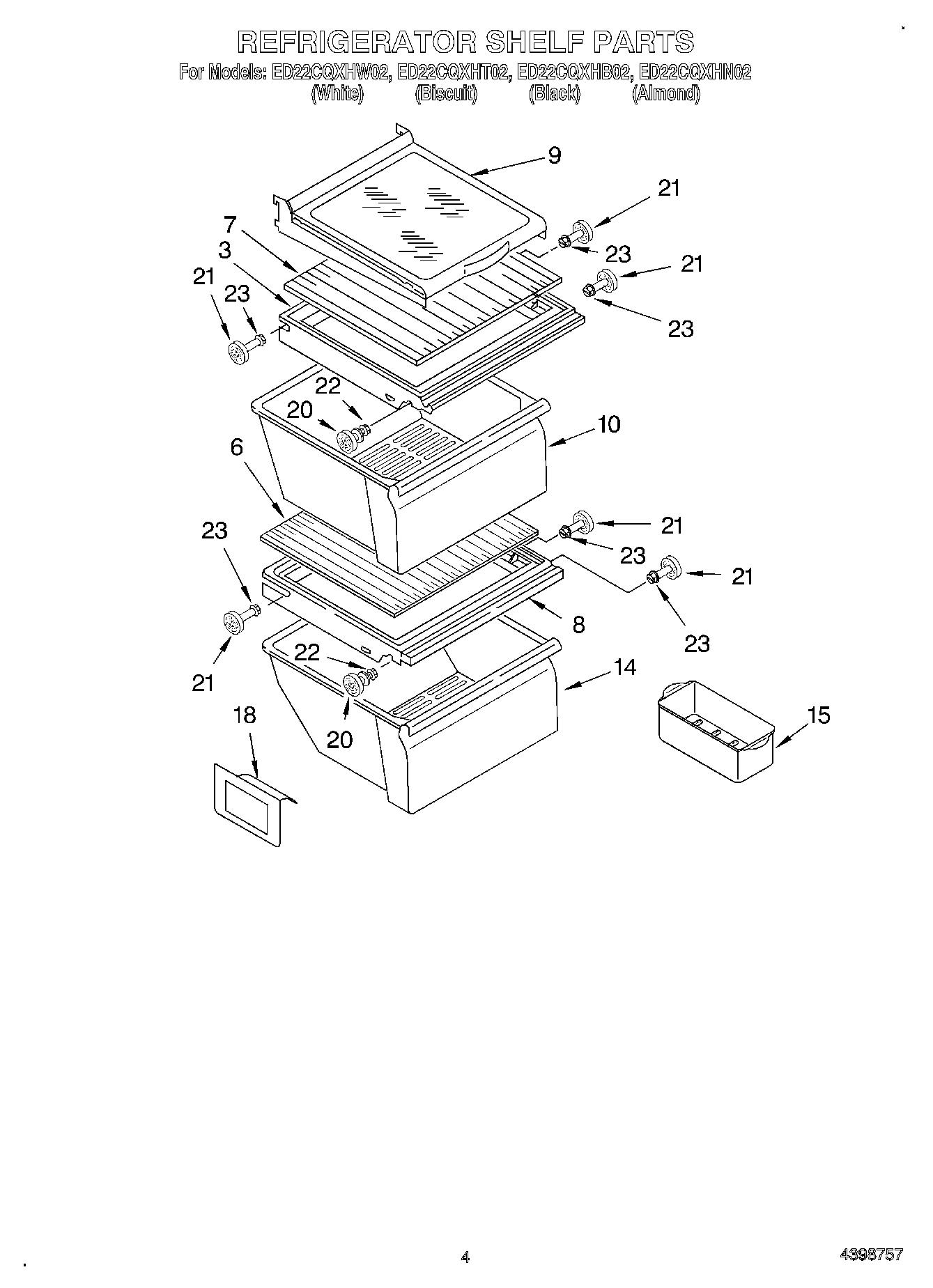

Model Whirlpool ED22CQXHT02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.65

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $18.14

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

Door, Ice WPL 2180205 Contact Us For Availability

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.91

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.91

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $140.76

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $156.14

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Black) WPL 2183787B Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.92

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $5.42

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $73.02

Grommet (4) WPL 2176134 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $79.24

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

Pivot Arm WPL 1110559 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.66

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $91.46

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Extension, Top (White) WPL 2194971W Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Plaque, Front Cover (White) WPL 2180355 Contact Us For Availability

Plaque, Front Cover (Almond) WPL 2180356 Contact Us For Availability

Plaque, Front Cover (Black) WPL 2180357 Contact Us For Availability

Plaque, Front Cover (Biscuit) WPL 2205768 Contact Us For Availability

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Stud, Rear WPL 2196207 Contact Us For Availability

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Wire Assembly WPL 2196198 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

Light Lens WPL 2203266 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI26225A2 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Front Cover Assembly (Includes Items 18, 19, WPL 2194569B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194569N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194569T Contact Us For Availability

Front Cover Assembly ( WPL 2194569W Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPL 625834 WPL 625834 Contact Us For Availability

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

Harness, Unit WPL 2211329 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Knob, Air Control WPL 2197871 Contact Us For Availability

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.86

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

NI

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $90.29
