Model Whirlpool ED20TWXDW02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

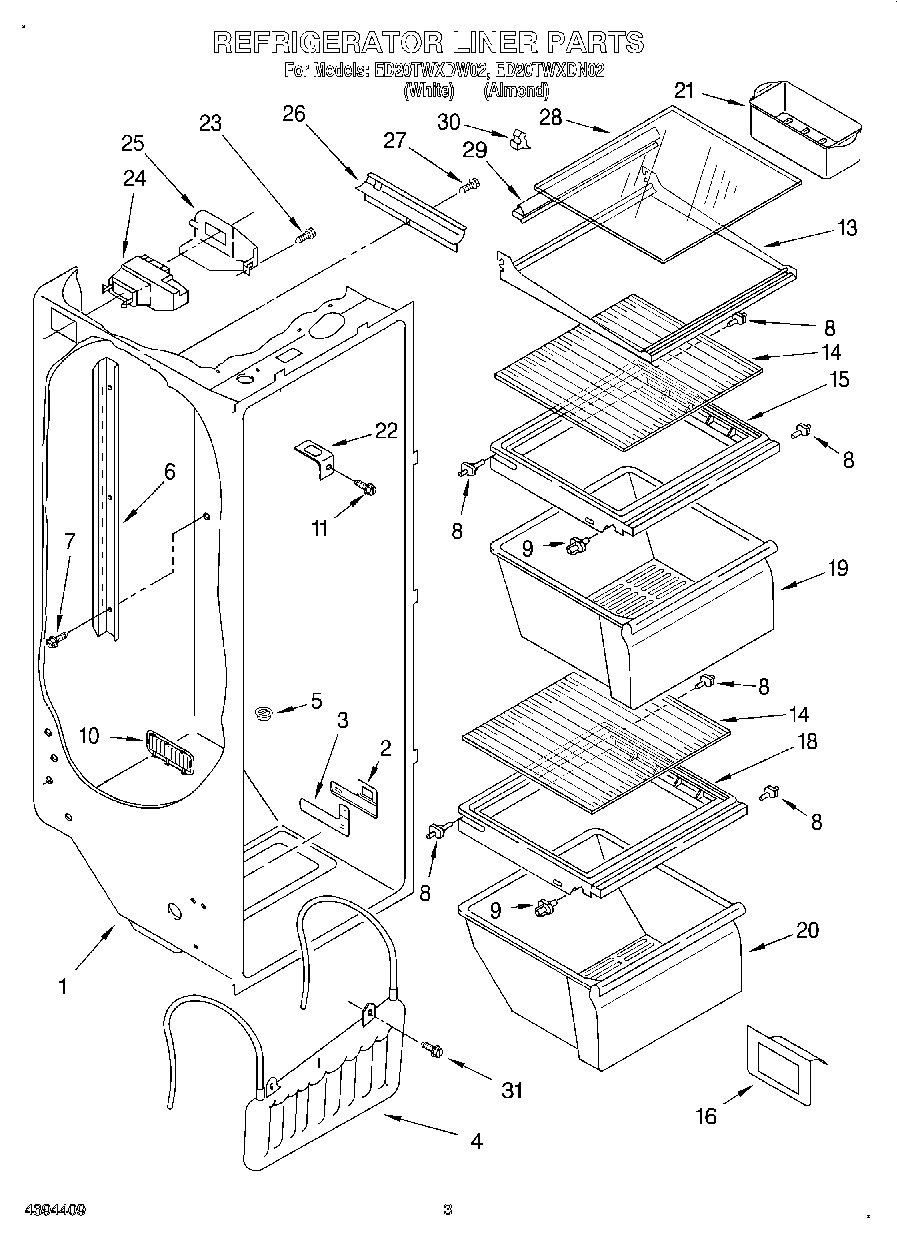

02 - REFRIGERATOR LINER

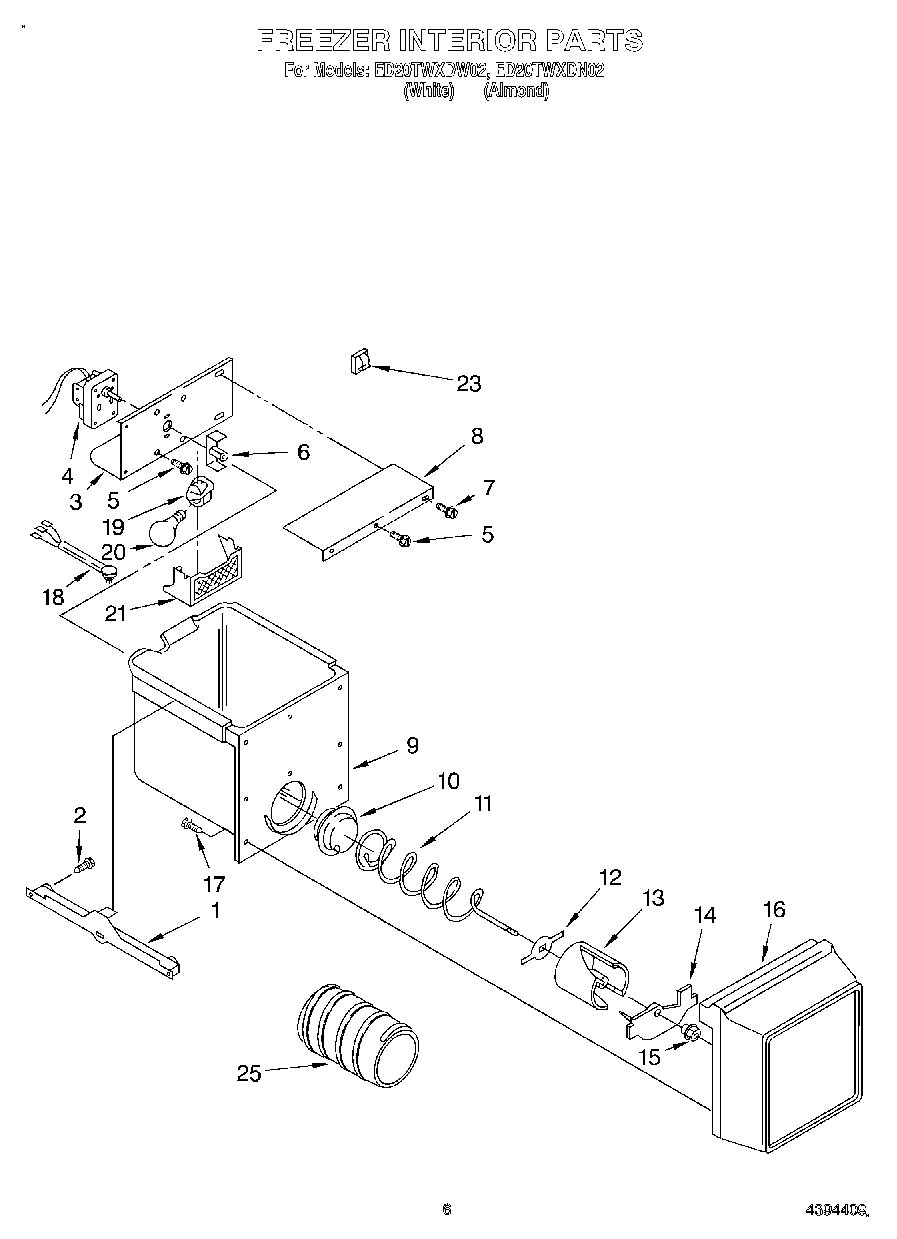

04 - FREEZER INTERIOR
05 - REFRIGERATOR DOOR
07 - DISPENSER FRONT
06 - FREEZER DOOR
08 - AIRFLOW
03 - FREEZER LINER
10 - UNIT
01 - CABINET
09 - CONTROL
11 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED20TWXDW02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175287 WPL LIT2175287 Contact Us For Availability
WPL LIT2179910 WPL LIT2179910 Contact Us For Availability
WPL LIT2189606 WPL LIT2189606 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26034A9 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Handle (White) WPL 1124713 Contact Us For Availability
3
Handle (Almond) WPL 943079 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
End Cap WPL 1119359 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
6
Screw WPL 489022 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
14
Hinge Cover (White) WPL 1129262 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2170705 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI26035A6 Contact Us For Availability
15
Screw WPL 489284 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
17
Harness, Door WPL 2179915 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Trim, Door Shelf WPL 2170582 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Harness, Intermediate WPL 2181709 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Knob, Air Control WPL 2182110 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Shim WPL 935075 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Insert, Bottom (White) WPL 1119361 Contact Us For Availability
31
Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
34
Insert, Top (White) WPL 1119367 Contact Us For Availability
34
Insert, Top (Almond) WPL 1119369 Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
End Cap WPL 2156220 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2171495 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175844 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2177169 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2177171 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26032A9 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
Clip, Wire WPL 2155658 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
