Model Whirlpool ED20TQXFN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
09 - UNIT
11 - CONTROL, LIT/OPTIONAL

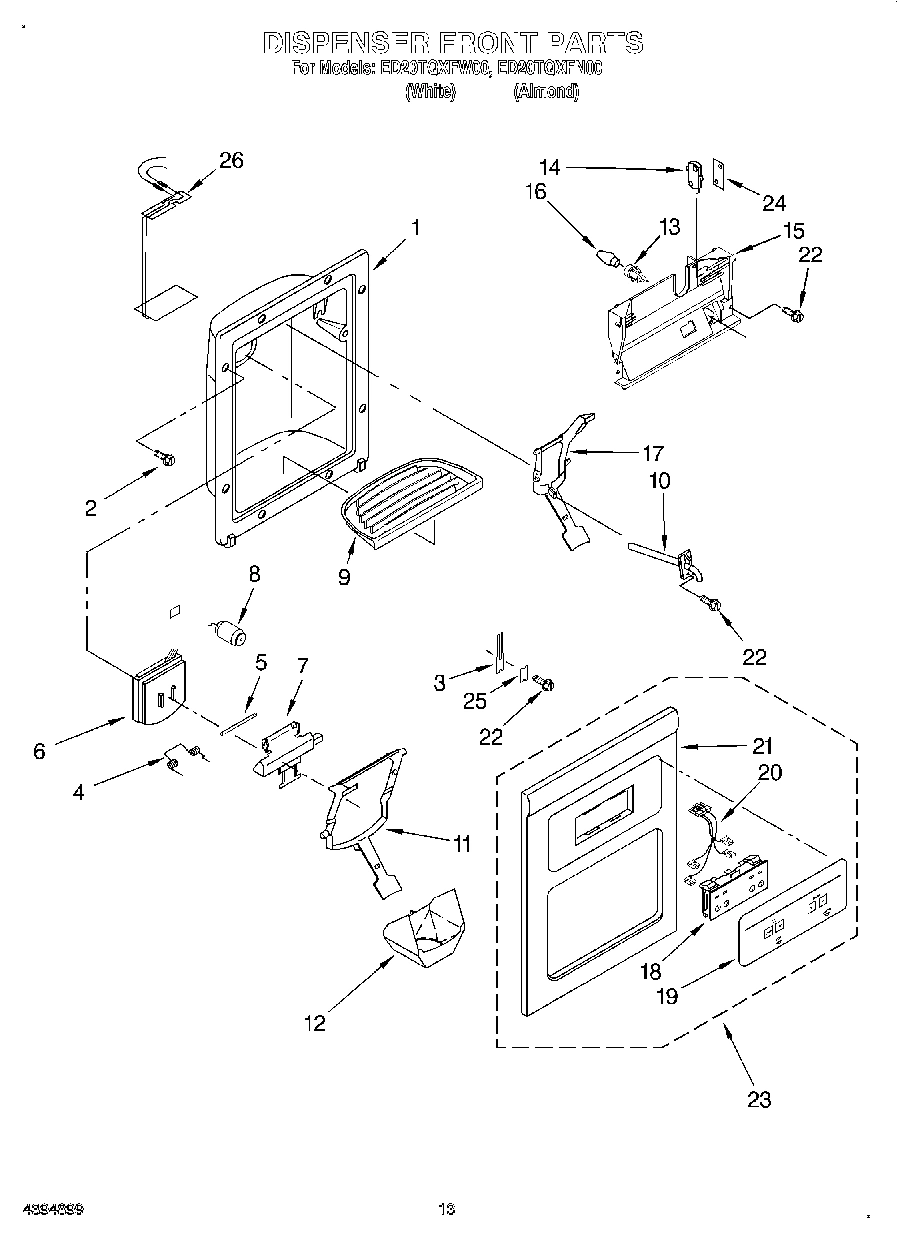

08 - DISPENSER FRONT

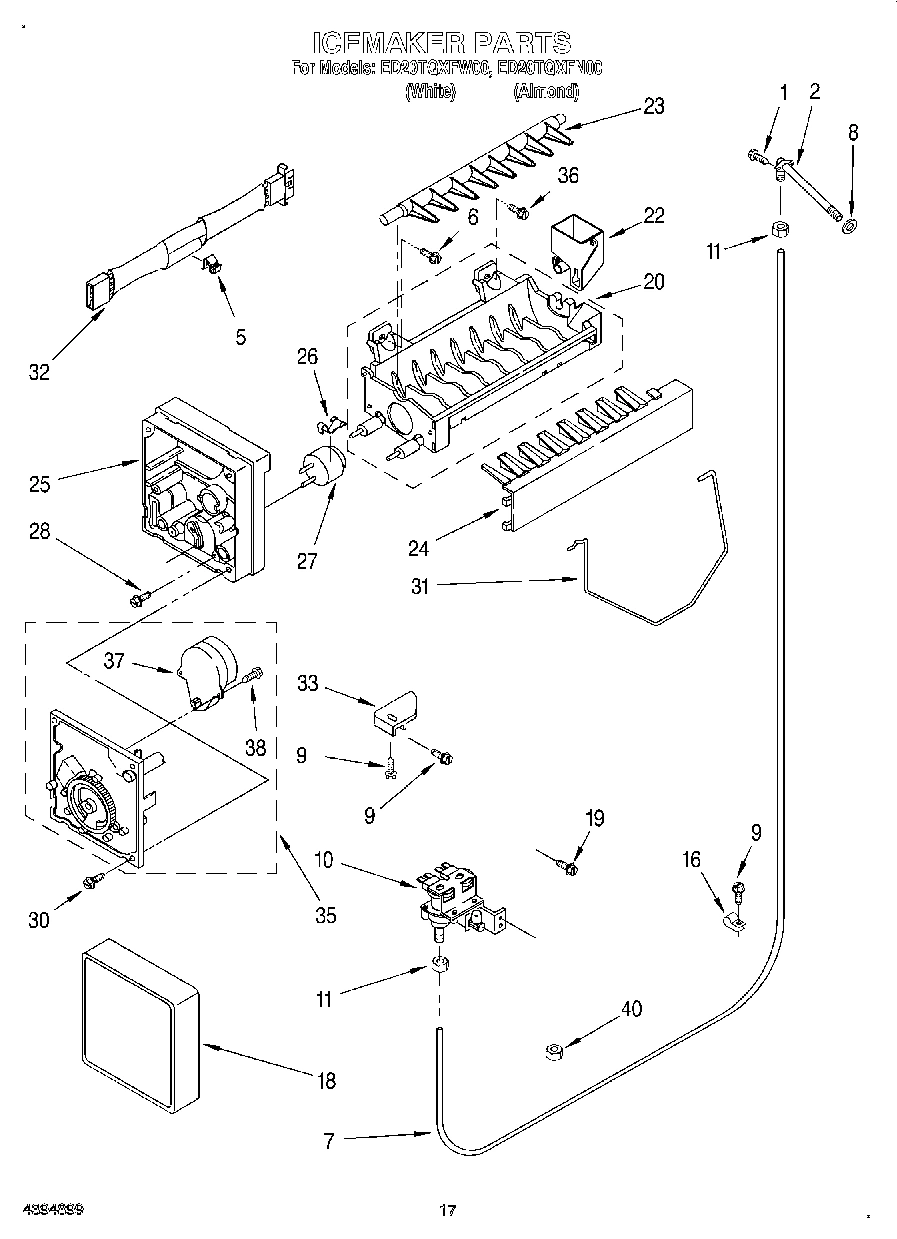

10 - ICEMAKER

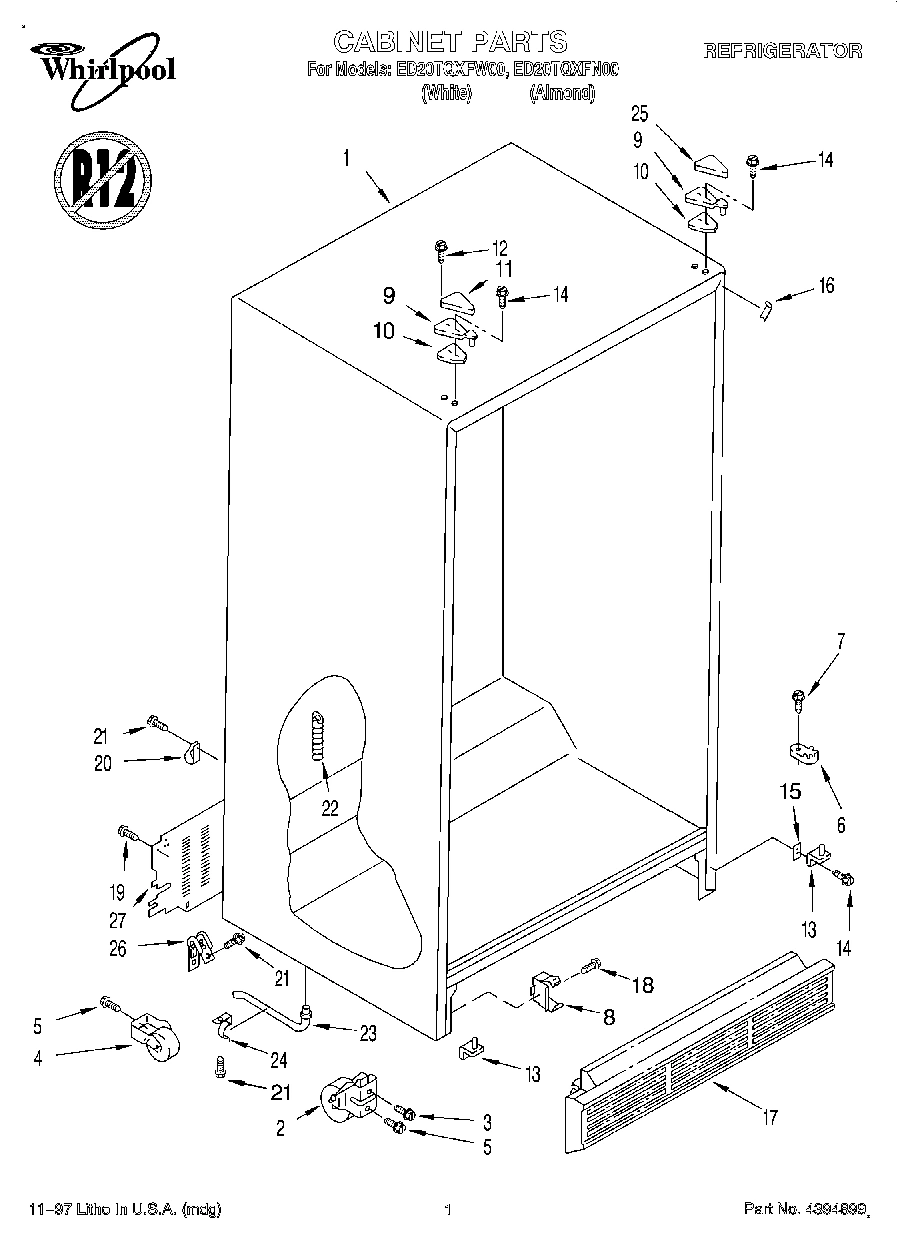

01 - CABINET

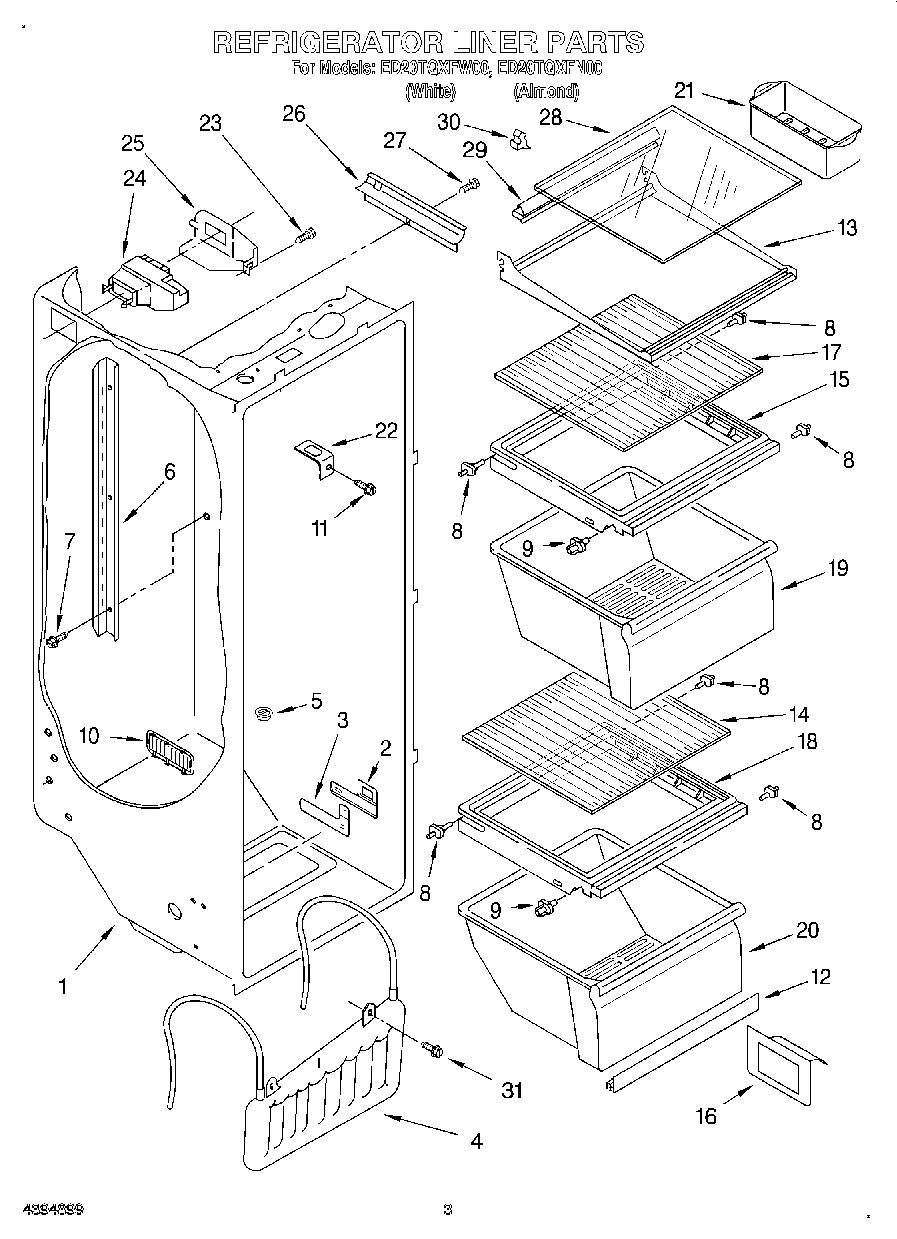

02 - REFRIGERATOR LINER

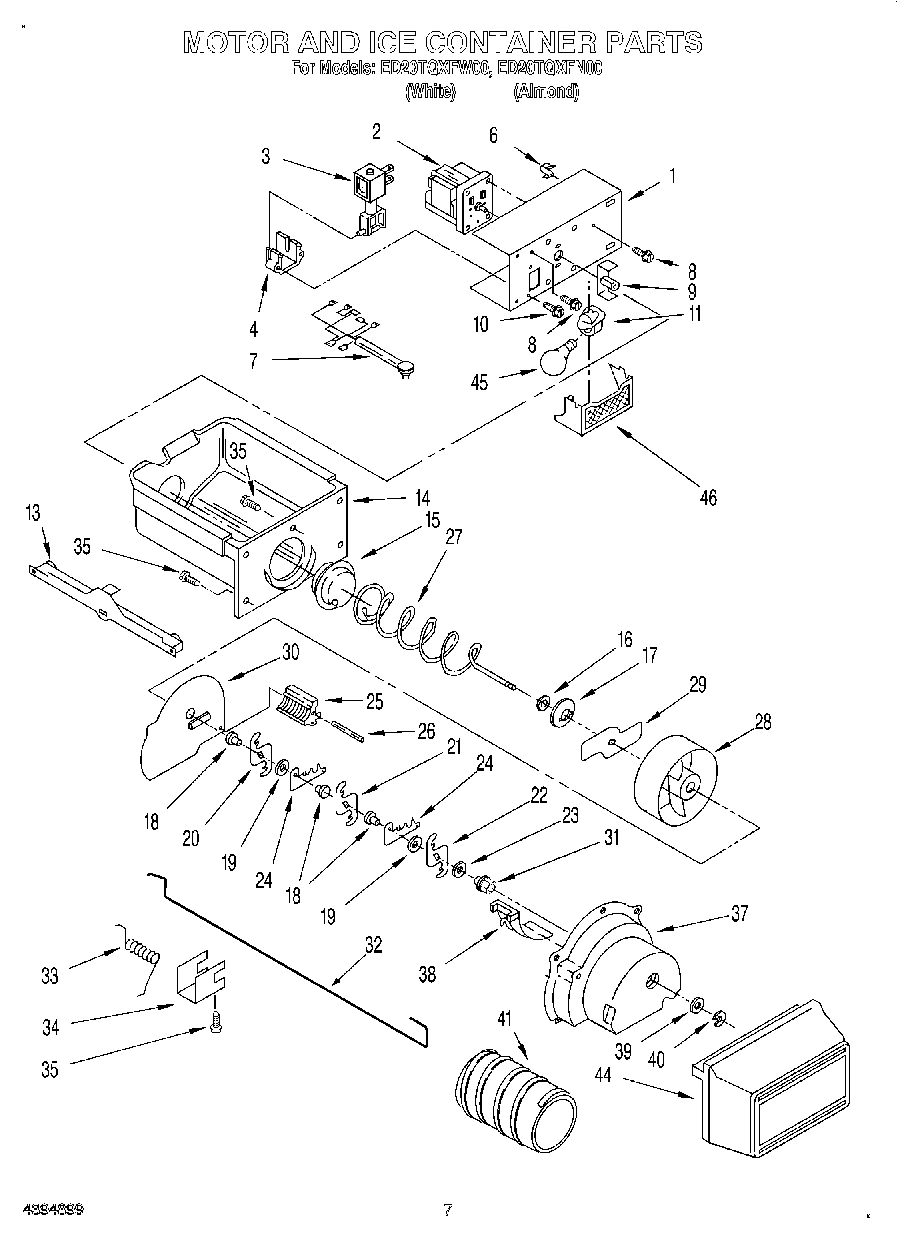

05 - MOTOR AND ICE CONTAINER

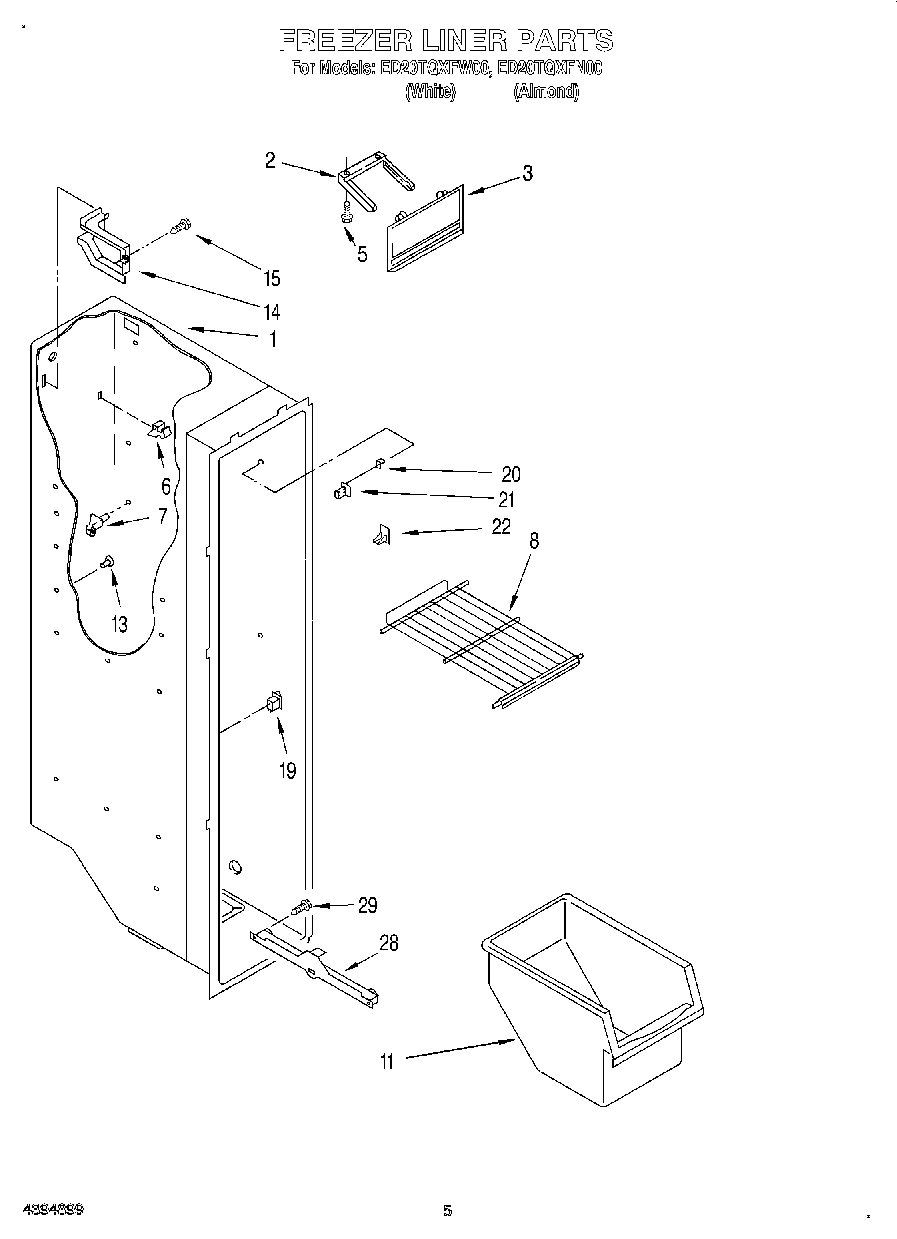

03 - FREEZER LINER

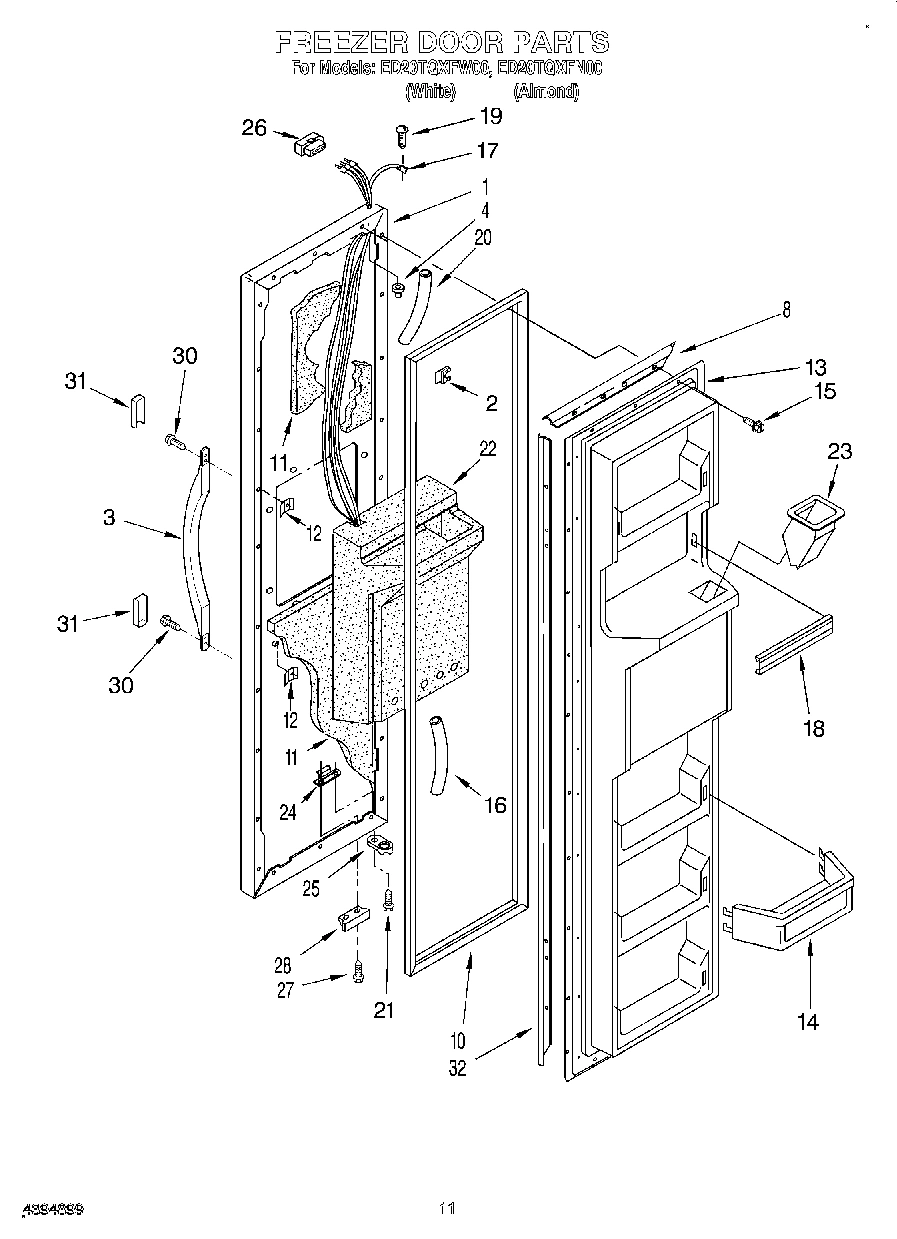

07 - FREEZER DOOR
04 - AIR FLOW

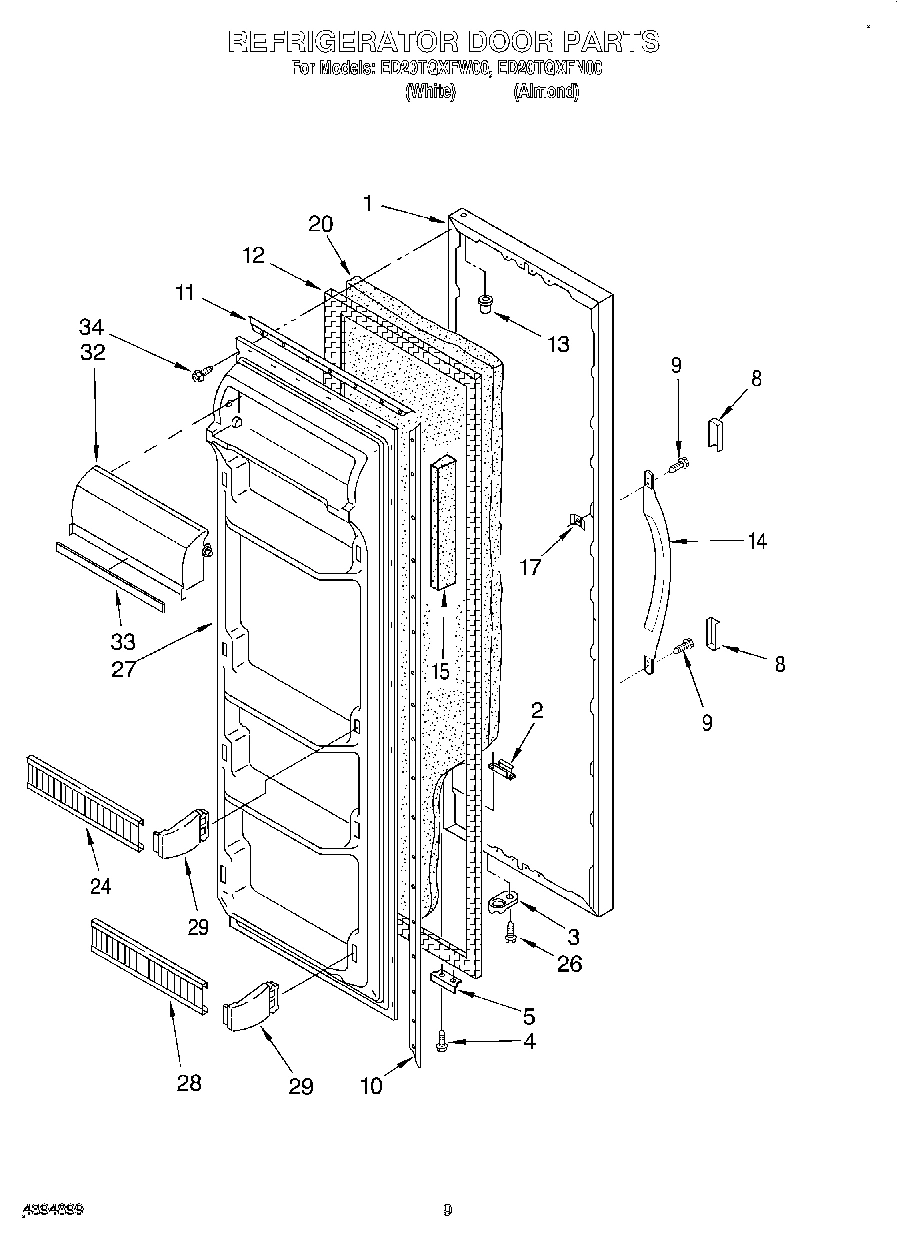

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED20TQXFN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25956A2 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25957A2 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2186400N Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2186400W Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 2194611N Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2194611W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Clip WPL 2198369 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
10
Louver WPL 2182147 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
12
Extension WPL 2179561 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Handle, Center (Almond) WPL 2193345N Contact Us For Availability
14
Handle, Center (White) WPL 2193345W Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2169749 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door WPL 2198271 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
20
Meat Pan WPL 2174118 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Tube, Door Wiring WPL 2198196 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
23
Chute, Ice WPL 2180204 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Conveyor WPL 2181957 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
28
Bracket, Door Stop WPL 2195950 Contact Us For Availability
28
Glass, Shelf WPL 2177978 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Retainer WPL 1125594 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Control Arm WPL 2169938 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
33
Trim, Door Compartment WPL 2188148 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
