Model Whirlpool ED20TQXEN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

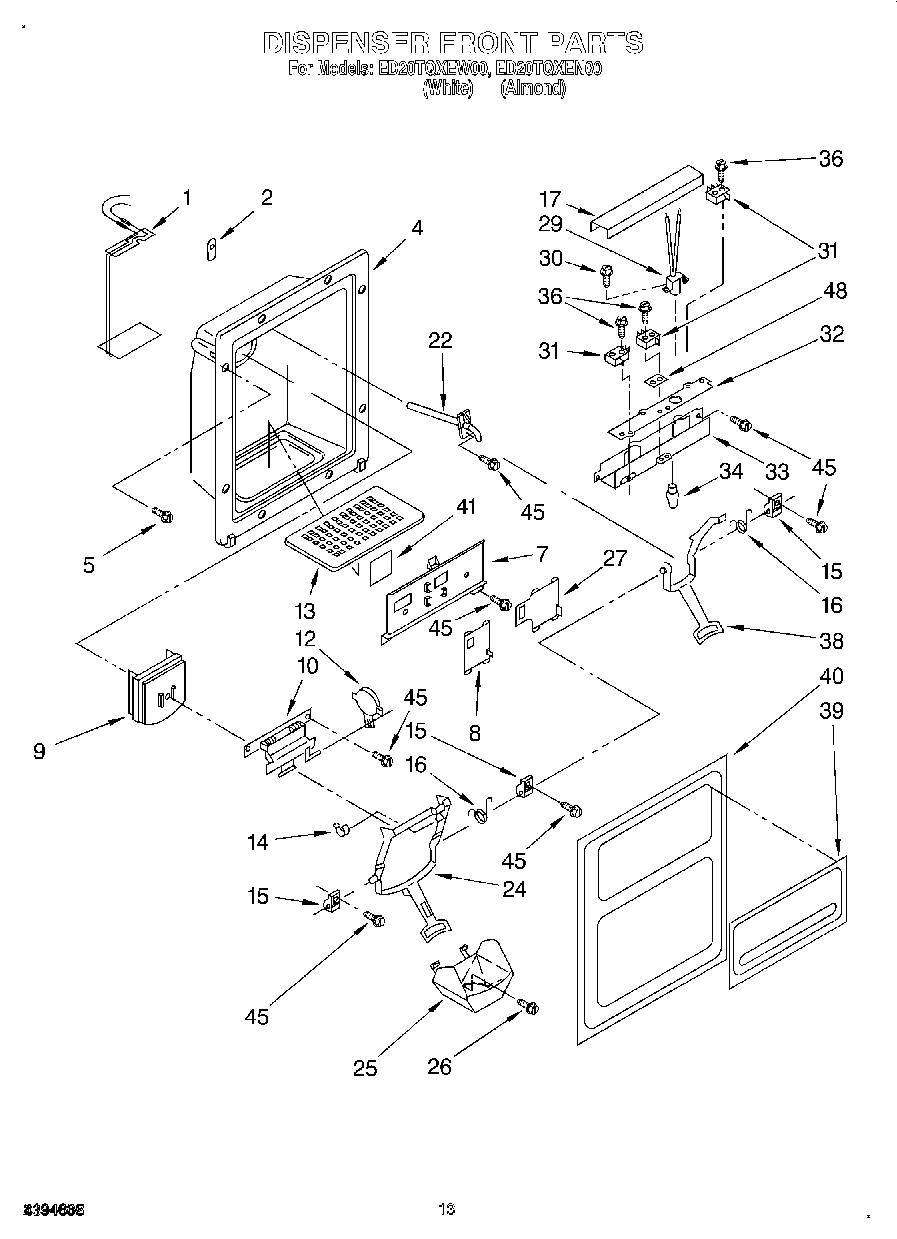

08 - DISPENSER FRONT
10 - ICE MAKER

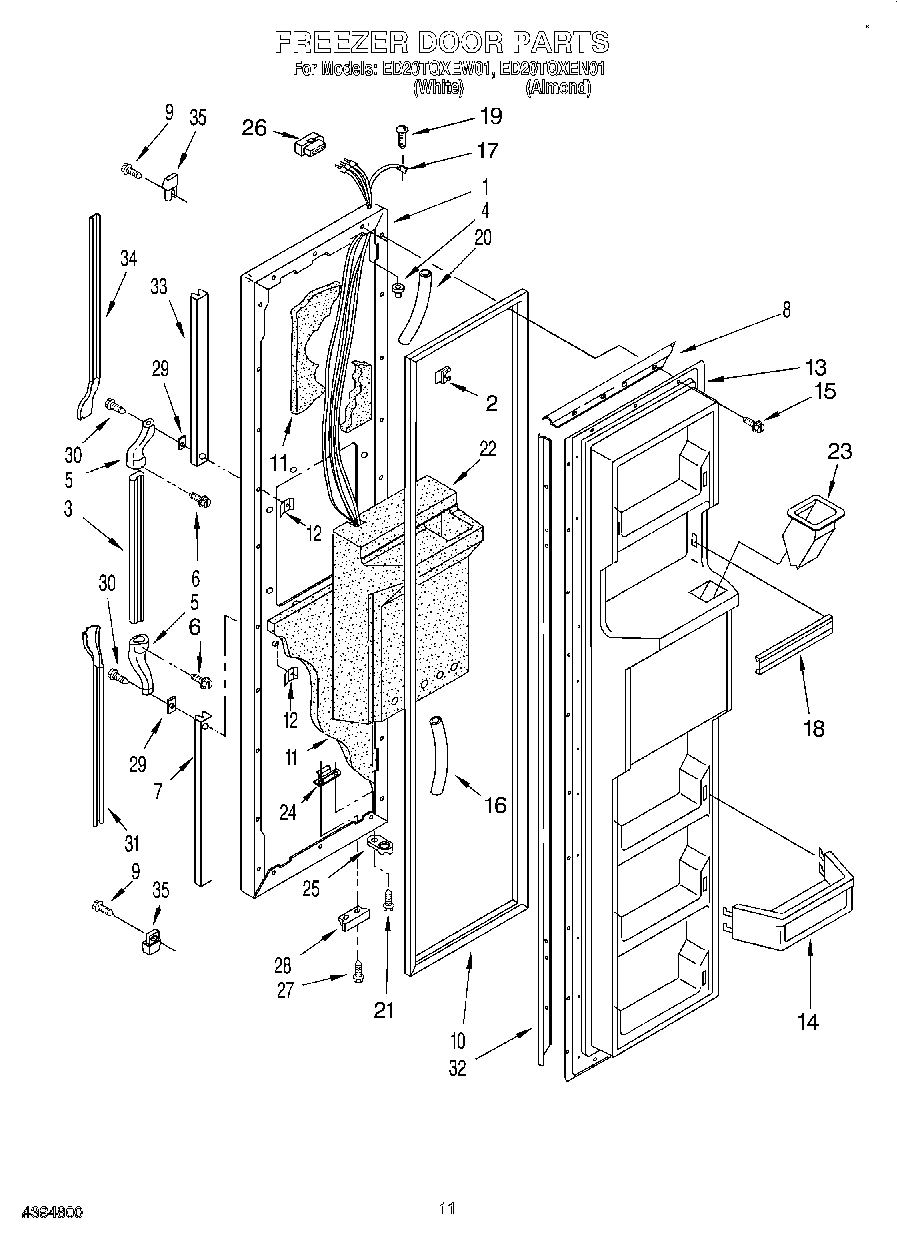

07 - FREEZER DOOR

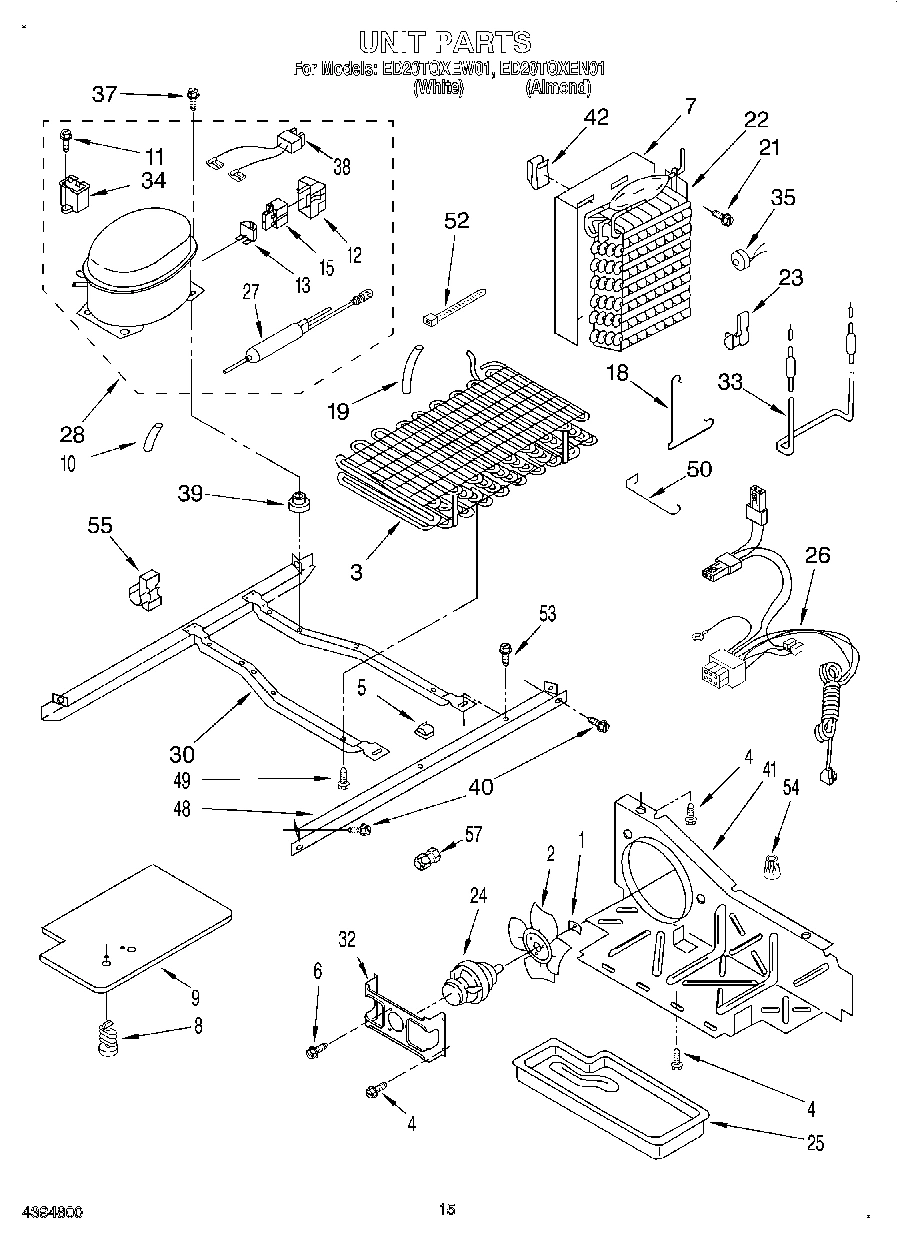

09 - UNIT
11 - CONTROL, LIT/OPTIONAL

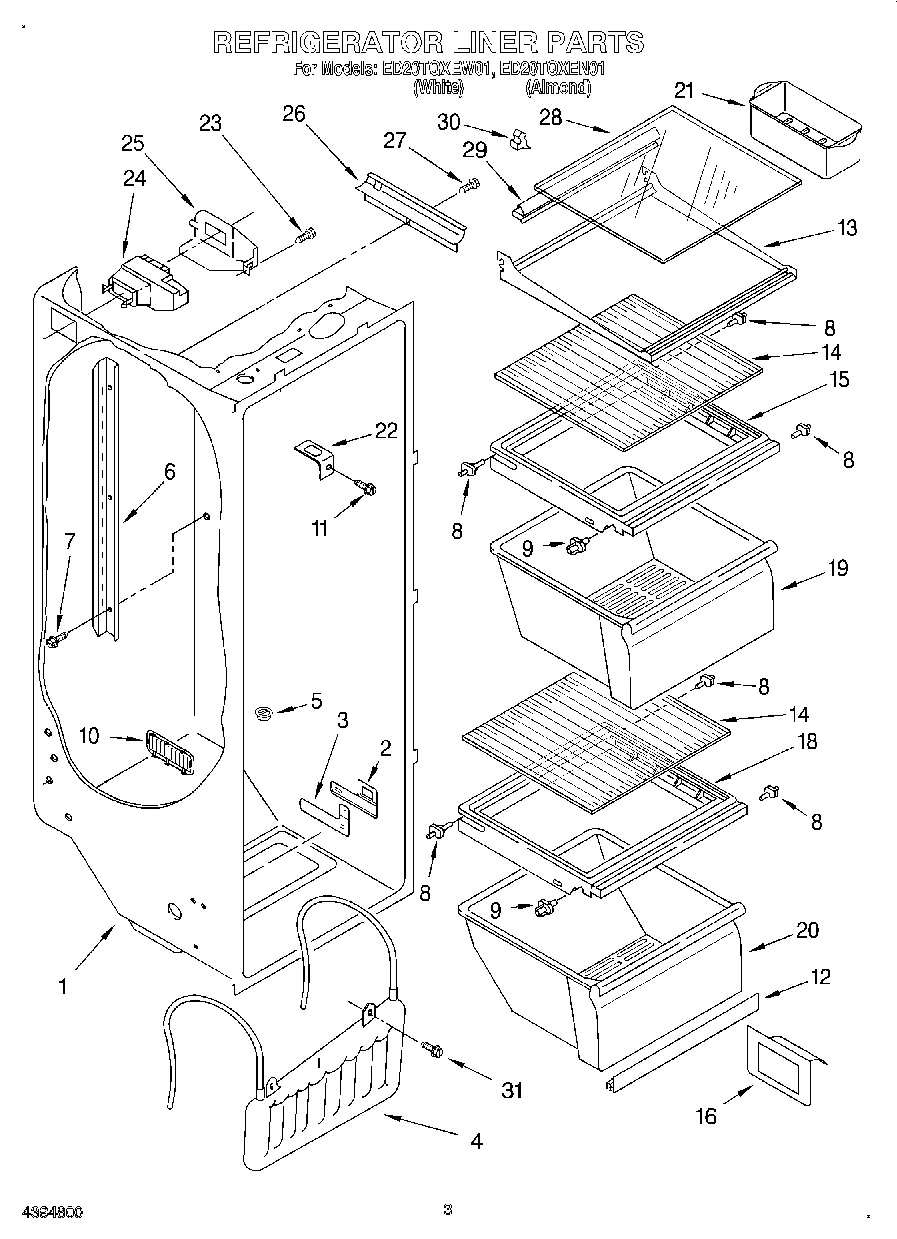

02 - REFRIGERATOR LINER

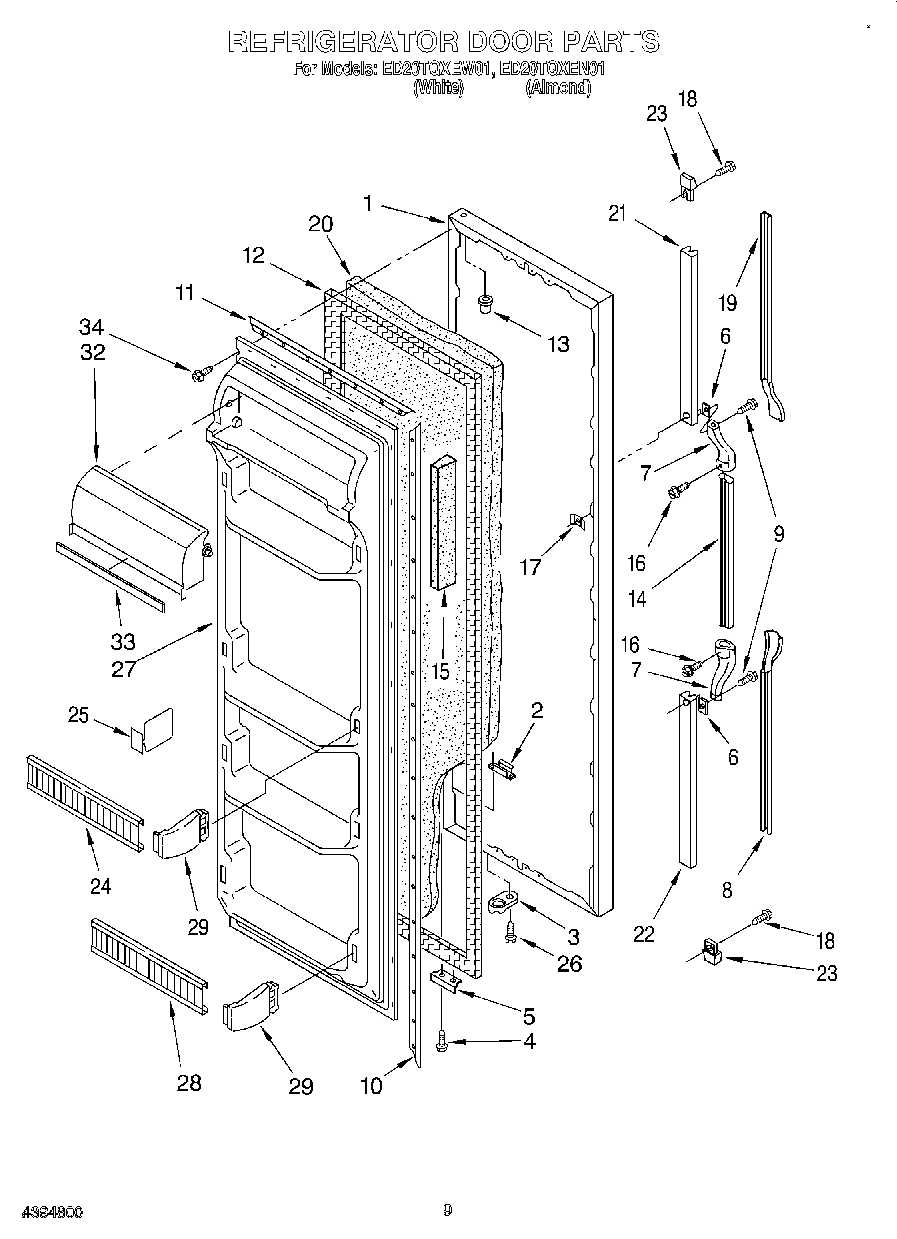

06 - REFRIGERATOR DOOR

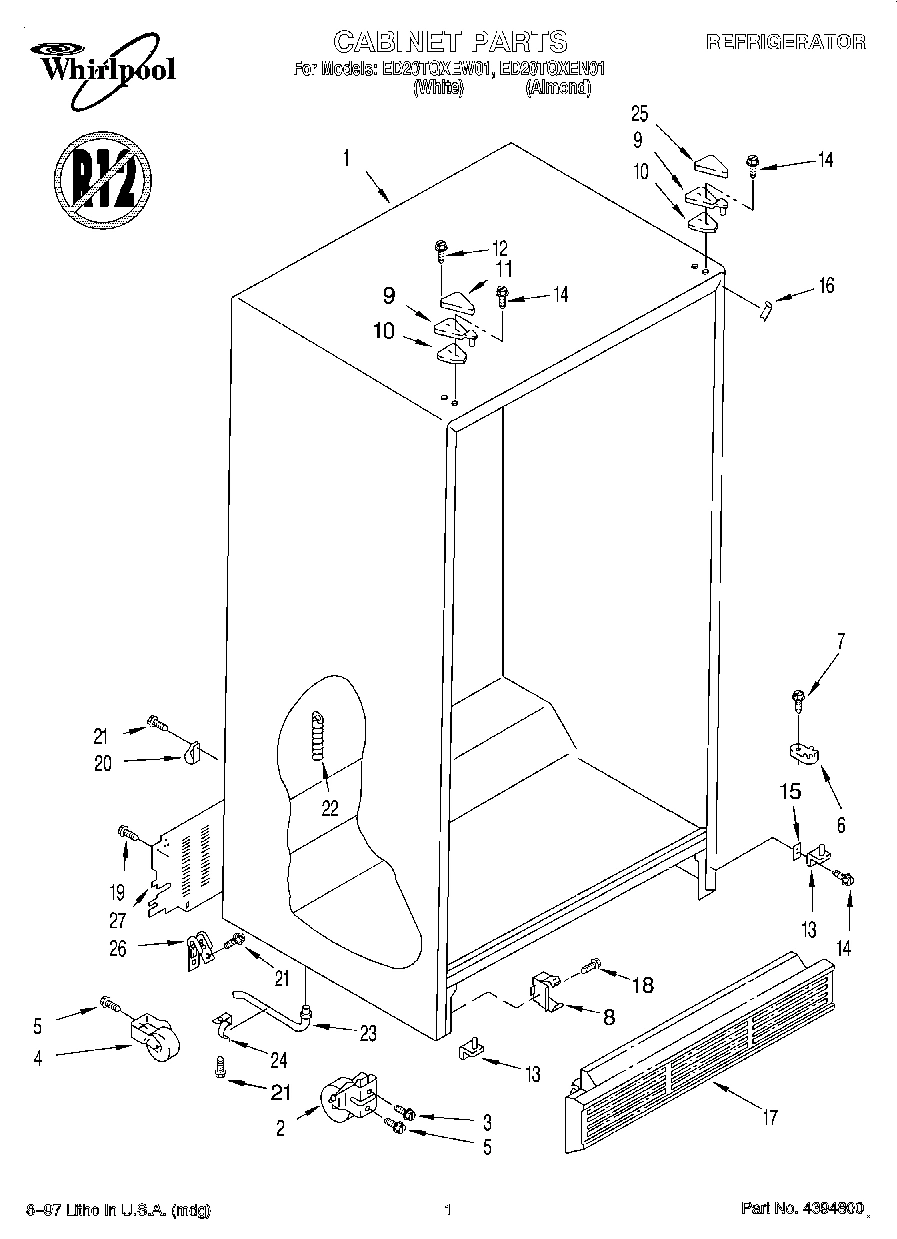

01 - CABINET
04 - AIR FLOW

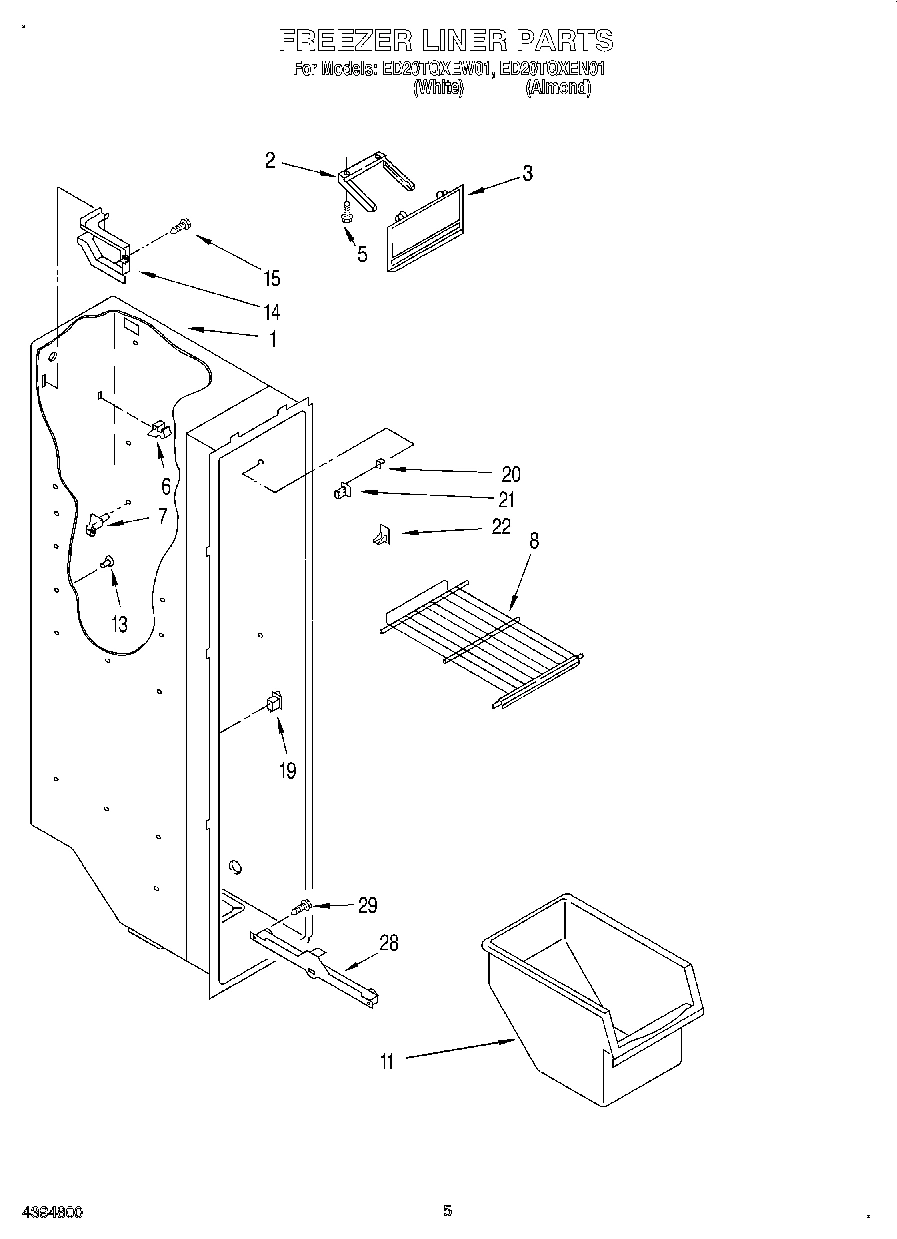

03 - FREEZER LINER

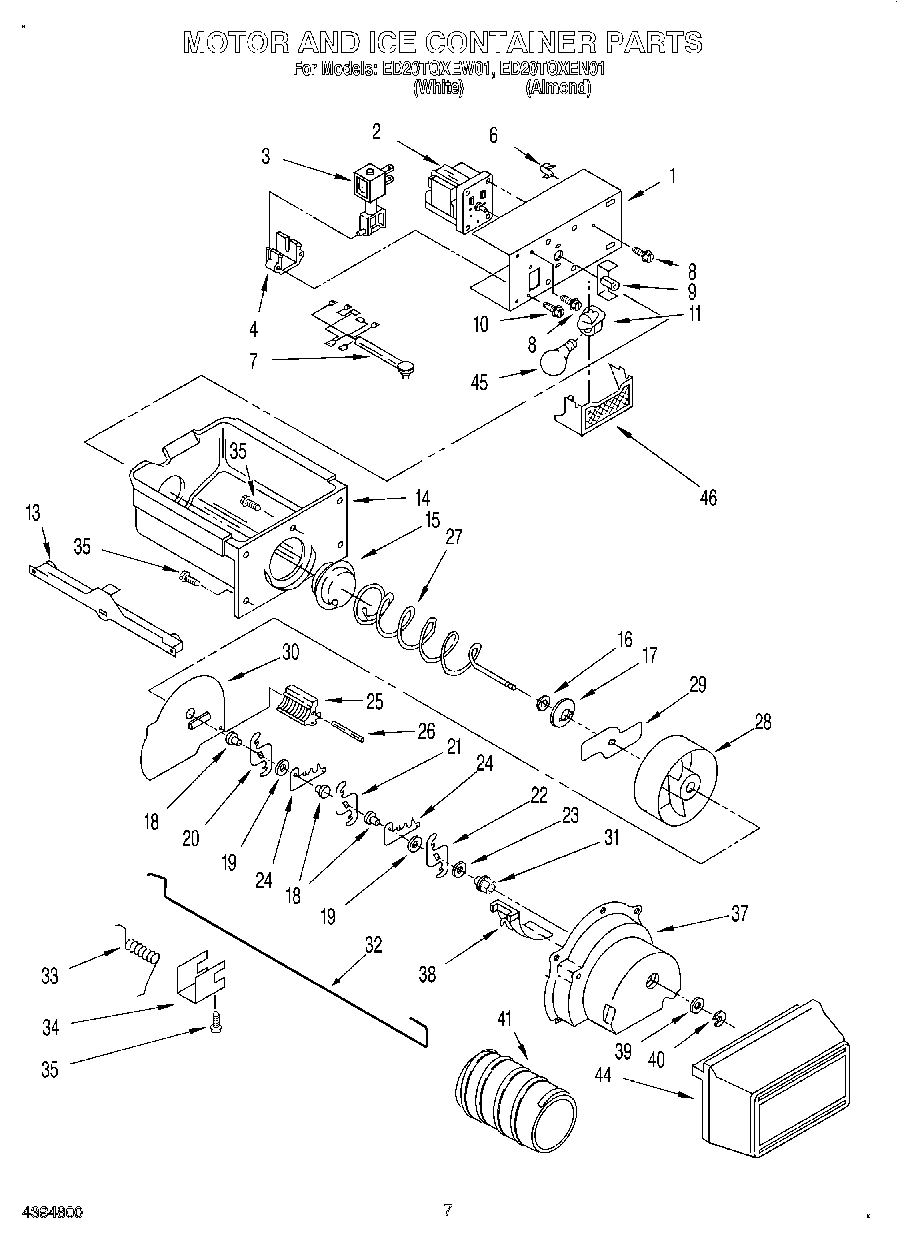

05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool ED20TQXEN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2198132 WPL LIT2198132 Contact Us For Availability
WPL LIT2198368 WPL LIT2198368 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25946A7 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 2194995N Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2194995W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI25945A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25947A5 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
5
Bracket, Door Stop WPL 2195950 Contact Us For Availability
6
Defrost Timer WPL 2176648 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
End Cap (2) WPL 1119359 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability
8
Insert, Bottom (White) WPL 2194773W Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Louver WPL 2182147 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
10
Shim, Hinge (2) WPL 2196048 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
12
Extension WPL 2179561 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
14
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
14
Handle, Center (White) WPL 2194767W Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
16
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
16
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Grille (White) WPL 2155477 Contact Us For Availability
17
Grille (Almond) WPL 2155478 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Insert, Top (Almond) WPL 2194774N Contact Us For Availability
19
Insert, Top (White) WPL 2194774W Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Control Box Harness WPL 2198307 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Insert Retainer (Top) WPL 2194771 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 2194770 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
27
Conveyor WPL 2181957 Contact Us For Availability
28
Glass, Shelf WPL 2175955 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Ice Crusher Mechanism Assembly WPL 2169939 Contact Us For Availability
29
Ice Container Assembly WPL 2182098 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Ena WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Reflector WPL 2170621 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
32
Control Arm WPL 2169938 Contact Us For Availability
33
Trim, Door Compartment WPL 2162896 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
