Model Whirlpool DUL100PKB0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

1

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

1

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $8.16

1

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

1

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

Support, Arm (Also Order Items 2 & 8) WPL 8268838 Contact Us For Availability

1

Door Spring Kit: (Heavy Dut) WPL 4318050 Contact Us For Availability

1

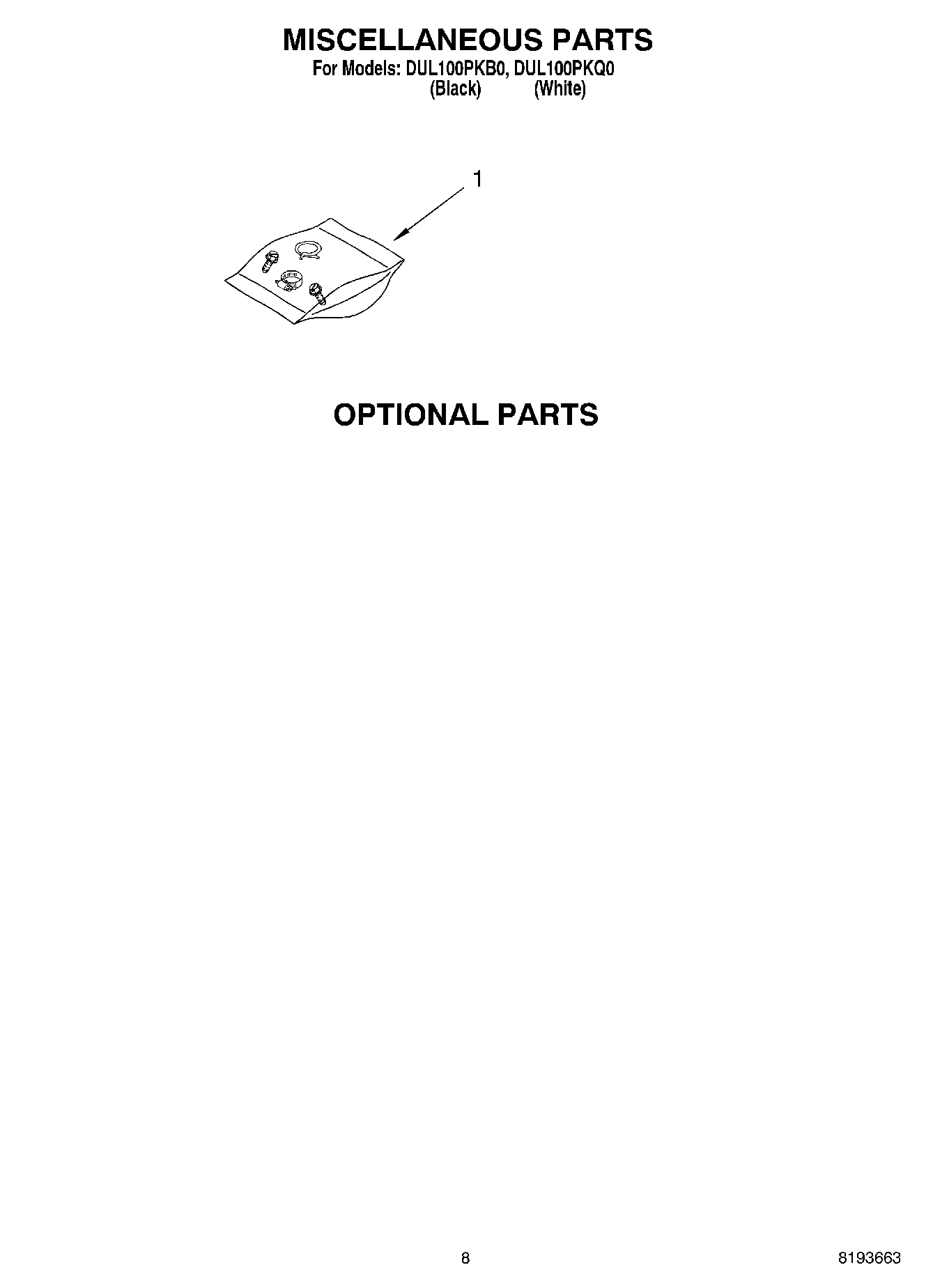

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability

1

Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability

1

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

1

Black (Uncut) WPL 799340 Contact Us For Availability

1

Almond (Uncut) WPL 978883 Contact Us For Availability

2

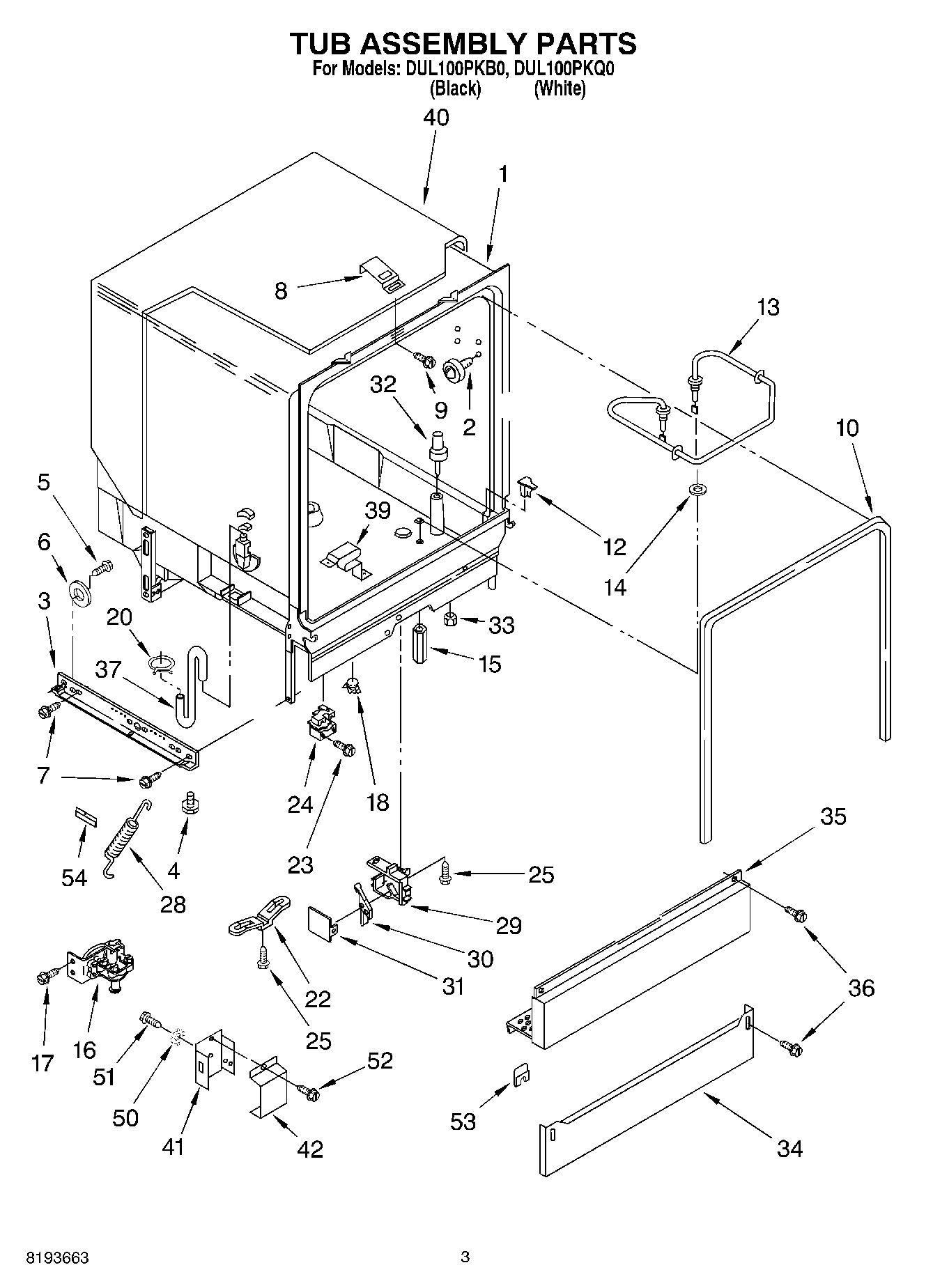

Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability

2

Clip WPL 303722 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

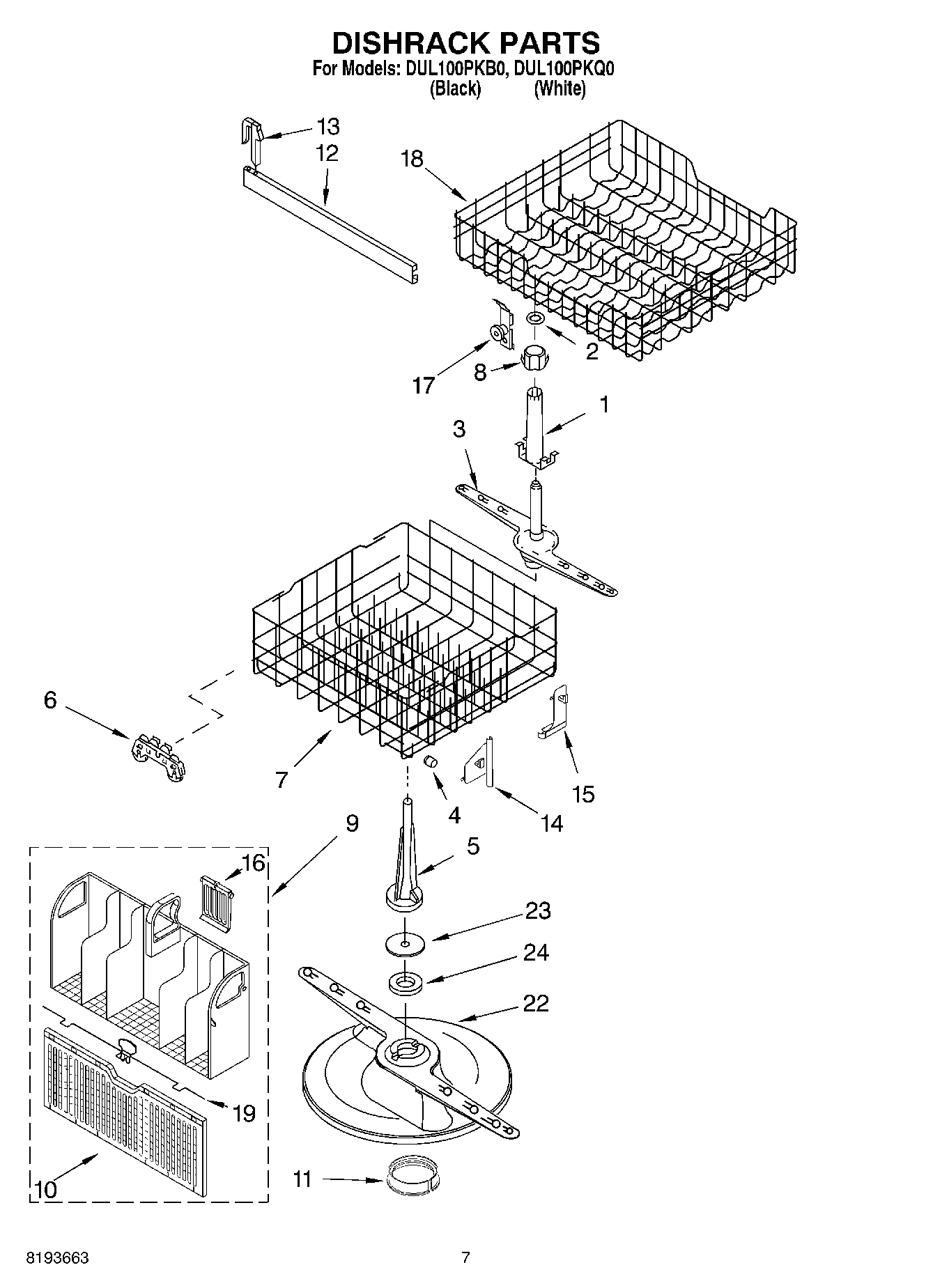

Spray Arm, Upper (Also Order Item 8) WPL 8268829 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $29.37

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $45.91

5

Tower, Pressure WPL 8268862 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3378124 Whirlpool Dishwasher Cam Backorder WPL WP3378124 $49.79

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $71.95

8

Plate, Latch WPL 3378149 Contact Us For Availability

8

Support Lock, Spray Arm WPL 8268871 Contact Us For Availability

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $32.13

9

Silverware Basket Assembly WPL 8268884 Contact Us For Availability

9

Filter WPL 3384593 Contact Us For Availability

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

Lever, Latch (Black) WPL 3369457 Contact Us For Availability

Lever, Latch White WPL 3372231 Contact Us For Availability

Door, Silverware Basket WPL 8519540 Contact Us For Availability

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $4.43

11

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $30.38

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.70

13

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

14

8268868 Whirlpool Dishwasher Clip Backorder WPL 8268868 $29.44

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

15

8268867 Whirlpool Dishwasher Clip Backorder WPL 8268867 $29.44

15

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

15

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

16

Cover, Drip WPL 3371569 Contact Us For Availability

19

Panel Front (White) WPL 3379376 Contact Us For Availability

19

Panel Front (Black) WPL 3379375 Contact Us For Availability

22

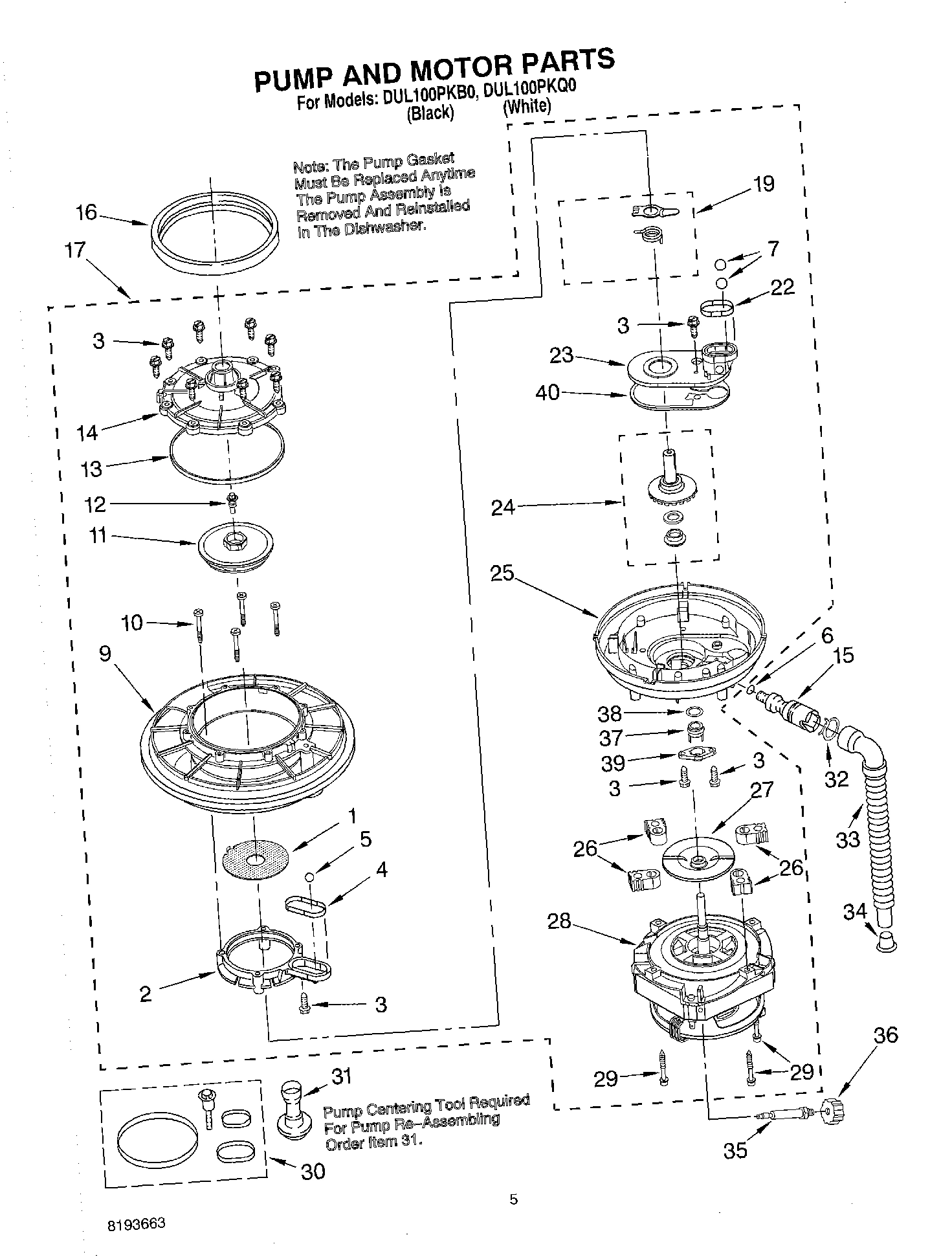

WP8268874 Whirlpool Dishwasher Spray Arm Backorder WPL WP8268874 $54.79

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 3376845 Contact Us For Availability

24

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

24

WP8274950 Whirlpool Dishwasher Impeller Backorder WPL WP8274950 $31.16

24

Relay WPL 3369447 Contact Us For Availability

25

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

28

WP3379383 Whirlpool Dishwasher Spring In Stock WPL WP3379383 $10.47

29

Housing, Float Switch WPL 8318218 Contact Us For Availability

31

8318219 Whirlpool Dishwasher Cover Housing Backorder WPL 8318219 $5.44

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $51.33

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

Nut WPL 717488 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

39

3379740 Whirlpool Dishwasher Heater Support Backorder WPL 3379740 $32.08

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

50

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

51

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

54

Friction Pad WPL 8052018 Contact Us For Availability
