Model Whirlpool DU929QWDB0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

Do-It Yourself Manual
Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability
View on Model
Instructions, Installation (Supplement) (Loca
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
View on Model
Tech Sheet
Tech Sheet WPL LIT3379195 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3380268 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT3381175 Contact Us For Availability
View on Model
Energy Guide
Energy Guide WPL LIT3381327 Contact Us For Availability
View on Model
1
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
1
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
1

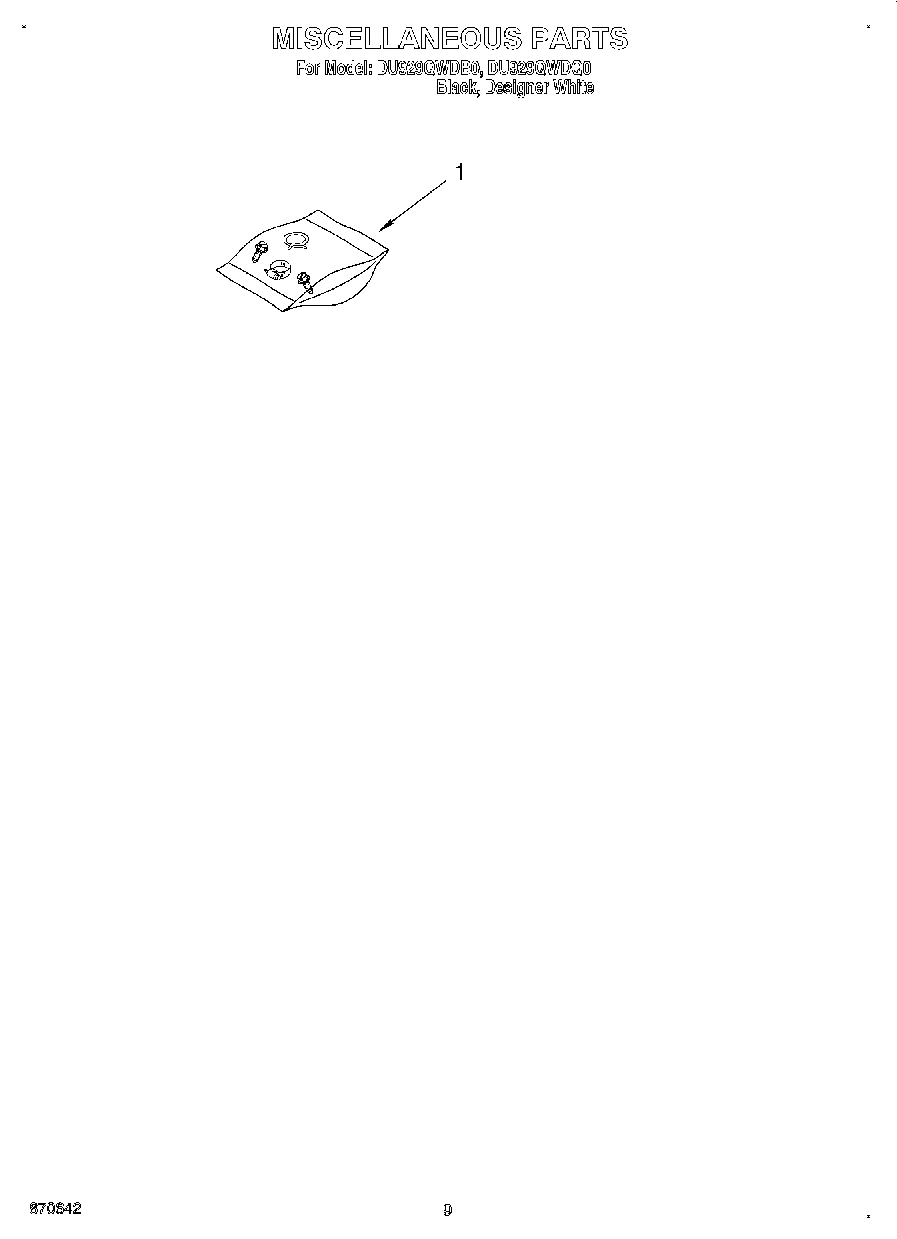

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
1
Side Panel Kit (White)
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
View on Model
1
Side Panel Kit: (Almond)
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
View on Model
1
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
1
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
1
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
1

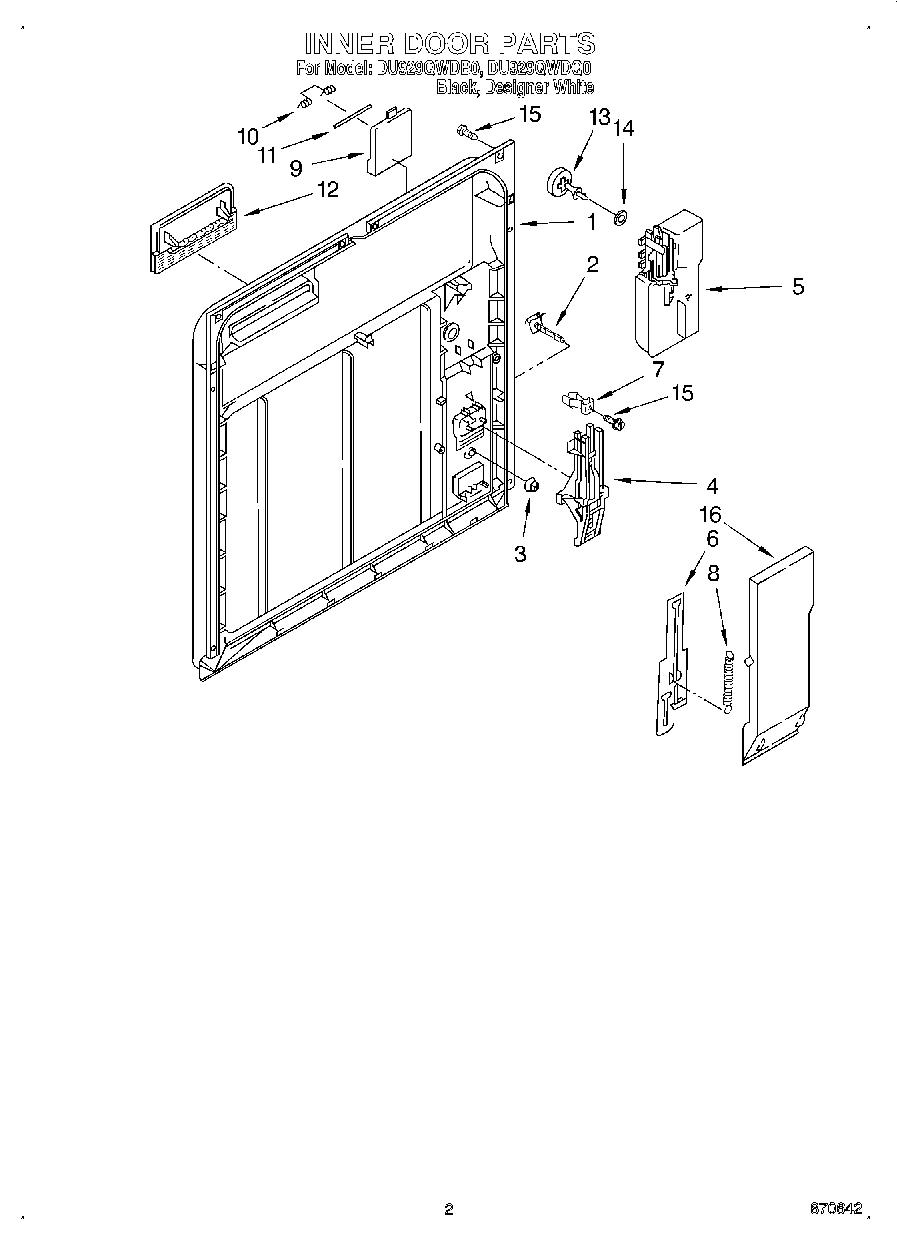

Inner Door (Also Order)
Inner Door (Also Order) WPL 3371480 Contact Us For Availability
View on Model
2
Tub, Wheel Assembly (8)
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
View on Model
2
Support, Arm (Also Order Items 1 & 8)
Support, Arm (Also Order Items 1 & 8) WPL 3368290 Contact Us For Availability
View on Model
3
Spray Arm, Upper (Also Order Items 1 & 8)
Spray Arm, Upper (Also Order Items 1 & 8) WPL 3377274 Contact Us For Availability
View on Model
5
Tower, Pressure
Tower, Pressure WPL 300848 Contact Us For Availability
View on Model
6
Draw Bar, Electronic
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
View on Model
7
Clip, Console Door Retainer
Clip, Console Door Retainer WPL 3374771 Contact Us For Availability
View on Model
8
Support, Lock Spray Arm
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
View on Model
9

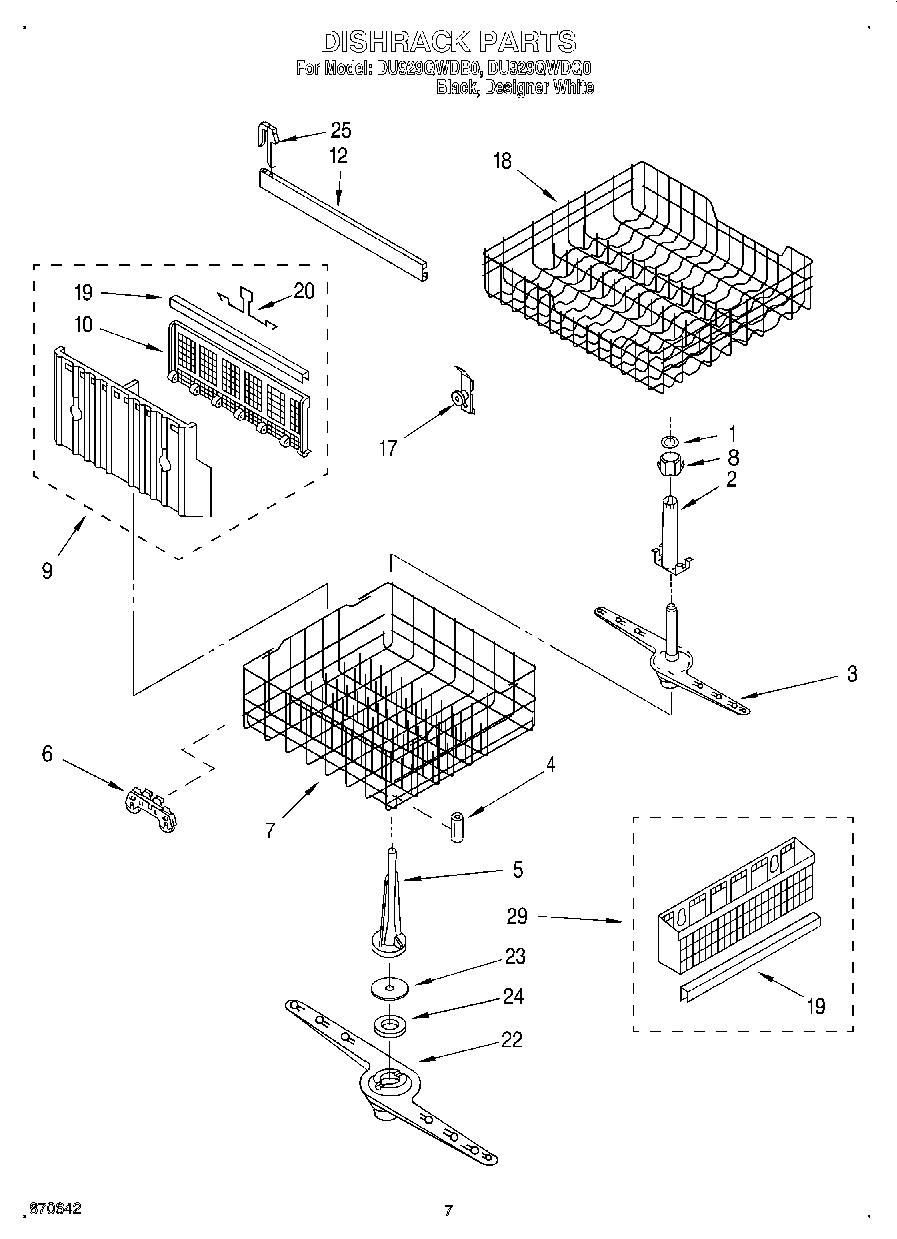

Silverware Basket Assembly
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
View on Model
10
Lever, Latch (Black)
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
View on Model
10
Lever, Latch White
Lever, Latch White WPL 3372231 Contact Us For Availability
View on Model
10
Cover, Basket
Cover, Basket WPL 3369485 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
17
Motor, Dual
Motor, Dual WPL 3374501 Contact Us For Availability
View on Model
17

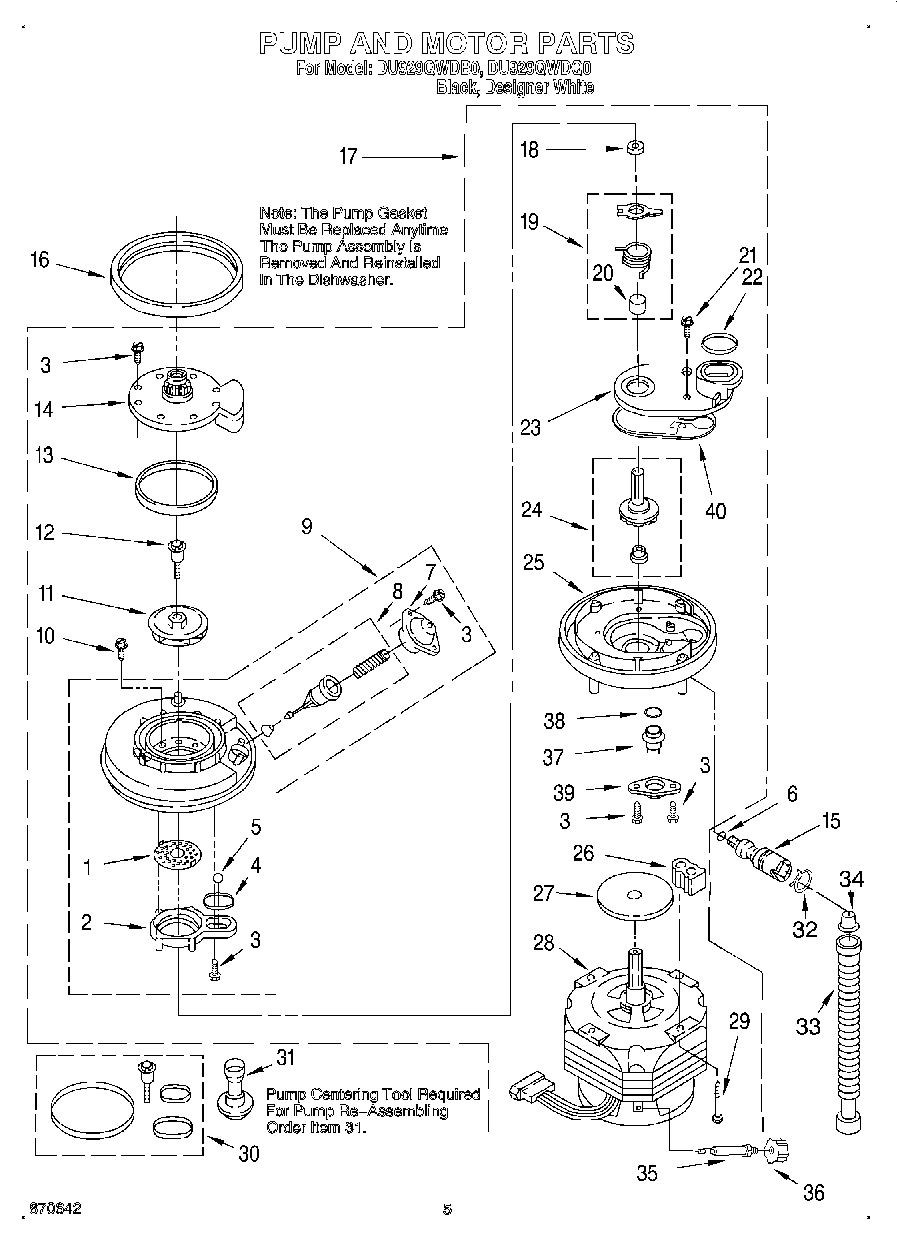

Pump & Motor Assembly (Includes Item 16)
Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability
View on Model
18
Bushing, Grind
Bushing, Grind WPL 302707 Contact Us For Availability
View on Model
19
Trim, Basket
Trim, Basket WPL 717528 Contact Us For Availability
View on Model
20
Retainer, Panel (Black)
Retainer, Panel (Black) WPL 3374010 Contact Us For Availability
View on Model
20
Retainer, Panel (White)
Retainer, Panel (White) WPL 3374011 Contact Us For Availability
View on Model
20
Sleeve, Drain Impeller
Sleeve, Drain Impeller WPL 3378139 Contact Us For Availability
View on Model
20
Handle, Basket
Handle, Basket WPL 300086 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 3378207 Contact Us For Availability
View on Model
25
Base, Pump (Also Order Item 30) See Note A.
Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability
View on Model
28
Motor & Fan (Assembly) (Includes Item 27) (Al
Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3379364 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
29
Screw (4)
Screw (4) WPL 3369331 Contact Us For Availability
View on Model
29
Basket, Utensil (Includes Item 19)
Basket, Utensil (Includes Item 19) WPL 3369494 Contact Us For Availability
View on Model
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22)
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
35
Panel, Access (White)
Panel, Access (White) WPL 3369614 Contact Us For Availability
View on Model
35
WPL 3374757
WPL 3374757 WPL 3374757 Contact Us For Availability
View on Model
36
WPL 3378202
WPL 3378202 WPL 3378202 Contact Us For Availability
View on Model
37
WPL 3378083
WPL 3378083 WPL 3378083 Contact Us For Availability
View on Model
45
Extension & Clip Assembly
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
