Model Whirlpool DU915QWDB6 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

Do-It Yourself Manual
Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability
View on Model
Instructions, Installation (Supplement) (Loca
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT3376832 Contact Us For Availability
View on Model
Wiring Diagram
Wiring Diagram WPL LIT3379193 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3380268 Contact Us For Availability
View on Model
Energy Guide
Energy Guide WPL LIT8054177 Contact Us For Availability
View on Model
1
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
1
Support, Arm (Also Order Items 2 & 8)
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
View on Model
1

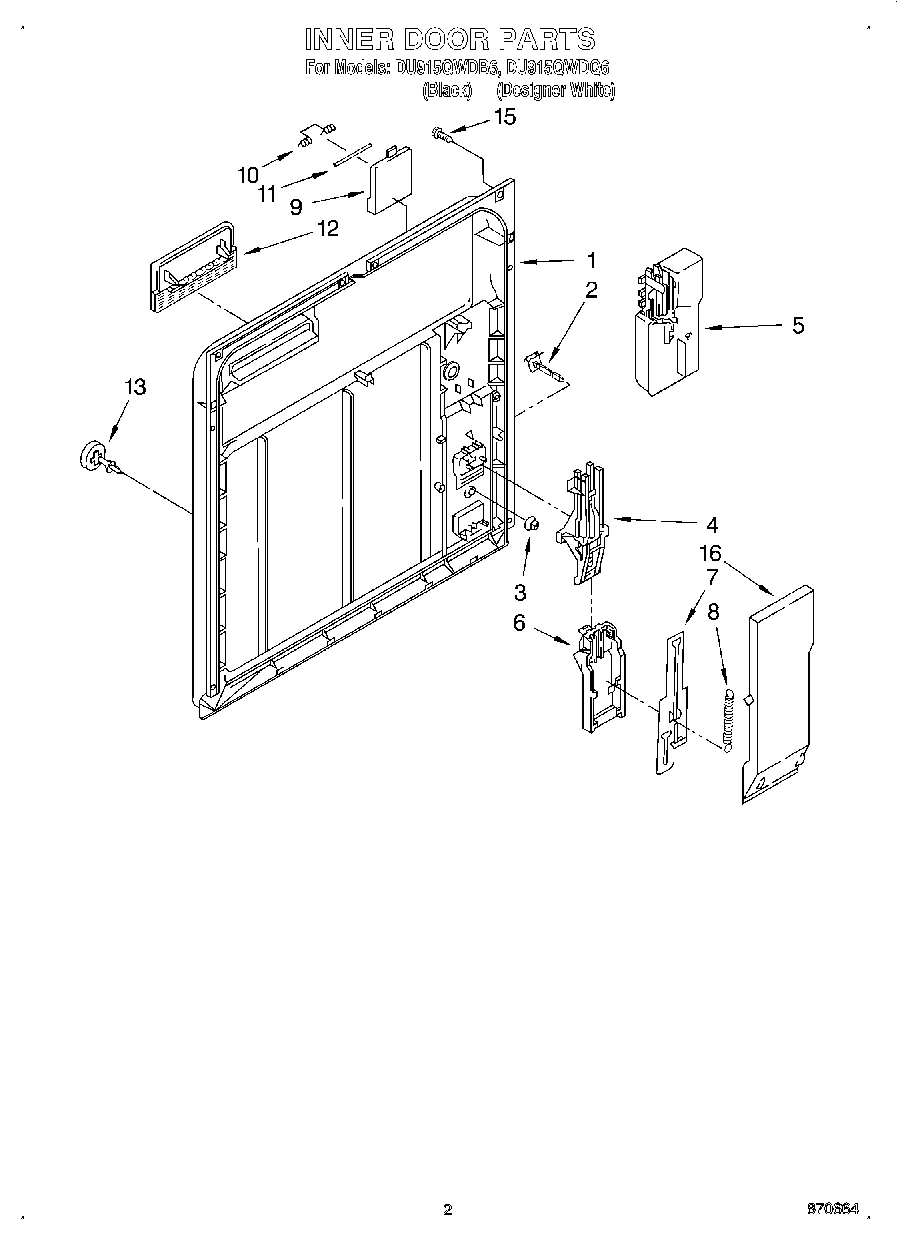

Inner Door (Also Order)
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
View on Model
1

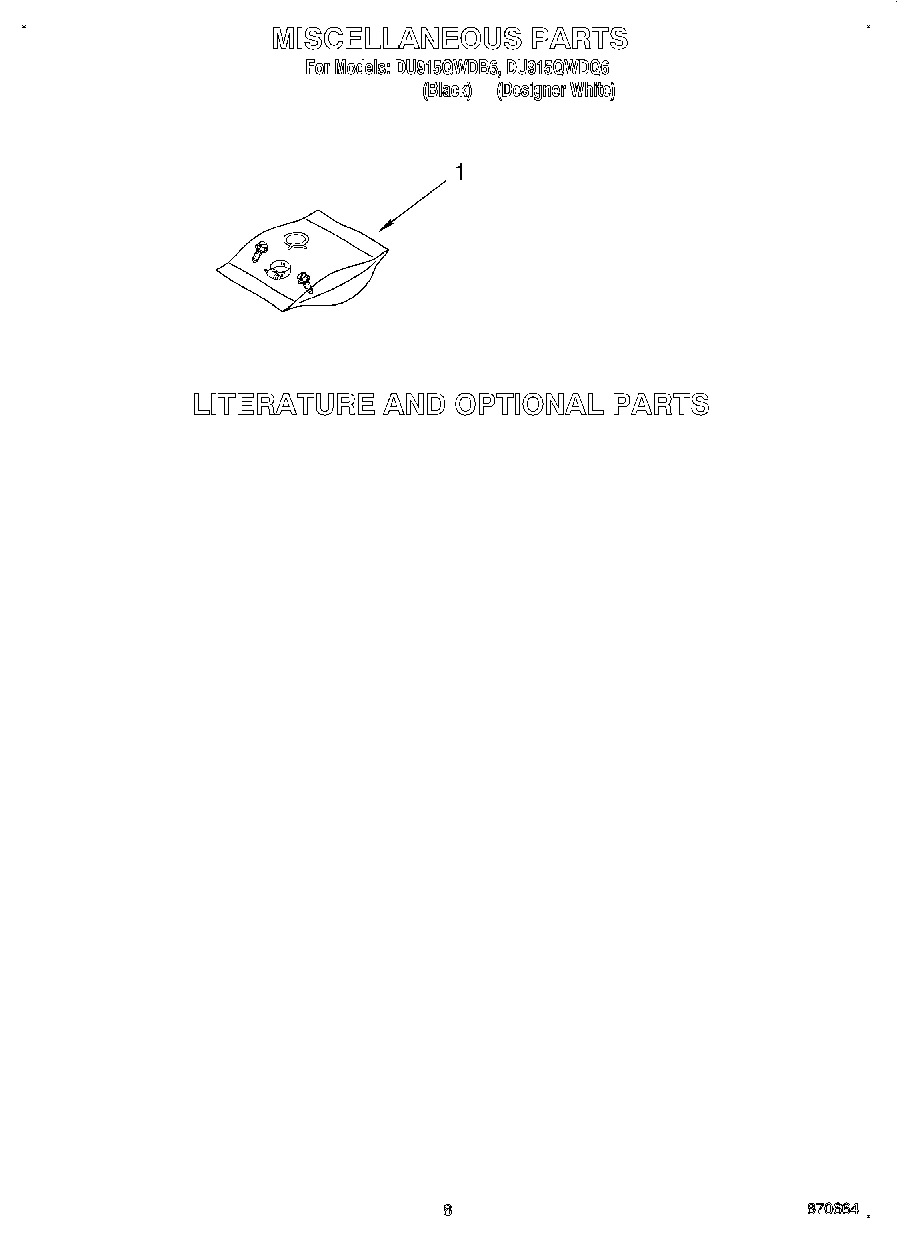

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
1
Side Panel Kit (White)
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
View on Model
1
Side Panel Kit: (Almond)
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
View on Model
1
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
1
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
1
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
2
Tub, Wheel Assembly (8)
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
View on Model
2
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
3
Spray Arm, Upper (Also Order Item 8)
Spray Arm, Upper (Also Order Item 8) WPL 3377274 Contact Us For Availability
View on Model
5
Tower, Pressure
Tower, Pressure WPL 300848 Contact Us For Availability
View on Model
6
Draw Bar, (Upper Dispenser)
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
View on Model
6
Wheel (2)
Wheel (2) WPL 302819 Contact Us For Availability
View on Model
6
Cam
Cam WPL 3378124 Contact Us For Availability
View on Model
8
Support, Lock Spray Arm
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
View on Model
8
Door Frame (Includes Item 24) (Black)
Door Frame (Includes Item 24) (Black) WPL 3374711 Contact Us For Availability
View on Model
9

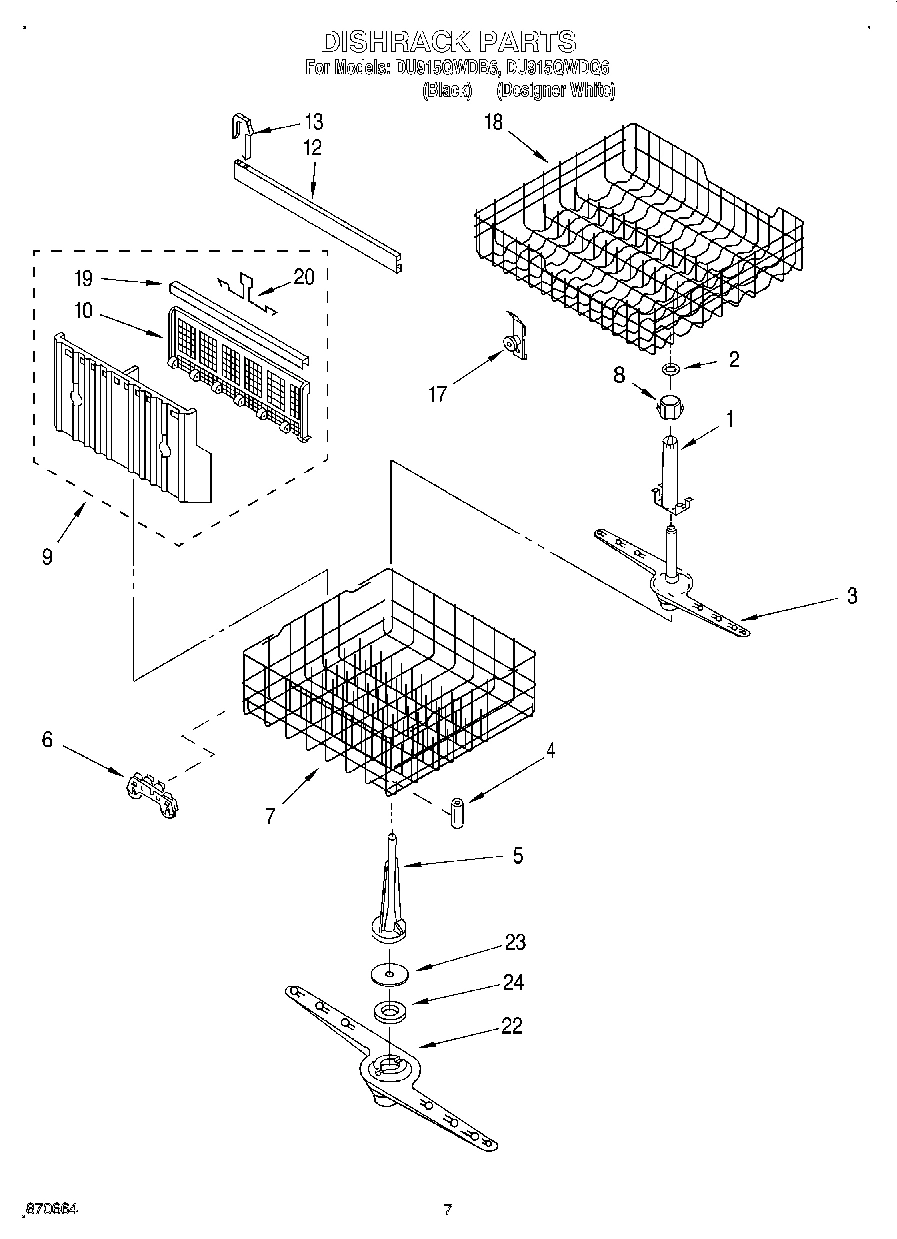

Silverware Basket Assembly
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
View on Model
10
Lever, Latch (Black)
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
View on Model
10
Lever, Latch White
Lever, Latch White WPL 3372231 Contact Us For Availability
View on Model
10
Cover, Basket
Cover, Basket WPL 3369485 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
13
Stop, Track (4)
Stop, Track (4) WPL 3379941 Contact Us For Availability
View on Model
16
Gasket, Pump
Gasket, Pump WPL 717000 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
19
Trim, Basket
Trim, Basket WPL 717528 Contact Us For Availability
View on Model
20
Retainer, Panel (Black)
Retainer, Panel (Black) WPL 3374010 Contact Us For Availability
View on Model
20
Retainer, Panel (White)
Retainer, Panel (White) WPL 3374011 Contact Us For Availability
View on Model
20
Handle, Basket
Handle, Basket WPL 300086 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
22
Sprayarm, Lower
Sprayarm, Lower WPL 3369347 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 3378207 Contact Us For Availability
View on Model
24
Bearing, Nozzle
Bearing, Nozzle WPL 719576 Contact Us For Availability
View on Model
24
Relay
Relay WPL 3369447 Contact Us For Availability
View on Model
25

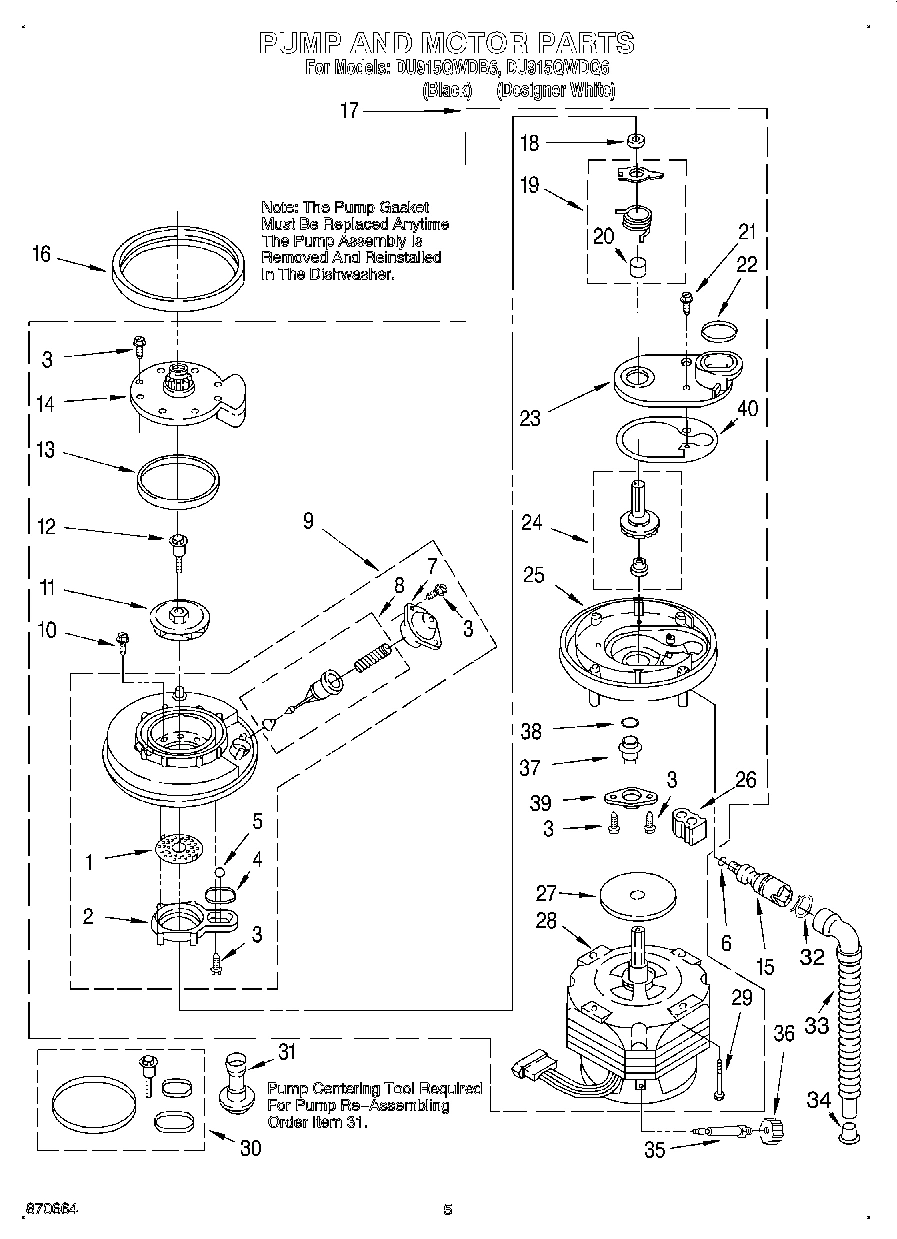

Base, Pump (Includes Item 24) (Also Order Ite
Base, Pump (Includes Item 24) (Also Order Ite WPL 3376157 Contact Us For Availability
View on Model
28
Motor (Includes Item 27) (Also Order Item 30)
Motor (Includes Item 27) (Also Order Item 30) WPL 3379364 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
29
Screw
Screw WPL 3369331 Contact Us For Availability
View on Model
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22)
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
35
Panel, Access (White)
Panel, Access (White) WPL 3369614 Contact Us For Availability
View on Model
35
Shaft, Absorber
Shaft, Absorber WPL 3374757 Contact Us For Availability
View on Model
36
Weight, Absorber
Weight, Absorber WPL 3378202 Contact Us For Availability
View on Model
37
T
T WPL 3378083 Contact Us For Availability
View on Model
38
WPL 3376723
WPL 3376723 WPL 3376723 Contact Us For Availability
View on Model
42
COVER ASSEMBLY TERMINAL BOX
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
View on Model
43
Access Panel (White/Black)
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
View on Model
45
Extension & Clip Assembly
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
View on Model
