Model Whirlpool DU850SWPS3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
02 - INNER DOOR PARTS
04 - PUMP AND SPRAY ARM PARTS

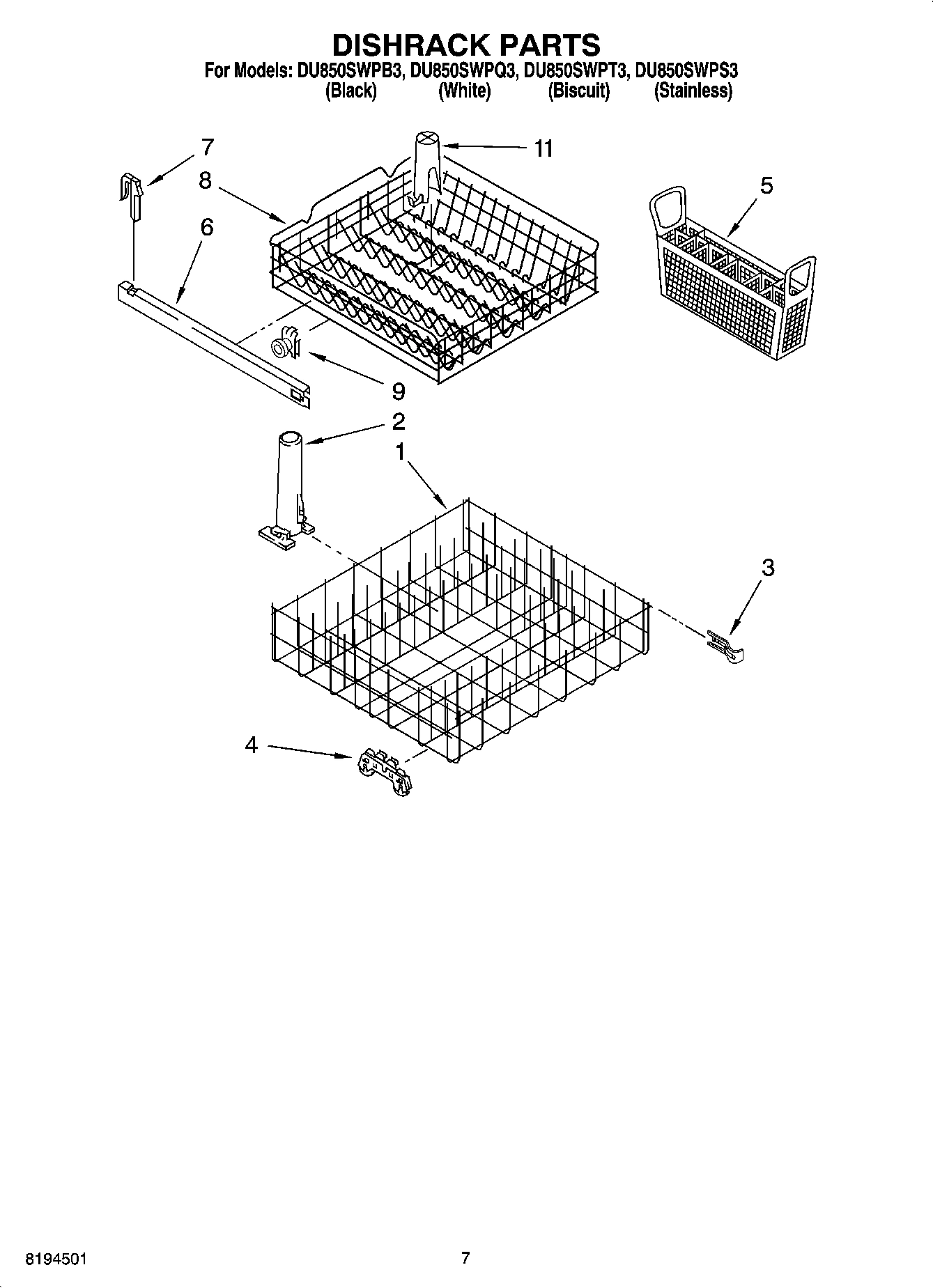

06 - DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

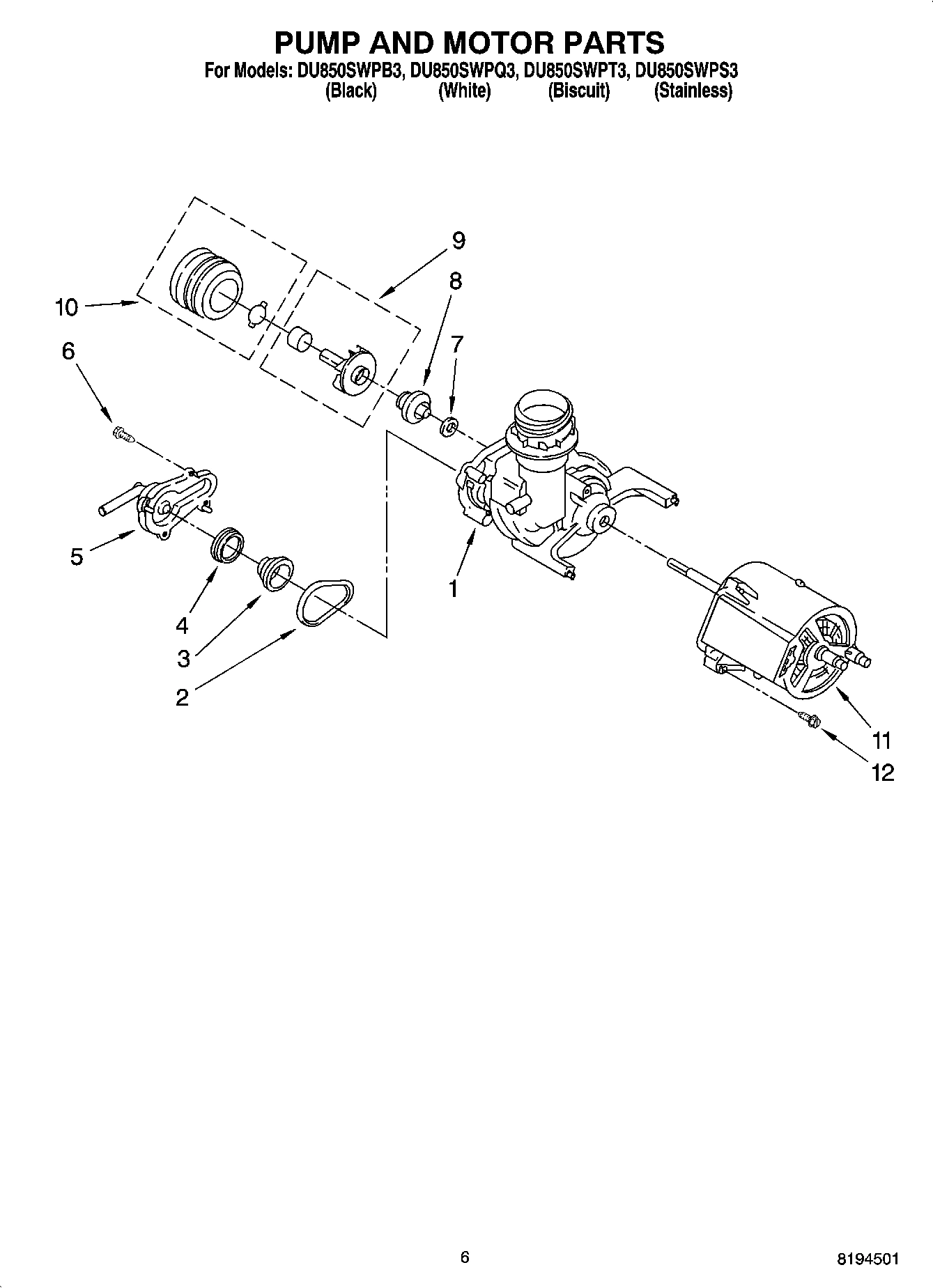

05 - PUMP AND MOTOR PARTS

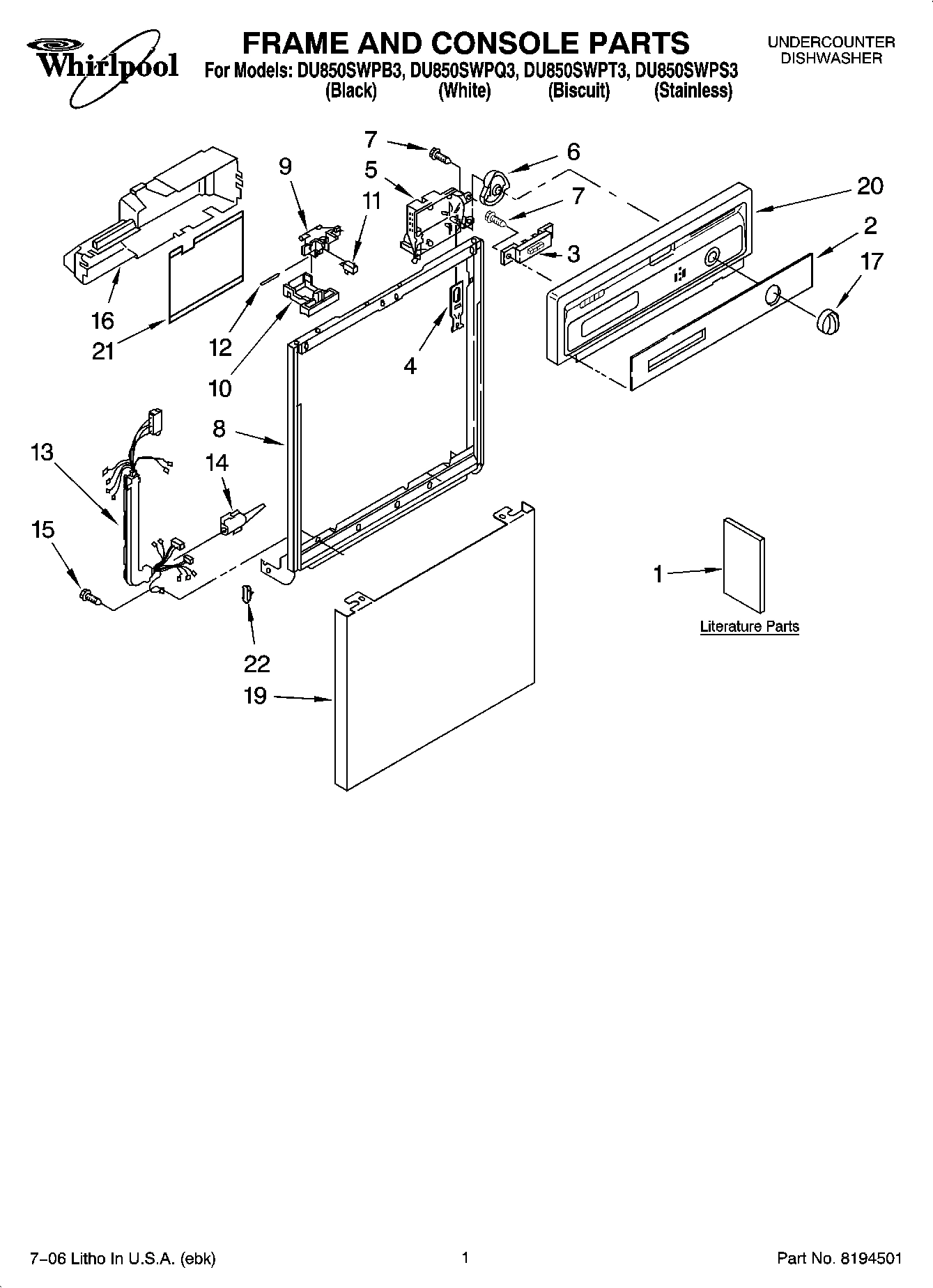

01 - FRAME AND CONSOLE PARTS

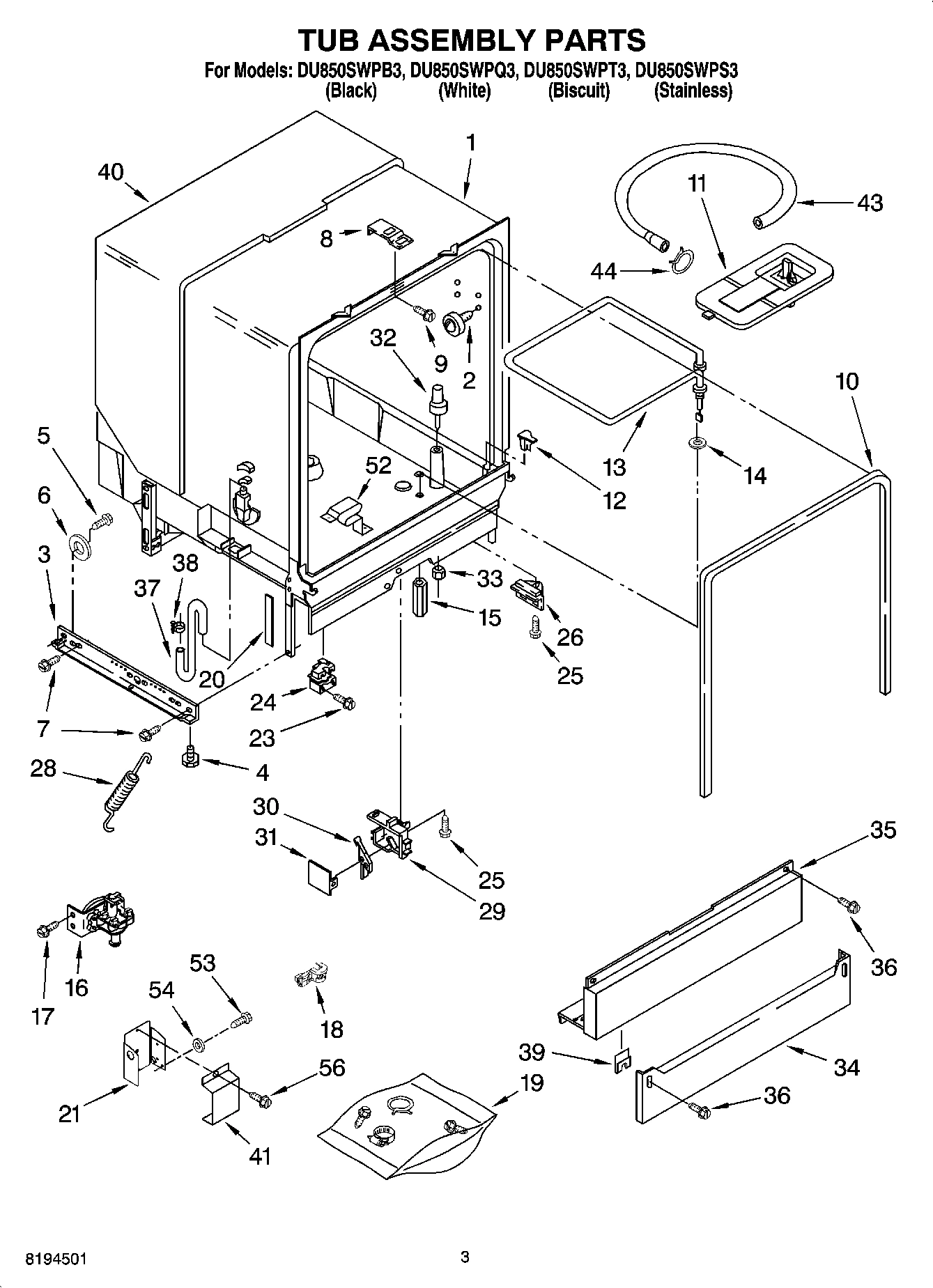

03 - TUB ASSEMBLY PARTS
Common parts from model Whirlpool DU850SWPS3 UNDERCOUNTER DISHWASHER
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Moisture Barrier Kit WPL 4396277 Contact Us For Availability
Spring WPL 4318050 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Floor Mounting Kit WPL 4378968 Contact Us For Availability
Custom Trim & Panel Kits (Black) WPL 675775 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
2
Seal, Drain Cover WPL 3369031 Contact Us For Availability
2
Insert, Console (Black) WPL W10039600 Contact Us For Availability
3
Switch, 5 Button WPL 8269366 Contact Us For Availability
4
Clamp (2) WPL 3400959 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
8
Plate, Latch WPL 3378149 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Door Frame (Black) WPL 9743028 Contact Us For Availability
10
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
11
Motor WPL 8283457 Contact Us For Availability
11
Diffuser, Water WPL 8519550 Contact Us For Availability
11
Support & Bearing Assembly (Includes Items: 1 WPL 3371745 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Screw (3) WPL 3368922 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
14
Elbow, Harness WPL 3376405 Contact Us For Availability
14
Bearing WPL 3371746 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Collector Assembly w/Check Valve WPL 8520839 Contact Us For Availability
17
Knob, Timer (Biscuit) WPL 8275310 Contact Us For Availability
19
Panel Front (White) WPL 3379376 Contact Us For Availability
19
Panel Front (Black) WPL 3379375 Contact Us For Availability
19
Panel, Front (Biscuit) WPL 8054178 Contact Us For Availability
20
Pad, Friction WPL 8052018 Contact Us For Availability
20
Console (Includes Item 2) (Black) WPL W10072690 Contact Us For Availability
21
Clamp, Hose WPL 371499 Contact Us For Availability
23
Washer, Curved WPL 3371634 Contact Us For Availability
29
Housing, Float Switch WPL 8318218 Contact Us For Availability
31
Cover, Switch Housing WPL 8318219 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access (Includes Item 39) (White) WPL 3379918 Contact Us For Availability
35
Panel, Access (Includes Item 39) (Biscuit) WPL 8054179 Contact Us For Availability
35
Panel, Access (Includes Item 39) (Stainless) WPL 9744517 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Clip, Grounding WPL 3378123 Contact Us For Availability
41
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
52
Support, Heater (3) WPL 3379740 Contact Us For Availability
56
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
