Model Whirlpool DU810SWPT3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

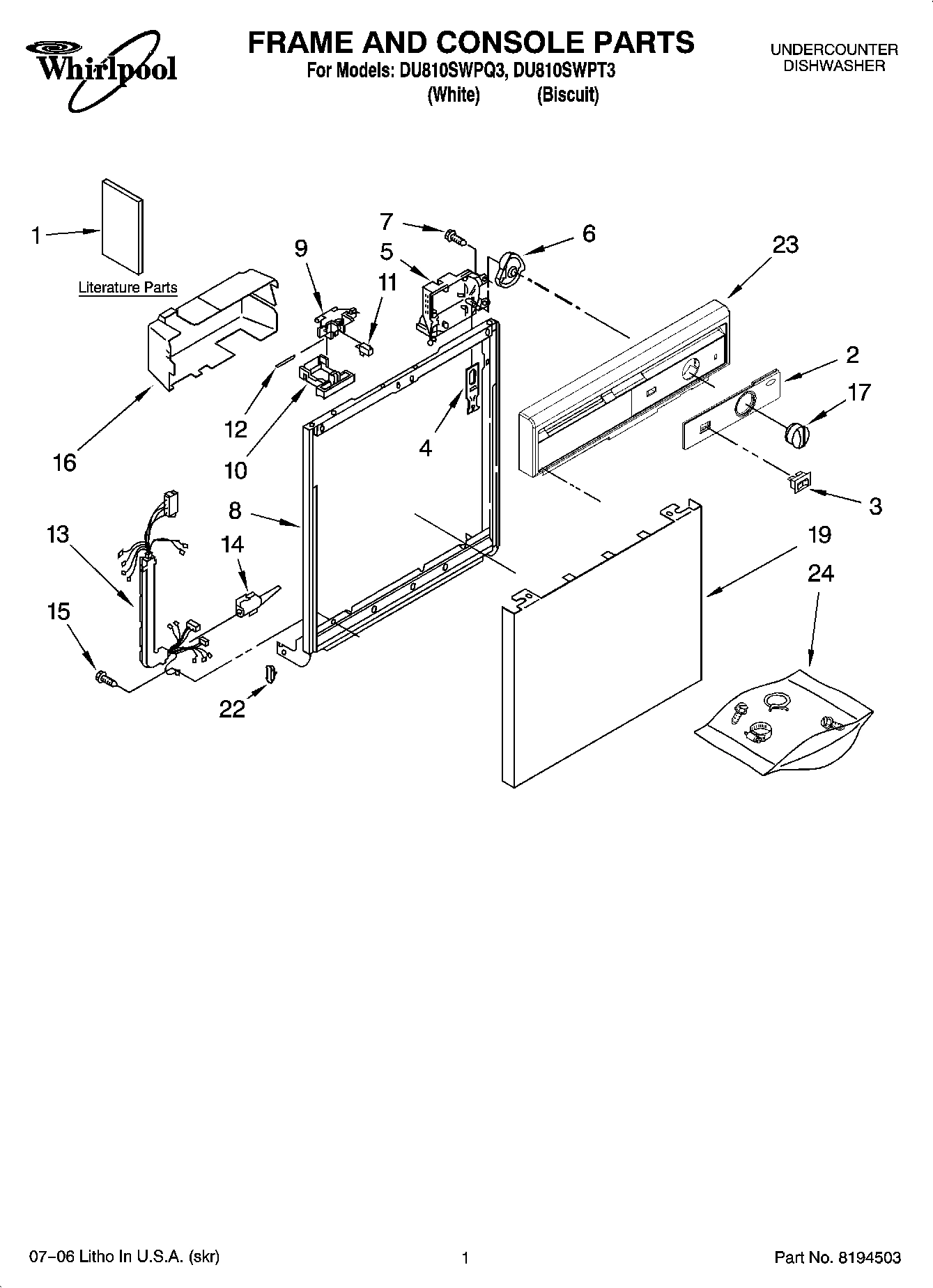

01 - FRAME AND CONSOLE PARTS

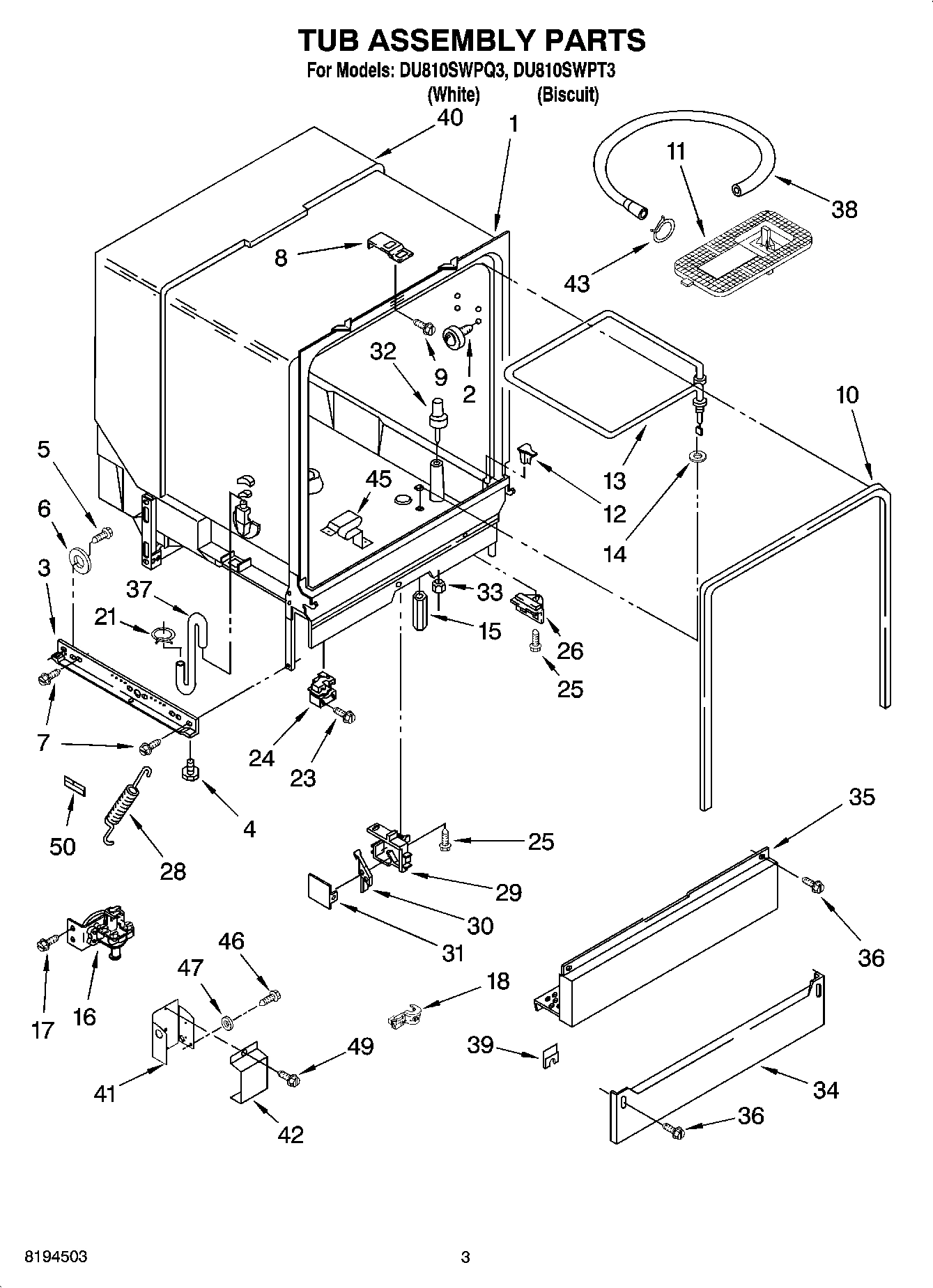

03 - TUB ASSEMBLY PARTS
05 - PUMP AND MOTOR PARTS
02 - INNER DOOR PARTS
04 - PUMP AND SPRAY ARM PARTS
06 - DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool DU810SWPT3 UNDERCOUNTER DISHWASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
DRAIN HOSE (12 FT.) WPL 3385556 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Moisture Barrier Kit WPL 4396277 Contact Us For Availability
Heavy Duty Spring Kit (Spring) WPL 4318050 Contact Us For Availability
PAINT, BU WPL 799344 Contact Us For Availability
Floor Mounting Kit WPL 4378968 Contact Us For Availability
Custom Trim & Panel Kits (Black) WPL 675775 Contact Us For Availability
WPL ARI24104A7 WPL ARI24104A7 Contact Us For Availability
WPL ARI24105A6 WPL ARI24105A6 Contact Us For Availability
WPL ARI24106A9 WPL ARI24106A9 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
2
Seal, Drain Cover WPL 3369031 Contact Us For Availability
3
Switch, Rocker (White) WPL 8051730 Contact Us For Availability
4
Clamp (2) WPL 3400959 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
8
Plate, Latch WPL 3378149 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
10
Lid, Basket WPL 8539093 Contact Us For Availability
11
Motor WPL 8283457 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Screw WPL 3368922 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
14
Elbow, Harness WPL 3376405 Contact Us For Availability
14
Bearing WPL 3371746 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Washer, Curved WPL 3371634 Contact Us For Availability
17
Collector Assembly w/Check Valve WPL 8520839 Contact Us For Availability
17
Knob, Timer (Biscuit) WPL 8275310 Contact Us For Availability
19
+Front Panel (White) WPL 3379376 Contact Us For Availability
19
Front Panel (Biscuit) WPL 8054178 Contact Us For Availability
22
Hose, Collector WPL 8520842 Contact Us For Availability
24
Clamp WPL 371499 Contact Us For Availability
29
Housing, Float Switch WPL 8318218 Contact Us For Availability
31
Cover, Switch Housing WPL 8318219 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
45
Support, Heater WPL 3379740 Contact Us For Availability
50
Friction Pad WPL 8052018 Contact Us For Availability
× ![]()
