Model LG DLG7401WE.ABWEEUS 7.3 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Rear Control Gas Dryer with EasyLoad Door – Common Parts & Diagrams

Common parts from model LG DLG7401WE.ABWEEUS 7.3 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Rear Control Gas Dryer with EasyLoad Door

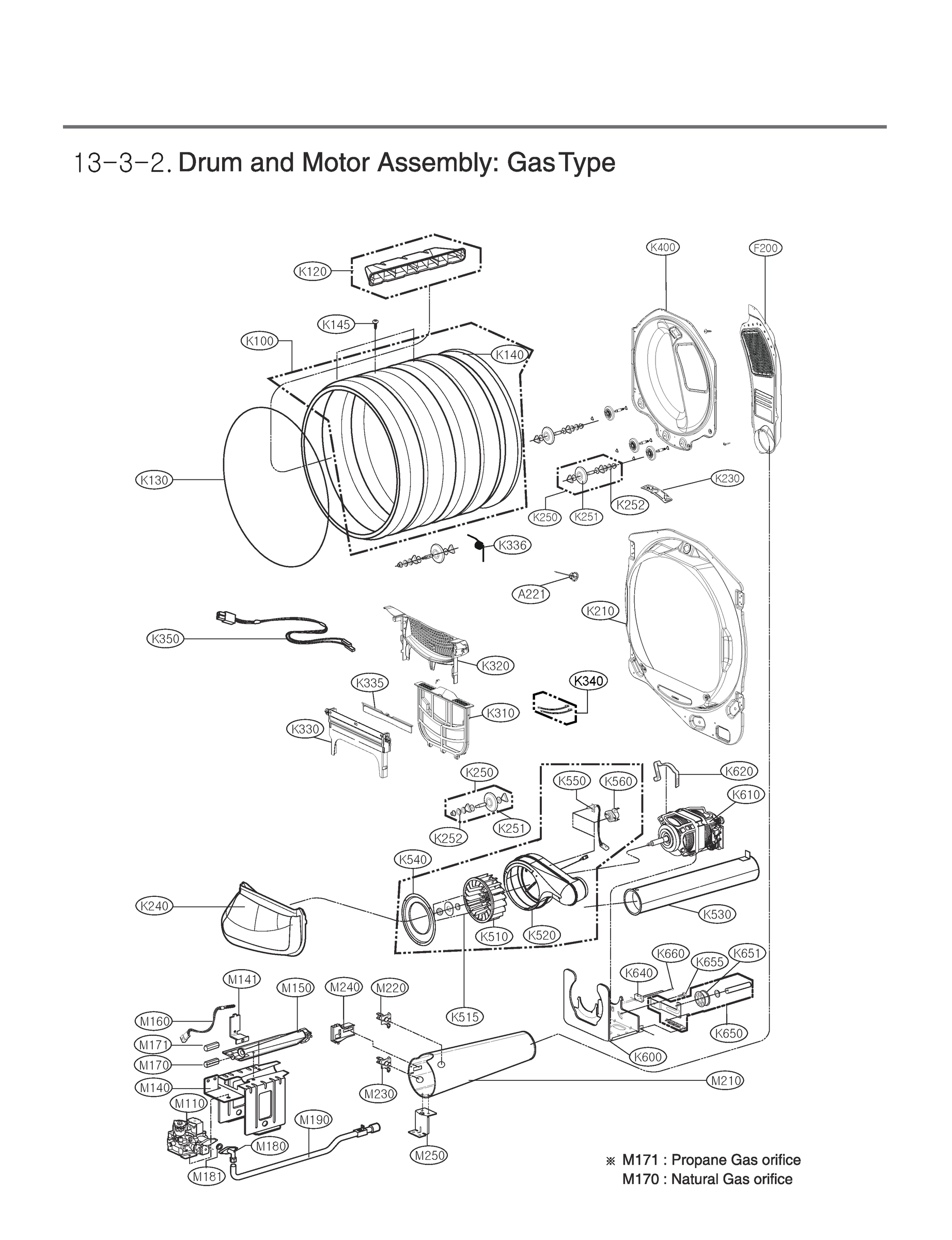

DIAGRAM 1

Print

• This Diagram
• All Diagrams

A120

EBR86268008 LG Display Assembly Circuit Board Backorder LGE EBR86268008 View Details $255.48

View on Model

A130

EBR85130518 LG Main PCB Assembly Backorder LGE EBR85130518 View Details $235.58

View on Model

A131

AEJ33026601 LG Holder Assembly Backorder LGE AEJ33026601 View Details $6.19

View on Model

A140

AEZ73913404 LG Dryer Knob Assembly Backorder LGE AEZ73913404 View Details $49.19

View on Model

A210

AGU72925524 LG Dryer Top Plate Assembly Backorder LGE AGU72925524 View Details $212.13

View on Model

A221

EAQ61400801 LG LED Lamp Backorder LGE EAQ61400801 View Details $41.23

View on Model

A300

MEF62782201 LG Hinge Assembly In Stock LGE MEF62782201 View Details $63.62

View on Model

A305

AEH74256601 LG Hinge Assembly Backorder LGE AEH74256601 View Details $41.23

View on Model

A310

ACQ86644201 LG Cabinet Cover Assembly Backorder LGE ACQ86644201 View Details $131.67

View on Model

A314

MBL62213306 LG Cap Hole Backorder LGE MBL62213306 View Details $6.19

View on Model

A315

4000FD4191A LG Customized Screw Backorder LGE 4000FD4191A View Details $6.19

View on Model

A320

4027EL1001C LG Locker Assembly Backorder LGE 4027EL1001C View Details $20.35

View on Model

A325

1SZZEL2001A LG Screw Customized Backorder LGE 1SZZEL2001A View Details $6.19

View on Model

A330

6601EL3001A LG Dryer Door Switch Assembly Backorder LGE 6601EL3001A View Details $33.69

View on Model

A340

FAB32258901 LG Screw Customized Backorder LGE FAB32258901 View Details $9.86

View on Model

A365

ACV73430101 LG Damper Assembly Backorder LGE ACV73430101 View Details $91.26

View on Model

A380

MAZ63869301 LG Hinge Bracket Backorder LGE MAZ63869301 View Details $20.35

View on Model

A400

ADC74129518 LG Door Assembly Backorder LGE ADC74129518 View Details $337.55

View on Model

A410

4026EL3007C LG Locker Hook Backorder LGE 4026EL3007C View Details $26.26

View on Model

A430

MEF62782101 LG Hinge Assembly In Stock LGE MEF62782101 View Details $63.62

View on Model

A431

MEF62782001 LG Hinge Backorder LGE MEF62782001 View Details $53.62

View on Model

A432

MAZ61975501 LG Bracket Hinge Backorder LGE MAZ61975501 View Details $14.79

View on Model

A435

MJH63096901 LG Hinge Supporter Backorder LGE MJH63096901 View Details $14.79

View on Model

A460

MDS61982901 LG Gasket Backorder LGE MDS61982901 View Details $49.19

View on Model

A481

MAK62727101 LG Bar Connector Backorder LGE MAK62727101 View Details $14.79

View on Model

A483

MFG63098701 LG Locker Hook Backorder LGE MFG63098701 View Details $6.19

View on Model

A491

1TTL0402418 LG Microwave Tapping Screw In Stock LGE 1TTL0402418 View Details $4.74

View on Model

A520

4810EL3001A LG Base Bracket Backorder LGE 4810EL3001A View Details $9.86

View on Model

A700

3750EL0001C LG Dishwasher Rack Dryer In Stock LGE 3750EL0001C View Details $23.31

View on Model

F200

5209EL1001E LG Dryer Vent Duct Assembly Backorder LGE 5209EL1001E View Details $92.89

View on Model

K100

3045EL1002P LG Dryer Drum Tub Assembly Backorder LGE 3045EL1002P View Details $309.07

View on Model

K120

4432EL1002A LG Dryer Drum Baffle Backorder LGE 4432EL1002A View Details $26.26

View on Model

K130

4400EL2001F LG Dryer Drum Belt In Stock LGE 4400EL2001F View Details $17.77

View on Model

K140

4036EL3001A LG Dryer Drum Felt Gasket In Stock LGE 4036EL3001A View Details $28.15

View on Model

K230

MCD62587102 LG Nozzle Connector Backorder LGE MCD62587102 View Details $9.86

View on Model

K240

5209EL1002A LG Dryer Duct Assembly In Stock LGE 5209EL1002A View Details $72.49

View on Model

K251

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M View Details $33.69

View on Model

K252

4W50100F LG Customized In Stock LGE 4W50100F View Details $6.19

View on Model

K310

5231EL1001C LG Dryer Lint Filter In Stock LGE 5231EL1001C View Details $16.98

View on Model

K320

3550EL1005C LG Dryer Lint Filter Grille In Stock LGE 3550EL1005C View Details $9.86

View on Model

K330

4974EL1002B LG Dryer Filter Support Bracket In Stock LGE 4974EL1002B View Details $26.26

View on Model

K335

3550EL2004B LG Dryer Lint Screen Guide Filter In Stock LGE 3550EL2004B View Details $20.35

View on Model

K336

4970EL4002C LG Dryer Distortion Spring In Stock LGE 4970EL4002C View Details $6.19

View on Model

K340

6500EL3001A LG Dryer Moisture Sensor In Stock LGE 6500EL3001A View Details $9.86

View on Model

K350

6631EL3003B LG Dryer Wiring Harness In Stock LGE 6631EL3003B View Details $14.79

View on Model

K510

5835EL1002A LG Dryer Blower Fan Assembly In Stock LGE 5835EL1002A View Details $72.49

View on Model

K515

383EEL9001G LG Assembly Parts In Stock LGE 383EEL9001G View Details $6.19

View on Model

K520

MEK37661701 LG Blower Housing Backorder LGE MEK37661701 View Details $117.30

View on Model

K530

5209EL1006A LG Dryer Metal Duct Backorder LGE 5209EL1006A View Details $33.69

View on Model

K540

4975EL3001A LG Guide Assembly Backorder LGE 4975EL3001A View Details $26.26

View on Model

K550

6323EL2001B LG Dryer Thermistor Assembly Backorder LGE 6323EL2001B View Details $33.69

View on Model

K560

6931EL3002M LG Dryer Thermostat In Stock LGE 6931EL3002M View Details $28.28

View on Model

K600

MAZ66065301 LG Bracket Motor Backorder LGE MAZ66065301 View Details $53.62

View on Model

K620

4860EL3001A LG Dryer Blower Motor Clamp Backorder LGE 4860EL3001A View Details $6.19

View on Model

K640

EBF61734701 LG Dryer Micro Switch In Stock LGE EBF61734701 View Details $14.79

View on Model

K650

4561EL3002A LG Dryer Idler Pulley Assembly In Stock LGE 4561EL3002A View Details $43.28

View on Model

K651

4560EL3001A LG Dryer Idler Pulley Wheel In Stock LGE 4560EL3001A View Details $14.88

View on Model

K655

1SZZEL3001A LG Customized Screw Backorder LGE 1SZZEL3001A View Details $6.19

View on Model

K660

1TPL0303218 LG Tapping Screw In Stock LGE 1TPL0303218 View Details $6.19

View on Model

M141

4810EL3002A LG Base Bracket Backorder LGE 4810EL3002A View Details $6.19

View on Model

M150

5201EL3001A LG Assembly Pipe Backorder LGE 5201EL3001A View Details $82.70

View on Model

M160

5318EL3001A LG Dryer Gas Igniter In Stock LGE 5318EL3001A View Details $107.42

View on Model

M170

4948EL4001B LG Dryer LP to Natural Gas Orific In Stock LGE 4948EL4001B View Details $20.35

View on Model

M171

383EEL3002R LG Dryer Conversion Parts Assembl In Stock LGE 383EEL3002R View Details $9.26

View on Model

M180

4932EL4001A LG Pipe Connector Backorder LGE 4932EL4001A View Details $26.26

View on Model

M181

4036EL3002A LG Gasket Backorder LGE 4036EL3002A View Details $6.19

View on Model

M190

5201EL2001A LG Pipe Assembly Backorder LGE 5201EL2001A View Details $53.62

View on Model

M210

3016EL1001A LG Funnel Backorder LGE 3016EL1001A View Details $72.49

View on Model

M220

6931EL3004B LG Dryer High Limit Thermostat Backorder LGE 6931EL3004B View Details $26.26

View on Model

M230

6931EL3003C LG Thermostat Backorder LGE 6931EL3003C View Details $14.88

View on Model

M240

6501EL3001A LG Gas Dryer Flame Sensor Assembl In Stock LGE 6501EL3001A View Details $126.81

View on Model

×
