Model LG DLE4970W.ABWEEUS 7.3 cu. ft. Ultra Large High Efficiency Dryer w/ Sensor Dry Technology – Common Parts & Diagrams

Common parts from model LG DLE4970W.ABWEEUS 7.3 cu. ft. Ultra Large High Efficiency Dryer w/ Sensor Dry Technology

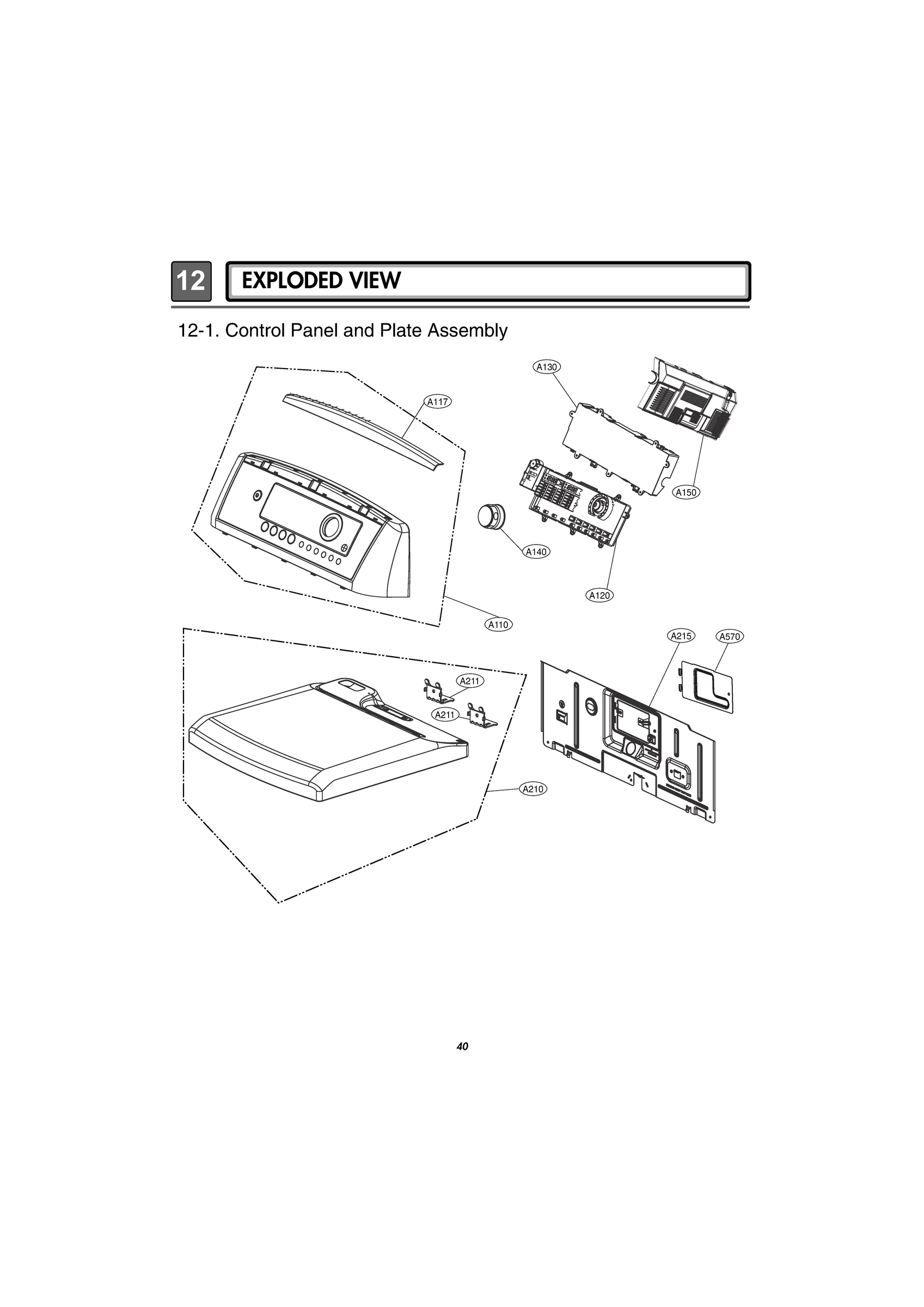

CONTROL PANEL AND PLATE ASSEMBLY

Print

• This Diagram
• All Diagrams

A110

Panel Assembly,Front LGE AGL72929728 Contact Us For Availability

View on Model

A120

EBR63615909 LG Display Power Control Board As Backorder LGE EBR63615909 View Details $222.11

View on Model

A130

EBR62707635 LG Main PCB Assembly Backorder LGE EBR62707635 View Details $168.60

View on Model

A210

AGU72925524 LG Dryer Top Plate Assembly Backorder LGE AGU72925524 View Details $212.13

View on Model

A211

3300EL4001A LG Upper Plate Backorder LGE 3300EL4001A View Details $9.86

View on Model

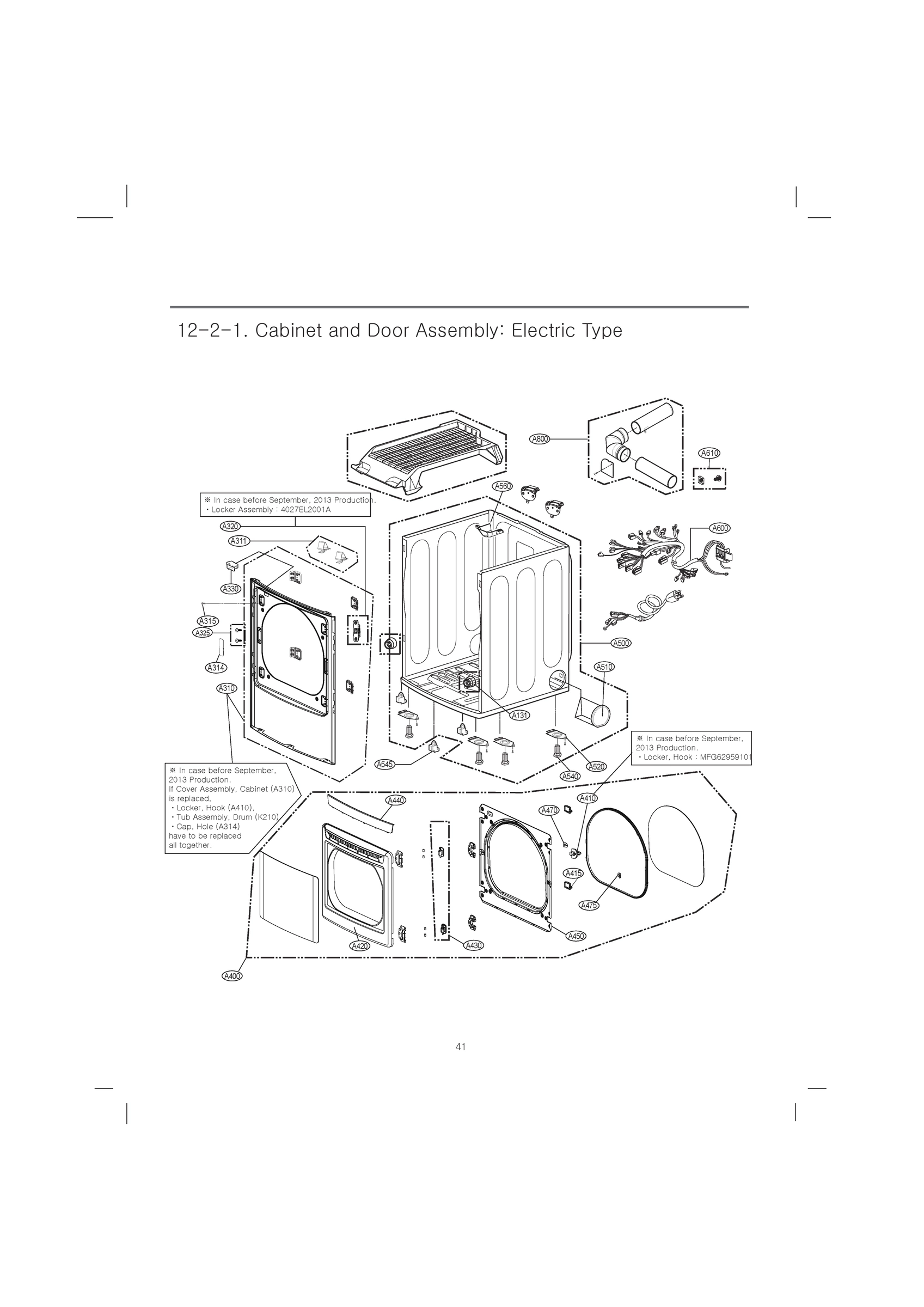

A310

ACQ75450501 LG Cabinet Cover Assembly Backorder LGE ACQ75450501 View Details $167.80

View on Model

A311

4930ER4003A LG Holder Backorder LGE 4930ER4003A View Details $6.19

View on Model

A314

MBL62213306 LG Cap Hole Backorder LGE MBL62213306 View Details $6.19

View on Model

A315

4000FD4191A LG Customized Screw Backorder LGE 4000FD4191A View Details $6.19

View on Model

A320

4027EL1001C LG Locker Assembly Backorder LGE 4027EL1001C View Details $20.35

View on Model

A325

1SZZEL2001A LG Screw Customized Backorder LGE 1SZZEL2001A View Details $6.19

View on Model

A330

6601EL3001A LG Dryer Door Switch Assembly In Stock LGE 6601EL3001A View Details $33.69

View on Model

A400

ADC73927701 LG Door Panel Backorder LGE ADC73927701 View Details $291.33

View on Model

A410

4026EL3007C LG Locker Hook Backorder LGE 4026EL3007C View Details $26.26

View on Model

A510

5006EL3001D LG Dryer White Side Vent Hole Cov Backorder LGE 5006EL3001D View Details $9.86

View on Model

A520

4810EL3001A LG Base Bracket Backorder LGE 4810EL3001A View Details $9.86

View on Model

A540

4778EL3001B LG Dryer Leveling Leg In Stock LGE 4778EL3001B View Details $3.46

View on Model

A560

3550EL3007D LG Cover Guide Backorder LGE 3550EL3007D View Details $9.86

View on Model

A570

3550EL3002A LG Safety Cover In Stock LGE 3550EL3002A View Details $6.19

View on Model

A600

EAD60946202 LG Multi Harness Backorder LGE EAD60946202 View Details $184.36

View on Model

A610

383EEL9001H LG Assembly Parts In Stock LGE 383EEL9001H View Details $14.79

View on Model

F110

5301EL1001H LG Dryer Heater Element Assembly In Stock LGE 5301EL1001H View Details $198.74

View on Model

F130

6931EL3003D LG Dryer High-Limit Thermal Fuse In Stock LGE 6931EL3003D View Details $7.58

View on Model

F140

6931EL3001F LG Thermostat Assembly In Stock LGE 6931EL3001F View Details $36.62

View on Model

F200

5209EL1001C LG Duct Assembly Backorder LGE 5209EL1001C View Details $91.26

View on Model

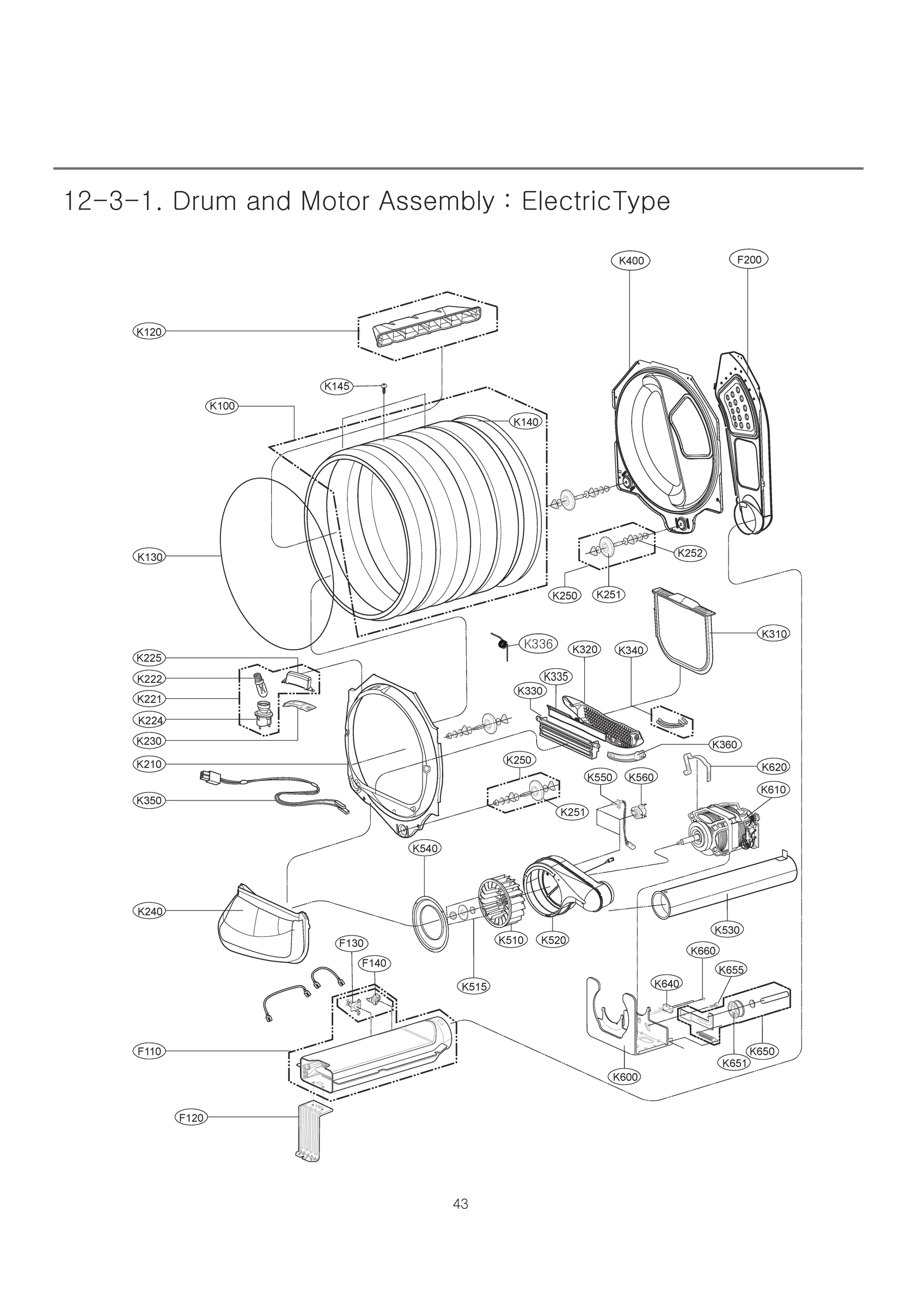

K100

3045EL1002P LG Dryer Drum Tub Assembly Backorder LGE 3045EL1002P View Details $294.36

View on Model

K120

4432EL1002A LG Dryer Drum Baffle Backorder LGE 4432EL1002A View Details $26.26

View on Model

K130

4400EL2001F LG Dryer Drum Belt In Stock LGE 4400EL2001F View Details $16.93

View on Model

K140

4036EL3001A LG Dryer Drum Felt Gasket In Stock LGE 4036EL3001A View Details $26.79

View on Model

K210

3045EL1005A LG Drum Assembly Backorder LGE 3045EL1005A View Details $255.48

View on Model

K221

6913EL3002K LG Dryer Incandescent Lamp Backorder LGE 6913EL3002K View Details $26.26

View on Model

K222

6913EL3001E LG Dryer Incandescent Lamp In Stock LGE 6913EL3001E View Details $9.86

View on Model

K224

4930EL3008A LG Holder Backorder LGE 4930EL3008A View Details $20.35

View on Model

K230

3550EL2001A LG Dryer Lamp Bulb Shield Cover In Stock LGE 3550EL2001A View Details $6.19

View on Model

K240

5209EL1002A LG Dryer Duct Assembly In Stock LGE 5209EL1002A View Details $72.49

View on Model

K251

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M View Details $33.69

View on Model

K252

4W50100F LG Customized In Stock LGE 4W50100F View Details $4.50

View on Model

K310

5231EL1001C LG Dryer Lint Filter In Stock LGE 5231EL1001C View Details $16.98

View on Model

K320

3550EL1005C LG Dryer Lint Filter Grille In Stock LGE 3550EL1005C View Details $9.86

View on Model

K330

4974EL1002B LG Dryer Filter Support Bracket In Stock LGE 4974EL1002B View Details $26.26

View on Model

K335

3550EL2004B LG Dryer Lint Screen Guide Filter In Stock LGE 3550EL2004B View Details $20.35

View on Model

K336

4970EL4002C LG Dryer Distortion Spring In Stock LGE 4970EL4002C View Details $6.19

View on Model

K340

6500EL3001A LG Dryer Moisture Sensor In Stock LGE 6500EL3001A View Details $9.86

View on Model

K350

6631EL3003B LG Dryer Wiring Harness In Stock LGE 6631EL3003B View Details $14.79

View on Model

K510

5835EL1002A LG Dryer Blower Fan Assembly In Stock LGE 5835EL1002A View Details $72.49

View on Model

K515

383EEL9001G LG Assembly Parts In Stock LGE 383EEL9001G View Details $6.19

View on Model

K520

MEK37661701 LG Blower Housing Backorder LGE MEK37661701 View Details $117.30

View on Model

K530

5209EL1006A LG Dryer Metal Duct Backorder LGE 5209EL1006A View Details $33.69

View on Model

K540

4975EL3001A LG Guide Assembly Backorder LGE 4975EL3001A View Details $26.26

View on Model

K550

6323EL2001B LG Dryer Thermistor Assembly Backorder LGE 6323EL2001B View Details $33.69

View on Model

K560

6931EL3002M LG Dryer Thermostat In Stock LGE 6931EL3002M View Details $26.93

View on Model

K600

MAZ66065301 LG Bracket Motor Backorder LGE MAZ66065301 View Details $53.62

View on Model

K610

4681EL1008A LG Dryer Blower Drive Motor In Stock LGE 4681EL1008A View Details $202.66

View on Model

K620

4860EL3001A LG Dryer Blower Motor Clamp Backorder LGE 4860EL3001A View Details $4.79

View on Model

K640

EBF61734701 LG Dryer Micro Switch In Stock LGE EBF61734701 View Details $14.79

View on Model

K650

4561EL3002A LG Dryer Idler Pulley Assembly In Stock LGE 4561EL3002A View Details $43.28

View on Model

K651

4560EL3001A LG Dryer Idler Pulley Wheel In Stock LGE 4560EL3001A View Details $14.16

View on Model

K655

1SZZEL3001A LG Customized Screw Backorder LGE 1SZZEL3001A View Details $6.19

View on Model

K660

1TPL0303218 LG Tapping Screw In Stock LGE 1TPL0303218 View Details $6.19

View on Model

×
