Model GE CTS97AWN General Electric Model CTS97AWN – Common Parts & Diagrams

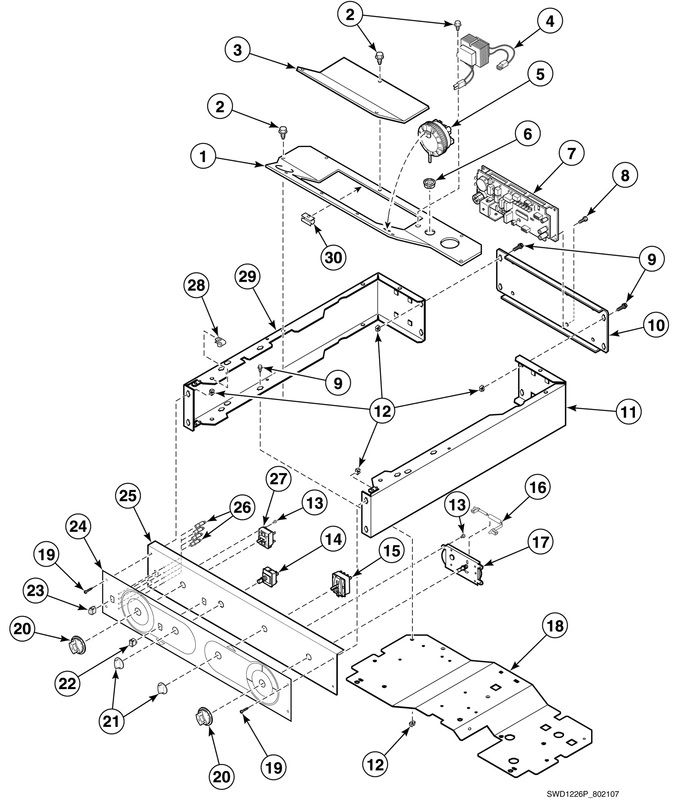

Control Cabinet and Controls

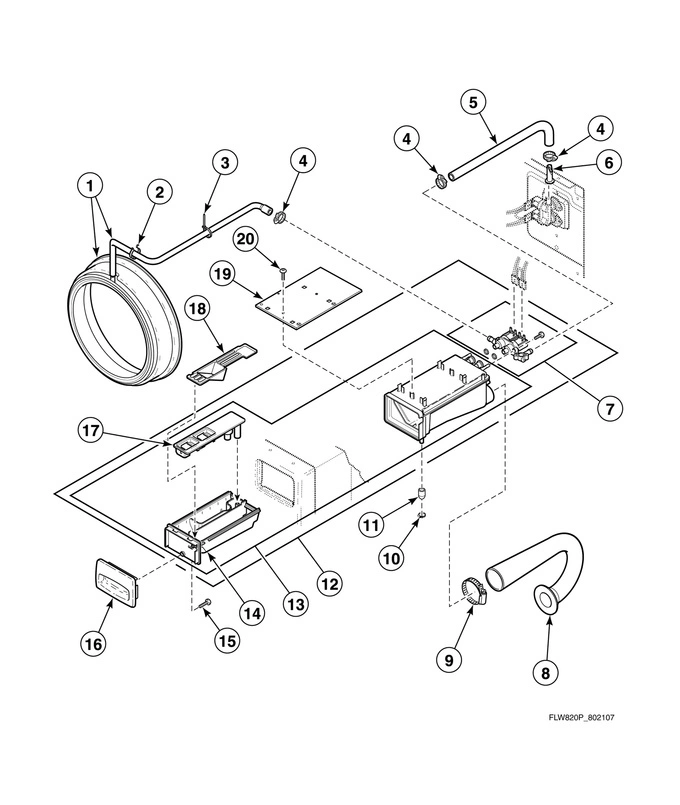

Dispenser Assembly

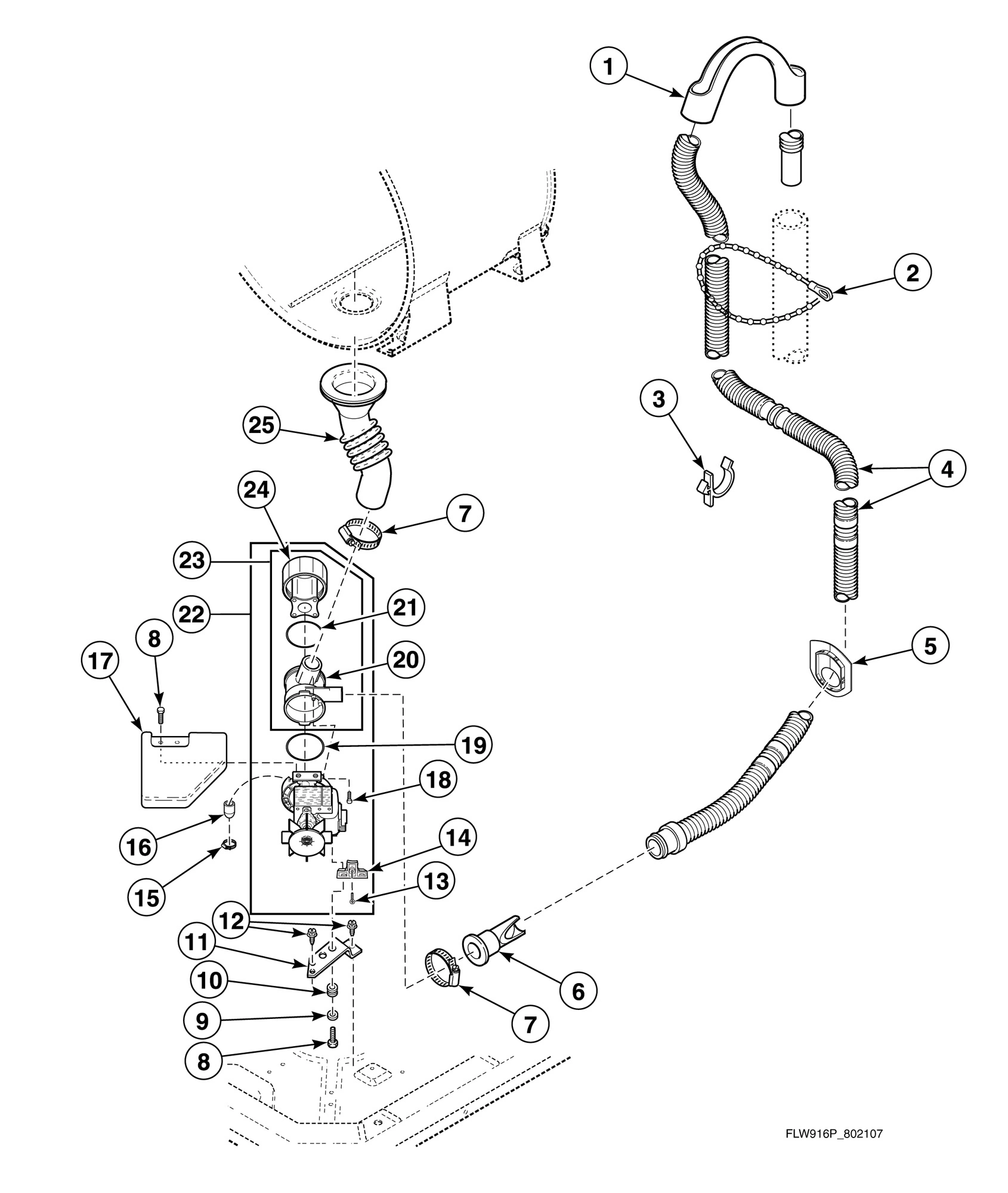

Drain Hose and Pump

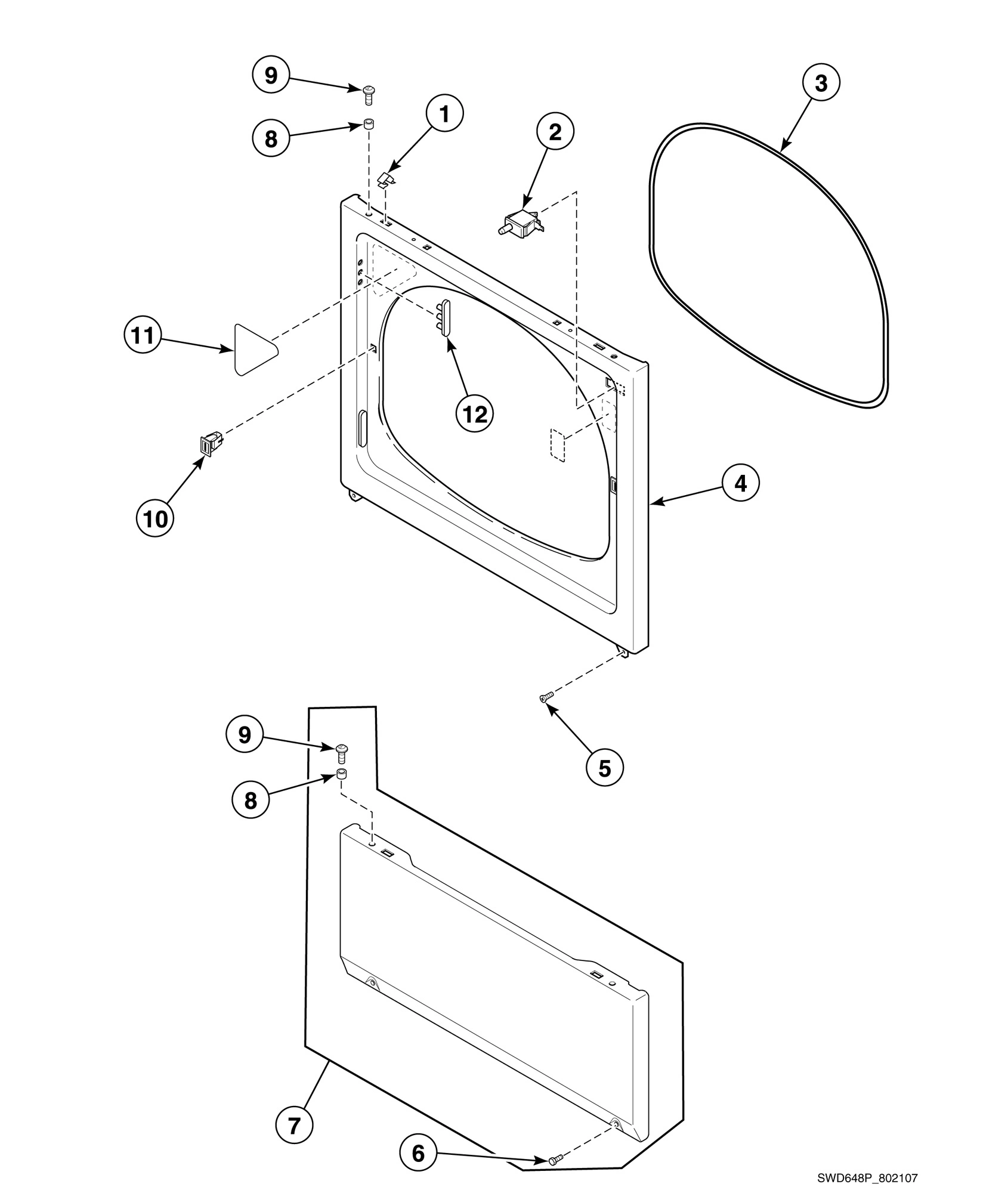

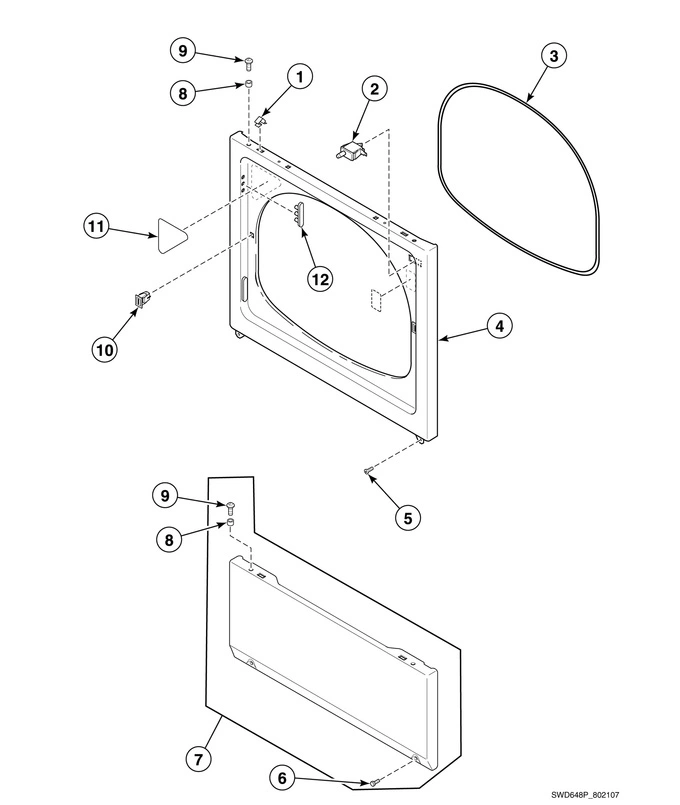

Dryer Access Panel, Front Panel and Seal

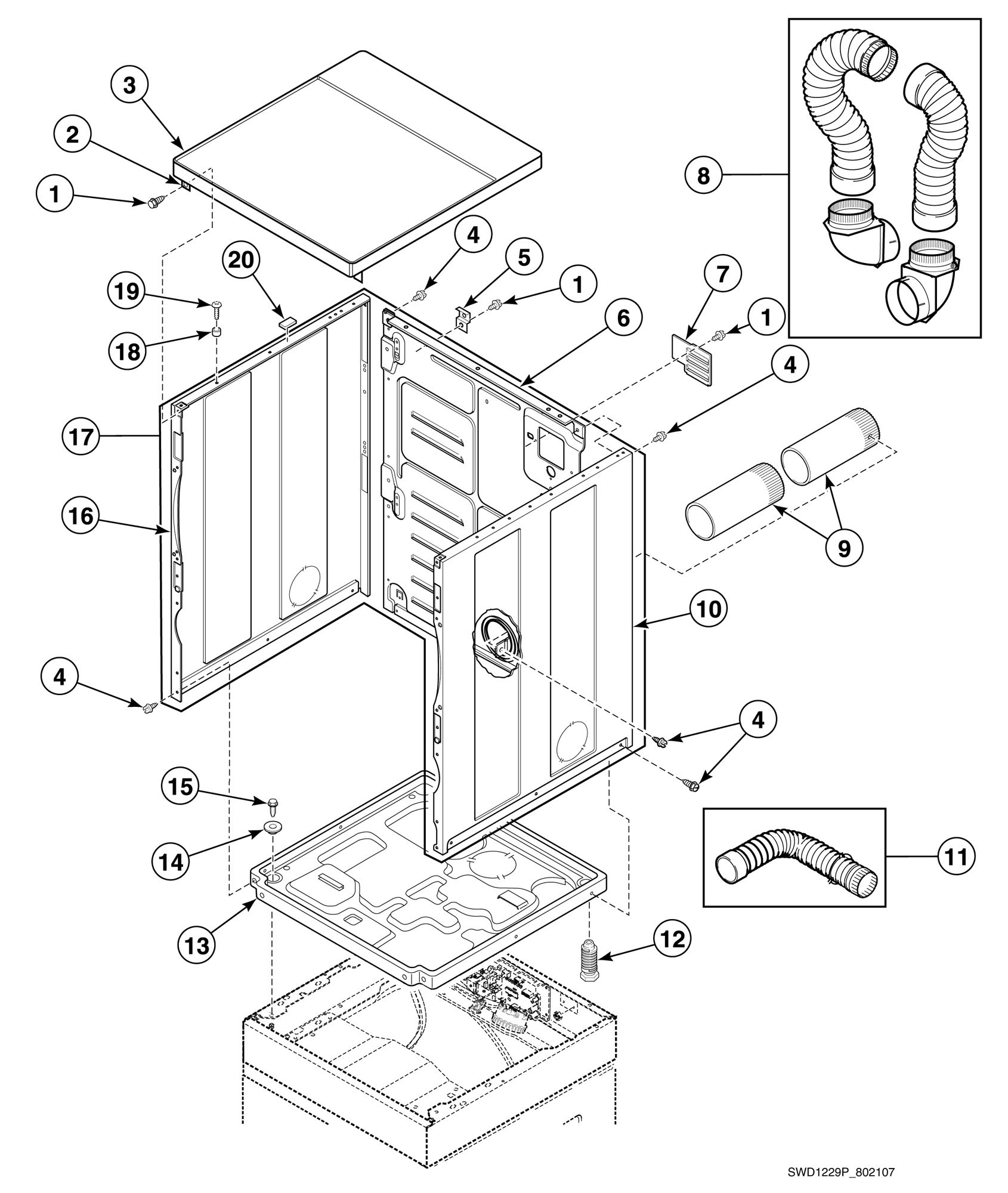

Dryer Cabinet, Exhaust Duct and Base

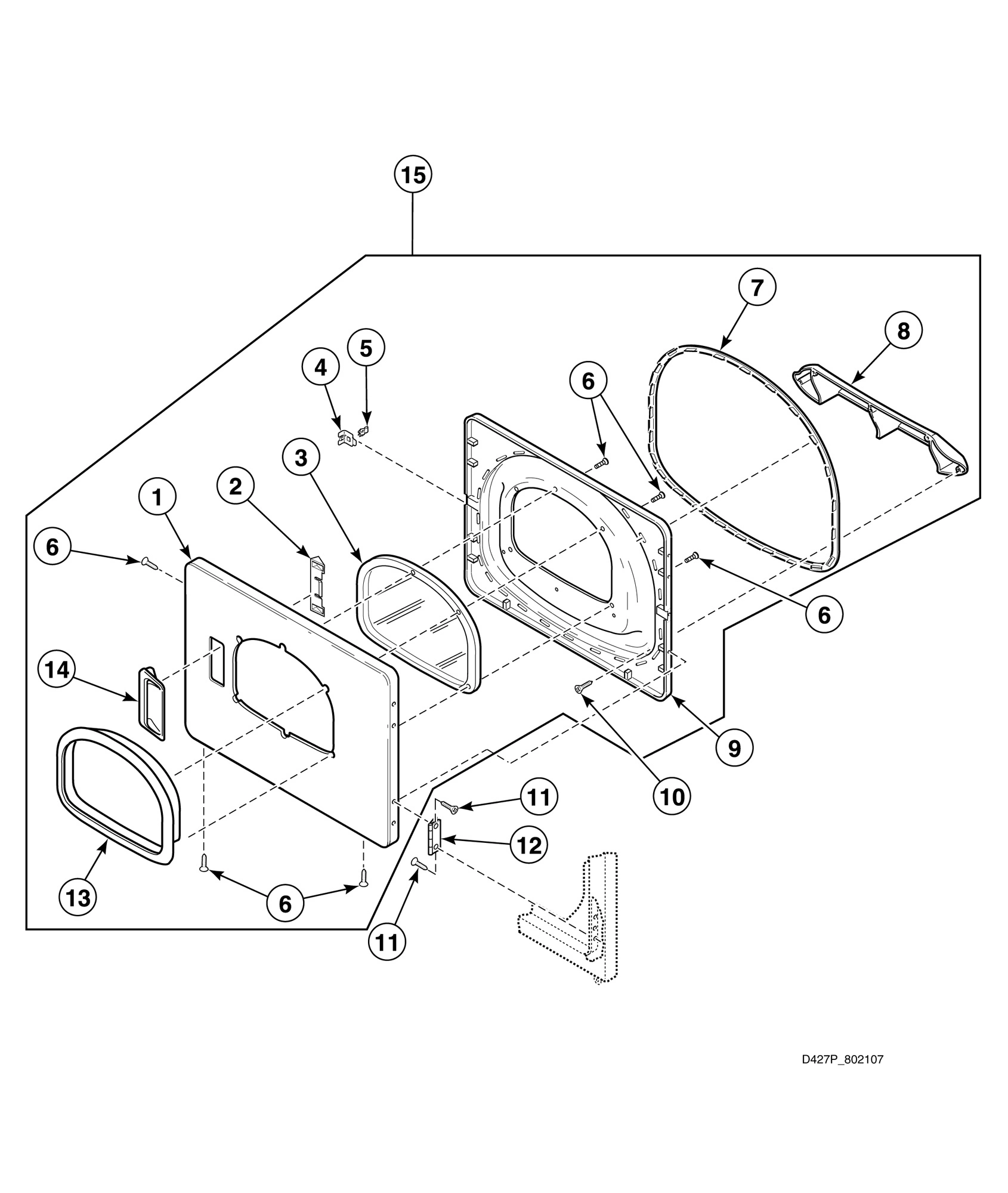

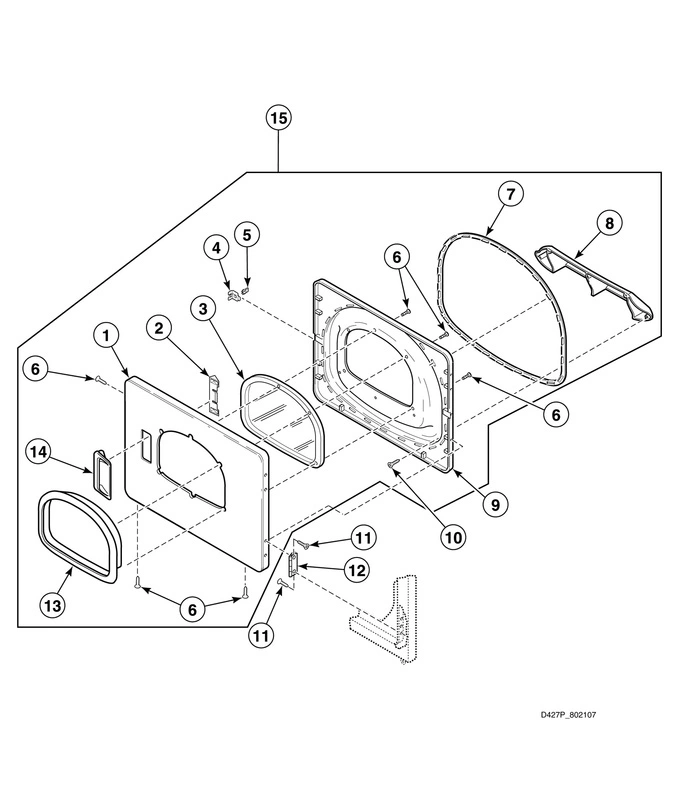

Dryer Loading Door

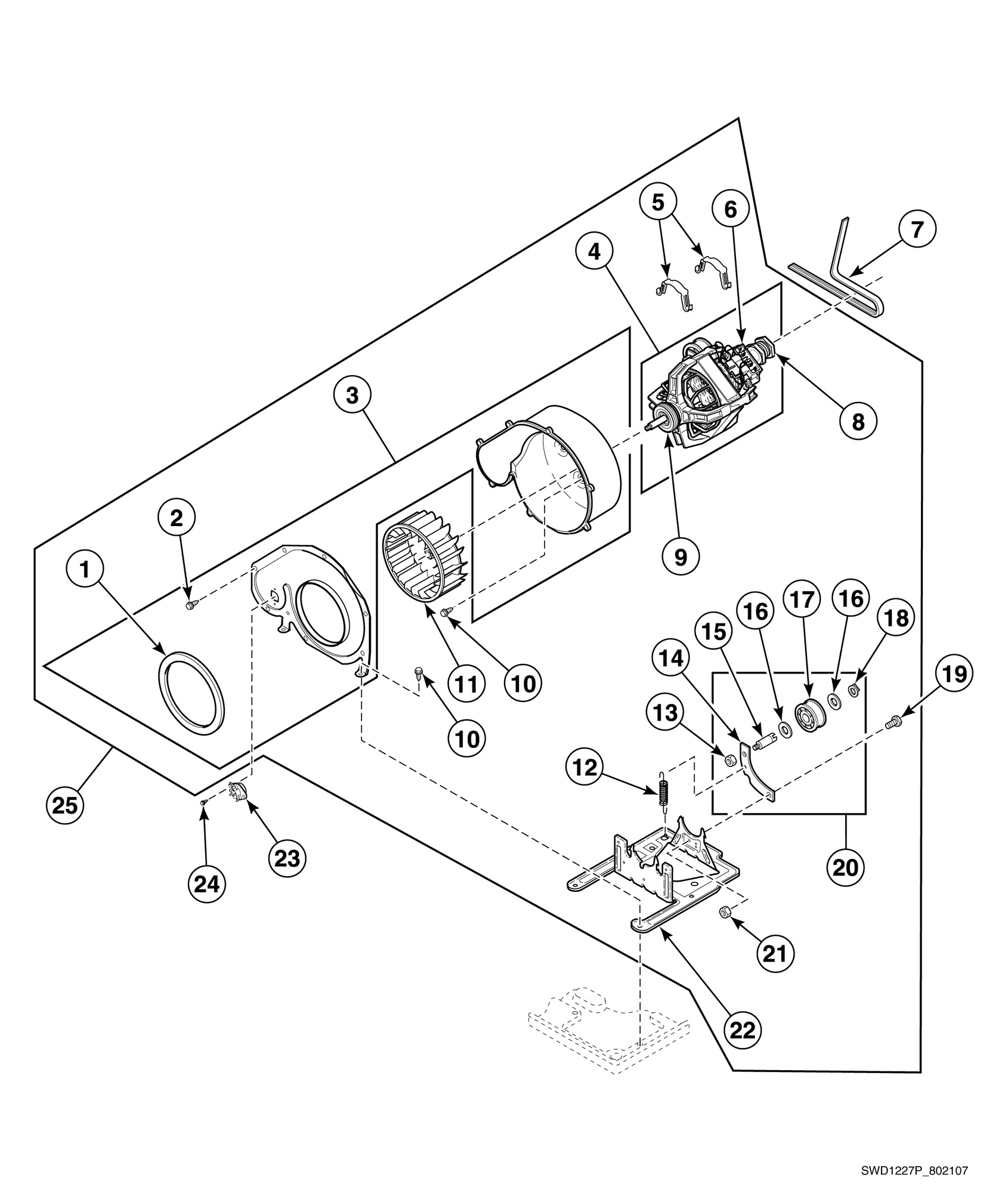

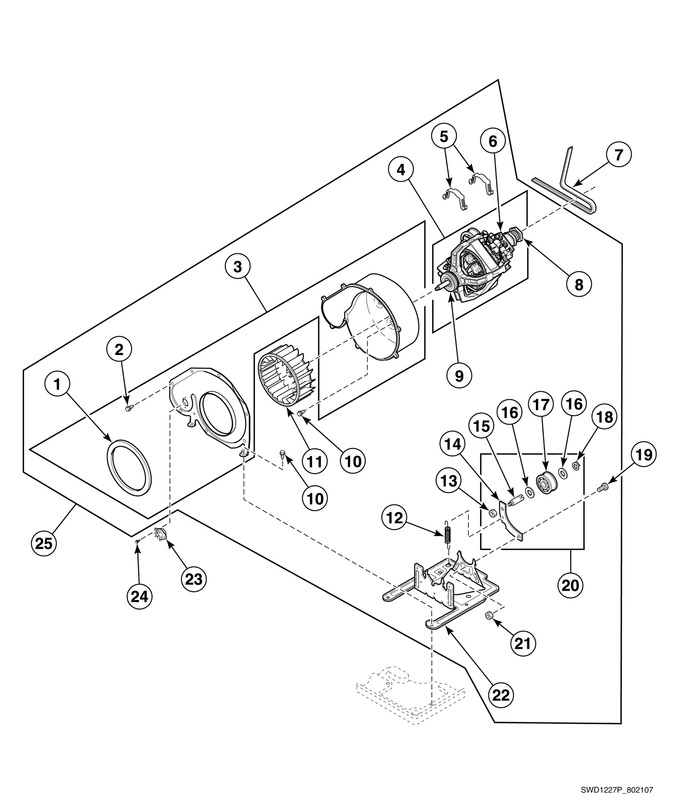

Dryer Motor, Blower Fan and Belt

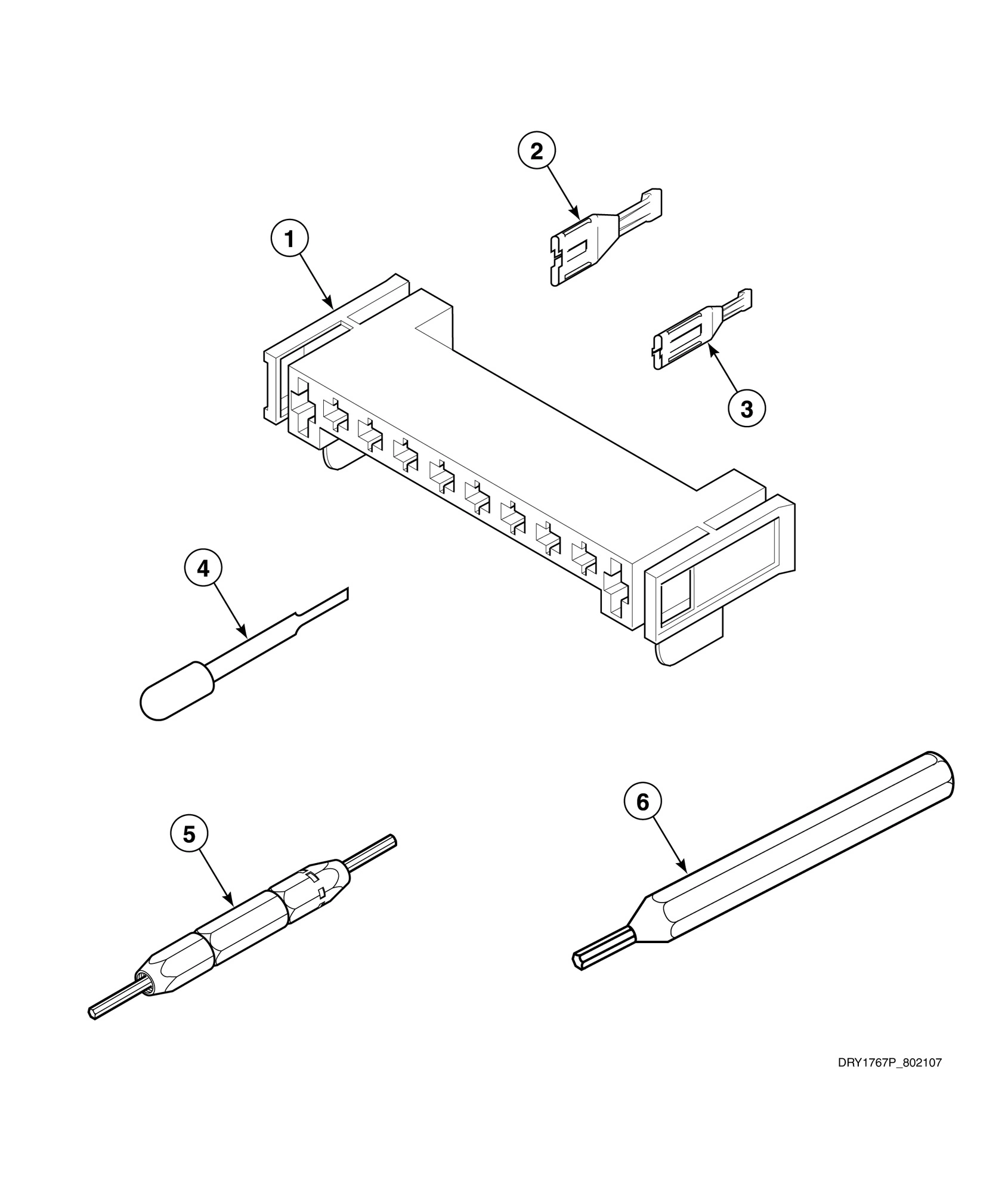

Dryer Motor Connection Block, Terminal Extractor Tools

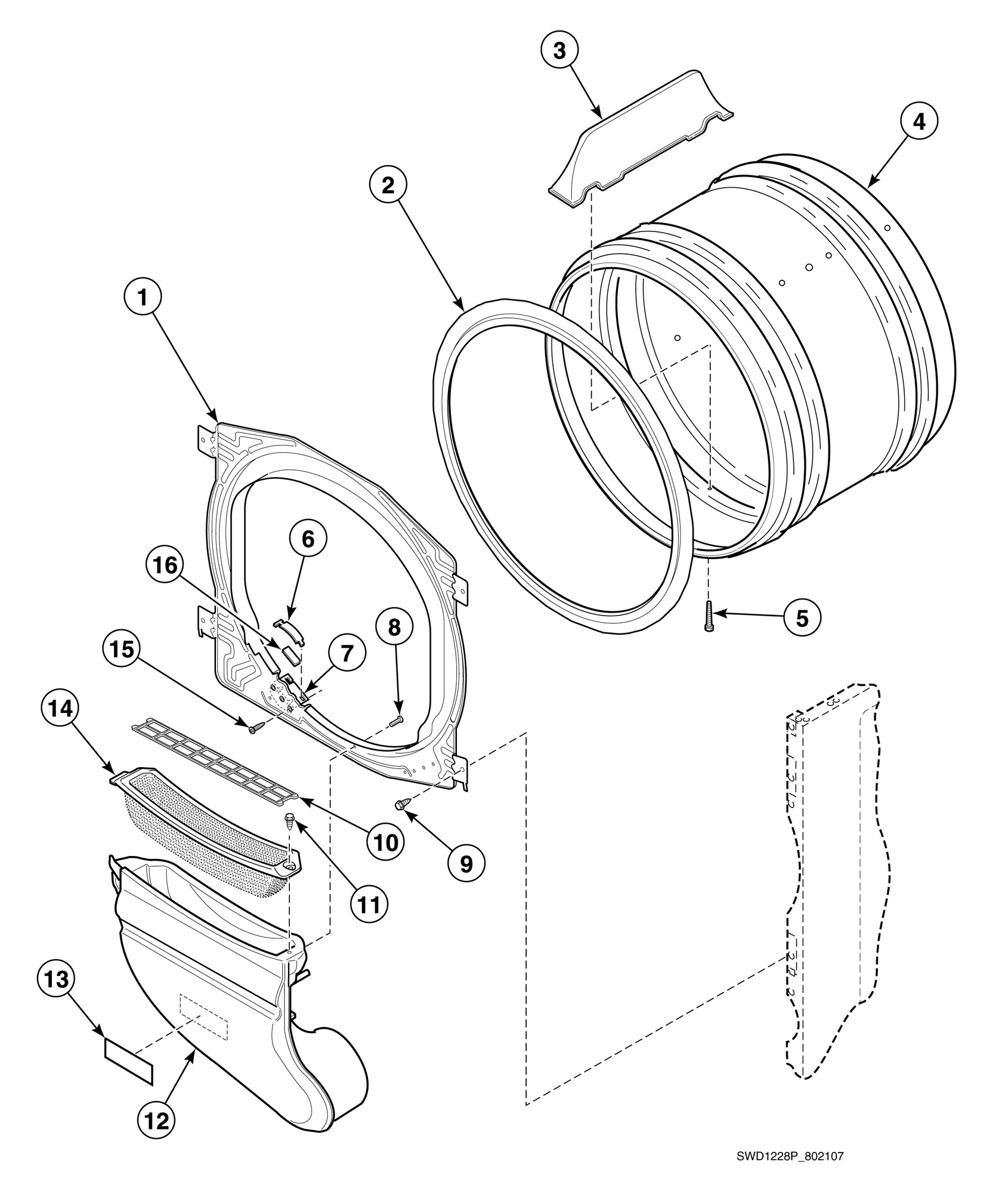

Front Bulkhead, Air Duct, Felt Seal and Cylinder

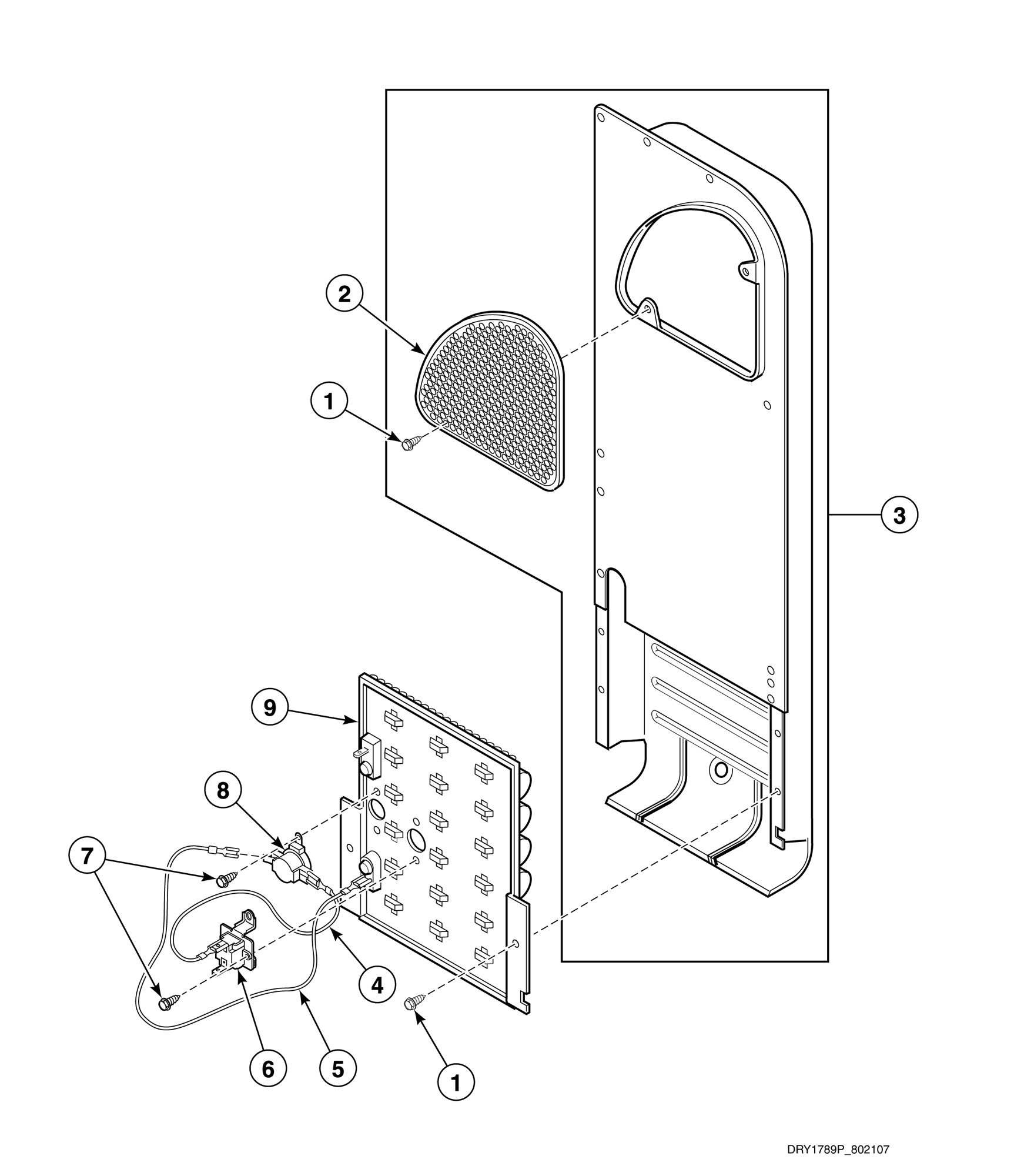

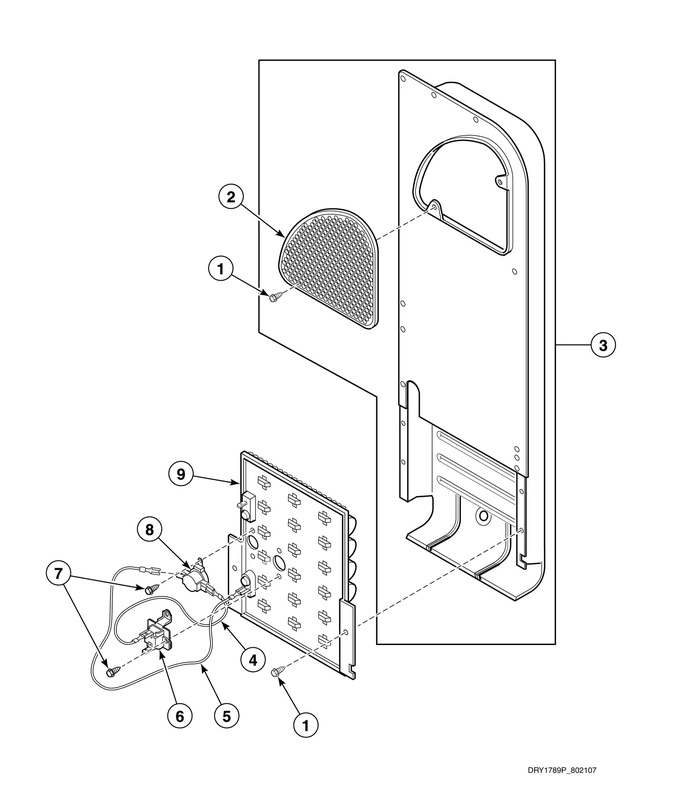

Heater Duct and Element Assembly

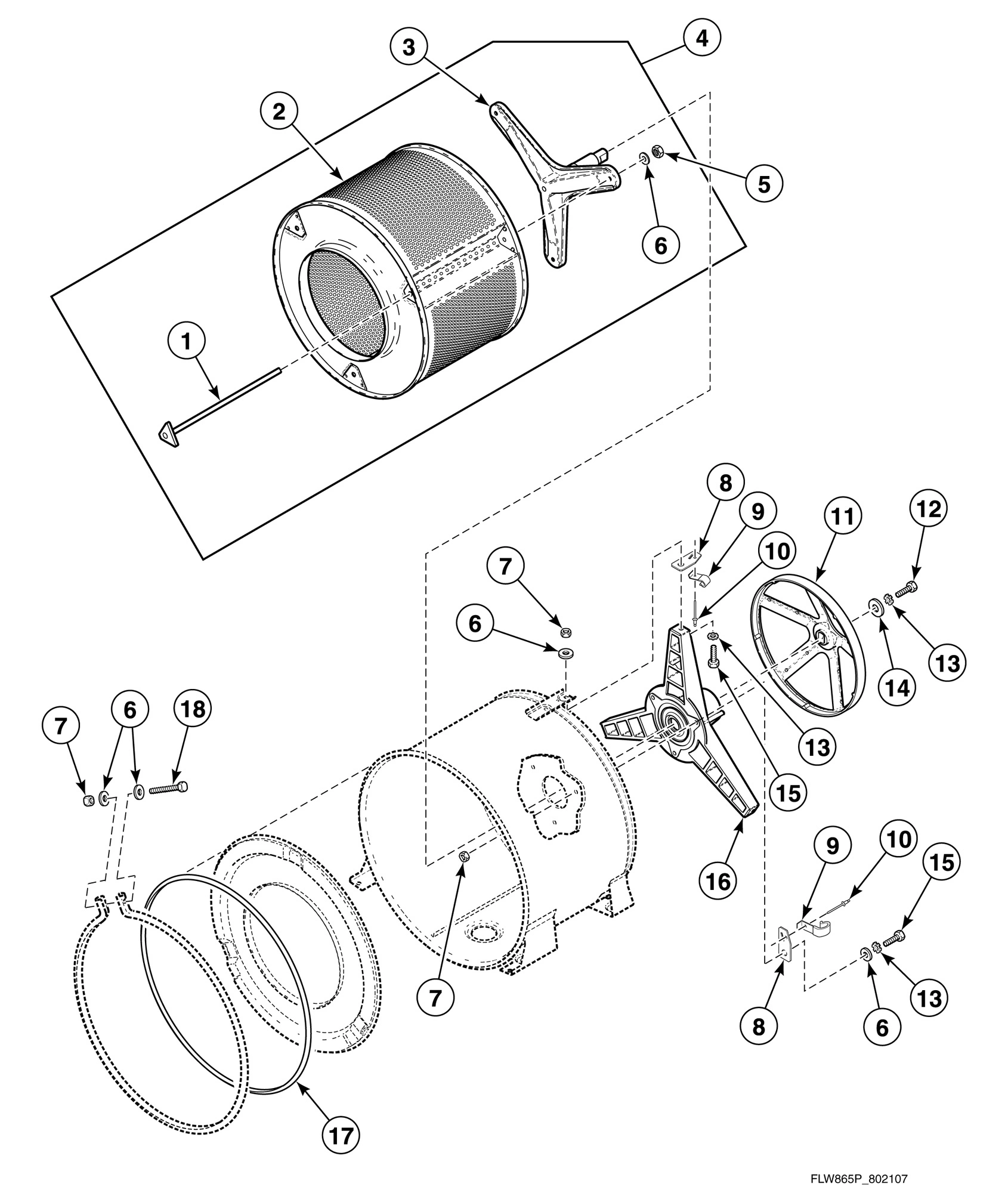

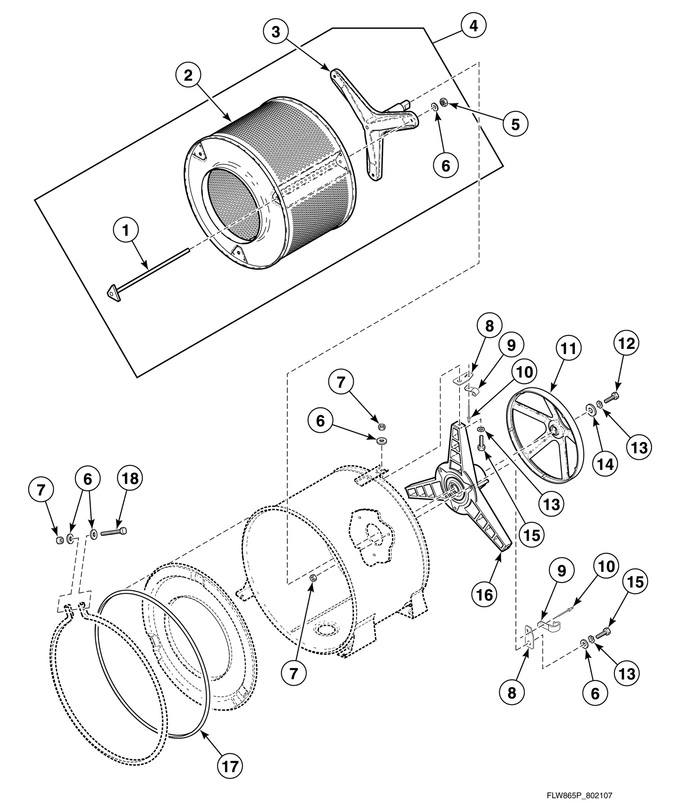

Inner Basket, Trunnion, Bearing Housing and Pulley

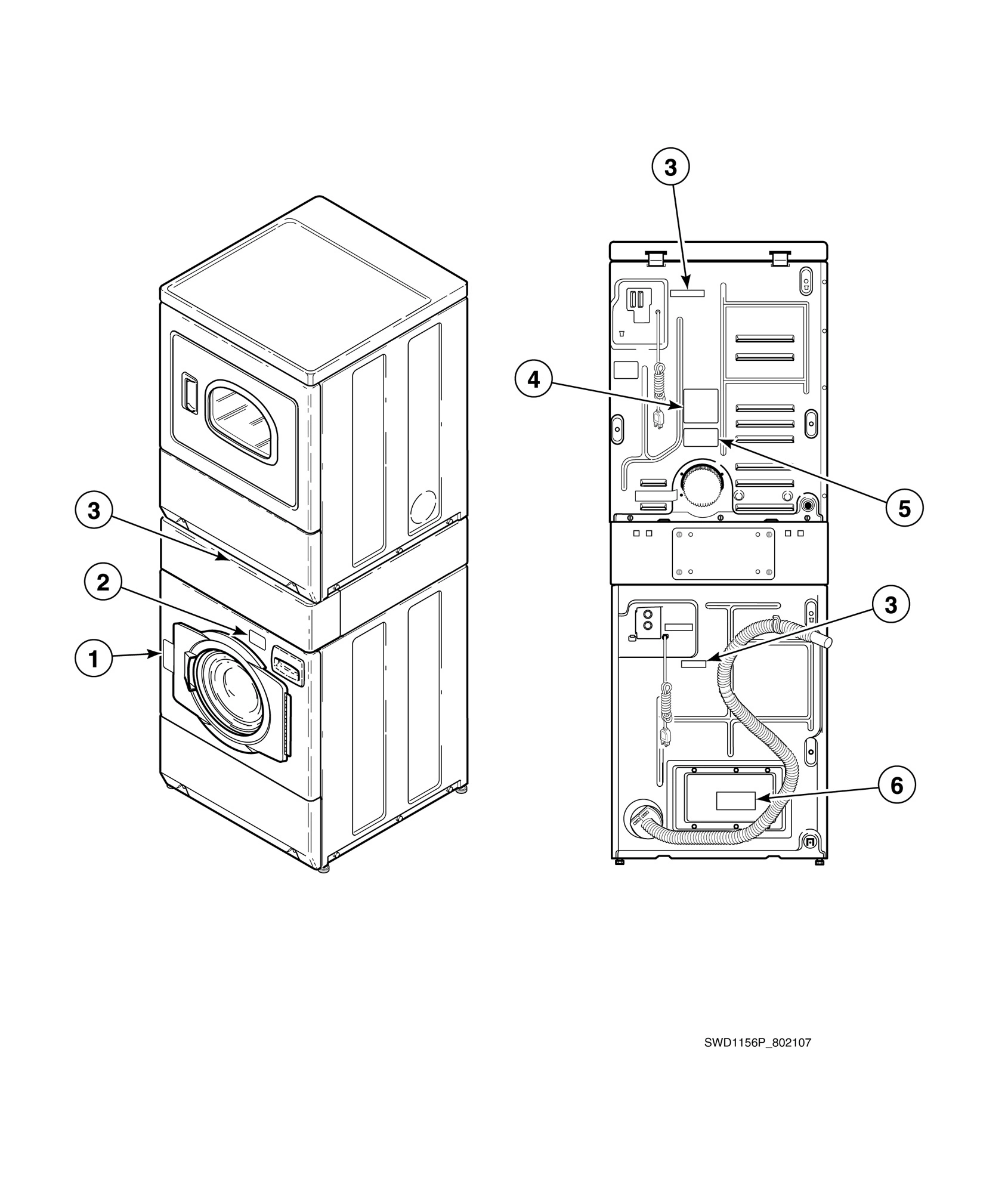

Labels

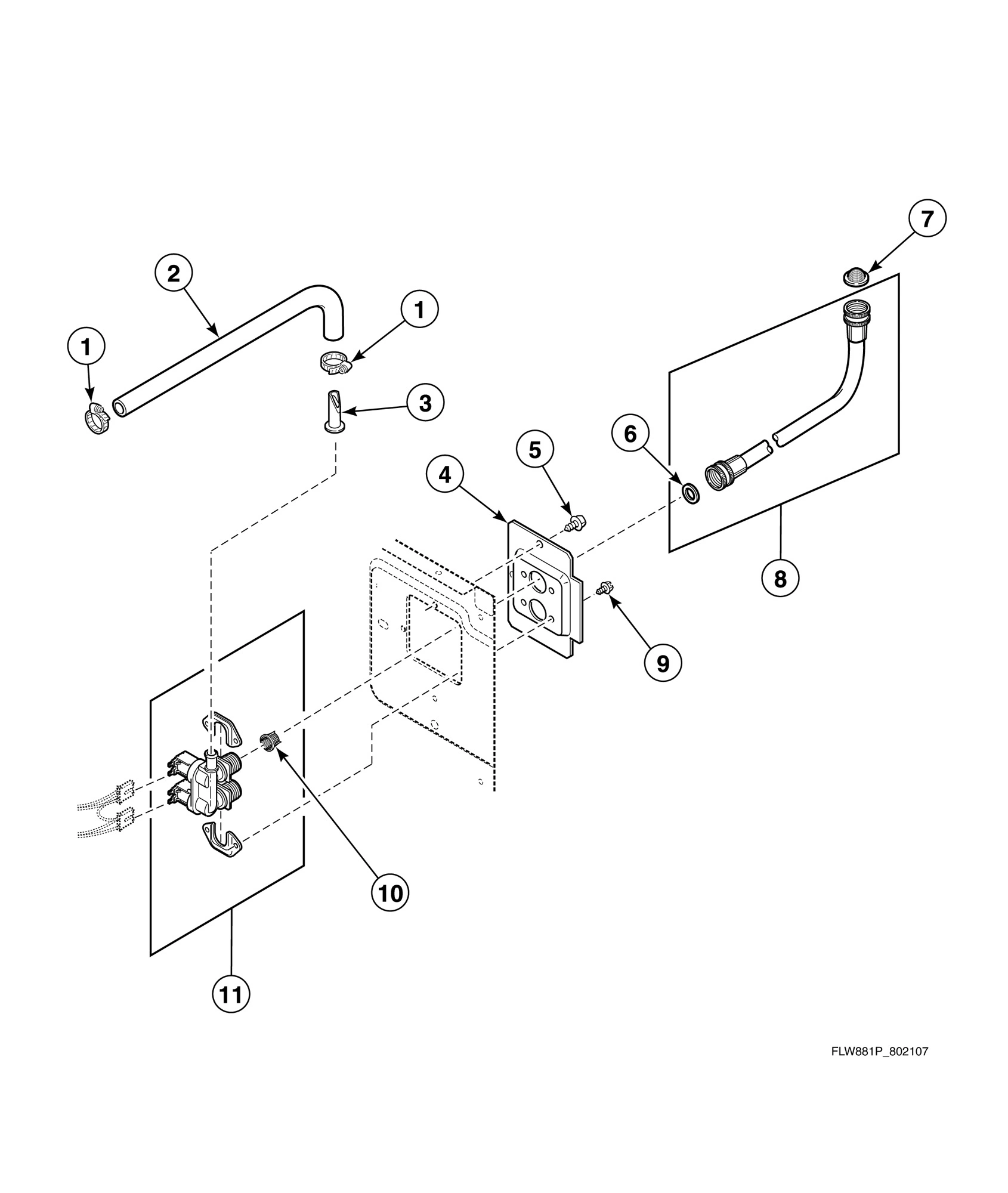

Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose

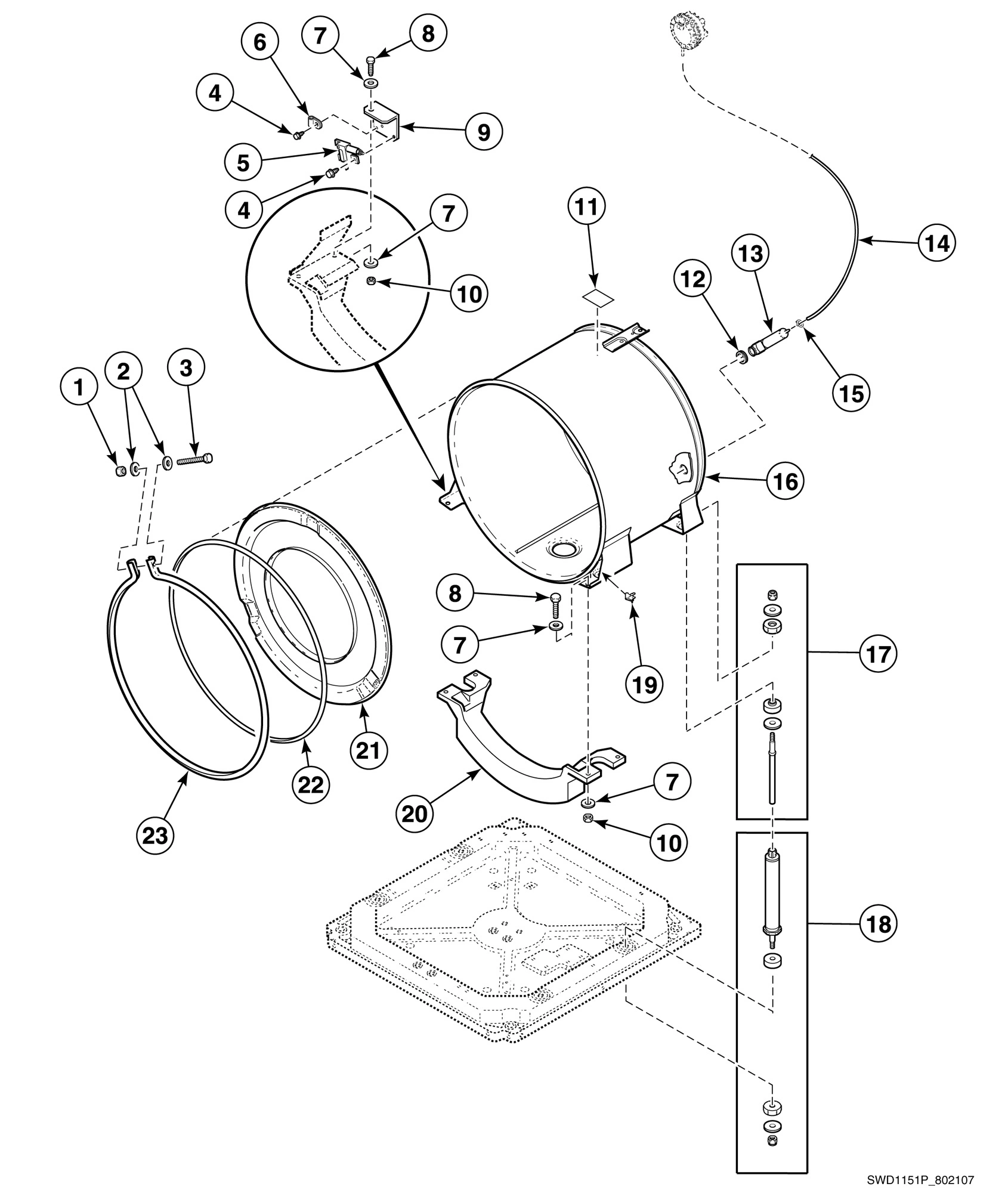

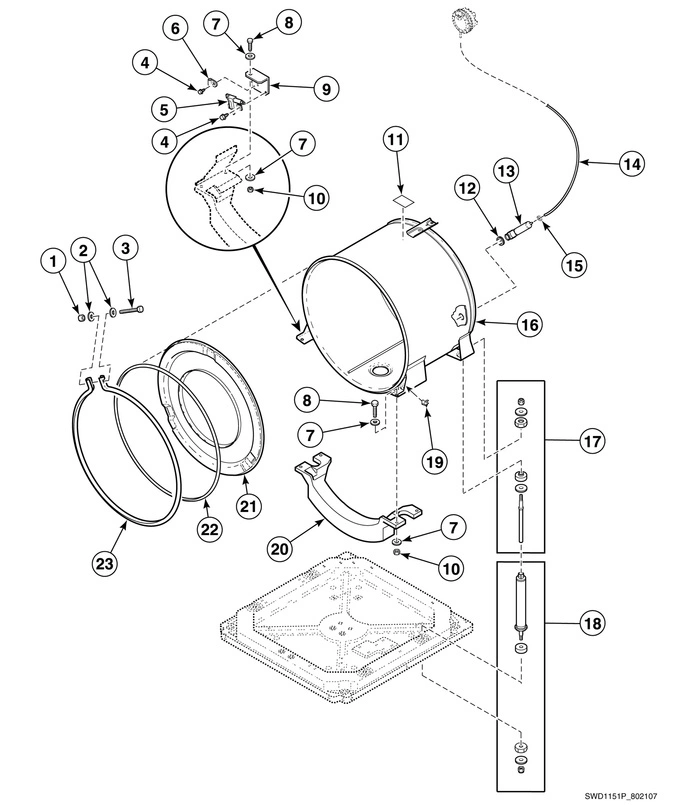

Outer Tub, Front and Clamp Ring

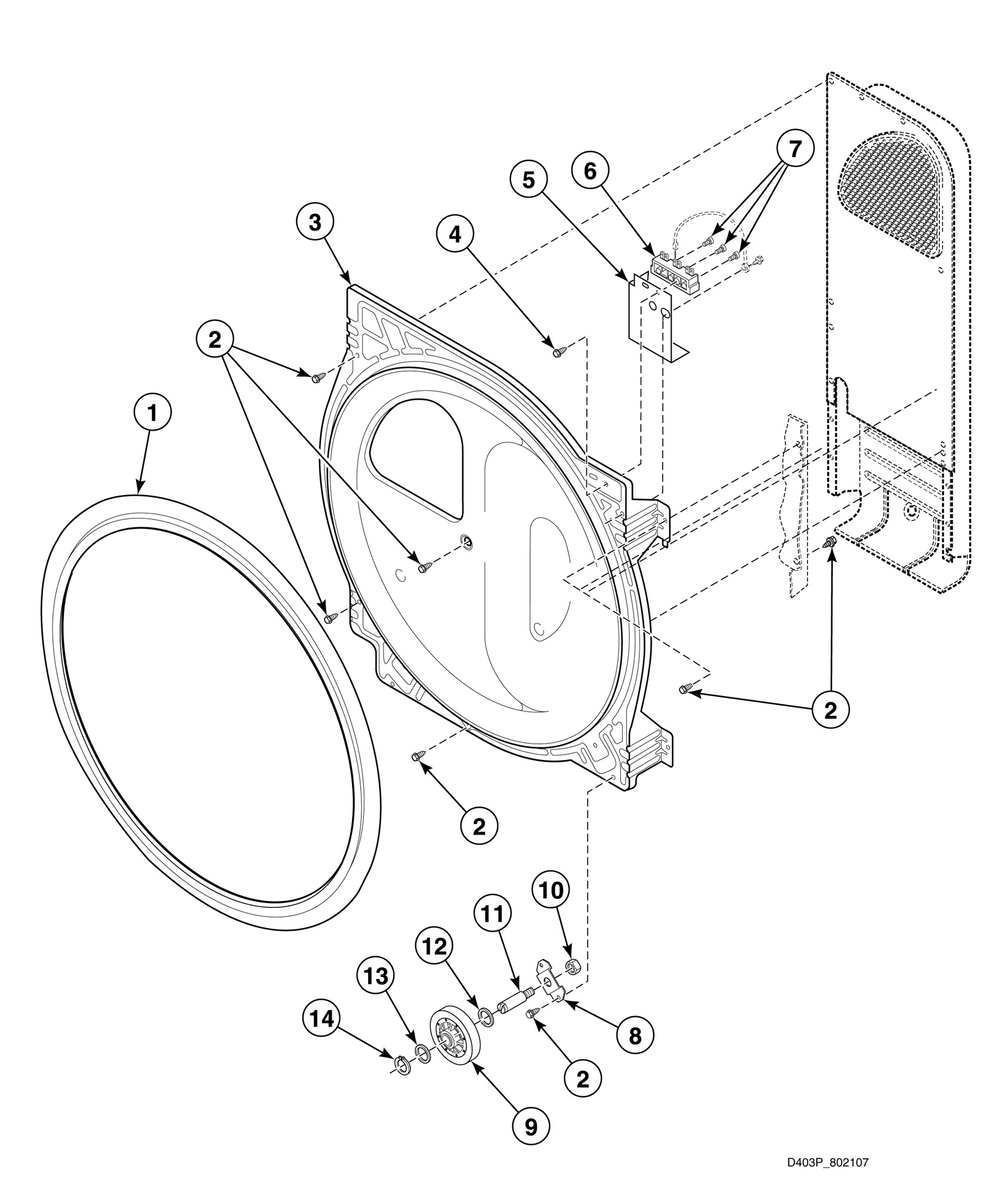

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

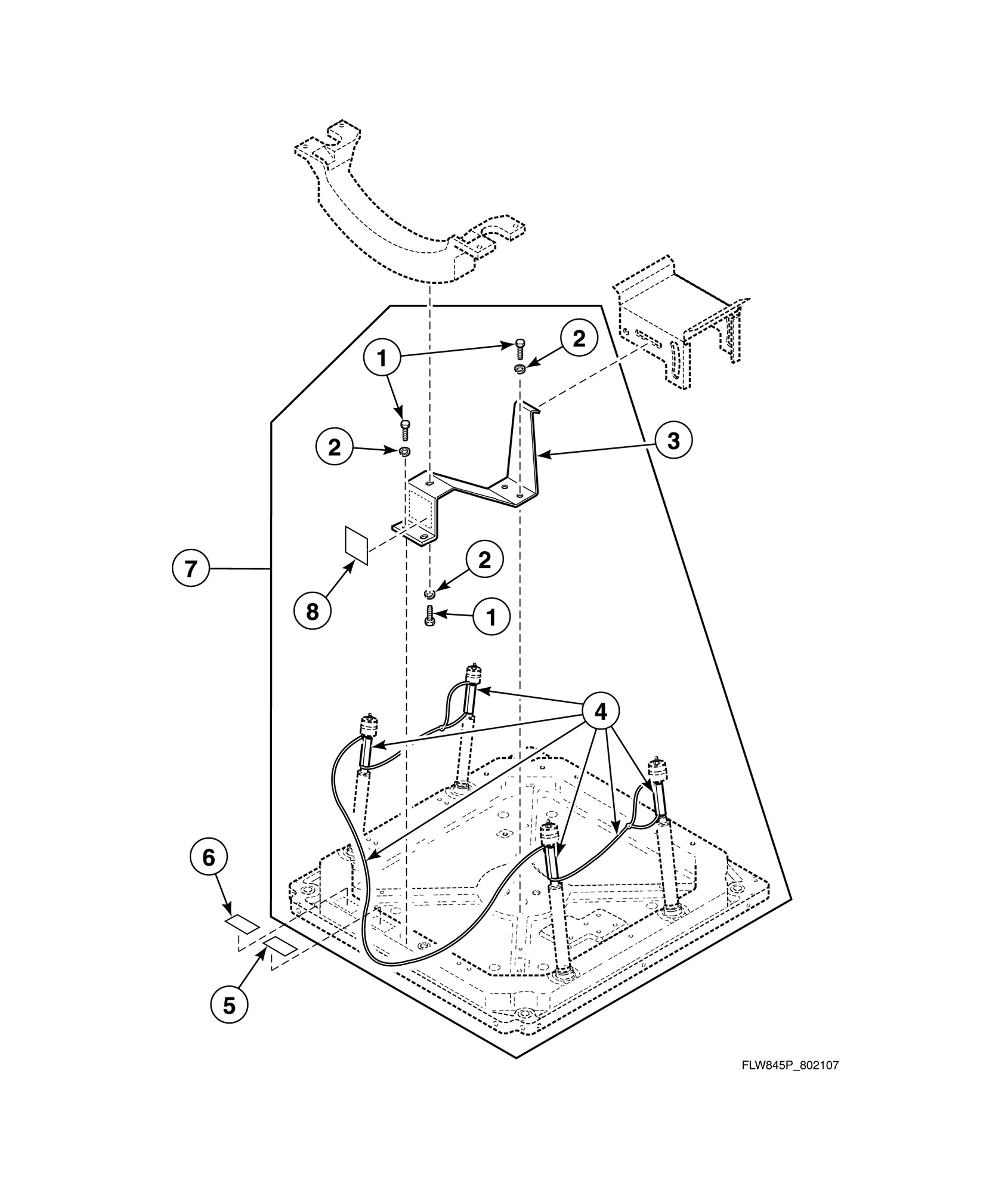

Shipping Materials

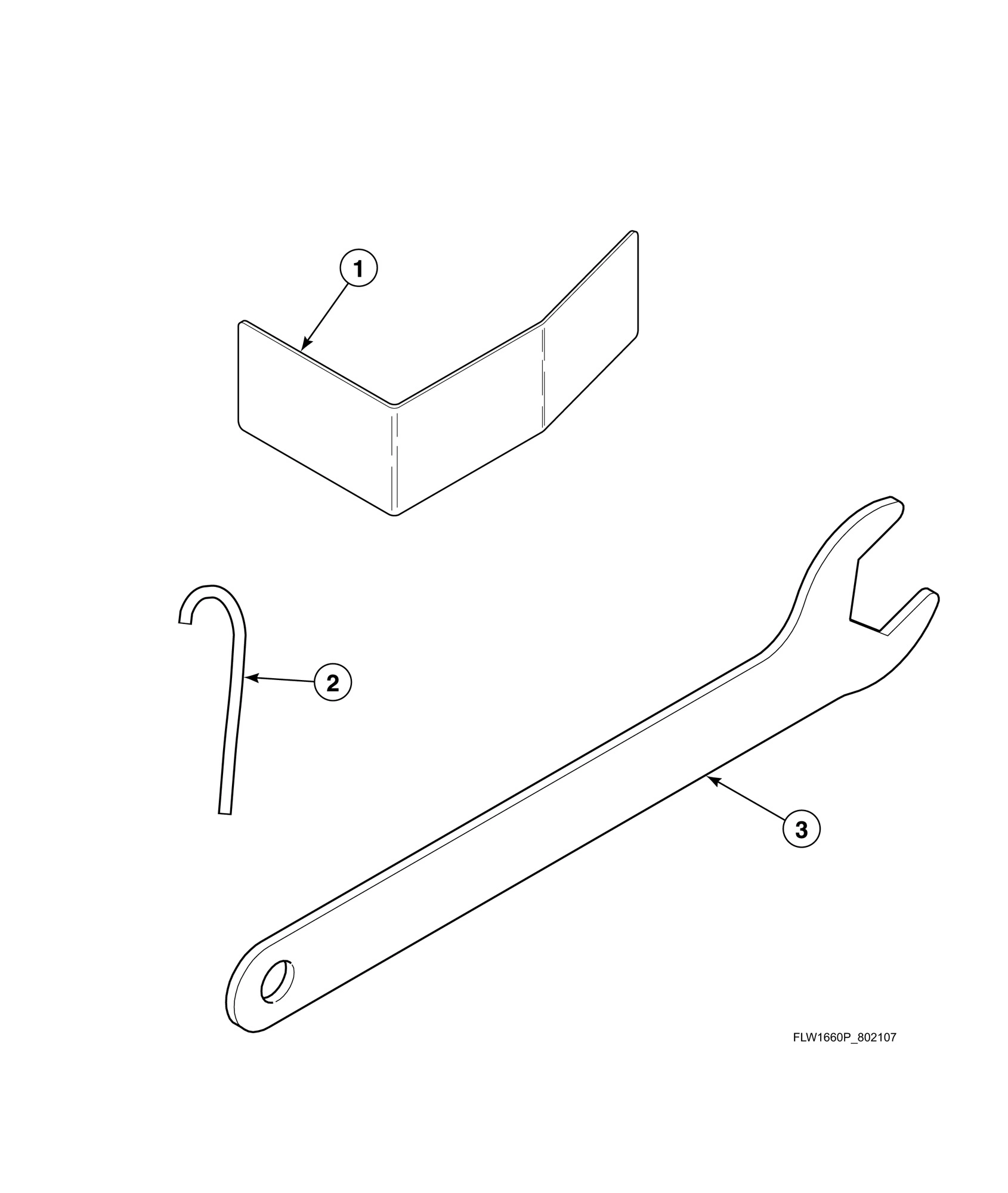

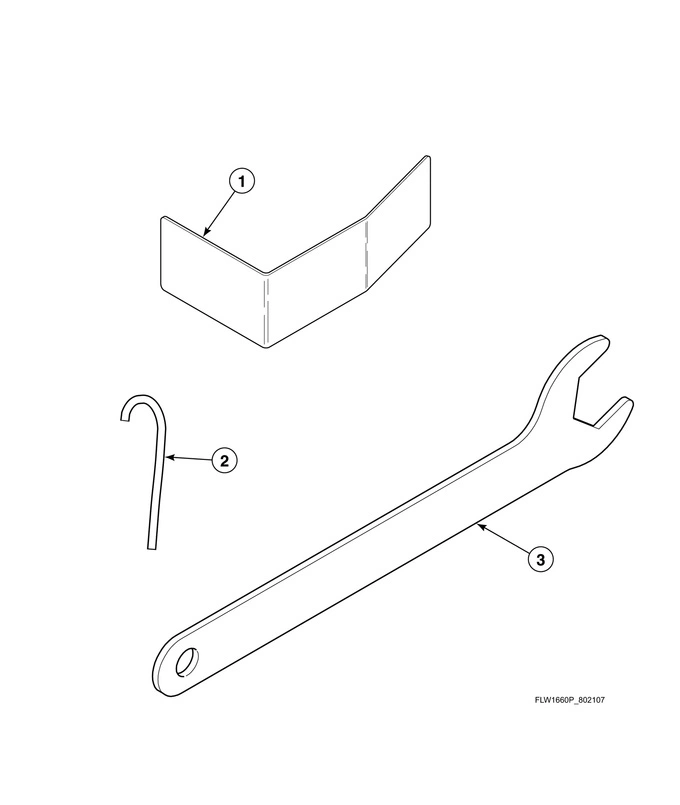

Special Tools

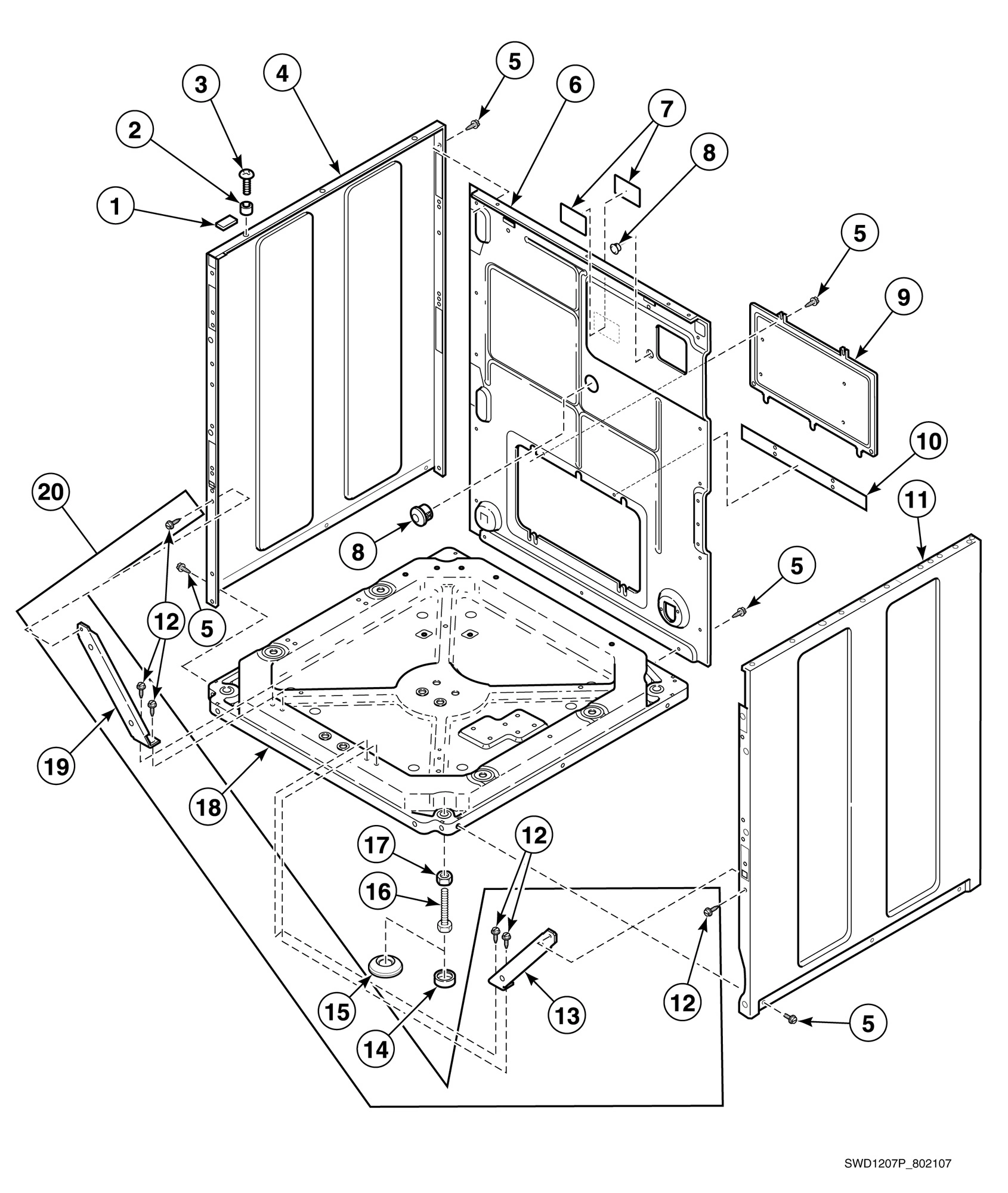

Washer Base, Panels and Rear Panel

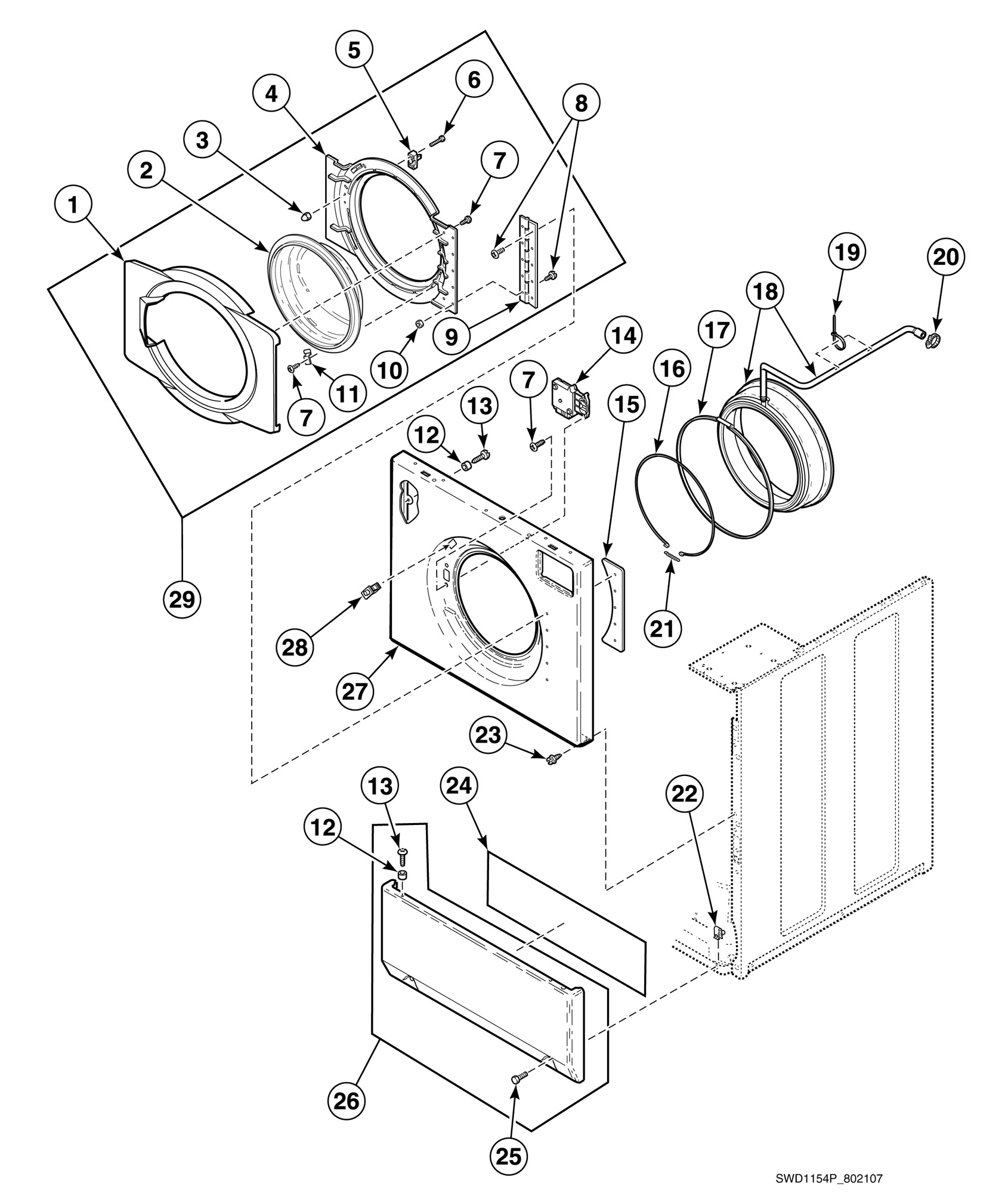

Washer Front Panel, Door Assembly and Door Seal

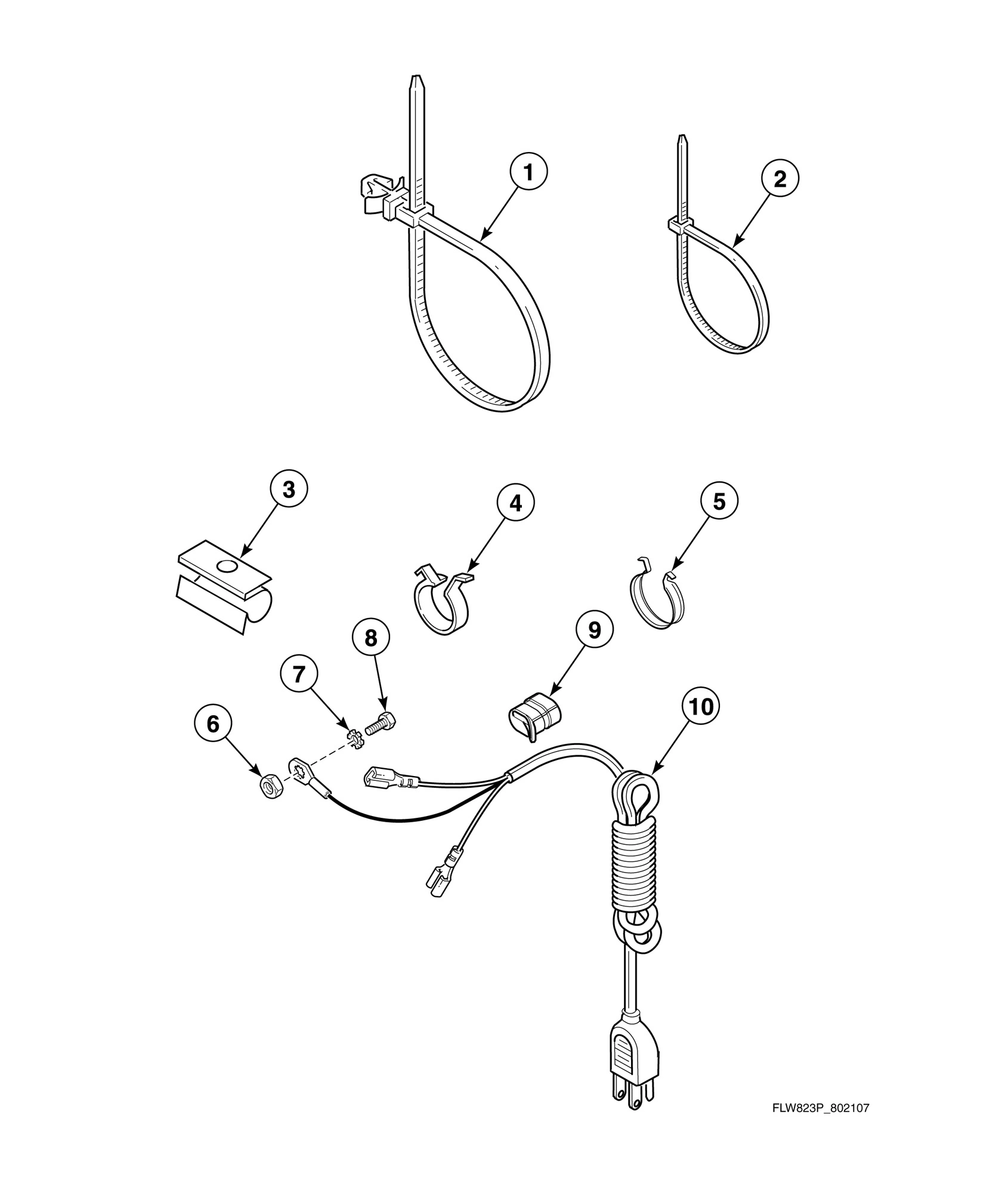

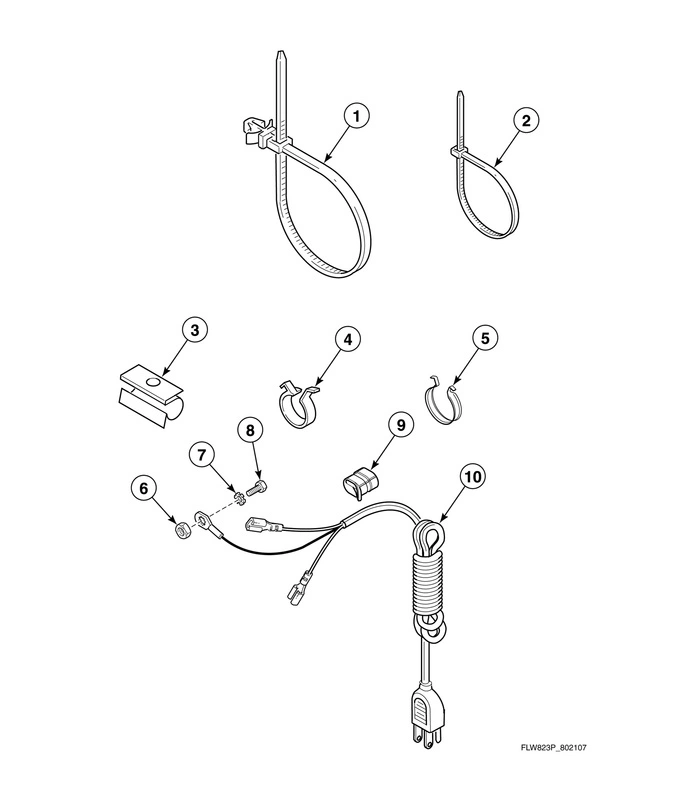

Washer Lead-In Cord, Wire Ties and Clips

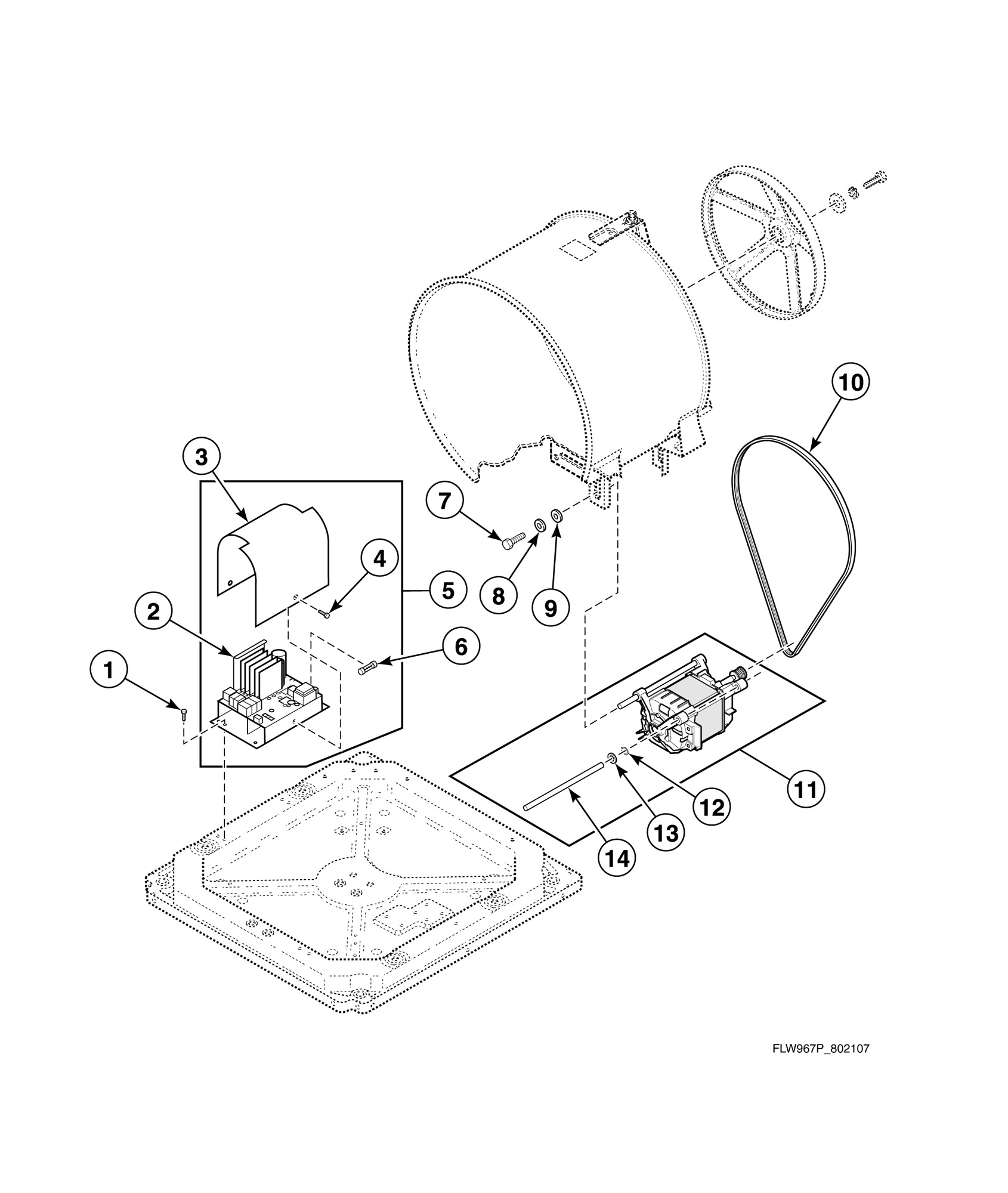

Washer Motor and Belt

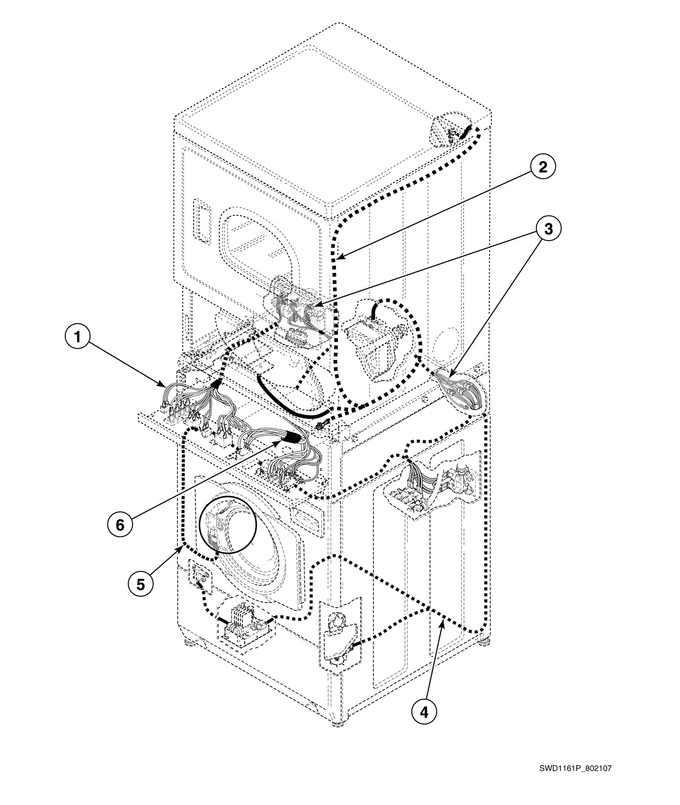

Common parts from model GE CTS97AWN General Electric Model CTS97AWN
1
Control Shield (Comment: No service door) GEN 801371 Contact Us For Availability
1
Control Shield (Comment: Uses service door) GEN 801372 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Door Seal and Hose Assembly (Comment: Gray) GEN 801784 Contact Us For Availability
1
Hose Clamp GEN 802164 Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Speed Clip GEN 28835 Contact Us For Availability
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Dryer Door GEN D510082WP Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
10 Position Housing (Comment: Molex, 10 circu GEN D500338 Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Includes it GEN D510266P Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Use for cylinder seal) GEN D511637P Contact Us For Availability
1
Tension Rod Assembly GEN 800666 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Door Locked Label GEN 685947 Contact Us For Availability
1
Nut GEN F430218 Contact Us For Availability
1
Dispenser Drawer Tool (Comment: Use to remove GEN 318P4 Contact Us For Availability
1
Outer Door Bezel GEN 801904W Contact Us For Availability
1
Wire Tie (Comment: Push mount) GEN 38663 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Switch GEN D512973 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Bracket GEN D510146 Contact Us For Availability
2
Door Handle Wedge GEN D510129 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Inner Basket Assembly (Comment: Includes (3) GEN 803007P Contact Us For Availability
2
Washer GEN 800457 Contact Us For Availability
2
Oversudsing Label GEN 802074 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
2
Door Glass GEN 800343P Contact Us For Availability
2
Inverter Control Assembly GEN 803254P Contact Us For Availability
3
Control Access Door GEN 801373 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Front Panel Seal GEN D511056 Contact Us For Availability
3
Top Kit GEN D510032WP Contact Us For Availability
3
Dryer Door Window GEN D503982P Contact Us For Availability
3
Blower Housing GEN D511969WP Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Cylinder Baffle GEN D510102W Contact Us For Availability
3
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
3
Trunnion Shaft and Hardware Kit (Comment: Inc GEN 800749P Contact Us For Availability
3
Screw GEN 800462 Contact Us For Availability
3
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Shipping Bracket GEN 802890 Contact Us For Availability
3
Wrench (Comment: Use to adjust leveling legs) GEN 392P4 Contact Us For Availability
3
Nut GEN 801994 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
4
Transformer GEN 210018P Contact Us For Availability
4
Drain Hose GEN 685730 Contact Us For Availability
4
Screw (Comment: Use with item 5) GEN D501285 Contact Us For Availability
4
Front Panel GEN D510066WP Contact Us For Availability
4
Door Strike Mount GEN D510127 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
4
Cylinder Assembly (Comment: Includes item 3) GEN D510265WP Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Inner Basket Assembly (Comment: Includes item GEN 800429P Contact Us For Availability
4
Venting Instruction Label GEN D502791 Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Shipping Cord and Brace Assembly GEN 800364P Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left panel, Inclu GEN 800004WP Contact Us For Availability
4
Inner Door Bezel GEN 801903 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
5
Pressure Switch GEN 800468P Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Door Strike GEN D510181 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Extractor Tool (Comment: For use on electric GEN 190P4 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Nut GEN 685844 Contact Us For Availability
5
Exhaust Warning Label GEN D500497 Contact Us For Availability
5
Out-of-Balance Switch Assembly GEN 801006 Contact Us For Availability
5
Terminal Block Shield GEN D510237 Contact Us For Availability
5
Warning Label (Comment: Non-grounded) GEN 800632 Contact Us For Availability
5
Locking Catch GEN 685430 Contact Us For Availability
6
Snap Bushing GEN M402542 Contact Us For Availability
6
Backflow Preventer GEN 800310 Contact Us For Availability
6
Screw GEN 33562 Contact Us For Availability
6
Cabinet Rear Panel GEN D514632P Contact Us For Availability
6
Screw GEN D500226 Contact Us For Availability
6
Motor Switch Kit (Comment: Does not include t GEN N/A Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Cylinder Glide GEN D510188 Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Warning Label GEN D500049 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Wire Clamp GEN 800811 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
6
Rear Panel GEN 800010P Contact Us For Availability
6
Screw GEN 801993 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Control Assembly GEN 802523P Contact Us For Availability
7
Valve Kit GEN 685766P Contact Us For Availability
7
Screw GEN 800548 Contact Us For Availability
7
Hose Clamp GEN 36802 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Liner Door Seal GEN D510147P Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Washer GEN M400081 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Shipping Materials Kit (Comment: Includes ite GEN 728P3 Contact Us For Availability
7
Screw Label (Comment: Left hand thread) GEN 685928 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Screw GEN D501524 Contact Us For Availability
8
Dispenser-to-Tub Hose GEN 800331 Contact Us For Availability
8
Screw (Comment: Metric, Use with 685703 Drain GEN 38096 Contact Us For Availability
8
Flexible Venting Kit GEN 521P3 Contact Us For Availability
8
Door Liner Grill GEN D503870W Contact Us For Availability
8
Motor Pulley GEN D500011 Contact Us For Availability
8
Screw GEN 52864 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Hose Mounting Plate GEN 800552 Contact Us For Availability
8
Fill Hose (Comment: 8 feet) GEN 20617 Contact Us For Availability
8
Fill Hose (Comment: 10 feet) GEN 20618 Contact Us For Availability
8
Water Hose (Comment: 4 feet, Includes 2 of it GEN F200116 Contact Us For Availability
8
Screw GEN 800461 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
Shipping Bracket Label GEN 686901 Contact Us For Availability
8
Hole Plug GEN M412154 Contact Us For Availability
8
Screw GEN 801019 Contact Us For Availability
8
Screw GEN 685837 Contact Us For Availability
9
Screw GEN 430497 Contact Us For Availability
9
Screw GEN D501086 Contact Us For Availability
9
Hose Clamp GEN 685725 Contact Us For Availability
9
Washer (Comment: Use with 685703 and 801015 D GEN 800465 Contact Us For Availability
9
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098W Contact Us For Availability
9
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
9
Heater Kit Assembly (Comment: 4750 Watt, 208 GEN 61928 Contact Us For Availability
9
Heater Assembly (Comment: 5350 Watt, 240 Volt GEN D510329P Contact Us For Availability
9
Hose Clip GEN 800553 Contact Us For Availability
9
Switch Mounting Bracket GEN 800663 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Rear Access Panel GEN 800011 Contact Us For Availability
9
Door Hinge GEN 802934 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
Rear Control Cabinet GEN 801058 Contact Us For Availability
10
Grommet (Comment: Use with 685703 and 801015 GEN 802218 Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Cabinet Side Panel (Comment: Right) GEN D510002WP Contact Us For Availability
10
Screw GEN D505870 Contact Us For Availability
10
Nut GEN 56156 Contact Us For Availability
10
Lint Filter Cover GEN D510502W Contact Us For Availability
10
Nut GEN 800452 Contact Us For Availability
10
Pop Rivet GEN 685847 Contact Us For Availability
10
Mixing Valve Screen GEN 802926 Contact Us For Availability
10
Motor Access Hole Edging GEN 801702 Contact Us For Availability
10
Nut GEN 23951 Contact Us For Availability
10
Lead-In Cord GEN 34458 Contact Us For Availability
10
Drive Belt GEN 800319P Contact Us For Availability
11
Right Control Cabinet Side GEN 800915W Contact Us For Availability
11
Cap GEN 801746 Contact Us For Availability
11
Pump Bracket (Comment: Use with 685703 and 80 GEN 802219 Contact Us For Availability
11
Pump Mount Bracket (Comment: Use with 802623 GEN 802626 Contact Us For Availability
11
Warning/Caution Label GEN D500281 Contact Us For Availability
11
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
11
Shaft GEN 56461P Contact Us For Availability
11
Driven Pulley GEN 800866 Contact Us For Availability
11
Mixing Valve GEN 802220P Contact Us For Availability
11
Side Panel Kit (Comment: Right panel, Include GEN 800005WP Contact Us For Availability
11
Hold-Down Clip GEN 800906 Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
12
Expansion Clip GEN 70030501 Contact Us For Availability
12
Dispenser GEN 685756P Contact Us For Availability
12
Panel Locator GEN 56079 Contact Us For Availability
12
Hinge Hole Plug GEN D510186 Contact Us For Availability
12
Leveling Leg GEN D510135 Contact Us For Availability
12
Hinge GEN D511036 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Retaining Ring GEN 23748 Contact Us For Availability
12
Air Duct Assembly GEN D510151 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Grommet GEN 29175 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
12
Screw GEN 31645 Contact Us For Availability
13
Dispenser Assembly GEN 801476P Contact Us For Availability
13
Screw (Comment: Use with 801015 and 802623 Dr GEN 802430 Contact Us For Availability
13
Screw GEN 39733 Contact Us For Availability
13
Dryer Base GEN D514245 Contact Us For Availability
13
Window Trim GEN D503981W Contact Us For Availability
13
Washer GEN 52549 Contact Us For Availability
13
Fuse Notice Label GEN 61294 Contact Us For Availability
13
Washer GEN M403958 Contact Us For Availability
13
Pressure Bulb GEN 30907 Contact Us For Availability
13
Cabinet Brace (Comment: Right) GEN 801492 Contact Us For Availability
14
Temperature Switch (Comment: Washer) GEN 687542 Contact Us For Availability
14
Dispenser Drawer GEN 685757P Contact Us For Availability
14
Pump Mount (Comment: Use with 801015 Drain Pu GEN 802432 Contact Us For Availability
14
Washer GEN 26509 Contact Us For Availability
14
Door Pull and Wedge Kit (Comment: Includes it GEN D510103WP Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
Lint Filter GEN D503980W Contact Us For Availability
14
Washer GEN 800464 Contact Us For Availability
14
Tubing GEN 800648P Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Door Latch/Switch Assembly GEN 685429 Contact Us For Availability
14
Motor Mount Rod GEN 801062 Contact Us For Availability
15
Fabric Selector Switch (Comment: Dryer) GEN D513505 Contact Us For Availability
15
Hose Clamp (Comment: Use with 685703 Drain Pu GEN F200206 Contact Us For Availability
15
Screw GEN D502431 Contact Us For Availability
15
Screw GEN D505295 Contact Us For Availability
15
Door and Liner Assembly (Comment: Includes it GEN D511636WP Contact Us For Availability
15
Hose Clamp GEN 39282 Contact Us For Availability
15
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
15
Hinge Plate GEN 802412 Contact Us For Availability
16
Resistor Assembly (Comment: Use with D505797 GEN D511277 Contact Us For Availability
16
Dispenser Drawer Front GEN 685715WP Contact Us For Availability
16
Nozzle Cap (Comment: Use with 685703 Drain Pu GEN 801112 Contact Us For Availability
16
Cabinet Side Panel (Comment: Left) GEN D510001WP Contact Us For Availability
16
Felt Pad GEN D510189 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes 838P3 GEN 800428P Contact Us For Availability
16
Outer Tub Assembly GEN 801081P Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Wire Clamp Ring GEN 800438 Contact Us For Availability
17
Timer and Harness Kit GEN D505797P Contact Us For Availability
17
Insert GEN 685716 Contact Us For Availability
17
Pump Shield (Comment: Use with 685703 Drain P GEN 38067 Contact Us For Availability
17
Panel Kit (Comment: Replaces the 1 piece wrap GEN 727P3W Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
17
Tub Shock Absorber Kit (Comment: Upper) GEN 800622P Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Door Seal Clamp (Comment: Seal to outer tub f GEN 685743P Contact Us For Availability
18
Control Cabinet Bottom GEN 801777 Contact Us For Availability
18
Door Seal and Hose Assembly Kit (Comment: Bla GEN 800232P Contact Us For Availability
18
Detergent Cover GEN 800899 Contact Us For Availability
18
Screw (Comment: Use with 801015 and 802623 Dr GEN 802431 Contact Us For Availability
18
Base Shock Absorber Kit (Comment: Lower) GEN 800623P Contact Us For Availability
18
Base Assembly GEN 802245 Contact Us For Availability
18
Door Seal and Hose Assembly Kit (Comment: Gra GEN 801784P Contact Us For Availability
19
Screw GEN 800930 Contact Us For Availability
19
Dispenser Plate GEN 801024 Contact Us For Availability
19
O-Ring (Comment: Use with 801015 and 802623 D GEN 802429P Contact Us For Availability
19
O-Ring (Comment: Use with 685703 Drain Pump) GEN 802487 Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
19
Grounding Clip GEN 00161 Contact Us For Availability
19
Cabinet Brace (Comment: Left) GEN 801491 Contact Us For Availability
20
Timer Knob Assembly GEN D512117W Contact Us For Availability
20
Screw GEN 801001 Contact Us For Availability
20
Pump Housing (Comment: Use with 685703 Drain GEN 801208 Contact Us For Availability
20
Pump Housing (Comment: Use with 801015 and 80 GEN 802428 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
20
Ballast Weight GEN 800205 Contact Us For Availability
20
Brace Kit (Comment: Includes items 12, 13 and GEN 918P3 Contact Us For Availability
20
Hose Clamp GEN 800803 Contact Us For Availability
21
Knob Assembly GEN 36701W Contact Us For Availability
21
O-Ring (Comment: Use with 685703 Drain Pump) GEN 801207 Contact Us For Availability
21
Gasket (Comment: Use GEN 802427 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
21
Tub Front Assembly GEN 800430 Contact Us For Availability
21
Extension Spring GEN 800346 Contact Us For Availability
22
Rocker Switch (Comment: Extra rinse) GEN 38424W Contact Us For Availability
22
GEN 802623P GEN 802623P Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
22
Tub Front Seal GEN 800432P Contact Us For Availability
22
Nut GEN 36020 Contact Us For Availability
23
Push-to-Start Switch GEN 801434W Contact Us For Availability
23
GEN 801209 GEN 801209 Contact Us For Availability
23
GEN 802434P GEN 802434P Contact Us For Availability
23
Thermostat GEN D504515 Contact Us For Availability
23
Clamp Ring GEN 800312 Contact Us For Availability
24
Graphic Overlay GEN 802184 Contact Us For Availability
24
GEN 801206P GEN 801206P Contact Us For Availability
24
GEN 802426P GEN 802426P Contact Us For Availability
24
Access Panel Damper GEN 685368 Contact Us For Availability
25
Control Panel Assembly GEN 802101W Contact Us For Availability
25
GEN 27615P GEN 27615P Contact Us For Availability
25
GEN 800317 GEN 800317 Contact Us For Availability
25
Blower and Fan Kit (Comment: Includes items 1 GEN D510717P Contact Us For Availability
25
Screw GEN 801045 Contact Us For Availability
26
Light GEN 801431 Contact Us For Availability
26
Access Panel Assembly GEN D514250WP Contact Us For Availability
27
Cycle Switch (Comment: Washer) GEN 801240 Contact Us For Availability
27
Front Panel GEN 800336WP Contact Us For Availability
28
Nut GEN 800931 Contact Us For Availability
28
Door Switch GEN 800211 Contact Us For Availability
29
Left Control Cabinet Side GEN 800900WP Contact Us For Availability
29
Door Assembly (Comment: Includes items 1-11) GEN 801928WP Contact Us For Availability
NA
Porcelain Touch-Up Paint GEN 122P4P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
× ![]()
