Model GE CT9570SL1SS – Common Parts & Diagrams

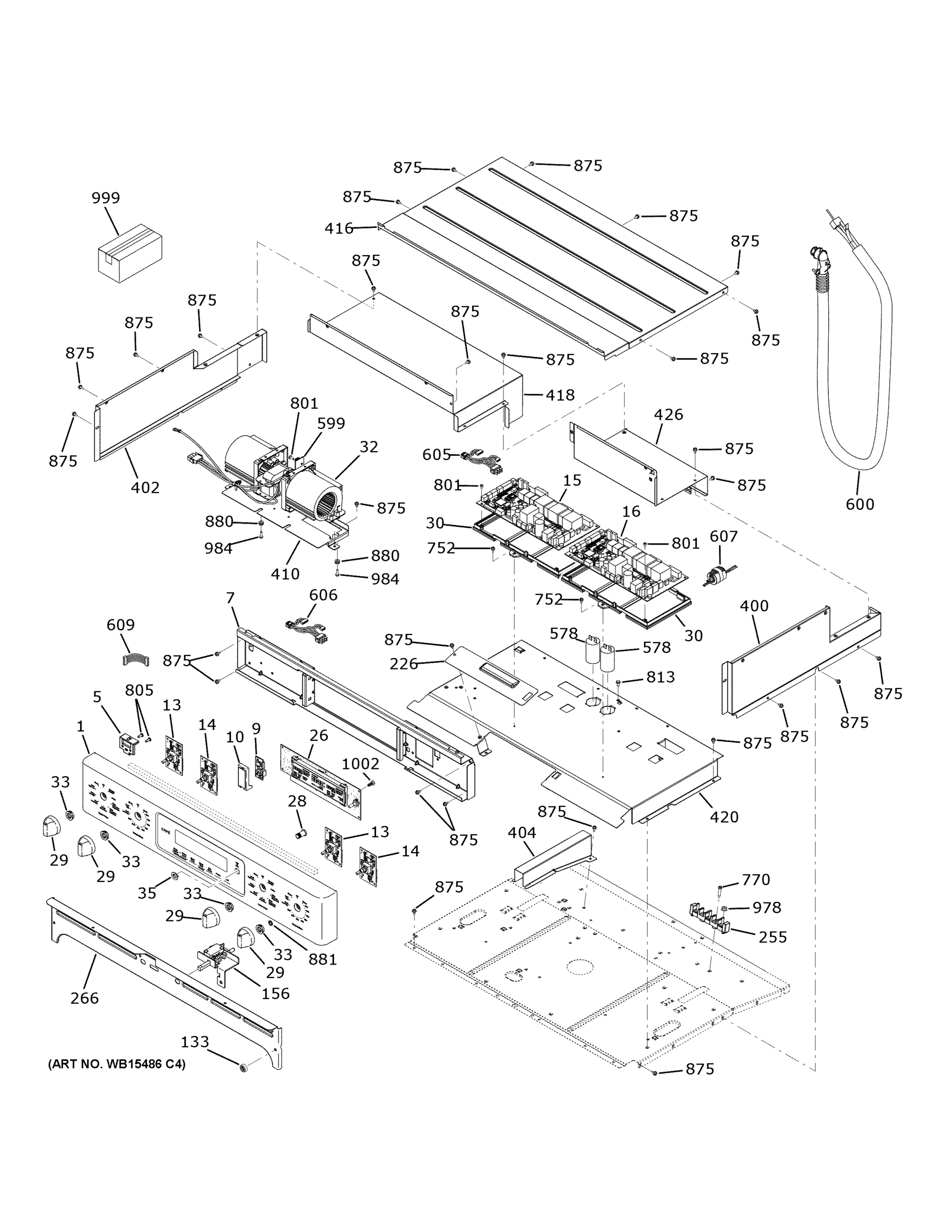

CONTROL PANEL

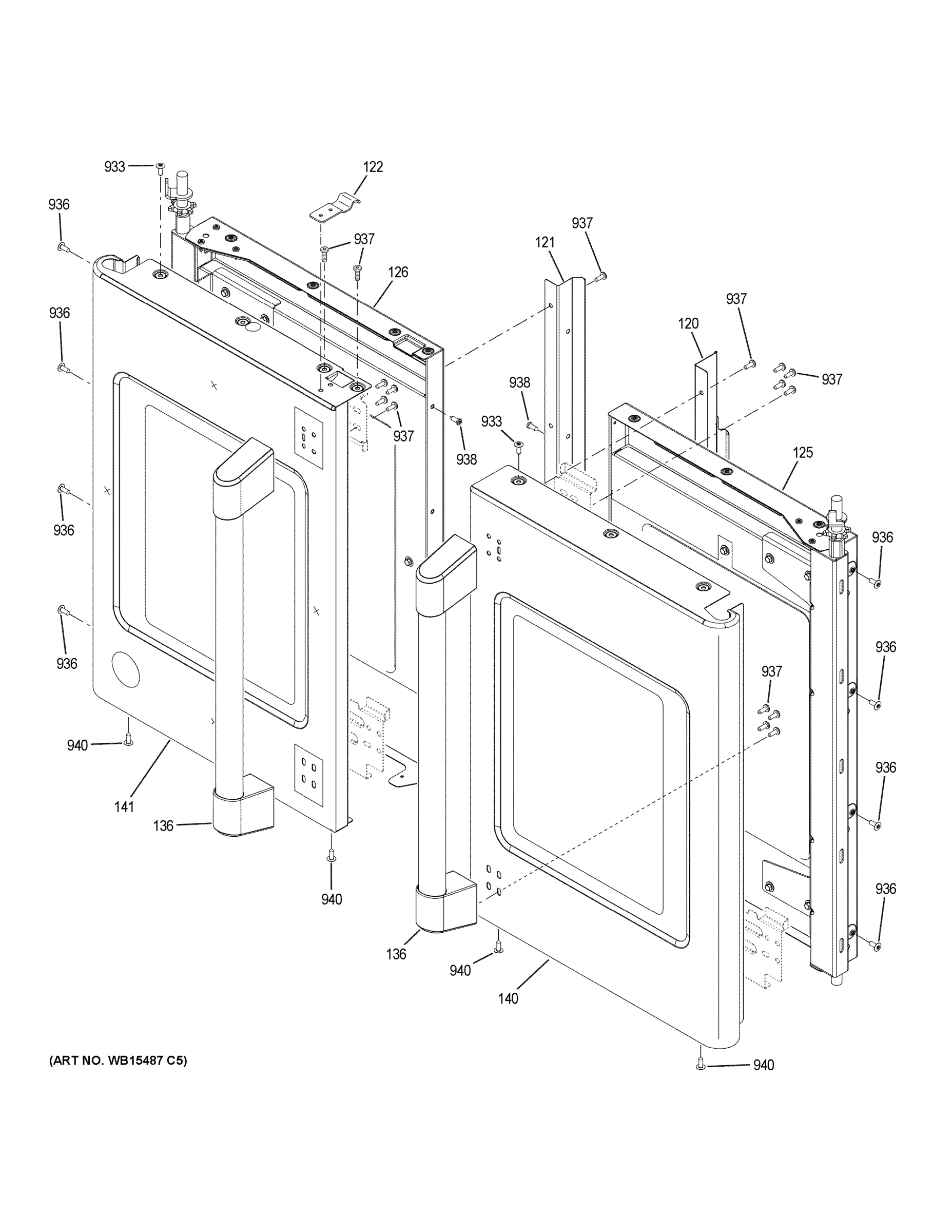

UPPER DOORS
UPPER OVEN
CENTER SPACER
LOWER DOOR
LOWER OVEN
DOOR LOCK
CONVECTION FAN
PEDESTAL
Common parts from model GE CT9570SL1SS
5
CONTROL PANEL SUPPORT BRACKET GEN WB34X29268 Contact Us For Availability
7
BRACKET CNTL PNL MTG GEN WB34X28389 Contact Us For Availability
13
BOARD UI KNOB GEN WB27X24643 Contact Us For Availability
14
BOARD UI KNOB GEN WB27X24642 Contact Us For Availability
26
BOARD UI DISPLAY GEN WB27X28530 Contact Us For Availability
32
COOLING FAN GEN WB26X24020 Contact Us For Availability
43
BLADE FAN CONVECTION GEN WB02T10598 Contact Us For Availability
55
BADGE GE GEN WB02T10589 Contact Us For Availability
101
INSULATION DR TOP GEN WB35X21737 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
144
SPACER DOOR HDL GEN WB02T10524 Contact Us For Availability
145
DEFLECTOR OVEN DOOR GEN WB34T10142 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
156
SWITCH PLATE ASM GEN WB24X23760 Contact Us For Availability
208
DIVIDER AIR DOUBLE OVEN GEN WB34T10140 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
218
DUCT LOWER REAR DUCT GEN WB34T10141 Contact Us For Availability
219
RETAINER INSLN SDE GEN WB34X21913 Contact Us For Availability
223
INSULATION CONVECT FAN GEN WB35T10259 Contact Us For Availability
235
GUIDE OVN RACK RT GEN WB48X21765 Contact Us For Availability
235
GUIDE OVN RACK LT GEN WB48X21766 Contact Us For Availability
241
RACK FLAT GEN WB48X23857 Contact Us For Availability
242
RACK OVN SLIDE ASM GEN WB48X21764 Contact Us For Availability
246
BROILER PAN GEN WB48X31885 Contact Us For Availability
247
BROILER PAN GRID GEN WB48X31884 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
253
SENSOR ASM GEN WB21X10165 Contact Us For Availability
256
RETAINER BOLT GEN WB01T10107 Contact Us For Availability
257
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
262
TRIM VERTICAL SIDE SS GEN WB07T10792 Contact Us For Availability
264
LOWER VENT TRIM (BK) GEN WB07X28526 Contact Us For Availability
266
TRIM VENT UPR GEN WB07X23772 Contact Us For Availability
268
TRIM BOTTOM CABINET GEN WB07T10786 Contact Us For Availability
269
TRIM BOTTOM CABINET GEN WB07T10791 Contact Us For Availability
270
CHAIN ASM KIT GEN WB10X24542 Contact Us For Availability
273
PROBE COVER GEN WB02X8309 Contact Us For Availability
277
VERTICAL BRACE ASM LT GEN WB07X28521 Contact Us For Availability
277
VERTICAL BRACE ASM RT GEN WB07X28522 Contact Us For Availability
281
DOOR HINGE LT GEN WB10X28534 Contact Us For Availability
281
DOOR HINGE RT GEN WB10X28535 Contact Us For Availability
300
HINGE BRACKET ASM KIT GEN WB49X21652 Contact Us For Availability
301
GASKET BROIL ELEMENT GEN WB35X21972 Contact Us For Availability
336
HANDLE & ENDCAP ASM GEN WB15X26001 Contact Us For Availability
350
TRIM BROIL ELEMENT (BK) GEN WB07T10787 Contact Us For Availability
352
CHANNEL PEDESTAL RIGHT GEN WB37T10028 Contact Us For Availability
353
CHANNEL PEDESTAL LEFT GEN WB37T10029 Contact Us For Availability
354
PEDESTAL ASM GEN WB63T10172 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
405
CHANNEL LOWER AIR GEN WB34T10160 Contact Us For Availability
416
COVER HOUSING FRT GEN WB34X28390 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
512
PLATE - TOP OVEN GEN WB37T10024 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10023 Contact Us For Availability
516
DUCT CONVECTION FAN GEN WB37T10022 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
599
BOARD FAN SENSOR GEN WB27T11463 Contact Us For Availability
600
CONDUIT WIRE ASM GEN WB18T10573 Contact Us For Availability
600
OPTIONAL 6 FT CONDUIT GEN WB18T10580 Contact Us For Availability
730
MEAT PROBE AND HARNESS GEN WB18X23585 Contact Us For Availability
800
RACK GUIDE NUT GEN WB01X21270 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
803
SCREW GEN WB01X21742 Contact Us For Availability
876
LOCK NUT GEN WB01T10127 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
999
LUBRICANT CLEANER GEN WB02T10303 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
