Model GE CSC27HRAAD – Common Parts & Diagrams
0
1

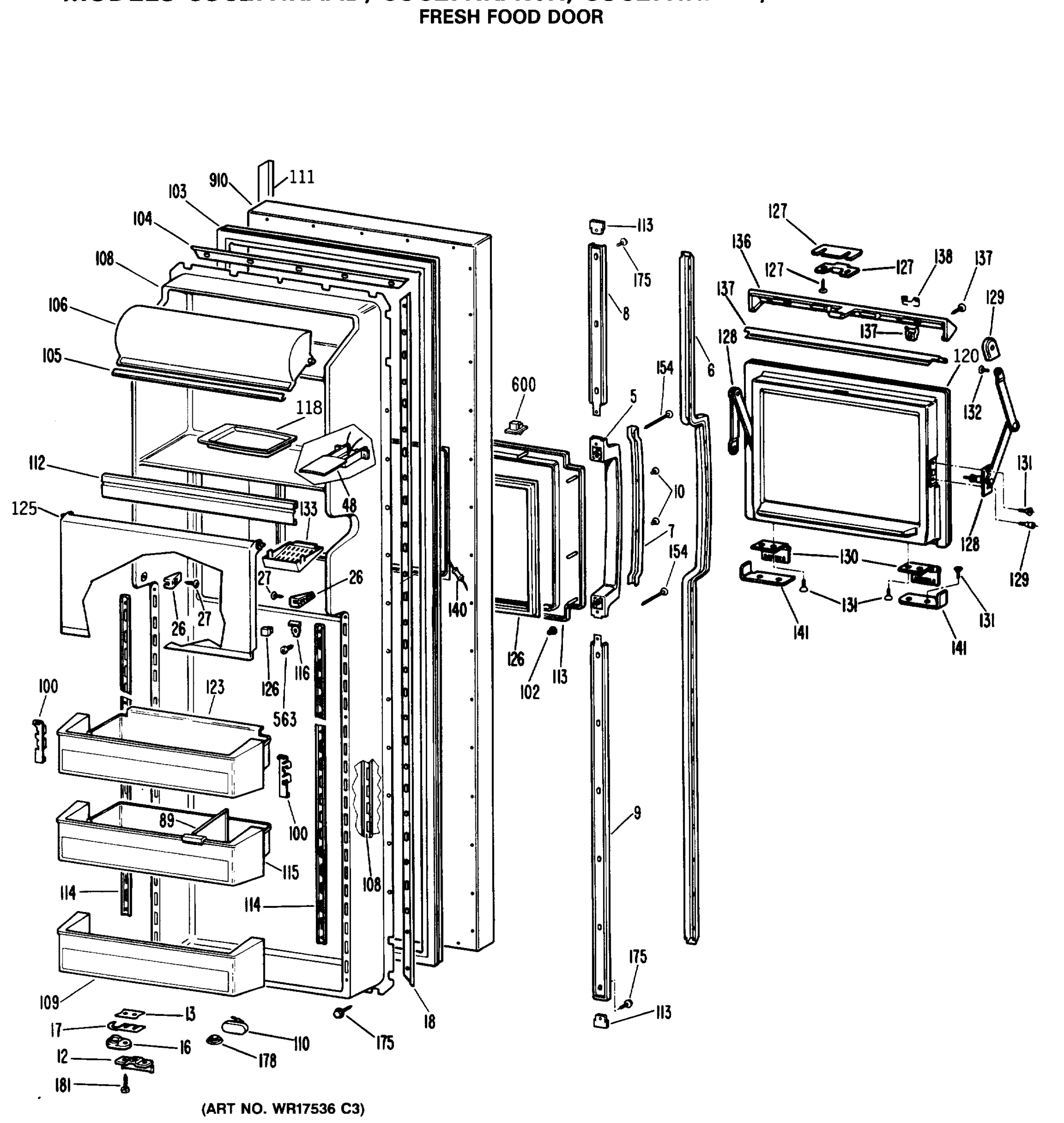

FREEZER DOOR

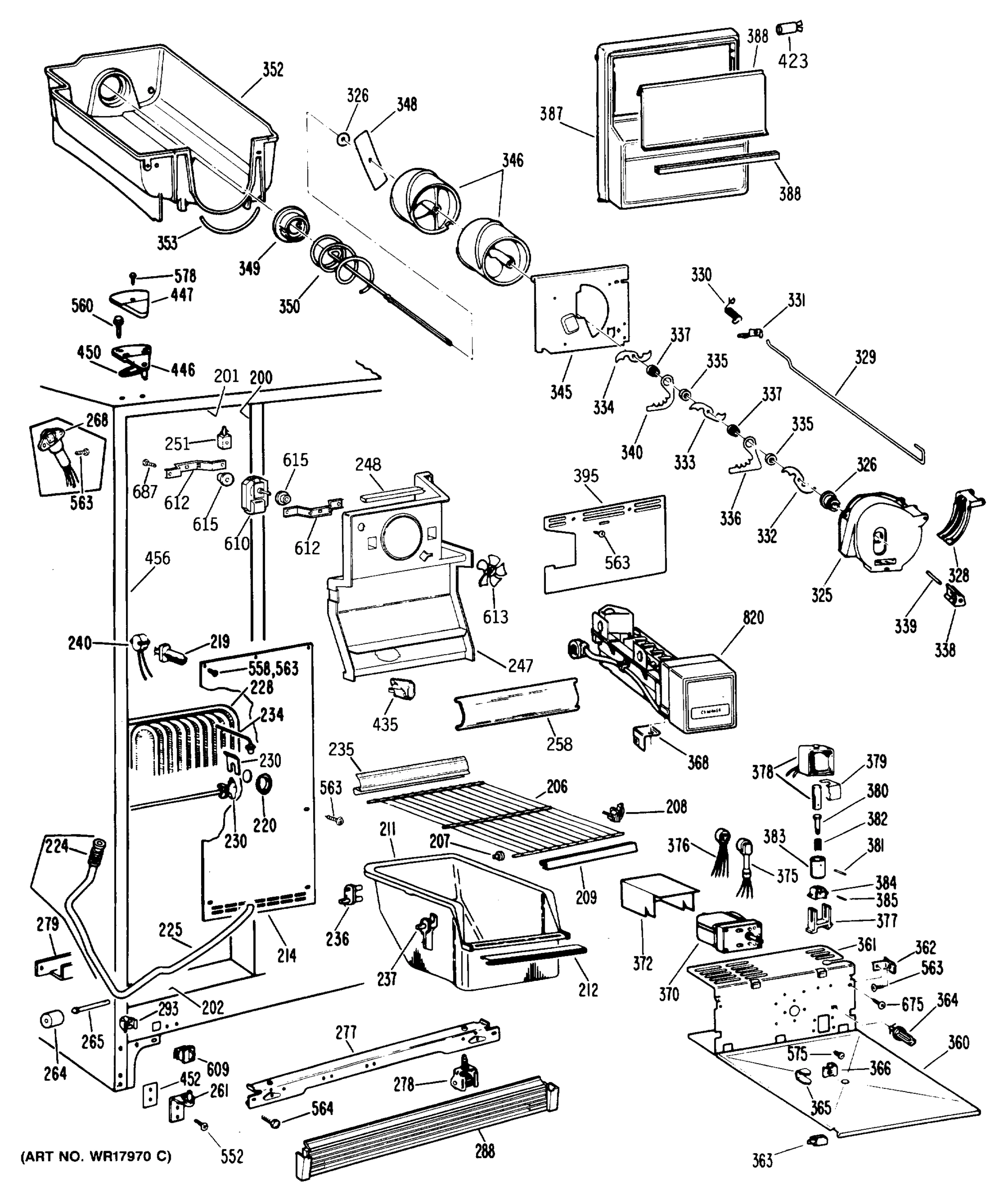

FRESH FOOD DOOR

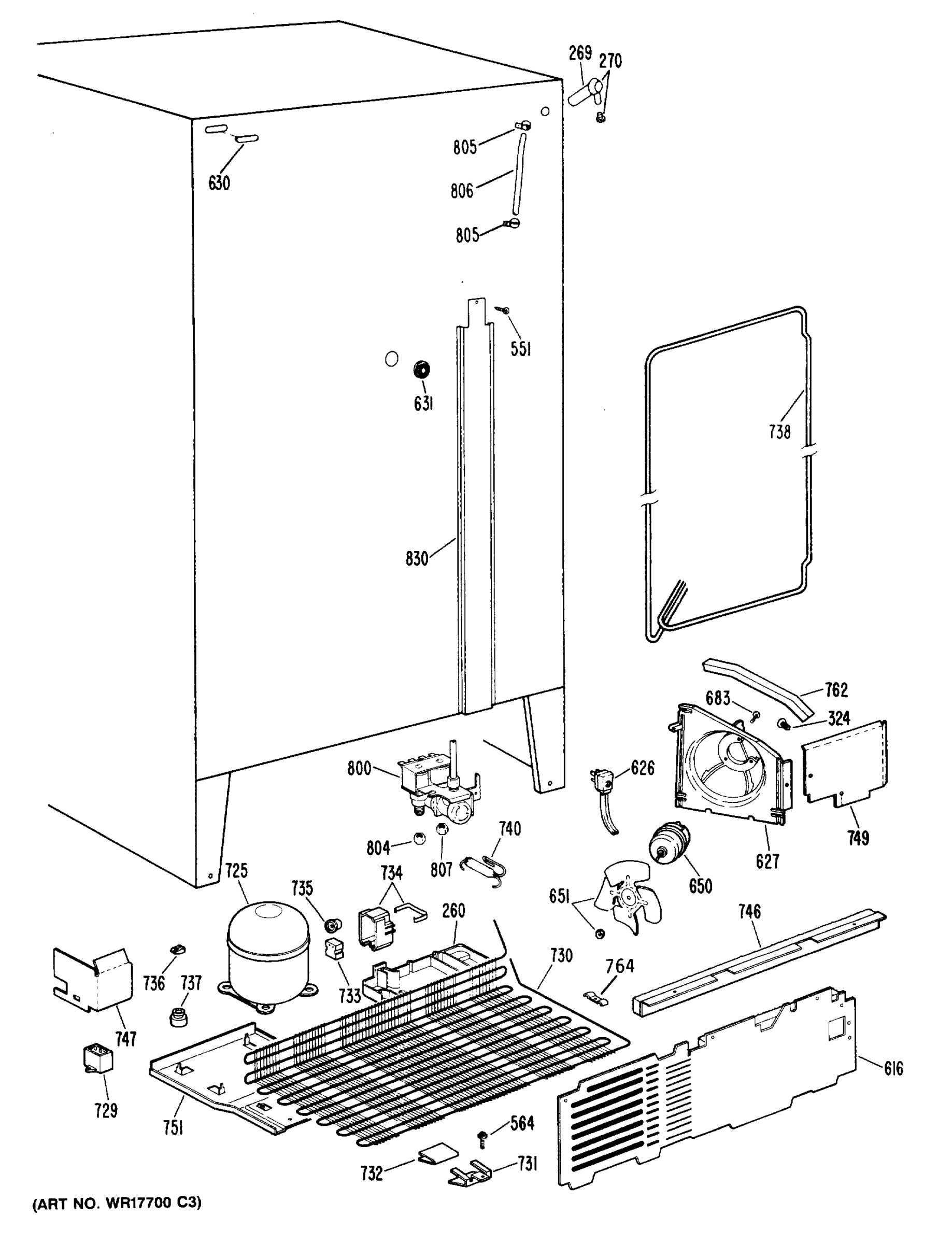

FRESH FOOD SECTION
Common parts from model GE CSC27HRAAD
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
5
GEN WR12X0618 GEN WR12X0618 Contact Us For Availability
6
GEN WR12X0619 GEN WR12X0619 Contact Us For Availability
7
GEN WR12X0620 GEN WR12X0620 Contact Us For Availability
8
GEN WR12X0918 GEN WR12X0918 Contact Us For Availability
9
GEN WR12X0873 GEN WR12X0873 Contact Us For Availability
10
GEN WR01X1766 GEN WR01X1766 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1456 GEN WR38X1456 Contact Us For Availability
12
GEN WR02X4537 GEN WR02X4537 Contact Us For Availability
13
GEN WR02X7489 GEN WR02X7489 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
14
GEN WR24X0447 GEN WR24X0447 Contact Us For Availability
14
SCREW FAN MOTOR TO BRCKT GEN WZ05X0164 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
16
GEN WR02X7512 GEN WR02X7512 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
19
GEN WR77X0504 GEN WR77X0504 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
22
GEN WR17X2915 GEN WR17X2915 Contact Us For Availability
23
GEN WR17X3064 GEN WR17X3064 Contact Us For Availability
26
GEN WR02X7844 GEN WR02X7844 Contact Us For Availability
29
GEN WR49X0201 GEN WR49X0201 Contact Us For Availability
29
GEN WR49X0308 GEN WR49X0308 Contact Us For Availability
30
GEN WR02X4571 GEN WR02X4571 Contact Us For Availability
31
GEN WR02X3953 GEN WR02X3953 Contact Us For Availability
32
GEN WR17X2066 GEN WR17X2066 Contact Us For Availability
33
HEATER-RECESS GEN WR51X0313 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
GEN WR01X1824 GEN WR01X1824 Contact Us For Availability
35
GEN WR02X4822 GEN WR02X4822 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
GEN WR02X8414 GEN WR02X8414 Contact Us For Availability
37
GEN WR02X8403 GEN WR02X8403 Contact Us For Availability
39
GEN WR09X0462 GEN WR09X0462 Contact Us For Availability
41
GEN WR17X2820 GEN WR17X2820 Contact Us For Availability
42
GEN WR02X4234 GEN WR02X4234 Contact Us For Availability
44
GEN WR02X4460 GEN WR02X4460 Contact Us For Availability
45
GEN WR02X4240 GEN WR02X4240 Contact Us For Availability
46
GEN WR02X7366 GEN WR02X7366 Contact Us For Availability
47
GEN WR02X7365 GEN WR02X7365 Contact Us For Availability
48
GEN WR02X7486 GEN WR02X7486 Contact Us For Availability
48
GEN WR02X7951 GEN WR02X7951 Contact Us For Availability
49
GEN WR02X4242 GEN WR02X4242 Contact Us For Availability
50
GEN WR17X1259 GEN WR17X1259 Contact Us For Availability
52
GEN WR02X4459 GEN WR02X4459 Contact Us For Availability
53
GEN WR17X2067 GEN WR17X2067 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0844 GEN WR38X0844 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X3959 GEN WR02X3959 Contact Us For Availability
56
GEN WR02X4570 GEN WR02X4570 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
58
GEN WR02X8496 GEN WR02X8496 Contact Us For Availability
60
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
61
GEN WR17X2093 GEN WR17X2093 Contact Us For Availability
62
DOOR RECESS DUCT ASM GEN WR17X1586 Contact Us For Availability
63
GEN WR17X1457 GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
75
GEN WR17X1408 GEN WR17X1408 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
89
GEN WR02X7957 GEN WR02X7957 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
102
GEN WR02X8162 GEN WR02X8162 Contact Us For Availability
103
GEN WR24X0448 GEN WR24X0448 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1828 GEN WR38X1828 Contact Us For Availability
106
GEN WR22X0400 GEN WR22X0400 Contact Us For Availability
108
GEN WR72X0090 GEN WR72X0090 Contact Us For Availability
108
GEN WR77X0505 GEN WR77X0505 Contact Us For Availability
109
GEN WR71X6106 GEN WR71X6106 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X1437 GEN WR38X1437 Contact Us For Availability
112
GEN WR17X6362 GEN WR17X6362 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
113
GEN WR38X1517 GEN WR38X1517 Contact Us For Availability
114
GEN WR72X0088 GEN WR72X0088 Contact Us For Availability
115
GEN WR71X6107 GEN WR71X6107 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
120
GEN WR17X3216 GEN WR17X3216 Contact Us For Availability
123
GEN WR71X6109 GEN WR71X6109 Contact Us For Availability
124
GEN WR71X6108 GEN WR71X6108 Contact Us For Availability
125
GEN WR22X0464 GEN WR22X0464 Contact Us For Availability
126
GEN WR02X7828 GEN WR02X7828 Contact Us For Availability
126
GEN WR24X0453 GEN WR24X0453 Contact Us For Availability
127
GEN WR02X7830 GEN WR02X7830 Contact Us For Availability
128
GEN WR13X0605 GEN WR13X0605 Contact Us For Availability
128
GEN WR13X0606 GEN WR13X0606 Contact Us For Availability
129
GEN WR01X1706 GEN WR01X1706 Contact Us For Availability
129
GEN WR01X1710 GEN WR01X1710 Contact Us For Availability
129
GEN WR01X1760 GEN WR01X1760 Contact Us For Availability
130
GEN WR13X0607 GEN WR13X0607 Contact Us For Availability
130
GEN WR13X0608 GEN WR13X0608 Contact Us For Availability
131
GEN WR01X1707 GEN WR01X1707 Contact Us For Availability
132
GEN WR01X1708 GEN WR01X1708 Contact Us For Availability
133
GEN WR17X2096 GEN WR17X2096 Contact Us For Availability
136
GEN WR12X0666 GEN WR12X0666 Contact Us For Availability
137
GEN WR01X1711 GEN WR01X1711 Contact Us For Availability
137
GEN WR38X1055 GEN WR38X1055 Contact Us For Availability
138
GEN WR02X7353 GEN WR02X7353 Contact Us For Availability
140
GEN WR51X0329 GEN WR51X0329 Contact Us For Availability
141
GEN WR02X8684 GEN WR02X8684 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
215
GEN WR32X0898 GEN WR32X0898 Contact Us For Availability
220
GEN WR02X7926 GEN WR02X7926 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
GEN WR85X0201 GEN WR85X0201 Contact Us For Availability
230
GEN WR02X8487 GEN WR02X8487 Contact Us For Availability
230
GEN WR51X0258 GEN WR51X0258 Contact Us For Availability
231
GEN WR02X8424 GEN WR02X8424 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
235
GEN WR38X1827 GEN WR38X1827 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X2968 GEN WR17X2968 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
260
GEN WR32X1125 GEN WR32X1125 Contact Us For Availability
261
GEN WR13X0618 GEN WR13X0618 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2743 GEN WR17X2743 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0198 GEN WR74X0198 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2205 GEN WR71X2205 Contact Us For Availability
361
GEN WR17X2969 GEN WR17X2969 Contact Us For Availability
362
GEN WR02X7936 GEN WR02X7936 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X3061 GEN WR17X3061 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
400
GEN WR71X2199 GEN WR71X2199 Contact Us For Availability
401
GEN WR32X1212 GEN WR32X1212 Contact Us For Availability
402
GEN WR38X1826 GEN WR38X1826 Contact Us For Availability
403
GEN WR72X0189 GEN WR72X0189 Contact Us For Availability
404
GEN WR38X1796 GEN WR38X1796 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1289 GEN WR32X1289 Contact Us For Availability
408
GEN WR32X1290 GEN WR32X1290 Contact Us For Availability
409
GEN WR02X8476 GEN WR02X8476 Contact Us For Availability
409
GEN WR32X5177 GEN WR32X5177 Contact Us For Availability
410
GEN WR17X3059 GEN WR17X3059 Contact Us For Availability
411
GEN WR17X3060 GEN WR17X3060 Contact Us For Availability
414
GEN WR14X0406 GEN WR14X0406 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2501 GEN WR17X2501 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0453 GEN WR09X0453 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X6146 GEN WR02X6146 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X7367 GEN WR02X7367 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
437
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8064 GEN WR02X8064 Contact Us For Availability
442
GEN WR02X3883 GEN WR02X3883 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
446
GEN WR13 GEN WR13 Contact Us For Availability
447
GEN WR02X8334 GEN WR02X8334 Contact Us For Availability
448
GEN WR13X0620 GEN WR13X0620 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
451
GEN WR13X0621 GEN WR13X0621 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1623 GEN WR40X1623 Contact Us For Availability
454
GEN WR40X1621 GEN WR40X1621 Contact Us For Availability
455
GEN WR40X1627 GEN WR40X1627 Contact Us For Availability
457
GEN WR40X1625 GEN WR40X1625 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1620 GEN WR40X1620 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X1291 GEN WR32X1291 Contact Us For Availability
472
GEN WR38X1829 GEN WR38X1829 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
479
GEN WR72X0230 GEN WR72X0230 Contact Us For Availability
479
GEN WR72X0206 GEN WR72X0206 Contact Us For Availability
480
GEN WR72X0208 GEN WR72X0208 Contact Us For Availability
480
GEN WR72X0209 GEN WR72X0209 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
SCR 10-24 BP PA 1 1/2 S GEN WR01X1483 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
560
GEN WR01X1806 GEN WR01X1806 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
562
GEN WX05X0558 GEN WX05X0558 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
600
GEN WR23X0323 GEN WR23X0323 Contact Us For Availability
616
GEN WR82X0312 GEN WR82X0312 Contact Us For Availability
627
GEN WR17X2916 GEN WR17X2916 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0159 GEN WR84X0159 Contact Us For Availability
731
GEN WR02X8370 GEN WR02X8370 Contact Us For Availability
732
GEN WR02X8291 GEN WR02X8291 Contact Us For Availability
733
GEN WR07X0198 GEN WR07X0198 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0121 GEN WR08X0121 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0109 GEN WR84X0109 Contact Us For Availability
746
GEN WR17X2703 GEN WR17X2703 Contact Us For Availability
747
GEN WR17X2680 GEN WR17X2680 Contact Us For Availability
749
GEN WR17X2702 GEN WR17X2702 Contact Us For Availability
751
GEN WR17X2701 GEN WR17X2701 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
764
GEN WR02X8222 GEN WR02X8222 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
801
GEN WR62X0025 GEN WR62X0025 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
GEN WR17X2890 GEN WR17X2890 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
830
GEN WR17X2602 GEN WR17X2602 Contact Us For Availability
900
GEN WR78X7905 GEN WR78X7905 Contact Us For Availability
910
GEN WR78X8151 GEN WR78X8151 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
