Model Whirlpool CS22AEXHN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - MOTOR AND ICE CONTAINER
12 - ICE MAKER, OPTIONAL
09 - UNIT

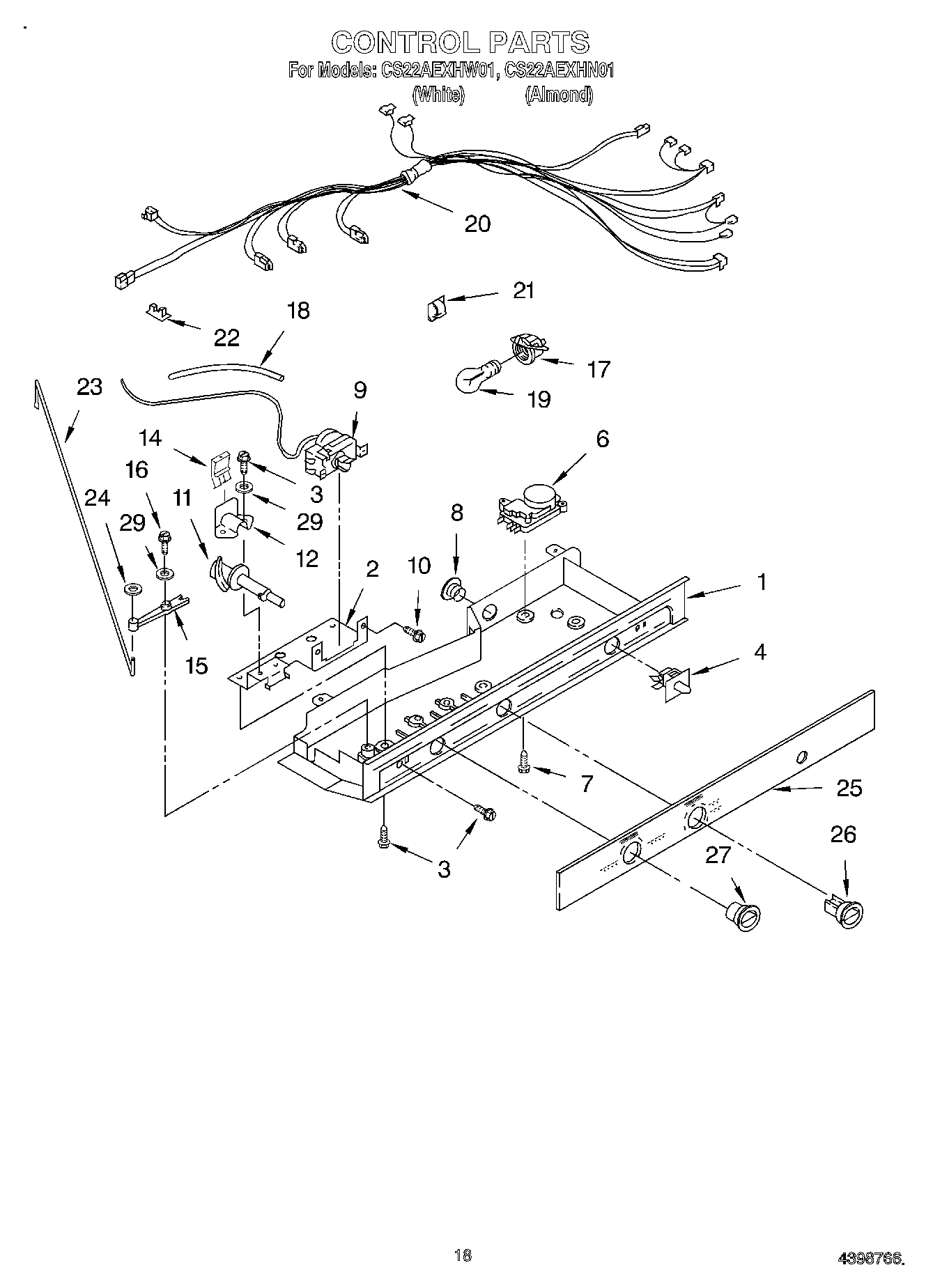

11 - CONTROL

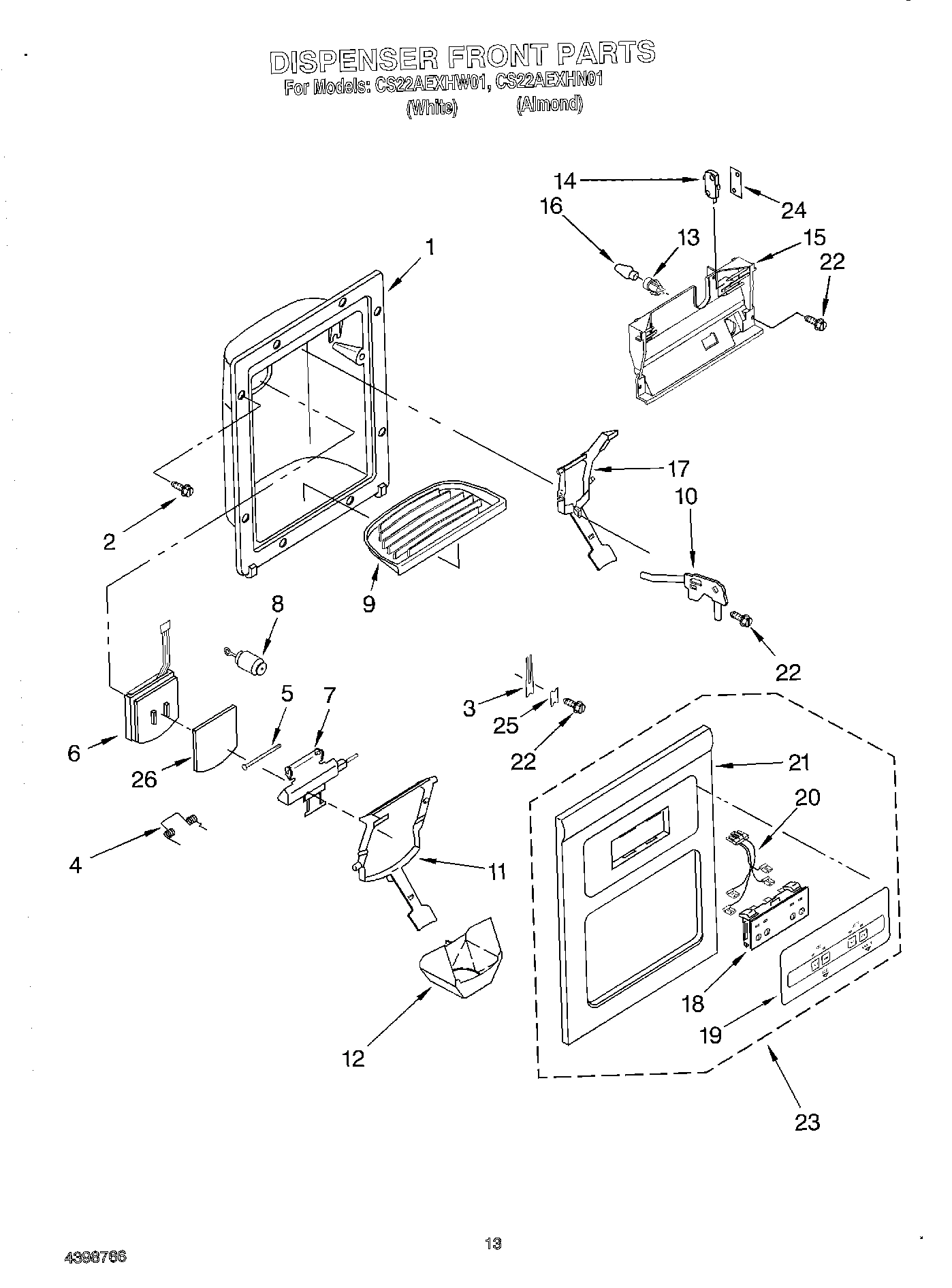

08 - DISPENSER FRONT
10 - AIR FLOW

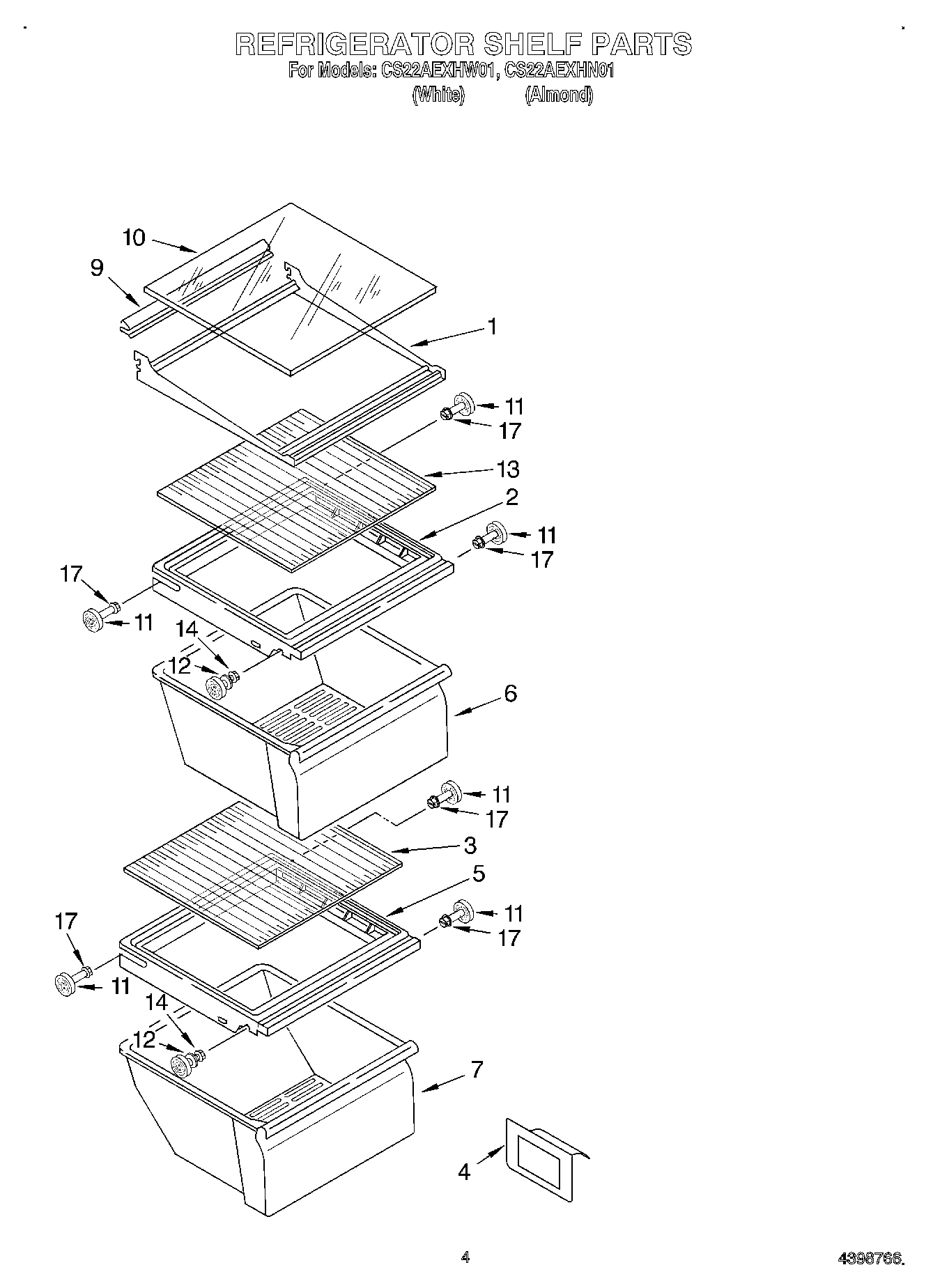

03 - REFRIGERATOR SHELF

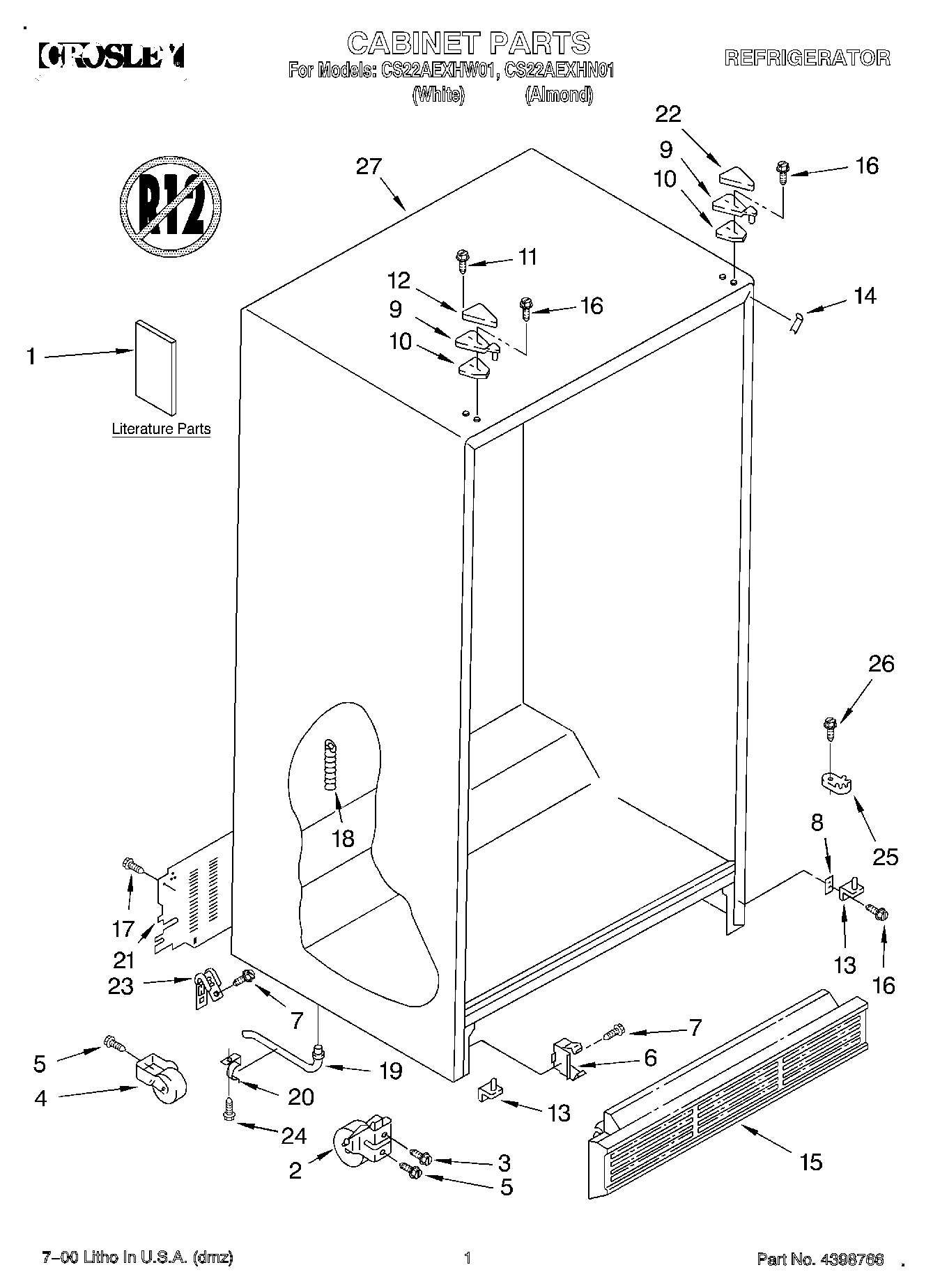

01 - CABINET, LITERATURE

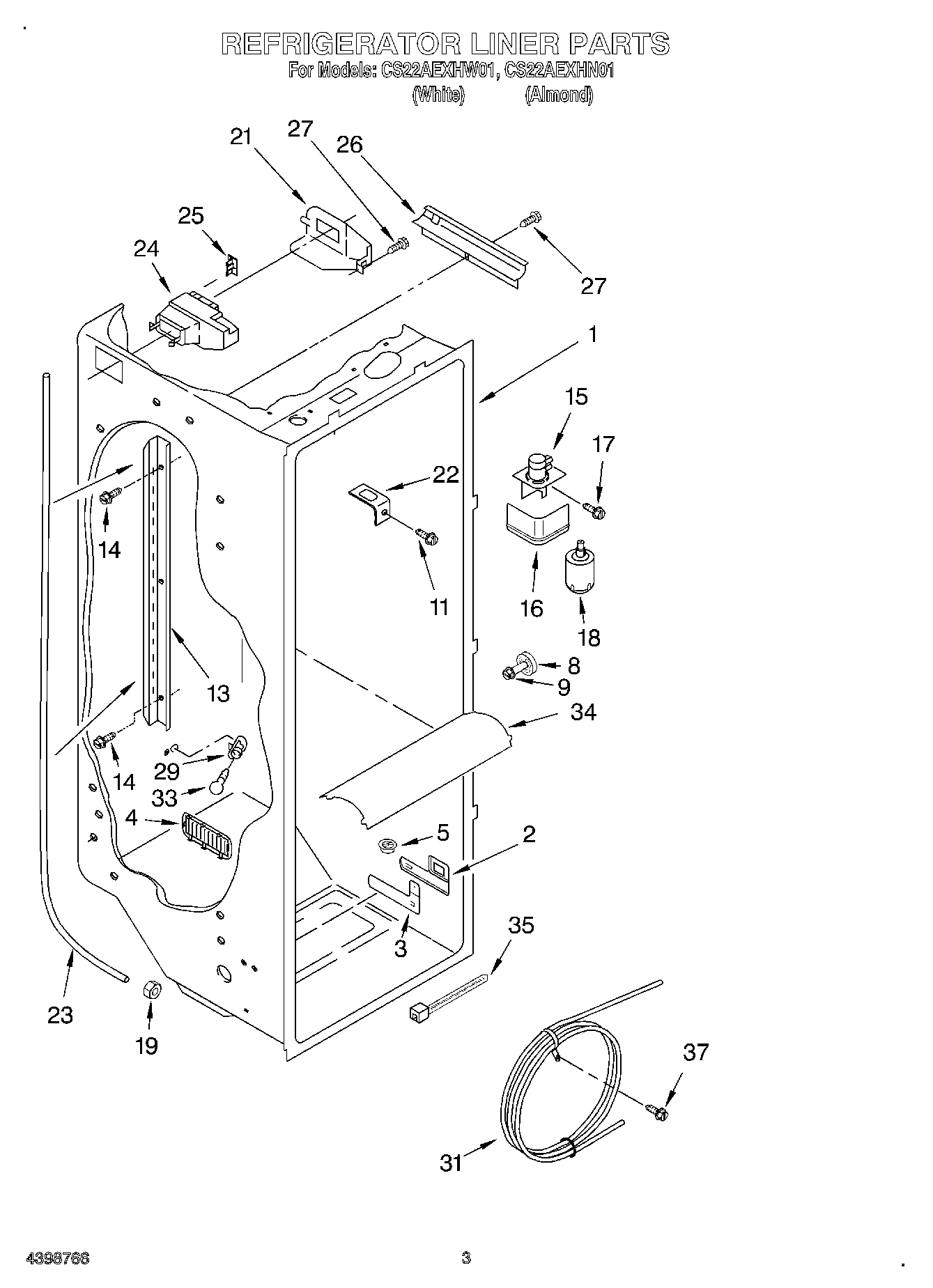

02 - REFRIGERATOR LINER

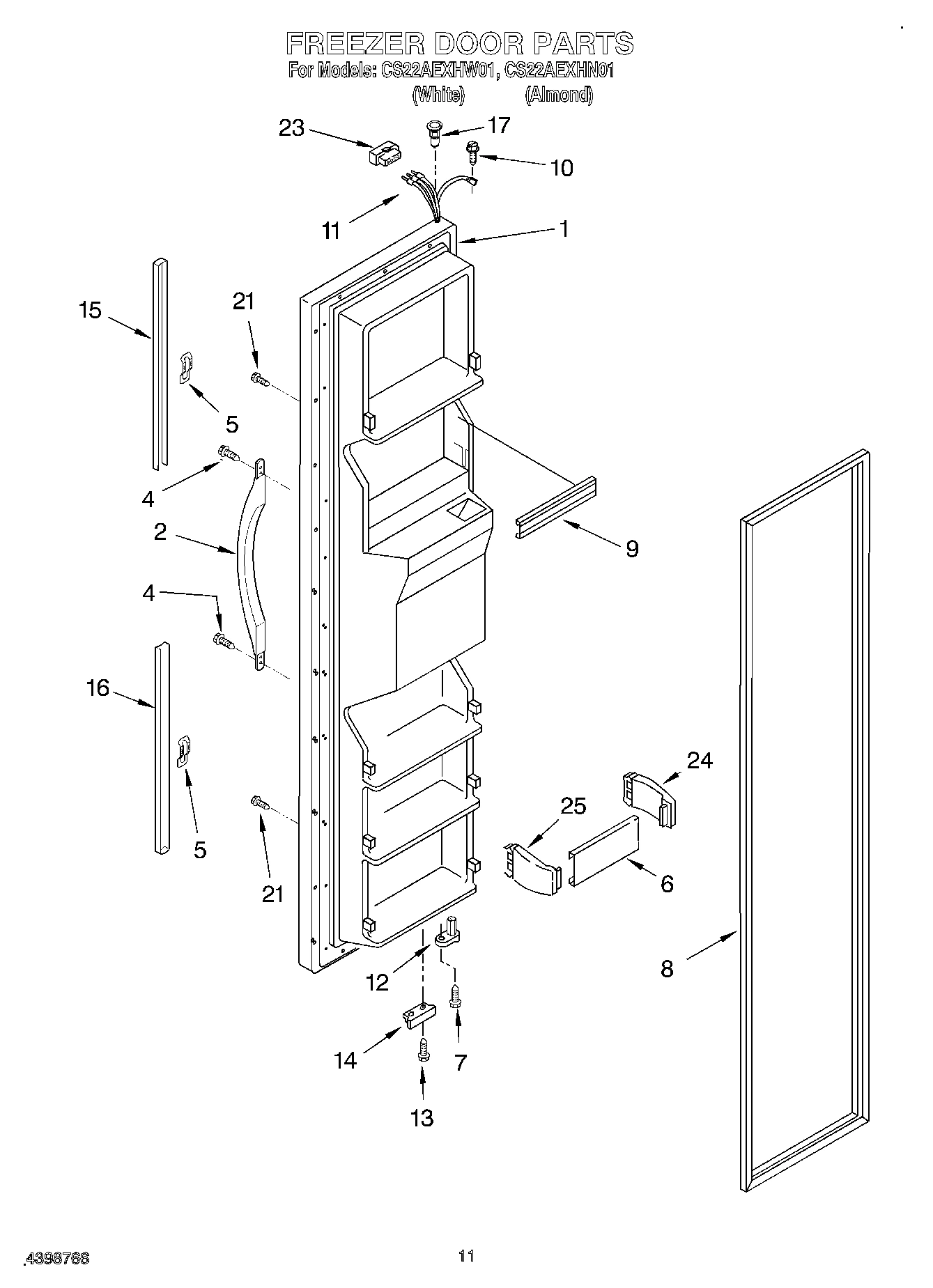

07 - FREEZER DOOR

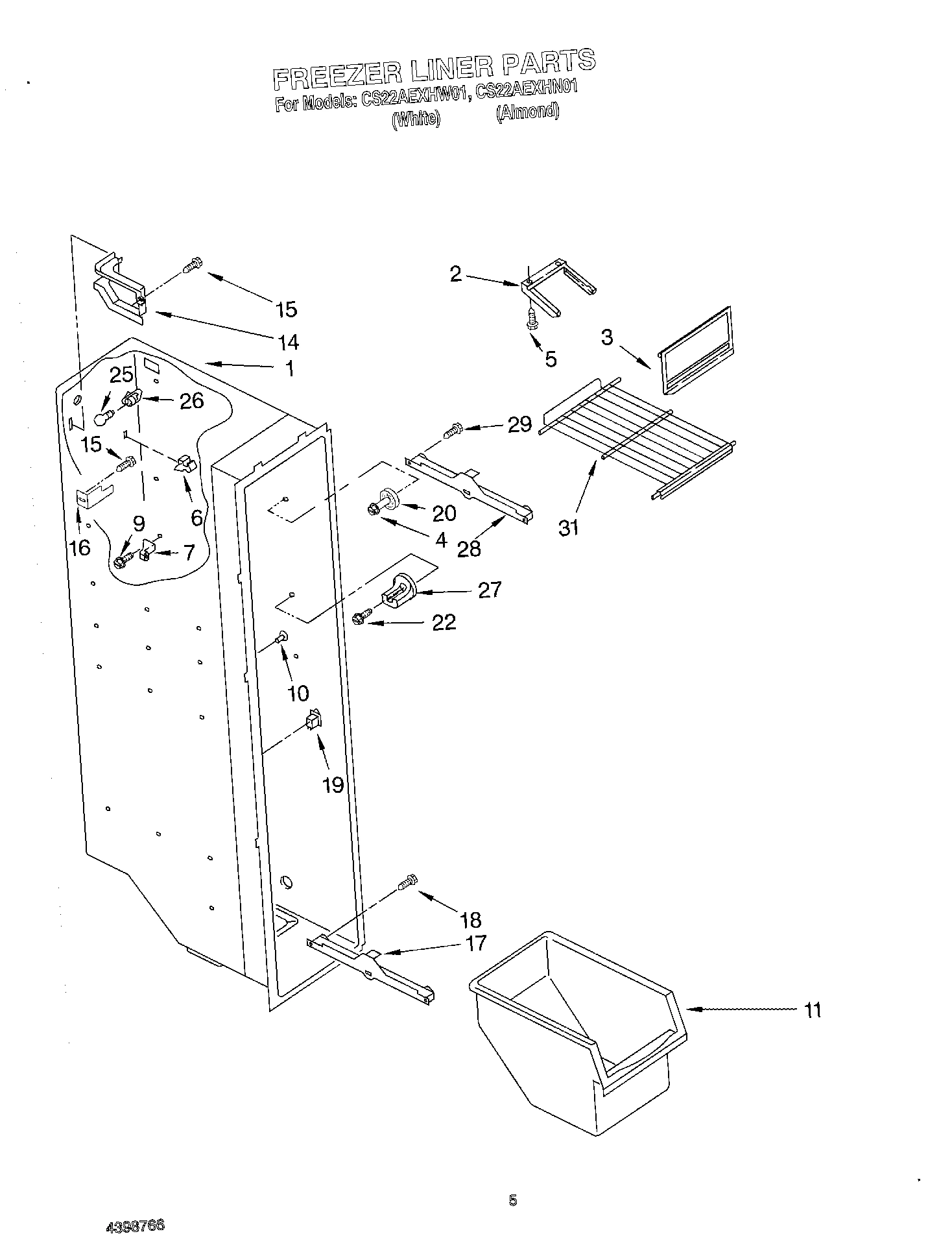

04 - FREEZER LINER

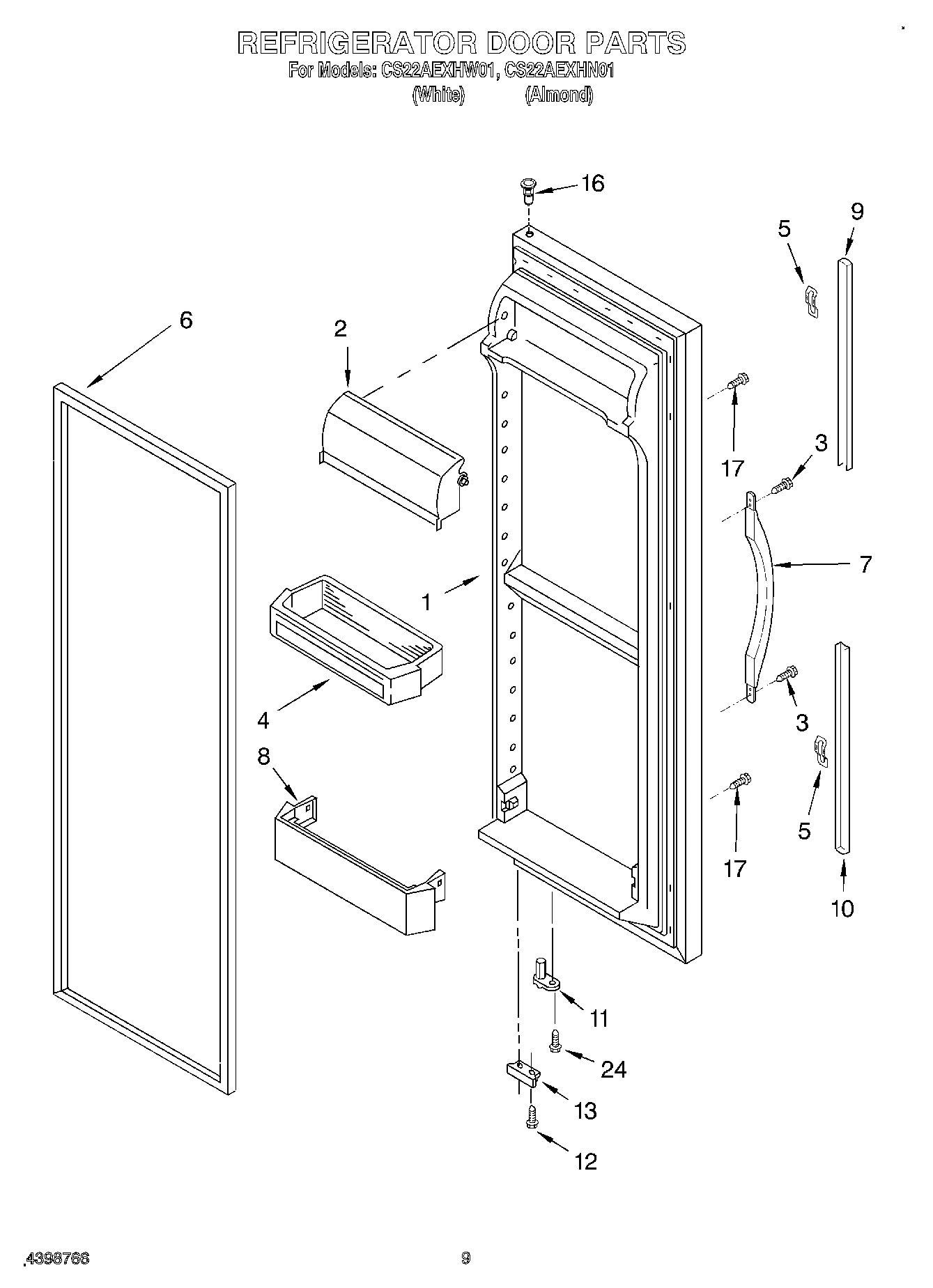

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool CS22AEXHN01 SIDE BY SIDE REFRIGERATOR
1
Freezer Door (Includes Item 8 (Almond And Dis WPL 2211599N Contact Us For Availability
1
Freezer Door (Includes Item 8 (White) WPL 2211599W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI21509A4 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2194275W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Ice Compartment WPL 2171712 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
6
Door Gasket, Magnetic (Repair) (Mist Beige) WPL 2159073 Contact Us For Availability
6
Door, Shelf (4) WPL 2195919 Contact Us For Availability
7
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
8
Door Gasket, Magnetic (Repair) (Mist Beige) WPL 2159072 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Extension, Top (Almond) WPL 2194971N Contact Us For Availability
10
Valve, Solenoid WPL 2206123 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Glass (3) WPL 2177986 Contact Us For Availability
10
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Wire Harness WPL 2198271 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
12
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Filler, Wrapper WPL 2196094 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Extension, Top (White) WPL 2194971W Contact Us For Availability
16
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
16
TUBE, SUCTION WPL 2205764 Contact Us For Availability
16
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
17
Slide, Basket (Left Side) WPL 1115383 Contact Us For Availability
19
Compression Nut (Outlet Tube) WPL 2200083 Contact Us For Availability
19
Compression Nut (Inlet Tube) WPL 2204357 Contact Us For Availability
21
Cover, Air Diffuser WPL 2152019 Contact Us For Availability
22
Hinge Cover (White) WPL 1119787 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Water Tube (Inlet) WPL 2205987 Contact Us For Availability
23
Water Tube (Outlet) WPL 2205988 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
Air Diffuser Cover WPL 2204409 Contact Us For Availability
25
Endcap (Left) WPL 2195917 Contact Us For Availability
26
Knob, Thermostat WPL 2182111 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
26
Shield, Ice Door WPL 987121 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
31
Shelf (2) WPL 2174265 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
100
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
100
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
100
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
100
xEnamel, Almond (13 Oz. Spray Can) WPL 350956 Contact Us For Availability
100
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
100
WPL 876370 WPL 876370 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
WPL 833938 WPL 833938 Contact Us For Availability
100
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
