Model Maytag CHW8990AW0 COMMERCIAL WASHER – Common Parts & Diagrams
01 - COVER SHEET

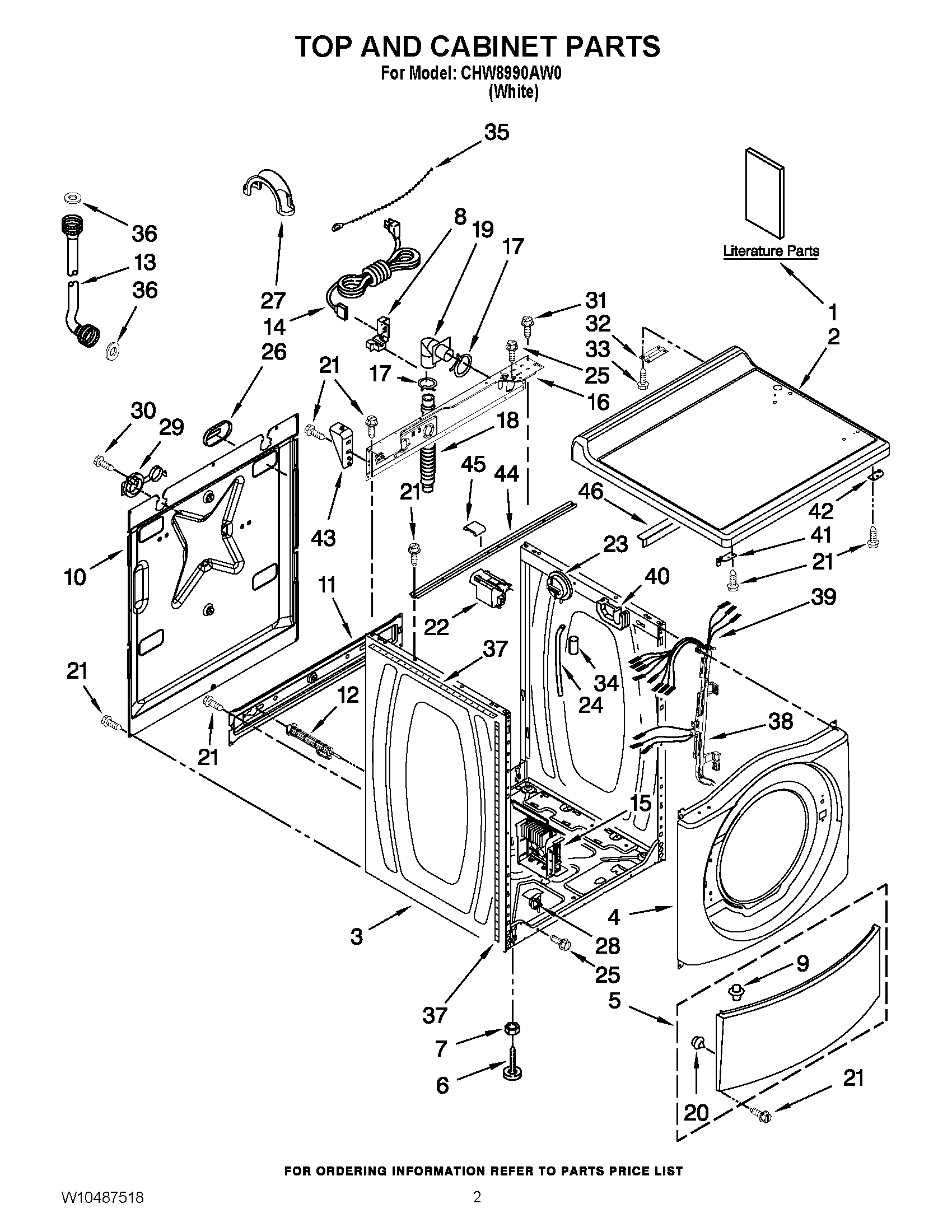

02 - TOP AND CABINET PARTS

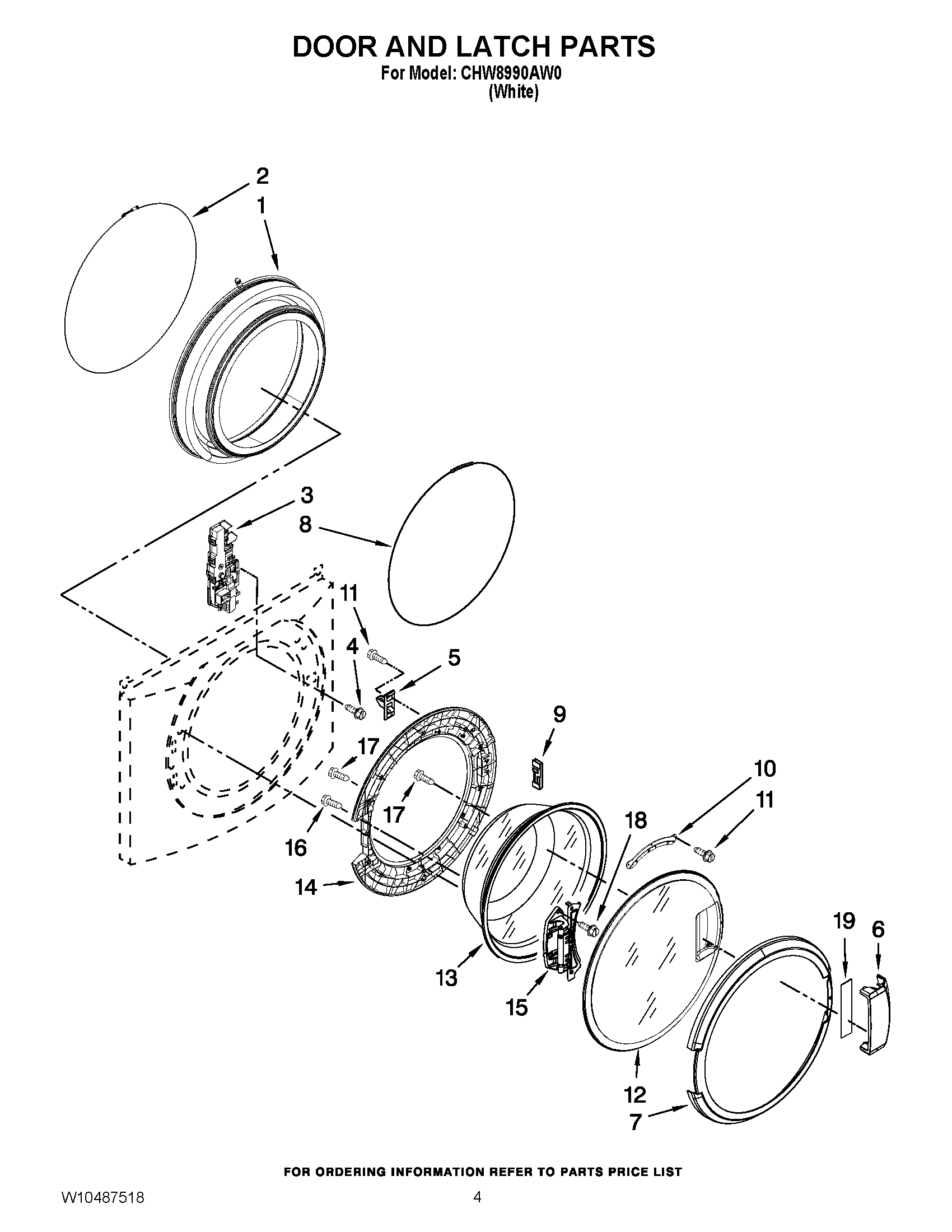

03 - DOOR PARTS

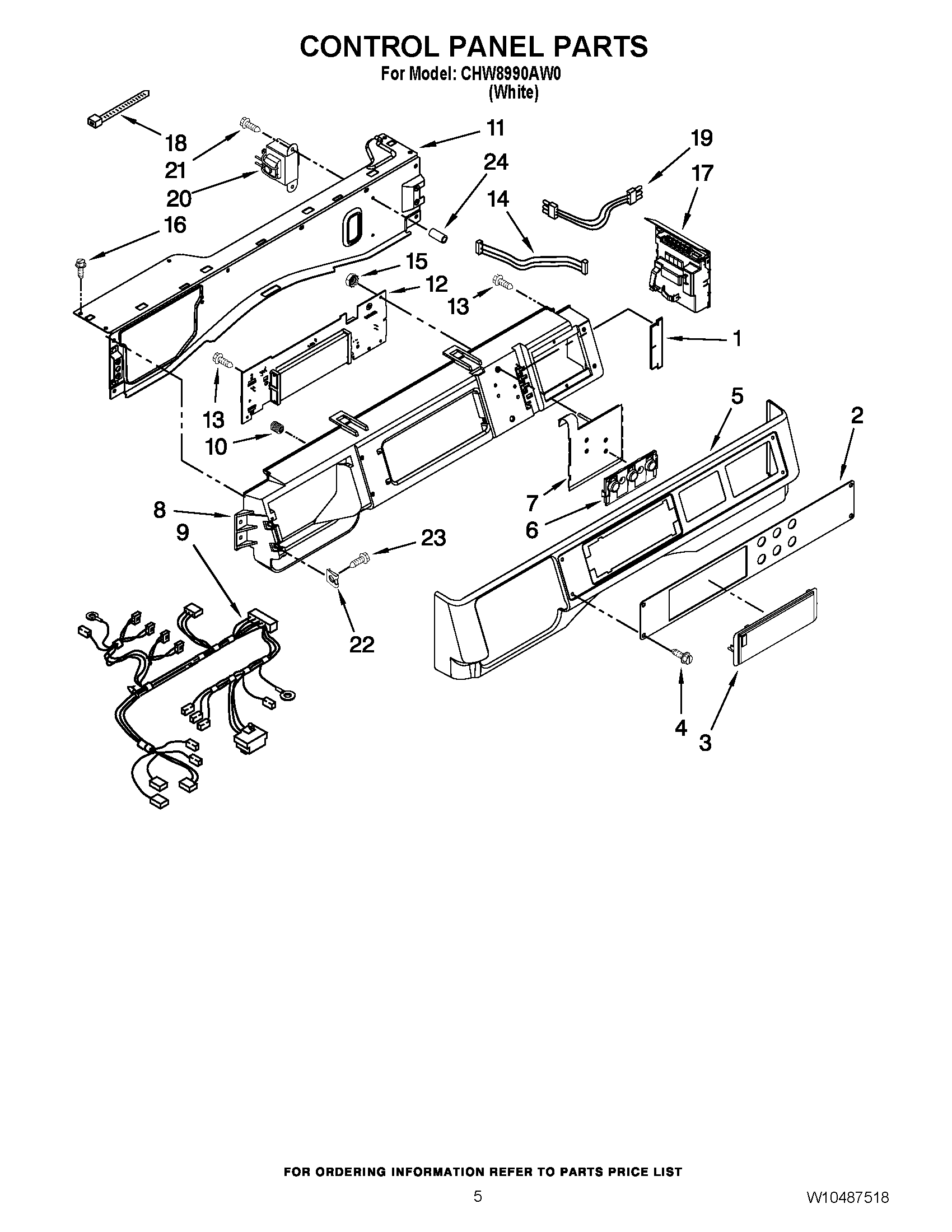

04 - CONTROL PANEL PARTS

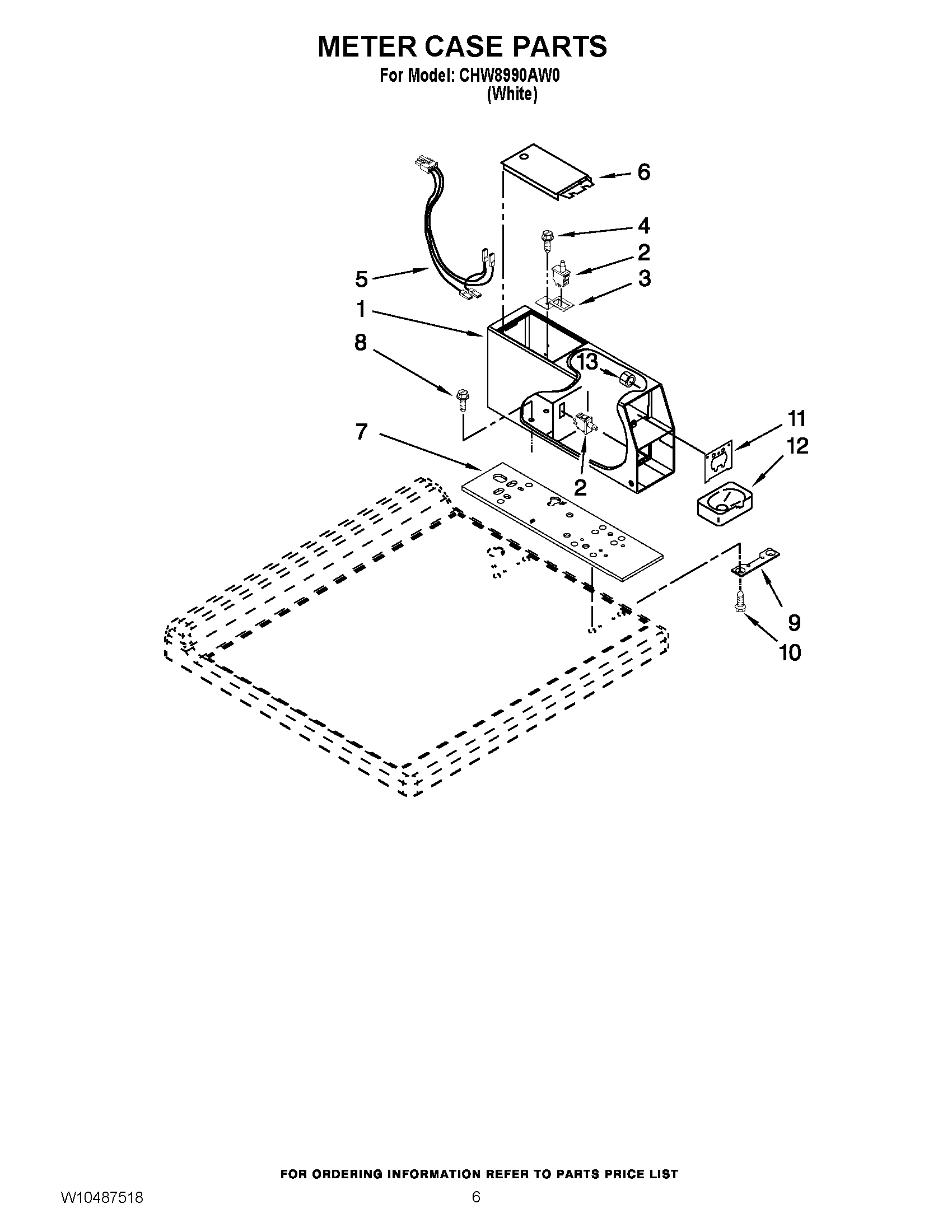

05 - METER CASE PARTS

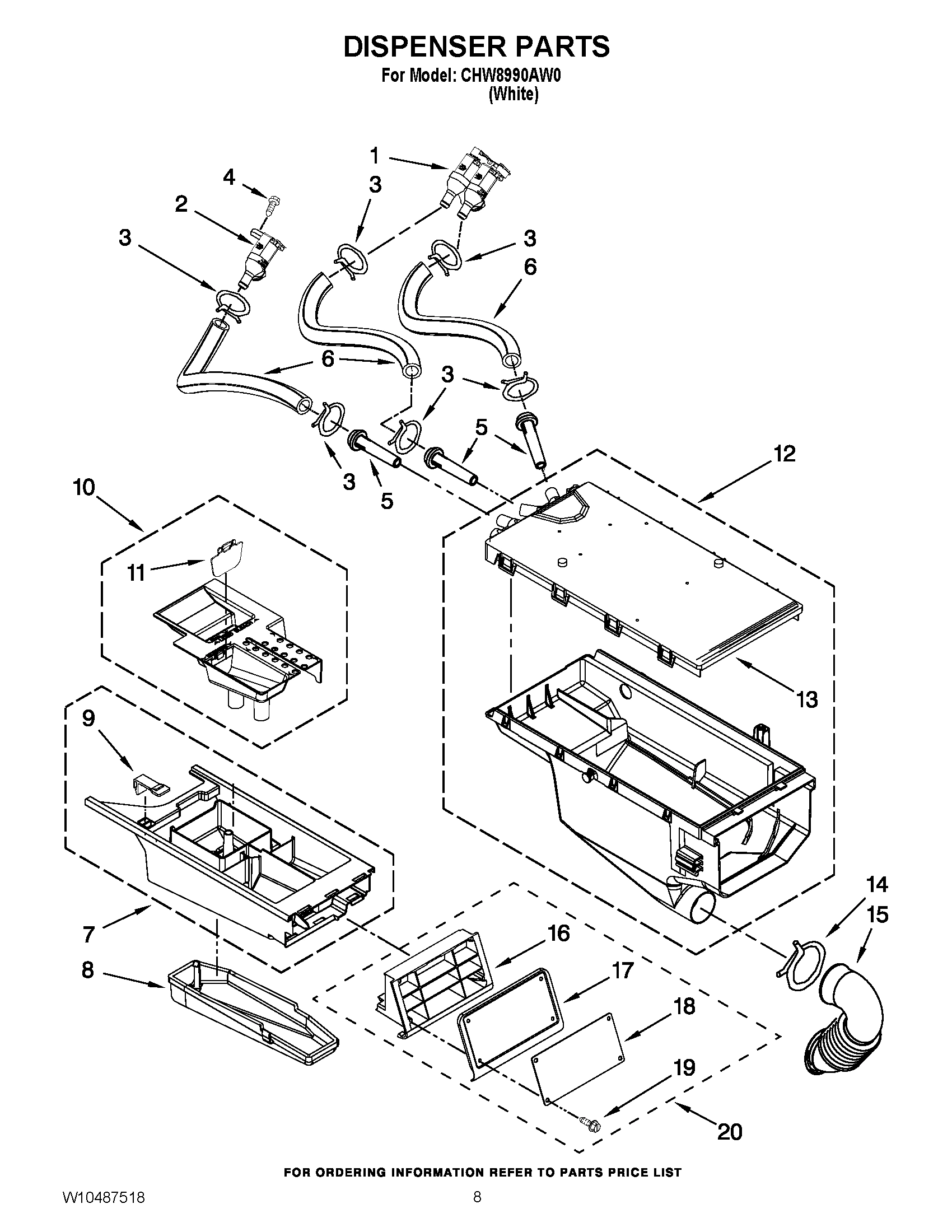

06 - DISPENSER PARTS

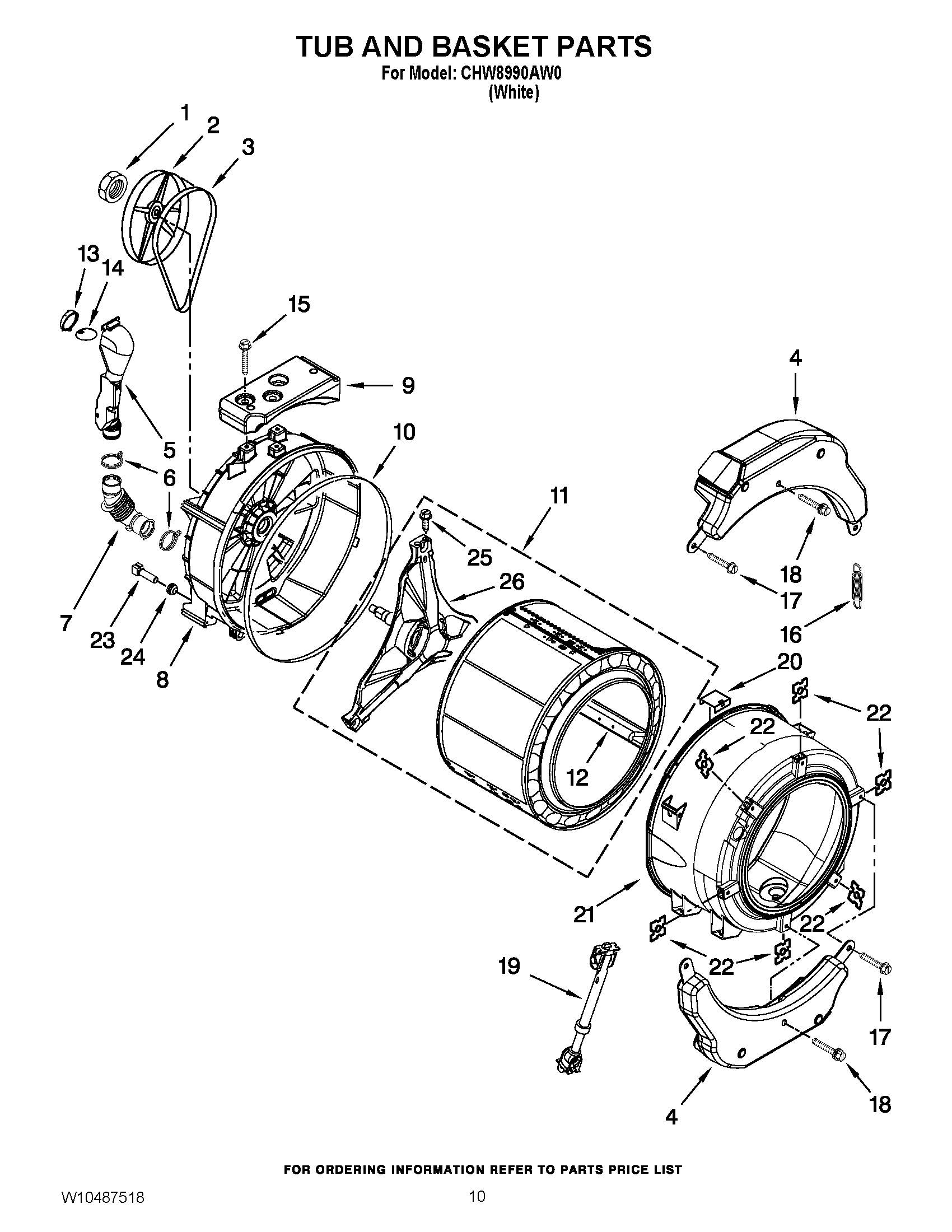

07 - TUB AND BASKET PARTS

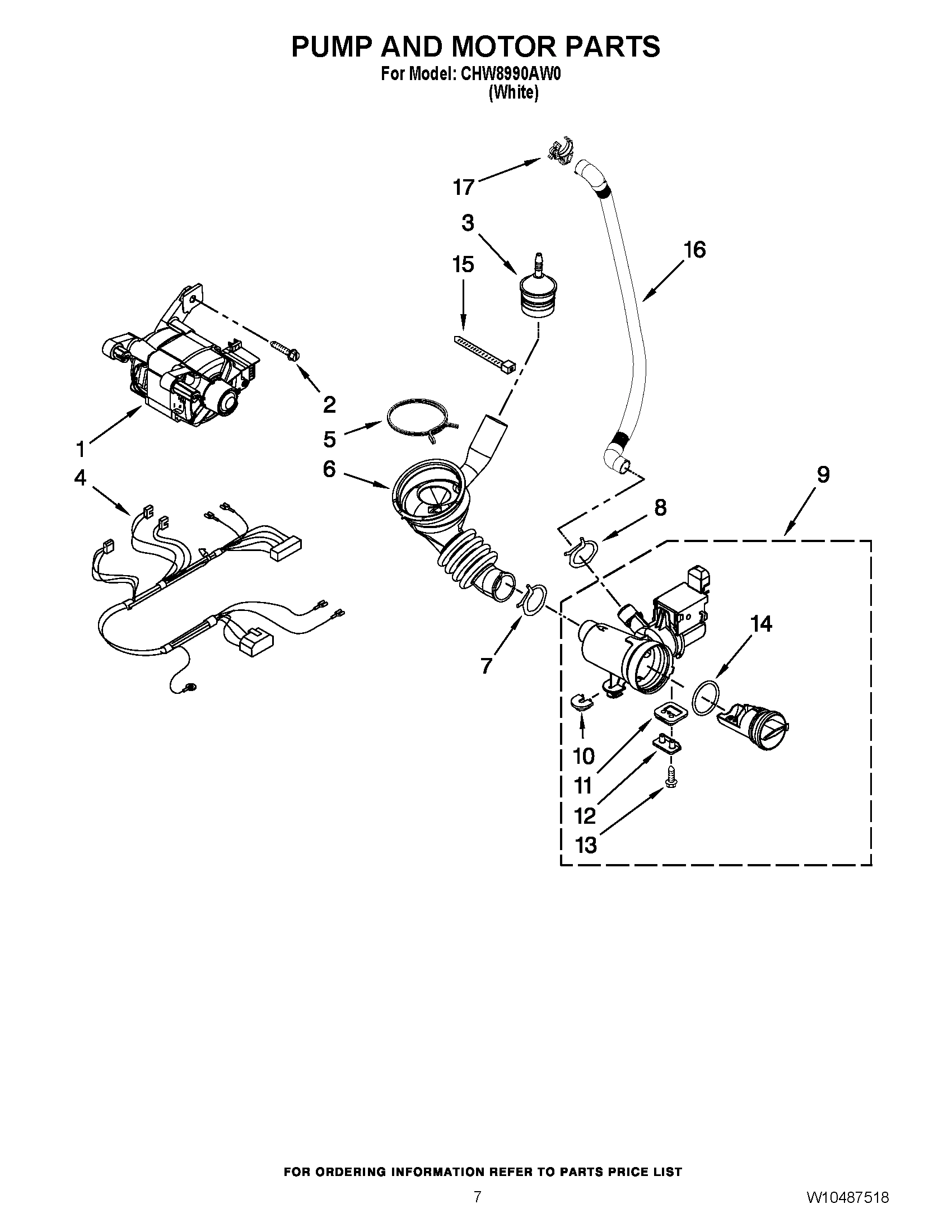

08 - PUMP AND MOTOR PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag CHW8990AW0 COMMERCIAL WASHER
1
MAY W10341085 MAY W10341085 Contact Us For Availability
1
MAY W10311051 MAY W10311051 Contact Us For Availability
1
MAY W10187276 MAY W10187276 Contact Us For Availability
1
MAY W10171132 MAY W10171132 Contact Us For Availability
1
MAY W10212596 MAY W10212596 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
1
MAY W10171927 MAY W10171927 Contact Us For Availability
1A
MAY W10311069 MAY W10311069 Contact Us For Availability
1B
MAY W10311071 MAY W10311071 Contact Us For Availability
2
MAY W10137411 MAY W10137411 Contact Us For Availability
2
MAY 8540108 MAY 8540108 Contact Us For Availability
2
FACIA/OVERLAY MAY W10137440 Contact Us For Availability
2
MAY W10131838 MAY W10131838 Contact Us For Availability
2
MAY W10212598 MAY W10212598 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
3
MAY W10276046 MAY W10276046 Contact Us For Availability
3
MAY W10375379 MAY W10375379 Contact Us For Availability
3
COVER, DISPLAY MAY W10267645 Contact Us For Availability
3
MAY W10133508 MAY W10133508 Contact Us For Availability
3
MAY 370450 MAY 370450 Contact Us For Availability
3
MAY W10260319 MAY W10260319 Contact Us For Availability
3
MAY W10405608 MAY W10405608 Contact Us For Availability
4
MAY W10306505 MAY W10306505 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
MAY 8540282 MAY 8540282 Contact Us For Availability
4
SCREW MAY W10137457 Contact Us For Availability
4
MAY W10139210 MAY W10139210 Contact Us For Availability
4
MAY W10223198 MAY W10223198 Contact Us For Availability
4
MAY W10201879 MAY W10201879 Contact Us For Availability
5
MAY 8540813 MAY 8540813 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
MAY W10137458 MAY W10137458 Contact Us For Availability
5
MAY W10211244 MAY W10211244 Contact Us For Availability
5
MAY 8183181 MAY 8183181 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
5
CLAMP, HOSE MAY 8181734 Contact Us For Availability
6
MAY W10245373 MAY W10245373 Contact Us For Availability
6
MAY W10112925 MAY W10112925 Contact Us For Availability
6
MAY W10137455 MAY W10137455 Contact Us For Availability
6
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
6
HOSE, VALVE TO DISPENSE MAY W10212611 Contact Us For Availability
6
MAY 8540010 MAY 8540010 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
7
NUT, HEX MAY 3359452 Contact Us For Availability
7
MAY W10198440 MAY W10198440 Contact Us For Availability
7
SWITCH, MEMBRANE & BACKER PLATE MAY W10135255 Contact Us For Availability
7
MAY W10137448 MAY W10137448 Contact Us For Availability
7
MAY 8540402 MAY 8540402 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
7
MAY 370448 MAY 370448 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
MAY 356138 MAY 356138 Contact Us For Availability
8
MAY W10217563 MAY W10217563 Contact Us For Availability
8
MAY W10137426 MAY W10137426 Contact Us For Availability
8
BOLT MAY 3349065 Contact Us For Availability
8
MAY 8540399 MAY 8540399 Contact Us For Availability
8
MAY W10303574 MAY W10303574 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9

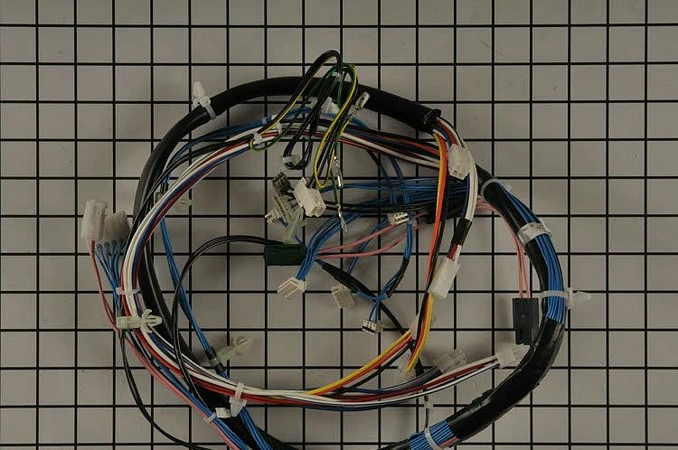

HARNESS, WIRING (UPPER MAIN) MAY W10298333 Contact Us For Availability
9
MAY 3347825 MAY 3347825 Contact Us For Availability
9
MAY W10198458 MAY W10198458 Contact Us For Availability
9
MAY W10200747 MAY W10200747 Contact Us For Availability
9
MAY W10130913 MAY W10130913 Contact Us For Availability
10
MAY W10258342 MAY W10258342 Contact Us For Availability
10
MAY 8540114 MAY 8540114 Contact Us For Availability
10
INSERT MAY W10189313 Contact Us For Availability
10
SCREW MAY 98445 Contact Us For Availability
10
MAY W10407371 MAY W10407371 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
10
MAY W10034820 MAY W10034820 Contact Us For Availability
11
MAY W10189659 MAY W10189659 Contact Us For Availability
11
MAY 8540513 MAY 8540513 Contact Us For Availability
11
MAY W10294428 MAY W10294428 Contact Us For Availability
11
PLATE, ADAPTER MAY 3954761 Contact Us For Availability
11
MAY W10298953 MAY W10298953 Contact Us For Availability
11
MAY W10303571 MAY W10303571 Contact Us For Availability
11
MAY W10034830 MAY W10034830 Contact Us For Availability
12
MAY W10251449 MAY W10251449 Contact Us For Availability
12
MAY W10137451 MAY W10137451 Contact Us For Availability
12

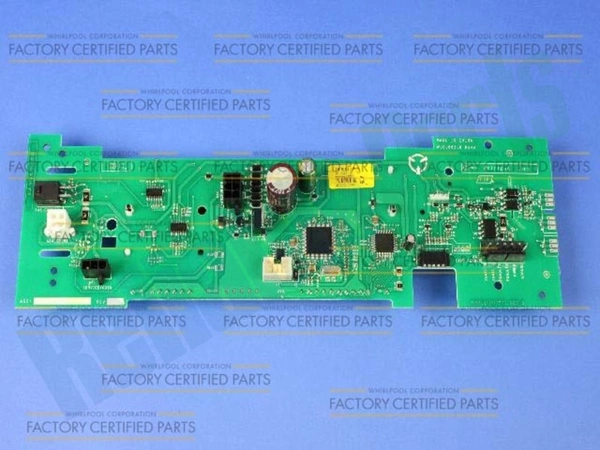

MAY W10311190 MAY W10311190 Contact Us For Availability
12
FUNNEL, COIN MAY 385421 Contact Us For Availability
12
MAY W10212603 MAY W10212603 Contact Us For Availability
12
MAY W10118982 MAY W10118982 Contact Us For Availability
12
MAY 8540033 MAY 8540033 Contact Us For Availability
13
HOSE, WATER INLET (COLD) MAY W10194208 Contact Us For Availability
13
MAY W10388315 MAY W10388315 Contact Us For Availability
13
SCREW MAY 489136 Contact Us For Availability
13
MAY 3400029 MAY 3400029 Contact Us For Availability
13
MAY W10212604 MAY W10212604 Contact Us For Availability
13
MAY W10142721 MAY W10142721 Contact Us For Availability
13
MAY 8533964 MAY 8533964 Contact Us For Availability
13A
MAY 8571378 MAY 8571378 Contact Us For Availability
14
MAY W10205500 MAY W10205500 Contact Us For Availability
14
MAY W10198442 MAY W10198442 Contact Us For Availability
14

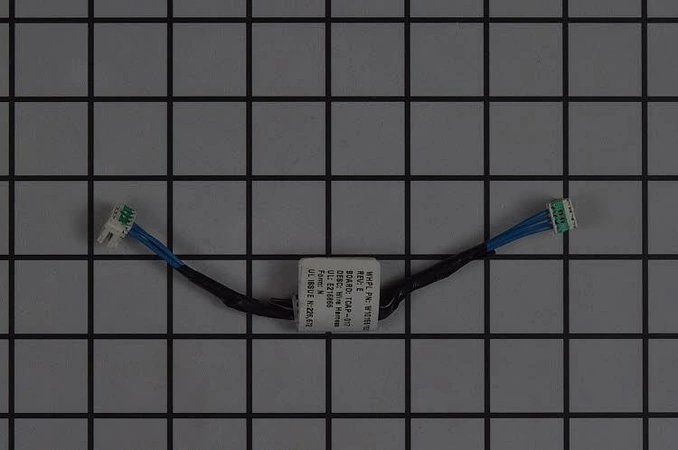

MAY W10155150 MAY W10155150 Contact Us For Availability
14
MAY 8281276 MAY 8281276 Contact Us For Availability
14
MAY W10142722 MAY W10142722 Contact Us For Availability
14
MAY 8540025 MAY 8540025 Contact Us For Availability
15
MAY W10384849 MAY W10384849 Contact Us For Availability
15
MAY W10198417 MAY W10198417 Contact Us For Availability
15
NUT MAY W10139046 Contact Us For Availability
15
MAY 8540063 MAY 8540063 Contact Us For Availability
15
MAY W10246531 MAY W10246531 Contact Us For Availability
15
MAY 2262071 MAY 2262071 Contact Us For Availability
16
MAY W10244560 MAY W10244560 Contact Us For Availability
16
MAY W10015090 MAY W10015090 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY W10137432 MAY W10137432 Contact Us For Availability
16
MAY W10010360 MAY W10010360 Contact Us For Availability
16
MAY W10272563 MAY W10272563 Contact Us For Availability
17
MAY W10525374 MAY W10525374 Contact Us For Availability
17
MAY W10137460 MAY W10137460 Contact Us For Availability
17
SCREW MAY W10094780 Contact Us For Availability
17
MAY W10003290 MAY W10003290 Contact Us For Availability
18
MAY W10106460 MAY W10106460 Contact Us For Availability
18
MAY 3429563 MAY 3429563 Contact Us For Availability
18
MAY W10137431 MAY W10137431 Contact Us For Availability
18
MAY W10259288 MAY W10259288 Contact Us For Availability
19
MAY W10003260 MAY W10003260 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
MAY W10448626 MAY W10448626 Contact Us For Availability
19
MAY W10137456 MAY W10137456 Contact Us For Availability
19
MAY W10015830 MAY W10015830 Contact Us For Availability
20
MAY 238614 MAY 238614 Contact Us For Availability
20
MAY W10131839 MAY W10131839 Contact Us For Availability
20
MAY W10137429 MAY W10137429 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
MAY 8540329 MAY 8540329 Contact Us For Availability
21
MAY W10266965 MAY W10266965 Contact Us For Availability
22
MAY W10339736 MAY W10339736 Contact Us For Availability
22
NUT, "U" MAY 9781235 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10292407 MAY W10292407 Contact Us For Availability
23
MAY W10131119 MAY W10131119 Contact Us For Availability
23
MAY W10176659 MAY W10176659 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
CAP PLUG MAY W10018050 Contact Us For Availability
24
MAY 8540766 MAY 8540766 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
25
MAY 8540382 MAY 8540382 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
26
MAY 8540342 MAY 8540342 Contact Us For Availability
27
MAY 8577378 MAY 8577378 Contact Us For Availability
28
MAY W10085220 MAY W10085220 Contact Us For Availability
29
MAY 8540728 MAY 8540728 Contact Us For Availability
30
MAY 8540727 MAY 8540727 Contact Us For Availability
32
HINGE & PIN ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
33
MAY 342055 MAY 342055 Contact Us For Availability
34
MAY 2161302 MAY 2161302 Contact Us For Availability
35
TIE, CABLE (BEADED) MAY 3347868 Contact Us For Availability
36
WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
37
SEAL, FOAM MAY 8318396 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
HARNESS, WIRING (LOWER MAIN) MAY W10298334 Contact Us For Availability
40
MAY 8540643 MAY 8540643 Contact Us For Availability
41
MAY W10137445 MAY W10137445 Contact Us For Availability
42
MAY W10137444 MAY W10137444 Contact Us For Availability
43
MAY W10137398 MAY W10137398 Contact Us For Availability
44
MAY 8540721 MAY 8540721 Contact Us For Availability
45
MAY 8283273 MAY 8283273 Contact Us For Availability
46
MAY W10342663 MAY W10342663 Contact Us For Availability
NI

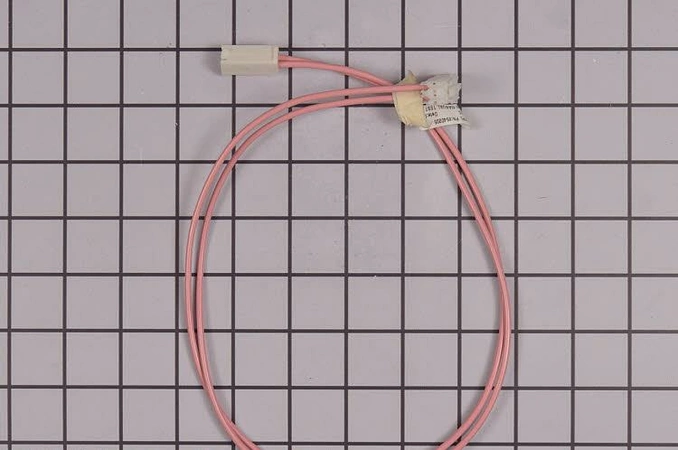

MAY 8540205 MAY 8540205 Contact Us For Availability
NI
THE FOLLOWING CABLE SETS: (NOT ILLUSTRATED) MAY N/P Contact Us For Availability
NI
CCU TO MCU - POWER (2 POLE) MAY W10253050 Contact Us For Availability
NI
CCU TO MCU ? SERIAL COMMUNICATION (3 POLE) MAY W10253054 Contact Us For Availability
NI
MAY W10179481 MAY W10179481 Contact Us For Availability
NI
MAY W10232996 MAY W10232996 Contact Us For Availability
NI
MAY W10232997 MAY W10232997 Contact Us For Availability
NI
ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, PEDESTAL, COMMERCIAL (WHITE) MAY W10103350 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
× ![]()
