Model GE CGP350SET2SS – Common Parts & Diagrams

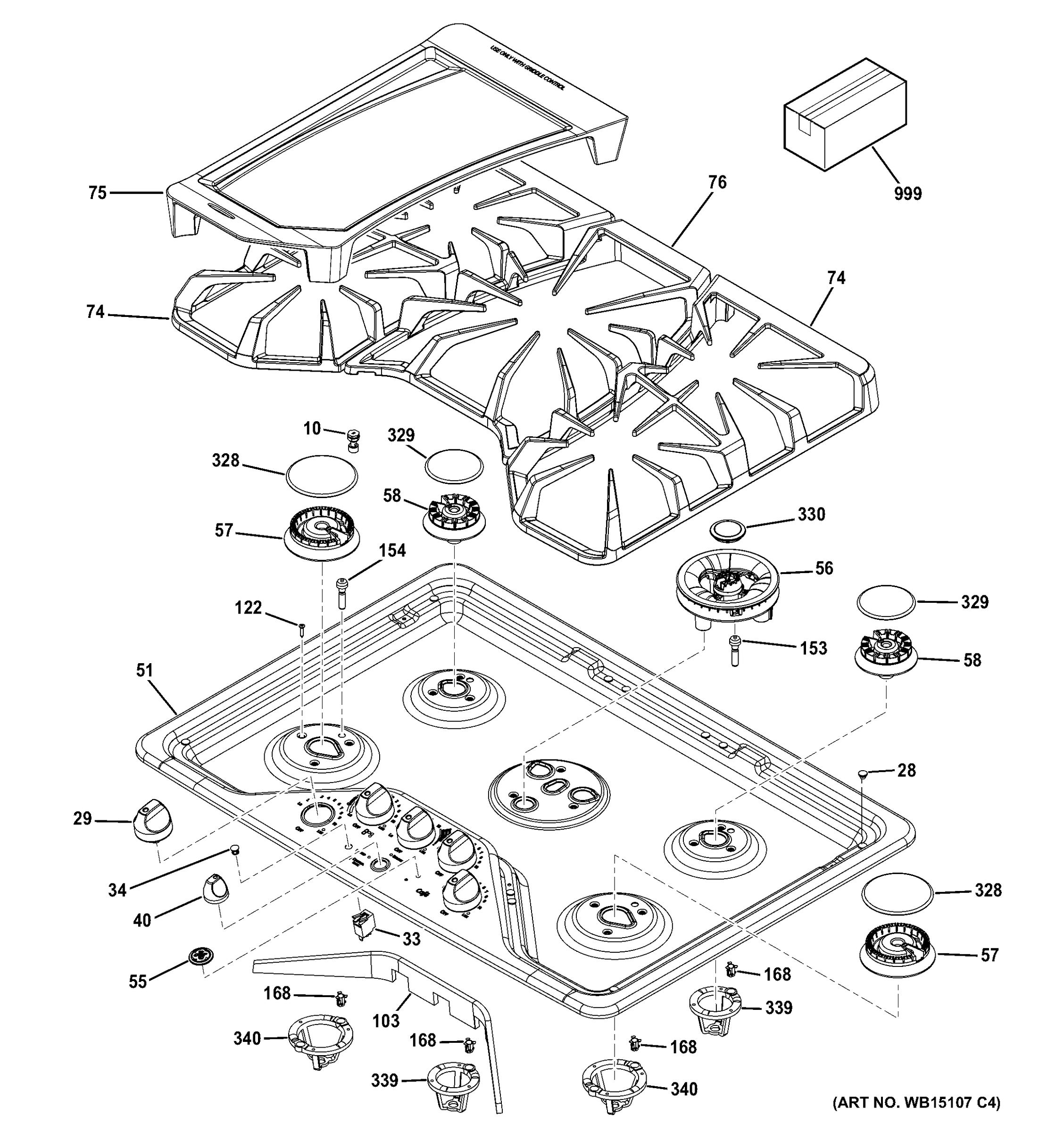

CONTROL PANEL & COOKTOP

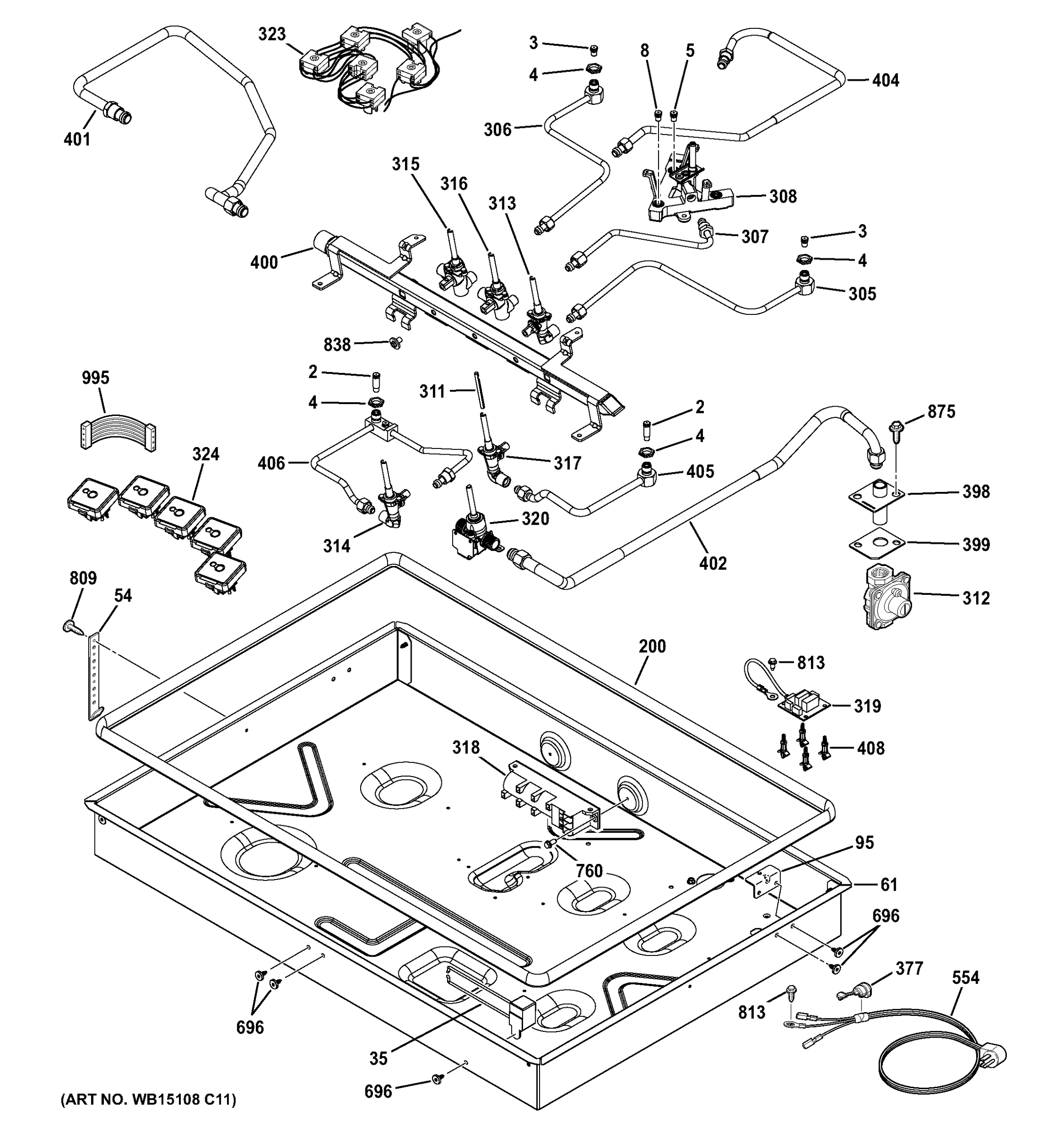

GAS & BURNER PARTS
Common parts from model GE CGP350SET2SS
2
ORIFICE SPUD LP 9.1K GEN WB28T10246 Contact Us For Availability
3
ORIFICE SPUD LP 5K GEN WB28T10245 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
ORIFICE SPUD GEN WB28T10243 Contact Us For Availability
5
ORIFICE SPUD GEN WB28T10242 Contact Us For Availability
8
ORIFICE SPUD SIMMER LP GEN WB28T10248 Contact Us For Availability
10
SCREW LP ADJUSTMENT GEN WB01T10122 Contact Us For Availability
28
BUMPER (BK) GEN WB28T10278 Contact Us For Availability
29
KNOB ASSEMBLY GEN WB03T10329 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB27T10626 Contact Us For Availability
34
LENS GEN WB25T10041 Contact Us For Availability
35
BUZZER (120V) GEN WB08T10039 Contact Us For Availability
57
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
58
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
74
GRATE LT 30 (PRF) GEN WB31T10150 Contact Us For Availability
74
GRATE RT 30 (PRF) GEN WB31T10149 Contact Us For Availability
75
GRIDDLE GEN WB48T10081 Contact Us For Availability
76
GRATE CTR 30 (PRF) GEN WB31T10148 Contact Us For Availability
153
ELECTRODE TOP GEN WB13T10080 Contact Us For Availability
154
ELECTRODE TOP GEN WB13K10014 Contact Us For Availability
306
TUBE BURNER ASM GEN WB28T10269 Contact Us For Availability
307
TUBE BURNER ASM GEN WB28T10266 Contact Us For Availability
308
INJECT TOP BURNER ASM GEN WB28T10259 Contact Us For Availability
311
PLUG VALVE STEM GEN WB02T10569 Contact Us For Availability
312
REGULATOR CONVERT PRESS GEN WB19T10089 Contact Us For Availability
313
VALVE GAS GEN WB19T10084 Contact Us For Availability
314
VALVE GAS GEN WB19T10085 Contact Us For Availability
315
VALVE DUAL GEN WB19T10088 Contact Us For Availability
316
VALVE DUAL GEN WB19T10087 Contact Us For Availability
317
VALVE GAS GEN WB19T10092 Contact Us For Availability
319
CONTROL BOARD LED GEN WB27T11382 Contact Us For Availability
320
VALVE LOCKOUT GEN WB19T10039 Contact Us For Availability
323
HARNESS SWITCH GEN WB18T10509 Contact Us For Availability
324
BOARD LED ASM GEN WB17T10027 Contact Us For Availability
328
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
329
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
330
BURNER CAP CENTRAL GEN WB29K10045 Contact Us For Availability
398
SUPPLY INLET GEN WB04T10082 Contact Us For Availability
400
BRACKET MANIFOLD ASM GEN WB28T10249 Contact Us For Availability
401
TUBE MANIFOLD GEN WB28T10251 Contact Us For Availability
554
CORD RANGE GEN WB08T10015 Contact Us For Availability
696
SCR 8-18X.450 AB FLT20 S GEN WB01T10110 Contact Us For Availability
838
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
995
HARNESS WIRE BURNER GEN WB18T10511 Contact Us For Availability
995
HARNESS WIRE BURNER GEN WB18T10510 Contact Us For Availability
999
KIT BUTANE ASM GEN WB28T10250 Contact Us For Availability
999
CLEANER-SS GEN WB02T10111 Contact Us For Availability
× ![]()
