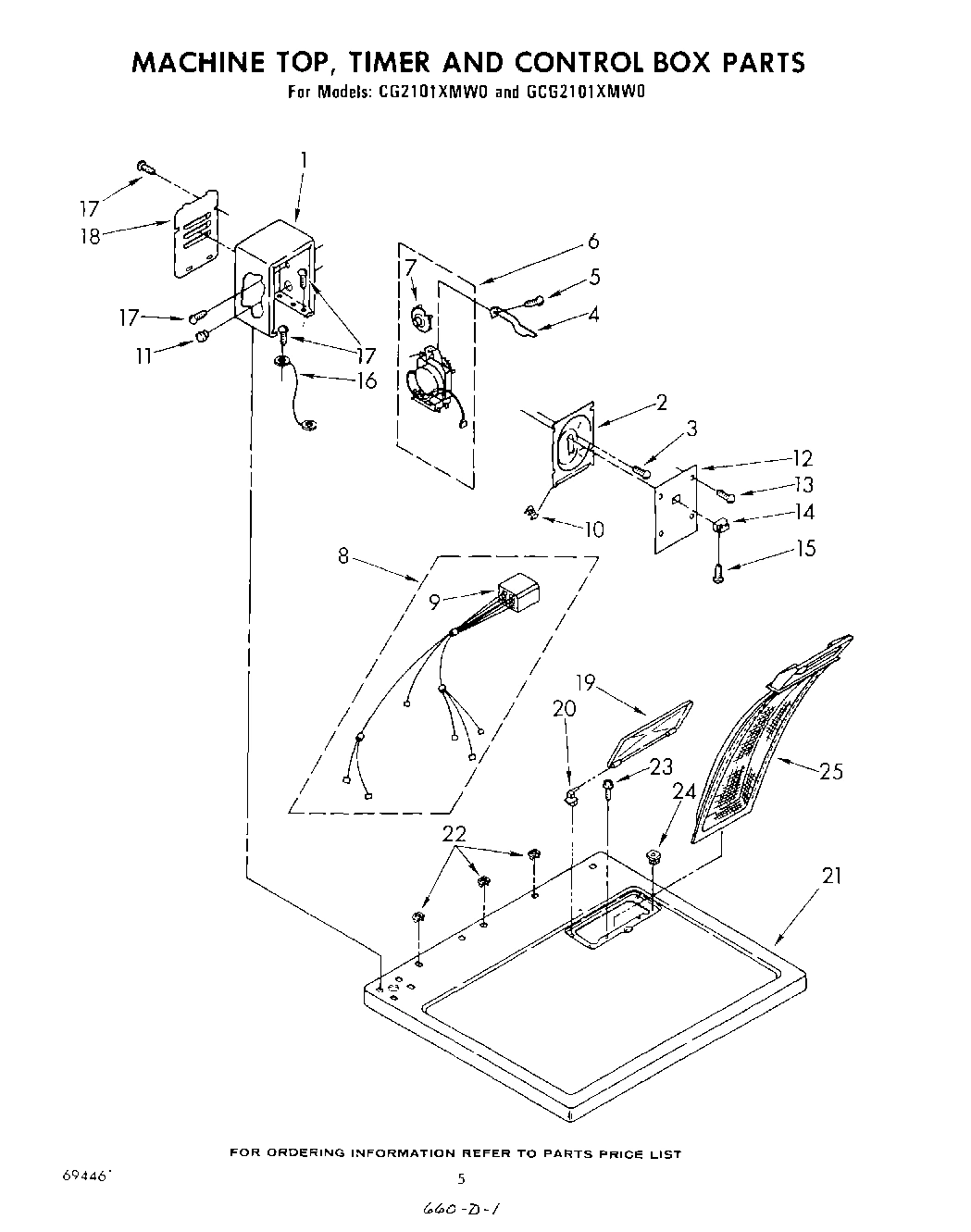

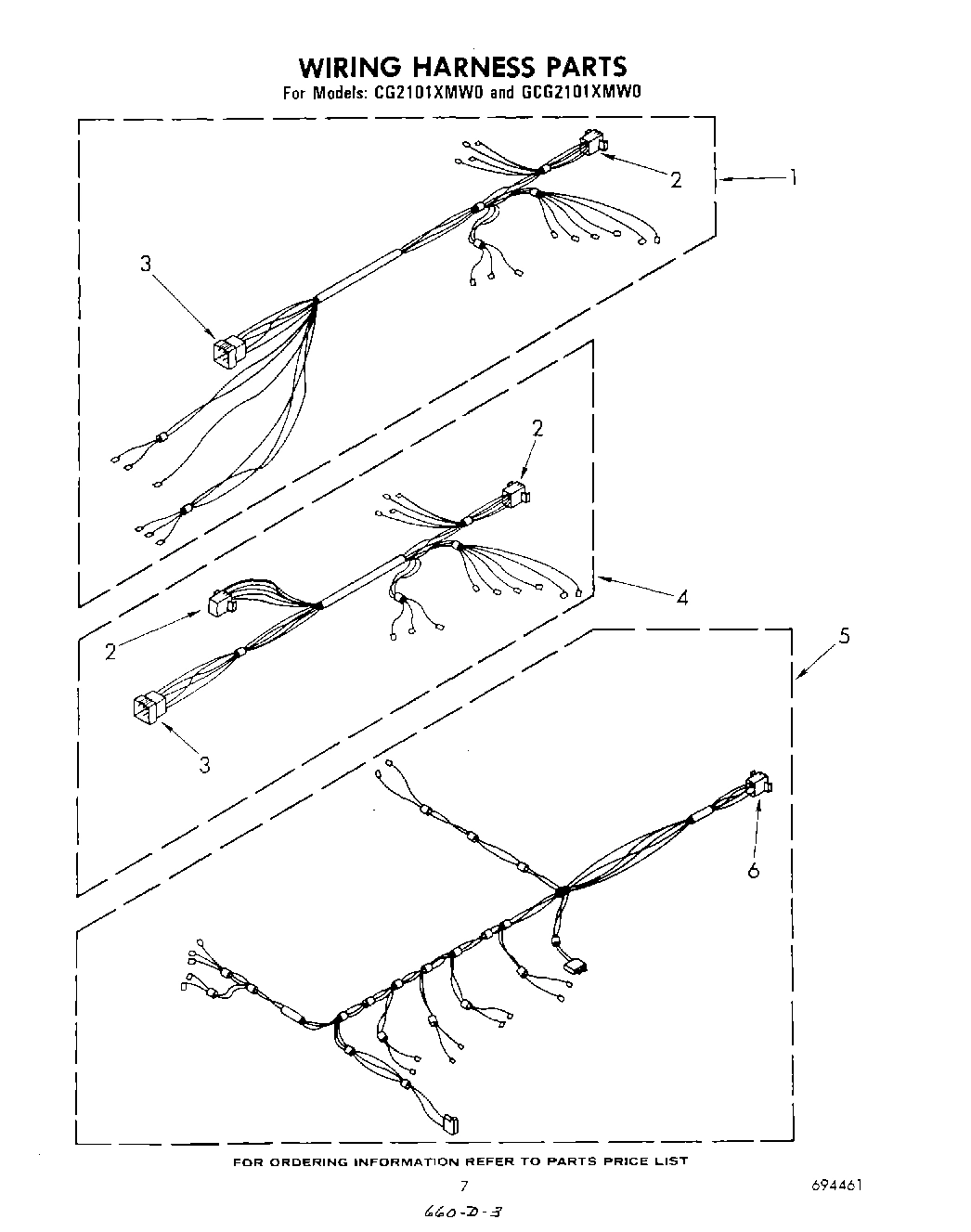

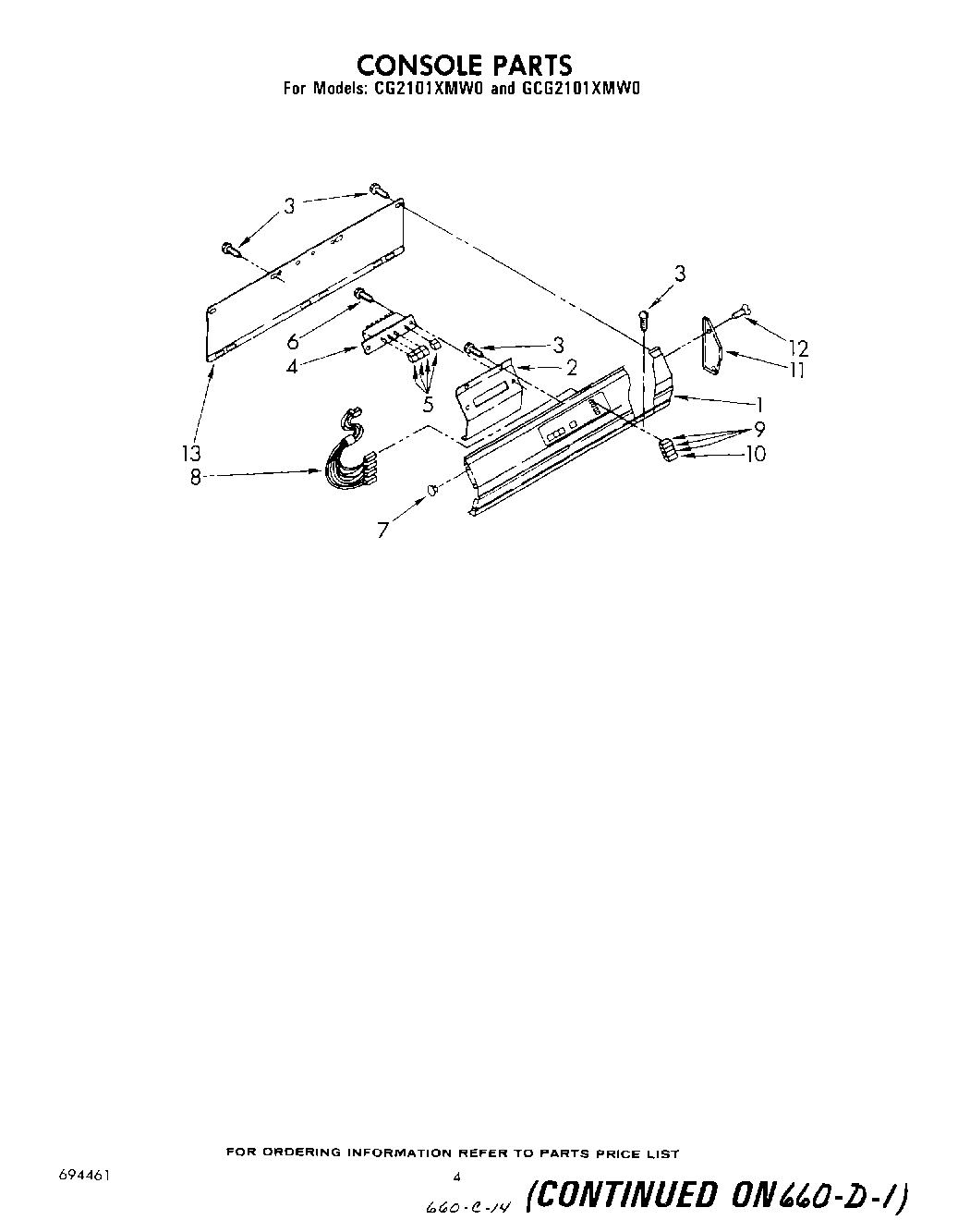

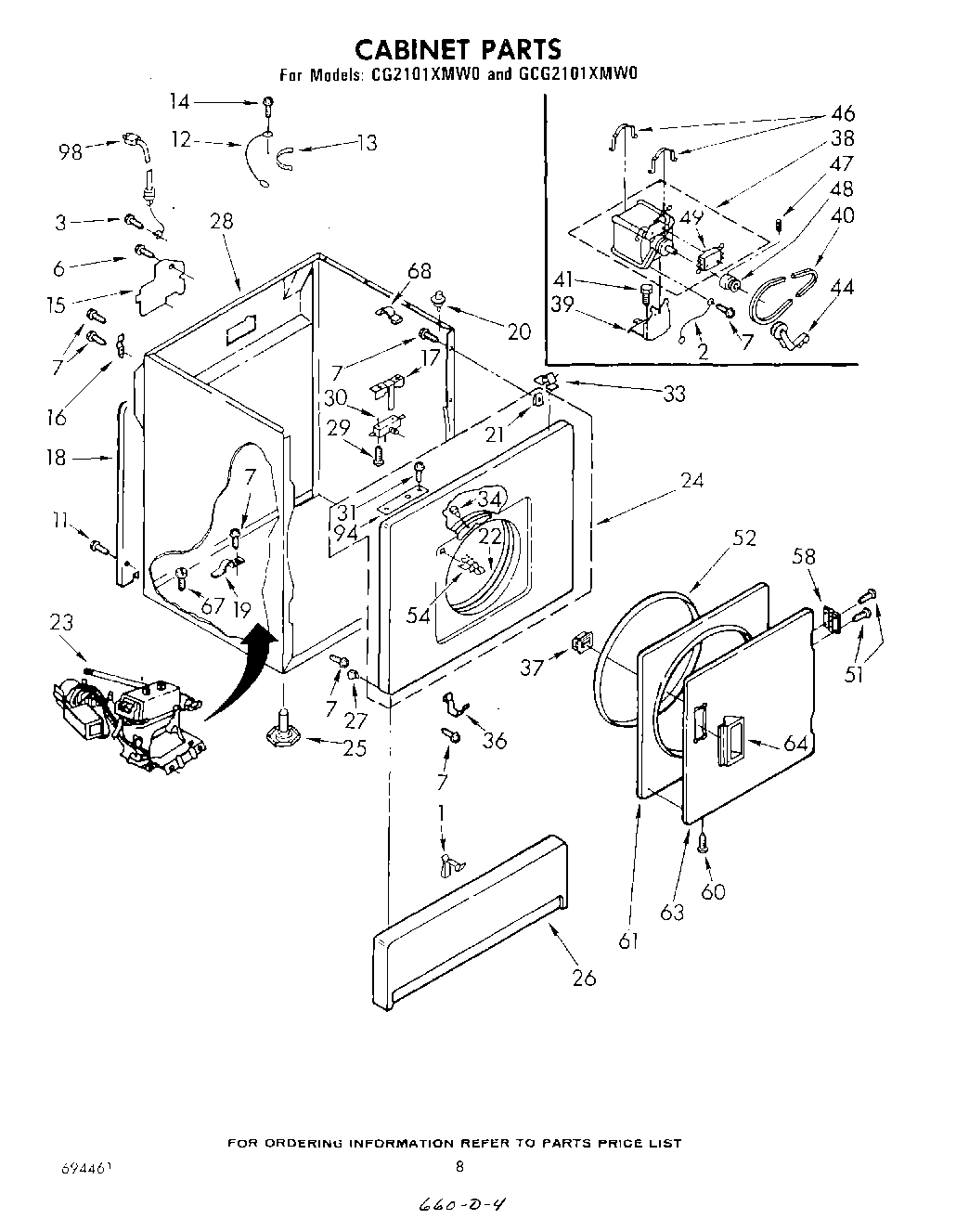

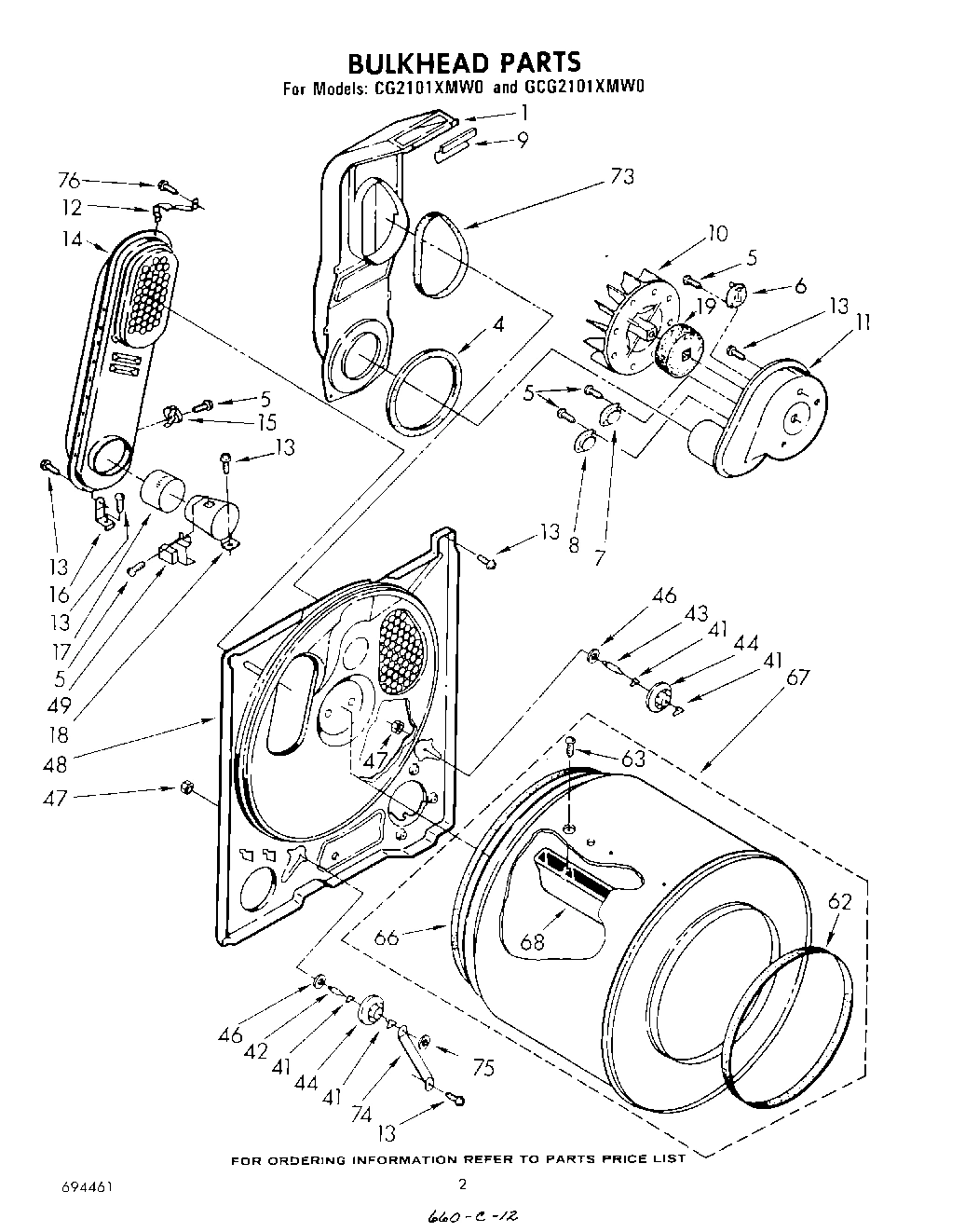

Model Whirlpool CG2101XMW0 COMMERCIAL GAS DRYER – Common Parts &amp; Diagrams

1

Box, Control (White) WPL 694870 Contact Us For Availability

1

Harness, Upper WPL 691398 Contact Us For Availability

1

Clip, Toe Panel WPL 341776 Contact Us For Availability

2

Bracket, Control WPL 386567 Contact Us For Availability

2

Plate, Timer Mounting WPL 386272 Contact Us For Availability

2

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

2

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

3

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

Switch, Pushbutton WPL 693987 Contact Us For Availability

4

Lever, Timer WPL 694583 Contact Us For Availability

4

Harness, Console WPL 695077 Contact Us For Availability

5

Pushbutton (4) WPL 385798 Contact Us For Availability

5

Screw, Lever To Timer WPL 98831 Contact Us For Availability

5

Harness, Lower WPL 691401 Contact Us For Availability

6

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $167.71

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

6

Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability

7

WP339854 Whirlpool Cam Backorder WPL WP339854 $2.38

7

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

7

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Plug, Button WPL 54690 Contact Us For Availability

8

Lights, Indicator WPL 358742 Contact Us For Availability

8

Harness, Timer WPL 695076 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

9

Lens, Amber (3) WPL 301006 Contact Us For Availability

9

Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Lens, Yellow (1) WPL 358741 Contact Us For Availability

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Cap, End (R.H.) WPL 385800 Contact Us For Availability

Bushing, Snap WPL 352481 Contact Us For Availability

Connector, Wire (3) WPL 340140 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Cover, Control Box WPL 694568 Contact Us For Availability

Screw, Leak Limiter WPL 338868 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Panel, Rear Billboard WPL 386370 Contact Us For Availability

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

Strap, Ground WPL 22965 Contact Us For Availability

14

Button, Timer Set WPL 386276 Contact Us For Availability

14

Spring, Regulator WPL 339226 Contact Us For Availability

14

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

16

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

16

Wire, Ground WPL 340025 Contact Us For Availability

16

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

18

Nut, Compression WPL 233076 Contact Us For Availability

18

Panel, Control Box Rear WPL 295871 Contact Us For Availability

18

Panel, Rear WPL 347736 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

19

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

19

Cover, Lint Screen WPL 688150 Contact Us For Availability

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

Locator, Top (1) WPL 356837 Contact Us For Availability

Locator, Top (2) WPL 98669 Contact Us For Availability

21

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

21

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

21

Top (White) WPL 695009 Contact Us For Availability

22

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

22

Nut, Push-In (8) WPL 98219 Contact Us For Availability

23

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

23

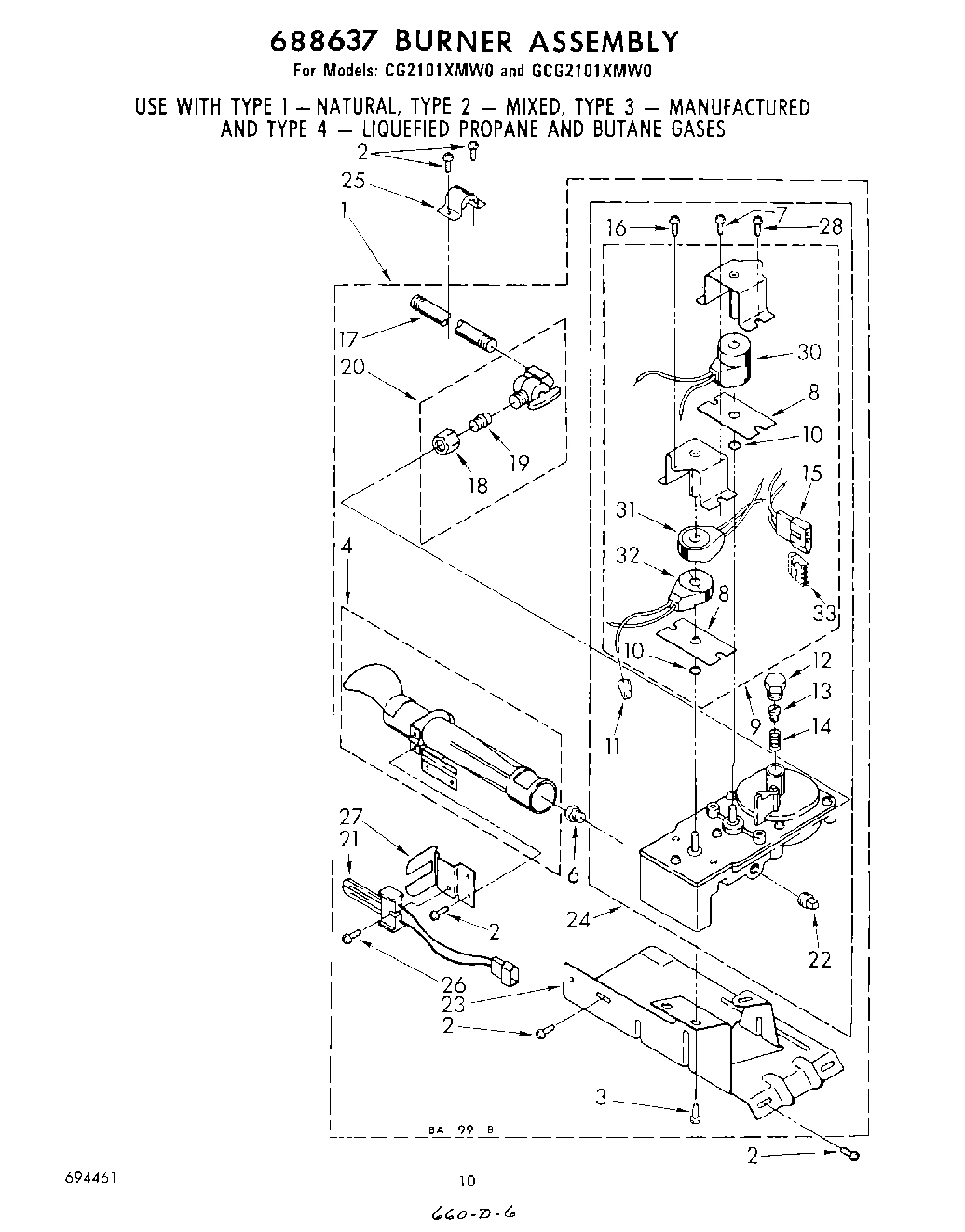

Burner Assembly (60 Hz.) (Refer to Page 10 Fo WPL 688637 Contact Us For Availability

23

Baseplate WPL 338455 Contact Us For Availability

24

98460 Whirlpool Nut Backorder WPL 98460 $9.59

24

BURNER-GAS WPL 688631 Contact Us For Availability

24

Front Panel Assembly (White) WPL 693980 Contact Us For Availability

25

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

25

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

26

Panel, Toe (White) WPL 237035 Contact Us For Availability

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

27

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

28

Cabinet (White) WPL 690847 Contact Us For Availability

29

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

30

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

33

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

33

Receptacle, 2 Way WPL 717252 Contact Us For Availability

34

279220 Whirlpool Clip Backorder WPL 279220 $11.93

36

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

37

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

39

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

40

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

41

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

44

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

47

Set Screw WPL 690046 Contact Us For Availability

48

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

49

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

51

Screw, Hinge (6) WPL 689791 Contact Us For Availability

52

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

58

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

60

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

61

280077 Whirlpool Door Backorder WPL 280077 $116.57

63

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

64

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

67

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

68

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

76

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

76

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

76

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

94

Bracket WPL 688021 Contact Us For Availability

98

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

98

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

98

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
