Model GE CES750P2M4S1 Electric Range – Common Parts & Diagrams

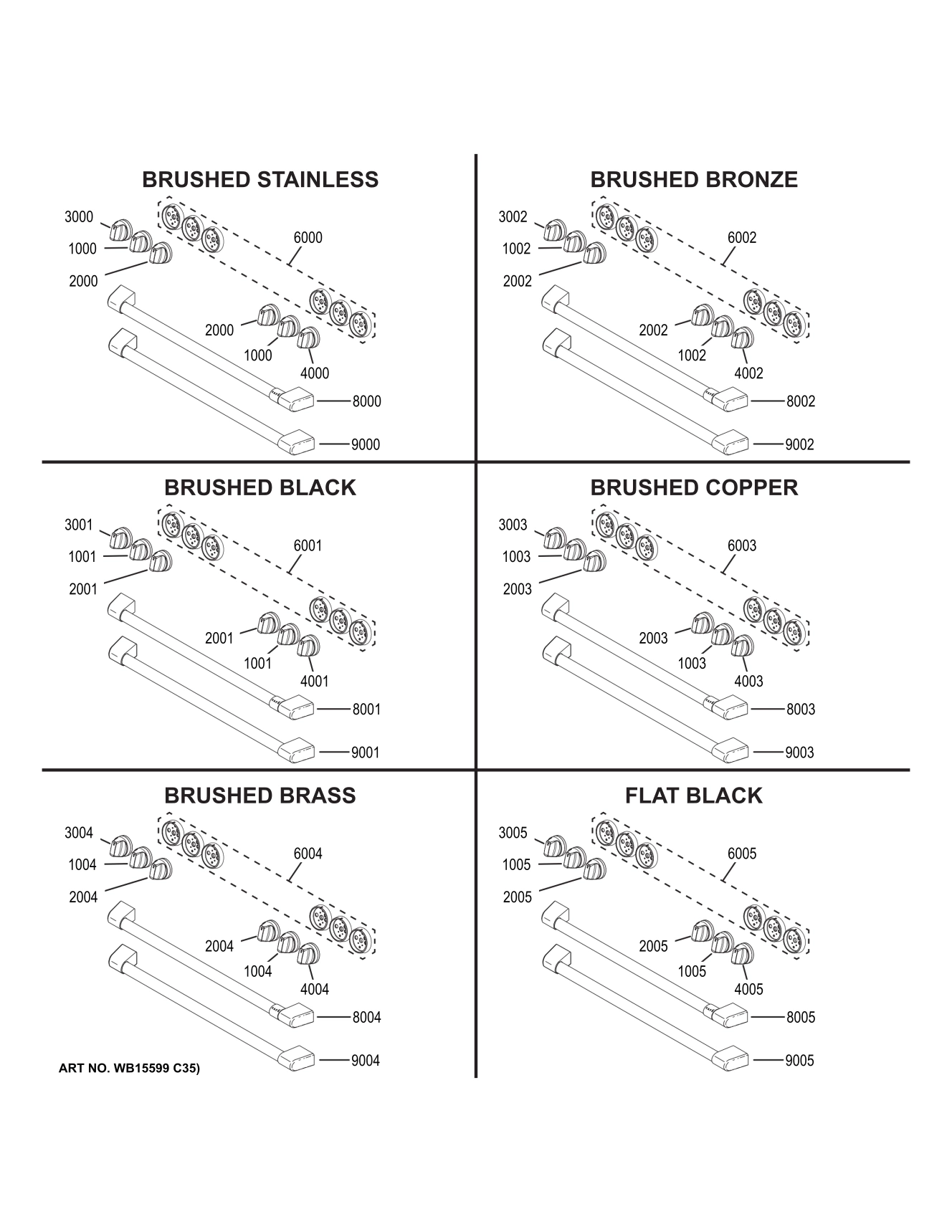

CAFE CUSTOMIZATION

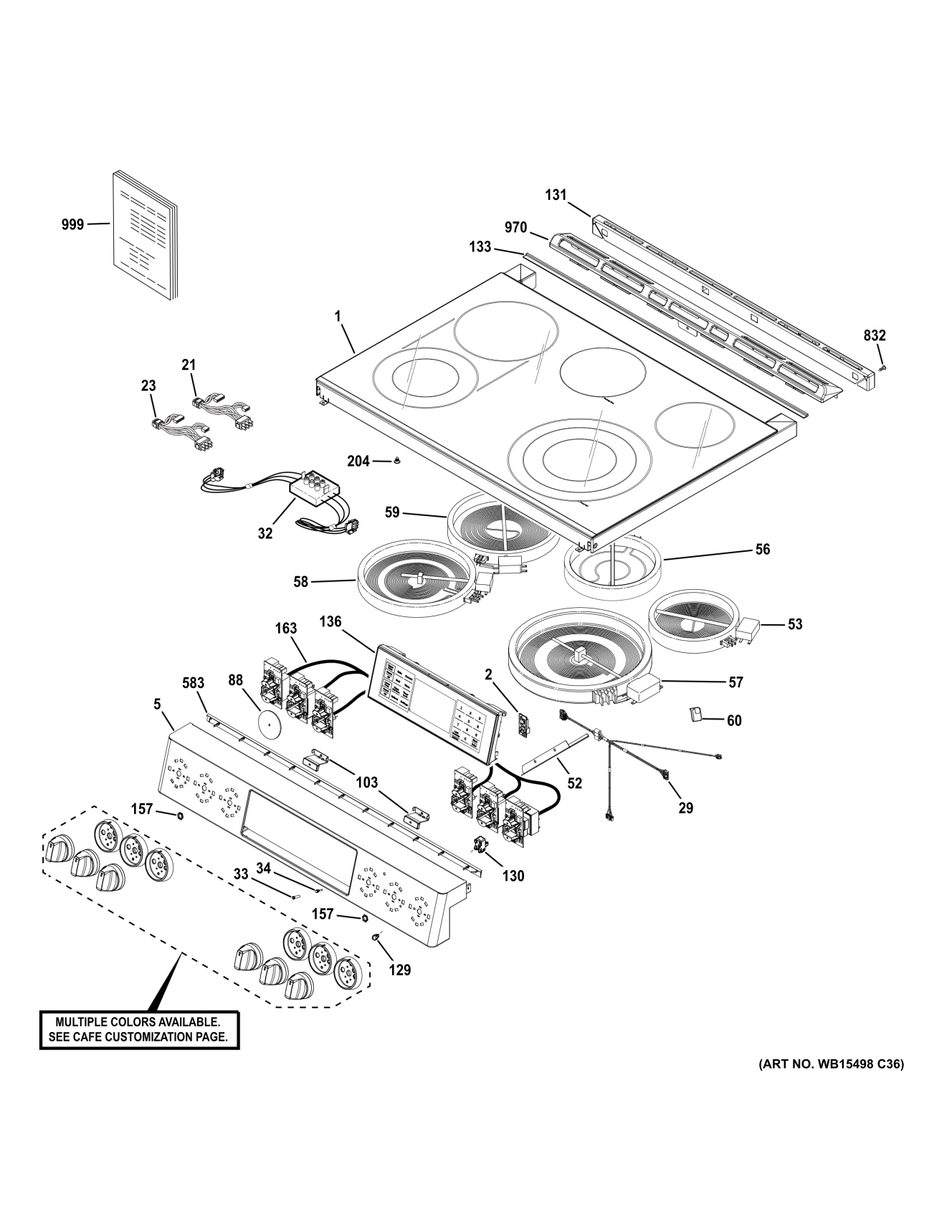

CONTROL PANEL & COOKTOP
BODY PARTS
UPPER OVEN
LOWER OVEN
UPPER DOOR
LOWER DOOR
CONVECTION FAN
Common parts from model GE CES750P2M4S1 Electric Range
1
RANGETOP & GLASS ASM GEN WB62X31946 Contact Us For Availability
24
HARNESS BLOWER GEN WB18X31604 Contact Us For Availability
26
HARNESS LATCH GEN WB18X31621 Contact Us For Availability
40
DOOR HANDLE FASTENER GEN WR01X11007 Contact Us For Availability
43
SENSOR-OVEN GEN WB23X5340 Contact Us For Availability
46
RECEPTABLE ASM GEN WB34K10134 Contact Us For Availability
53
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
56
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
57
ELEMENT HALIANT 12 TRPL GEN WB30T10155 Contact Us For Availability
58
ELEMENT HALIANT (DUAL) GEN WB30T10135 Contact Us For Availability
59
ELEMENT HALIANT 8 GEN WB30X26465 Contact Us For Availability
60
SPRING RADIANT ELEMENT GEN WB09X40389 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
93
FRAME FRONT BUMPER GEN WB02X28737 Contact Us For Availability
103
BRACKET GEN WB34X28908 Contact Us For Availability
106
SWITCH HIGH LIMIT GEN WB24X29505 Contact Us For Availability
108
BOARD DAUGHTER RELAY GEN WB27X28658 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
130
LIGHT INDICATOR PILOT GEN WB25K10010 Contact Us For Availability
131
TRIM KIT GEN WB07X28825 Contact Us For Availability
163
SWITCH ASM GEN WB24X31698 Contact Us For Availability
200
OVEN RACK GEN WB48X21508 Contact Us For Availability
201
RACK OVEN SLIDE ASM GEN WB48X20990 Contact Us For Availability
204
SCR 8-18 AB X 5/16S GEN WB01X26995 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE GEN WB56X28847 Contact Us For Availability
213
COVER TERMINAL BLOCK GEN WB34X28980 Contact Us For Availability
222
HINGE ASM GEN WB10X28782 Contact Us For Availability
223
DOOR HINGE RIGHT GEN WB10X26520 Contact Us For Availability
224
DOOR HINGE LEFT GEN WB10X26521 Contact Us For Availability
231
BRACKET ASM ANTI-TIP GEN WB02K10386 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24X27550 Contact Us For Availability
235
OVEN LAMP HOLDER ASM GEN WB08T10002 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X25480 Contact Us For Availability
244
SUPPORT BASE LT GEN WB63X25481 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
264
SUPPORT CATALYST GEN WB35K10028 Contact Us For Availability
267
RECEIVER HINGE LH GEN WB10X29636 Contact Us For Availability
268
RECEIVER HINGE RH GEN WB10X29635 Contact Us For Availability
271
COVER LATCH GEN WB34X21619 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB10X28794 Contact Us For Availability
280
LATCH AUTOMATIC GEN WB10X28795 Contact Us For Availability
302
GUARD INSULATION GEN WB35X21704 Contact Us For Availability
314
STAINLESS STEEL GLASS & PANEL DOOR GEN WB56X31646 Contact Us For Availability
315
LINER DOOR WELD ASSEMBLY GEN WB56X24931 Contact Us For Availability
316
STAINLESS STEEL GLASS & PANEL DOOR GEN WB56X31642 Contact Us For Availability
317
PANEL VENT BACKER GEN WB34X31702 Contact Us For Availability
318
LINER DOOR ASSEMBLY GEN WB34X28839 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10155 Contact Us For Availability
321
CRYSTAL WINDOW GEN WB57K10156 Contact Us For Availability
325
FASTENER BRACKET UC GEN WB34X31734 Contact Us For Availability
326
FASTENER BRACKET UC GEN WB34X31735 Contact Us For Availability
332
INSULATION DOOR GEN WB35X28985 Contact Us For Availability
333
INSULATION DOOR GEN WB35X42766 Contact Us For Availability
334
INSULATION DOOR GEN WB34X21728 Contact Us For Availability
339
GUARD INSULATION GEN WB56K10079 Contact Us For Availability
340
DEFLECTOR UPPER GEN WB34X43789 Contact Us For Availability
341
DIVERTER DOOR GEN WB34X43786 Contact Us For Availability
342
DIVERTER DOOR GEN WB34X43787 Contact Us For Availability
343
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
359
SCREW 12-14, 5/8S GEN WB01K0078 Contact Us For Availability
361
BLACK BARRIER DOOR GEN WB07X43799 Contact Us For Availability
362
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
378
FASTENER BRACKET GEN WB34X31736 Contact Us For Availability
379
FASTENER BRACKET GEN WB34X31732 Contact Us For Availability
400
FRAME WINDOW ASSY GEN WB34X28741 Contact Us For Availability
401
FRAME WINDOW ASSY GEN WB34X28740 Contact Us For Availability
583
FRONT GASKET ASM GEN WB35X28743 Contact Us For Availability
667
INSULATION DOOR GEN WB34X21729 Contact Us For Availability
668
INSULATION DOOR GEN WB34X21730 Contact Us For Availability
720
FAN COVER GEN WB34X28702 Contact Us For Availability
721
BLADE FAN GEN WB2X8351 Contact Us For Availability
722
FAN INSULATOR GEN WB35X20989 Contact Us For Availability
723
FAN INSULATION GEN WB35K10013 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10170 Contact Us For Availability
726
MOTOR PSC CONV GEN WB26X25118 Contact Us For Availability
729
NUT GEN WB02T10017 Contact Us For Availability
900
CAPACITOR MOTOR GEN WB08K10009 Contact Us For Availability
902
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
910
BLOWER TANGENTIAL GEN WB26X35086 Contact Us For Availability
940
FAN SUPPORT GEN WB34X28735 Contact Us For Availability
962
STANDOFF PCB GEN WB02T10093 Contact Us For Availability
1000
BRUSHED STAINLESS SINGLE ELEMENT KNOB GEN WB03X31660 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X28563 Contact Us For Availability
1440
BOTTOM OVEN GEN WB63X28660 Contact Us For Availability
3000
BRUSHED STAINLESS DOUBLE BURNER KNOB GEN WB03X31678 Contact Us For Availability
8000
BRUSHED STAINLESS RANGE HANDLE W/ CAF B GEN WB15X31679 Contact Us For Availability
8002
BRONZE RANGE HANDLE W/ CAF BAND GEN WB15X33467 Contact Us For Availability
8003
BRUSHED COPPER HANDLE W/ CAF BAND GEN WB15X33782 Contact Us For Availability
9000
BRUSHED STAINLESS RANGE HANDLE GEN WB15X31680 Contact Us For Availability
9002
BRONZE RANGE HANDLE GEN WB15X33466 Contact Us For Availability
× ![]()
