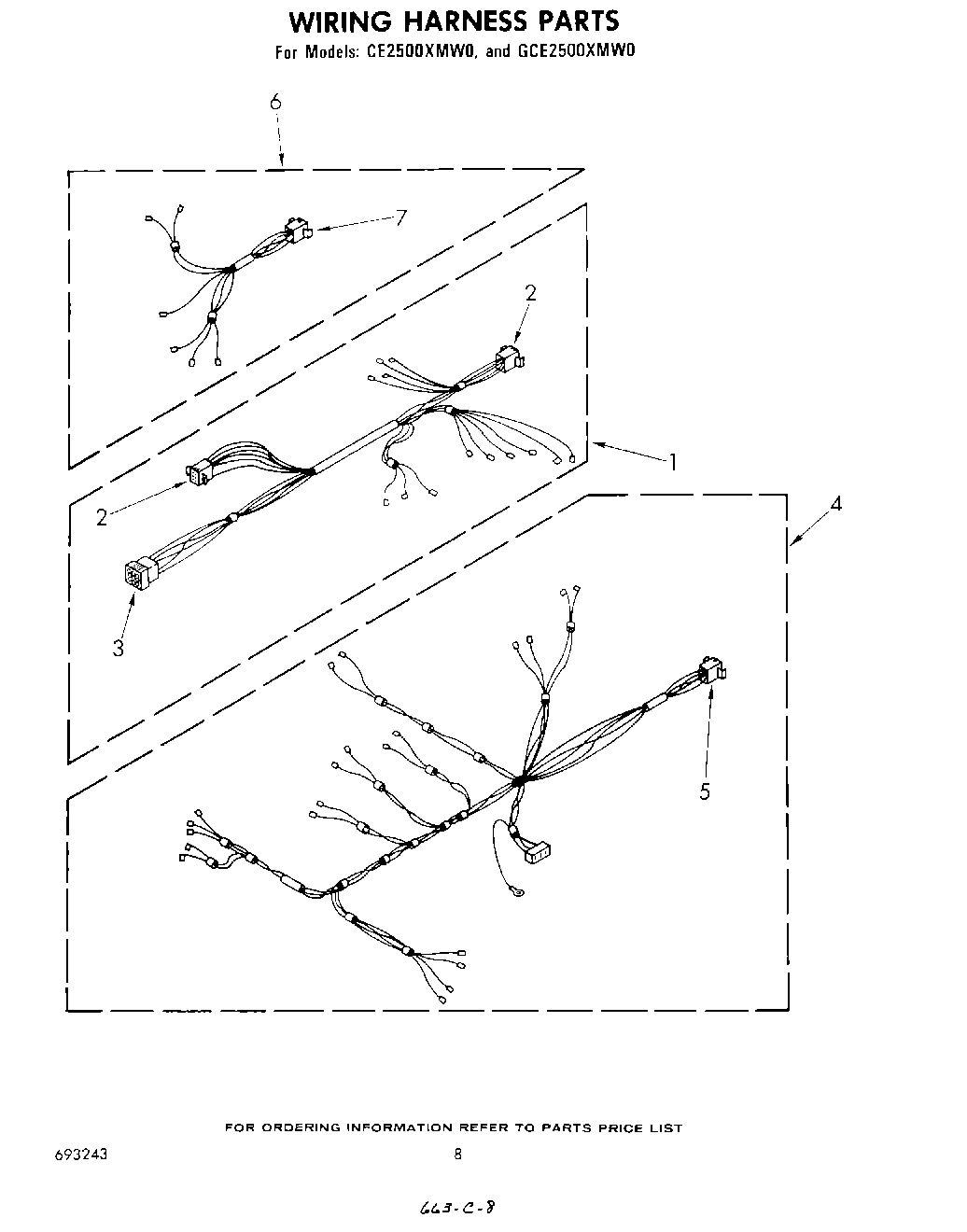

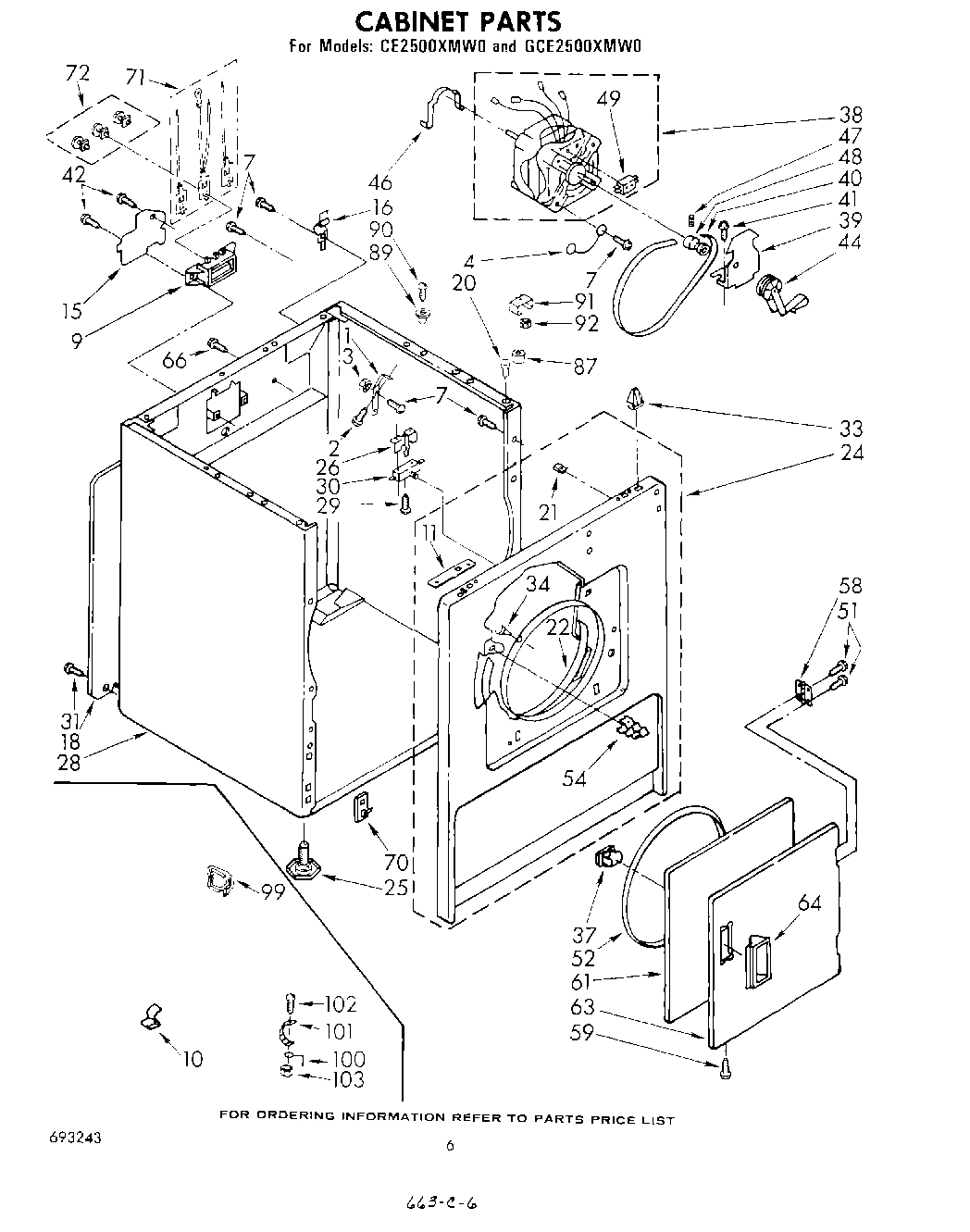

Model Whirlpool CE2500XMW0 COMMERCIAL ELECTRIC DRYER – Common Parts &amp; Diagrams

1

White WPL 688150 Contact Us For Availability

1

Almond WPL 689310 Contact Us For Availability

1

New Avocado WPL 689312 Contact Us For Availability

1

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

1

Nut, Push-In (4) WPL 98219 Contact Us For Availability

1

Bracket, Top Lock WPL 688074 Contact Us For Availability

1

Harness, Console WPL 695077 Contact Us For Availability

2

BOLT, 5/16-18 X 2 3/4 WPL 354730 Contact Us For Availability

2

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

3

Cap, Terminal (9-Way) WPL 94612 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Switch, Pushbutton WPL 693987 Contact Us For Availability

4

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

4

Harness, Lower WPL 693742 Contact Us For Availability

5

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $27.83

5

Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability

6

Cap, End (R.H.) WPL 385800 Contact Us For Availability

6

Harness, Timer WPL 695076 Contact Us For Availability

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Screw, 10-16 x 1/2 WPL 90057 Contact Us For Availability

7

Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability

8

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

9

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

9

Billboard, Console WPL 693988 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

11

Bracket, Control WPL 386567 Contact Us For Availability

11

Bracket, Front Top Lock WPL 688021 Contact Us For Availability

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

Panel, Rear WPL 356441 Contact Us For Availability

15

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

Top (White) WPL 693939 Contact Us For Availability

Top (Almond) WPL 693940 Contact Us For Availability

Top (New Avocado) WPL 693941 Contact Us For Availability

Top (Golden Harvest) WPL 693942 Contact Us For Availability

17

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

18

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

18

Panel, Rear WPL 346368 Contact Us For Availability

19

Lens, Amber (3) WPL 301006 Contact Us For Availability

20

Lights, Indicator (240 Volts) WPL 358742 Contact Us For Availability

20

Locator, Top WPL 98669 Contact Us For Availability

21

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

21

Lens, Yellow WPL 358741 Contact Us For Availability

22

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

23

Plate Assembly (Vault Cover) WPL 376429 Contact Us For Availability

Button (4) WPL 385798 Contact Us For Availability

Front Panel Assembly (White) WPL 693975 Contact Us For Availability

Front Panel Assembly (Almond) WPL 693976 Contact Us For Availability

Front Panel Assembly (New Avocado) WPL 693978 Contact Us For Availability

Front Panel Assembly (Golden Harvest) WPL 693979 Contact Us For Availability

25

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

25

Plug, Button WPL 54690 Contact Us For Availability

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

Case, Meter (White) WPL 385365 Contact Us For Availability

Case, Meter (Almond) WPL 385366 Contact Us For Availability

Case, Meter (New Avocado) WPL 385367 Contact Us For Availability

Case, Meter (Golden Harvest) WPL 385368 Contact Us For Availability

27

Bolt, 5/16-24 x 3/4 WPL 691983 Contact Us For Availability

Washer, 5/16 WPL 138485 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (New Avocado) WPL 690850 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

29

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

29

Plate & Nut Assembly WPL 83701 Contact Us For Availability

30

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

30

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.90

31

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

32

98460 Whirlpool Nut Backorder WPL 98460 $9.59

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $71.26

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Door, Service (Almond) WPL 385758 Contact Us For Availability

Door, Service (New Avocado) WPL 385759 Contact Us For Availability

Door, Service (Golden Harvest) WPL 385760 Contact Us For Availability

34

279220 Whirlpool Clip Backorder WPL 279220 $11.93

34

Insulation WPL 685870 Contact Us For Availability

35

WP3954812 Whirlpool Cushion Backorder WPL WP3954812 $15.85

36

Wire, Ground WPL 687261 Contact Us For Availability

37

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

37

Wire, Ground WPL 340025 Contact Us For Availability

39

339805 Whirlpool Screw Backorder WPL 339805 $9.59

39

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

40

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $167.71

40

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

41

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

41

WP8576635 Whirlpool Bolt Backorder WPL WP8576635 $26.72

42

WP90406 Whirlpool Nut Backorder WPL WP90406 $3.51

43

NUT, PUSH IN WPL 352292 Contact Us For Availability

44

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

44

Screw & Washer WPL 358409 Contact Us For Availability

45

Strap, Support WPL 357856 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

47

WP387371 Whirlpool Plug Backorder WPL WP387371 $45.33

47

Set Screw WPL 690046 Contact Us For Availability

48

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

48

Slide & Extension WPL 694308 Contact Us For Availability

49

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

49

Slide Extension Bag Assembly WPL 694339 Contact Us For Availability

WP339854 Whirlpool Cam Backorder WPL WP339854 $2.38

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

Screw, Hinge WPL 689791 Contact Us For Availability

52

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

58

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

59

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

61

280077 Whirlpool Door Backorder WPL 280077 $116.57

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door, Fro WPL 689318 Contact Us For Availability

WPL 689319 WPL 689319 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

WPL 689306 WPL 689306 Contact Us For Availability

WPL 689583 WPL 689583 Contact Us For Availability

WPL 689584 WPL 689584 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

70

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

71

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

72

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Instructions, Multi-Venting WPL 348772 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Instructions, Installation WPL 687454 Contact Us For Availability

She WPL 692257 Contact Us For Availability

WPL 693243 WPL 693243 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

87

WPL 356674 WPL 356674 Contact Us For Availability

89

WPL 356837 WPL 356837 Contact Us For Availability

90

WPL 427190 WPL 427190 Contact Us For Availability

91

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

92

90984 Whirlpool Nut Backorder WPL 90984 $9.13

99

WPL 688412 WPL 688412 Contact Us For Availability

100

WPL 685449 WPL 685449 Contact Us For Availability

101

WPL 22965 WPL 22965 Contact Us For Availability

102

WPL 132848 WPL 132848 Contact Us For Availability

103

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59
