Model Maytag CDB4000AWB0 DISHWASHER – Common Parts & Diagrams

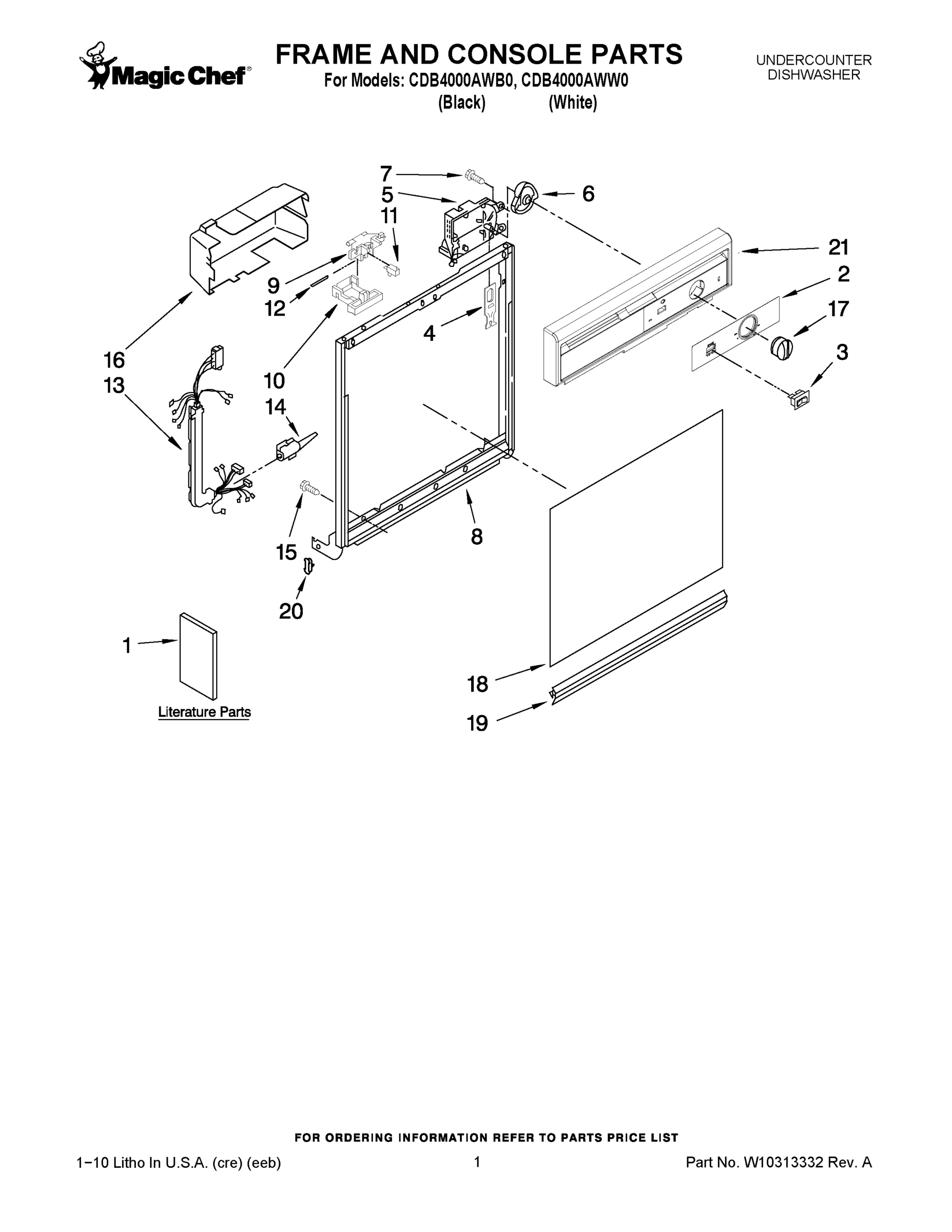

01 - FRAME AND CONSOLE PARTS

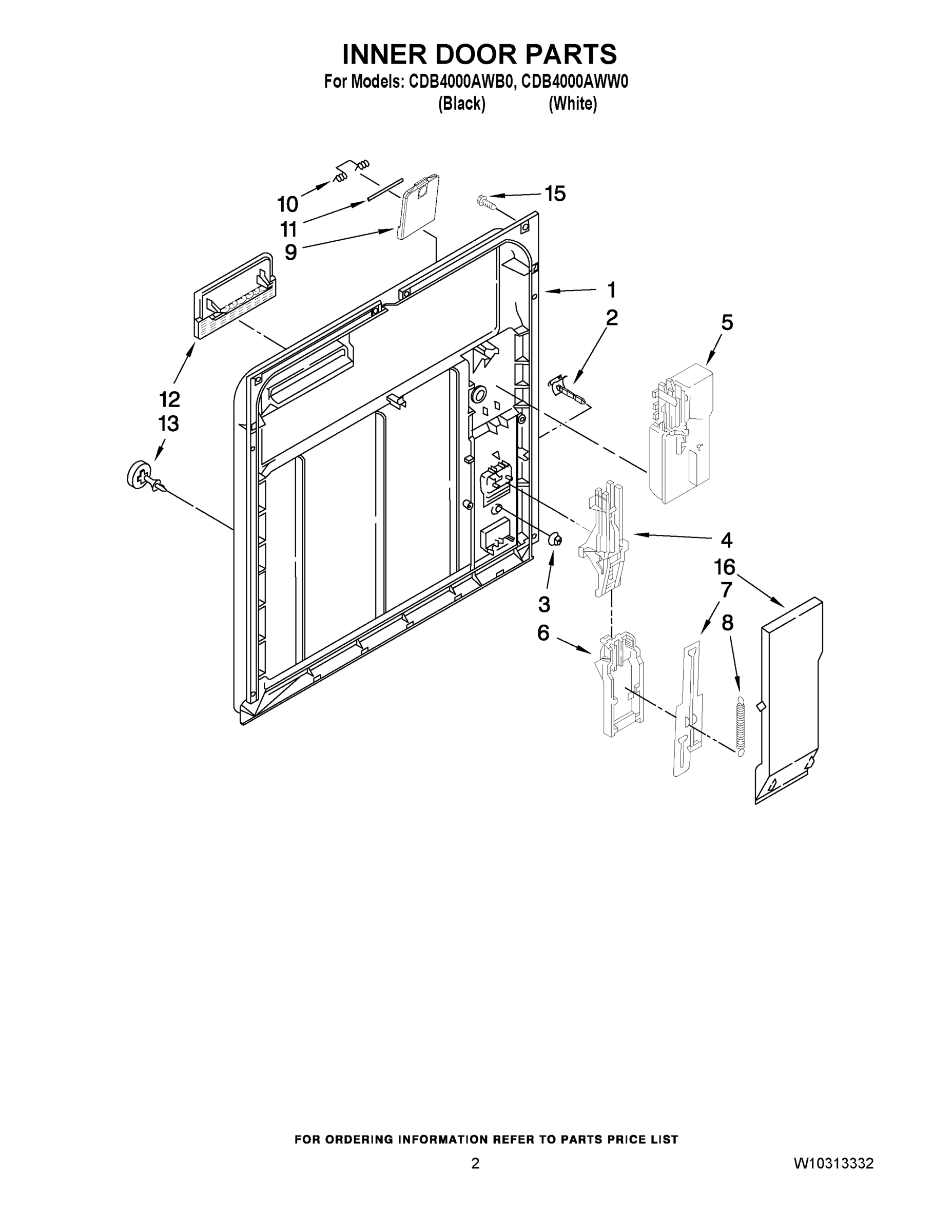

02 - INNER DOOR PARTS

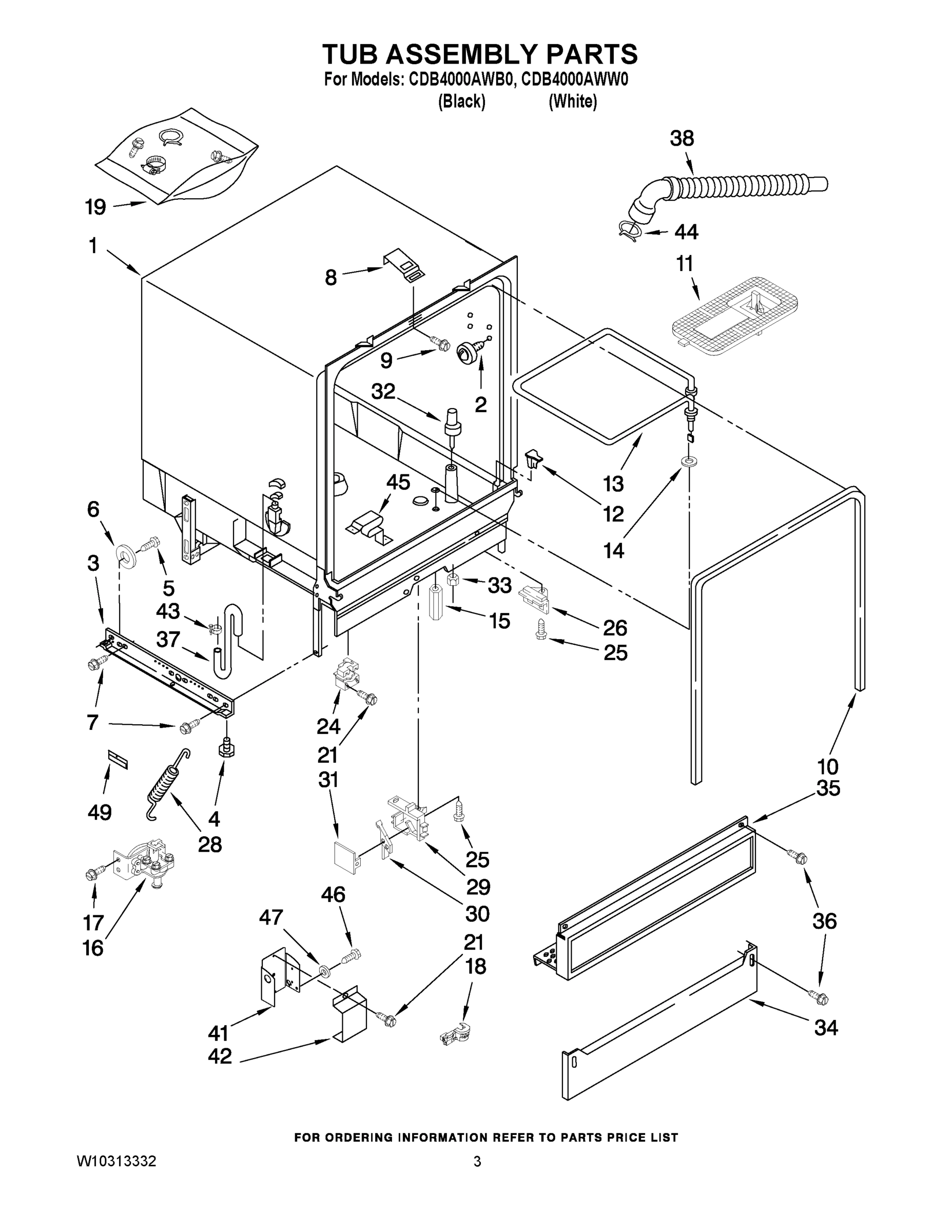

03 - TUB ASSEMBLY PARTS

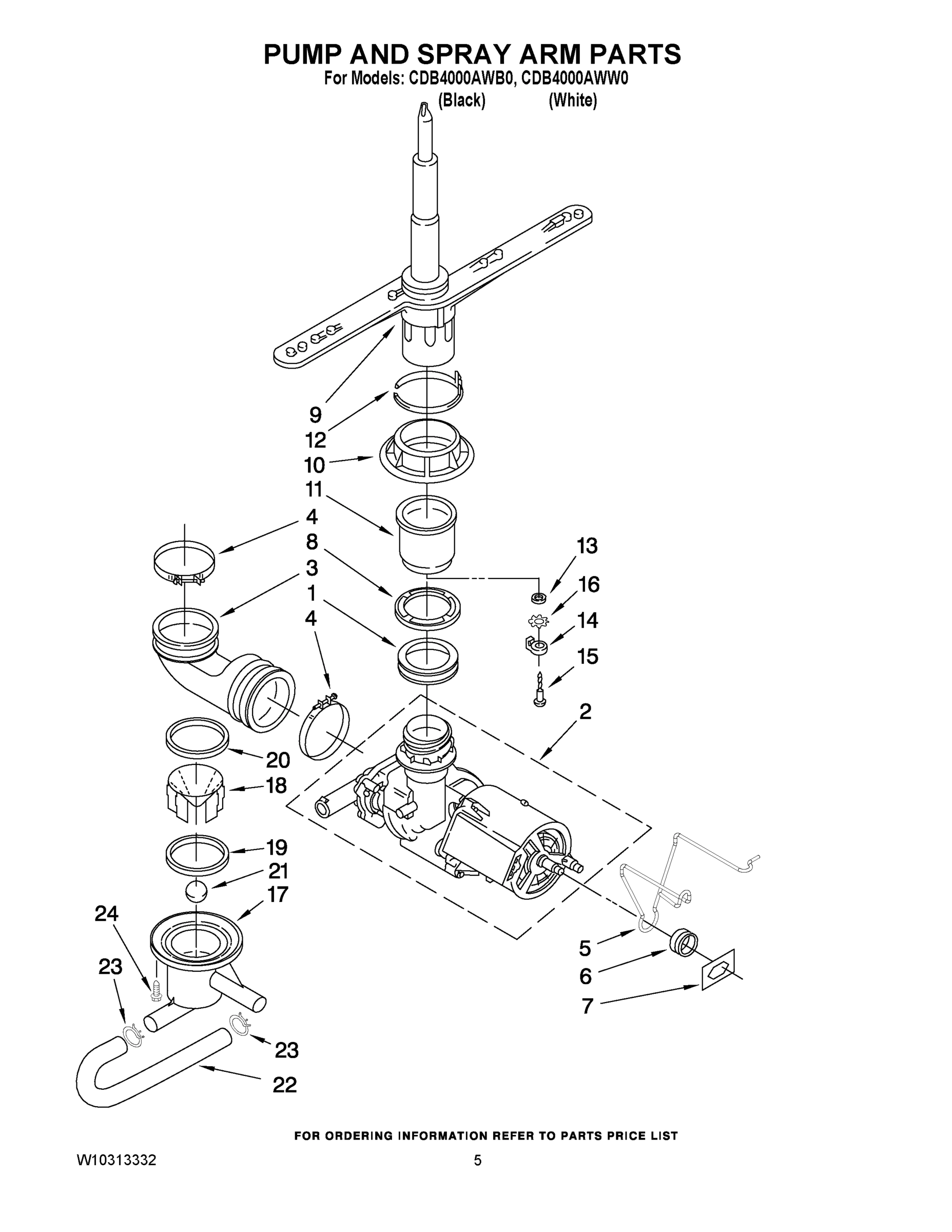

04 - PUMP AND SPRAY ARM PARTS

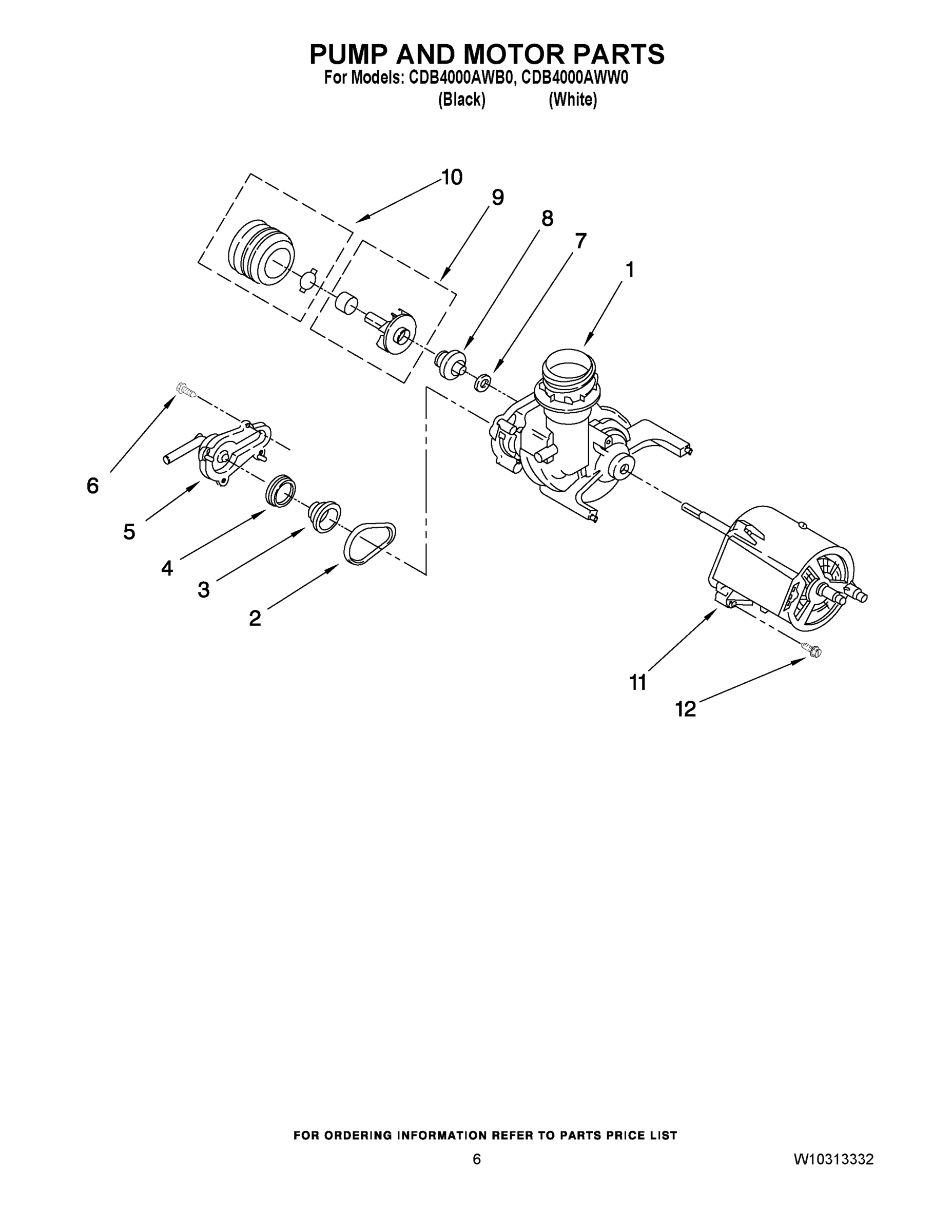

05 - PUMP AND MOTOR PARTS

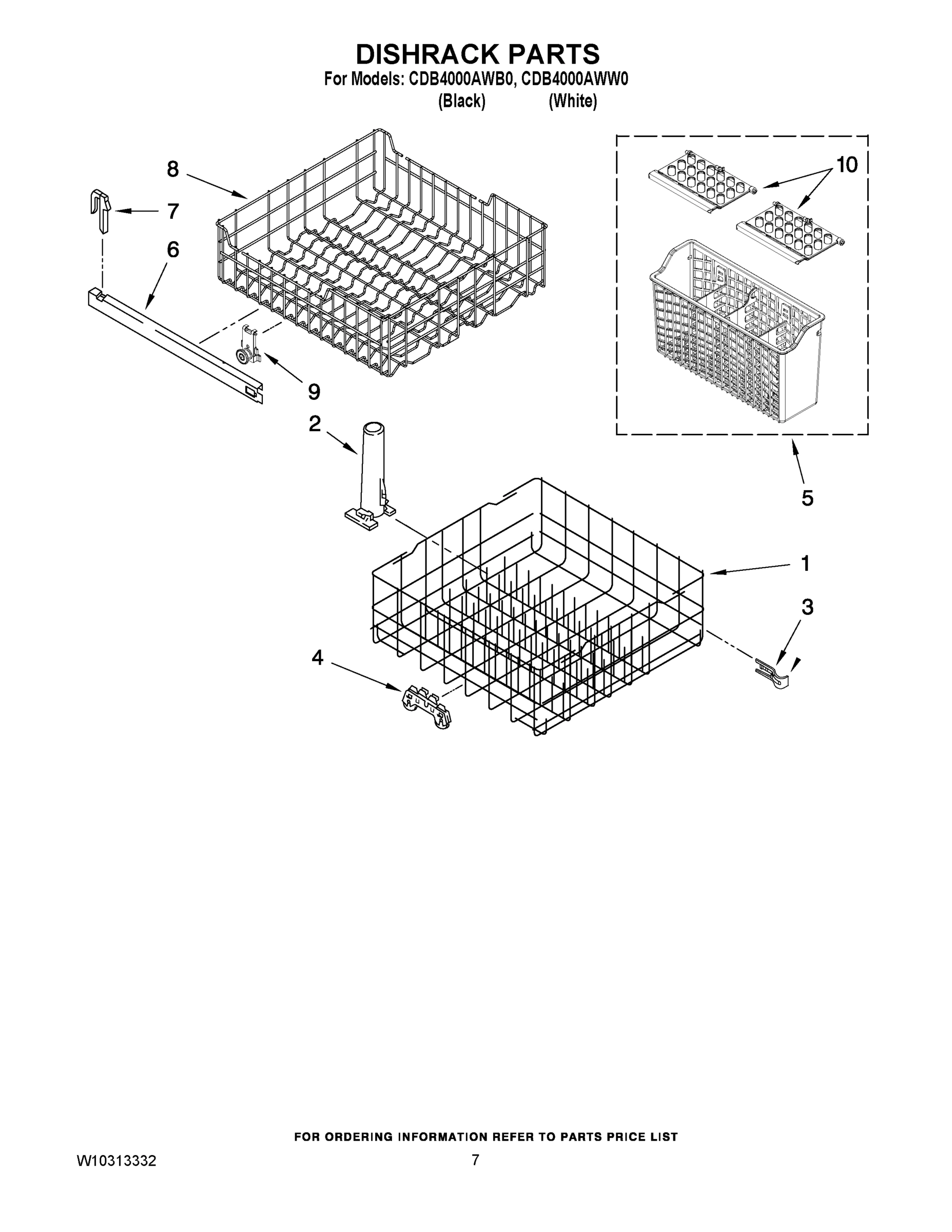

06 - DISHRACK PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag CDB4000AWB0 DISHWASHER
1
MAY 8535436 MAY 8535436 Contact Us For Availability
1
MAY W10039930 MAY W10039930 Contact Us For Availability
1
MAY W10130980 MAY W10130980 Contact Us For Availability
1
MAY W10224134 MAY W10224134 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCA MAY W10255095 Contact Us For Availability
1
Inner Door MAY 8528310 Contact Us For Availability
1
Tub Assembly MAY W10082657 Contact Us For Availability
1
MAY 3369037 MAY 3369037 Contact Us For Availability
1
MAY 3369011 MAY 3369011 Contact Us For Availability
1
MAY 8539225 MAY 8539225 Contact Us For Availability
2
MAY W10240220 MAY W10240220 Contact Us For Availability
2
MAY W10240221 MAY W10240221 Contact Us For Availability
2
MAY 3376066 MAY 3376066 Contact Us For Availability
2
Tub, Wheel Assembly MAY 8528831 Contact Us For Availability
2
PUMP & MOTOR ASSEMBLY MAY 3369015 Contact Us For Availability
2
MAY 3369031 MAY 3369031 Contact Us For Availability
2
MAY 8268825 MAY 8268825 Contact Us For Availability
3
SWITCH, ROCKER (BLACK) MAY 8051729 Contact Us For Availability
3
MAY 8051730 MAY 8051730 Contact Us For Availability
3
MAY 3369061 MAY 3369061 Contact Us For Availability
3
MAY 3368933 MAY 3368933 Contact Us For Availability
3
MAY 3369035 MAY 3369035 Contact Us For Availability
3
MAY 8563504 MAY 8563504 Contact Us For Availability
3
MAY 3385142 MAY 3385142 Contact Us For Availability
4
MAY 3369529 MAY 3369529 Contact Us For Availability
4
MAY 8519606 MAY 8519606 Contact Us For Availability
4
MAY 3374849 MAY 3374849 Contact Us For Availability
4
MAY 3400959 MAY 3400959 Contact Us For Availability
4
MAY 3369029 MAY 3369029 Contact Us For Availability
4
Wheel & Transport Assembly (4) Silverware MAY 8268645 Contact Us For Availability
5
MAY W10039490 MAY W10039490 Contact Us For Availability
5
MAY 8052027 MAY 8052027 Contact Us For Availability
5
MAY 3370389 MAY 3370389 Contact Us For Availability
5
MAY W10113908 MAY W10113908 Contact Us For Availability
5
MAY 3369030 MAY 3369030 Contact Us For Availability
5
MAY 8539107 MAY 8539107 Contact Us For Availability
6
MAY 8271510 MAY 8271510 Contact Us For Availability
6
Draw Bar (Upper Dispenser) MAY 3369000 Contact Us For Availability
6
MAY 302819 MAY 302819 Contact Us For Availability
6
MAY 8535657 MAY 8535657 Contact Us For Availability
6
MAY 3368921 MAY 3368921 Contact Us For Availability
6
MAY 3385089 MAY 3385089 Contact Us For Availability
7
MAY 8066017 MAY 8066017 Contact Us For Availability
7
Screw, 10-16 x 1/2 (4) MAY 343641 Contact Us For Availability
7
Pushnut, Motor Support MAY 3370856 Contact Us For Availability
7
MAY 3369020 MAY 3369020 Contact Us For Availability
7
MAY 8565920 MAY 8565920 Contact Us For Availability
8
Door Frame MAY 9743028 Contact Us For Availability
8
MAY 3368999 MAY 3368999 Contact Us For Availability
8
MAY 3378149 MAY 3378149 Contact Us For Availability
8
MAY 3369038 MAY 3369038 Contact Us For Availability
8
MAY 3385557 MAY 3385557 Contact Us For Availability
8
MAY W10164198 MAY W10164198 Contact Us For Availability
9
MAY 3380854 MAY 3380854 Contact Us For Availability
9
MAY 3378138 MAY 3378138 Contact Us For Availability
9
Screw, 8-32 MAY 3374720 Contact Us For Availability
9
MAY W10164258 MAY W10164258 Contact Us For Availability
9
MAY 3369013 MAY 3369013 Contact Us For Availability
9
WHEEL & AXLE ASSEMBLY (4) MAY W10204114 Contact Us For Availability
10
MAY 3369457 MAY 3369457 Contact Us For Availability
10
MAY 8066018 MAY 8066018 Contact Us For Availability
10
MAY W10082795 MAY W10082795 Contact Us For Availability
10
MAY 8268883 MAY 8268883 Contact Us For Availability
10
MAY 3369012 MAY 3369012 Contact Us For Availability
10
MAY 8539093 MAY 8539093 Contact Us For Availability
11
MAY 3369325 MAY 3369325 Contact Us For Availability
11
MAY 3372028 MAY 3372028 Contact Us For Availability
11
MAY 3369322 MAY 3369322 Contact Us For Availability
11
MAY 3371745 MAY 3371745 Contact Us For Availability
11
MAY 8283457 MAY 8283457 Contact Us For Availability
12
MAY 3368955 MAY 3368955 Contact Us For Availability
12
MAY 3371710 MAY 3371710 Contact Us For Availability
12
Deflector MAY 8528862 Contact Us For Availability
12
MAY 3369045 MAY 3369045 Contact Us For Availability
12
MAY 3368922 MAY 3368922 Contact Us For Availability
13
MAY 8573186 MAY 8573186 Contact Us For Availability
13
Cap, Wet Agent Assembly MAY 3378134 Contact Us For Availability
13
MAY W10082894 MAY W10082894 Contact Us For Availability
13
MAY 3369044 MAY 3369044 Contact Us For Availability
14
MAY 3376405 MAY 3376405 Contact Us For Availability
14
MAY 717273 MAY 717273 Contact Us For Availability
14
MAY 3371746 MAY 3371746 Contact Us For Availability
15
MAY 3400892 MAY 3400892 Contact Us For Availability
15
MAY 3400815 MAY 3400815 Contact Us For Availability
15
MAY 8268548 MAY 8268548 Contact Us For Availability
15
MAY 3371744 MAY 3371744 Contact Us For Availability
16
Cover Timer MAY 8051644 Contact Us For Availability
16
MAY 3371569 MAY 3371569 Contact Us For Availability
16
MAY W10219643 MAY W10219643 Contact Us For Availability
16
MAY 3371634 MAY 3371634 Contact Us For Availability
17
KNOB, TIMER (BLACK) MAY 8275308 Contact Us For Availability
17
MAY 8275309 MAY 8275309 Contact Us For Availability
17
Screw, 8-18 x 1/2 MAY 304392 Contact Us For Availability
17
Collector (Includes Items 20 & 22) MAY 8520839 Contact Us For Availability
18
FRONT PANEL (BLACK) MAY 3379375 Contact Us For Availability
18
Front Panel (White) MAY 3379376 Contact Us For Availability
18
MAY 8573061 MAY 8573061 Contact Us For Availability
18
MAY 8520841 MAY 8520841 Contact Us For Availability
19
MAY 3374010 MAY 3374010 Contact Us For Availability
19
Miscellaneous Parts Bag (Includes 2 Screws & MAY 3369816 Contact Us For Availability
19
Seal, Funnel MAY 8520843 Contact Us For Availability
20
Bearing, Spring, (2) MAY 3373234 Contact Us For Availability
20
MAY 3369177 MAY 3369177 Contact Us For Availability
21
MAY W10240307 MAY W10240307 Contact Us For Availability
21
MAY W10240308 MAY W10240308 Contact Us For Availability
21
SCREW 8-32 X .312 MAY 489399 Contact Us For Availability
21
MAY 3369178 MAY 3369178 Contact Us For Availability
22
MAY 8520842 MAY 8520842 Contact Us For Availability
23
Hose, Clamp MAY 371499 Contact Us For Availability
24
MAY 3369063 MAY 3369063 Contact Us For Availability
24
Screw, 10-16, Hi-Lo (4) MAY 8534039 Contact Us For Availability
25
Screw, 8-16 x 1/2 MAY 304231 Contact Us For Availability
26
MAY 3368928 MAY 3368928 Contact Us For Availability
28
MAY 3374343 MAY 3374343 Contact Us For Availability
29
MAY 8318218 MAY 8318218 Contact Us For Availability
30
MAY 3369067 MAY 3369067 Contact Us For Availability
31
MAY 8318219 MAY 8318219 Contact Us For Availability
32
MAY 8519552 MAY 8519552 Contact Us For Availability
33
MAY 717488 MAY 717488 Contact Us For Availability
34
TOE, PANEL (BLACK) MAY 3368942 Contact Us For Availability
34
Toe, Panel (White) MAY 9742861 Contact Us For Availability
35
ACCESS PANEL (BLACK) MAY 3379387 Contact Us For Availability
35
Access Panel (White) MAY 3379388 Contact Us For Availability
36
MAY 302868 MAY 302868 Contact Us For Availability
37
MAY 3369414 MAY 3369414 Contact Us For Availability
38
MAY 3374077 MAY 3374077 Contact Us For Availability
41
MAY W10136706 MAY W10136706 Contact Us For Availability
42
Cover Assembly, Terminal Box MAY 300068 Contact Us For Availability
43
Hose Clamp MAY 301958 Contact Us For Availability
44
Hose Clamp MAY 356138 Contact Us For Availability
45
MAY 3379740 MAY 3379740 Contact Us For Availability
46
MAY 3400014 MAY 3400014 Contact Us For Availability
47
MAY 3378128 MAY 3378128 Contact Us For Availability
49
MAY 8052018 MAY 8052018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Almond) MAY 350956 Contact Us For Availability
NI
SIDE PANEL KITS (WHITE) MAY 4317925 Contact Us For Availability
NI
SIDE PANEL KITS (ALMOND) MAY 4317929 Contact Us For Availability
NI
DOOR SPRING KIT (HEAVY DUTY) MAY 4318050 Contact Us For Availability
NI
DISHRACK REPAIR VINYL TOUCH-UP (BLUE) MAY 675576 Contact Us For Availability
NI
DISHRACK REPAIR VINYL TOUCH-UP (WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR VINYL TOUCH-UP (GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 72107 MAY 72107 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 qt.) (Black (Uncut)) MAY 799340 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 qt.) (Almond (Uncut)) MAY 978883 Contact Us For Availability
× ![]()
