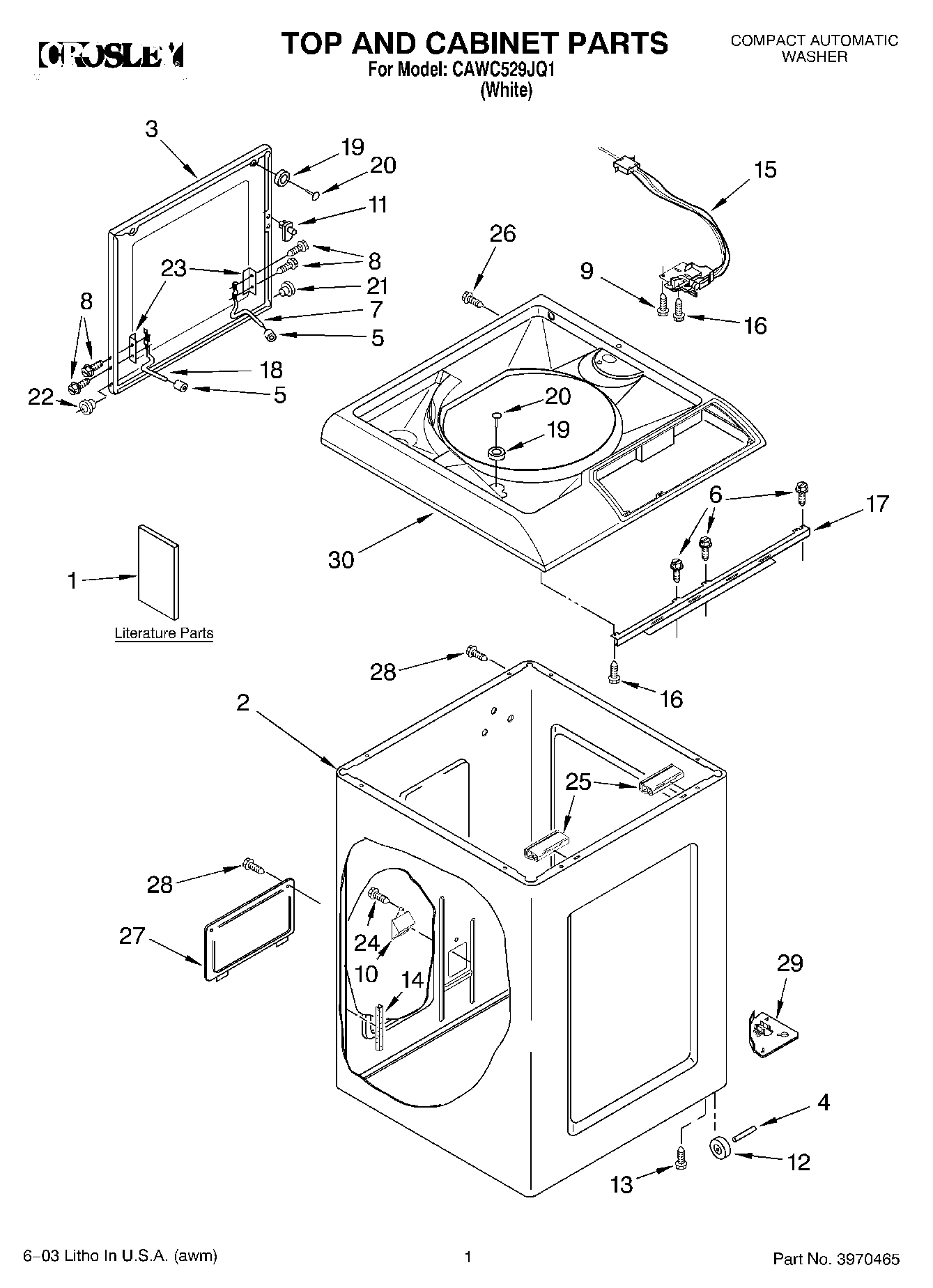

Model Whirlpool CAWC529JQ1 COMPACT AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Literature Parts (Energy Guide) WPL LIT3969060 Contact Us For Availability

1

Literature Parts (Wiring Diagram & Tech Sheet WPL LIT3970088 Contact Us For Availability

1

Screw WPL 3428430 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

2

Cabinet WPL 3970475 Contact Us For Availability

2

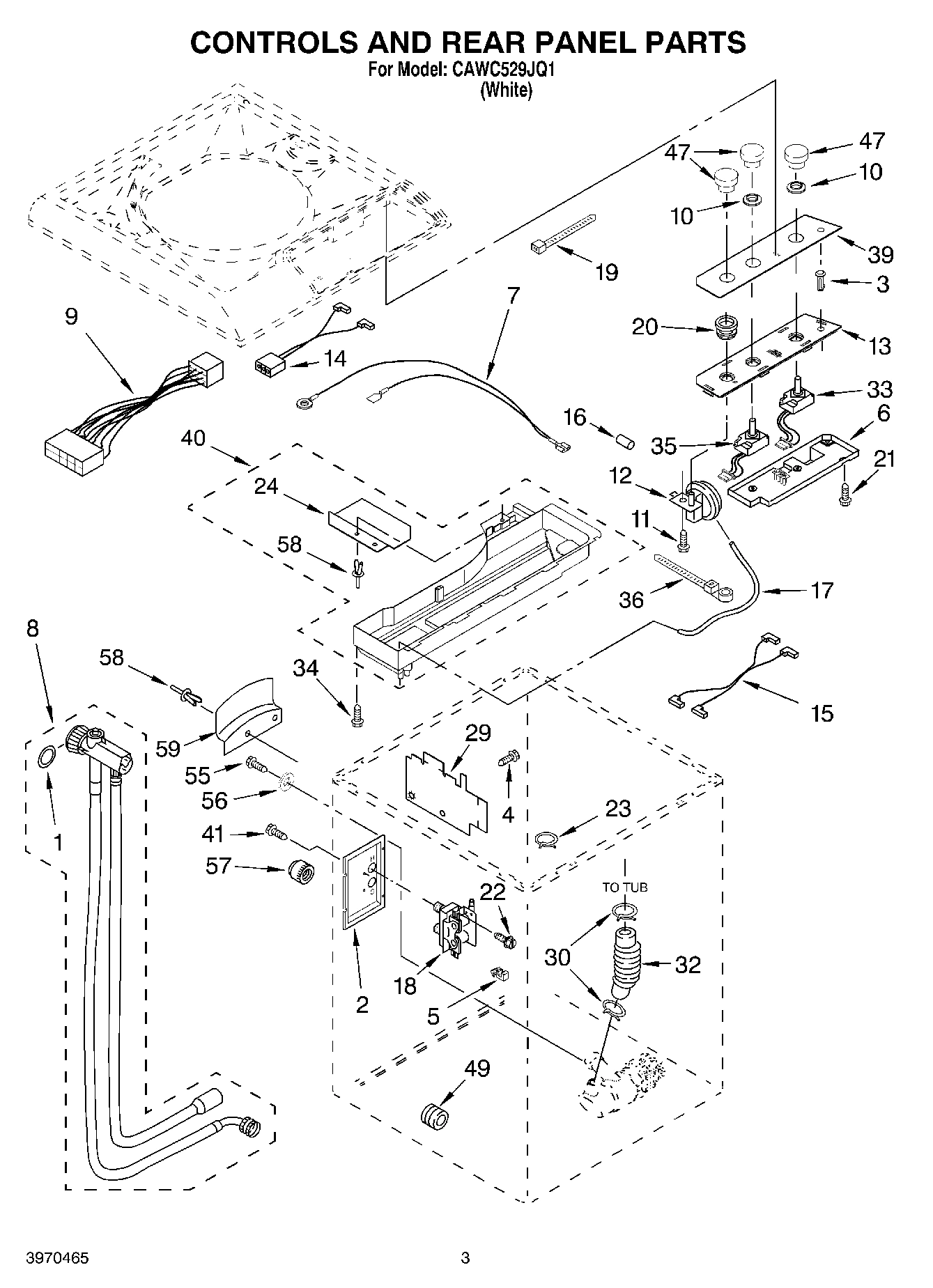

Bracket-Valve WPL 3935155 Contact Us For Availability

2

Washer WPL 3429750 Contact Us For Availability

3

W11700520 Whirlpool Screw Backorder WPL W11700520 $8.11

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3967051 Whirlpool Strap Backorder WPL WP3967051 $3.70

3

Lid WPL 3935590 Contact Us For Availability

3

Extension, Start-Pause WPL 3935357 Contact Us For Availability

3

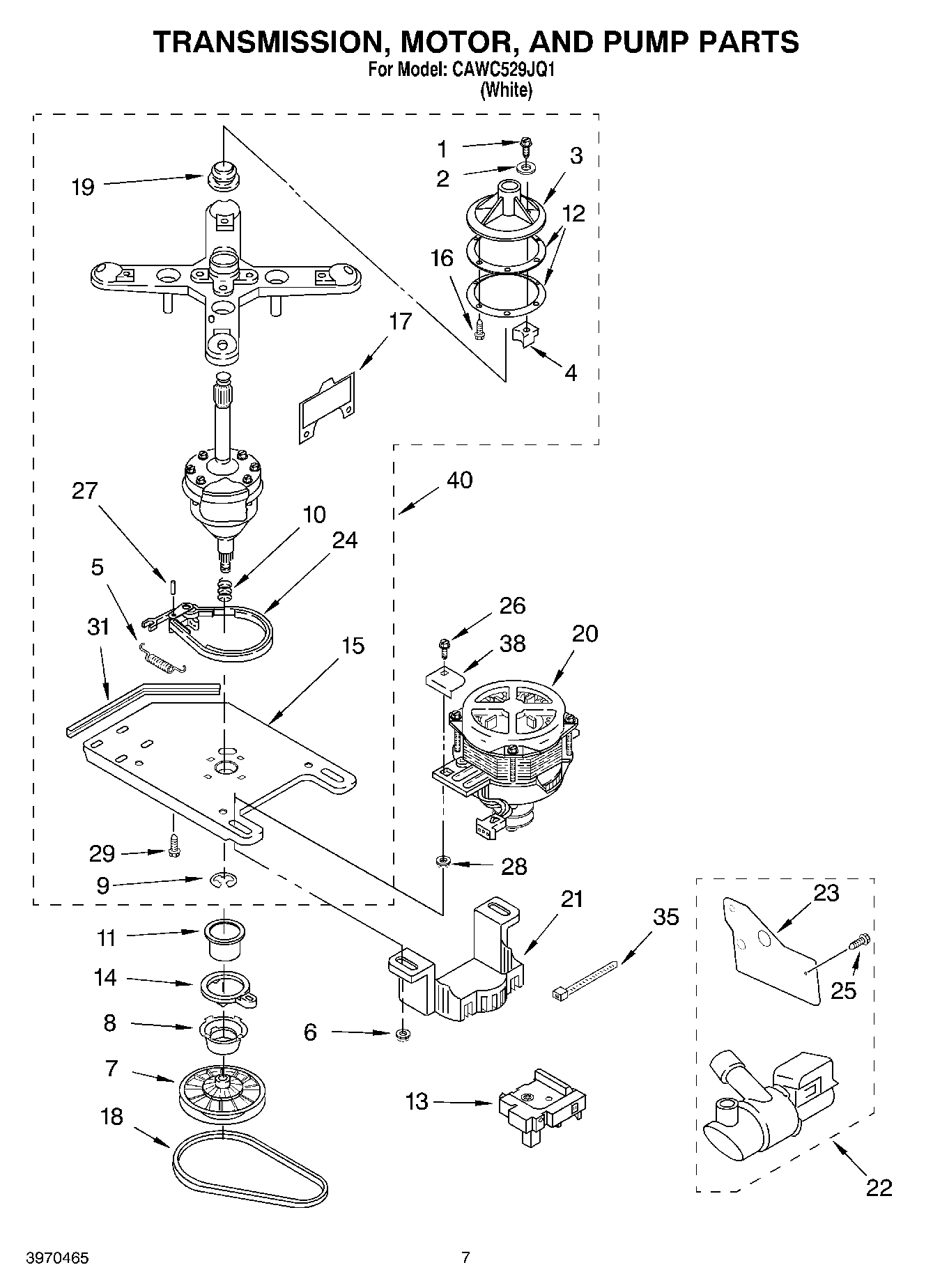

Hub, Drive WPL 3970053 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability

4

Pin, Wheel WPL 3935130 Contact Us For Availability

4

Screw WPL 3429189 Contact Us For Availability

4

Saddle Block WPL 3428429 Contact Us For Availability

5

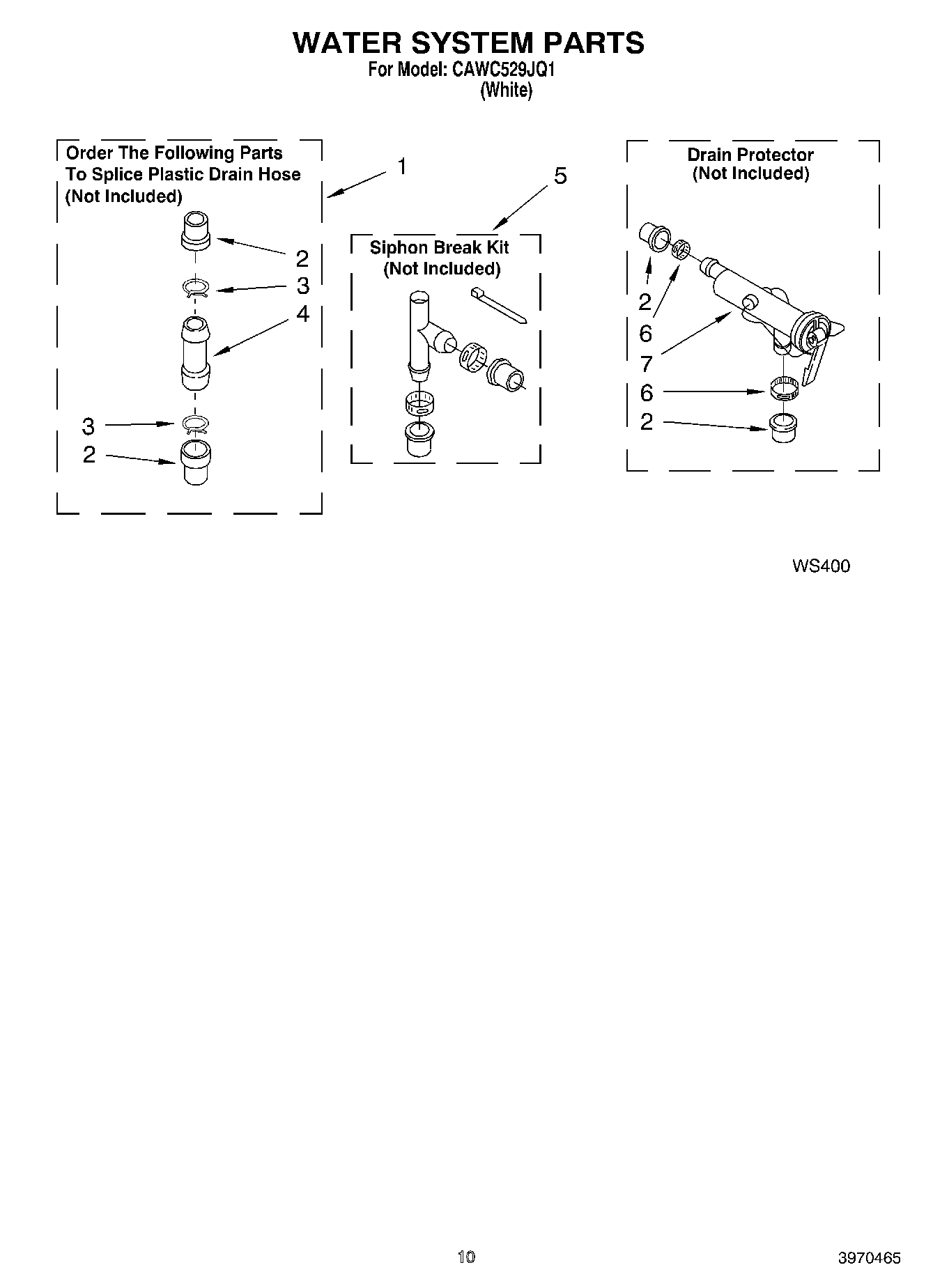

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Capacitor WPL 3429938 Contact Us For Availability

5

Clip, Harness WPL 3935875 Contact Us For Availability

5

Spring, Brake WPL 3428342 Contact Us For Availability

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

49971 Whirlpool Compact Dryer Stand, White Backorder WPL 49971 $270.85

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

6

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

6

Timer/Control Board WPL 3970439 Contact Us For Availability

6

Nut, Lock WPL 3934661 Contact Us For Availability

7

WP3969019 Whirlpool Vacuum Break Backorder WPL WP3969019 $3.66

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Jumper-Wire WPL 3935929 Contact Us For Availability

8

W10849778 Whirlpool Hose Assembly Backorder WPL W10849778 $139.12

8

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

8

Cam, Splutch WPL 3428378 Contact Us For Availability

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

9

Harness, Control Board WPL 3970202 Contact Us For Availability

10

Cover, Pump WPL 3428525 Contact Us For Availability

10

Seal WPL 3935353 Contact Us For Availability

10

Spring, Splutch WPL 3970556 Contact Us For Availability

11

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

11

Screw, Switch Mtg. WPL 3935602 Contact Us For Availability

11

Slider, Splutch WPL 3428380 Contact Us For Availability

12

Switch, Water Level WPL 3966789 Contact Us For Availability

12

Caster (4) WPL 3934872 Contact Us For Availability

12

Gasket, Hub (2) WPL 3428179 Contact Us For Availability

13

Bracket, Control (Must Order No. 3 And No. 3 WPL 3967605 Contact Us For Availability

13

Brake Actuator WPL 3970266 Contact Us For Availability

14

Harness, Lid Switch WPL 3970203 Contact Us For Availability

14

Cam Ring, Splutch WPL 3428379 Contact Us For Availability

15

285935 Whirlpool Lid Switch Backorder WPL 285935 $45.99

15

Harness, Pressure Switch WPL 3970204 Contact Us For Availability

15

Motor Plate & Bearing Asm WPL 3969965 Contact Us For Availability

16

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

16

Screw (6) WPL 3934714 Contact Us For Availability

17

Hose, Pressure Switch WPL 3969225 Contact Us For Availability

17

Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability

17

Shield, Motor Splash WPL 3967307 Contact Us For Availability

18

Drive Belt WPL 3934700 Contact Us For Availability

18

Valve, Water Mixing WPL 3967755 Contact Us For Availability

18

Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability

19

Bumper WPL 3935442 Contact Us For Availability

20

Seal, Pressure Switch WPL 3935354 Contact Us For Availability

20

Motor, Main Drive WPL 3934201 Contact Us For Availability

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability

Screw, Control Board (3) WPL 3934036 Contact Us For Availability

Shield, Pulley WPL 3429190 Contact Us For Availability

22

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

22

Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability

22

Pump (Complete) WPL 3970171 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

23

Clamp, Hose WPL 661581 Contact Us For Availability

23

Shield WPL 3967958 Contact Us For Availability

24

Shield, Harness WPL 3935672 Contact Us For Availability

24

Brake Band Asm WPL 3428323 Contact Us For Availability

25

Extrude-Top (2) WPL 3935201 Contact Us For Availability

25

Screw WPL 3967955 Contact Us For Availability

26

Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability

27

Panel-Cabinet WPL 3970473 Contact Us For Availability

27

Pin, Brake Band WPL 3934183 Contact Us For Availability

28

90984 Whirlpool Nut Backorder WPL 90984 $9.13

28

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability

Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability

Shield, Water Valve WPL 3935995 Contact Us For Availability

Screw, 5/16 x 3/4 WPL 3934726 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

Top WPL 3968521 Contact Us For Availability

31

Protector, Edge WPL 3429705 Contact Us For Availability

32

Hose, Pump To Tub WPL 3429900 Contact Us For Availability

33

Switch, Cycle Selection WPL 3966207 Contact Us For Availability

34

Screw, Top Shield (3) WPL 3935634 Contact Us For Availability

35

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

35

Switch, Water Temperature WPL 3966208 Contact Us For Availability

38

Shield, Motor Connector WPL 3430197 Contact Us For Availability

39

Panel, Console WPL 3935529 Contact Us For Availability

40

Transmission Kit WPL 3966743 Contact Us For Availability

40

Top, Shield Asm WPL 3970443 Contact Us For Availability

41

Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability

47

Knob, Temperature & Cycle Selection WPL 3968519 Contact Us For Availability

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability

55

Screw WPL 3400038 Contact Us For Availability

56

W10903204 Whirlpool Refrigerator Washer Backorder WPL W10903204 $4.03

57

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

58

Rivet (2) WPL 3430186 Contact Us For Availability

59

Bracket, Hose Storage WPL 356499 Contact Us For Availability
