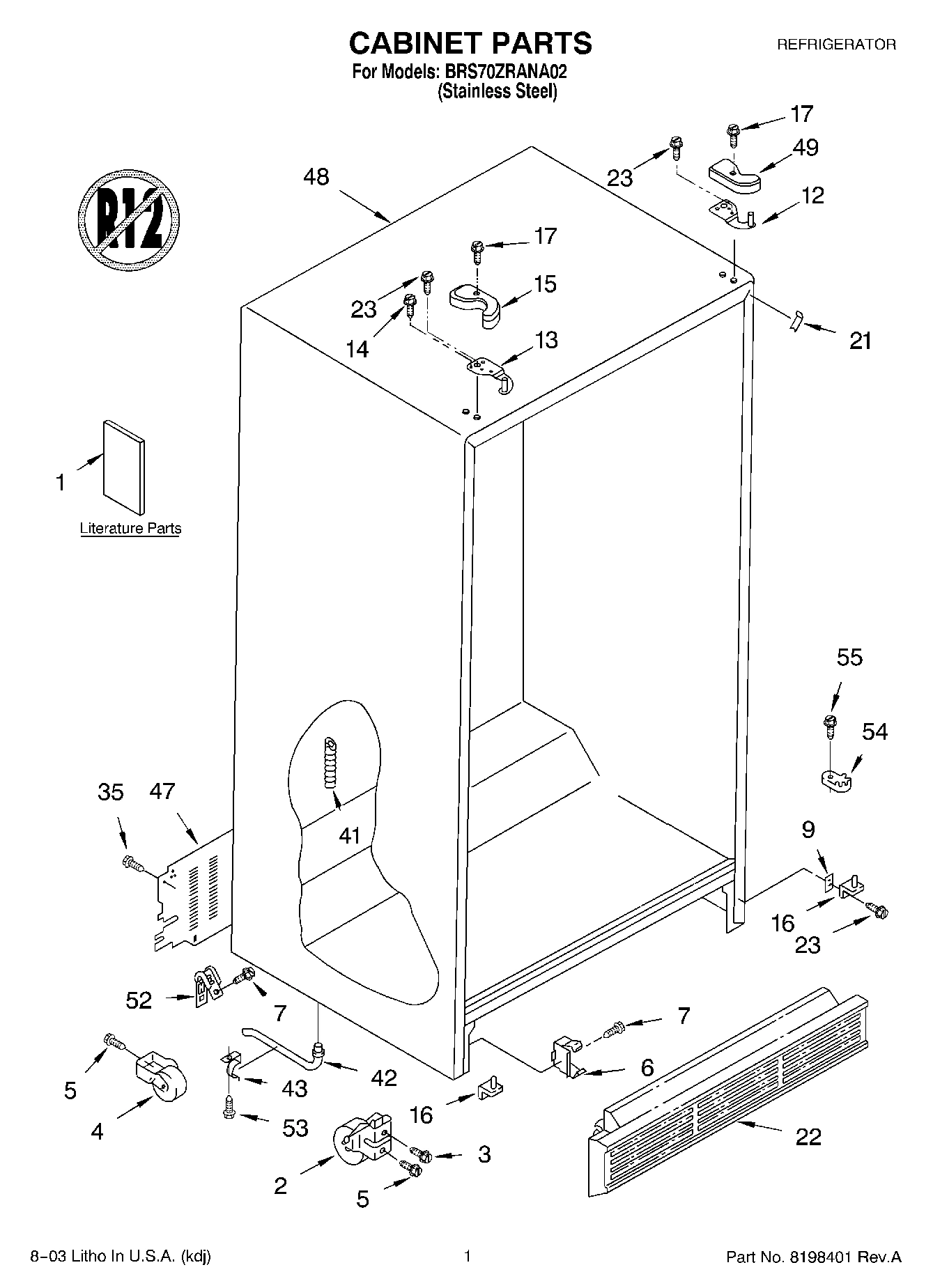

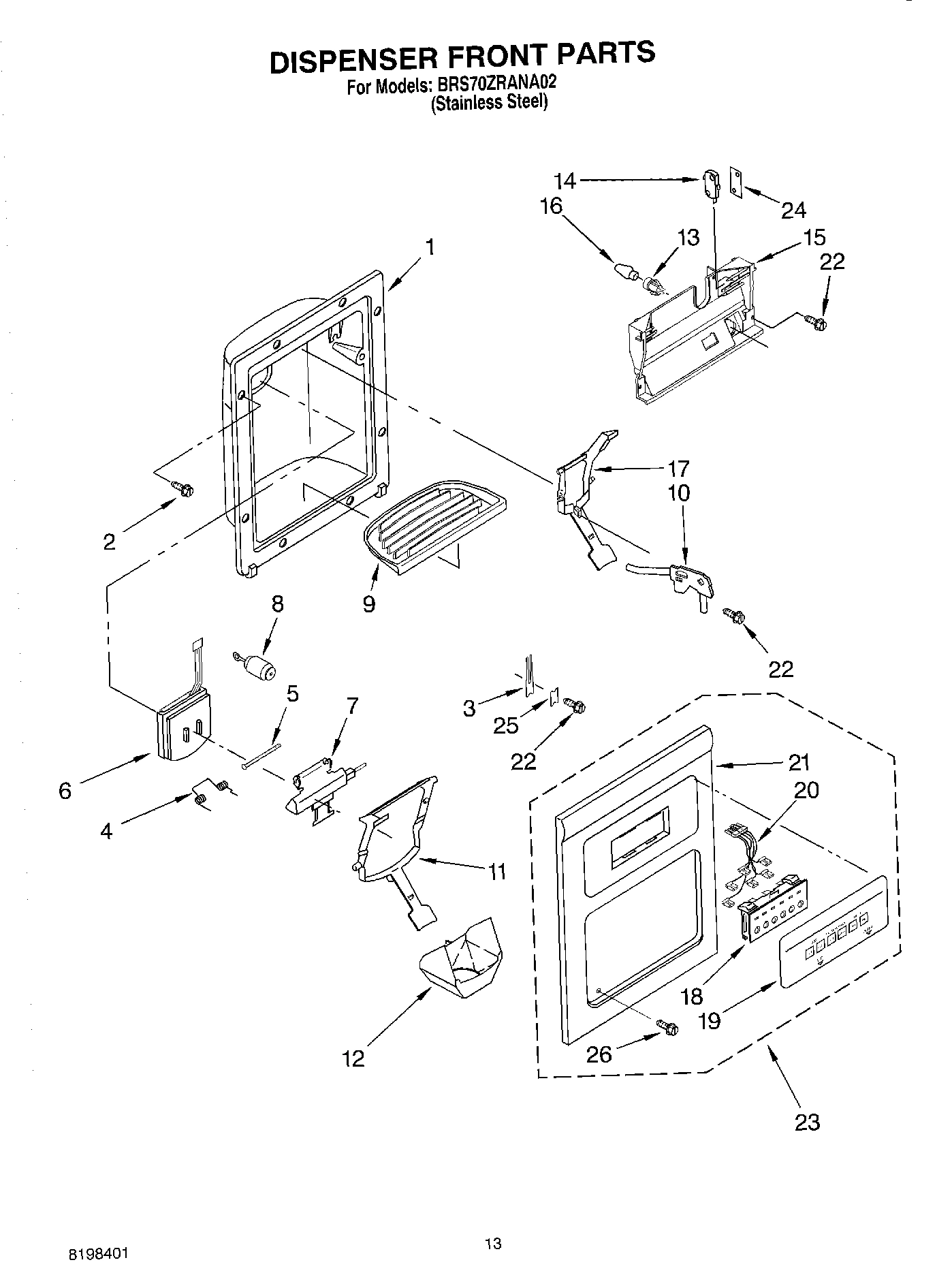

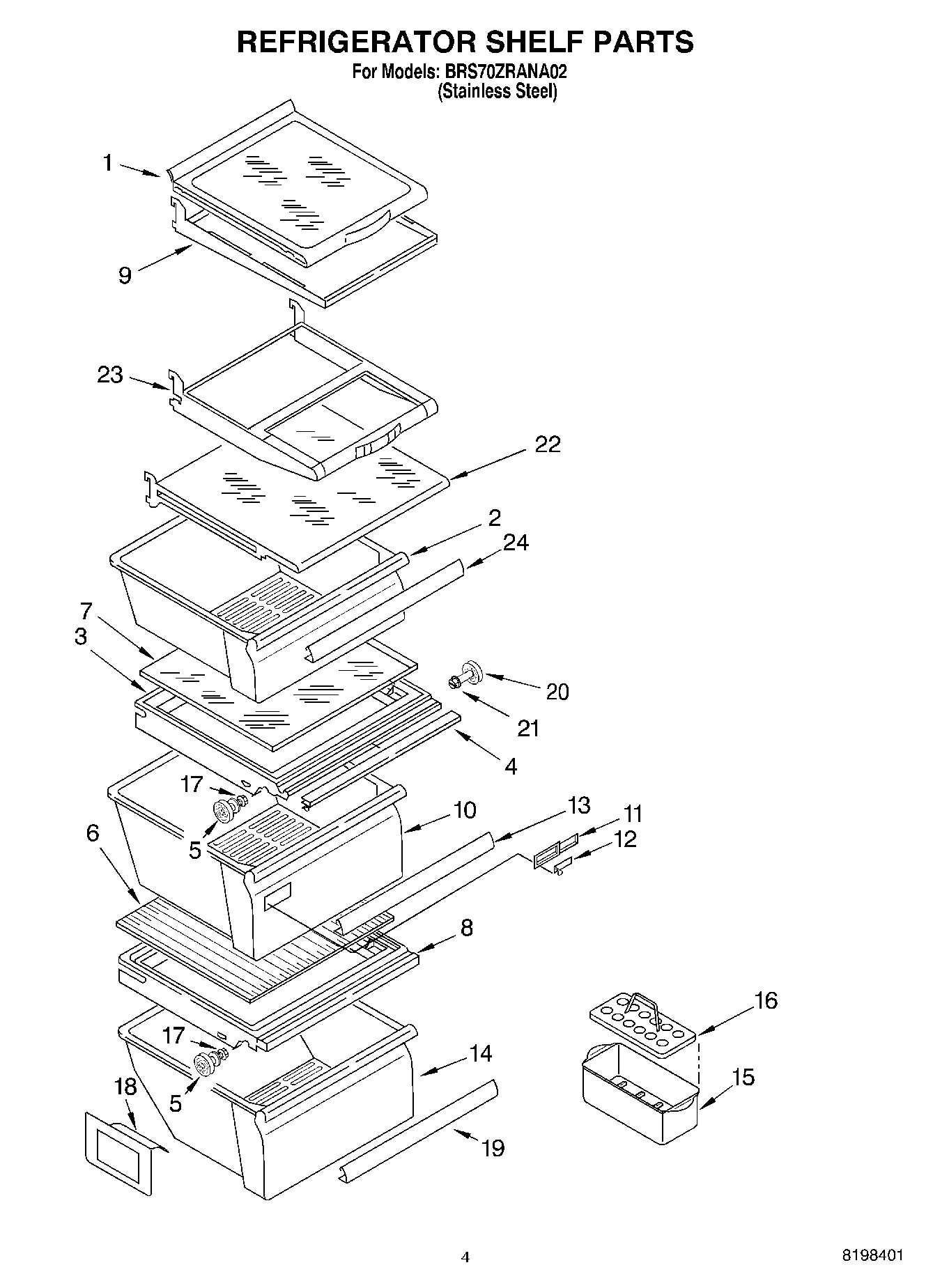

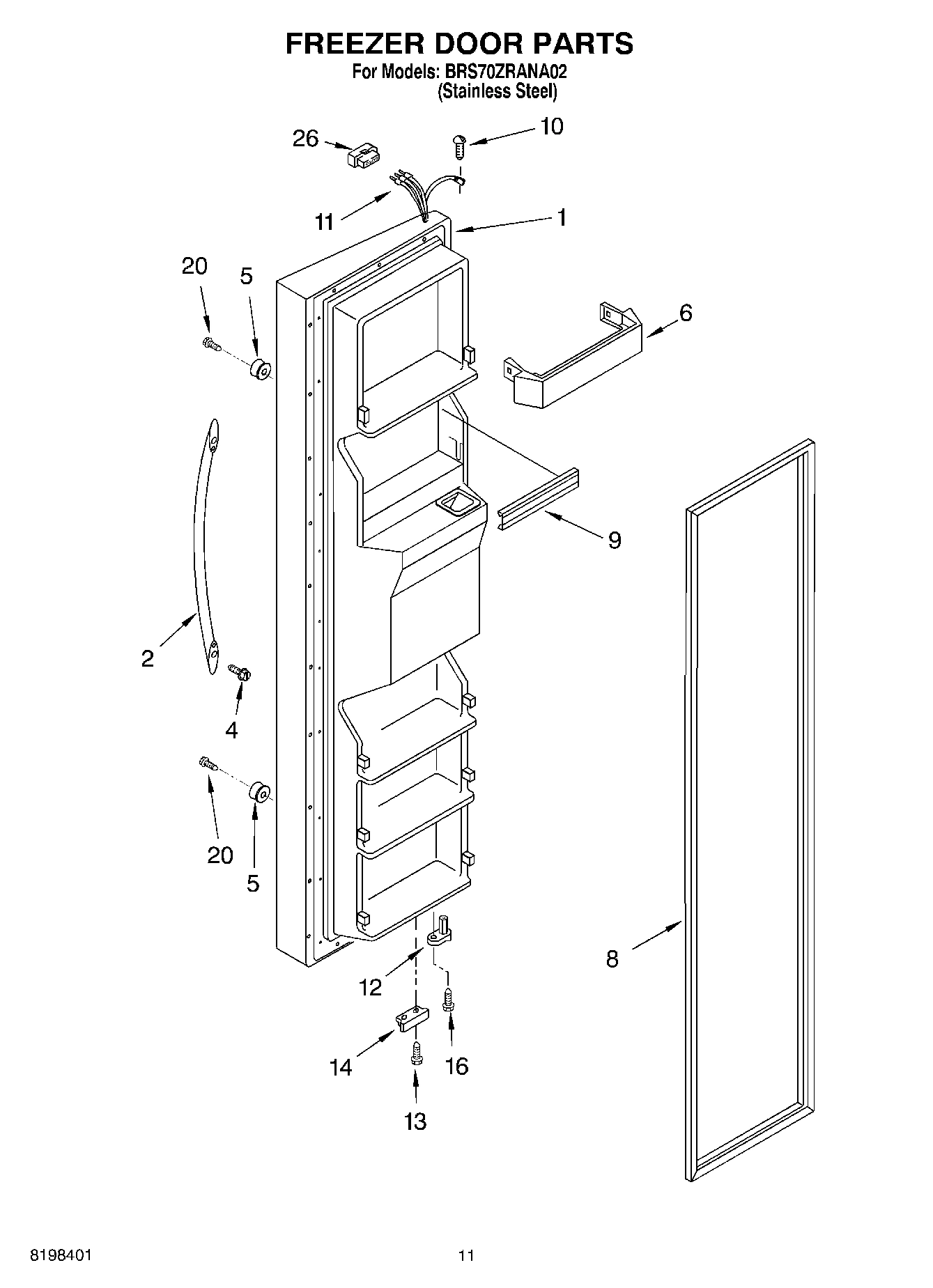

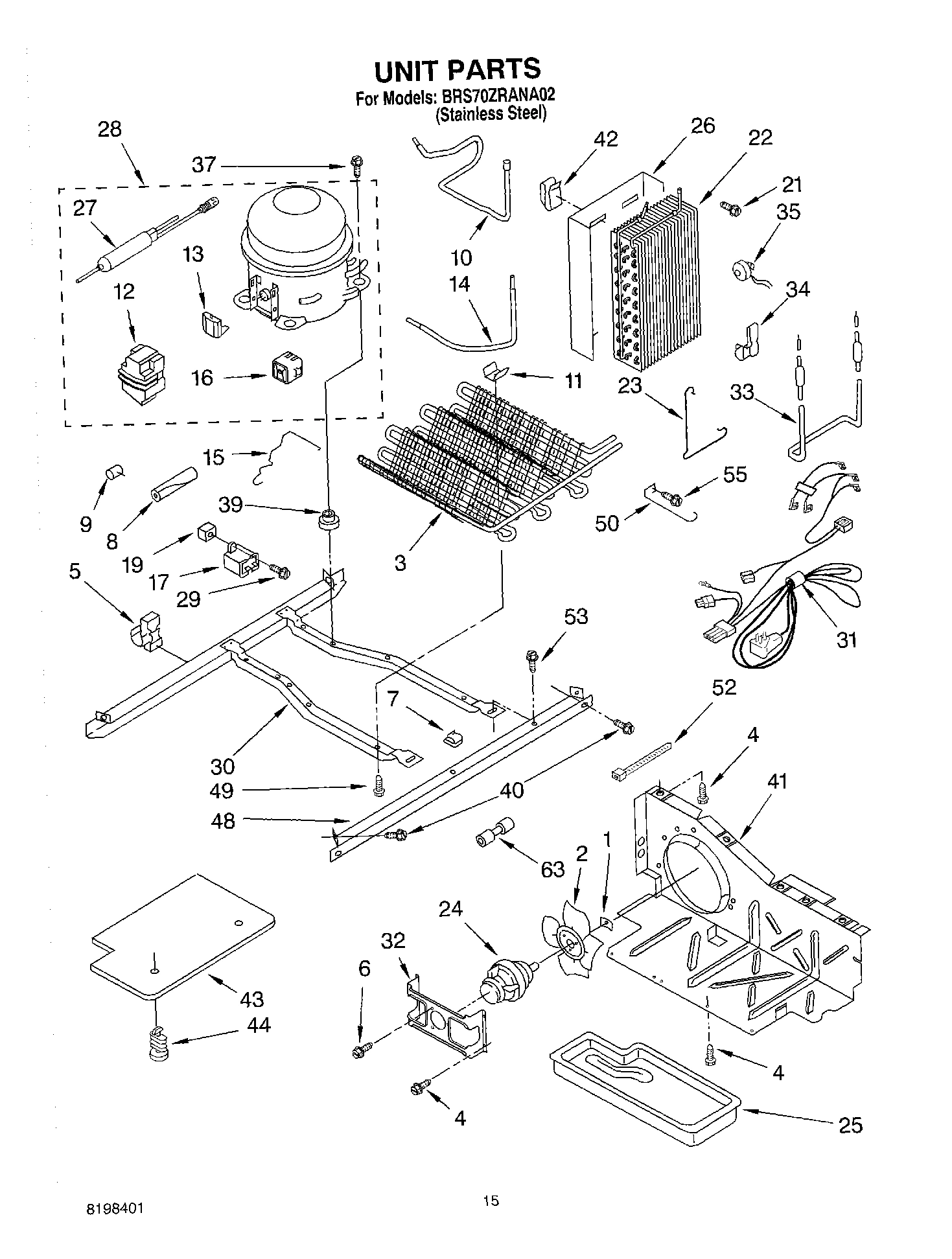

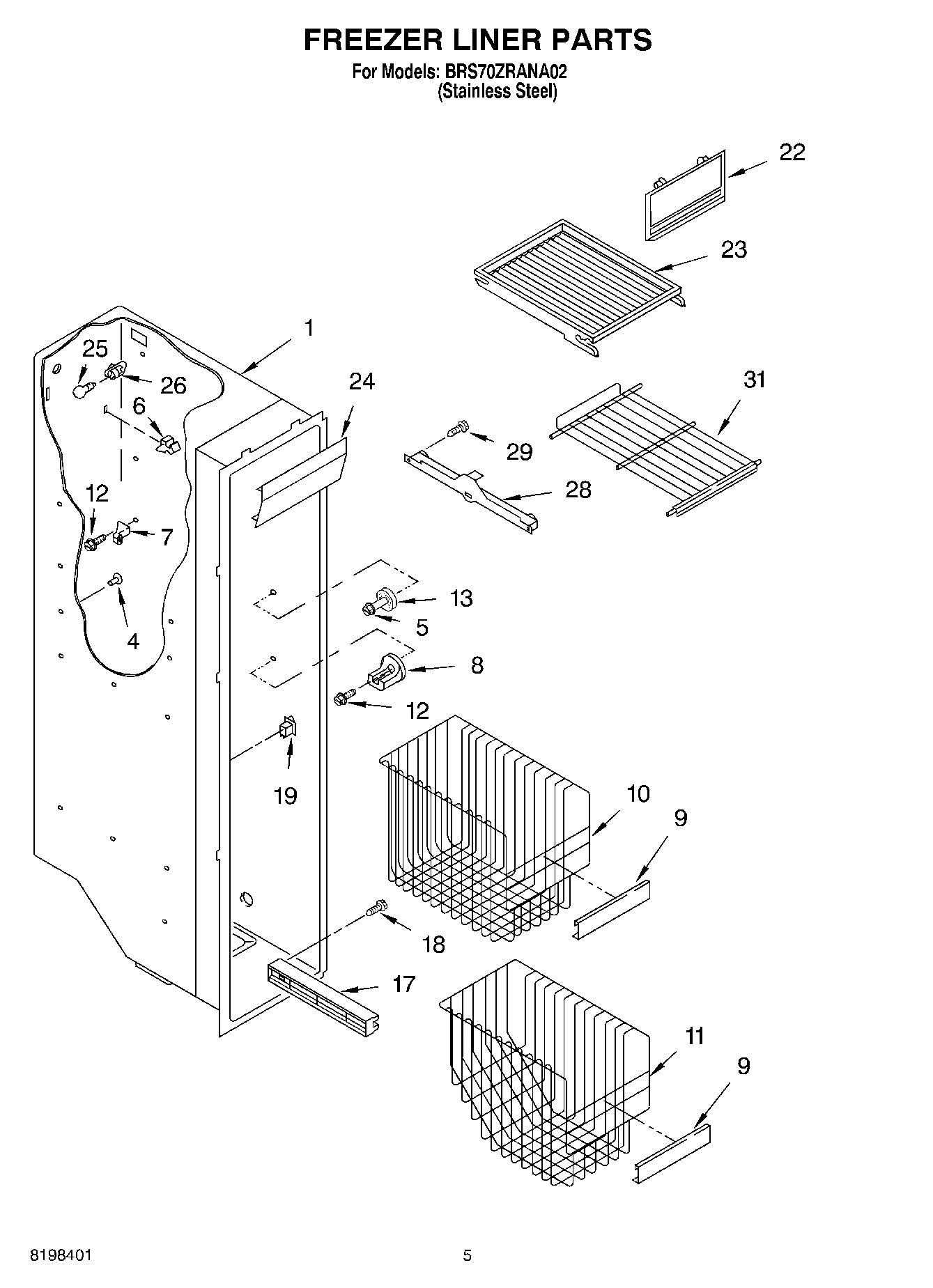

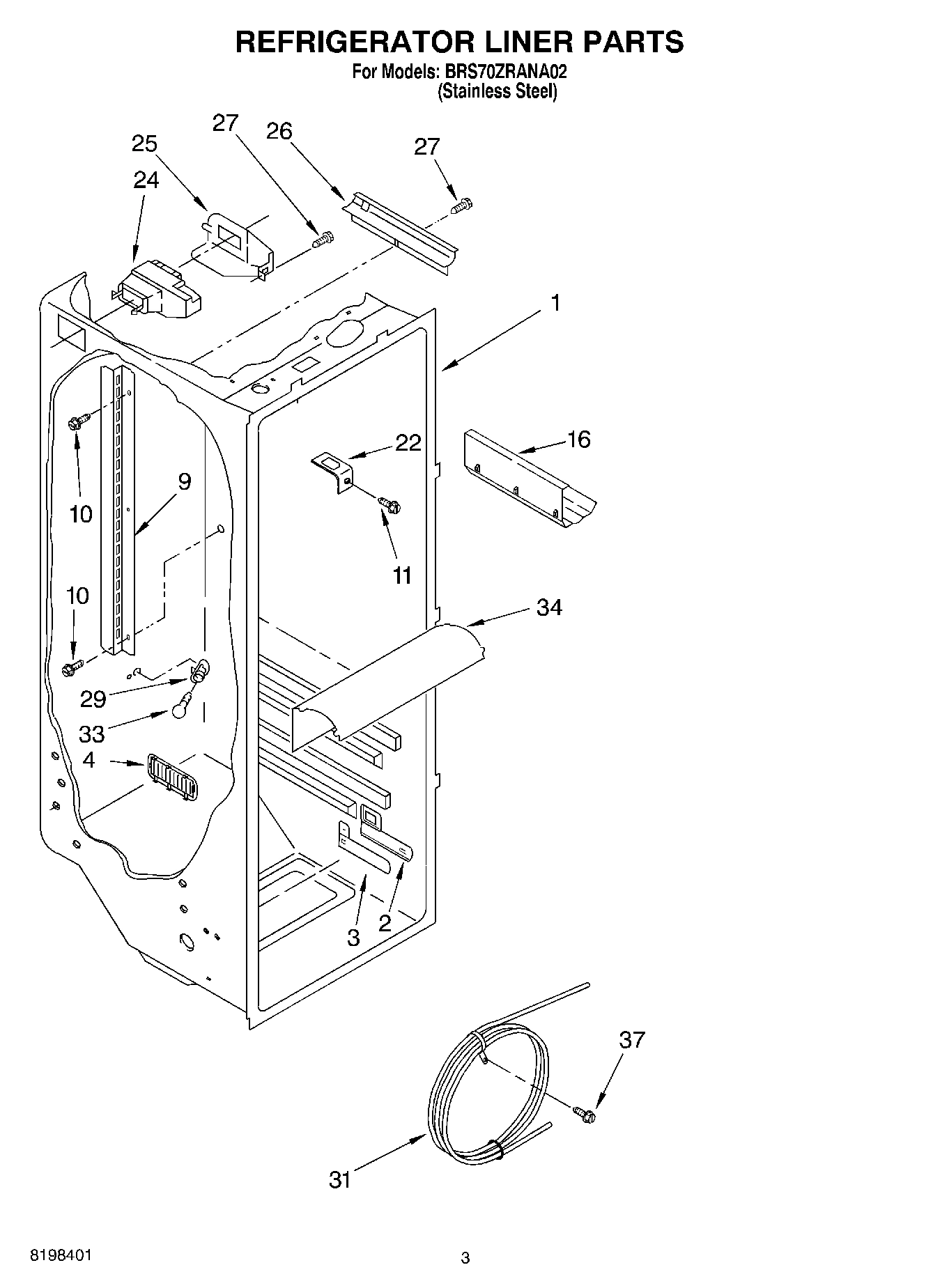

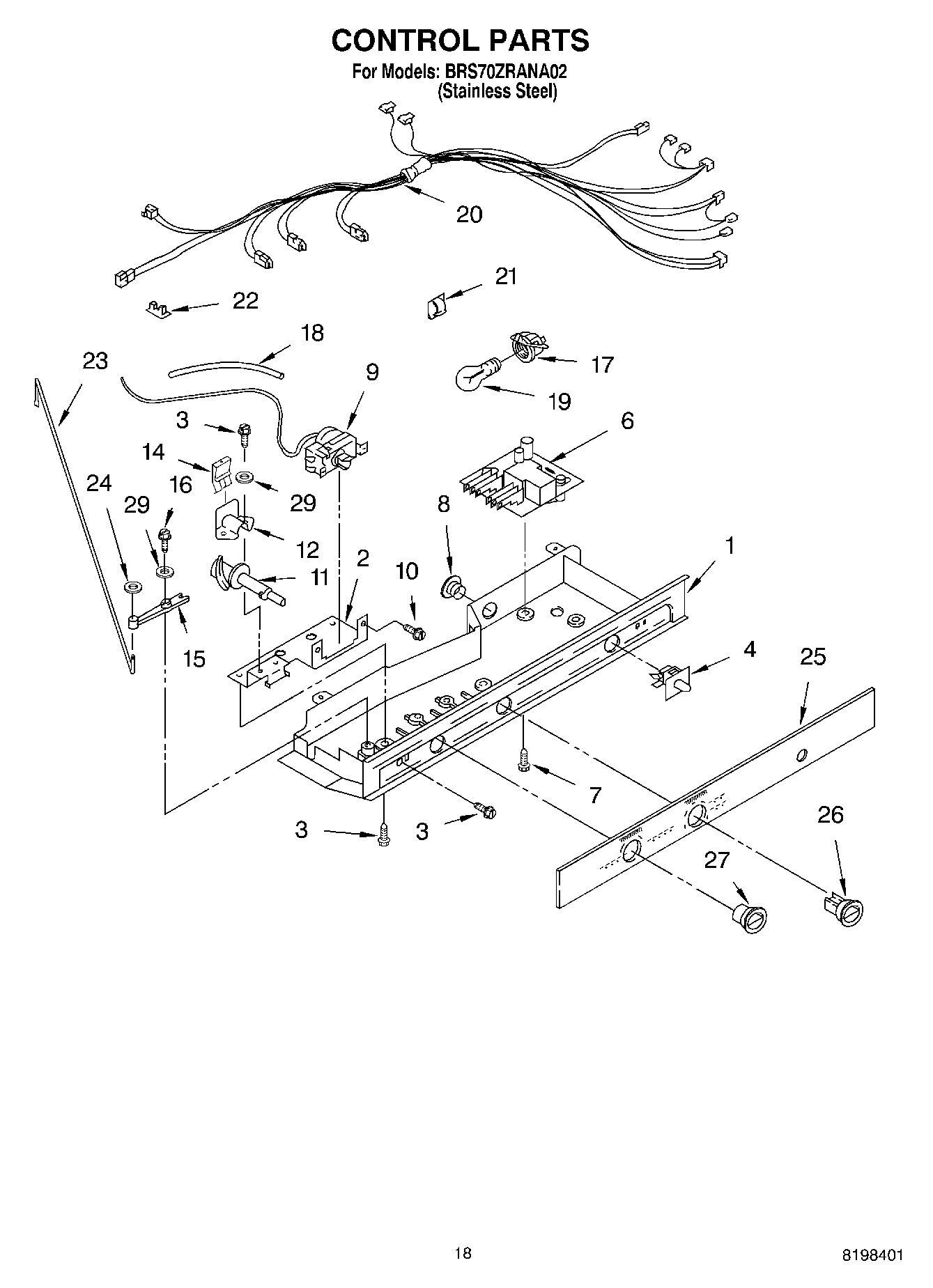

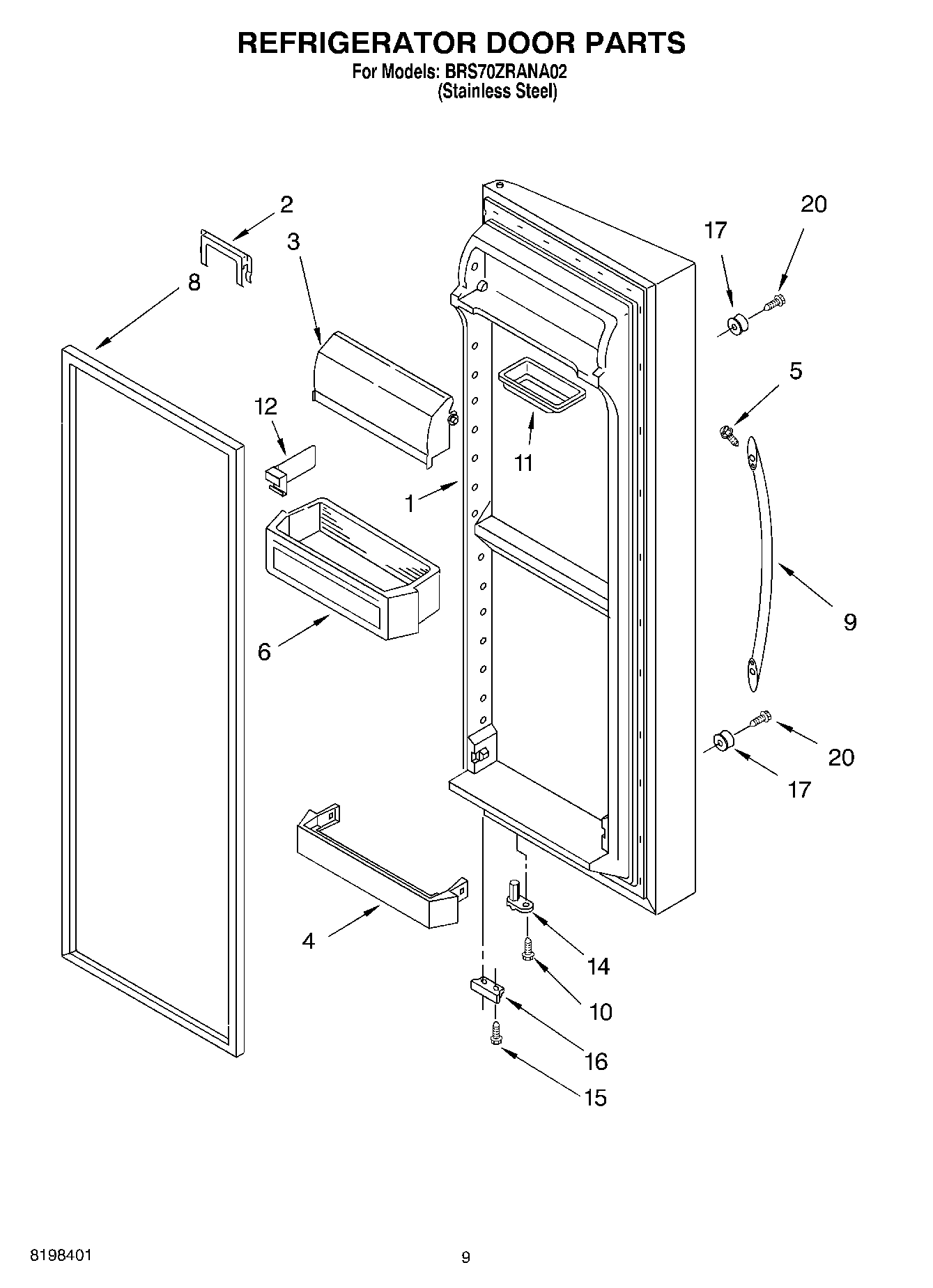

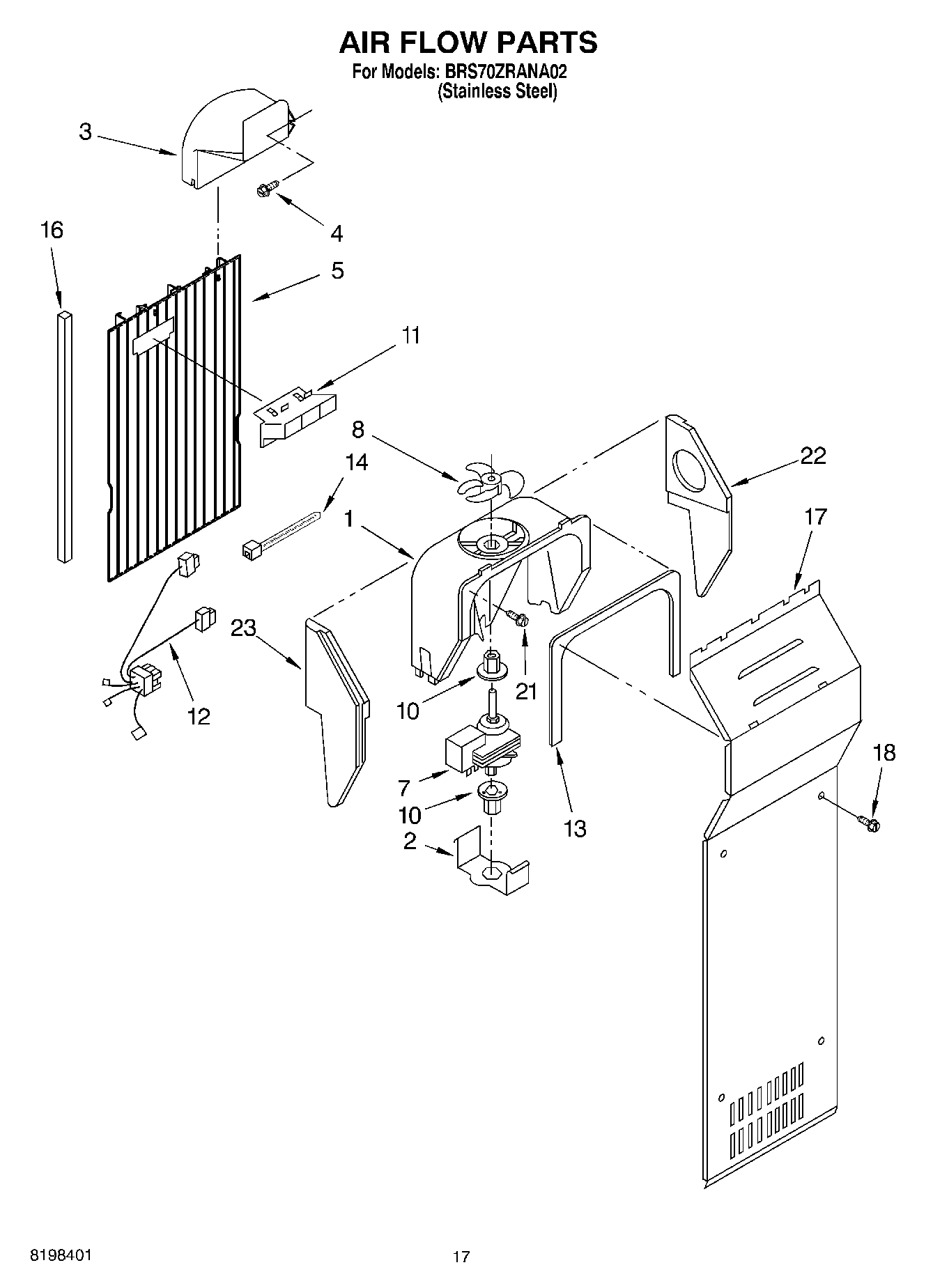

Model Whirlpool BRS70ZRANA02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2200136 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI21038A8 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) WPL 2254938SB Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Retainer, Bottle WPL 2173643 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $41.66

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $37.48

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

5

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Screw WPL 98654 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $26.50

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $88.09

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $107.31

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Stud, Rear WPL 2196207 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $37.75

9

Trim, Basket WPL 2195905 Contact Us For Availability

9

Handle, Center (Black) WPL 2188635S Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Basket, Tall WPL 2181765 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Basket, Slope WPL 2181764 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

Divider, Bin WPL 2195496 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

13

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Pivot Arm WPL 1110559 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Start Device, Combination (Start Relay and Ov WPL 2220475 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability

Stud, Handle WPL 2203690 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

Screw Grommet WPL 509812 Contact Us For Availability

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

20

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

20

Control Box Harness WPL 2187554 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Shelf, Top Compartment WPL 2194297 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $43.29

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Heat Shield WPL 2149294 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

31

Unit, Harness WPL 2187509 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

50

GUARD-FAN Backorder WPL 1110663 $25.31

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI21043A7 Contact Us For Availability

and Optional Parts Not Included WPL ARI21044A6 Contact Us For Availability

REFRIG WPL ARI21045A7 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
