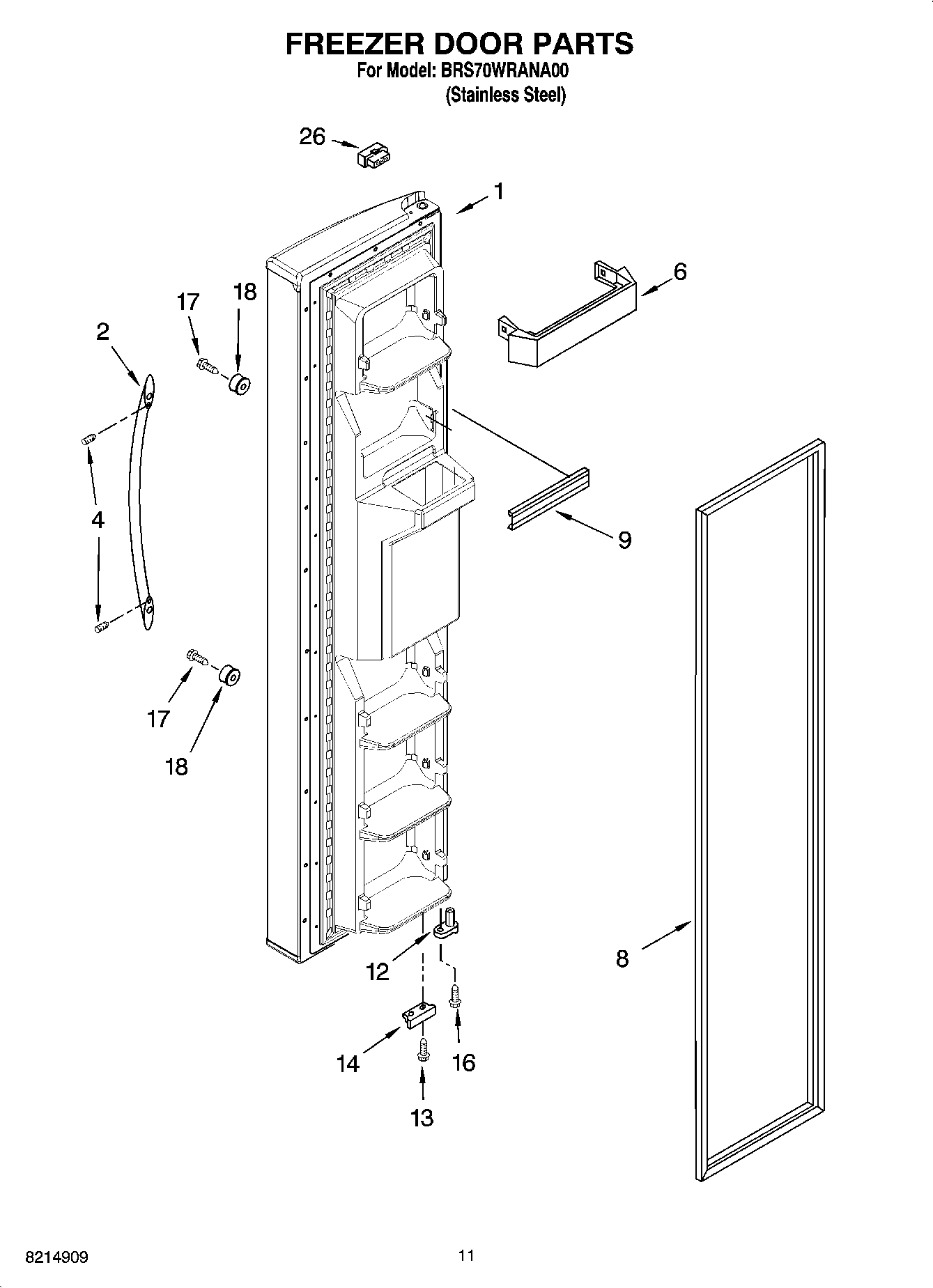

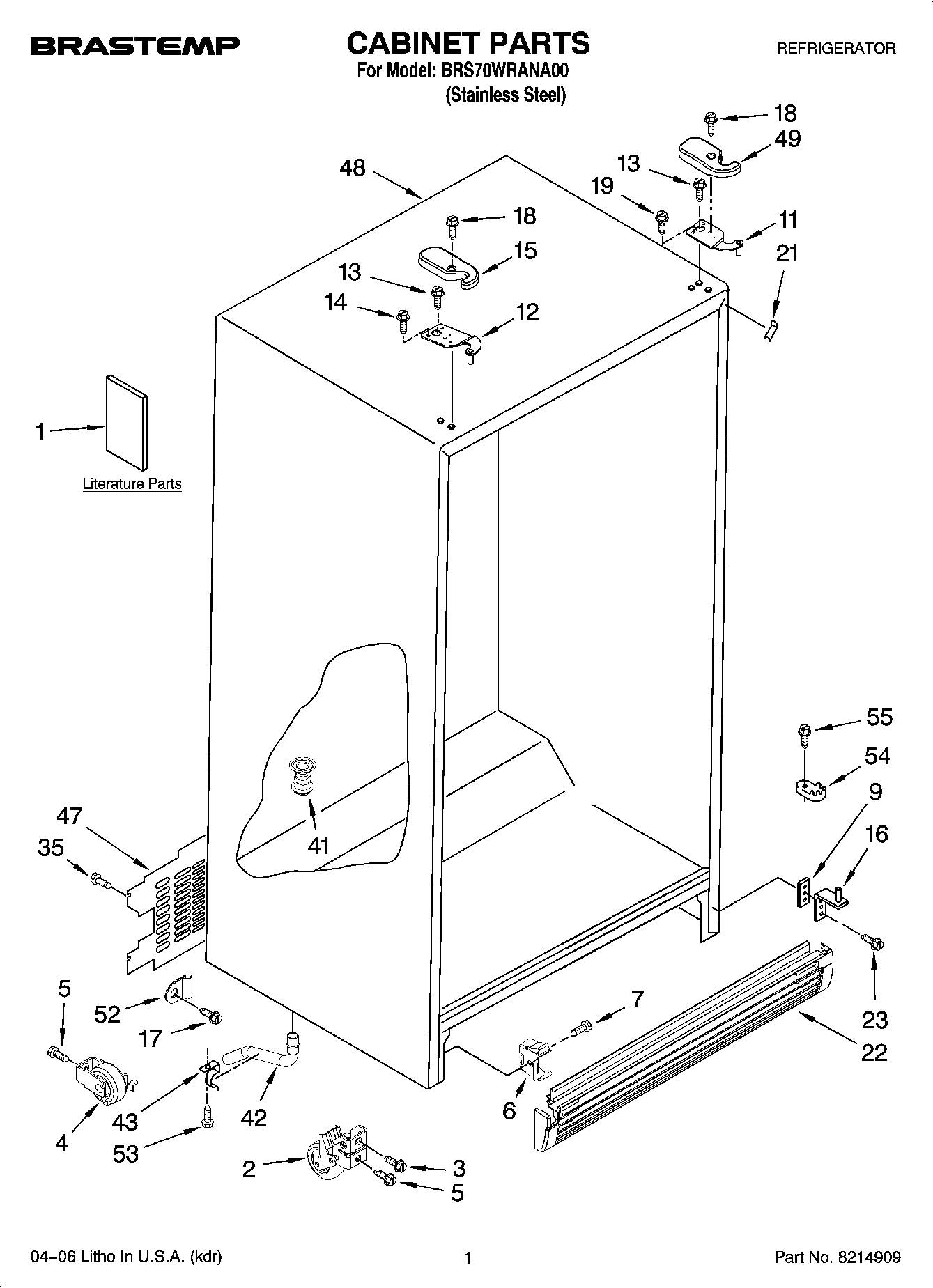

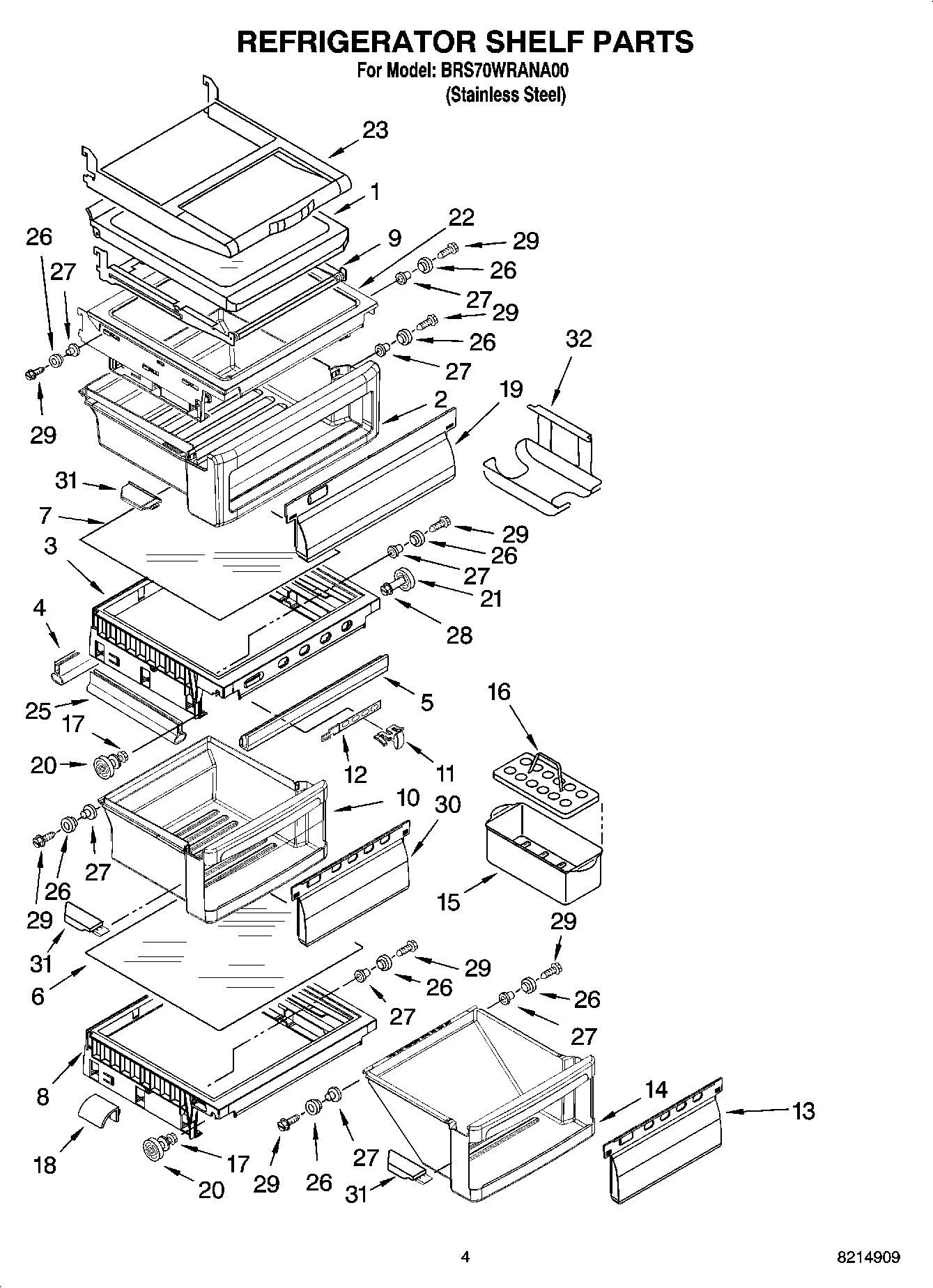

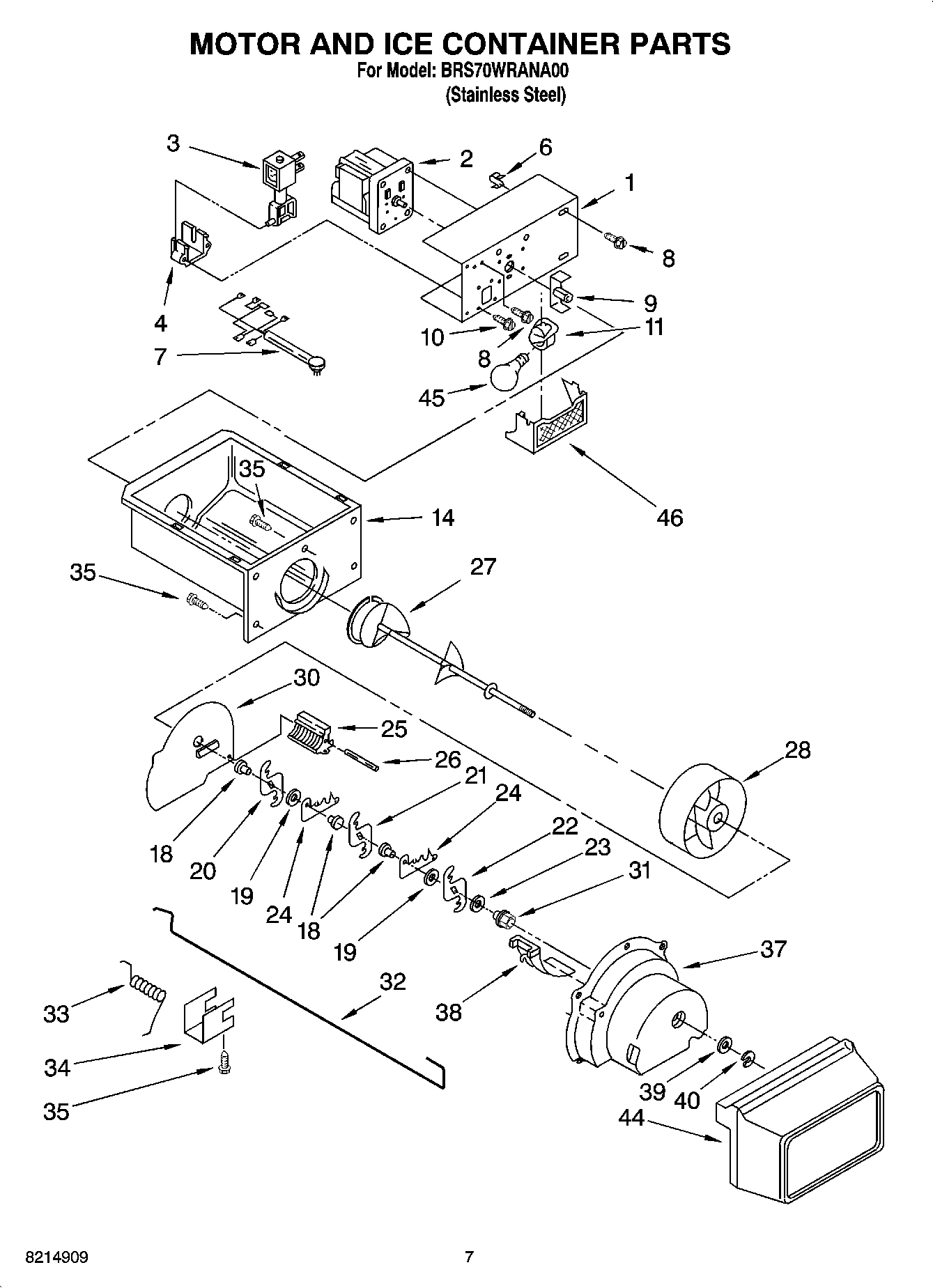

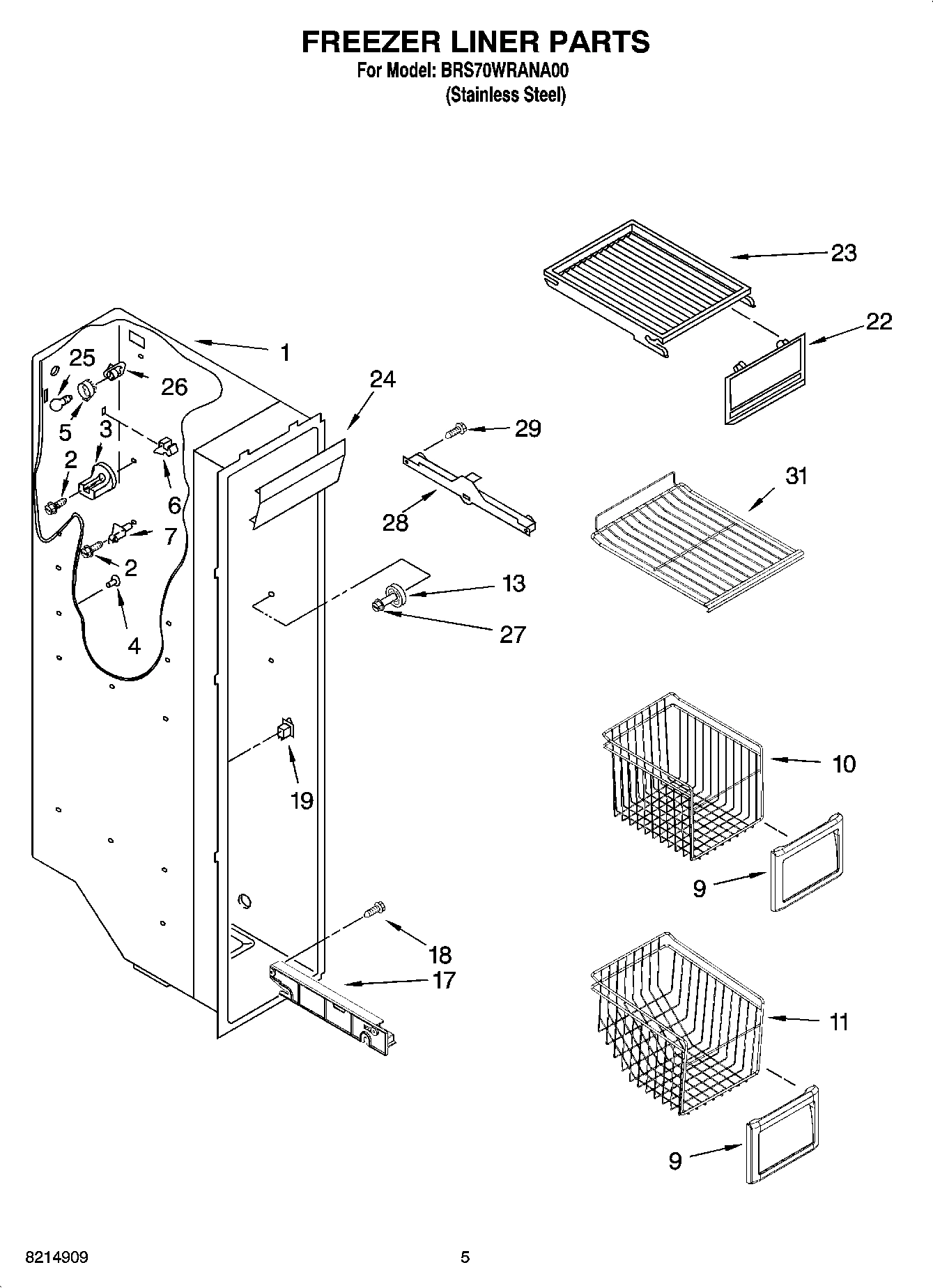

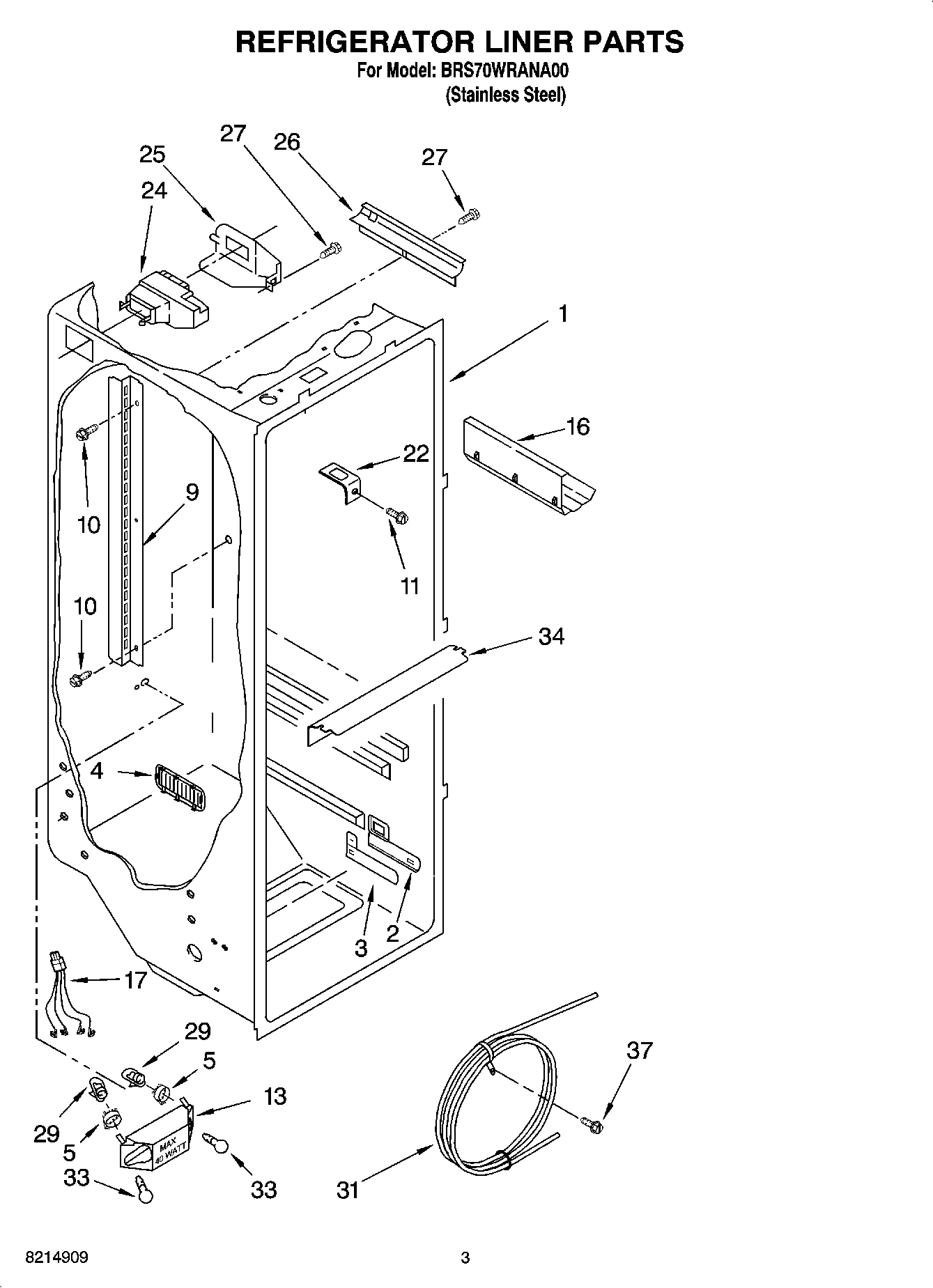

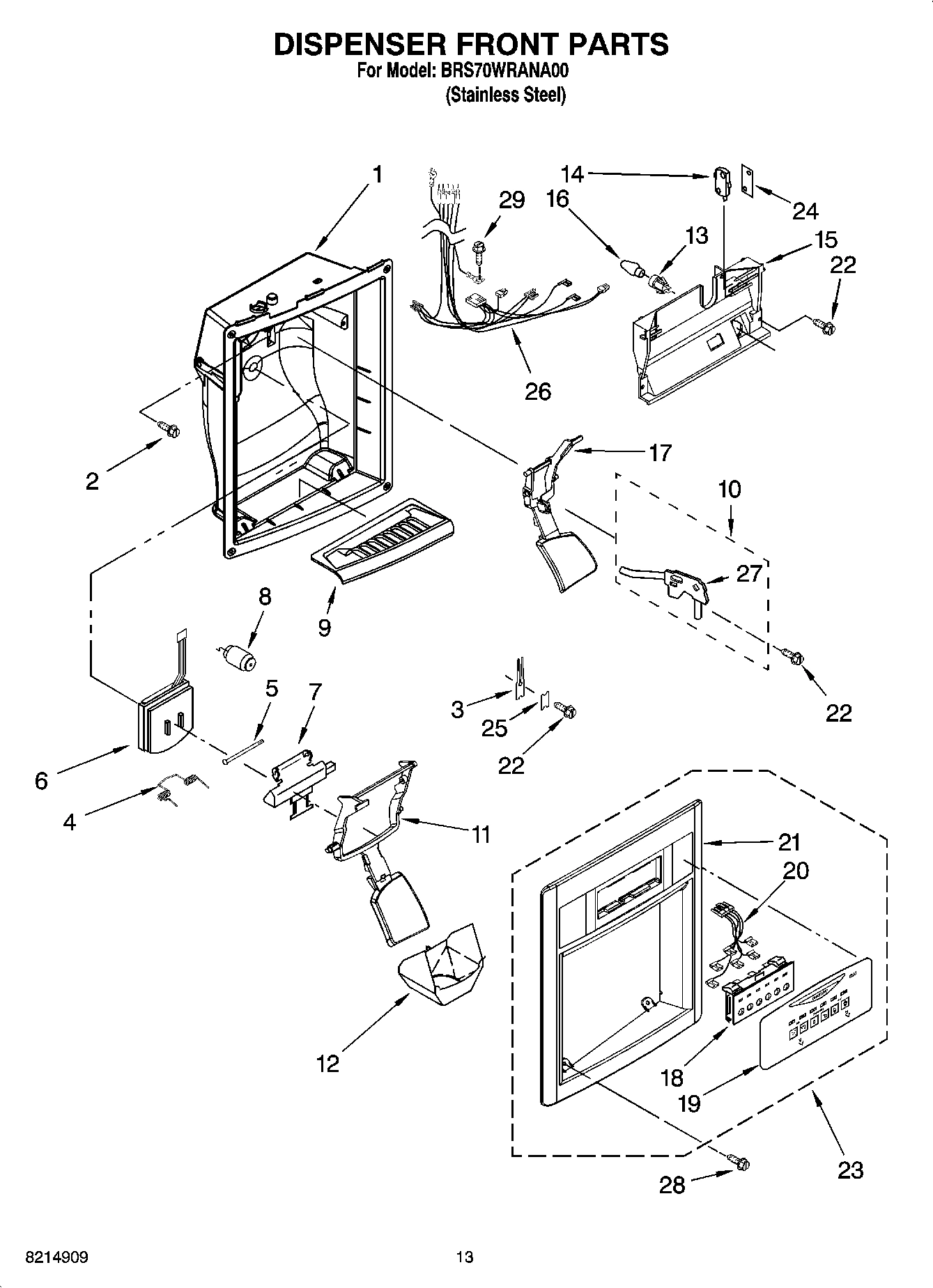

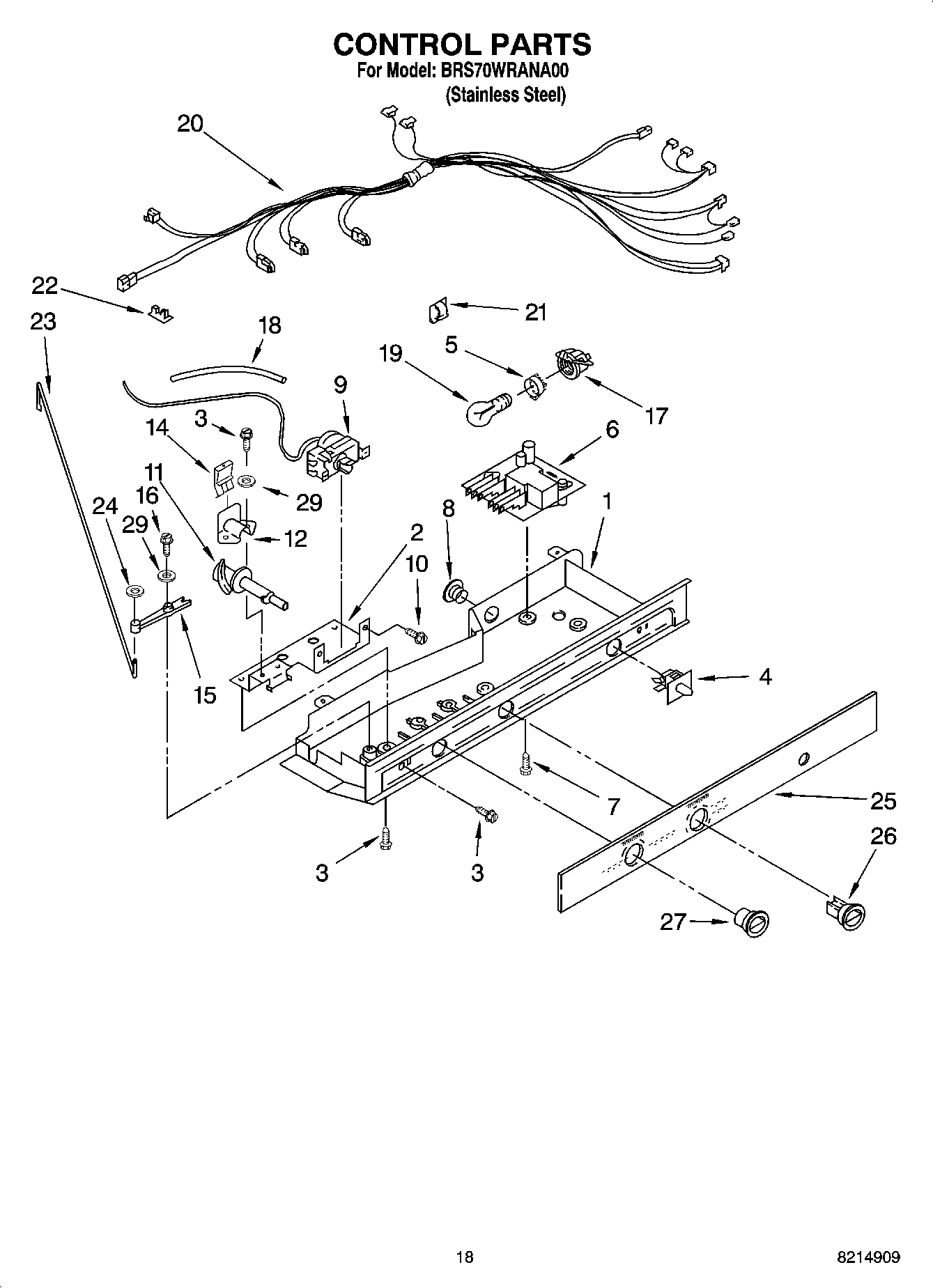

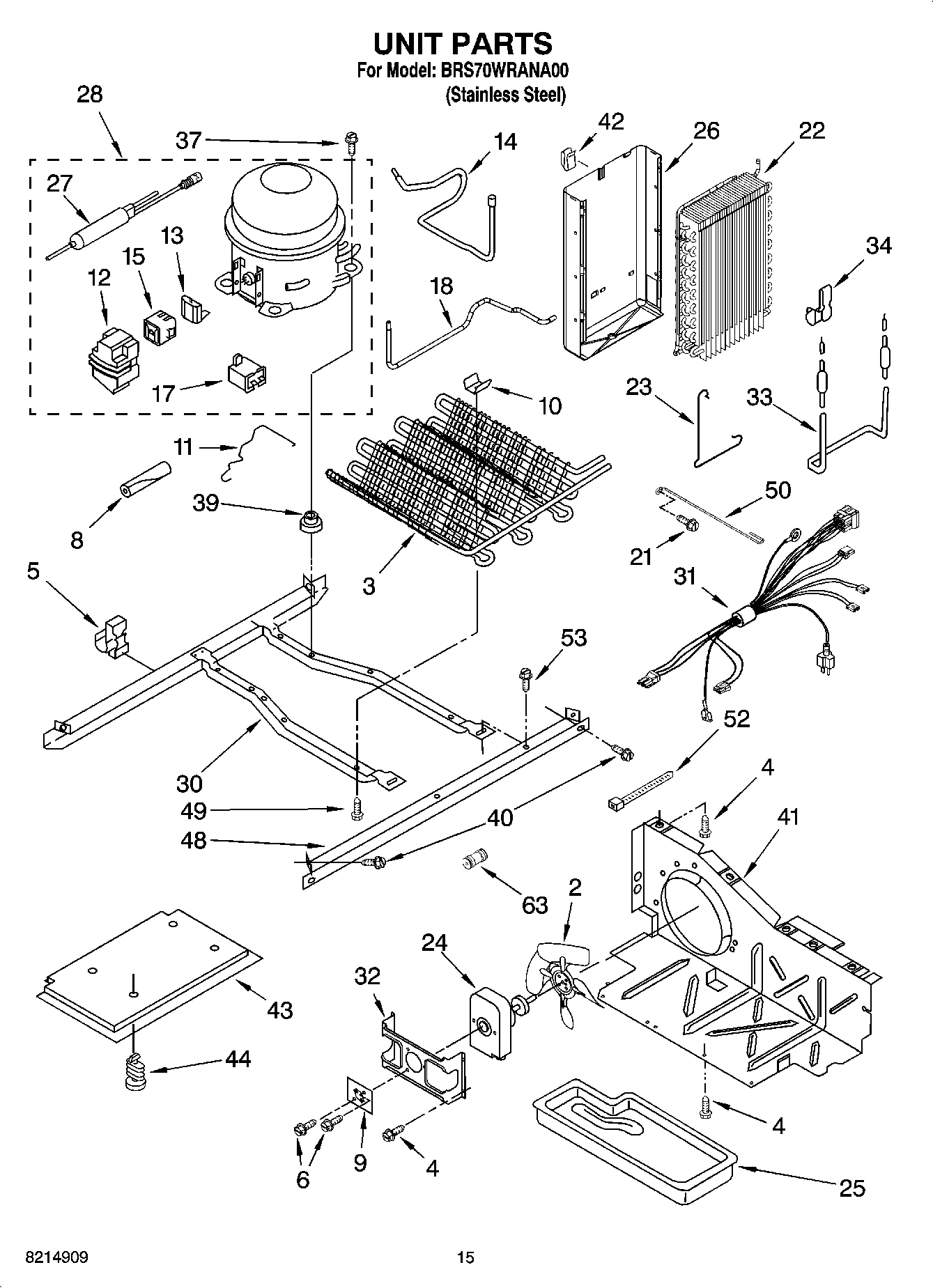

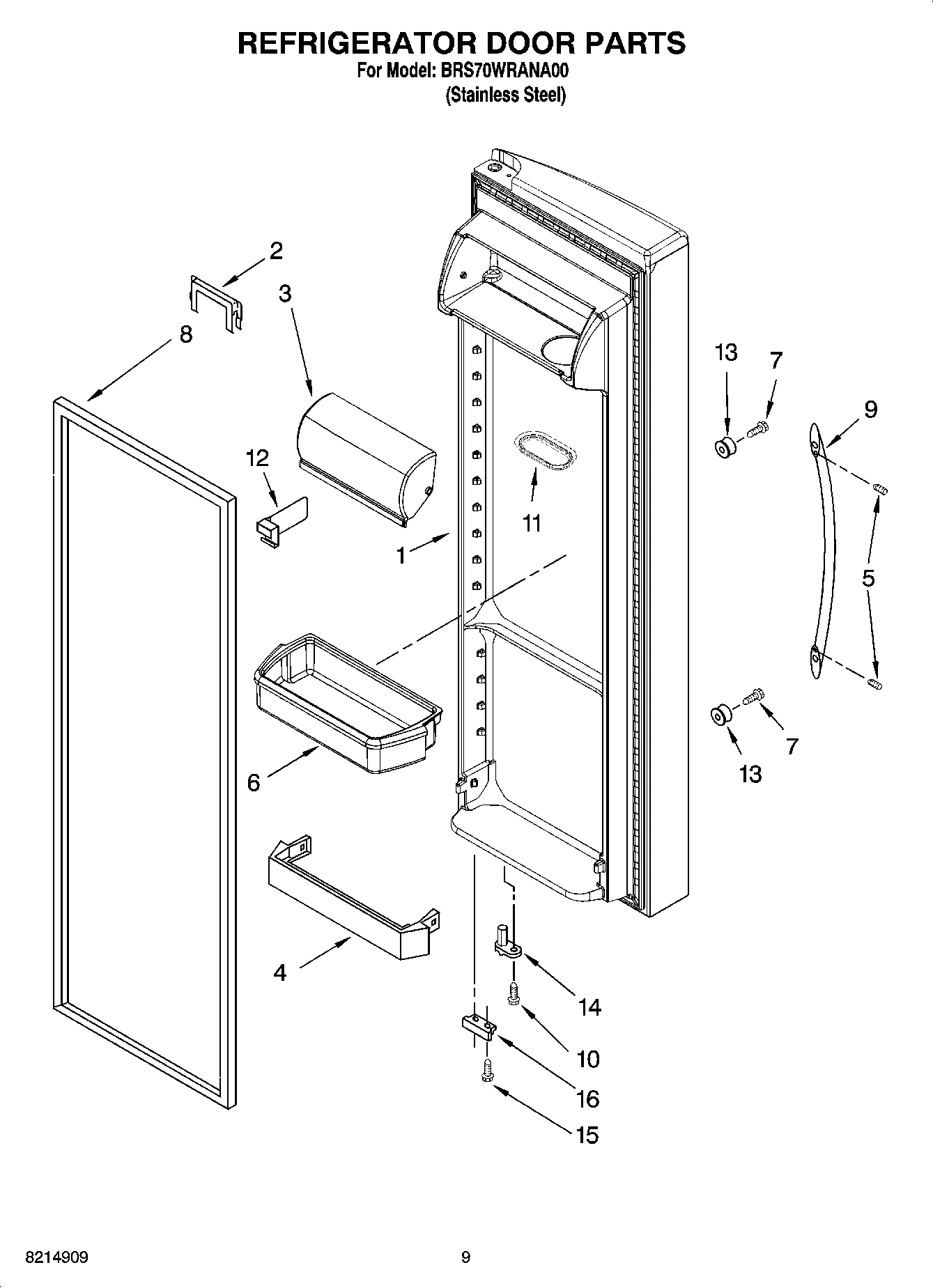

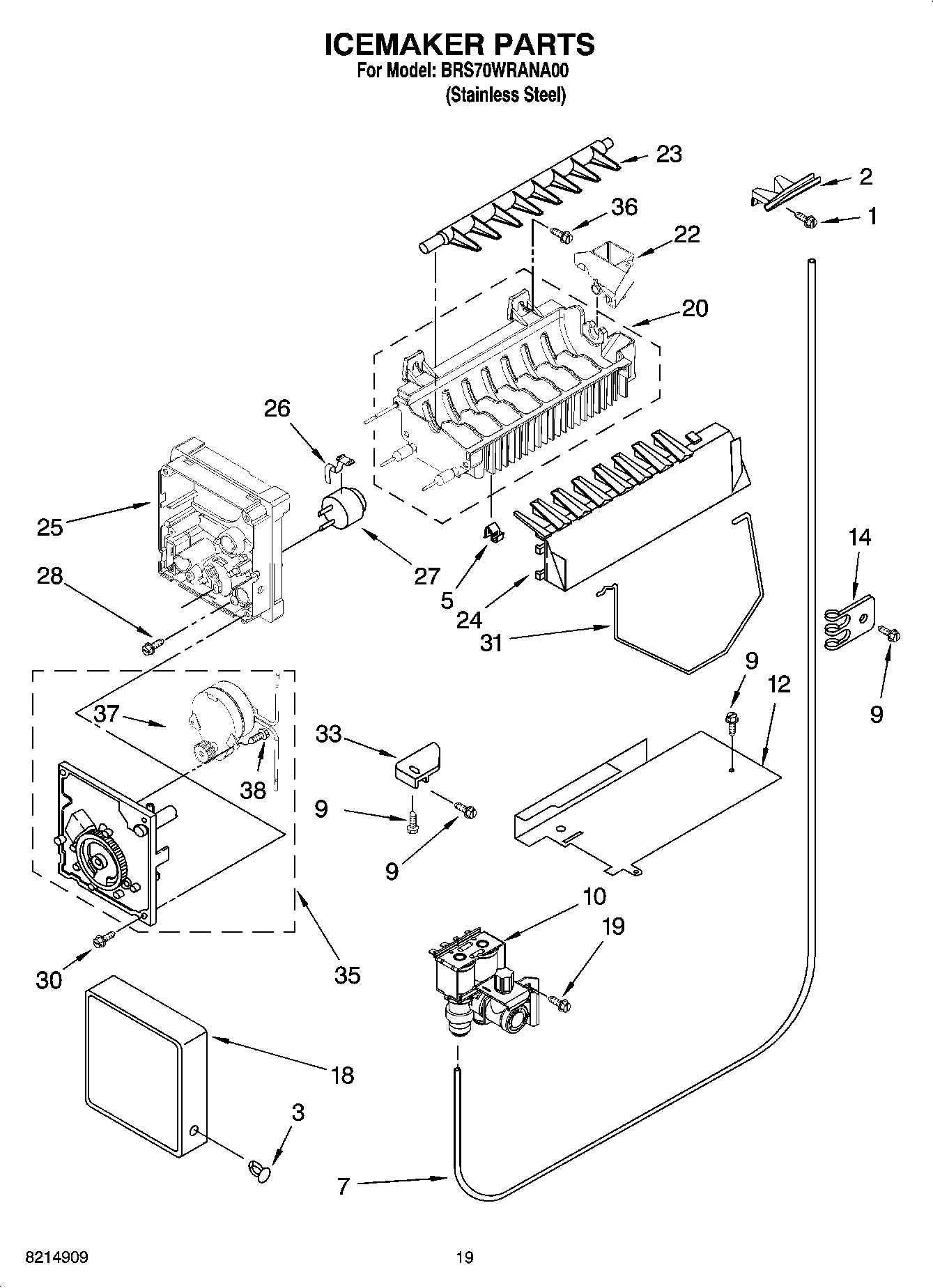

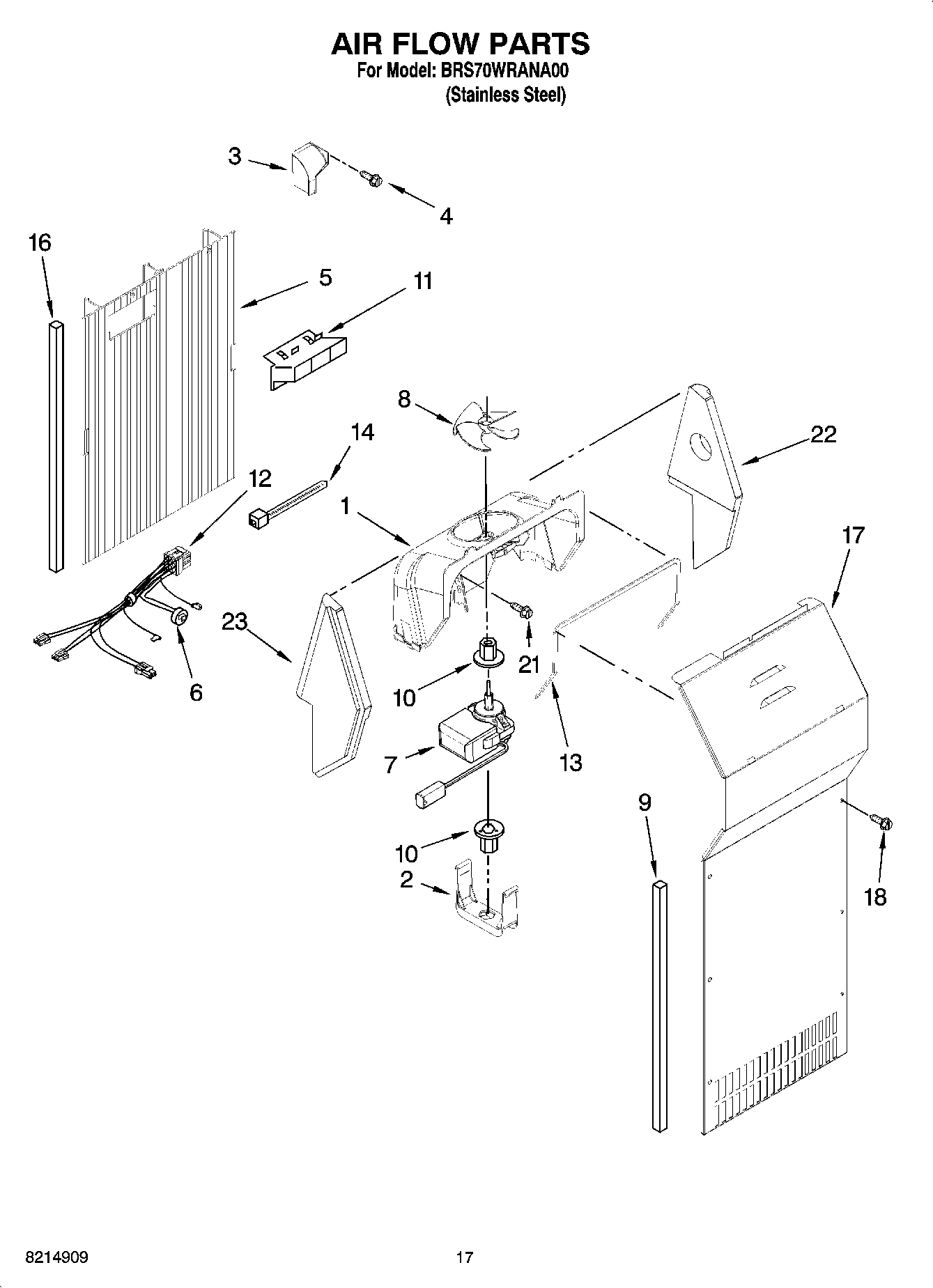

Model Whirlpool BRS70WRANA00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

TORX SCREW WRENCH WPL ARI20959A4 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Control Box WPL 2200136 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI20951A2 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) WPL 2318335SB Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI20950A1 Contact Us For Availability

2

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

2

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $9.59

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Retainer, Bottle WPL 2173643K Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2255612 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

3

Stud, Rear WPL 2196207 Contact Us For Availability

3

Slide Meat Pan Control WPL 2301339 Contact Us For Availability

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2318736 Whirlpool Refrigerator Door Trim Backorder WPL WP2318736 $41.50

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $25.24

6

Glass, Meat Cover WPL 2301028 Contact Us For Availability

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Screw WPL W10029730 Contact Us For Availability

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $35.96

9

Handle (Includes 5) WPL 2304832S Contact Us For Availability

9

Front, Basket WPL 2301134K Contact Us For Availability

9

Ladder, Shelf (2) WPL 2317445 Contact Us For Availability

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $93.09

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Basket, Tall WPL 2318286 Contact Us For Availability

Screw WPL W10029760 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Butter Dish WPL 2165792K Contact Us For Availability

Basket, Slope WPL 2318287 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $69.97

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Divider, Bin WPL 2195496K Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

15

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

15

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

16

Bracket, Door Stop WPL 2318276B Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2261449 Whirlpool Refrigerator Track Backorder WPL WP2261449 $44.08

Slide, Basket (Left Side (2)) WPL 2261448 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Window, Snack Pan WPL 2301006 Contact Us For Availability

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

20

Control Box Harness WPL 2206511 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Shelf, Top Compartment WPL 2171714K Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Escutcheon, Control Box WPL 2318291 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Knob, Air Control WPL 2197871 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Window, Crisper WPL 2301001 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2209769 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

50

Guard, Fan WPL 1110663 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated WPL ARI20956A2 Contact Us For Availability

and Optional Parts Not Included WPL ARI20957A9 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI20958A1 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
