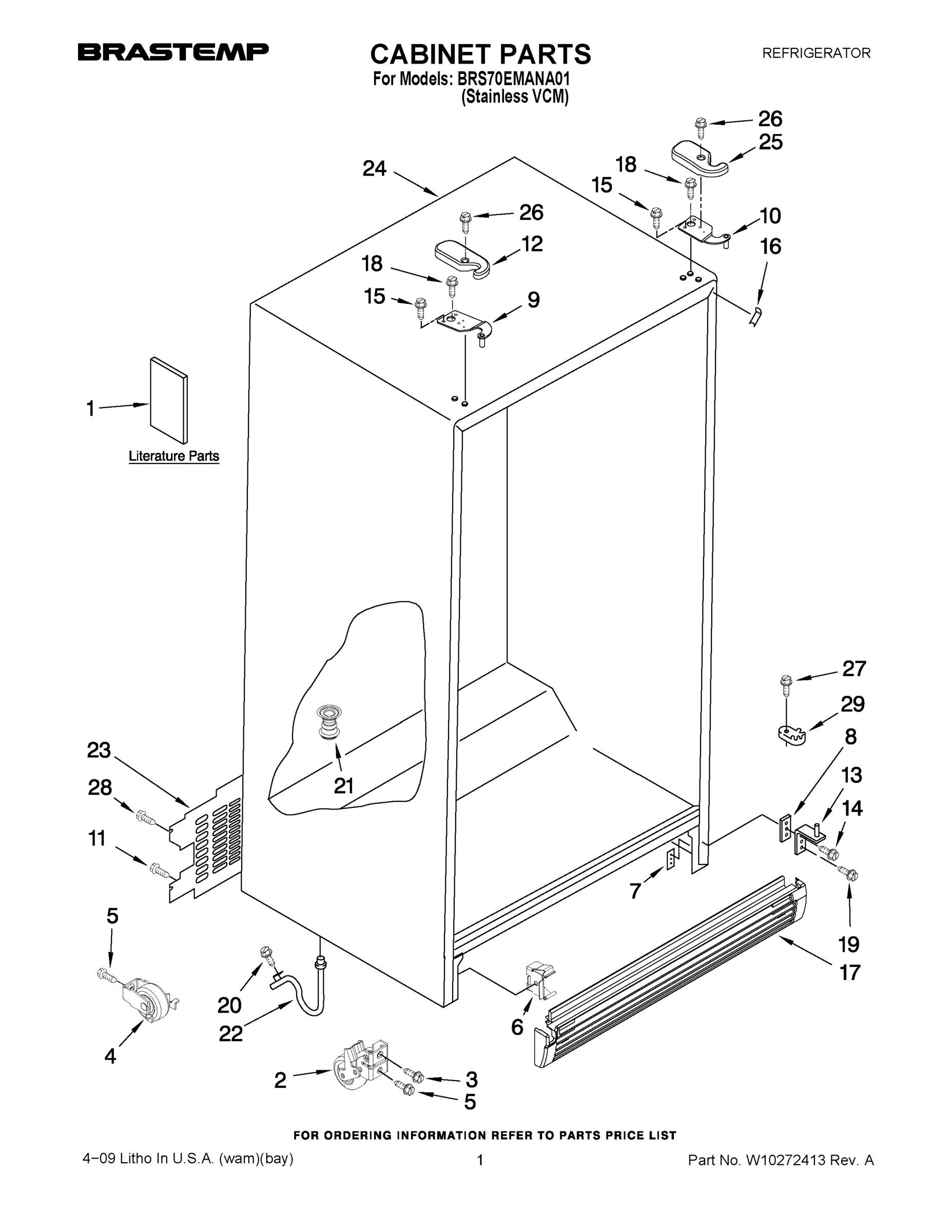

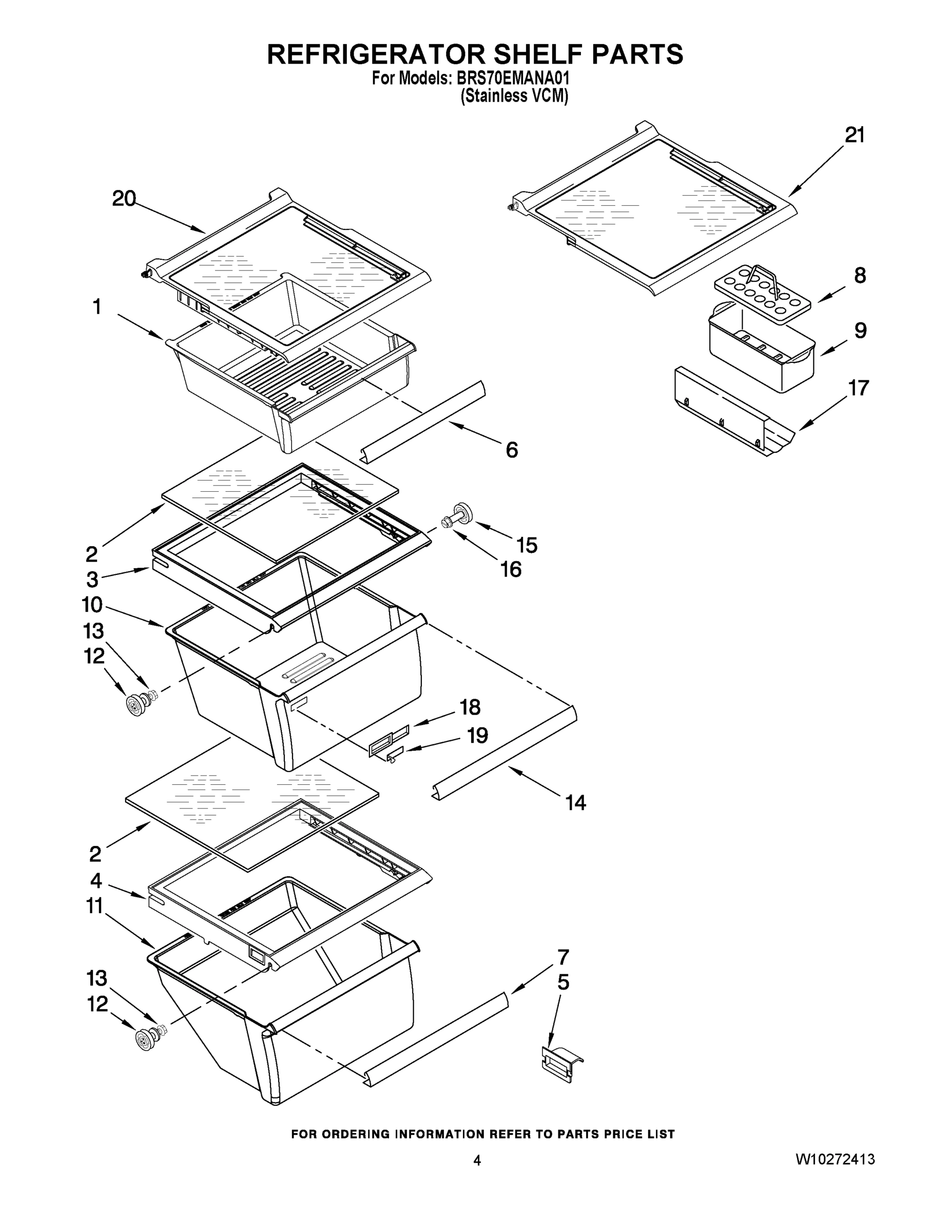

Model Whirlpool BRS70EMANA01 REFRIGERATOR – Common Parts &amp; Diagrams

1

Liner (Not A Seviceable Part) WPL ARI20930A3 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLES WPL W10139552 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $9.59

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $25.24

4

Shelf, Wire WPL 2327109 Contact Us For Availability

5

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

5

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

5

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Nameplate, Side-By-Side WPL 2321228 Contact Us For Availability

6

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $93.09

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $121.32

7

2254608S Whirlpool Handle Backorder WPL 2254608S $78.99

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

W11106297 Whirlpool Refrigerator Grille Backorder WPL W11106297 $47.27

9

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Air Baffle WPL W10163483 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $39.73

Bracket, Door Stop WPL 2321218AP Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

Fastener, Push-On WPL 489285 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

Nameplate WPL 2321226 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

Light Lens WPL W10154839 Contact Us For Availability

Screw WPL W10029730 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

2311633 Whirlpool Refrigerator Wire Harness Backorder WPL 2311633 $130.51

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $59.55

Screw WPL W10029760 Contact Us For Availability

2198470AP Whirlpool Refrigerator Grille Backorder WPL 2198470AP $42.02

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP2255432AP Whirlpool Refrigerator Dispenser Backorder WPL WP2255432AP $39.58

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

CLIP, WIRING WPL 1115375 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $111.89

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10144409 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10144409 $85.14

Pivot Arm WPL 1110559 Contact Us For Availability

21

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

22

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

22

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

23

W10723843 Whirlpool Refrigerator Thermostat K Backorder WPL W10723843 $11.14

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

Clamp WPL 2161324 Contact Us For Availability

24

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

26

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

29

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

34

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
