Model GE BISW42ELB Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FRESH FOOD DOOR

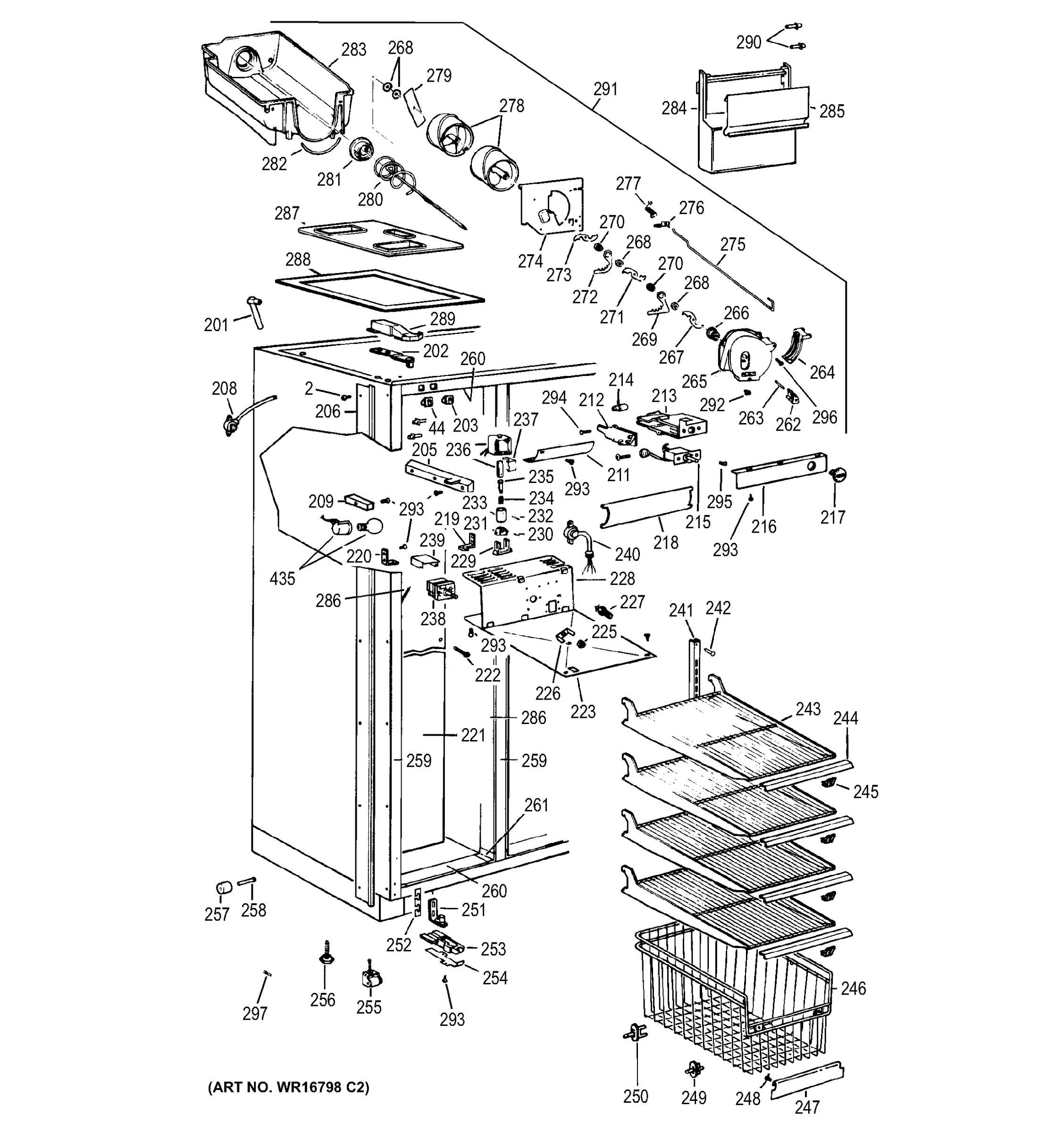

FREEZER SECTION

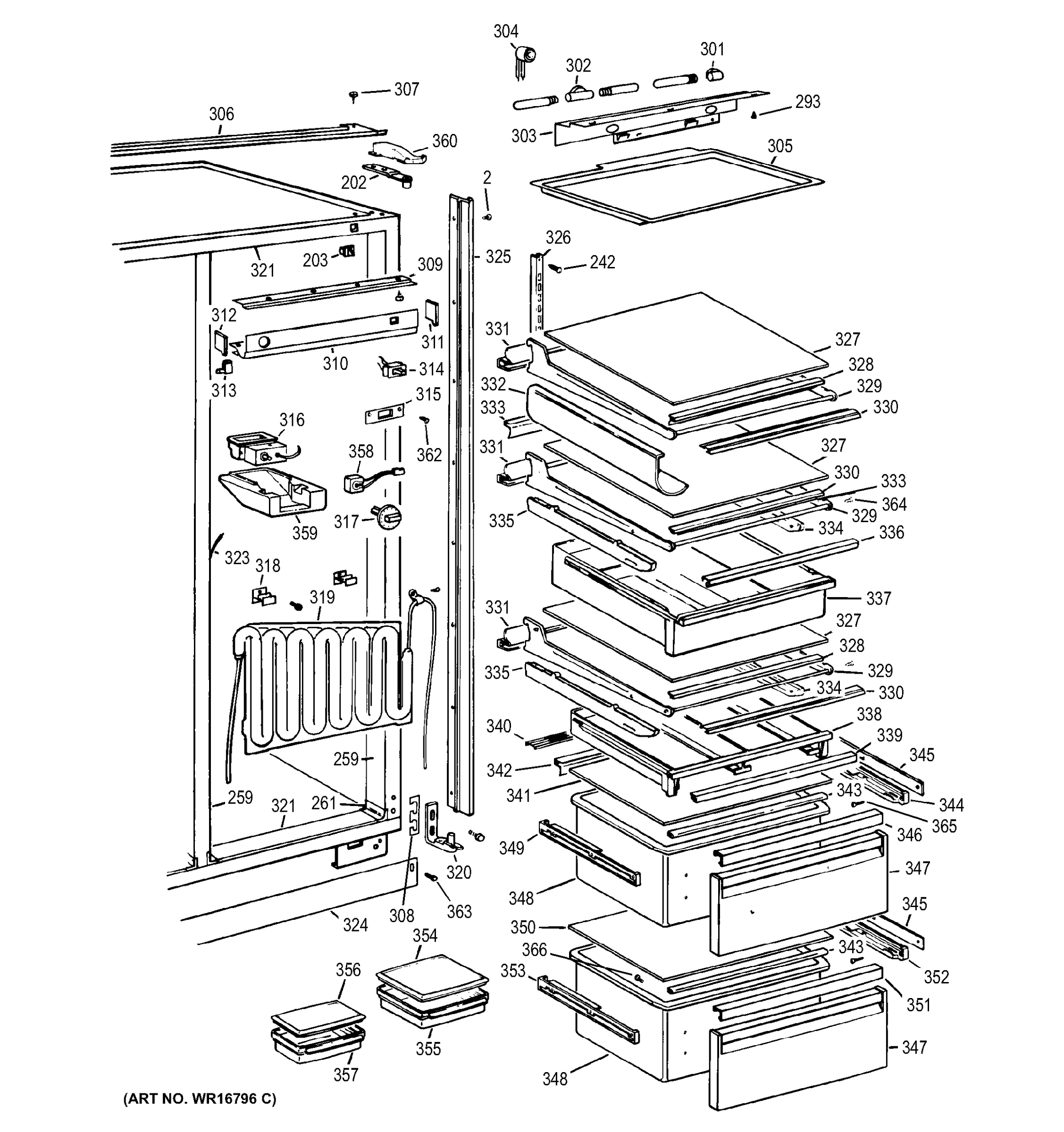

FRESH FOOD SECTION

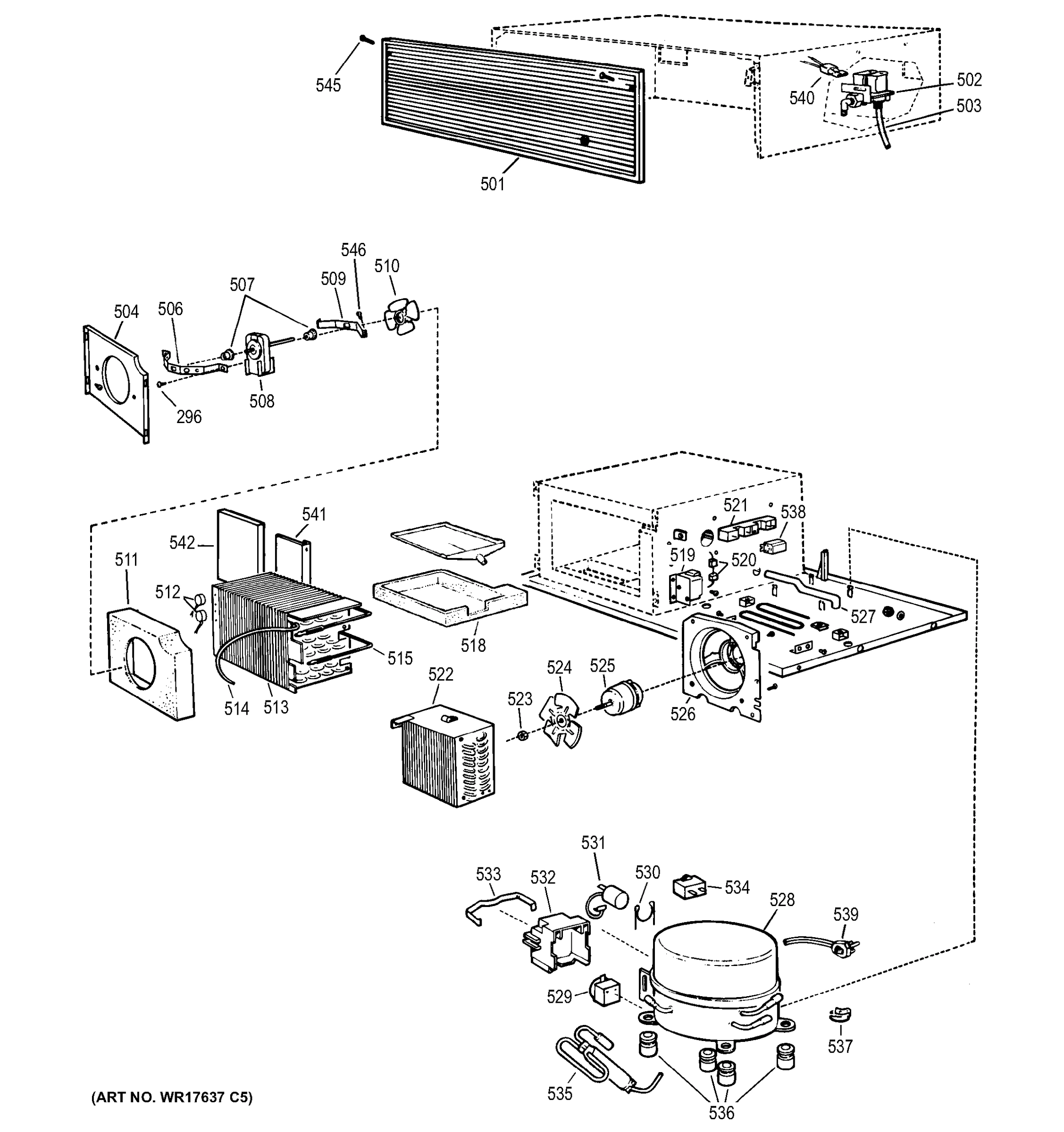

UNIT ASSEMBLY
Common parts from model GE BISW42ELB Refrigerator
3
ACTIVATOR-SWITCH GEN WR02X7541 Contact Us For Availability
10
SPEED CLIP GEN WR01X5689 Contact Us For Availability
10
WR17X2920 GEN WR17X6336 Contact Us For Availability
11
DOOR SHELF ASSY GEN WR17X6337 Contact Us For Availability
12
HOOK R/S GEN WR02X7544 Contact Us For Availability
13
HOOK L/S GEN WR02X7543 Contact Us For Availability
14
5B6382-02 GEN WR17X6338 Contact Us For Availability
15
TRACK GEN WR17X6339 Contact Us For Availability
16
CAP-TRACK TOP & BOTTOM GEN WR02X7542 Contact Us For Availability
17
DOOR HANDLE GEN WR12X5187 Contact Us For Availability
18
SENSOR DOOR FF & FZ GEN WR23X0310 Contact Us For Availability
19
SCREW-SENSOR GEN WR01X5687 Contact Us For Availability
20
FASTENER TUBULAR GEN WR02X3757 Contact Us For Availability
20
TRIM-RECESS GEN WR38X5413 Contact Us For Availability
21
DOOR STOP GEN WR02X7880 Contact Us For Availability
23
HARNESS & HOUSING-RECESS GEN WR23X0306 Contact Us For Availability
24
PAD GEN WR02X7887 Contact Us For Availability
25
CRADLE GEN WR02X7889 Contact Us For Availability
26
INSULATOR HOUSING GEN WR02X4570 Contact Us For Availability
26
HOUSING & SOCKET AS DISP GEN WR02X7243 Contact Us For Availability
27
CONTROL PANEL ASM GEN WR55X0020 Contact Us For Availability
28
BOARD ASM LOGIC GEN WR55X0016 Contact Us For Availability
29
SCREW GEN WR02X0561 Contact Us For Availability
30
GRILLE RECESS GEN WR02X7891 Contact Us For Availability
31
RECESS DISP GEN WR17X2588 Contact Us For Availability
32
HEATER RECESS & DUCT ASM GEN WR51X0313 Contact Us For Availability
33
GROMMET WATER FILL RECES GEN WR02X4571 Contact Us For Availability
34
ICE CHUTE GEN WR17X6341 Contact Us For Availability
35
DUCT DOOR W/O LEVER GEN WR17X1586 Contact Us For Availability
36
CRANK DOOR DUCT DISP GEN WR02X4814 Contact Us For Availability
37
WASHER GEN WR01X1385 Contact Us For Availability
38
PULLEY TIME DELAY GEN WR17X1457 Contact Us For Availability
39
ARM TIME DELAY DISPLAY GEN WR17X1045 Contact Us For Availability
40
RING COMPRESSION GEN WR02X4595 Contact Us For Availability
41
GASKET DUCT-R. SIDE GEN WR14X0246 Contact Us For Availability
41
GASKET DUCT-L. SIDE GEN WR14X0247 Contact Us For Availability
41
DUCT RECESS GEN WR17X1257 Contact Us For Availability
42
SHIELD FUNNEL ASSY DISPL GEN WR17X6342 Contact Us For Availability
43
PLATE WATER SW RECESS GEN WR02X4771 Contact Us For Availability
44
SWITCH-CRADLE-WATER SIDE GEN WR23X0192 Contact Us For Availability
45
SCREW GEN WZ04X0364 Contact Us For Availability
46
SPRING-RECESS DUCT GEN WR02X3951 Contact Us For Availability
47
PLUNGER SCW & SLEEVE GEN WR02X4822 Contact Us For Availability
48
SUPPORT SW. GEN WR02X7068 Contact Us For Availability
49
PLATE MTG-DISP SWITCH GEN WR02X7237 Contact Us For Availability
49
SWITCH SELECT-CUBES DISP GEN WR23X0144 Contact Us For Availability
50
SCR 6-18 SPEC HXW 9/16 S GEN WR01X1464 Contact Us For Availability
52
TRANSFORMER ASM GEN WR62X0039 Contact Us For Availability
53
SUPPORT SELECTOR SWITCH GEN WR02X7245 Contact Us For Availability
54
HOUSING POWER MODULE GEN WR02X7349 Contact Us For Availability
55
BOARD ASM POWER SUPPLY GEN WR55X0013 Contact Us For Availability
56
THERMISTOR & CONN ASM GEN WR52X0024 Contact Us For Availability
57
COVER HOUSING-MODULE GEN WR02X7350 Contact Us For Availability
58
LANYARD GEN WR02X4237 Contact Us For Availability
59
GEN WR09X0268 GEN WR09X0268 Contact Us For Availability
60
GEN WR02X4248 GEN WR02X4248 Contact Us For Availability
61
GEN WR02X4235 GEN WR02X4235 Contact Us For Availability
62
GEN WR02X4234 GEN WR02X4234 Contact Us For Availability
63
GEN WR17X1048 GEN WR17X1048 Contact Us For Availability
64
RISER-TOP GEN WR02X7879 Contact Us For Availability
65
RISER-BTM GEN WR02X7878 Contact Us For Availability
66
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
101
TRIM-TOP GEN WR17X6315 Contact Us For Availability
103
GEN WR01X5626 GEN WR01X5626 Contact Us For Availability
104
SCREW-ACTIVATOR GEN WR01X5622 Contact Us For Availability
105
OUTER DOOR ASSY-FF GEN WR78X8053 Contact Us For Availability
106
WR24X493 GEN WR24X5251 Contact Us For Availability
108
TRIM DOOR GEN WR17X6316 Contact Us For Availability
109
5D6049-02 GEN WR22X5084 Contact Us For Availability
110
TRIM-DOOR GEN WR38X5412 Contact Us For Availability
112
SCREW GEN WR01X5623 Contact Us For Availability
112
TRACK GEN WR17X6317 Contact Us For Availability
113
DISH BUTTER GEN WR19X5003 Contact Us For Availability
114
WR32X897 GEN WR32X5192 Contact Us For Availability
116
DOOR SHELF ASSY GEN WR17X6318 Contact Us For Availability
119
SCREW-STOP GEN WR01X5686 Contact Us For Availability
120
TRIM BTM GEN WR17X6319 Contact Us For Availability
121
MAGNET DOOR SENSOR GEN WR02X7315 Contact Us For Availability
201
TUBE & GROMMET GEN WR17X6332 Contact Us For Availability
202
TOP HINGE GEN WR13X5221 Contact Us For Availability
205
DEFLECTOR GEN WR17X6343 Contact Us For Availability
206
TRIM GEN WR17X6250 Contact Us For Availability
208
5D7058-03 GEN WR23X5165 Contact Us For Availability
209
GUIDE-BUCKET GEN WR02X7902 Contact Us For Availability
211
AIR DEFLECTOR GEN WR17X6344 Contact Us For Availability
212
SIDE-HOUSING GEN WR02X7893 Contact Us For Availability
213
HOUSING GEN WR17X6345 Contact Us For Availability
214
SCREW-BRKT GEN WR01X5647 Contact Us For Availability
214
POST-CONTROL GEN WR02X7894 Contact Us For Availability
215
CONTROL GEN WR09X0425 Contact Us For Availability
216
CONTROL PANEL GEN WR17X6346 Contact Us For Availability
217
KNOB-CONTROL GEN WR02X7895 Contact Us For Availability
218
LIGHT SHIELD GEN WR17X6347 Contact Us For Availability
219
SUPPORT-SHLF BUCKT RF&LR GEN WR02X7896 Contact Us For Availability
220
SUPPORT-SHLF BUCKT LF&RR GEN WR02X7897 Contact Us For Availability
221
COVER LINER GEN WR17X6348 Contact Us For Availability
222
SCREW-COVER GEN WR01X5646 Contact Us For Availability
223
PROTECTOR SHELF GEN WR02X4566 Contact Us For Availability
223
SHELF BUCKET BTM DISPLAY GEN WR71X1729 Contact Us For Availability
225
NUT J GEN WR01X1547 Contact Us For Availability
226
DRIVE AUGER DISPENSER GEN WR02X4854 Contact Us For Availability
227
SUPP0RT TWIST GEN WR02X7310 Contact Us For Availability
228
COVER MOTOR & SOLENOID GEN WR17X2051 Contact Us For Availability
238
MOTOR CRUSHER DISP GEN WR60X0101 Contact Us For Availability
240
HARNESS MOTOR DISP GEN WR23X0194 Contact Us For Availability
241
TRACK-SHELF GEN WR17X6350 Contact Us For Availability
242
SCREW GEN WR01X5635 Contact Us For Availability
243
SHELF GEN WR71X6076 Contact Us For Availability
244
TRIM GEN WR17X6349 Contact Us For Availability
245
CLIP SHELF TRIM GEN WR02X5008 Contact Us For Availability
246
BASKET GEN WR21X5116 Contact Us For Availability
247
HANDLE GEN WR12X5188 Contact Us For Availability
249
SUPPORT-FRONT GEN WR02X7898 Contact Us For Availability
250
SUPPORT-REAR GEN WR02X7899 Contact Us For Availability
251
HINGE-BOTTOM GEN WR13X5223 Contact Us For Availability
252
SHIM GEN WR02X7886 Contact Us For Availability
253
HINGE COVER GEN WR02X7900 Contact Us For Availability
254
CAP COVER GEN WR02X7901 Contact Us For Availability
255
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
256
LEVELING LEG GEN WR02X7560 Contact Us For Availability
258
AXLE GEN WR02X3595 Contact Us For Availability
259
BREAKER STRIP-SIDES GEN WR40X5574 Contact Us For Availability
260
BREAKER STRIP-BOTTOM GEN WR40X5577 Contact Us For Availability
260
BREAKER STRIP-TOP GEN WR40X5578 Contact Us For Availability
261
CORNERS-BREAKER GEN WR40X5575 Contact Us For Availability
263
PIN SPIRAL GEN WR02X4141 Contact Us For Availability
264
DEFLECTOR ICE DISPLAY GEN WR17X2059 Contact Us For Availability
264
SPRING ICE DEFLECTOR GEN WR02X4561 Contact Us For Availability
266
WASHER GEN WR01X1366 Contact Us For Availability
266
NUT AUGER GEN WR01X1585 Contact Us For Availability
268
SPACER CRUS GEN WR02X4139 Contact Us For Availability
269
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
274
GEN WR17X2062 GEN WR17X2062 Contact Us For Availability
275
GEN WR17X2060 GEN WR17X2060 Contact Us For Availability
276
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
277
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
278
GEN WR17X2056 GEN WR17X2056 Contact Us For Availability
278
GEN WR17X2057 GEN WR17X2057 Contact Us For Availability
279
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
280
GEN WR17X2054 GEN WR17X2054 Contact Us For Availability
284
GEN WR17X6456 GEN WR17X6456 Contact Us For Availability
285
GEN WR17X6461 GEN WR17X6461 Contact Us For Availability
285
GEN WR38X1157 GEN WR38X1157 Contact Us For Availability
286
GEN WR51X5215 GEN WR51X5215 Contact Us For Availability
287
GEN WR17X6368 GEN WR17X6368 Contact Us For Availability
288
GEN WR14X5166 GEN WR14X5166 Contact Us For Availability
289
GEN WR01X5748 GEN WR01X5748 Contact Us For Availability
289
GEN WR13X5234 GEN WR13X5234 Contact Us For Availability
290
GEN WR02X8271 GEN WR02X8271 Contact Us For Availability
295
GEN WR01 GEN WR01 Contact Us For Availability
296
SCREW GEN WZ05X0194 Contact Us For Availability
301
SOCKET LIGHT GEN WR23X5156 Contact Us For Availability
302
SOCKET LIGHT GEN WR23X5164 Contact Us For Availability
303
REFLECTOR GEN WR17X6320 Contact Us For Availability
304
THEMODISC GEN WR50X0108 Contact Us For Availability
305
LIGHT SHIELD GEN WR17X6321 Contact Us For Availability
306
TOP TRIM GEN WR17X6322 Contact Us For Availability
307
SCREW-HINGE GEN WR01X5653 Contact Us For Availability
308
SHIM GEN WR02X7881 Contact Us For Availability
309
RETAINER GEN WR17X6323 Contact Us For Availability
310
CONTROL PANEL GEN WR17X6324 Contact Us For Availability
311
GASKET R/S GEN WR14X5162 Contact Us For Availability
312
GASKET L/S GEN WR14X5163 Contact Us For Availability
313
SUPPORT GEN WR02X7882 Contact Us For Availability
314
SWITCH POWER SAVER GEN WR23X0309 Contact Us For Availability
315
PLATE-SWITCH GEN WR02X7883 Contact Us For Availability
316
CONTROL ASSEMBLY GEN WR09X0424 Contact Us For Availability
317
KNOB-CONTROL GEN WR02X7884 Contact Us For Availability
318
BRACKET-TANK GEN WR02X7885 Contact Us For Availability
319
WATER TANK GEN WR17X1482 Contact Us For Availability
320
HINGE R/S GEN WR13X5222 No Longer Available
321
BREAKER STRIP-TOP GEN WR40X5573 Contact Us For Availability
321
BREAKER STRIP-BTM GEN WR40X5576 Contact Us For Availability
323
MULLION HEATER GEN WR51X5214 Contact Us For Availability
324
KICKPLATE GEN WR79X5174 Contact Us For Availability
325
SIDE TRIM-CABINET GEN WR17X6249 Contact Us For Availability
326
TRACK SHELF FF GEN WR17X6325 Contact Us For Availability
327
GLASS SHELF GEN WR32X5311 Contact Us For Availability
328
RETAINER GEN WR02X7549 Contact Us For Availability
329
SHELF GEN WR71X6075 Contact Us For Availability
330
TRIM-SHELF GEN WR17X6326 Contact Us For Availability
331
REFLECTOR GEN WR17X6327 Contact Us For Availability
332
WR17X3364 GEN WR17X6235 Contact Us For Availability
333
GASKET REAR GEN WR14X5155 Contact Us For Availability
333
GASKET FRONT GEN WR14X5157 Contact Us For Availability
334
SLIDE R/S GEN WR72X5059 Contact Us For Availability
335
SLIDE L/S GEN WR72X5060 Contact Us For Availability
336
HANDLE-PAN GEN WR17X6237 Contact Us For Availability
337
SNACK PAN GEN WR32X5312 Contact Us For Availability
338
RACK GEN WR17X6236 Contact Us For Availability
339
HANDLE RACK GEN WR17X6328 Contact Us For Availability
340
LOUVER-GLASS COVER GEN WR17X6329 Contact Us For Availability
341
VEG PAN COVER (GLASS) GEN WR32X5313 Contact Us For Availability
342
WR14X5157 GEN WR14X5164 Contact Us For Availability
343
WR2X8965 GEN WR14X5159 Contact Us For Availability
344
WR72X5061 GEN WR72X5054 Contact Us For Availability
345
SHIM GEN WR02X7552 Contact Us For Availability
346
HANDLE PAN GEN WR17X6330 Contact Us For Availability
347
PAN FRONT GEN WR17X6239 Contact Us For Availability
348
VEG PAN GEN WR32X5330 Contact Us For Availability
349
WR72X5062 GEN WR72X5055 Contact Us For Availability
350
PAN COVER (GLASS) GEN WR32X5331 Contact Us For Availability
351
HANDLE PAN GEN WR17X6331 Contact Us For Availability
352
SLIDE R/S GEN WR72X5061 Contact Us For Availability
353
SLIDE L/S GEN WR72X5062 Contact Us For Availability
354
DISH COVER (LGE) GEN WR02X7555 Contact Us For Availability
356
DISH COVER (SM) GEN WR02X7554 Contact Us For Availability
357
WR17X4009 GEN WR17X6241 Contact Us For Availability
358
CLIP GEN WR01X5709 Contact Us For Availability
358
HEATER GEN WR51X5218 Contact Us For Availability
359
DUCT GEN WR02X8082 Contact Us For Availability
360
HINGE COVER GEN WR13X5235 Contact Us For Availability
362
SCREW PLATE GEN WR01X5632 Contact Us For Availability
363
SCREW-PLATE GEN WR01X5643 Contact Us For Availability
365
SCREW SLIDE GEN WR01X5636 Contact Us For Availability
366
SCREW-FRONT GEN WZ04X0244 Contact Us For Availability
501
MEDALLION GEN WR03X5133 Contact Us For Availability
501
5C0384-03 GEN WR79X5173 Contact Us For Availability
504
FAN ORIFICE GEN WR17X6351 Contact Us For Availability
506
BRACKET EVAP FAN GEN WR02X4792 Contact Us For Availability
507
GROMMET GEN WR02X2945 Contact Us For Availability
508
MOTOR EVAP FAN GEN WR60X0172 Contact Us For Availability
509
BRACKET EVAP FAN GEN WR02X7137 Contact Us For Availability
511
FOAM BLOCK GEN WR17X6311 Contact Us For Availability
512
DEFROST THERMOSTAT GEN WR50X0109 Contact Us For Availability
513
EVAPORATOR GEN WR85X0223 Contact Us For Availability
514
SUCTION & CAPILLARY TUBE GEN WR86X0089 Contact Us For Availability
518
BASE-PAN GEN WR17X6313 Contact Us For Availability
520
CURRENT SENSOR GEN WR23X0319 Contact Us For Availability
521
5B7325-00 GEN WR23X5163 Contact Us For Availability
522
CONDENSER GEN WR84X0137 Contact Us For Availability
523
NUT LOCKING GEN WR01X1515 Contact Us For Availability
524
BLADE COND FAN GEN WR60X0167 Contact Us For Availability
525
WASHER GEN WR01X1710 Contact Us For Availability
526
HOUSING COND FAN GEN WR17X2161 Contact Us For Availability
527
NO ITEM DESCRIPTION GEN WR87X6314 Contact Us For Availability
529
RELAY (PTCR) GEN WR07X0190 Contact Us For Availability
530
CLIP GUARDETTE GEN WR02X7227 Contact Us For Availability
531
GUARDETTE ASM. GEN WR08X0094 Contact Us For Availability
532
COVER GEN WR02X7834 Contact Us For Availability
533
CLAMP COVER GEN WR02X7226 Contact Us For Availability
536
GROMMET COMP MTG GEN WR02X7238 Contact Us For Availability
537
CLIP COMP MTG GEN WR02X7228 Contact Us For Availability
538
RELAY GEN WR07X0193 Contact Us For Availability
540
HARNESS-VALVE GEN WR23X5176 Contact Us For Availability
541
BAFFLE GEN WR17X6462 Contact Us For Availability
542
INSULATION GEN WR82X5056 Contact Us For Availability
545
SCREW-GRILLE TO GRILLE GEN WR01X5685 Contact Us For Availability
546
SCREW GEN WR01X1483 Contact Us For Availability
9999
GEN 496423 GEN 496423 Contact Us For Availability
9999
GEN 496551 GEN 496551 Contact Us For Availability
× ![]()
