Model Whirlpool AS22BRXAW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
08 - DISPENSER FRONT

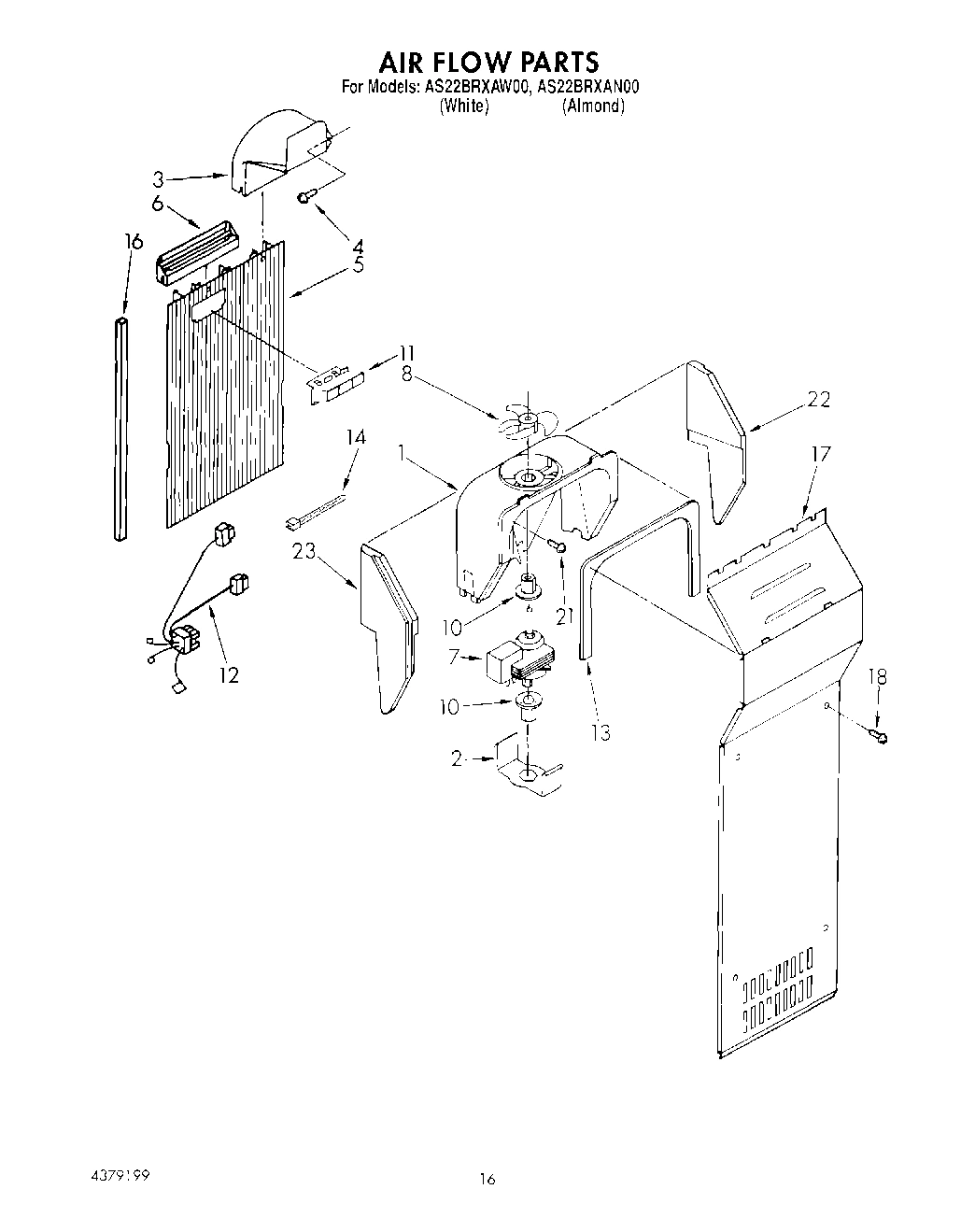

10 - AIR FLOW

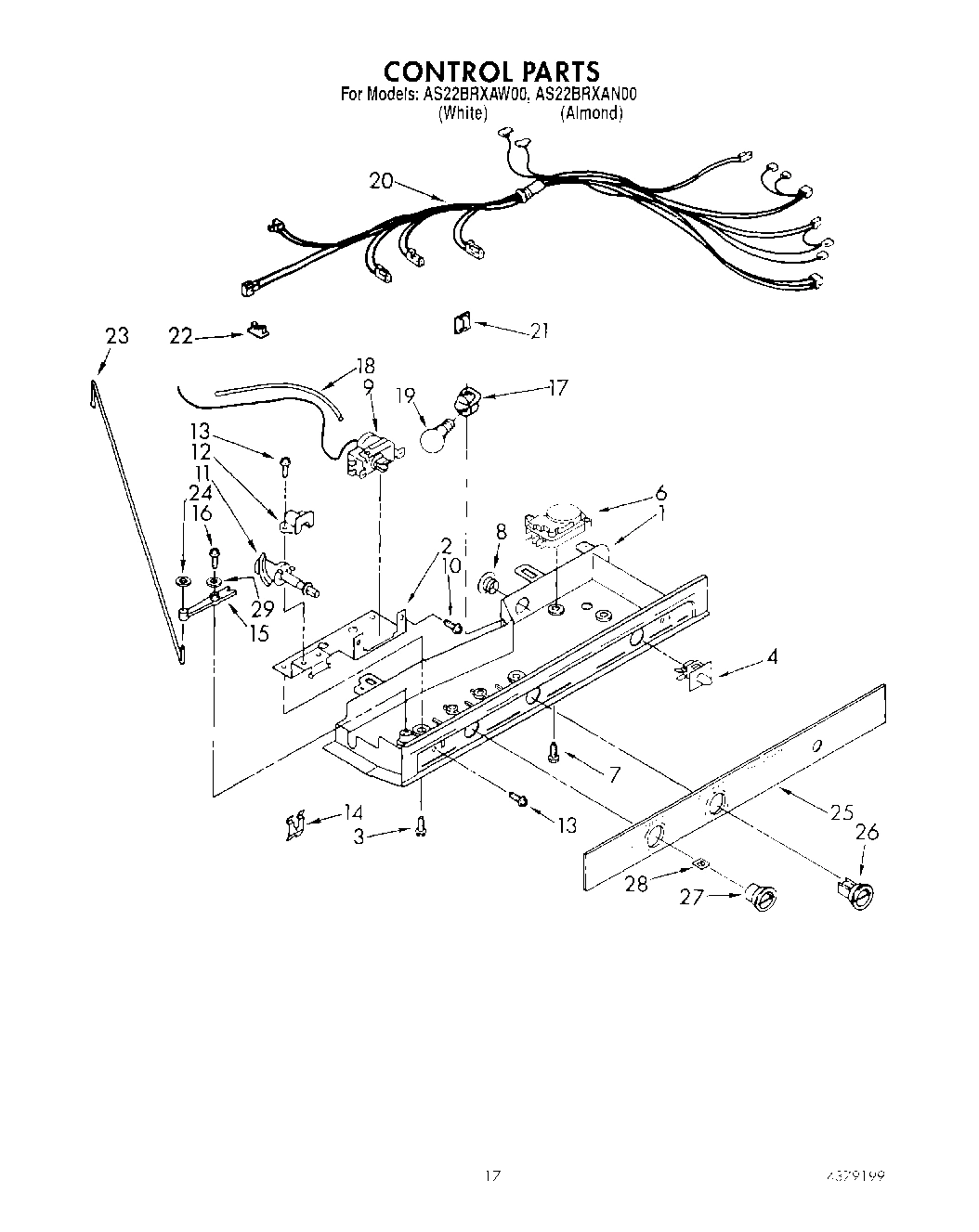

11 - CONTROL
05 - FREEZER INTERIOR
06 - REFRIGERATOR DOOR
02 - REFRIGERATOR LINER

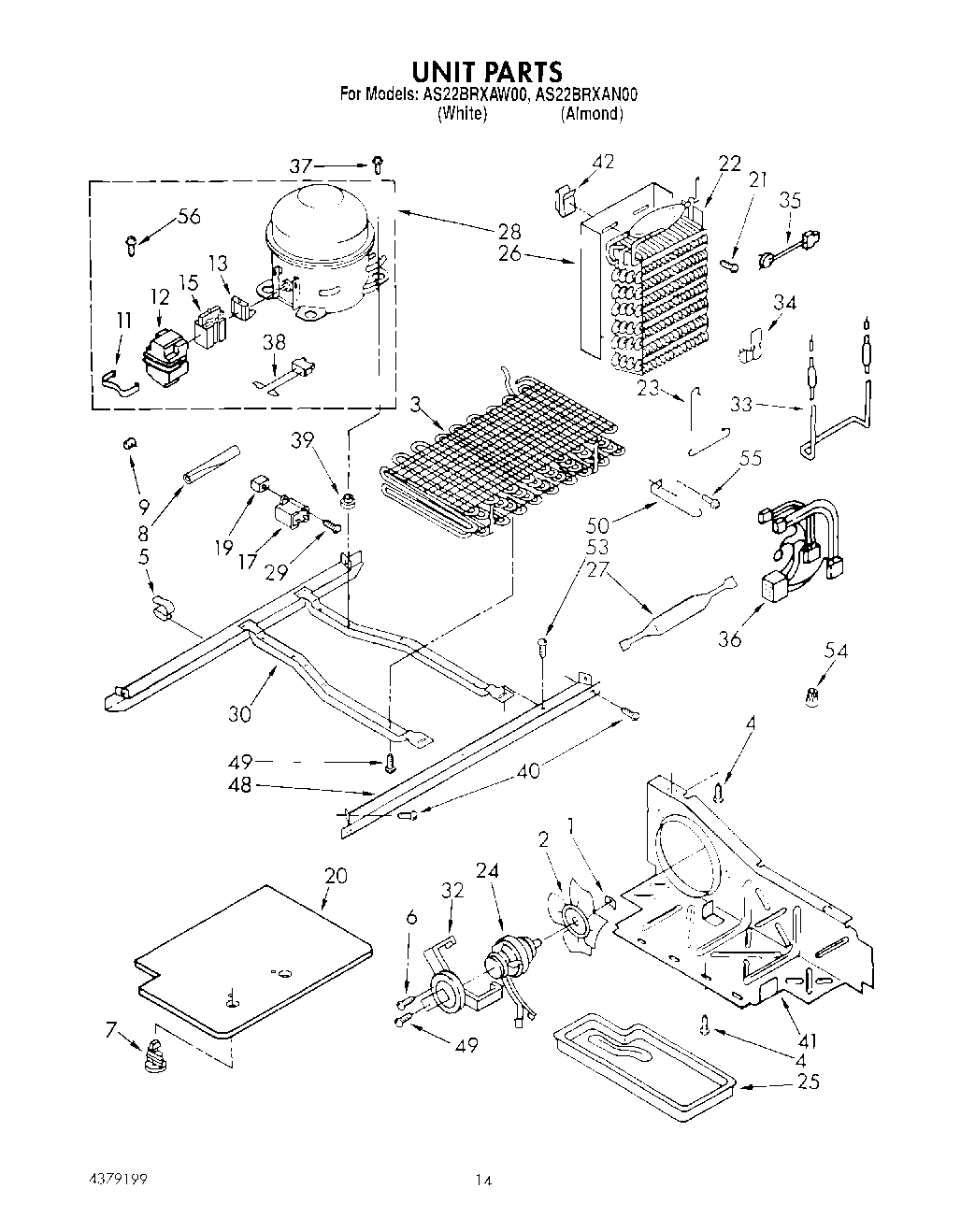

09 - UNIT
12 - ICEMAKER, LIT/OPTIONAL

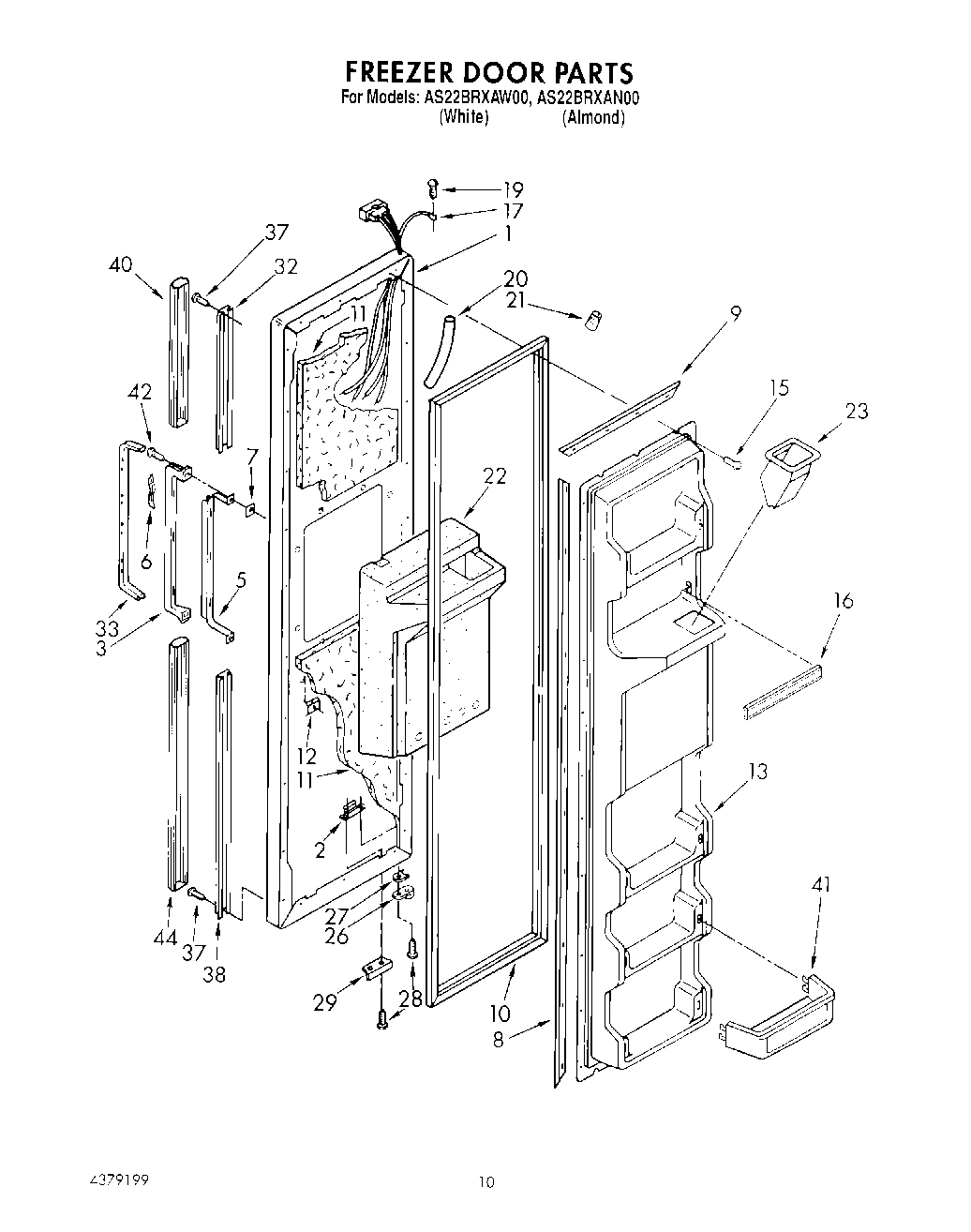

07 - FREEZER DOOR
03 - REFRIGERATOR SHELF

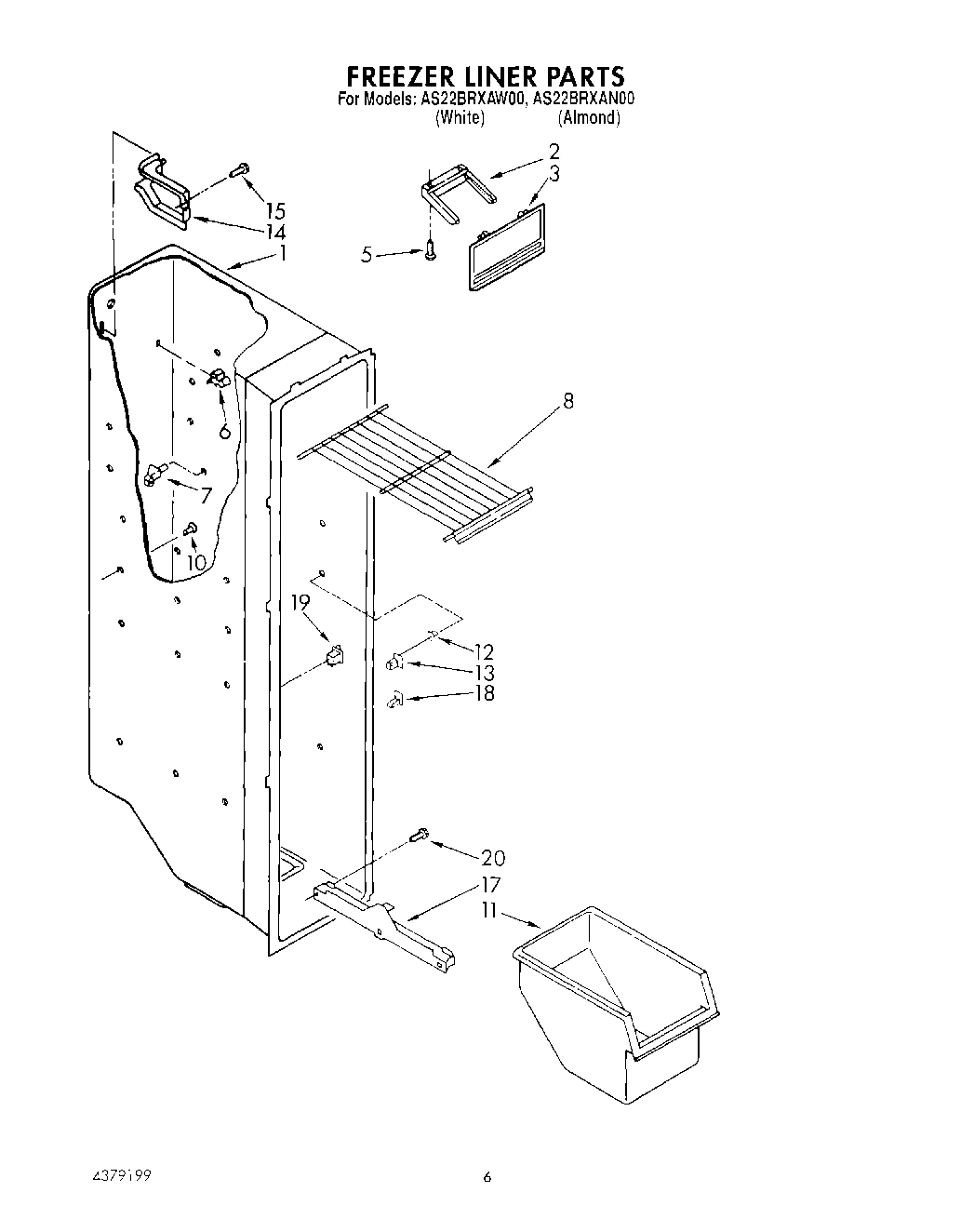

04 - FREEZER LINER
Common parts from model Whirlpool AS22BRXAW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155249 WPL LIT2155249 Contact Us For Availability
WPL LIT2167143 WPL LIT2167143 Contact Us For Availability
WPL LIT2167152 WPL LIT2167152 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2152454 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 2152455 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI20423A1 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI20424A9 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Door, Compartment WPL 2148289 Contact Us For Availability
3
Handle, Center (White) WPL 2147470 Contact Us For Availability
3
Handle, Center (Almond) WPL 2170066 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Door, Ice Compartment WPL 2152361 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Trim, Compartment Door WPL 1124432 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
5
Ladder, Shelf WPL 1108433 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
6
Trim, Door Shelf WPL 1120852 Contact Us For Availability
6
Clip, Handle WPL 849445 Contact Us For Availability
6
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim WPL 2147097 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
8
Shelf (Large 2) WPL 1114609 Contact Us For Availability
8
Shelf (Small 1) WPL 1118165 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Shelf, Cantilever WPL 1116890 Contact Us For Availability
10
Trim, Shelf WPL 1124421 Contact Us For Availability
10
Grommet WPL 1110779 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Pan, Meat WPL 2152636 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2154857 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Lens WPL 1118315 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Relay (See Overload) WPL ARI20425A5 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2152362 Contact Us For Availability
16
Trim, Door Shelf WPL 2152357 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Harness, Door WPL 1118032 Contact Us For Availability
17
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Light Lens WPL 983359 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Nameplate WPL 2166599 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154561 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
32
Retainer, Top WPL 2147898 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Insert, Handle (White) WPL 2147581 Contact Us For Availability
33
Insert, Handle (Almond) WPL 2170064 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
36
Unit, Harness WPL 2153994 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Extension, Top (White) WPL 2147472 Contact Us For Availability
40
Extension, Top (Almond) WPL 2170067 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
41
Door, Shelf WPL 2152686 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
42
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
42
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
42
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 72112 WPL 72112 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
44
White WPL 2147471 Contact Us For Availability
44
Almond WPL 2170068 Contact Us For Availability
44
Extension (Bottom) WPL 1127473 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
