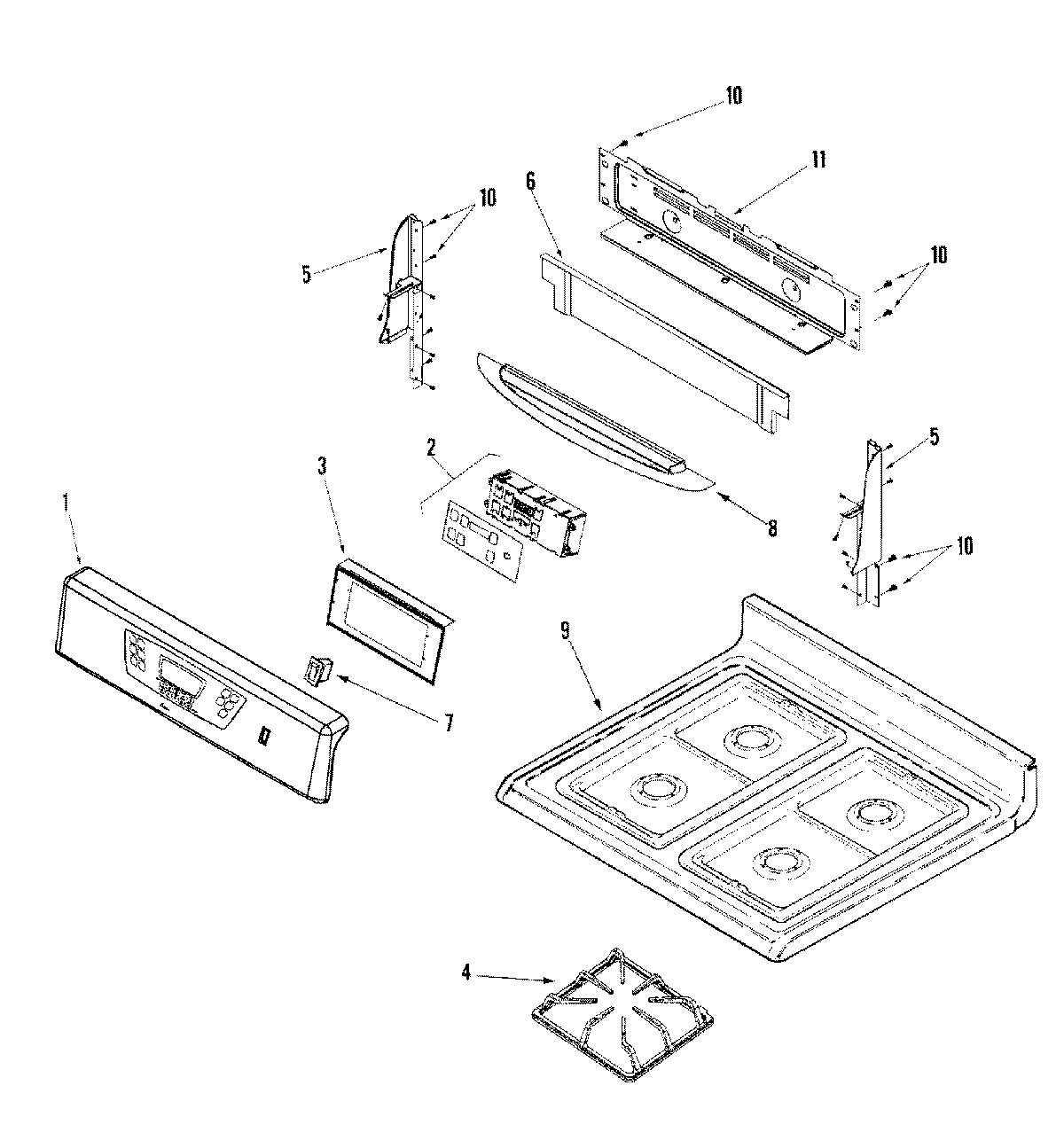

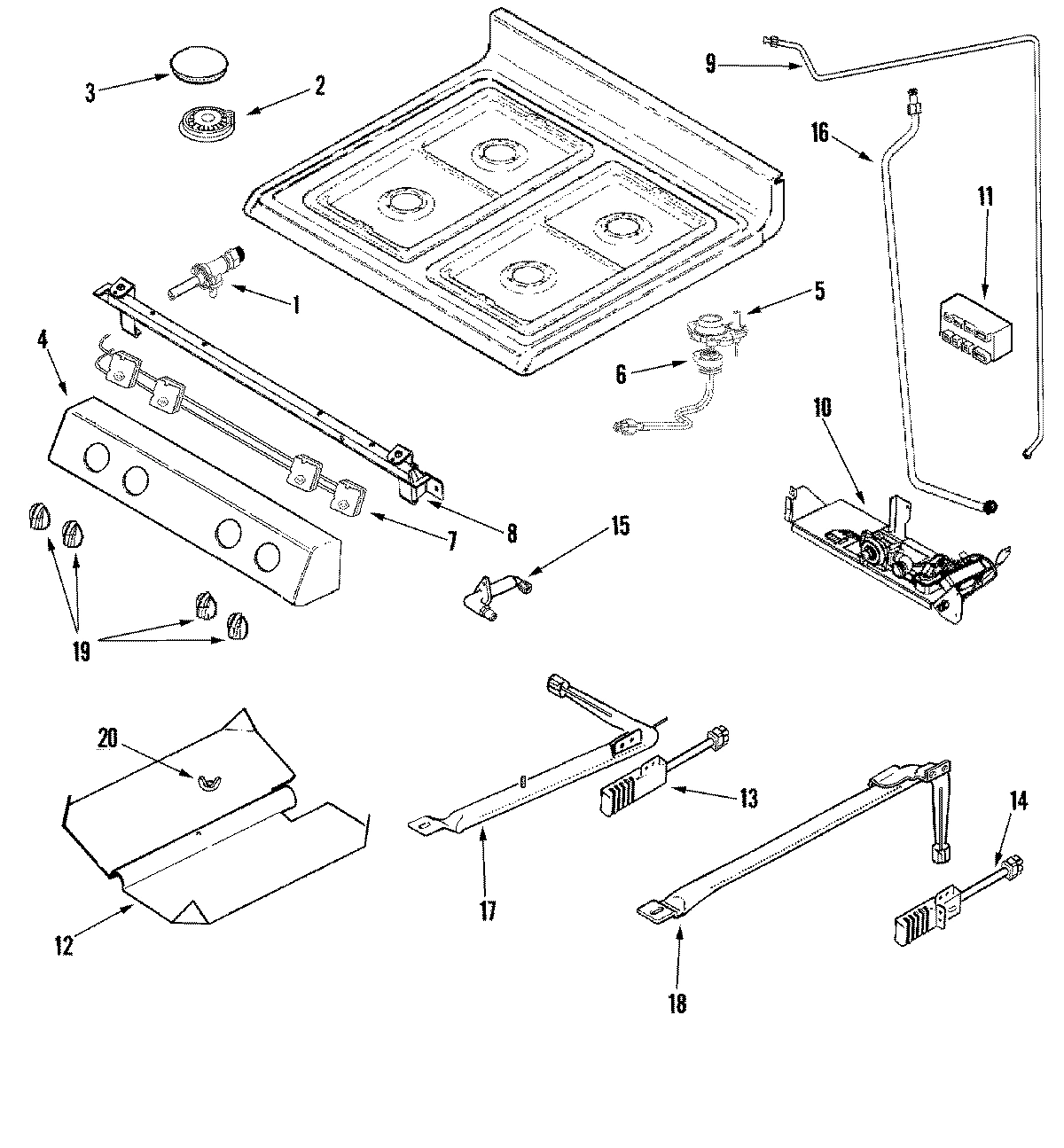

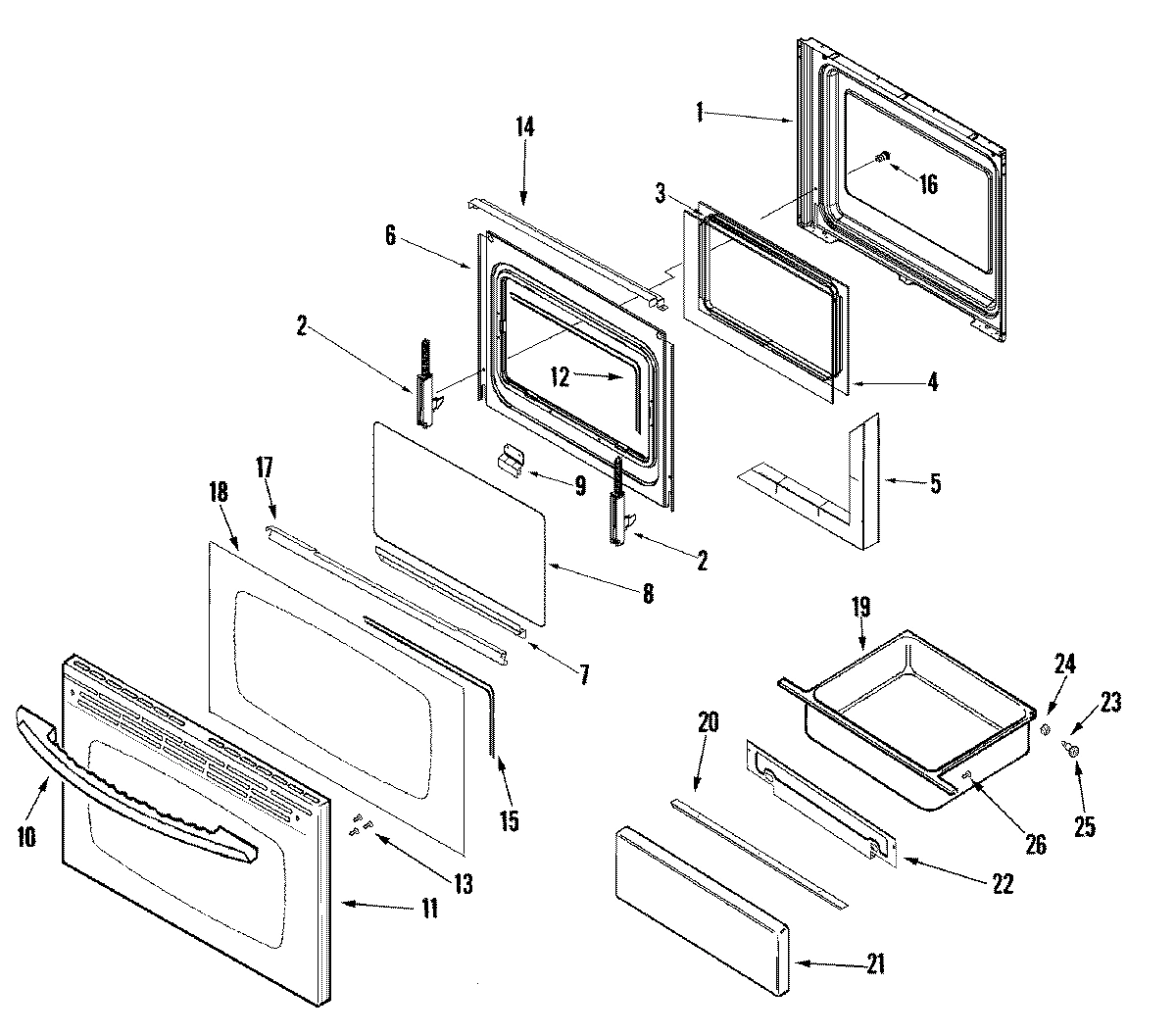

Model Maytag ALR5715QDS GAS RANGE – Common Parts & Diagrams

1
MAY Y3401F02019
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
View on Model
1
MAY 74008677
MAY 74008677 MAY 74008677 Contact Us For Availability
View on Model
1
MAY 74008926
MAY 74008926 MAY 74008926 Contact Us For Availability
View on Model
1
MAY 74010622
MAY 74010622 MAY 74010622 Contact Us For Availability
View on Model
1
MAY 74010836
MAY 74010836 MAY 74010836 Contact Us For Availability
View on Model
1
MAY 8113P449-60
MAY 8113P449-60 MAY 8113P449-60 Contact Us For Availability
View on Model
1
MAY 8113P553-60
MAY 8113P553-60 MAY 8113P553-60 Contact Us For Availability
View on Model
1
MAY 8113P732-60
MAY 8113P732-60 MAY 8113P732-60 Contact Us For Availability
View on Model
2
MAY W10124350
MAY W10124350 MAY W10124350 Contact Us For Availability
View on Model
2
MAY Y3413F01619
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
View on Model
2
MAY 74009577
MAY 74009577 MAY 74009577 Contact Us For Availability
View on Model
3
MAY 74009655
MAY 74009655 MAY 74009655 Contact Us For Availability
View on Model
3
MAY 74008817
MAY 74008817 MAY 74008817 Contact Us For Availability
View on Model
3
MAY 74008716
MAY 74008716 MAY 74008716 Contact Us For Availability
View on Model
3
FRAME, GLASS
FRAME, GLASS MAY 74003644 Contact Us For Availability
View on Model
4
MAY 4005F421-45
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
View on Model
4
MAY 74008870
MAY 74008870 MAY 74008870 Contact Us For Availability
View on Model
4
MAY M0275597
MAY M0275597 MAY M0275597 Contact Us For Availability
View on Model
4
MAY 74008847
MAY 74008847 MAY 74008847 Contact Us For Availability
View on Model
4
MAY 16022498
MAY 16022498 MAY 16022498 Contact Us For Availability
View on Model
5
END CAP (RT-BLK)
END CAP (RT-BLK) MAY 74009022 Contact Us For Availability
View on Model
5
END CAP (LT-BLK)
END CAP (LT-BLK) MAY 74009023 Contact Us For Availability
View on Model
5
INSULATION, OVEN DOOR
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
View on Model
6
MAY 74008876
MAY 74008876 MAY 74008876 Contact Us For Availability
View on Model
6
MAY 74009444
MAY 74009444 MAY 74009444 Contact Us For Availability
View on Model
6
MAY 74008744
MAY 74008744 MAY 74008744 Contact Us For Availability
View on Model
6
MAY 74010624
MAY 74010624 MAY 74010624 Contact Us For Availability
View on Model
6
MAY 74010625
MAY 74010625 MAY 74010625 Contact Us For Availability
View on Model
6
MAY 74010626
MAY 74010626 MAY 74010626 Contact Us For Availability
View on Model
6
MAY 74010627
MAY 74010627 MAY 74010627 Contact Us For Availability
View on Model
7
SWITCH, ROCKER (BLK)
SWITCH, ROCKER (BLK) MAY 74008718 Contact Us For Availability
View on Model
7
MAY Y707319
MAY Y707319 MAY Y707319 Contact Us For Availability
View on Model
7
RETAINER, DOOR GLASS (LWR)
RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability
View on Model
8
SHIELD, HEAT VISOR (BLK)
SHIELD, HEAT VISOR (BLK) MAY 74010577 Contact Us For Availability
View on Model
8
GLASS, DOOR
GLASS, DOOR MAY 74003649 Contact Us For Availability
View on Model
8
MAY 74008809
MAY 74008809 MAY 74008809 Contact Us For Availability
View on Model
9
MAY 71001867
MAY 71001867 MAY 71001867 Contact Us For Availability
View on Model
9
MAY 74008843
MAY 74008843 MAY 74008843 Contact Us For Availability
View on Model
9
MAY 74008746
MAY 74008746 MAY 74008746 Contact Us For Availability
View on Model
9
MAY 71003231
MAY 71003231 MAY 71003231 Contact Us For Availability
View on Model
9
TUBING, SUPPLY
TUBING, SUPPLY MAY 74008829 Contact Us For Availability
View on Model
10
MAY 74008324
MAY 74008324 MAY 74008324 Contact Us For Availability
View on Model
10
MAY 74010621
MAY 74010621 MAY 74010621 Contact Us For Availability
View on Model
11
BAFFLE, BAKE BURNER
BAFFLE, BAKE BURNER MAY 74008846 Contact Us For Availability
View on Model
11
SCREW (8BX3/8-NI)
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
View on Model
11
MAY 74008730
MAY 74008730 MAY 74008730 Contact Us For Availability
View on Model
11
MAY 74008836
MAY 74008836 MAY 74008836 Contact Us For Availability
View on Model
11
COVER, BROIL ACCESS FITTING
COVER, BROIL ACCESS FITTING MAY 74009653 Contact Us For Availability
View on Model
11
MAY 74008913
MAY 74008913 MAY 74008913 Contact Us For Availability
View on Model
12
MAY 74008702
MAY 74008702 MAY 74008702 Contact Us For Availability
View on Model
12
SUPPORT, OVEN BOTTOM (REAR)
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
View on Model
12
MAY 74008917
MAY 74008917 MAY 74008917 Contact Us For Availability
View on Model
12
MAY 74008819
MAY 74008819 MAY 74008819 Contact Us For Availability
View on Model
13
SUPPORT, OVEN BOTTOM (FRONT)
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
View on Model
14
MAY 74009027
MAY 74009027 MAY 74009027 Contact Us For Availability
View on Model
14
SCREW (10-24X5/16-NI)
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
View on Model
15
MAY 74009062
MAY 74009062 MAY 74009062 Contact Us For Availability
View on Model
15
MAY 74010623
MAY 74010623 MAY 74010623 Contact Us For Availability
View on Model
17
MAY 74009028
MAY 74009028 MAY 74009028 Contact Us For Availability
View on Model
17
BURNER, BROIL
BURNER, BROIL MAY 74008820 Contact Us For Availability
View on Model
18
INSULATION, WRAPPER
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
View on Model
18
MAY 74008855
MAY 74008855 MAY 74008855 Contact Us For Availability
View on Model
18
MAY 31945701
MAY 31945701 MAY 31945701 Contact Us For Availability
View on Model
19
MAY 74008850
MAY 74008850 MAY 74008850 Contact Us For Availability
View on Model
19
MAY 3402F037-80
MAY 3402F037-80 MAY 3402F037-80 Contact Us For Availability
View on Model
19
DRAWER, SERVICE
DRAWER, SERVICE MAY 3405F037-80 Contact Us For Availability
View on Model
20
MAY 74008909
MAY 74008909 MAY 74008909 Contact Us For Availability
View on Model
20
HANDLE, DRAWER
HANDLE, DRAWER MAY 7701P547-60 Contact Us For Availability
View on Model
20
NUT, WING
NUT, WING MAY 7103P030-60 Contact Us For Availability
View on Model
21
MAY 74009024
MAY 74009024 MAY 74009024 Contact Us For Availability
View on Model
22
MAY 74009026
MAY 74009026 MAY 74009026 Contact Us For Availability
View on Model
23
SHAFT, STORAGE DRAWER ROLLER
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
View on Model
24
MAY 74008340
MAY 74008340 MAY 74008340 Contact Us For Availability
View on Model
25
MAY 74008858
MAY 74008858 MAY 74008858 Contact Us For Availability
View on Model
27
BOTTOM, REAR COVER
BOTTOM, REAR COVER MAY 74008867 Contact Us For Availability
View on Model
28
MAY 74010563
MAY 74010563 MAY 74010563 Contact Us For Availability
View on Model
NI
MAY 15003467
MAY 15003467 MAY 15003467 Contact Us For Availability
View on Model
