Model Maytag ALE565SAC ELECTRIC DRYER – Common Parts & Diagrams

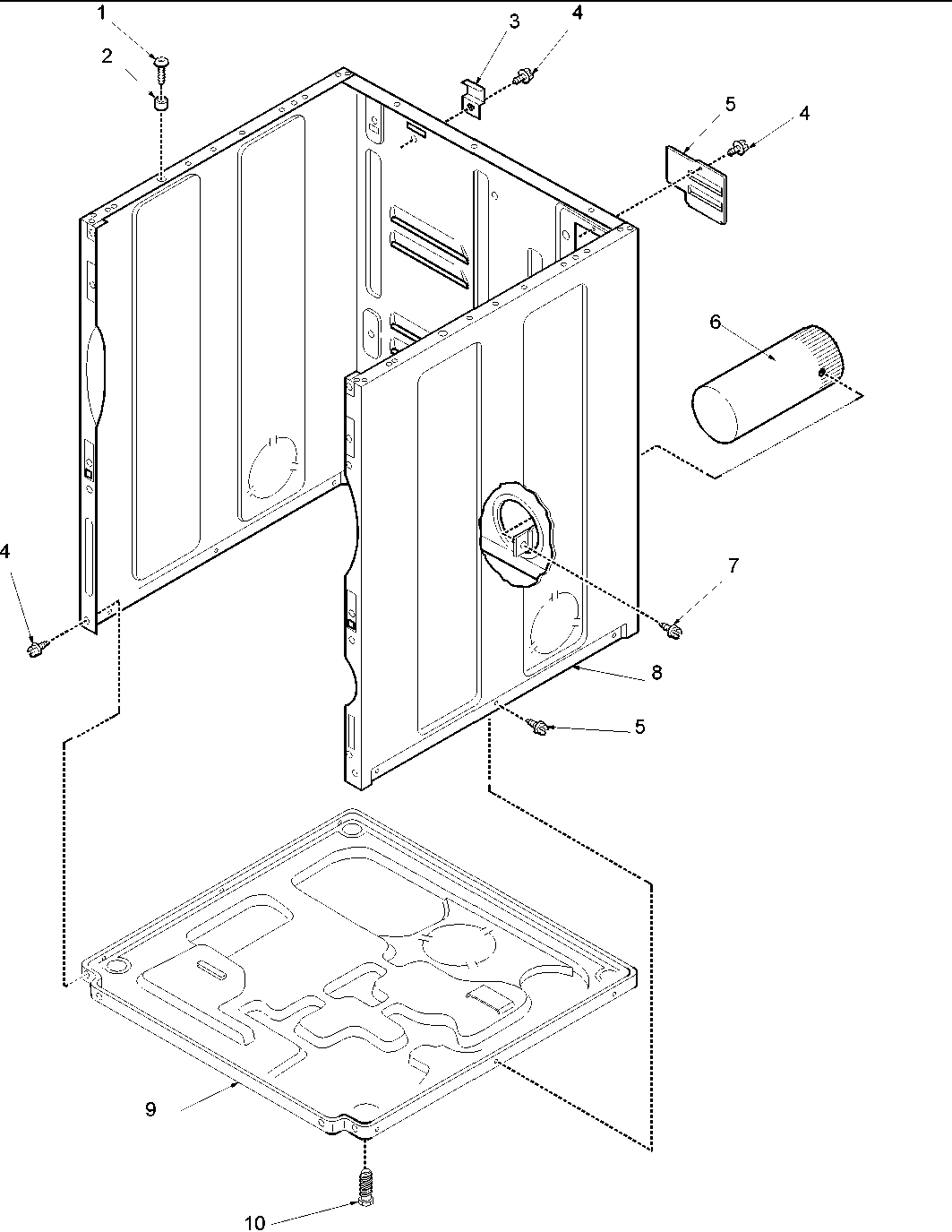

01 - CABINET AND BASE

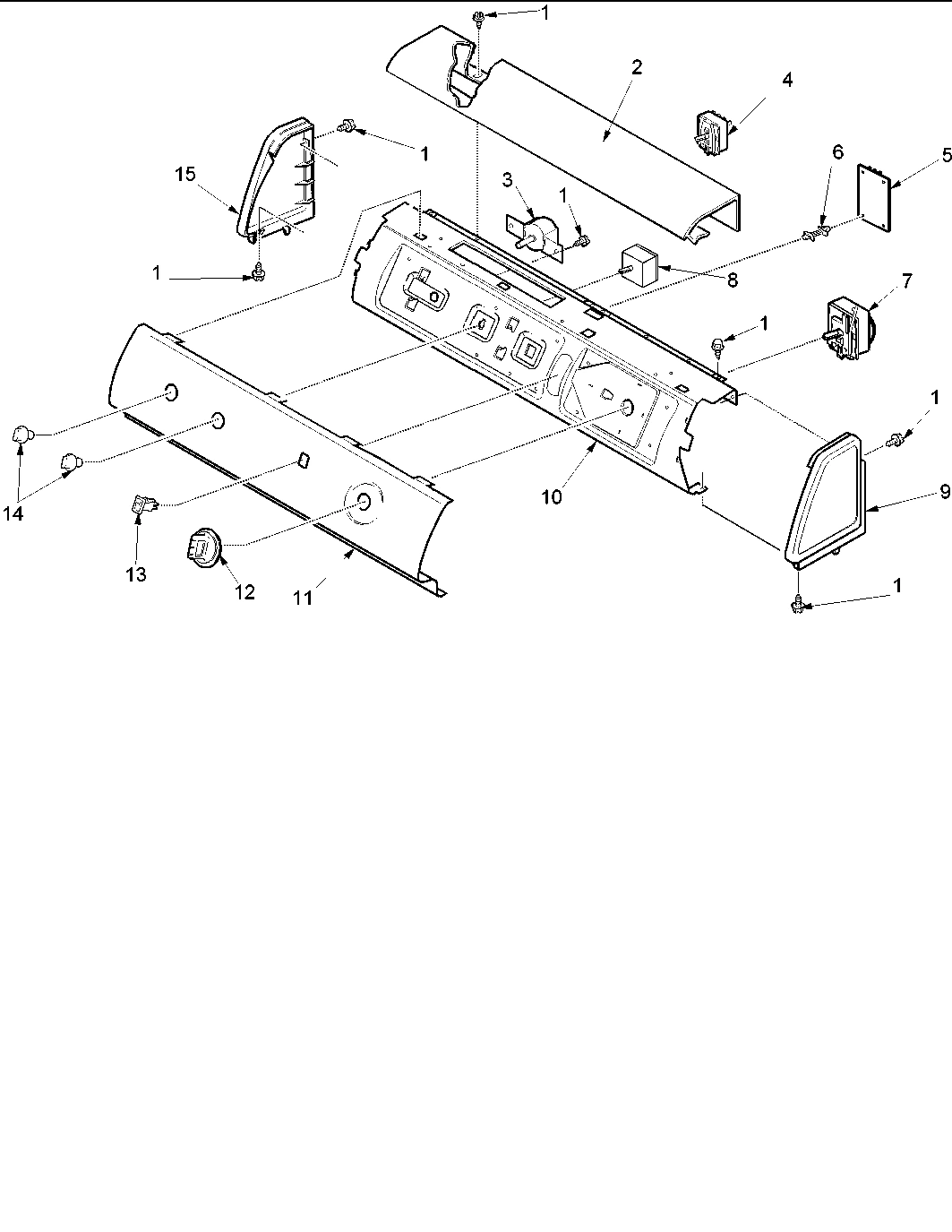

02 - CONTROL PANEL

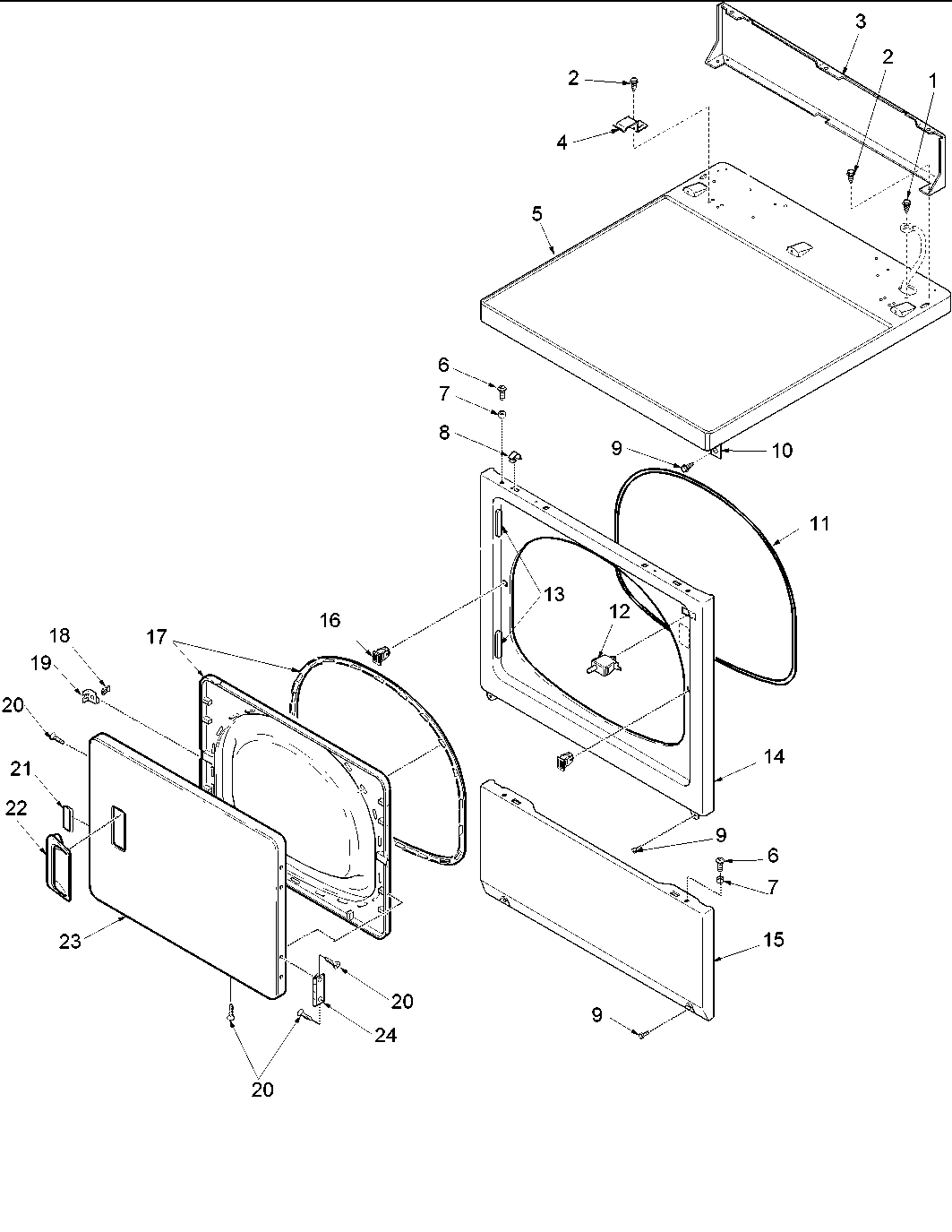

03 - DOOR AND FRONT, ACCESS, AND TOP PANEL

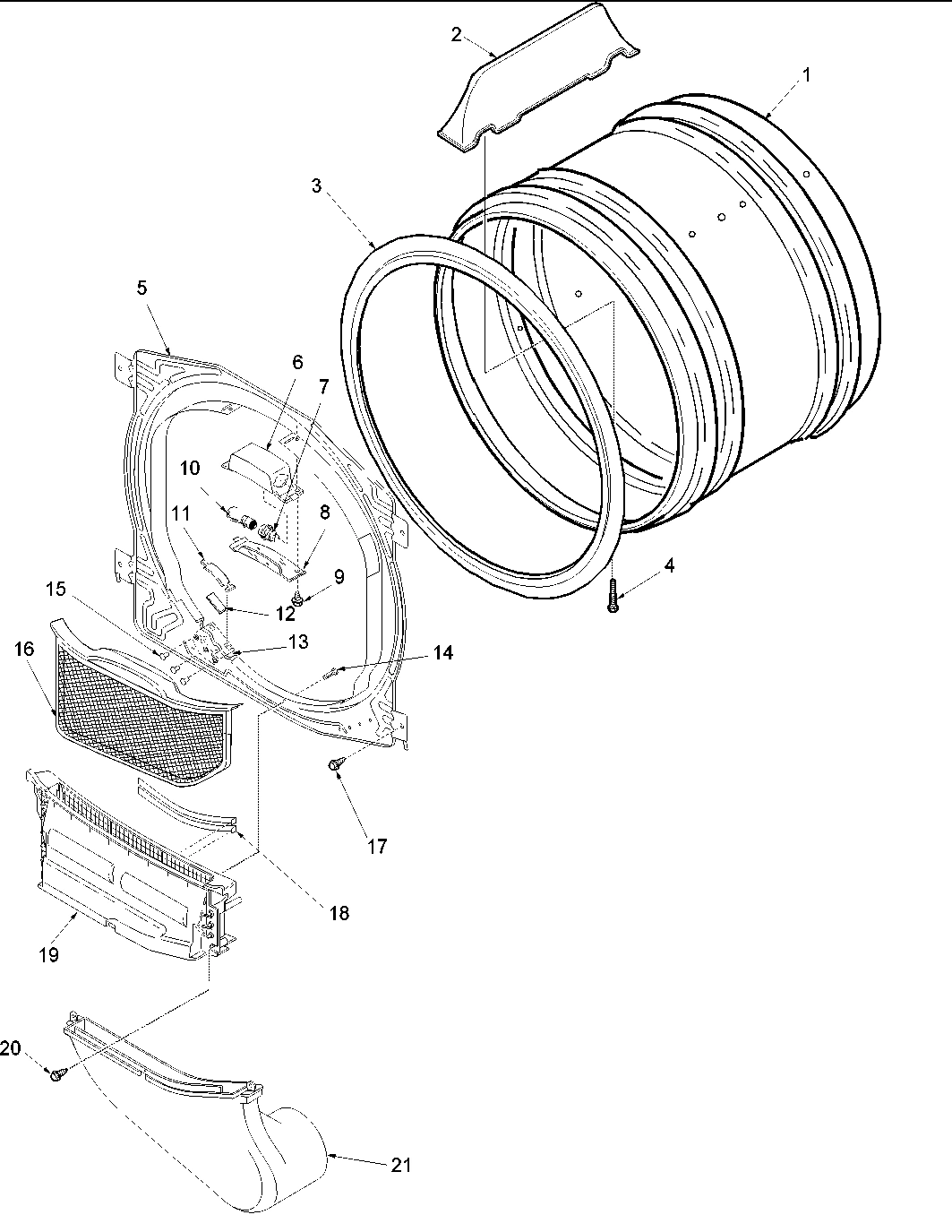

04 - FRONT BULKHEAD, AIR DUCT & CYLINDER
05 - MISCELLAEOUS INFORMATION

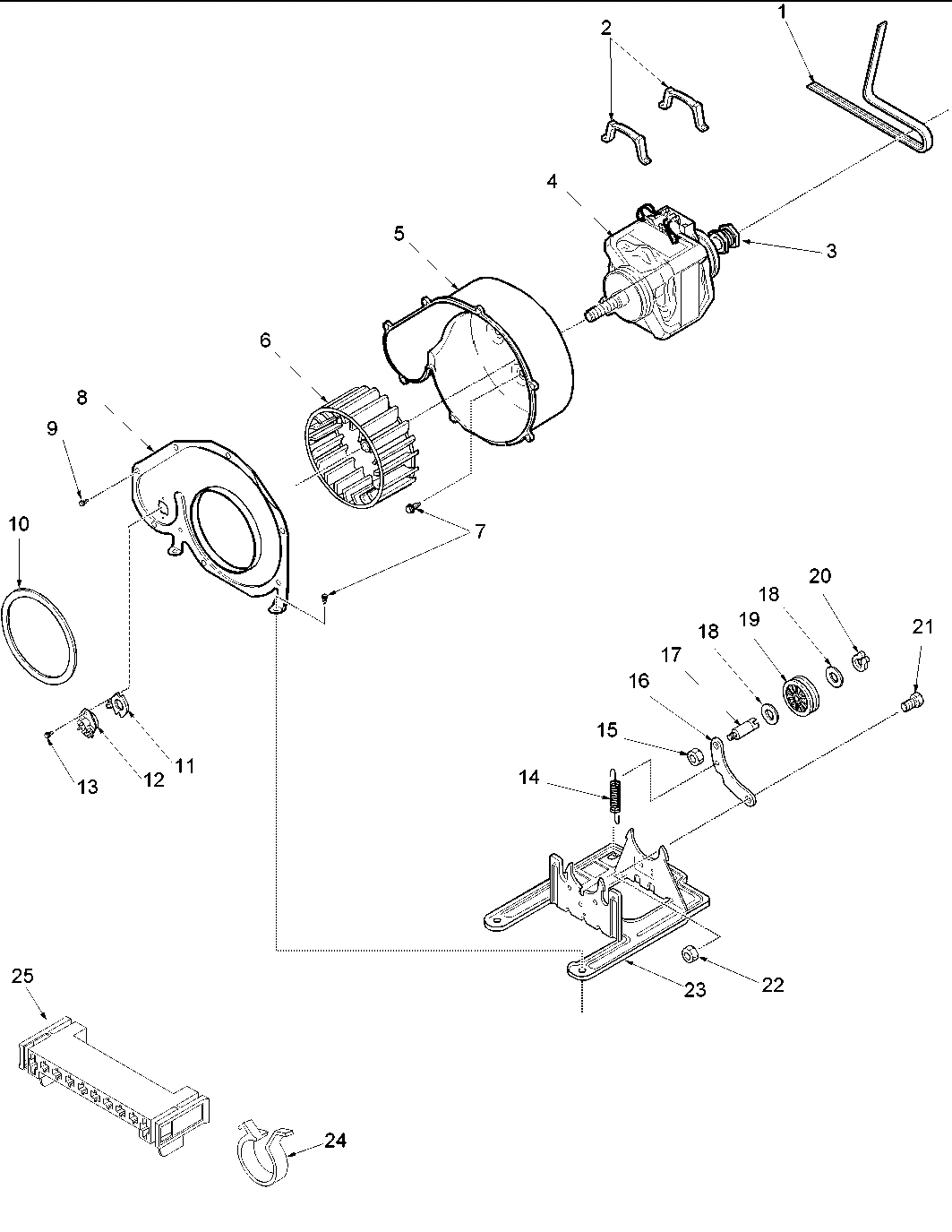

06 - MOTOR AND FAN ASSEMBLY

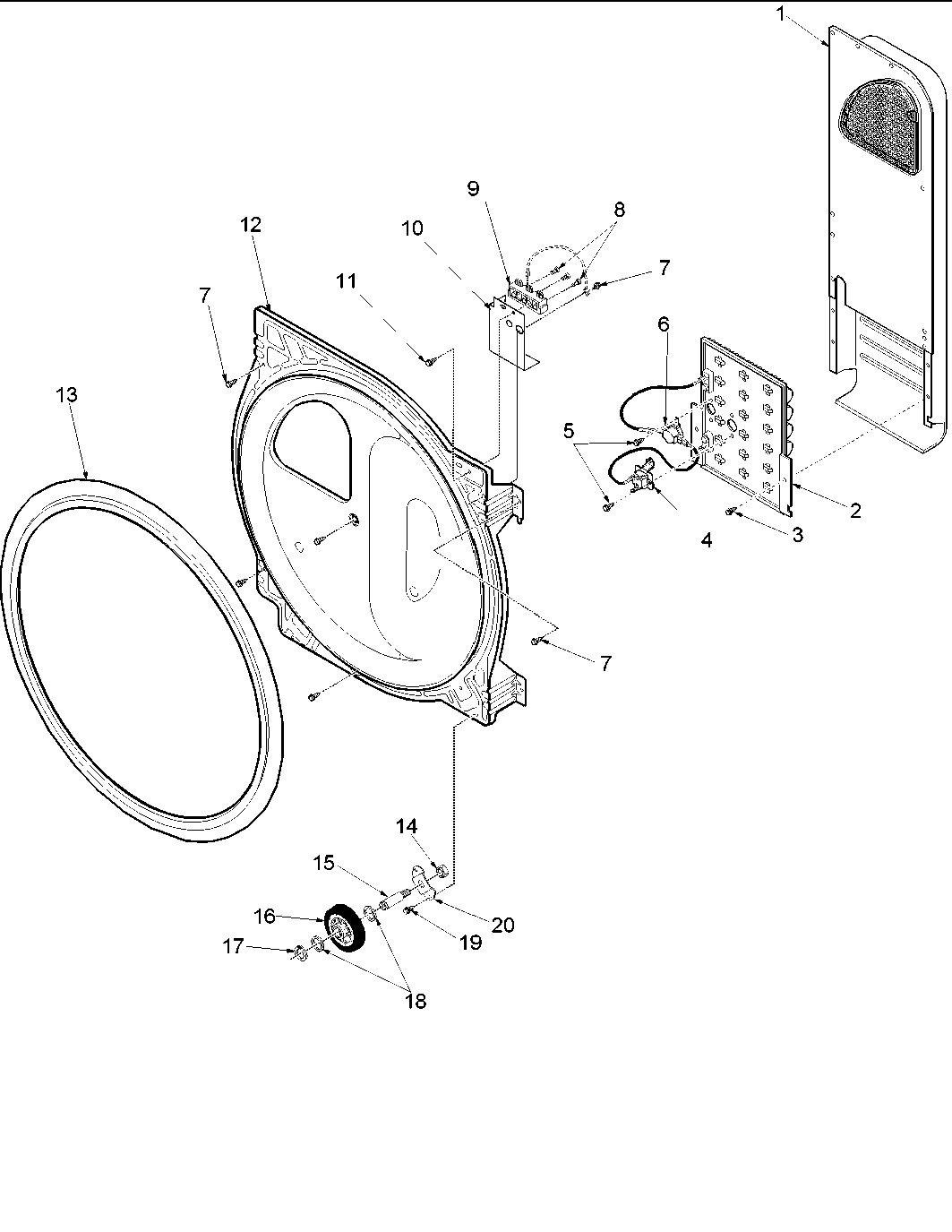

07 - REAR BULKHEAD, ROLLERS & AIR DUCT
Common parts from model Maytag ALE565SAC ELECTRIC DRYER
0
MAY RS3200007 MAY RS3200007 Contact Us For Availability
0
MAY RT3220005 MAY RT3220005 Contact Us For Availability
1
MAY 503657W MAY 503657W Contact Us For Availability
1
MAY 40111201 MAY 40111201 Contact Us For Availability
1
MAY 503605 MAY 503605 Contact Us For Availability
2
MAY 503703 MAY 503703 Contact Us For Availability
3
MAY 62173 MAY 62173 Contact Us For Availability
3
MAY 500343 MAY 500343 Contact Us For Availability
3
MAY 40048501 MAY 40048501 Contact Us For Availability
4
MAY 504166 MAY 504166 Contact Us For Availability
4
MAY Y503876 MAY Y503876 Contact Us For Availability
4
MAY Y62588 MAY Y62588 Contact Us For Availability
4
MAY 40099801 MAY 40099801 Contact Us For Availability
4
MAY 40113801 MAY 40113801 Contact Us For Availability
5
MAY 40084301 MAY 40084301 Contact Us For Availability
5
MAY 40070201C MAY 40070201C Contact Us For Availability
5
MAY 503709WP MAY 503709WP Contact Us For Availability
5
MAY 56020 MAY 56020 Contact Us For Availability
6
MAY 501523 MAY 501523 Contact Us For Availability
6
MAY 503622 MAY 503622 Contact Us For Availability
6
MAY 56000 MAY 56000 Contact Us For Availability
6
MAY Y504237 MAY Y504237 Contact Us For Availability
7
MAY 40112801 MAY 40112801 Contact Us For Availability
7
MAY 504458 MAY 504458 Contact Us For Availability
7
MAY 20530 MAY 20530 Contact Us For Availability
8
MAY 40094301 MAY 40094301 Contact Us For Availability
8
MAY 56080 MAY 56080 Contact Us For Availability
8
MAY 500078 MAY 500078 Contact Us For Availability
8
MAY Y61199 MAY Y61199 Contact Us For Availability
9
MAY 61923 MAY 61923 Contact Us For Availability
9
MAY 40012701C MAY 40012701C Contact Us For Availability
9
MAY 500227 MAY 500227 Contact Us For Availability
10
MAY 40039611 MAY 40039611 Contact Us For Availability
10
MAY 500084 MAY 500084 Contact Us For Availability
10
MAY Y60954 MAY Y60954 Contact Us For Availability
10
MAY 40090001 MAY 40090001 Contact Us For Availability
10
MAY 40111601 MAY 40111601 Contact Us For Availability
11
MAY 61623 MAY 61623 Contact Us For Availability
11
MAY 40092301C MAY 40092301C Contact Us For Availability
11
MAY 504005 MAY 504005 Contact Us For Availability
11
MAY Y501676 MAY Y501676 Contact Us For Availability
11
MAY 501285 MAY 501285 Contact Us For Availability
12
MAY 40013601C MAY 40013601C Contact Us For Availability
12
MAY 500092 MAY 500092 Contact Us For Availability
12
MAY 503979 MAY 503979 Contact Us For Availability
12
MAY 504801W MAY 504801W Contact Us For Availability
13
MAY 38424L MAY 38424L Contact Us For Availability
13
MAY 503126 MAY 503126 Contact Us For Availability
14
MAY 40013401C MAY 40013401C Contact Us For Availability
14
MAY 503639C MAY 503639C Contact Us For Availability
14
MAY 56076 MAY 56076 Contact Us For Availability
14
MAY 56156 MAY 56156 Contact Us For Availability
15
MAY 40012702C MAY 40012702C Contact Us For Availability
15
MAY 40045302C MAY 40045302C Contact Us For Availability
15
MAY 56461 MAY 56461 Contact Us For Availability
16
MAY 54660 MAY 54660 Contact Us For Availability
16
MAY Y503627 MAY Y503627 Contact Us For Availability
16
MAY 500910 MAY 500910 Contact Us For Availability
16
MAY 500214 MAY 500214 Contact Us For Availability
17
MAY 503643W MAY 503643W Contact Us For Availability
17
MAY 23748 MAY 23748 Contact Us For Availability
18
MAY Y504082 MAY Y504082 Contact Us For Availability
18
MAY 500039 MAY 500039 Contact Us For Availability
18
MAY 503625 MAY 503625 Contact Us For Availability
18
MAY 52549 MAY 52549 Contact Us For Availability
19
MAY 500223 MAY 500223 Contact Us For Availability
19
MAY 505528 MAY 505528 Contact Us For Availability
20
MAY 500062 MAY 500062 Contact Us For Availability
21
MAY 505328 MAY 505328 Contact Us For Availability
21
MAY Y503626 MAY Y503626 Contact Us For Availability
22
MAY 503646C MAY 503646C Contact Us For Availability
22
MAY 52566 MAY 52566 Contact Us For Availability
23
MAY 503642C MAY 503642C Contact Us For Availability
23
MAY 503613 MAY 503613 Contact Us For Availability
25
MAY 500338 MAY 500338 Contact Us For Availability
30
MAY 40091503 MAY 40091503 Contact Us For Availability
NI
MAY 40092601 MAY 40092601 Contact Us For Availability
NI
MAY 500269 MAY 500269 Contact Us For Availability
× ![]()
