Model Speed Queen AGM499*23080 Dryer – Common Parts & Diagrams
Graphic Panel, Control Hood and Controls (Drawing 1 of 5)
Graphic Panel, Control Hood and Controls (Drawing 2 of 5)

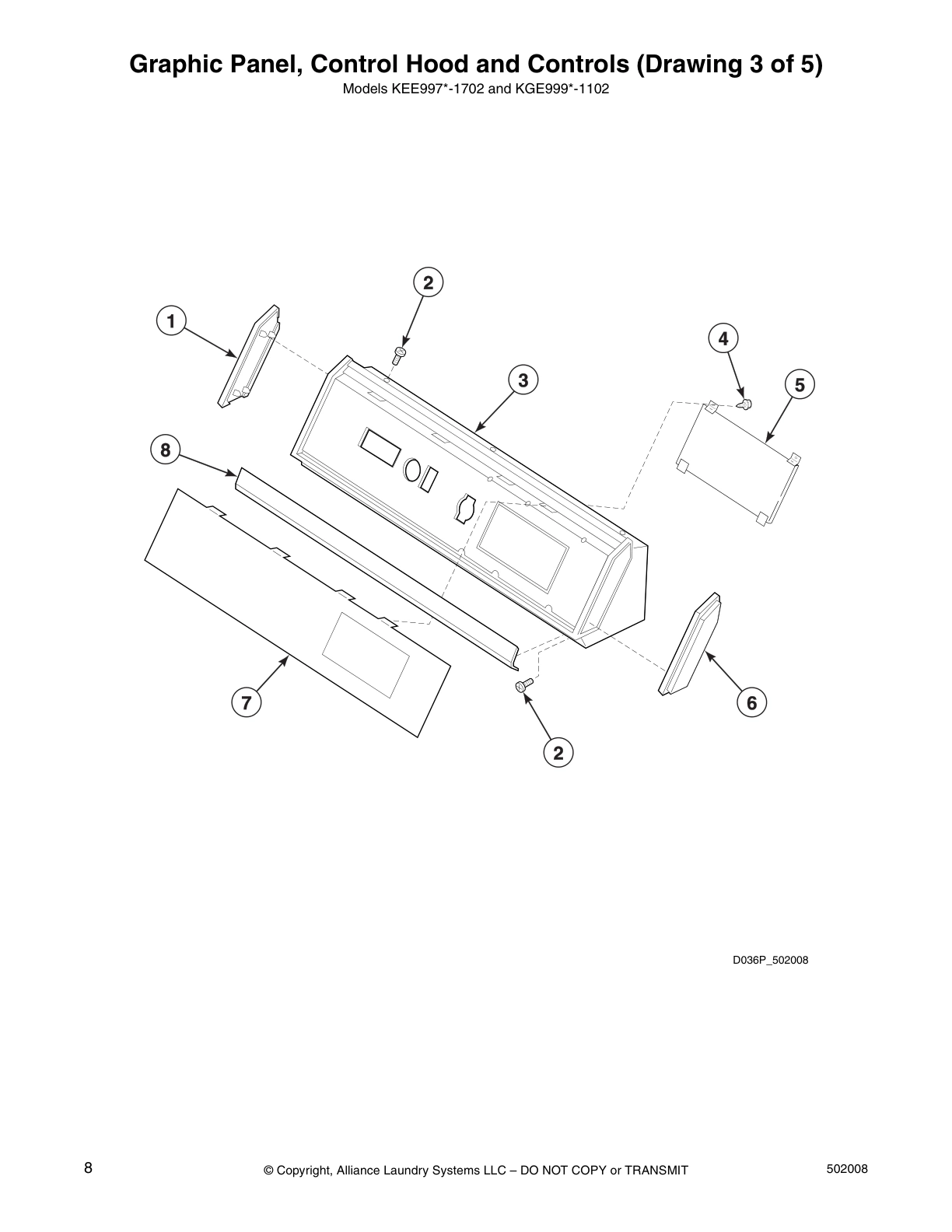

Graphic Panel, Control Hood and Controls (Drawing 3 of 5)

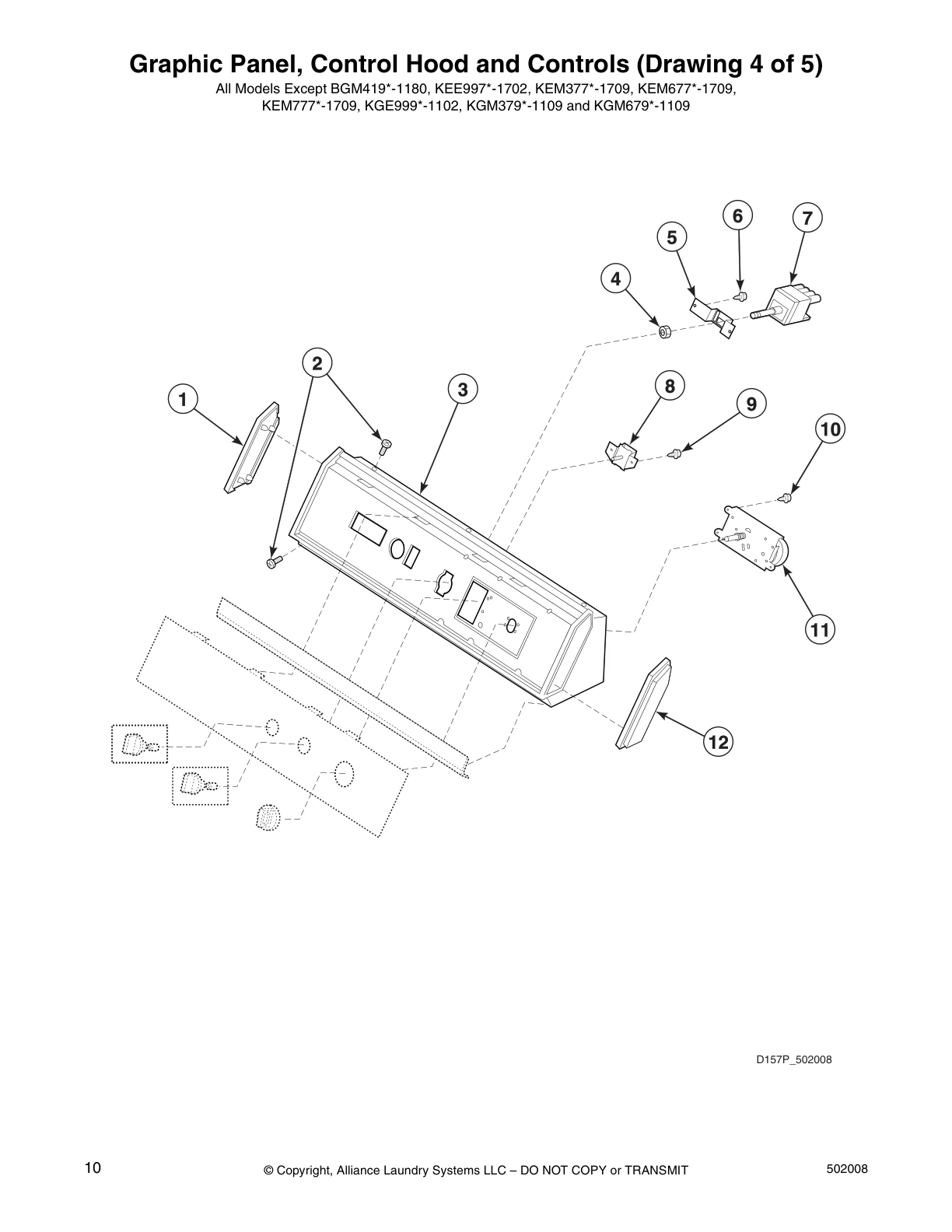

Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

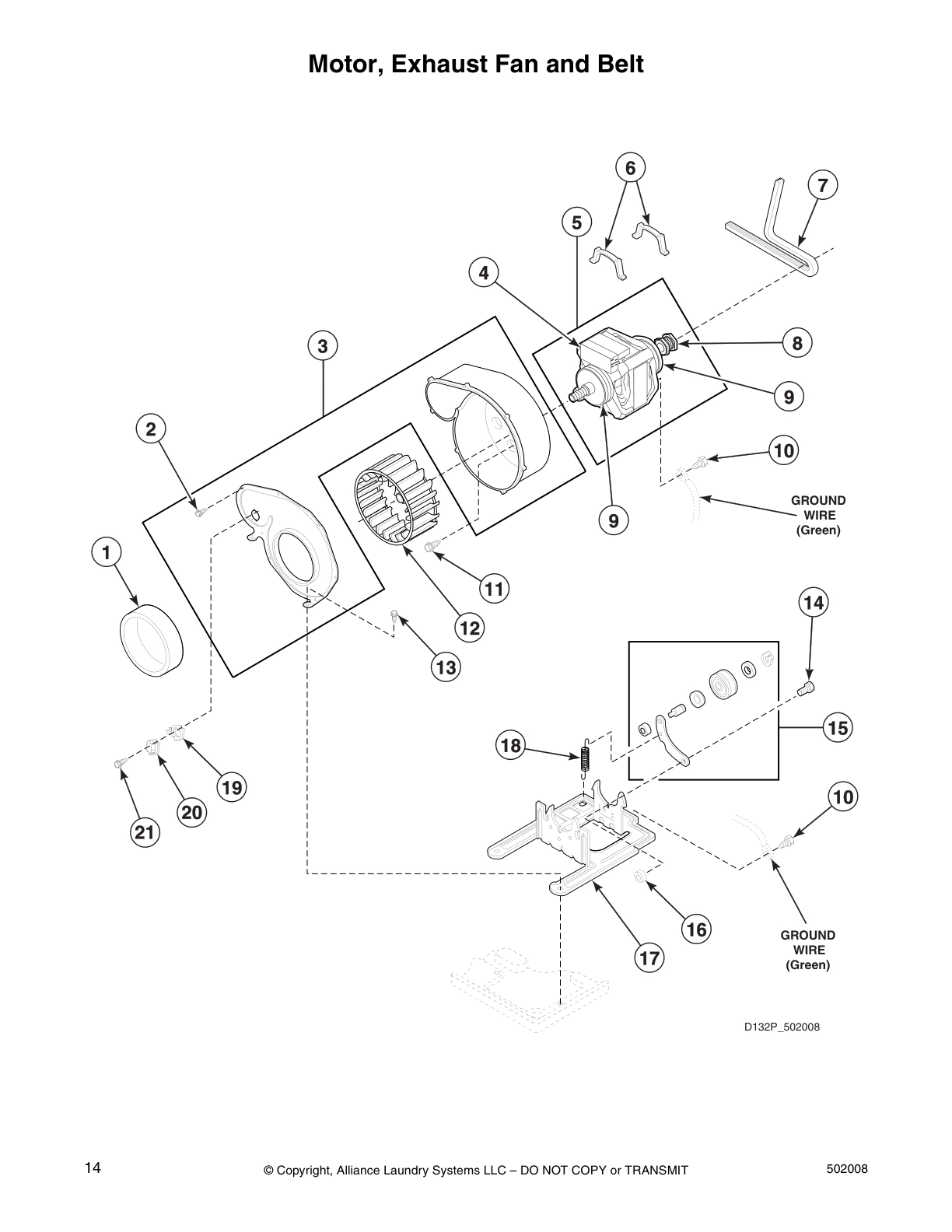

Motor, Exhaust Fan and Belt

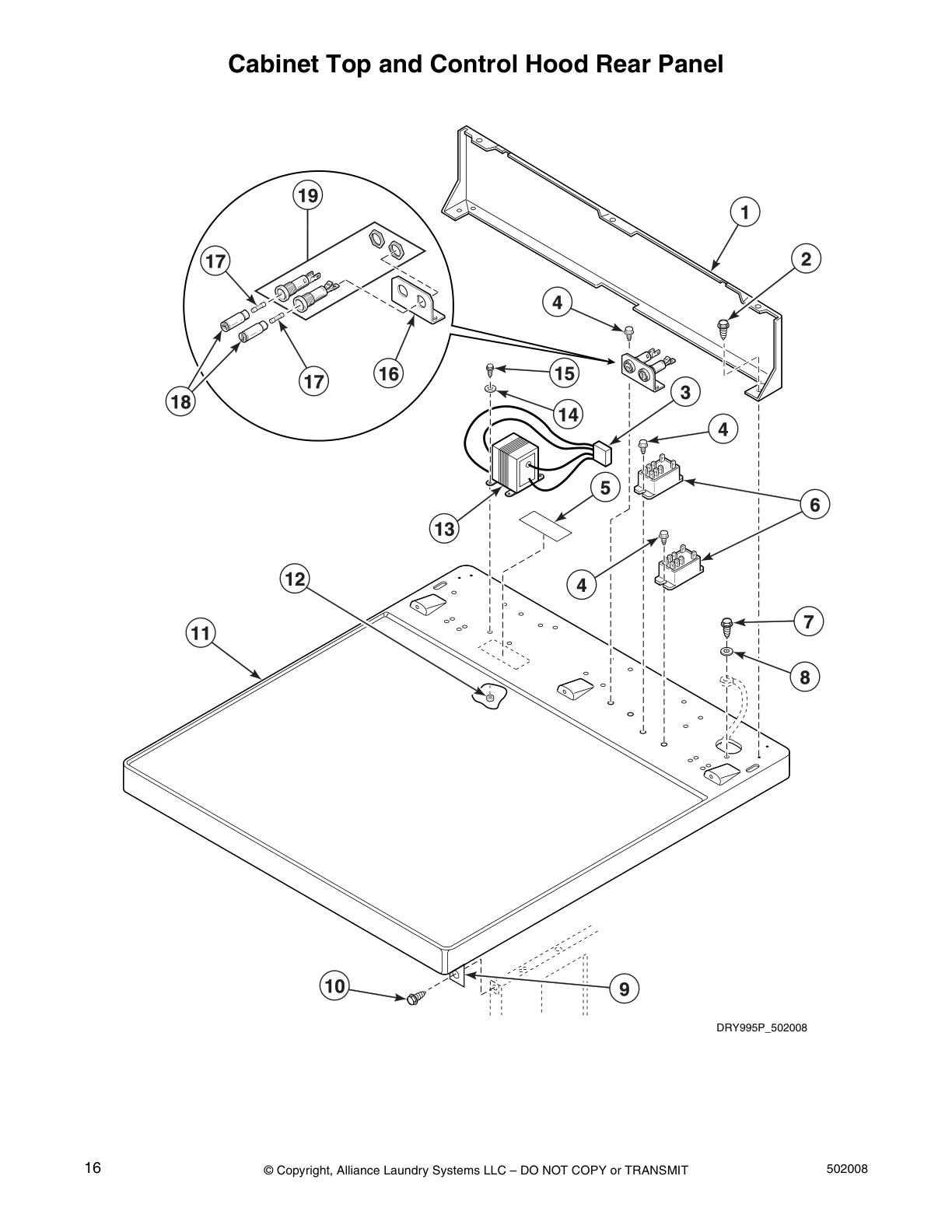

Cabinet Top and Control Hood Rear Panel

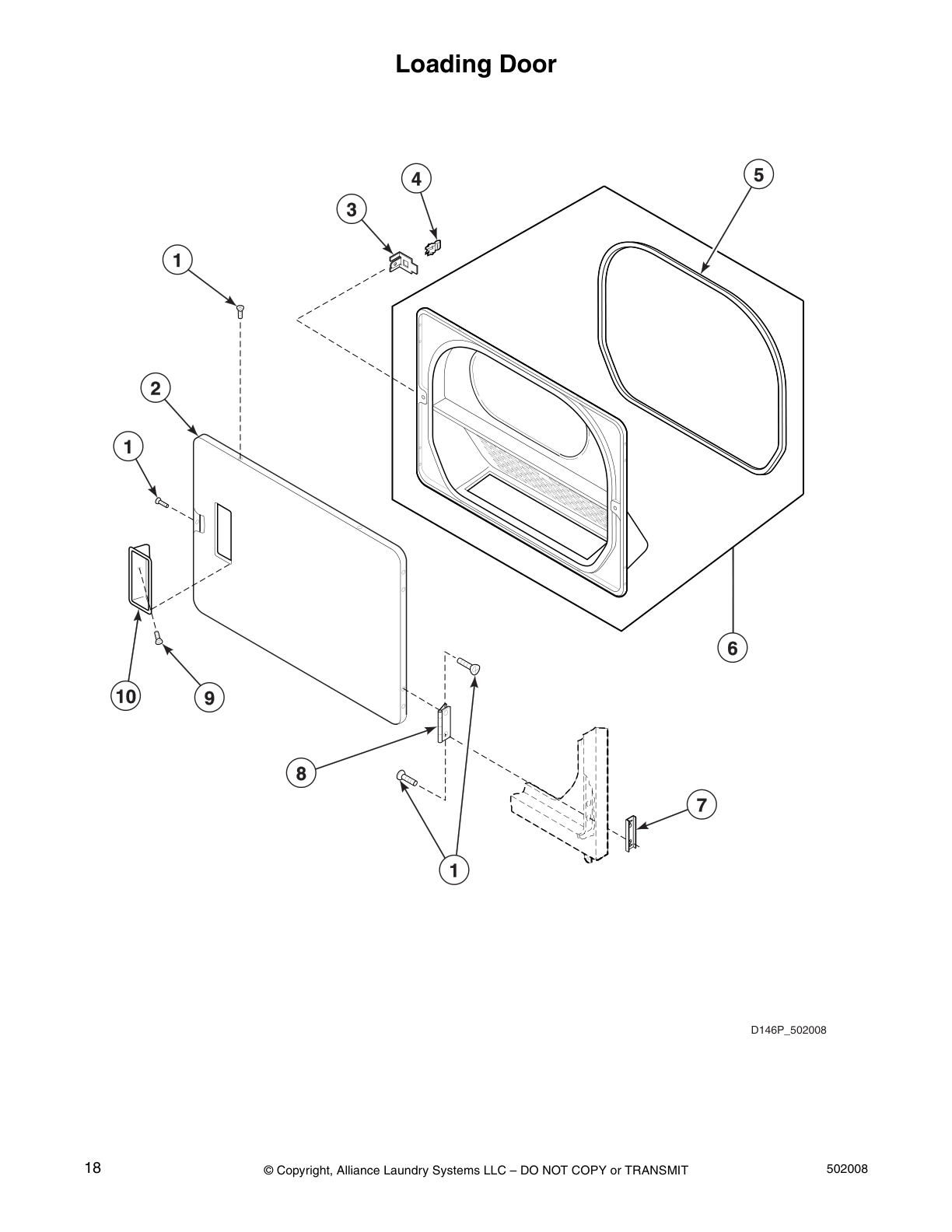

Loading Door

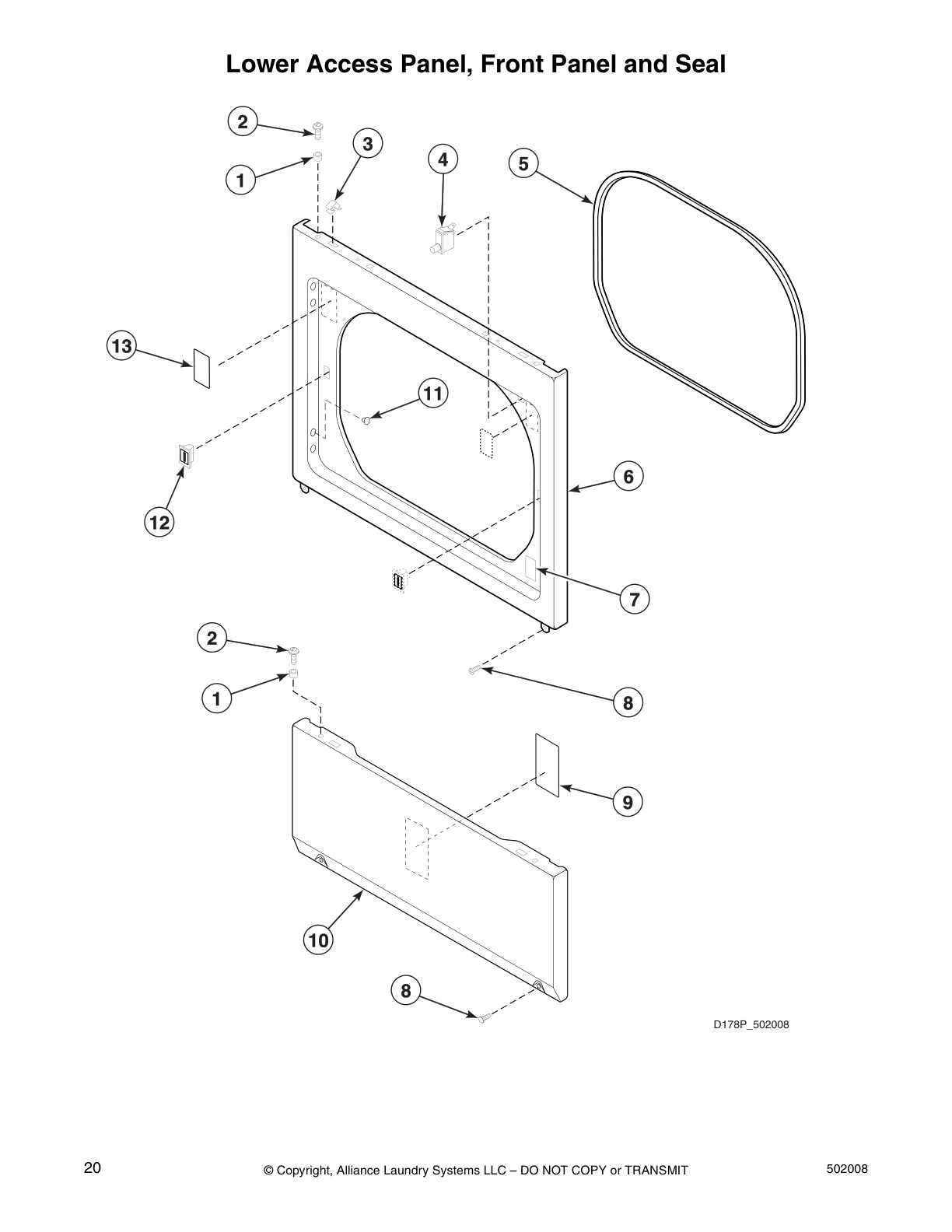

Lower Access Panel, Front Panel and Seal

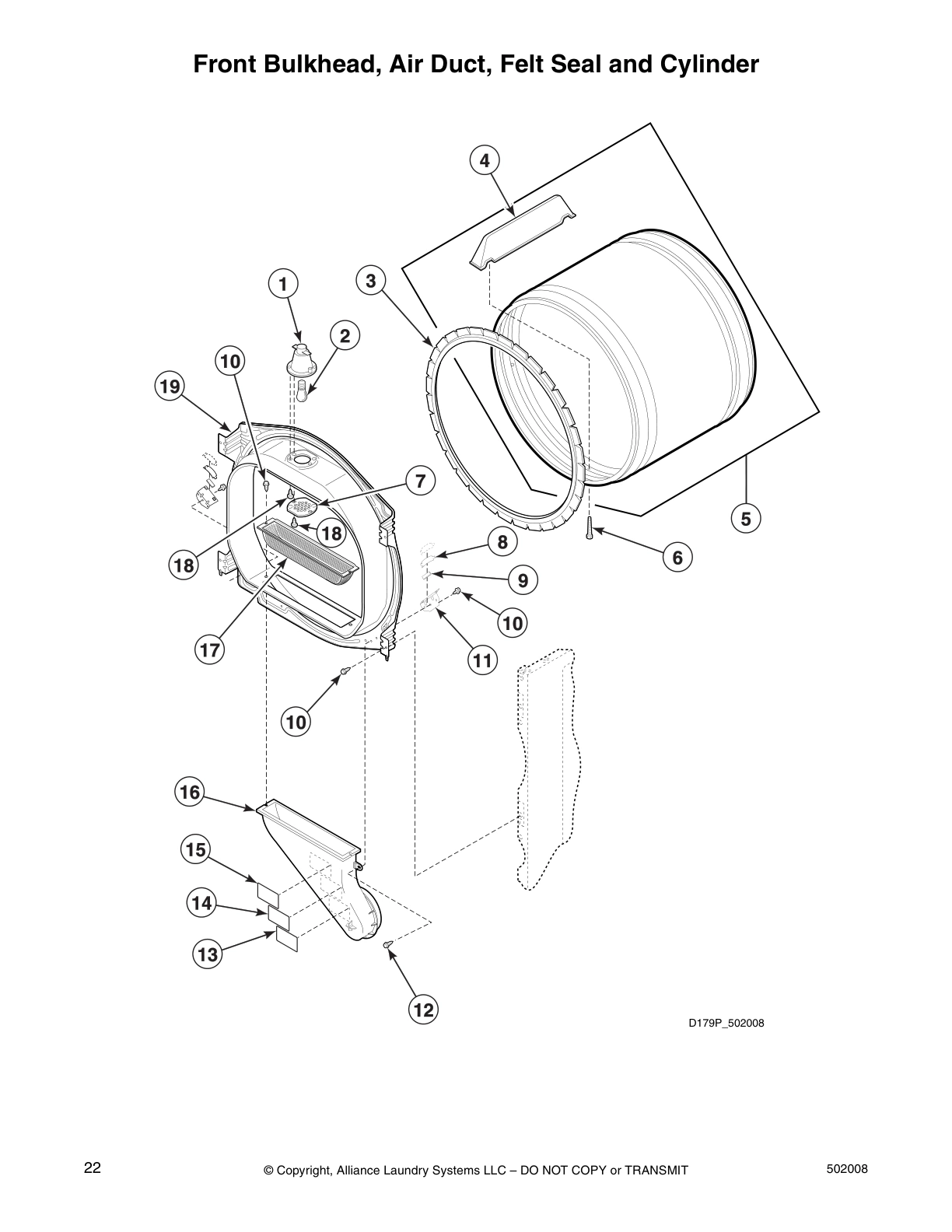

Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

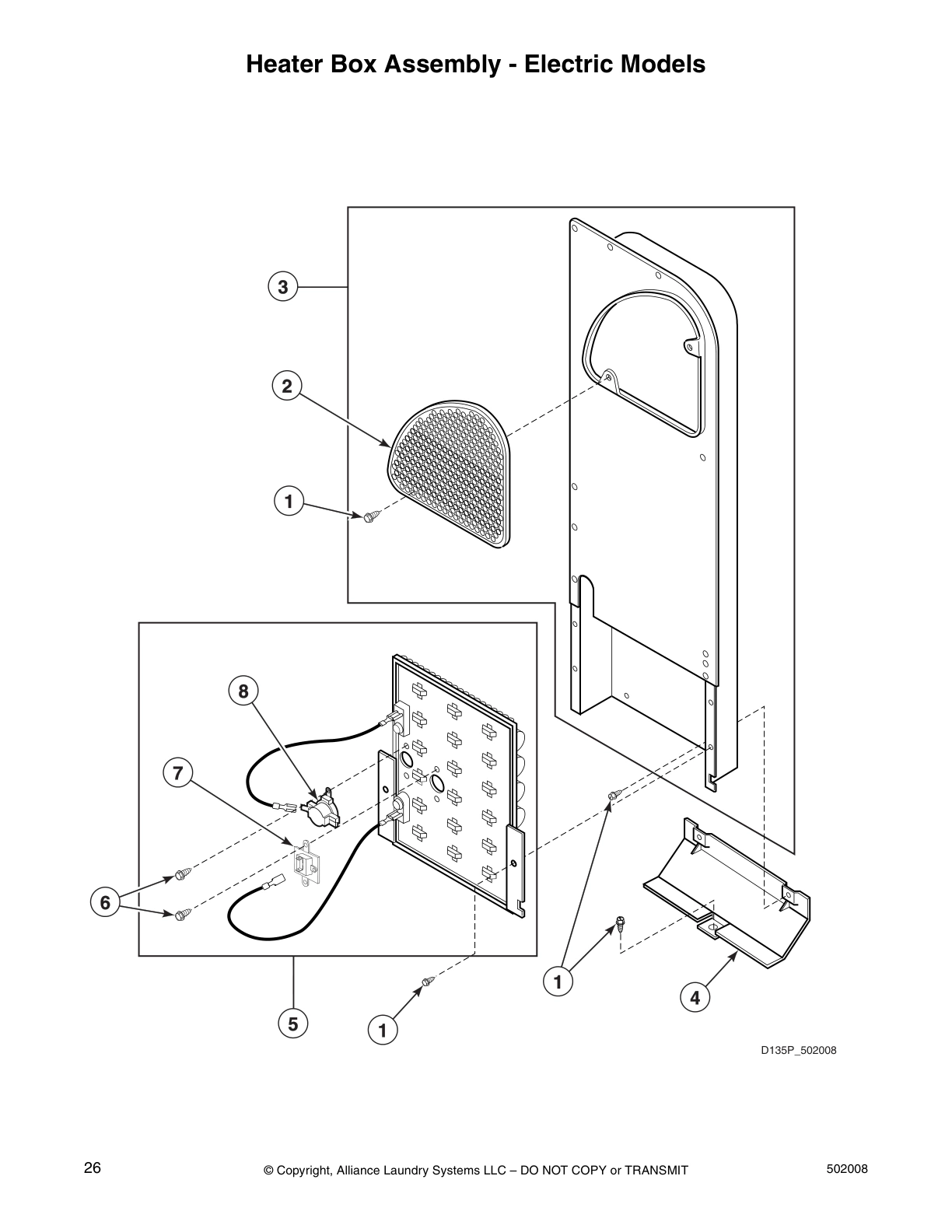

Heater Box Assembly - Electric Models

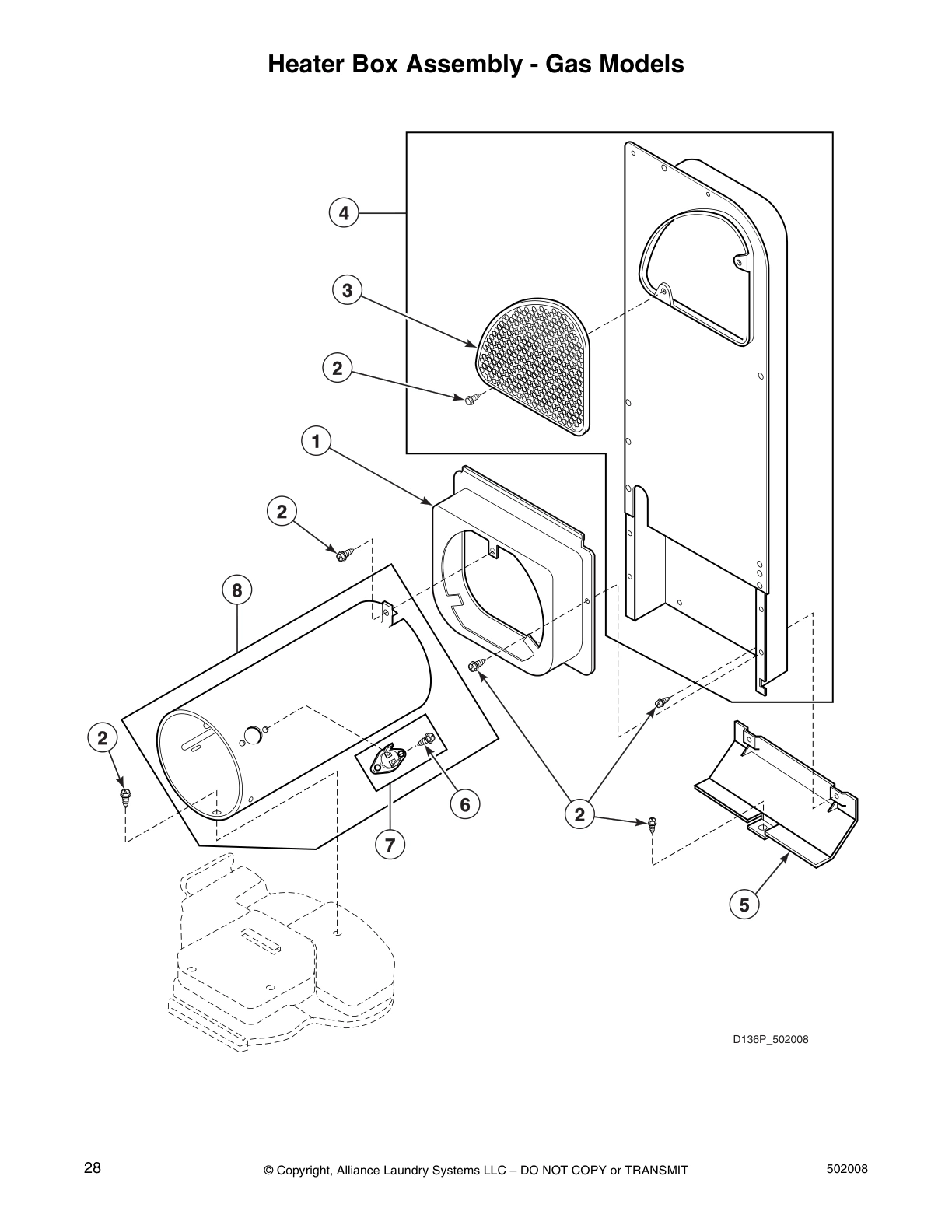

Heater Box Assembly - Gas Models

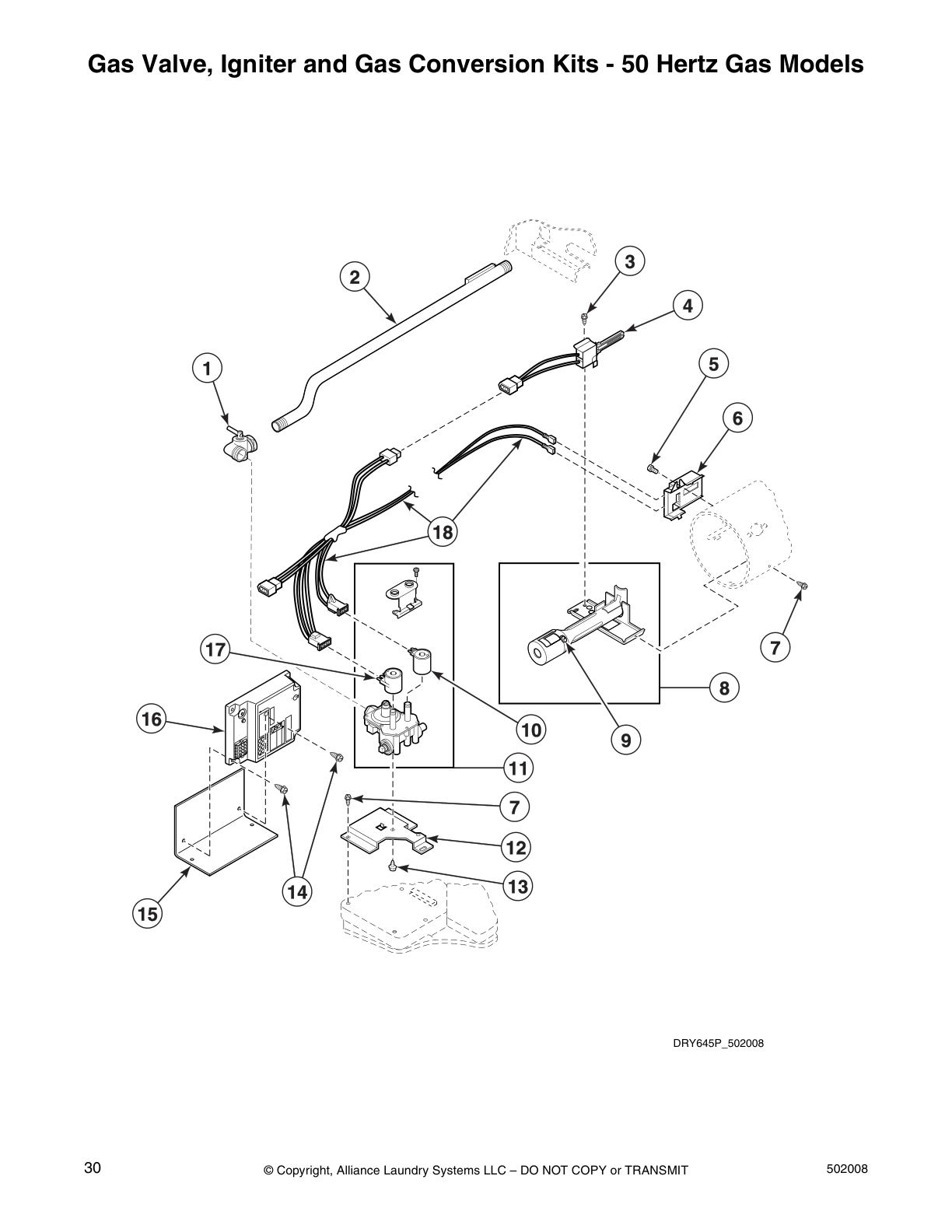

Gas Valve, Igniter and Gas Conversion Kits - 50 Hertz Gas Models

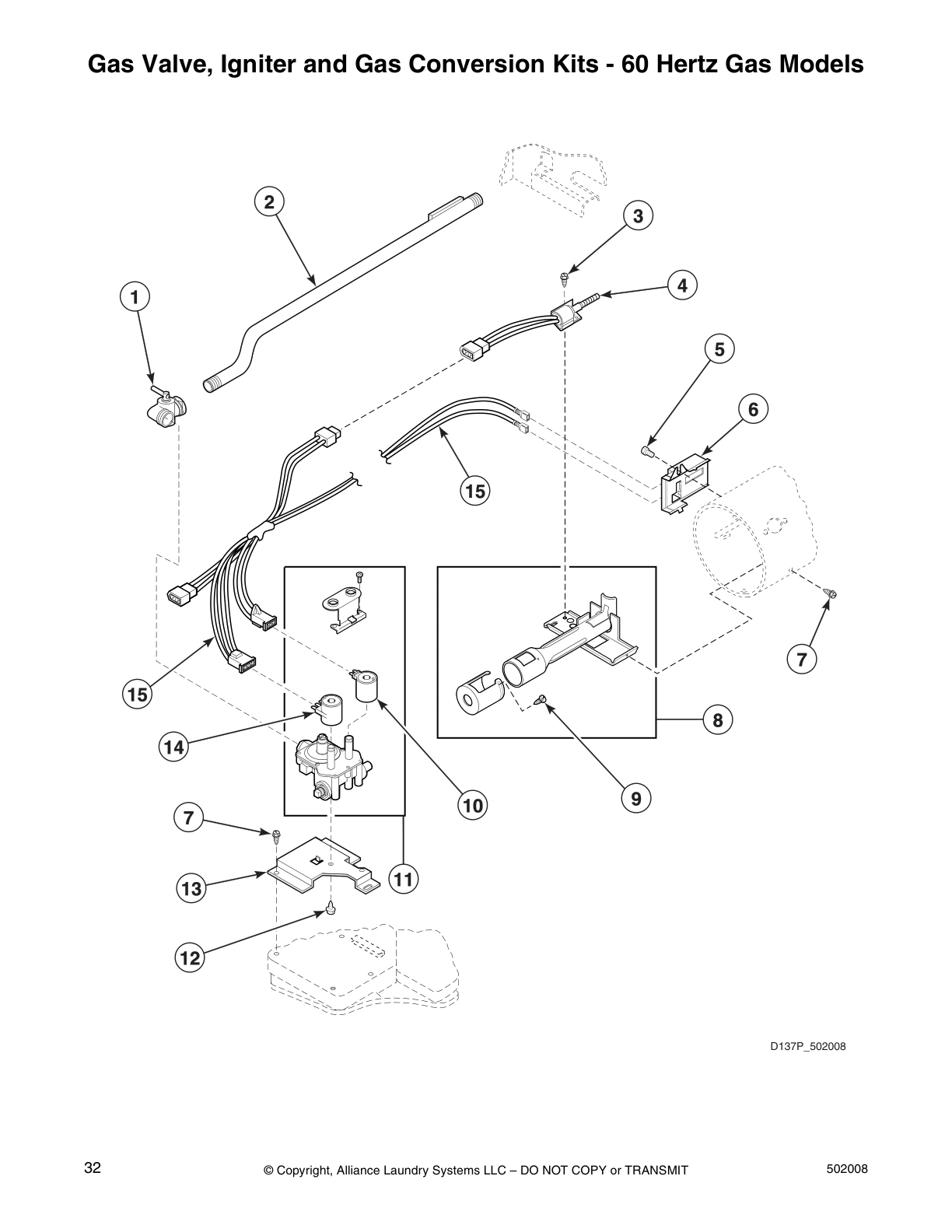

Gas Valve, Igniter and Gas Conversion Kits - 60 Hertz Gas Models

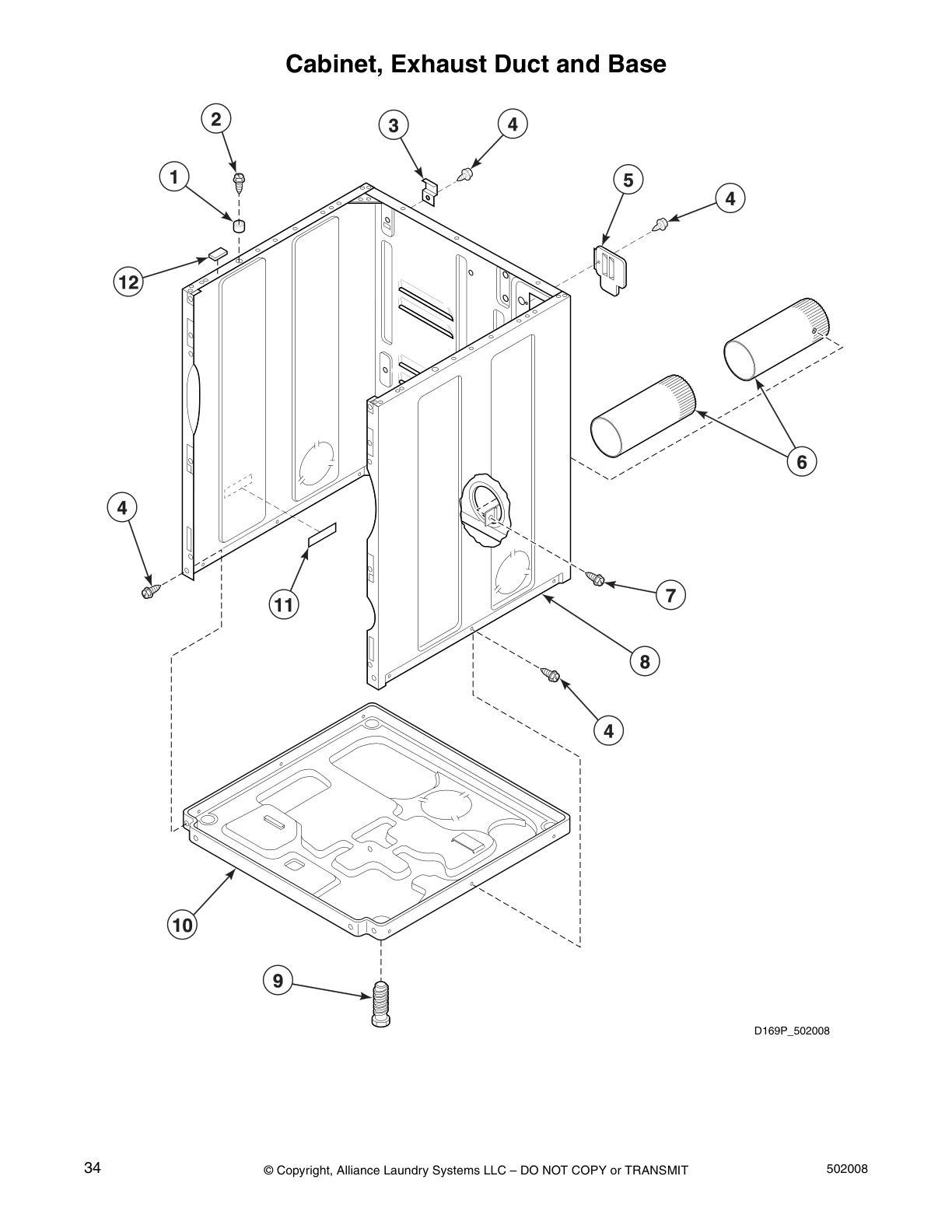

Cabinet, Exhaust Duct and Base

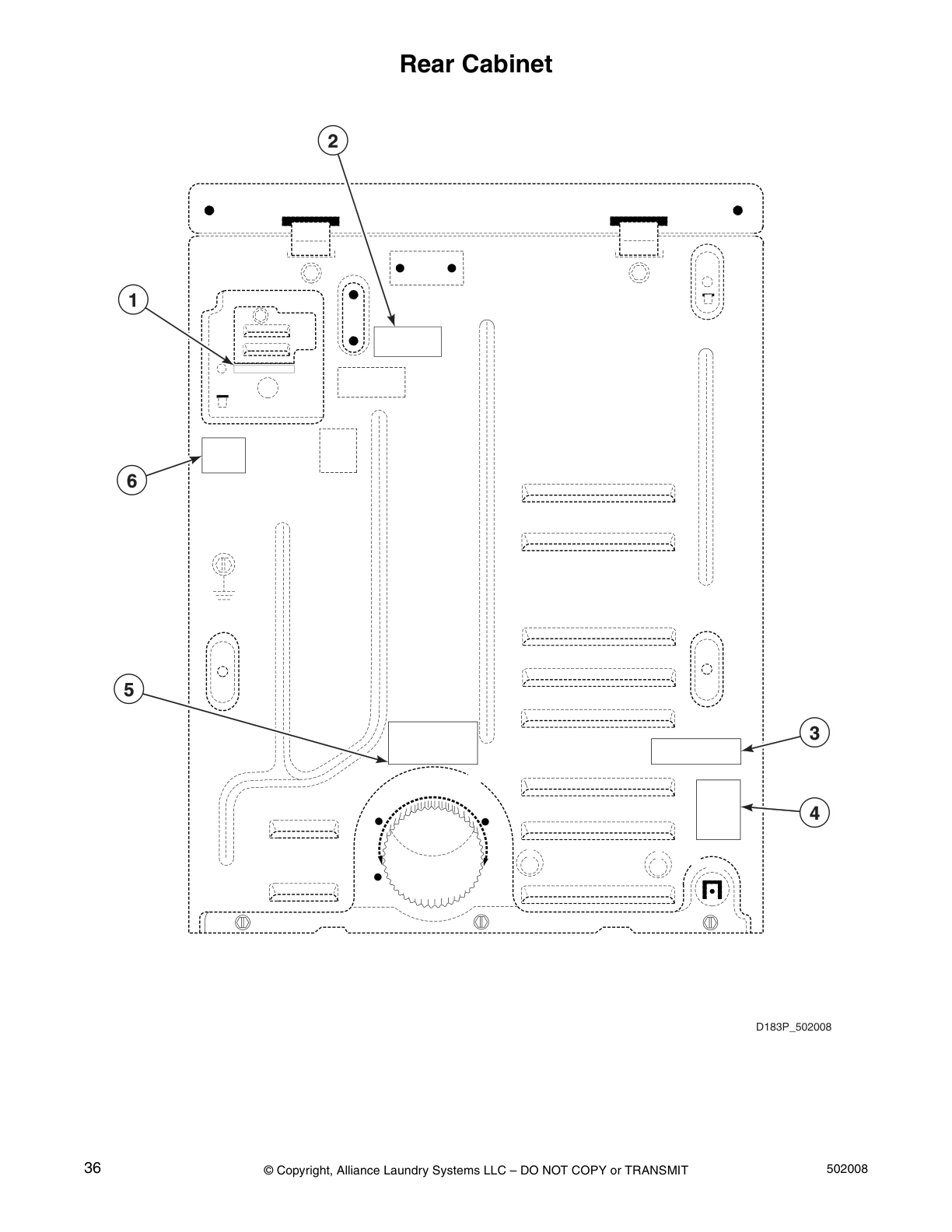

Rear Cabinet

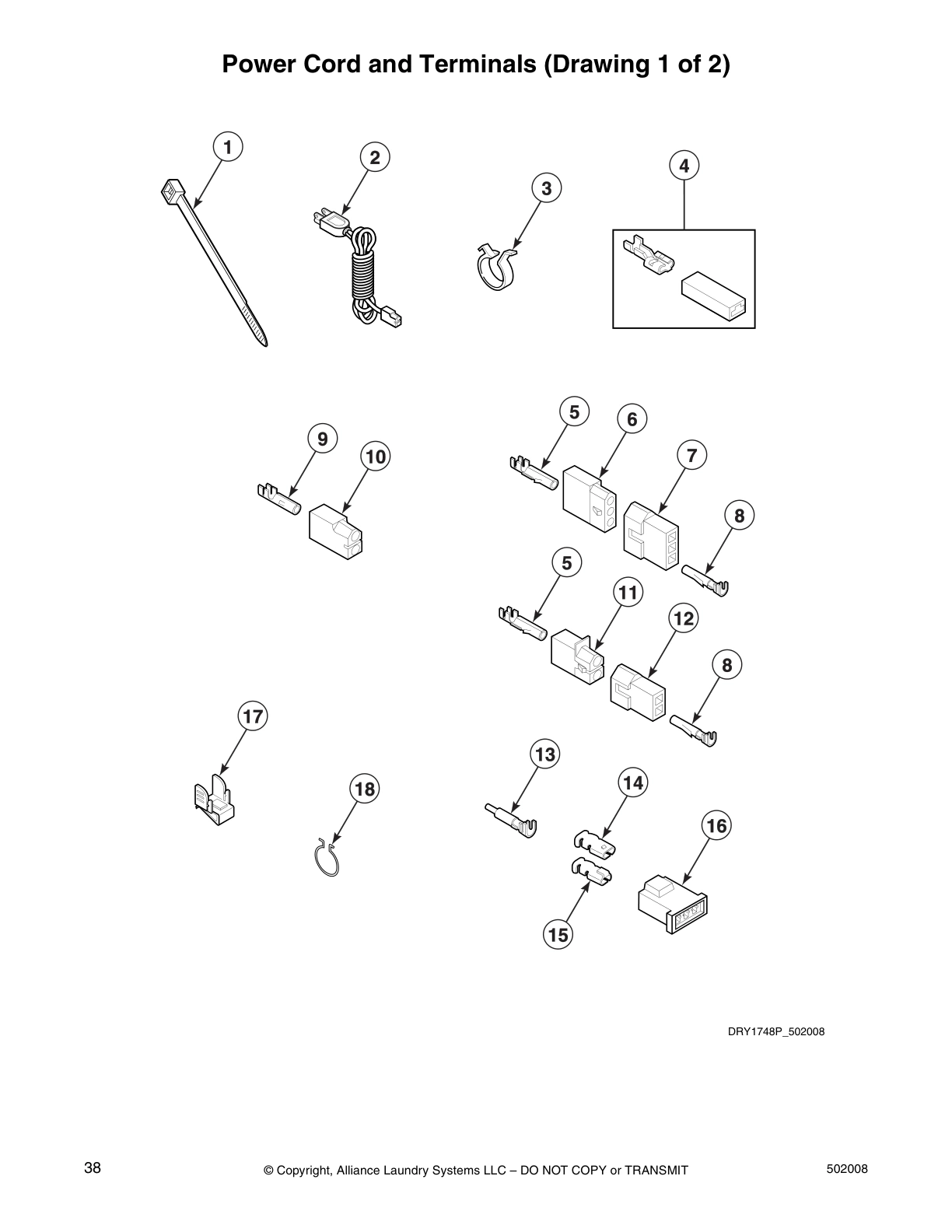

Power Cord and Terminals (Drawing 1 of 2)

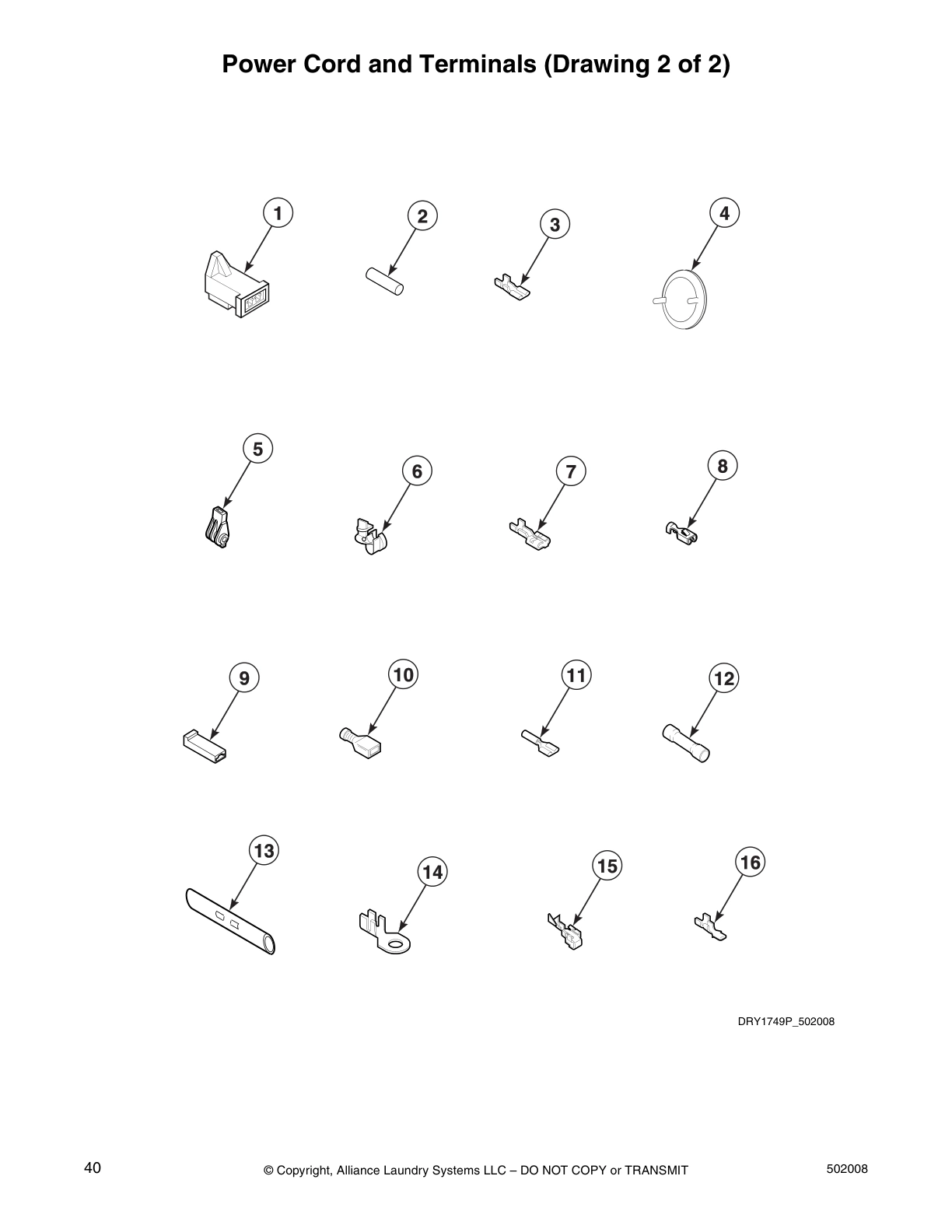

Power Cord and Terminals (Drawing 2 of 2)
Motor Connection Block, Terminals and Terminal Extractor Tool
Common parts from model Speed Queen AGM499*23080 Dryer
1
10 Position Housing SPQ 500338 Contact Us For Availability
2
Nut SPQ 31752 Contact Us For Availability
2
Female Terminal SPQ 00256 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
SPQ 00188 SPQ 00188 Contact Us For Availability
17
Thermostat SPQ 510060 Contact Us For Availability
18
Drum Light Lamp SPQ 502140P Contact Us For Availability
NI
SPQ 90789 SPQ 90789 Contact Us For Availability
× ![]()
