Model Maytag ADB1600AWD0 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS

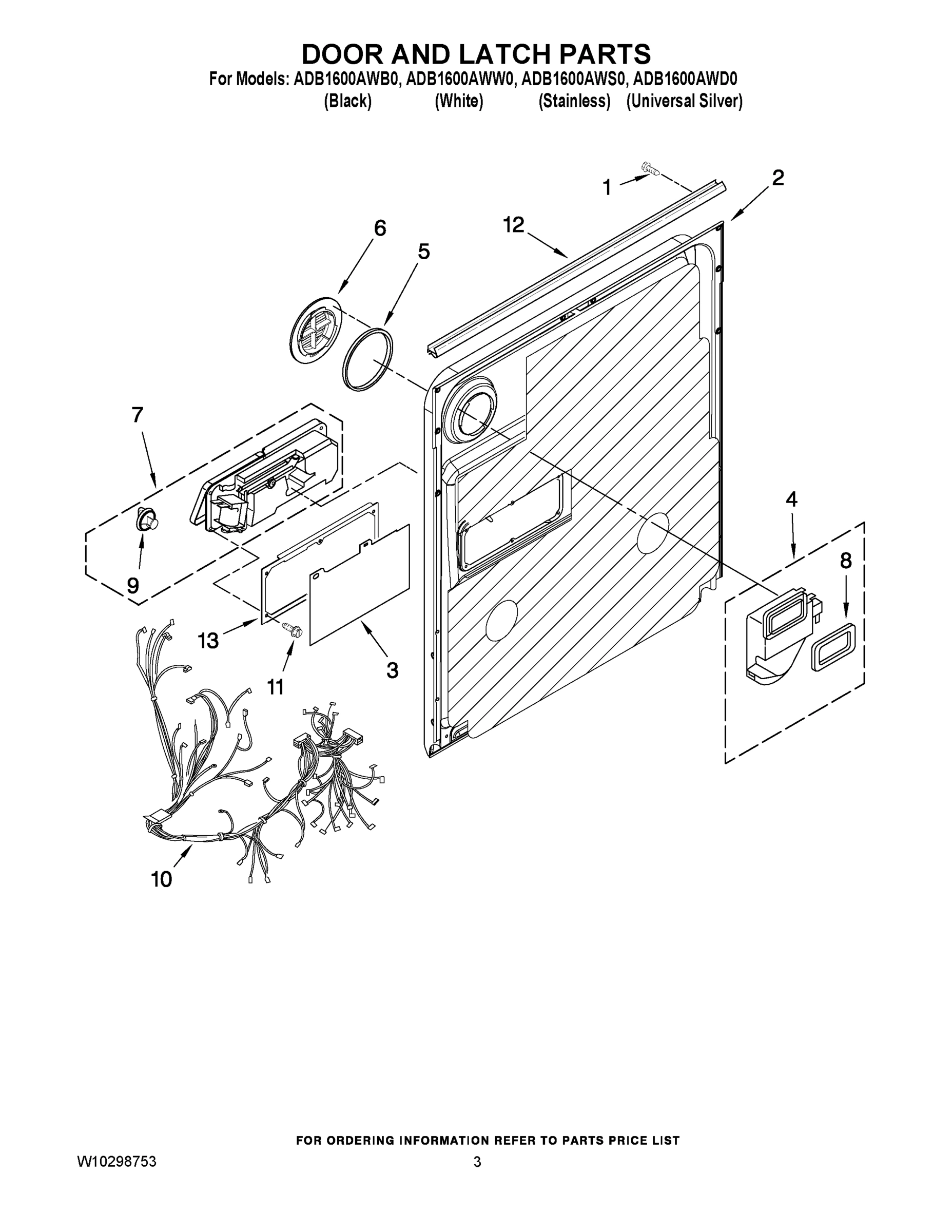

03 - DOOR AND LATCH PARTS

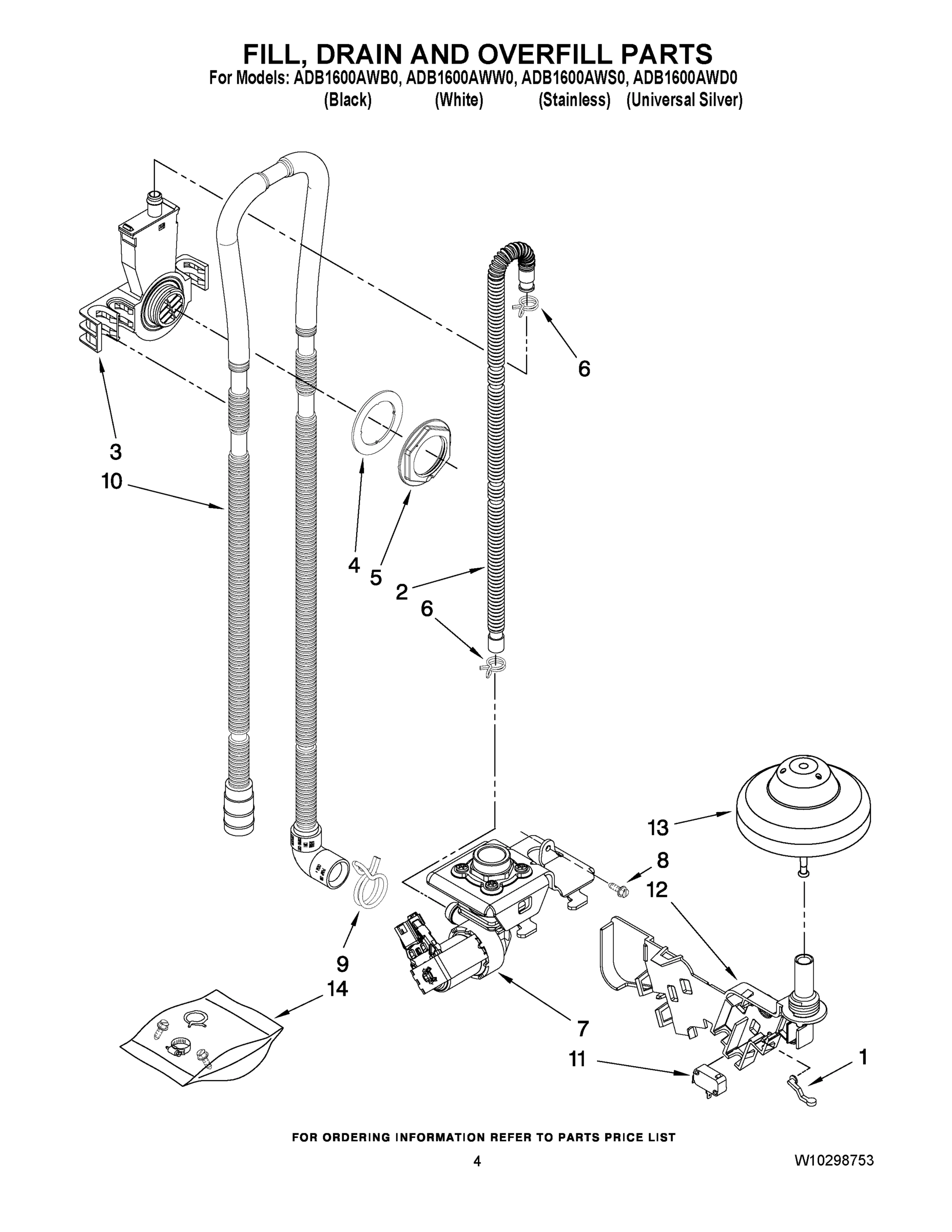

04 - FILL, DRAIN AND OVERFILL PARTS

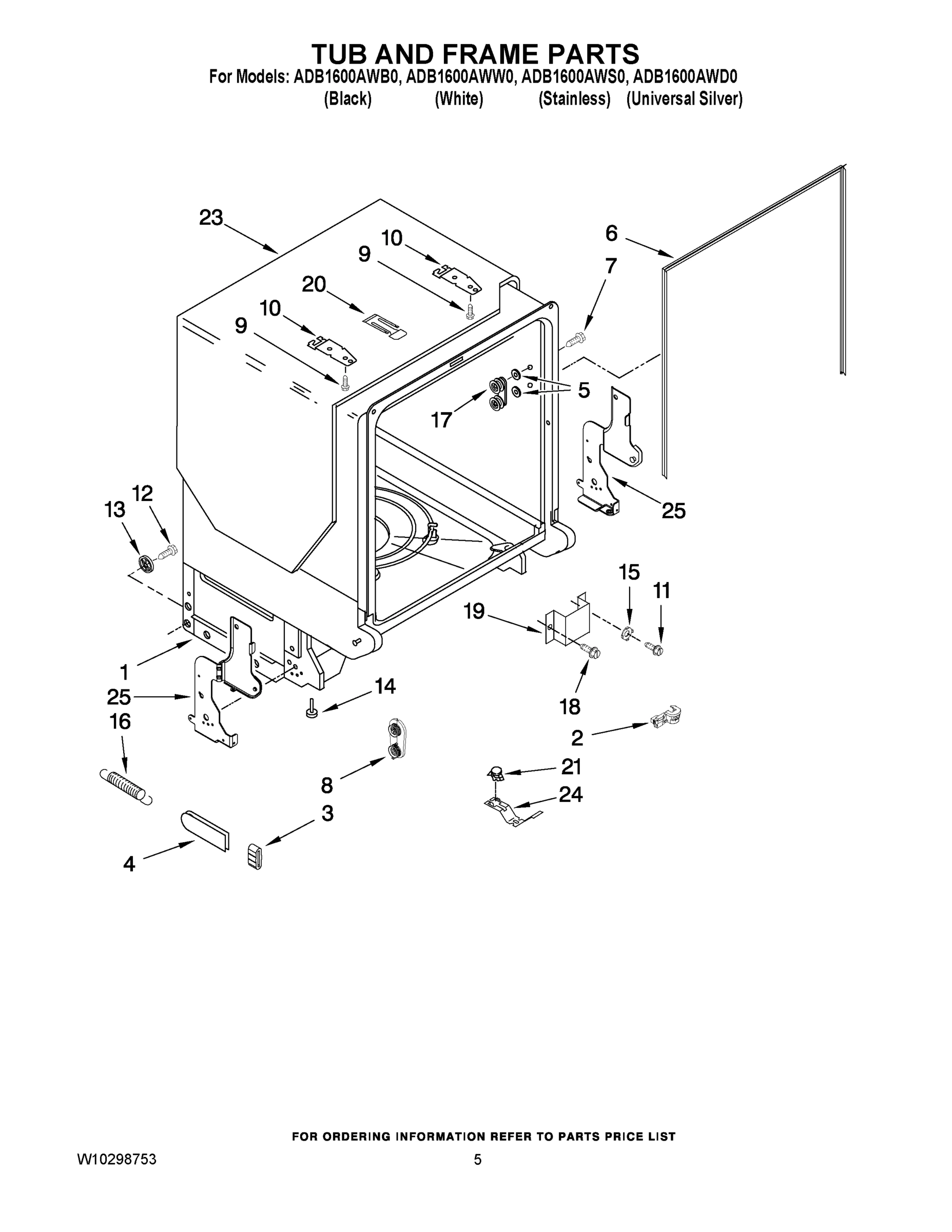

05 - TUB AND FRAME PARTS

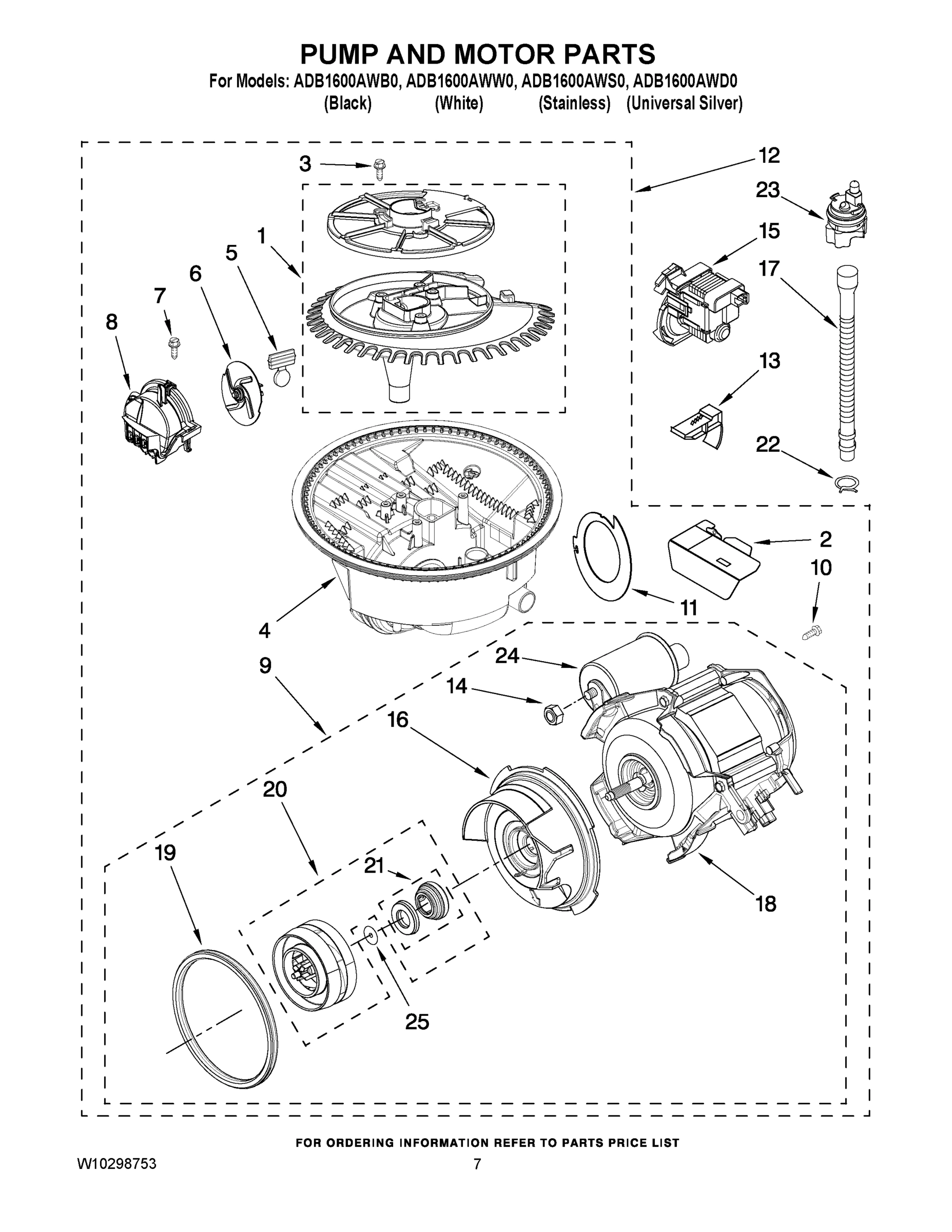

06 - PUMP AND MOTOR PARTS

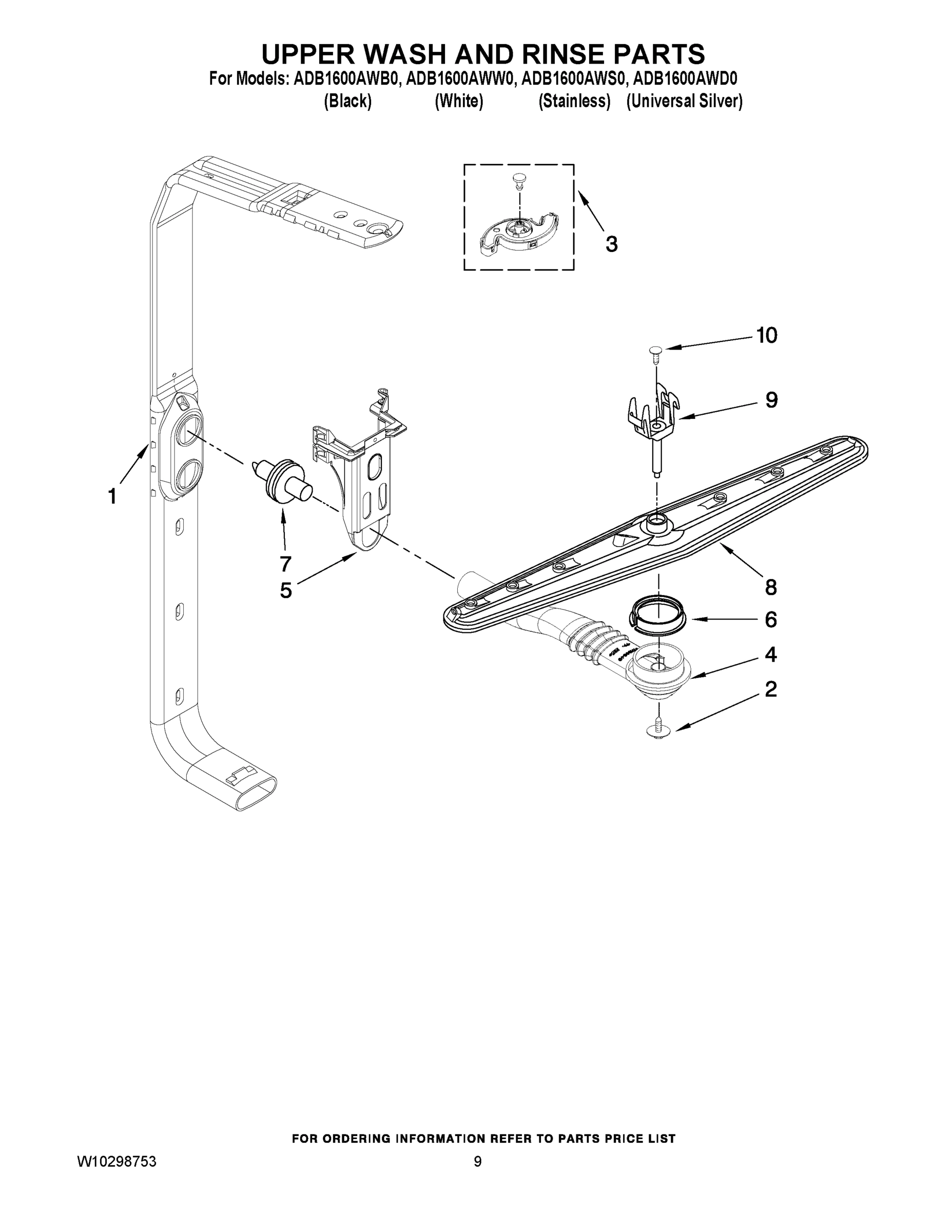

07 - UPPER WASH AND RINSE PARTS

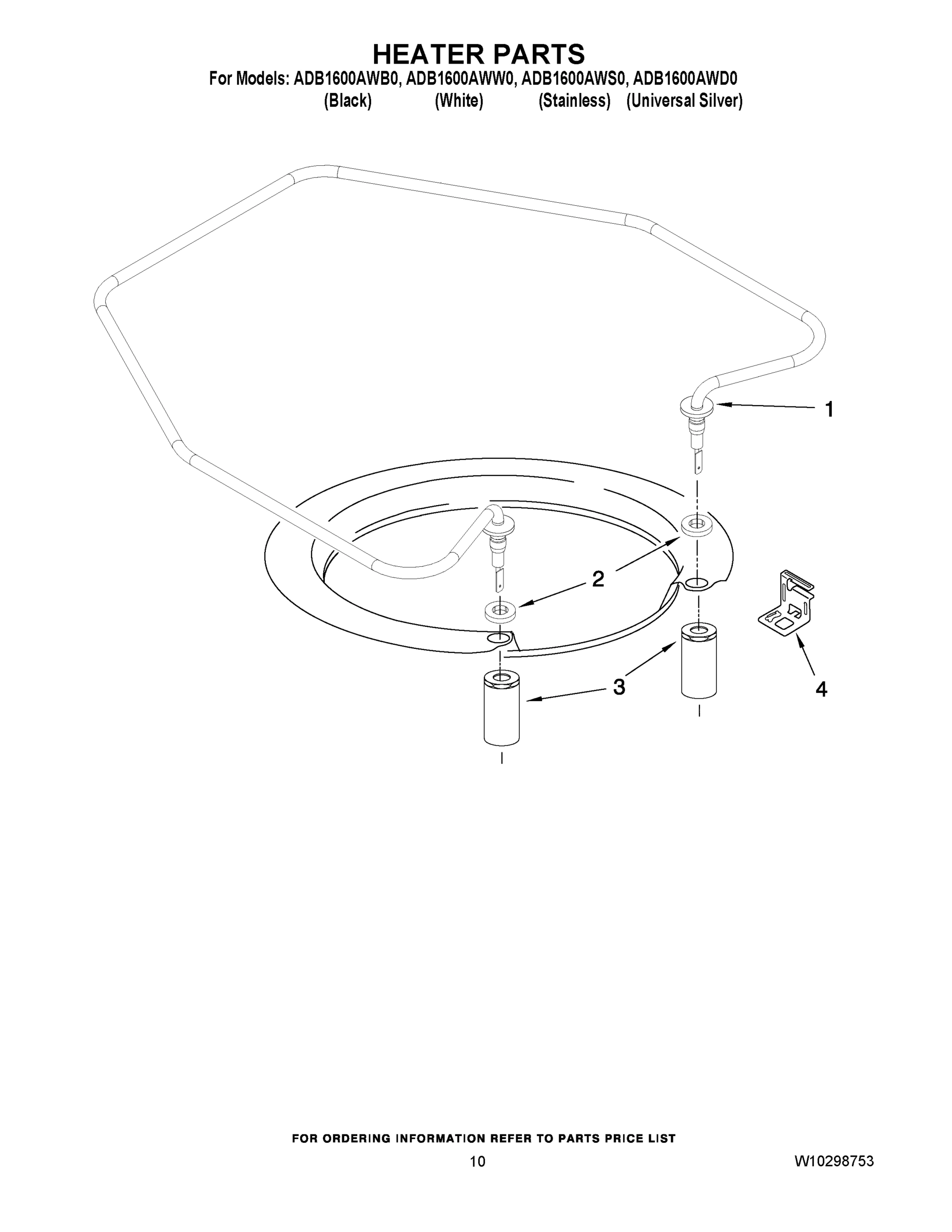

08 - HEATER PARTS

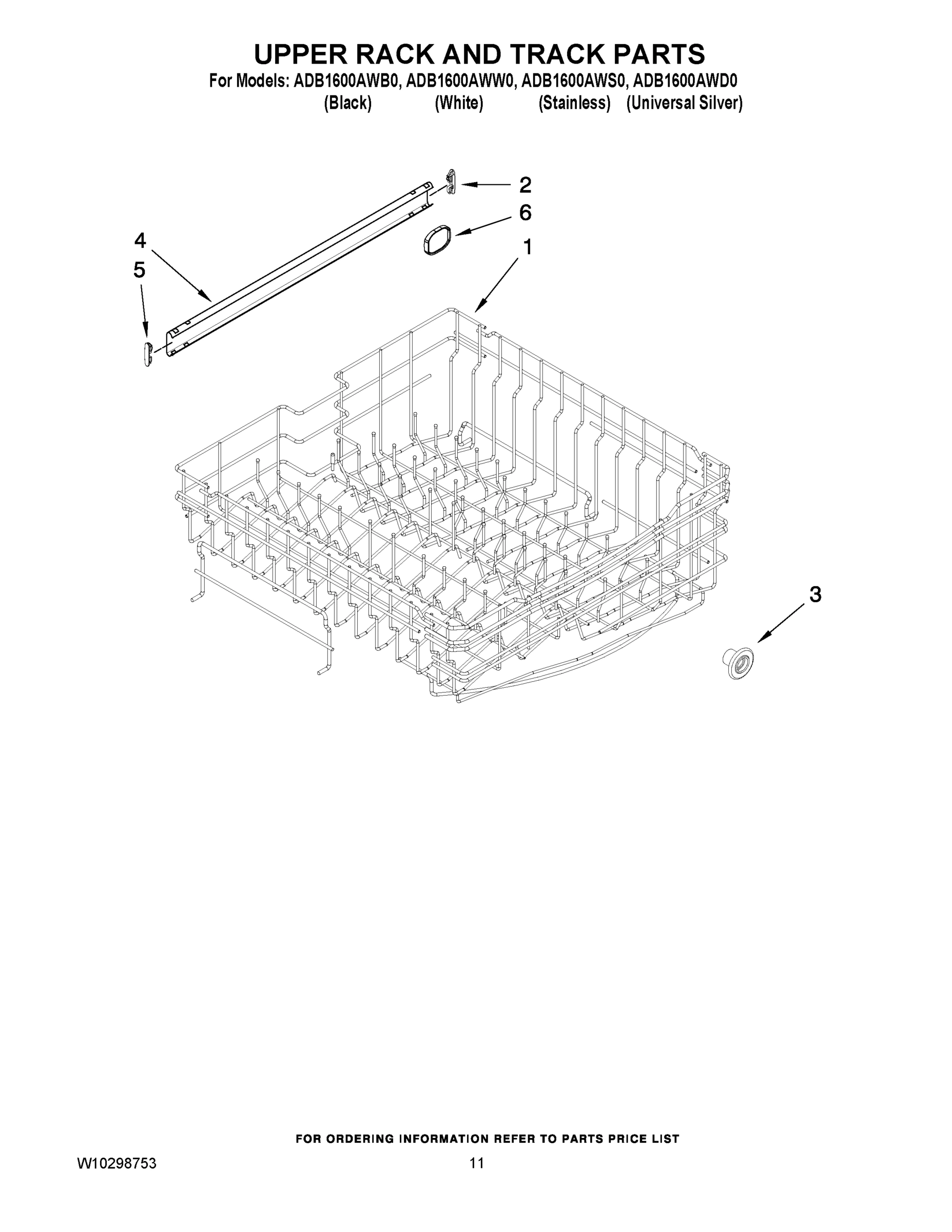

09 - UPPER RACK AND TRACK PARTS

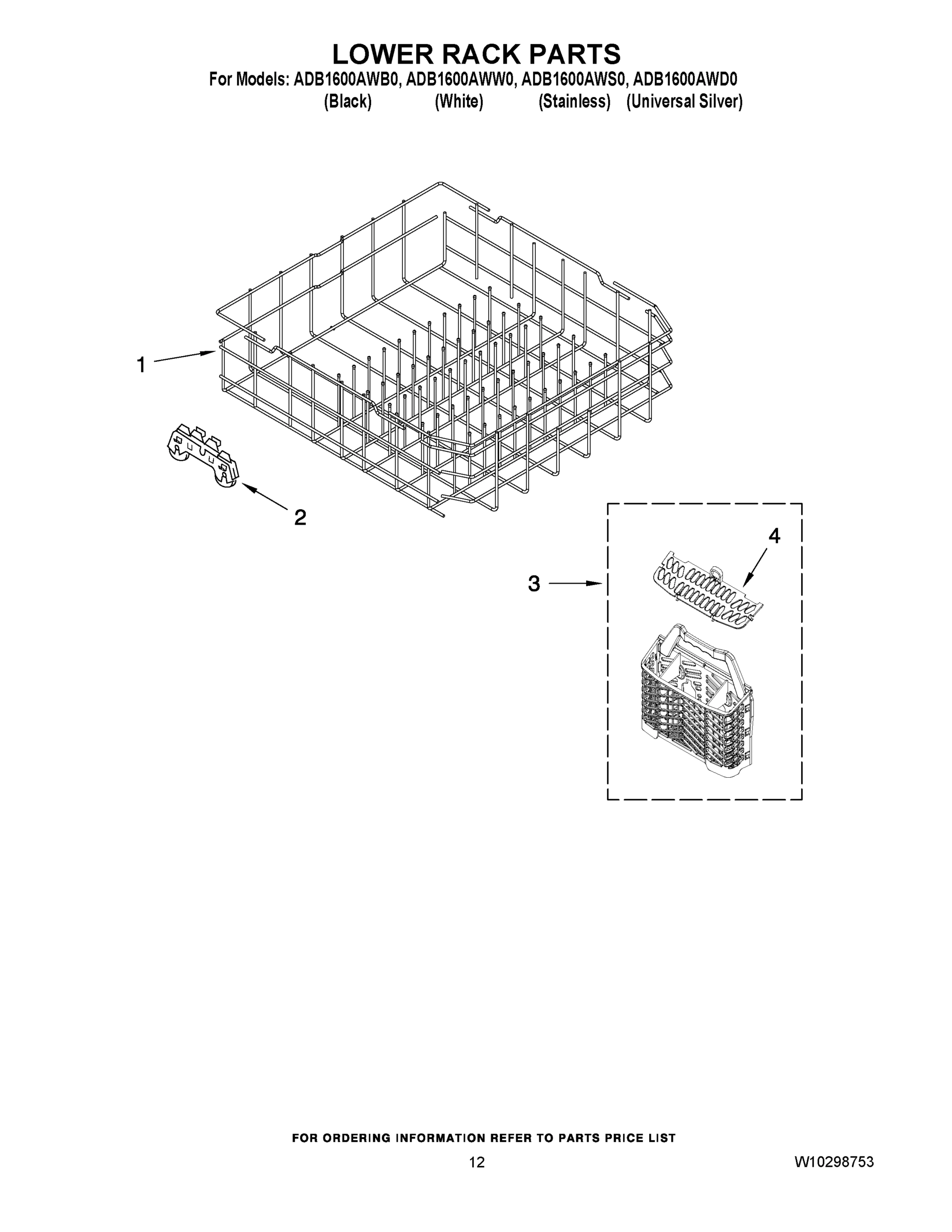

10 - LOWER RACK PARTS

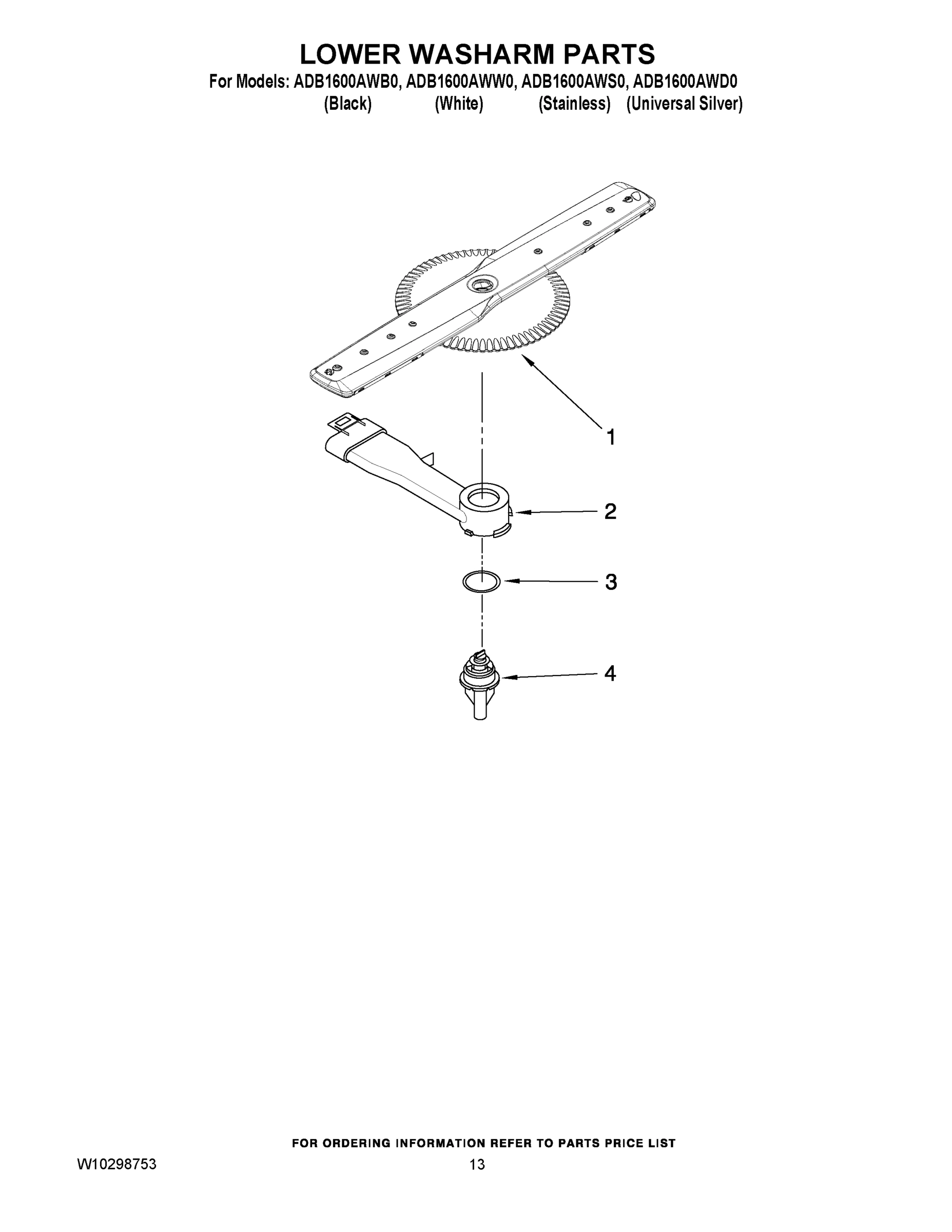

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1600AWD0 DISHWASHER
1
MAY W10115043 MAY W10115043 Contact Us For Availability
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10261418 MAY W10261418 Contact Us For Availability
1
MAY W10261419 MAY W10261419 Contact Us For Availability
1
MAY W10261420 MAY W10261420 Contact Us For Availability
1
MAY W10261423 MAY W10261423 Contact Us For Availability
1
MAY W10261426 MAY W10261426 Contact Us For Availability
1
SCREW, DOOR MAY 3369051 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
MAY W10254860 MAY W10254860 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
FEED TUBE SILVERWARE ZONE (ALSO INCLUDES ITEM MAY 8579224 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
LOWER RACK ASSEMBLY MAY 8539225 Contact Us For Availability
1
MAY 8268333 MAY 8268333 Contact Us For Availability
2
MAY 8534853 MAY 8534853 Contact Us For Availability
2
MAY 8534854 MAY 8534854 Contact Us For Availability
2
MAY 8546546 MAY 8546546 Contact Us For Availability
2
INNER DOOR MASTIC ASSEMBLY MAY 8269311 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268317 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
CONTROL ELECTRONIC MAY W10208673 Contact Us For Availability
3
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
3
MAY 3400069 MAY 3400069 Contact Us For Availability
3
MAY 8557720 MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
WHEEL MAY 8575281 Contact Us For Availability
3
MAY W10129577 MAY W10129577 Contact Us For Availability
3
SEAL, SPRAYARM MAY 8268342 Contact Us For Availability
4
MAY W10274845 MAY W10274845 Contact Us For Availability
4
MAY W10274846 MAY W10274846 Contact Us For Availability
4
MAY 8269209 MAY 8269209 Contact Us For Availability
4
VENT ASSEMBLY MAY 8558980 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY 8268990 MAY 8268990 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MANIFOLD MAY 8268845 Contact Us For Availability
4
BRACKET, HEATER MAY 8269262 Contact Us For Availability
4
TRACK, RACK MAY 3385089 Contact Us For Availability
4
MAY W10129580 MAY W10129580 Contact Us For Availability
4
SUPPORT, LOWER SPRAYARM MAY W10077898 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY 8573255 Contact Us For Availability
5
MAY 8573256 MAY 8573256 Contact Us For Availability
5
MAY 8269333 MAY 8269333 Contact Us For Availability
5
MAY 8269259 MAY 8269259 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
MAY 9743002 MAY 9743002 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
HANGER MAY 3385160 Contact Us For Availability
5
STOP, TRACK REMOVABLE MAY 8565925 Contact Us For Availability
6
CLIP, GROUNDING MAY 8269016 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
DEFLECTOR, VENT (ALSO ORDER ITEM 5) MAY 8542566 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY 8268888 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
6
SPACER, RACK MOUNTING MAY 8562078 Contact Us For Availability
7
MAY 489470 MAY 489470 Contact Us For Availability
7
MAY 3400412 MAY 3400412 Contact Us For Availability
7
MAY W10254206 MAY W10254206 Contact Us For Availability
7
MAY W10219505 MAY W10219505 Contact Us For Availability
7
SCREW MAY 8533836 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
NOZZLE-FEED MAY 8562095 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEM 9) (BLACK) MAY 8573286 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEM 9) (WHITE) MAY 8573287 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY 8269323 MAY 8269323 Contact Us For Availability
8
MAY 8269324 MAY 8269324 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
SPRAY ARM MAY 8269024 Contact Us For Availability
9
MAY 8533380 MAY 8533380 Contact Us For Availability
9
MAY 3367670 MAY 3367670 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY 3385159 MAY 3385159 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
MAY W10224458 MAY W10224458 Contact Us For Availability
10
MAY W10137608 MAY W10137608 Contact Us For Availability
10
MAY 8269145 MAY 8269145 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
RETAINER, PUSH MAY 3400919 Contact Us For Availability
11
MAY W10177098 MAY W10177098 Contact Us For Availability
11
SWITCH, OVERFILL MAY 8268909 Contact Us For Availability
11
MAY 3400014 MAY 3400014 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
MAY 8269296 MAY 8269296 Contact Us For Availability
12
STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13) MAY W10175383 Contact Us For Availability
12
SCREW MAY 3370389 Contact Us For Availability
12
MAY W10237168 MAY W10237168 Contact Us For Availability
13
BRACKET, DISPENSER MAY 8535637 Contact Us For Availability
13
MAY 8268913 MAY 8268913 Contact Us For Availability
13
MAY 8268931 MAY 8268931 Contact Us For Availability
13
MAY 8269524 MAY 8269524 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & MAY 8269297 Contact Us For Availability
14
MAY 8524584 MAY 8524584 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
WASHER, PRONGED MAY 3378128 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
MAY 8524473 MAY 8524473 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEMS 21 & 25) MAY W10142656 Contact Us For Availability
17
WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6) MAY 8270016 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
MAY 8268401 MAY 8268401 Contact Us For Availability
20
STRIKE, LATCH MAY 8580309 Contact Us For Availability
20
IMPELLER KIT (ALSO ORDER ITEM 25) MAY 8531017 Contact Us For Availability
21
MAY 661566 MAY 661566 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 25) MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
23
MAY 8573240 MAY 8573240 Contact Us For Availability
23
MAY W10134017 MAY W10134017 Contact Us For Availability
24
MAY 3378595 MAY 3378595 Contact Us For Availability
24
MAY W10216724 MAY W10216724 Contact Us For Availability
25
MAY W10185368 MAY W10185368 Contact Us For Availability
25
MAY W10185369 MAY W10185369 Contact Us For Availability
25
MAY 8531018 MAY 8531018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 6-919539 MAY 6-919539 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171555 MAY 8171555 Contact Us For Availability
NI
MAY 8171556 MAY 8171556 Contact Us For Availability
NI
MAY 8171557 MAY 8171557 Contact Us For Availability
NI
MAY 8171558 MAY 8171558 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
× ![]()
