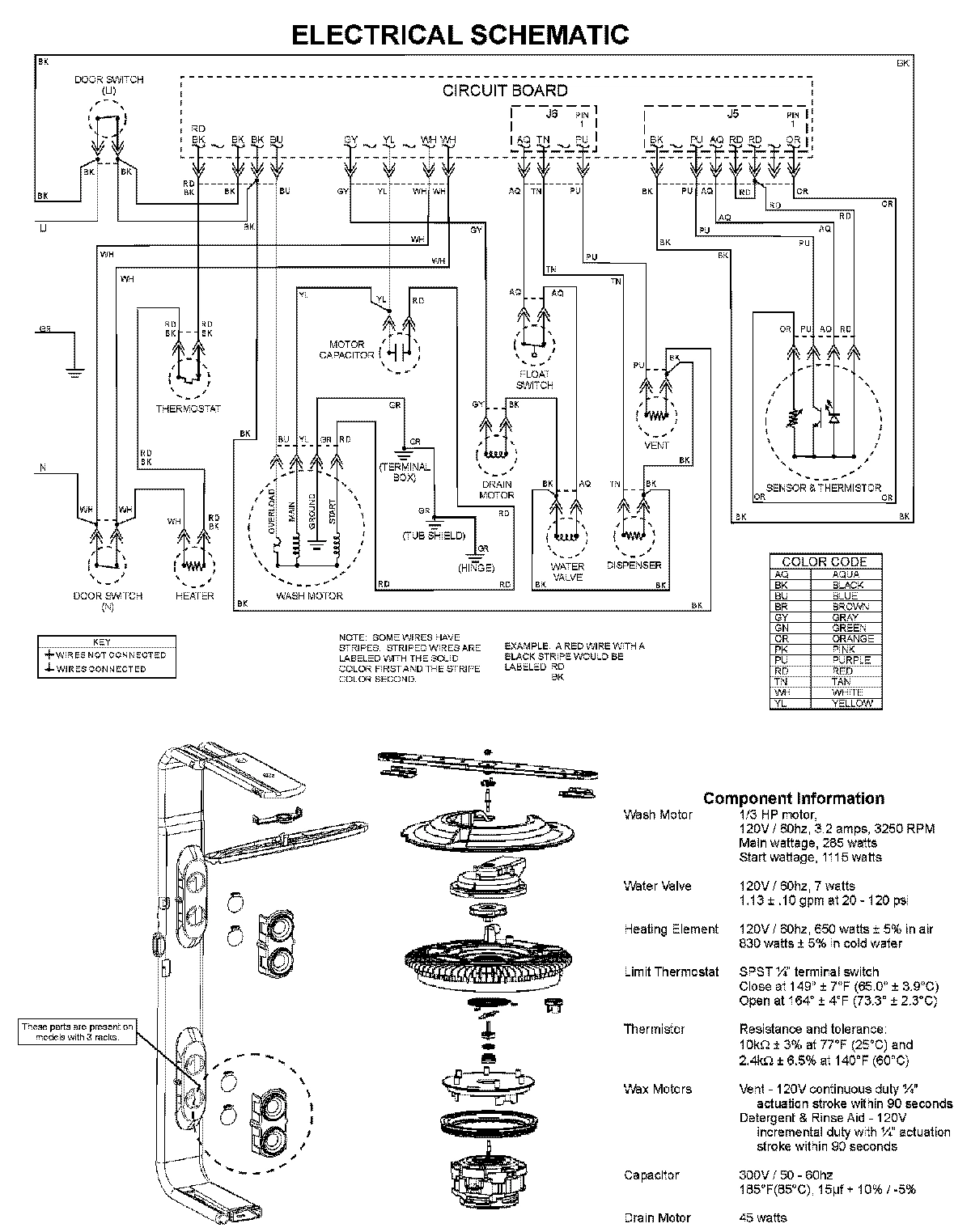

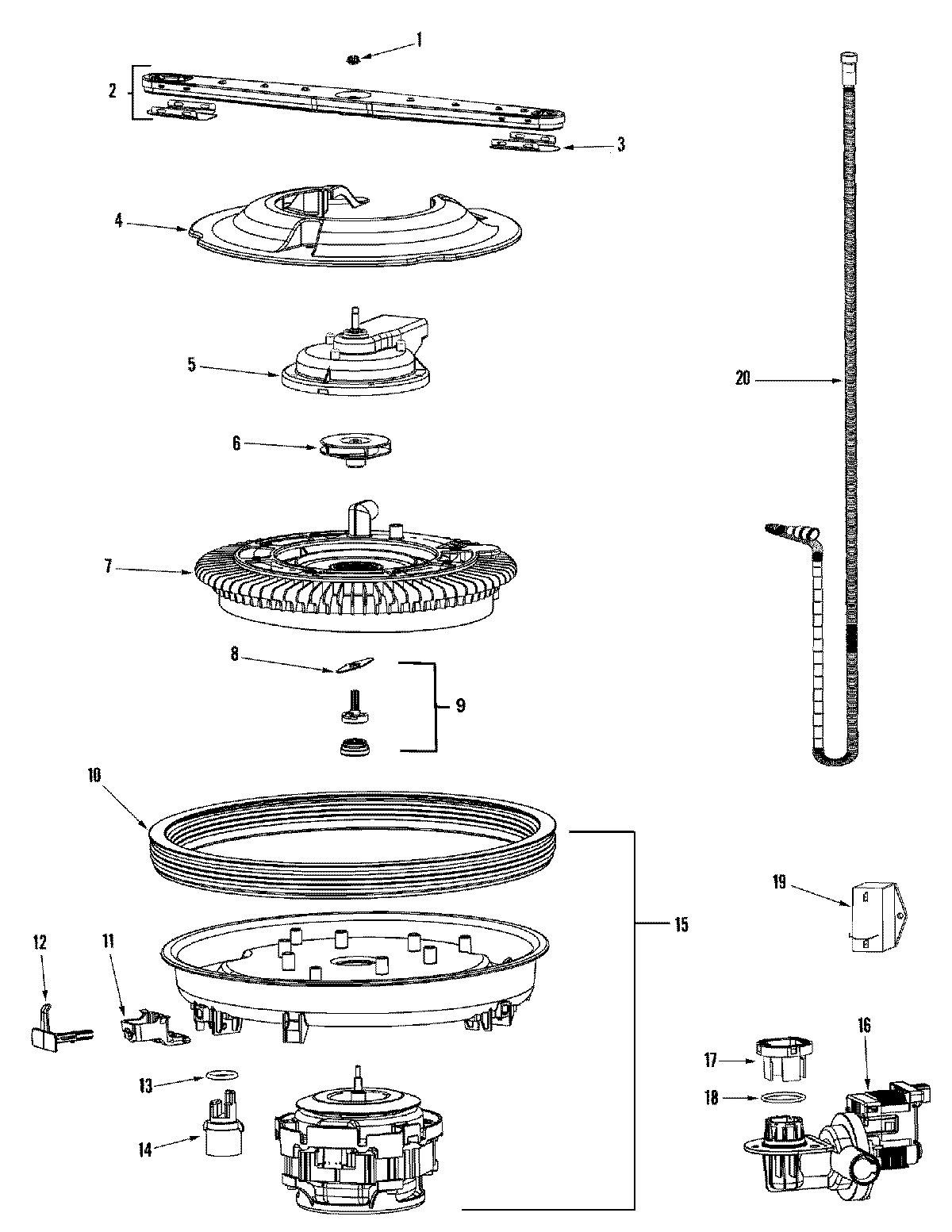

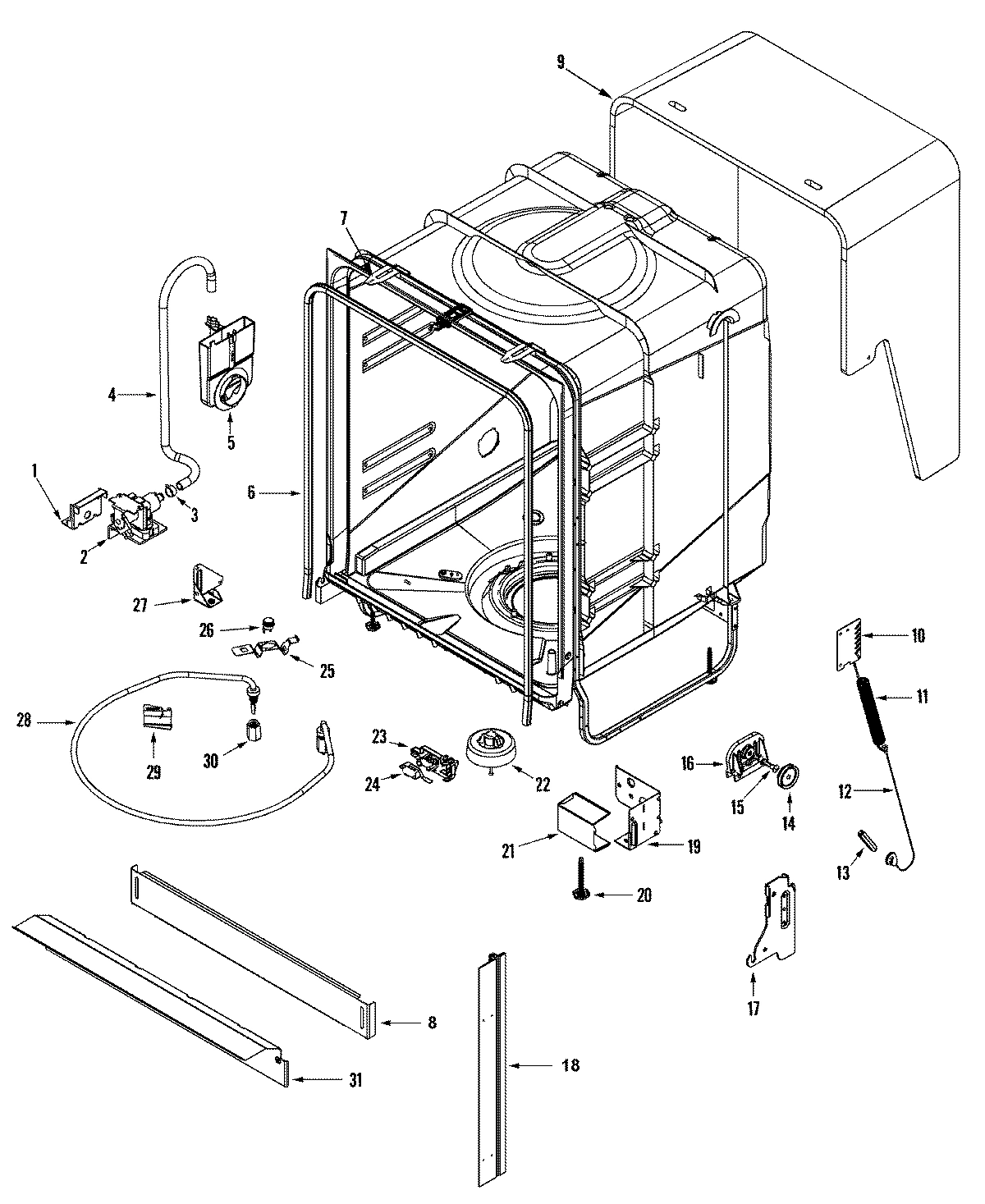

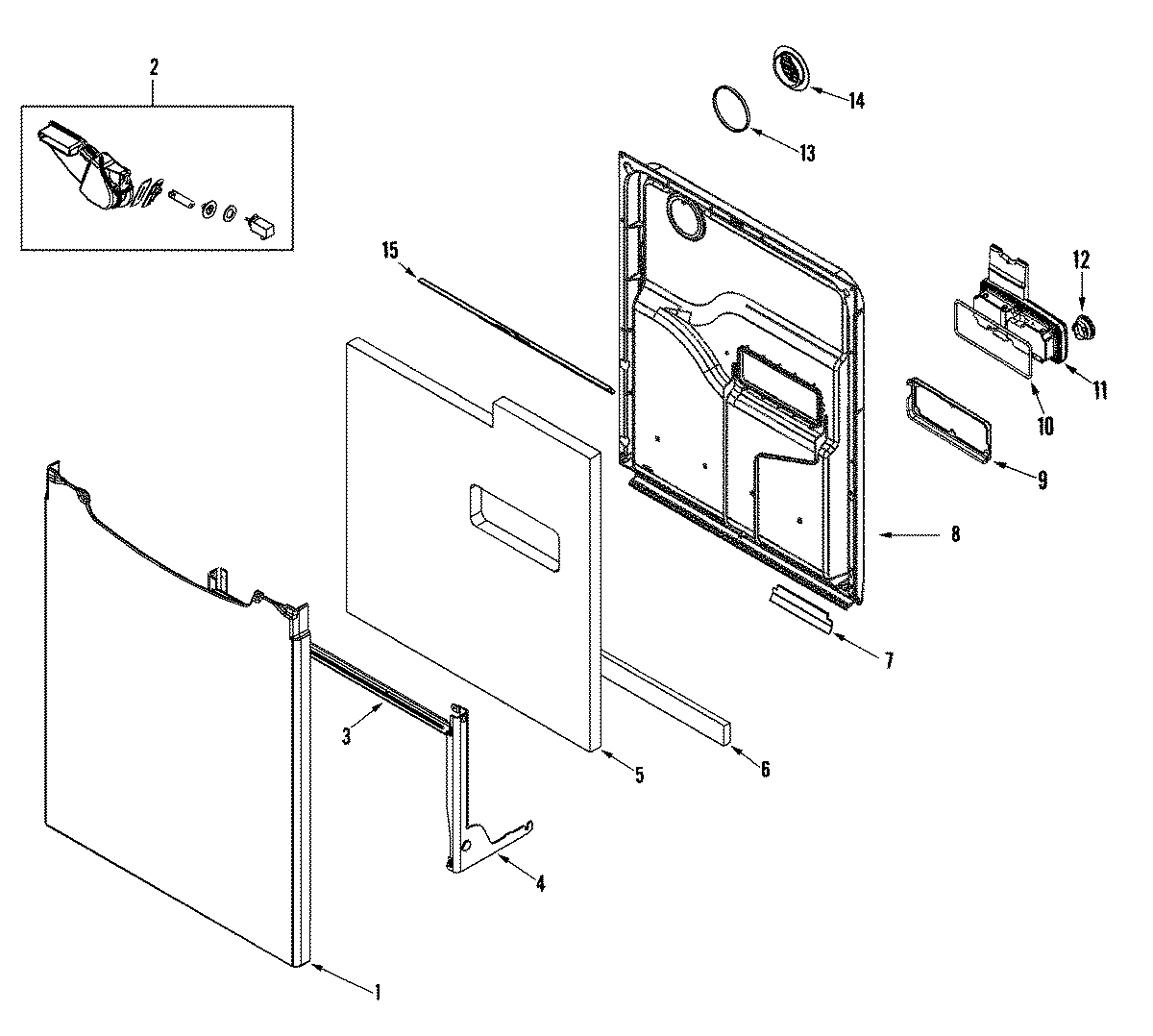

Model Maytag ADB1500AWQ DISHWASHER – Common Parts &amp; Diagrams

1

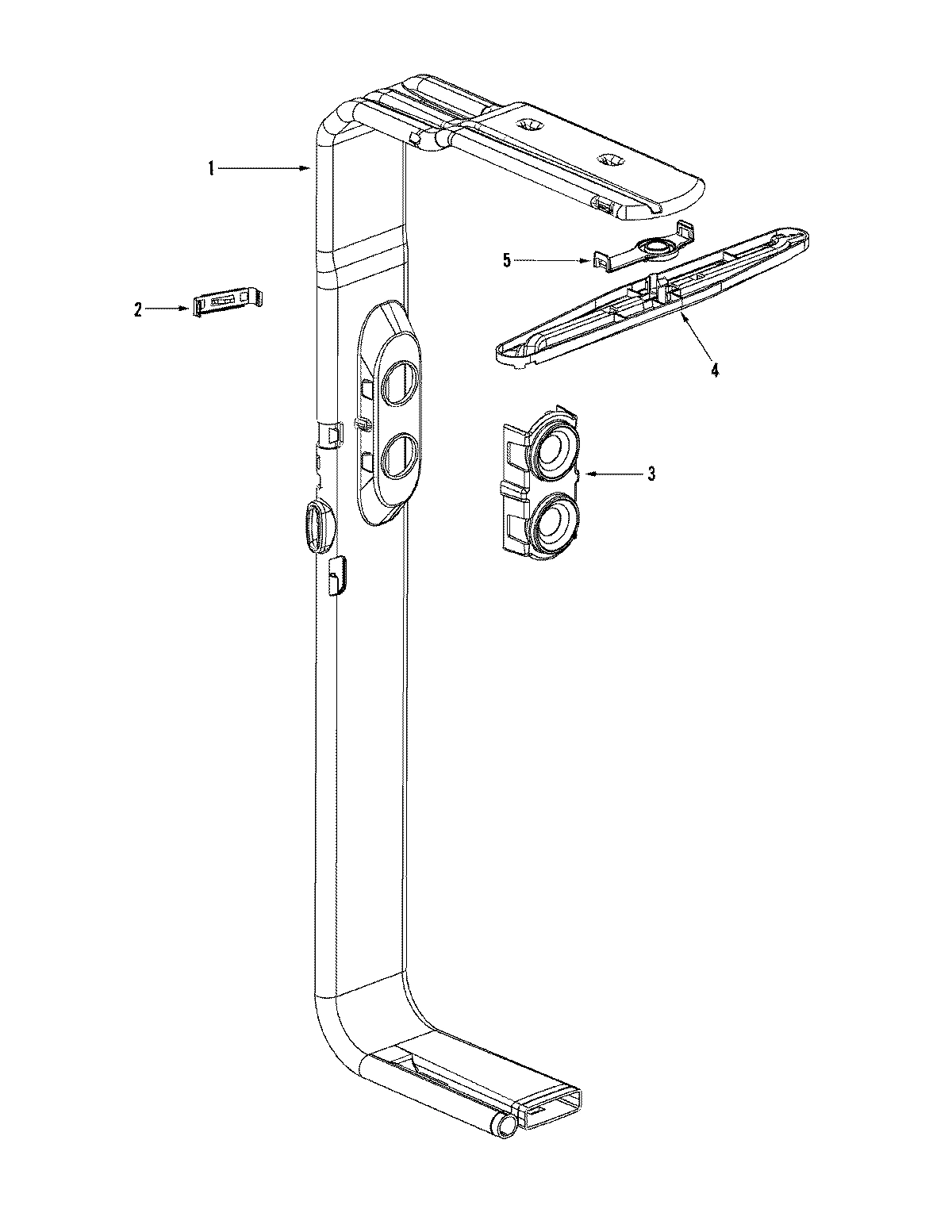

MANIFOLD, MAIN MAY 99002642 Contact Us For Availability

1

MAY 6919419 MAY 6919419 Contact Us For Availability

1

MAY Y6920185 MAY Y6920185 Contact Us For Availability

1

MAY 99002993 MAY 99002993 Contact Us For Availability

1

MAY 99002629 MAY 99002629 Contact Us For Availability

2

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $54.00

2

WP99002643 Whirlpool Dishwasher Bracket Backorder WPL WP99002643 $3.70

2

WPW10261227 Whirlpool Dishwasher Stop Assembl In Stock WPL WPW10261227 $3.70

2

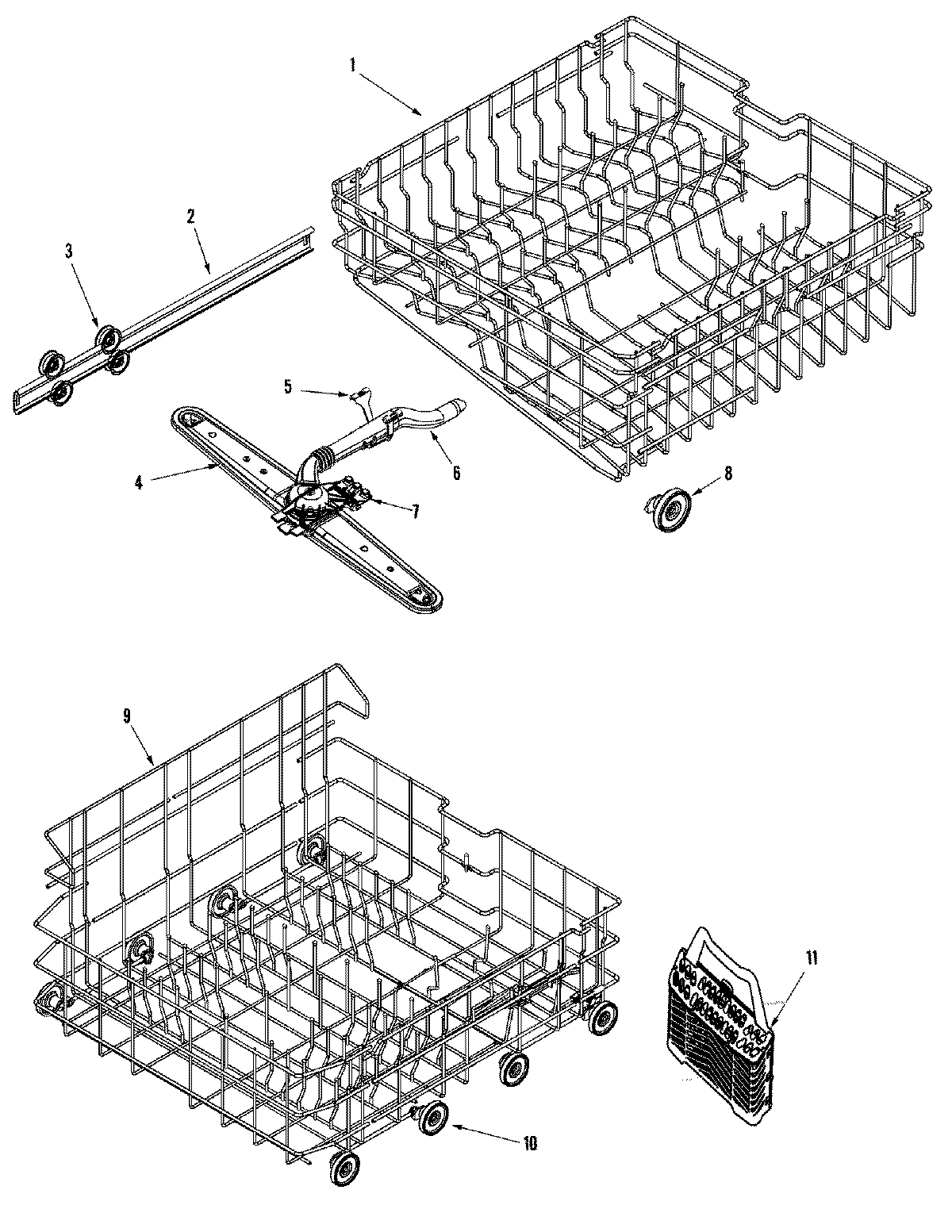

TRACK, RACK MAY 99002621 Contact Us For Availability

2

MAY 16021814 MAY 16021814 Contact Us For Availability

2

MAY 99002553 MAY 99002553 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

3

WP99002947 Whirlpool Tub Wheel Backorder WPL WP99002947 $6.46

3

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $2.51

3

STATION, DOCKING (W/FLAPPER) MAY 99002674 Contact Us For Availability

4

WP99003070 Whirlpool Dishwasher Wash Arm Backorder WPL WP99003070 $33.96

4

MAY 99002751 MAY 99002751 Contact Us For Availability

4

HOSE, INJECTOR MAY 99002852 Contact Us For Availability

4

SCREW, TRUSS HEAD (10-18X.75) MAY 99002740 Contact Us For Availability

4

MAY 99003434 MAY 99003434 Contact Us For Availability

4

MAY W10114399 MAY W10114399 Contact Us For Availability

4

MAY W10182534 MAY W10182534 Contact Us For Availability

4

MAY 99002676 MAY 99002676 Contact Us For Availability

5

MAY 99002646 MAY 99002646 Contact Us For Availability

5

MAY 99002753 MAY 99002753 Contact Us For Availability

5

MAY 99002645 MAY 99002645 Contact Us For Availability

5

COVER, AIR/WATER INLET MAY 99002948 Contact Us For Availability

5

MAY DAX3400AXN MAY DAX3400AXN Contact Us For Availability

5

MAY 99002954 MAY 99002954 Contact Us For Availability

5

MAY 99002955 MAY 99002955 Contact Us For Availability

6

WP99002659 Whirlpool Impeller In Stock WPL WP99002659 $31.33

6

MAY 99002588 MAY 99002588 Contact Us For Availability

6

HOUSING, BOARD (BASE) MAY 99002576 Contact Us For Availability

6

WASH MANIFOLD ASSY (UPR) MAY 99002679 Contact Us For Availability

7

WP99002589 Whirlpool Dishwasher Door Seal In Stock WPL WP99002589 $31.90

7

CLIP, UPR WASH MANIFOLD (FRT) MAY 99002669 Contact Us For Availability

7

MAY DAX3000AXQ MAY DAX3000AXQ Contact Us For Availability

7

MAY 99002648 MAY 99002648 Contact Us For Availability

8

WP99002781 Whirlpool Dishwasher Wheel In Stock WPL WP99002781 $4.10

8

MAY 99002658 MAY 99002658 Contact Us For Availability

8

MAY 99002114 MAY 99002114 Contact Us For Availability

8

MAY 99002767 MAY 99002767 Contact Us For Availability

9

MAY 99003341 MAY 99003341 Contact Us For Availability

9

MAY 99002017 MAY 99002017 Contact Us For Availability

9

MAY 99003469 MAY 99003469 Contact Us For Availability

9

MAY 99002639 MAY 99002639 Contact Us For Availability

9

FASTENER, INSULATION MAY 99002640 Contact Us For Availability

6-918346 Whirlpool Dishwasher Bracket Backorder WPL 6-918346 $10.76

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $5.25

MAY 99002270 MAY 99002270 Contact Us For Availability

MAY 99002980 MAY 99002980 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL MAY 99003430 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $10.76

WPW10120019 Whirlpool Dishwasher Sensor In Stock WPL WPW10120019 $135.24

MAY 99002598 MAY 99002598 Contact Us For Availability

SCREW, No.8X1/2 HEX WASHER HEAD MAY 912615 Contact Us For Availability

MAY 99003613 MAY 99003613 Contact Us For Availability

MAY 99003429 MAY 99003429 Contact Us For Availability

12

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $4.70

12

KNOB, RINSE AID (W/O-RING) MAY 99002992 Contact Us For Availability

12

GASKET, PUMP MAY 99002663 Contact Us For Availability

13

MAY 99002186 MAY 99002186 Contact Us For Availability

13

CAPACITOR, MOTOR MAY 99002665 Contact Us For Availability

14

MAY 99002608 MAY 99002608 Contact Us For Availability

14

MAY 99002815 MAY 99002815 Contact Us For Availability

14

MAY 99002750 MAY 99002750 Contact Us For Availability

WPY912620 Whirlpool Dishwasher Screw Backorder WPL WPY912620 $2.51

MAY 99002609 MAY 99002609 Contact Us For Availability

MAY 99003309 MAY 99003309 Contact Us For Availability

SHOULDER BOLT, CABLE BRACKET MAY 99003687 Contact Us For Availability

MAY 99002857 MAY 99002857 Contact Us For Availability

MAY 99002607 MAY 99002607 Contact Us For Availability

MAY 99003686 MAY 99003686 Contact Us For Availability

NUT, 10-24 MAY 99003688 Contact Us For Availability

MAY 99002657 MAY 99002657 Contact Us For Availability

MAY 99002752 MAY 99002752 Contact Us For Availability

MAY 99002927 MAY 99002927 Contact Us For Availability

MAY 99002928 MAY 99002928 Contact Us For Availability

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $82.73

WP99002656 Whirlpool Dishwasher Drain Clamp Backorder WPL WP99002656 $3.70

MAY 99002649 MAY 99002649 Contact Us For Availability

MAY 99002692 MAY 99002692 Contact Us For Availability

19

BRACKET, JUNCTION BOX SUPPORT MAY 99002637 Contact Us For Availability

20

WPW10143258 Whirlpool Dishwasher Leg Leveler In Stock WPL WPW10143258 $5.36

21

MAY 912365 MAY 912365 Contact Us For Availability

21

MAY 99002638 MAY 99002638 Contact Us For Availability

22

MAY 99002630 MAY 99002630 Contact Us For Availability

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

23

MAY 99002943 MAY 99002943 Contact Us For Availability

24

MAY 99002631 MAY 99002631 Contact Us For Availability

25

MAY 99002634 MAY 99002634 Contact Us For Availability

26

MAY 99002633 MAY 99002633 Contact Us For Availability

27

SCREW 10-32X.400 (T-20 HEAD) MAY 99002601 Contact Us For Availability

27

BRACKET, SUPPORT (LT) MAY 99002636 Contact Us For Availability

28

W10283681 Whirlpool Dishwasher Heater Backorder WPL W10283681 $68.07

28

MAY 99002973 MAY 99002973 Contact Us For Availability

29

WP6-917262 Whirlpool Dishwasher Heater Bracke Backorder WPL WP6-917262 $106.17

30

WP6-920168 Whirlpool Dishwasher Heater Nut Backorder WPL WP6-920168 $0.02

31

MAY 99002861 MAY 99002861 Contact Us For Availability

NI

MAY 15003703 MAY 15003703 Contact Us For Availability
