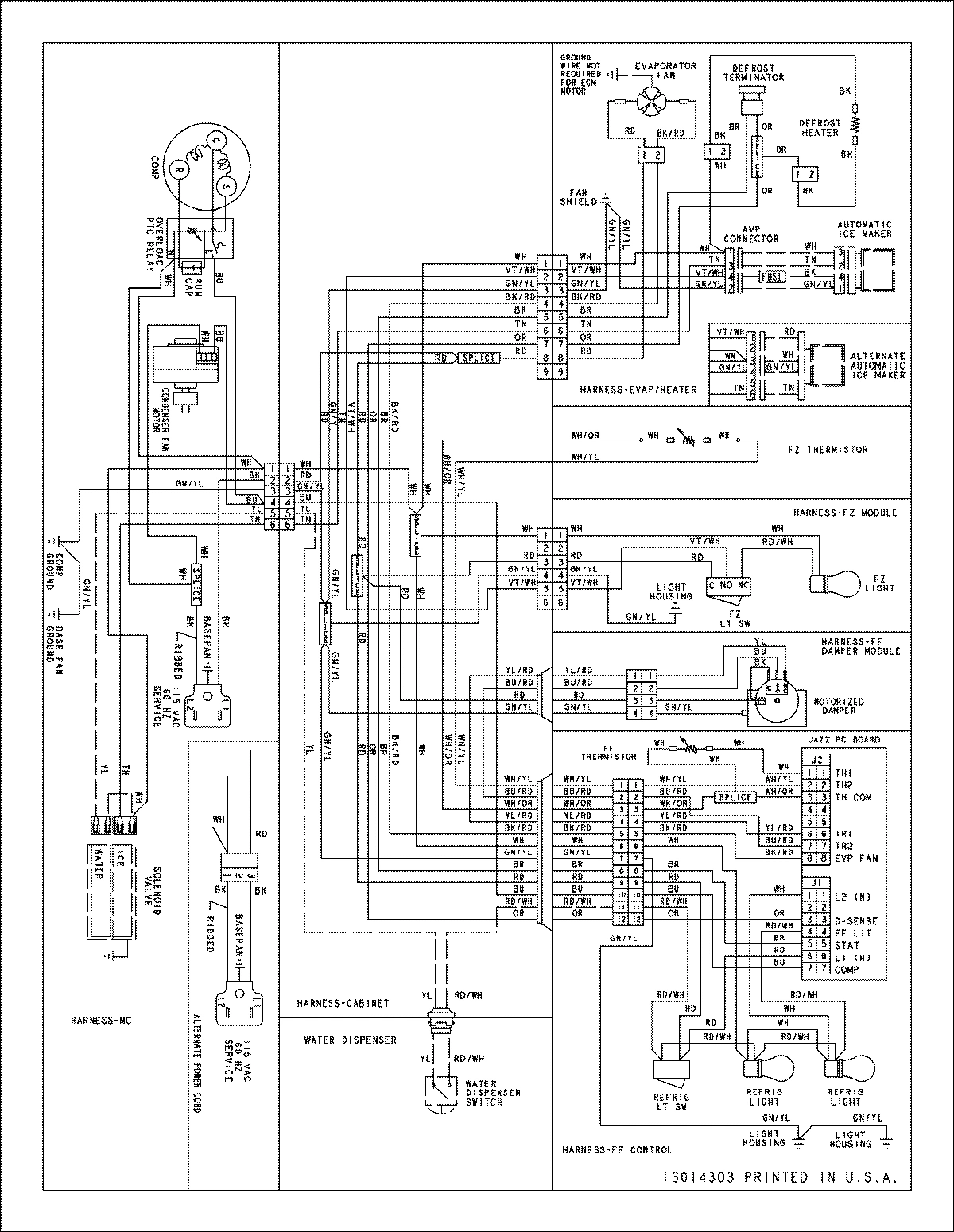

Model Maytag ABB1927DEW REFRIGERATOR – Common Parts &amp; Diagrams

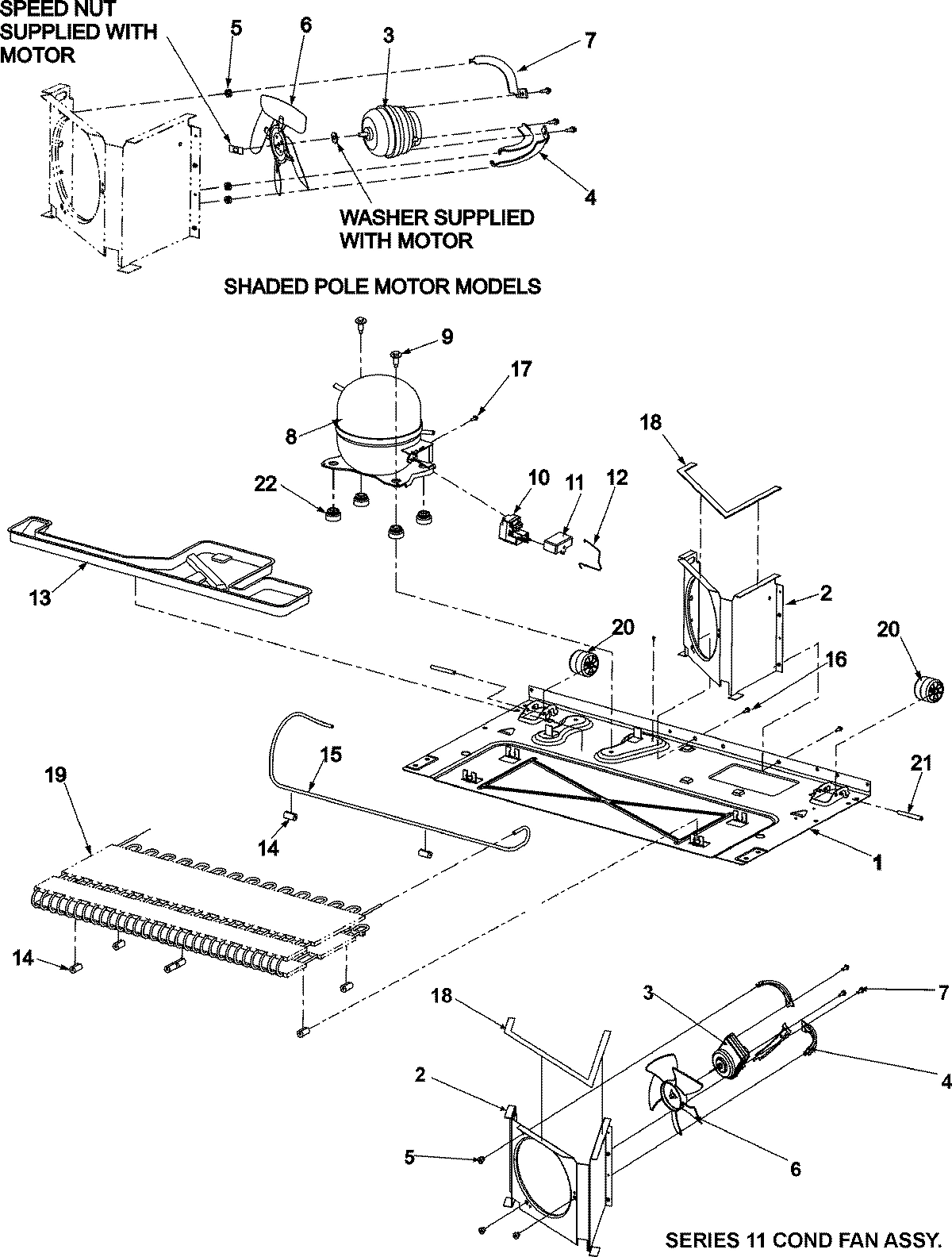

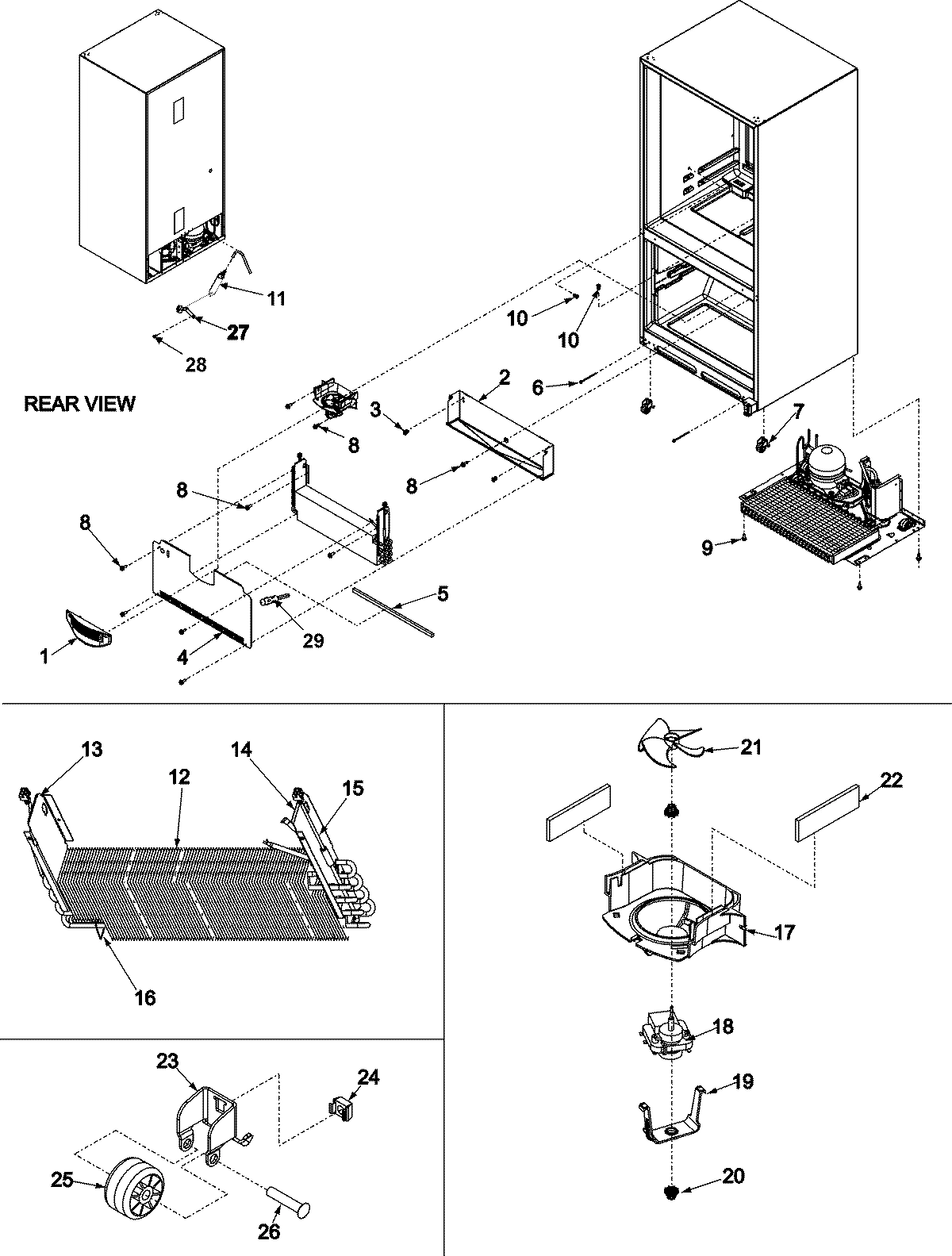

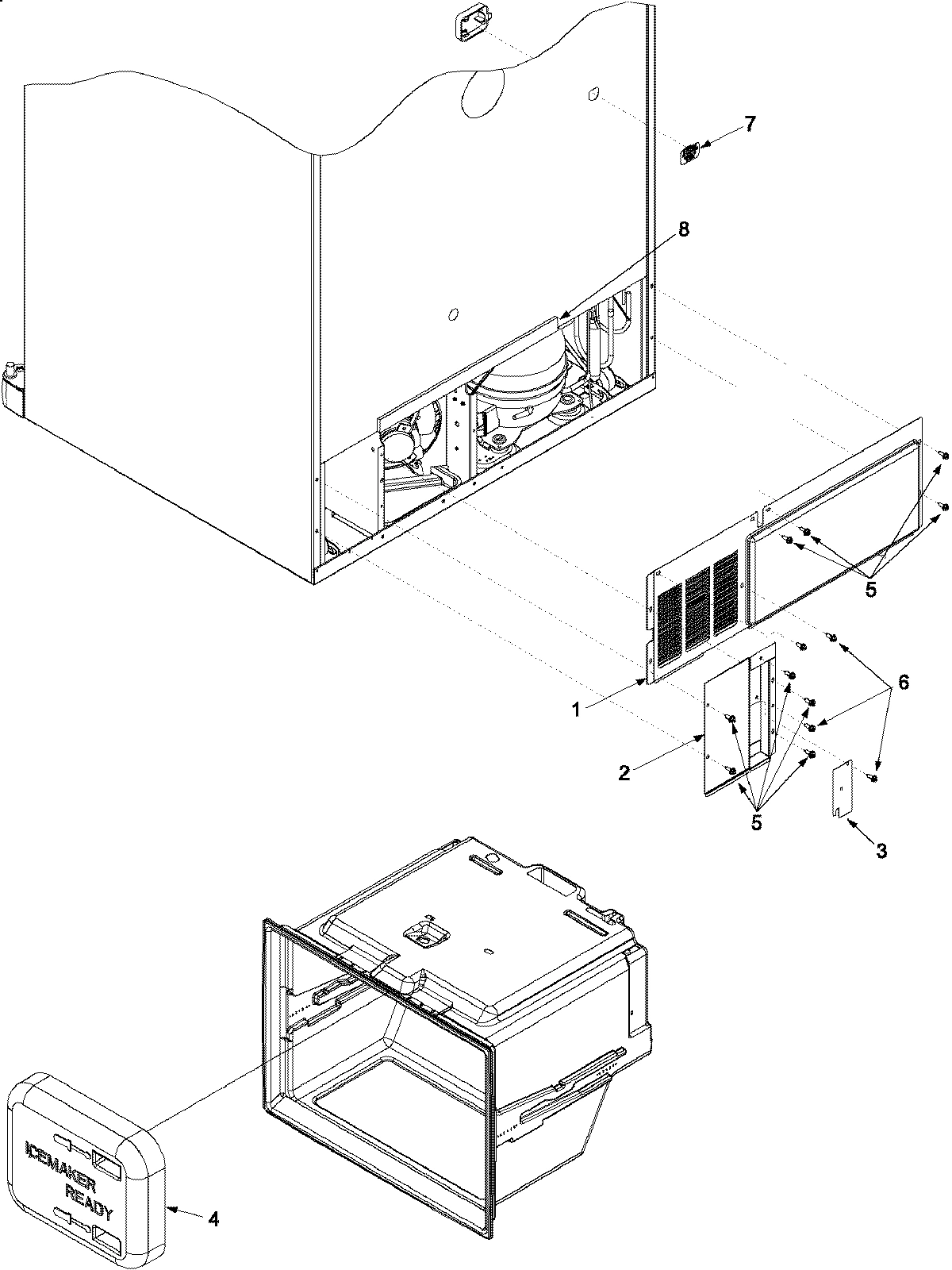

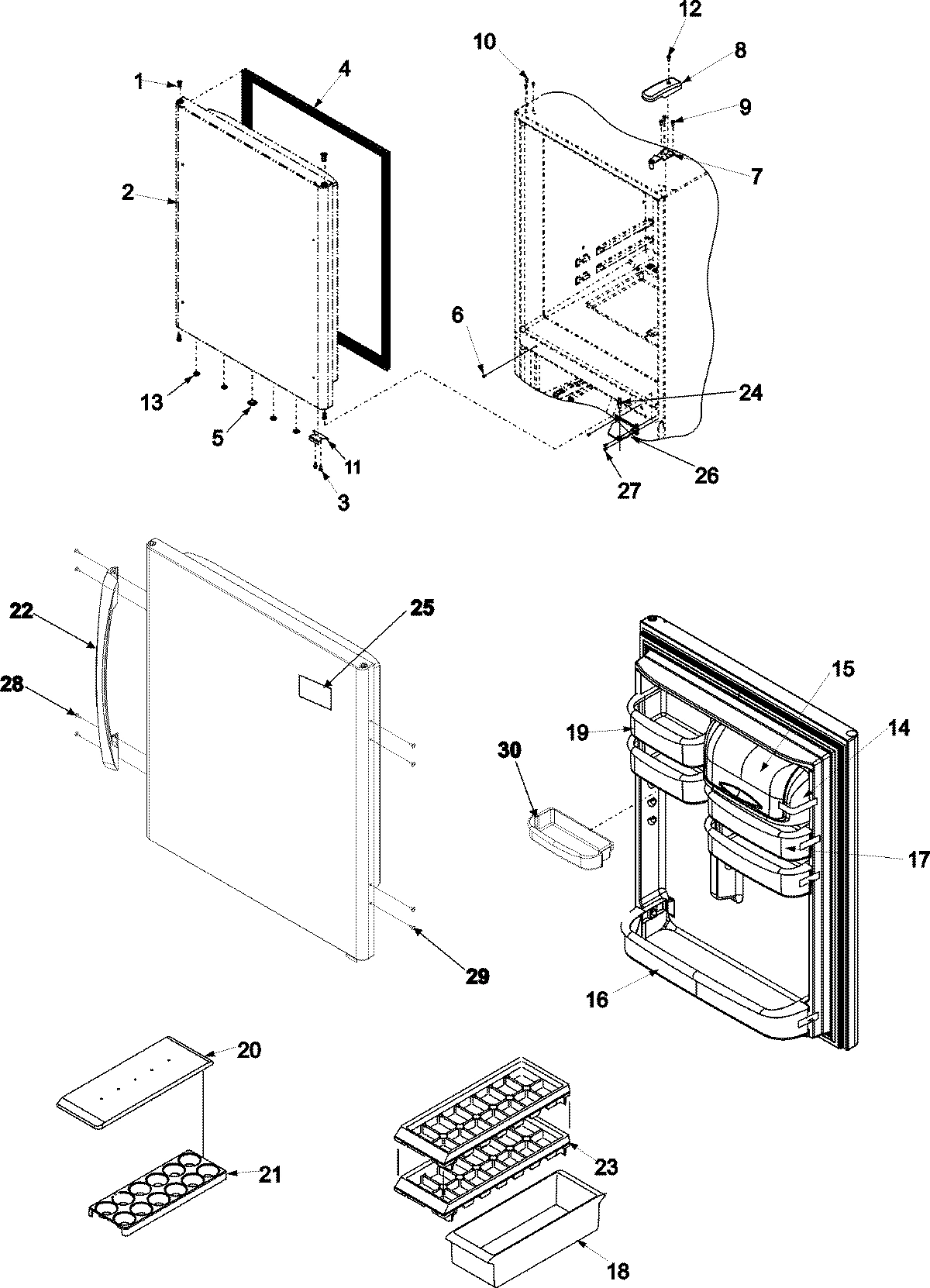

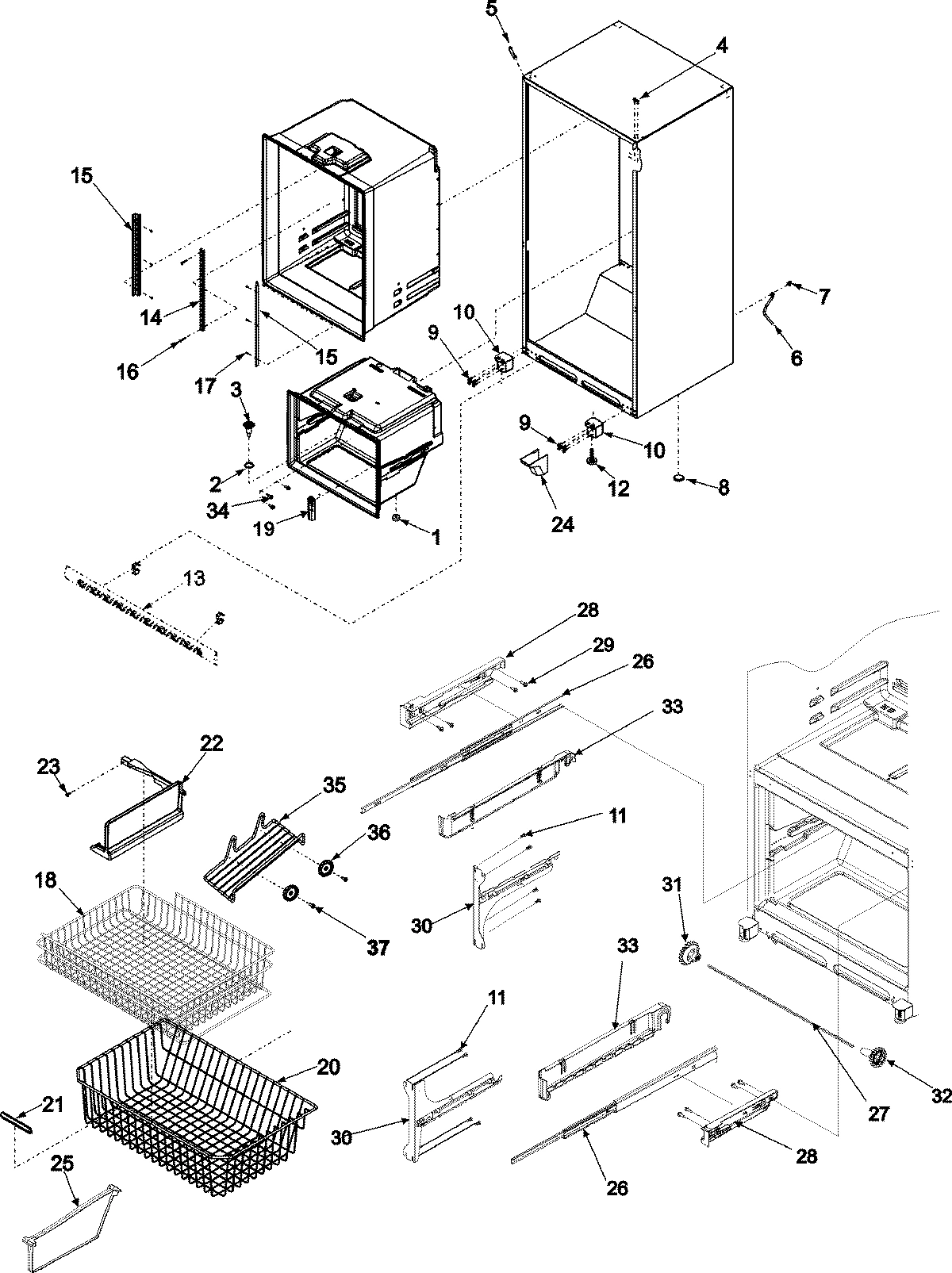

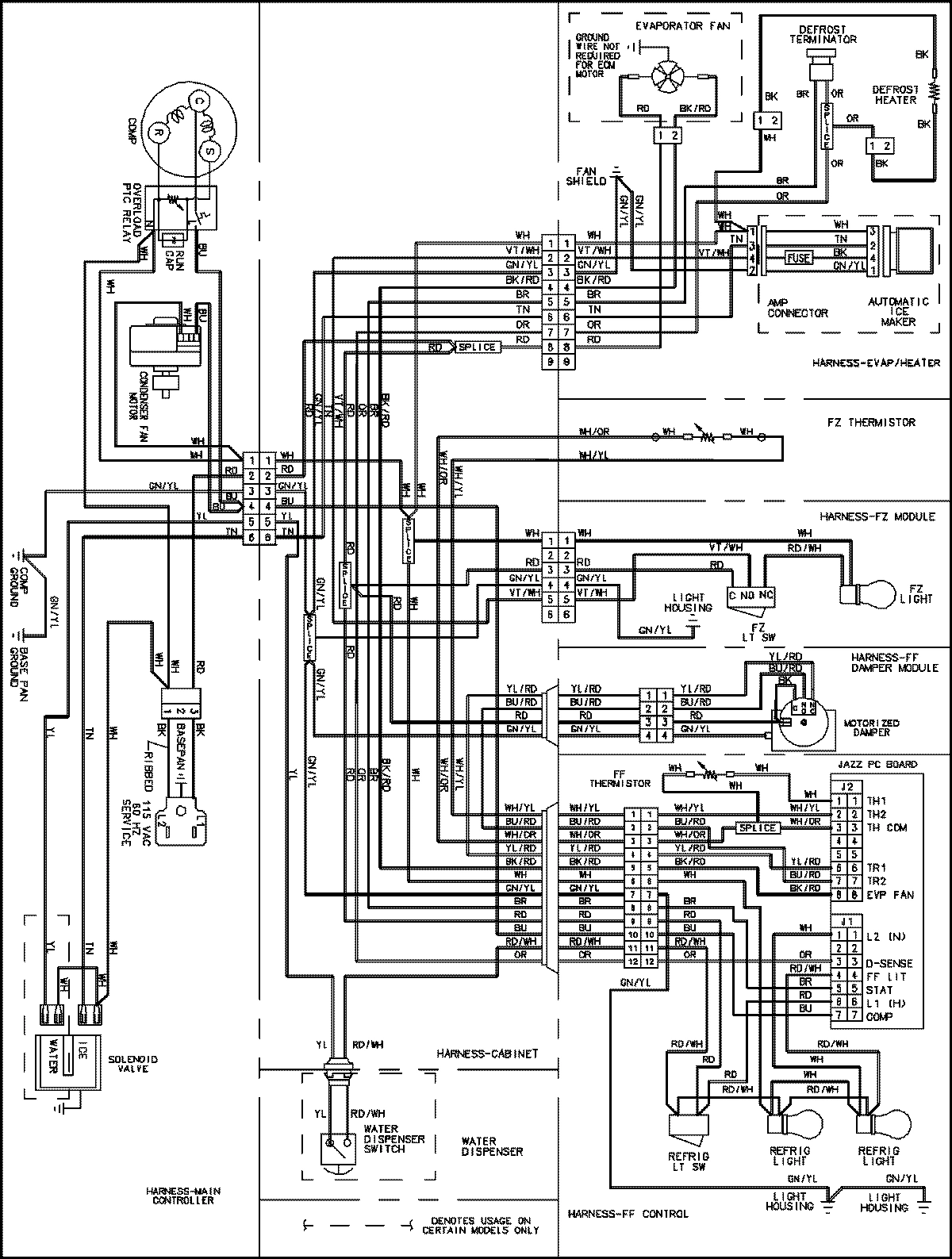

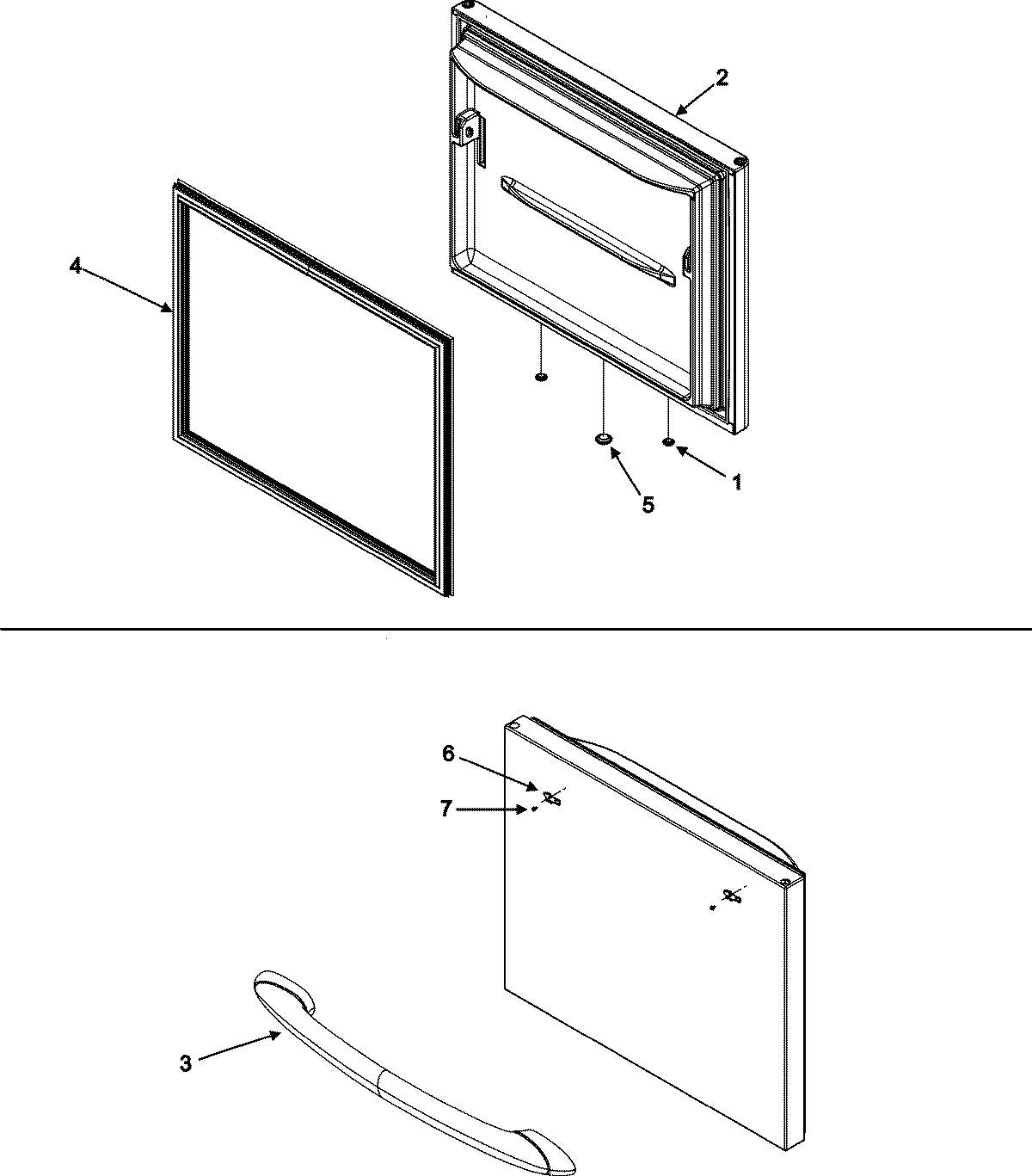

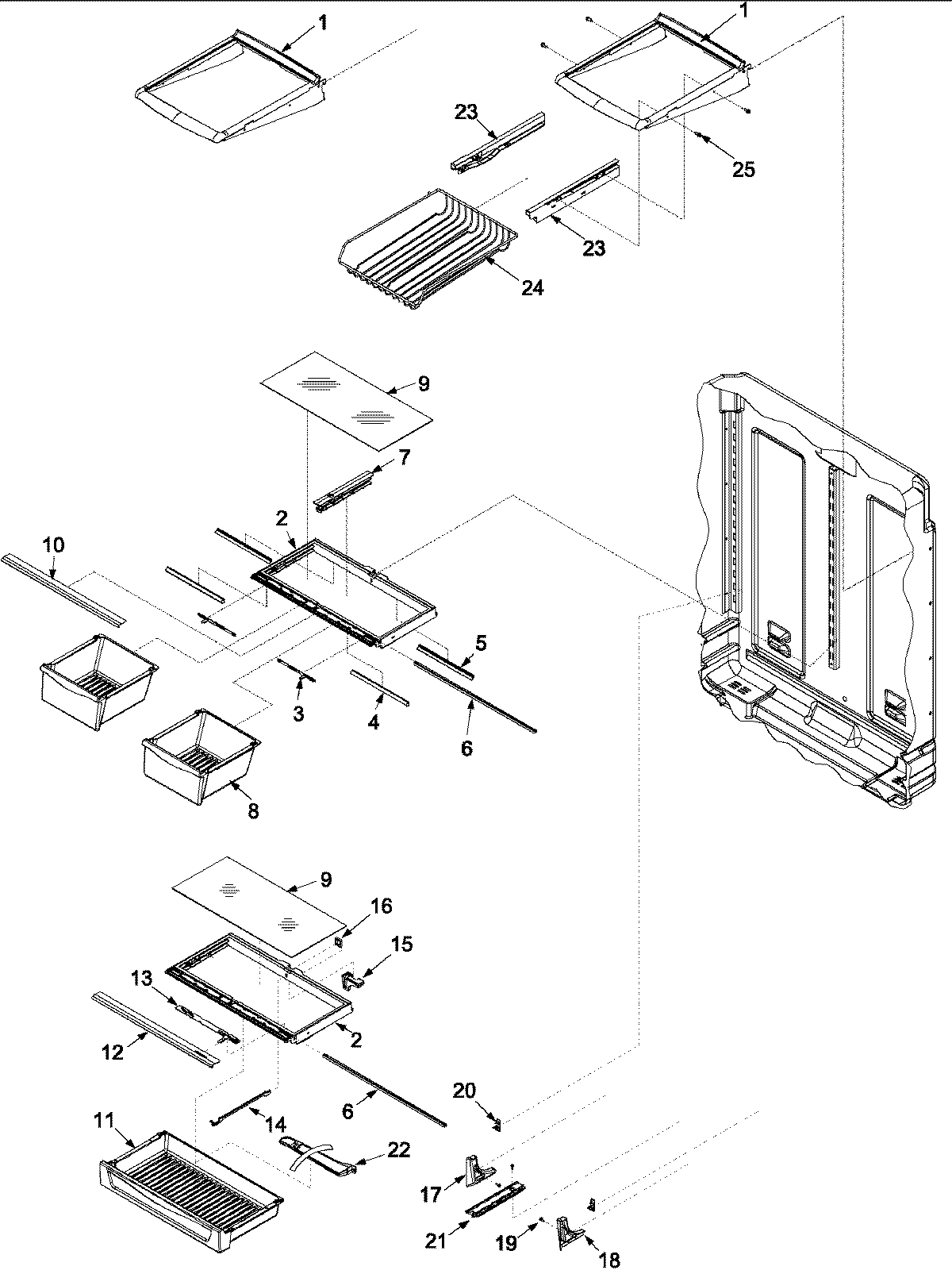

1

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

1

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

1

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

1

GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability

1

MAY 67003707 MAY 67003707 Contact Us For Availability

2

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

2

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $75.48

2

TRAY, DRIP E-CT MAY 67001133 Contact Us For Availability

2

DOOR ASSY., FRZ. FOAM (WHT) MAY 67004053 Contact Us For Availability

2

MAY 67006894 MAY 67006894 Contact Us For Availability

2

SEAL, O RING MAY M0500703 Contact Us For Availability

2

DOOR ASSY., REF. FOAM (WHT) MAY 67004039 Contact Us For Availability

2

MAY 67005904 MAY 67005904 Contact Us For Availability

2

MAY 16023096 MAY 16023096 Contact Us For Availability

2

SHEET, TECH DATA MAY 67004282 Contact Us For Availability

2

SHEET, TECH DATA MAY 67006716 Contact Us For Availability

3

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

3

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

3

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

3

MAY 67004373 MAY 67004373 Contact Us For Availability

3

MAY 10623002 MAY 10623002 Contact Us For Availability

3

MAY 67007133 MAY 67007133 Contact Us For Availability

3

MAY D7753903 MAY D7753903 Contact Us For Availability

3

MAY M0211533 MAY M0211533 Contact Us For Availability

3

MAY 67003885 MAY 67003885 Contact Us For Availability

3

MAY 67006811 MAY 67006811 Contact Us For Availability

4

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

4

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

4

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $133.29

4

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $134.76

4

MAY 67001158 MAY 67001158 Contact Us For Availability

4

MAY 67003930 MAY 67003930 Contact Us For Availability

4

COVER, EVAP 30`` MAY 67005871 Contact Us For Availability

4

MAY A4539607 MAY A4539607 Contact Us For Availability

4

MAY 16022769 MAY 16022769 Contact Us For Availability

5

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

5

GROMMET, BRACKET MAY 61004743 Contact Us For Availability

5

GASKET MAY 67002286 Contact Us For Availability

5

MAY A3080002 MAY A3080002 Contact Us For Availability

5

BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability

5

MAY 67004376 MAY 67004376 Contact Us For Availability

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

6

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $34.46

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $53.27

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

6

WP67006852 Whirlpool Clip In Stock WPL WP67006852 $13.69

6

WP67007126 Whirlpool Refrigerator Handle Clip In Stock WPL WP67007126 $3.70

6

MAY 67001066 MAY 67001066 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

7

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

7

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.51

7

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $37.19

7

ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability

7

SCREW MAY 95106-1 Contact Us For Availability

8

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

8

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $82.32

8

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

8

SCREW, SM MAY 67006425 Contact Us For Availability

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

9

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $59.33

9

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $113.33

9

MAY 67006573 MAY 67006573 Contact Us For Availability

9

MAY M0260242 MAY M0260242 Contact Us For Availability

9

MAY 67003858 MAY 67003858 Contact Us For Availability

9

SCREW, SM/HEX MAY 67006564 Contact Us For Availability

9

MAY M0238731 MAY M0238731 Contact Us For Availability

12906303WD Whirlpool Refrigerator Bracket Backorder WPL 12906303WD $28.02

GROMMET, SCREW MAY M0580205 Contact Us For Availability

HINGE, BOTTOM E-CT (WHT) MAY 67001239 Contact Us For Availability

ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability

PLUG, TOP HINGE BUTTON (WHT) MAY M0310729 Contact Us For Availability

EXTR, CRISPER FRONT MAY 67003884 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

DRIER MAY B2150504 Contact Us For Availability

SCREW SM/HEX MAY 67006473 Contact Us For Availability

MAY M0211018 MAY M0211018 Contact Us For Availability

MAY B5705323 MAY B5705323 Contact Us For Availability

MAY 67004374 MAY 67004374 Contact Us For Availability

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

KIT, EVAPORATOR MAY 12002051 Contact Us For Availability

MAY 12576801 MAY 12576801 Contact Us For Availability

MAY 67004279 MAY 67004279 Contact Us For Availability

MAY 10354001 MAY 10354001 Contact Us For Availability

MAY 67002279 MAY 67002279 Contact Us For Availability

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $93.23

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $36.93

DAM, LEFT RETURN MAY 67001083 Contact Us For Availability

MAY 67002399 MAY 67002399 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $28.16

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

WP67003904 Whirlpool Refrigerator Insulation Backorder WPL WP67003904 $2.01

DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability

MAY D7824706 MAY D7824706 Contact Us For Availability

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $53.64

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $71.21

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

LADDER, SIDES MAY 67001302 Contact Us For Availability

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $53.42

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $49.10

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $31.46

MAY M0231425 MAY M0231425 Contact Us For Availability

MAY 67002005 MAY 67002005 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WPW10324005 Whirlpool Refrigerator Cantilever Backorder WPL WPW10324005 $41.08

WPW10371193 Whirlpool Refrigerator Door Bin In Stock WPL WPW10371193 $42.58

MAY 67001035 MAY 67001035 Contact Us For Availability

GRIPPER, BUCKET MAY 67003212 Contact Us For Availability

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

MAY Y12570701 MAY Y12570701 Contact Us For Availability

MAY 67003381 MAY 67003381 Contact Us For Availability

MAY 95108-1 MAY 95108-1 Contact Us For Availability

MAY 10423131 MAY 10423131 Contact Us For Availability

67001141 Whirlpool Refrigerator Small Bucket Backorder WPL 67001141 $42.93

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

CLIP, EVAP MOTOR MAY 67005633 Contact Us For Availability

SCREW, SM MAY 67006400 Contact Us For Availability

SCREW, SM MAY M0238642 Contact Us For Availability

MAY 67003771 MAY 67003771 Contact Us For Availability

W10503182 Whirlpool Refrigerator Freezer Bask Backorder WPL W10503182 $120.52

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.32

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

MAY 12466101 MAY 12466101 Contact Us For Availability

MAY 12732802 MAY 12732802 Contact Us For Availability

MAY 10436404 MAY 10436404 Contact Us For Availability

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

SCREW, TC MAY 67006530 Contact Us For Availability

MAY M0226528 MAY M0226528 Contact Us For Availability

MAY 12217201 MAY 12217201 Contact Us For Availability

HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability

MAY 10436506 MAY 10436506 Contact Us For Availability

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $10.76

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability

MAY 67003961 MAY 67003961 Contact Us For Availability

HANDLE, DOOR (WHT) MAY 67006721 Contact Us For Availability

MAY 67001923 MAY 67001923 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $29.88

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $3.70

MAY 67001310 MAY 67001310 Contact Us For Availability

MAY 67001205 MAY 67001205 Contact Us For Availability

23A

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $3.70

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

COVER, LWR HINGE (WHT) MAY 12561901W Contact Us For Availability

MAY M0286708 MAY M0286708 Contact Us For Availability

MAY 67001301 MAY 67001301 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Y12528501 Whirlpool Refrigerator Nameplate Backorder WPL Y12528501 $32.32

MAY 10450602 MAY 10450602 Contact Us For Availability

MAY 67004064 MAY 67004064 Contact Us For Availability

MAY M0214931 MAY M0214931 Contact Us For Availability

26

WP12607103WD Whirlpool Refrigerator Center Hi Backorder WPL WP12607103WD $57.16

26

MAY M1205302 MAY M1205302 Contact Us For Availability

26

MAY 67004065 MAY 67004065 Contact Us For Availability

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $41.45

MAY 10547002 MAY 10547002 Contact Us For Availability

MAY 10547003 MAY 10547003 Contact Us For Availability

MAY M0226233 MAY M0226233 Contact Us For Availability

67004707 Whirlpool Refrigerator Hi Torque Scr Backorder WPL 67004707 $10.25

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $9.59

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

MAY 67002525 MAY 67002525 Contact Us For Availability

SCREW MAY 67006737 Contact Us For Availability

MAY 67004010 MAY 67004010 Contact Us For Availability

28A

MAY 67004011 MAY 67004011 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

SCREW, SM/HEX HEAD MAY 67006406 Contact Us For Availability

SCREW 1`` MAY M0211021 Contact Us For Availability

PLUG, HANDLE HOLE (WHT) MAY 12246601 Contact Us For Availability

30

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $30.29

30

BRACKET, DRAWER SLIDE (LT) MAY 67004012 Contact Us For Availability

30

BRACKET, DRAWER SLIDE (RT) MAY 67004013 Contact Us For Availability

31

MAY 67004066 MAY 67004066 Contact Us For Availability

32

MAY 67004016 MAY 67004016 Contact Us For Availability

33

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

33A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

34

MAY M0238616 MAY M0238616 Contact Us For Availability

35

MAY 12646501 MAY 12646501 Contact Us For Availability

36

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $4.65

37

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

37

MAY M0230919 MAY M0230919 Contact Us For Availability

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $50.86

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

W11619328 Whirlpool Wire Harness In Stock WPL W11619328 $46.83

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $34.02

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

MAY 67003908 MAY 67003908 Contact Us For Availability

MAY 67006094 MAY 67006094 Contact Us For Availability

MAY 67003931 MAY 67003931 Contact Us For Availability

MAY 67001258 MAY 67001258 Contact Us For Availability

INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability

MAY M0114003 MAY M0114003 Contact Us For Availability

MAY 67003211 MAY 67003211 Contact Us For Availability

MAY 67004276 MAY 67004276 Contact Us For Availability

MAY 15003700 MAY 15003700 Contact Us For Availability

MAY 15003918 MAY 15003918 Contact Us For Availability
