Model Maytag ABB1924BRB00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

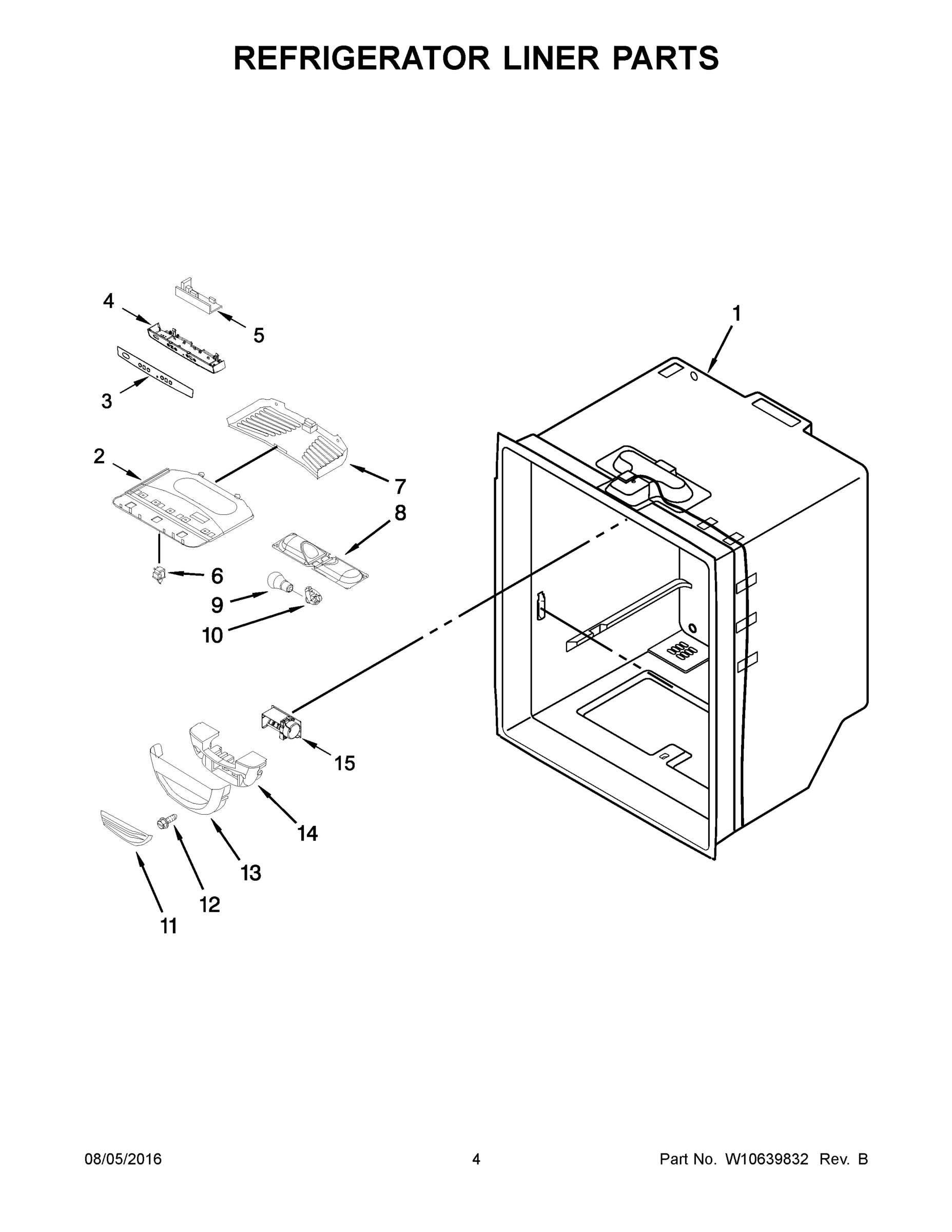

03 - REFRIGERATOR LINER PARTS

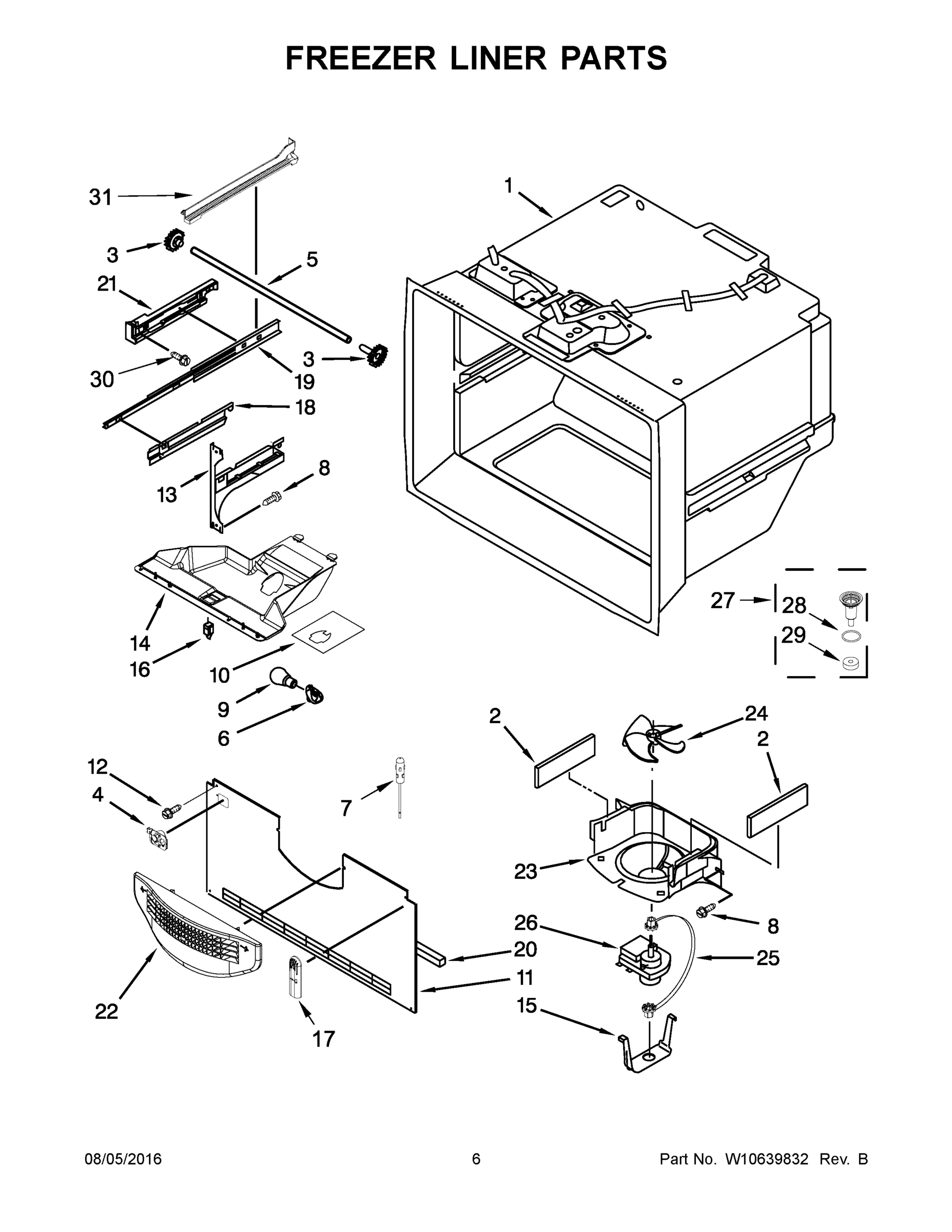

04 - FREEZER LINER PARTS

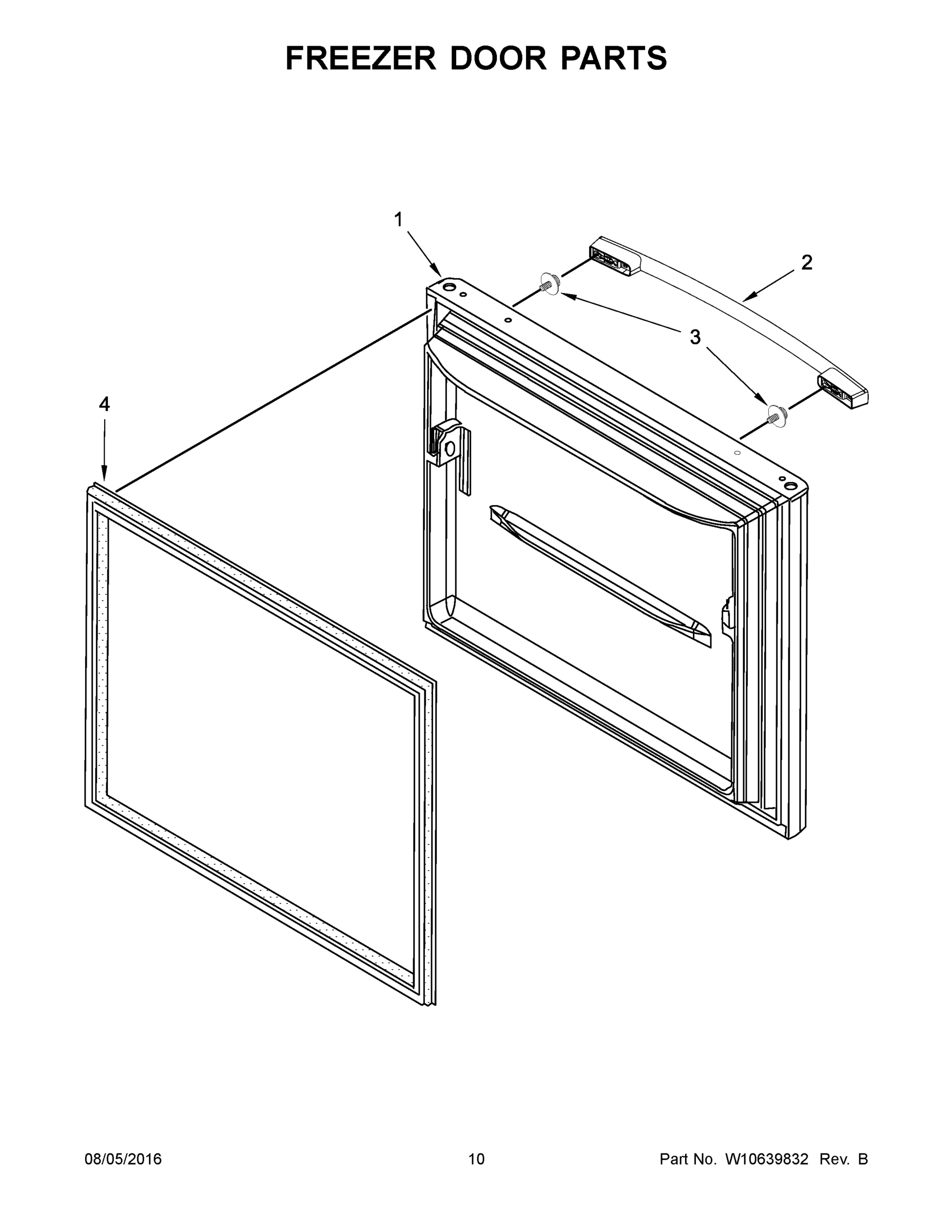

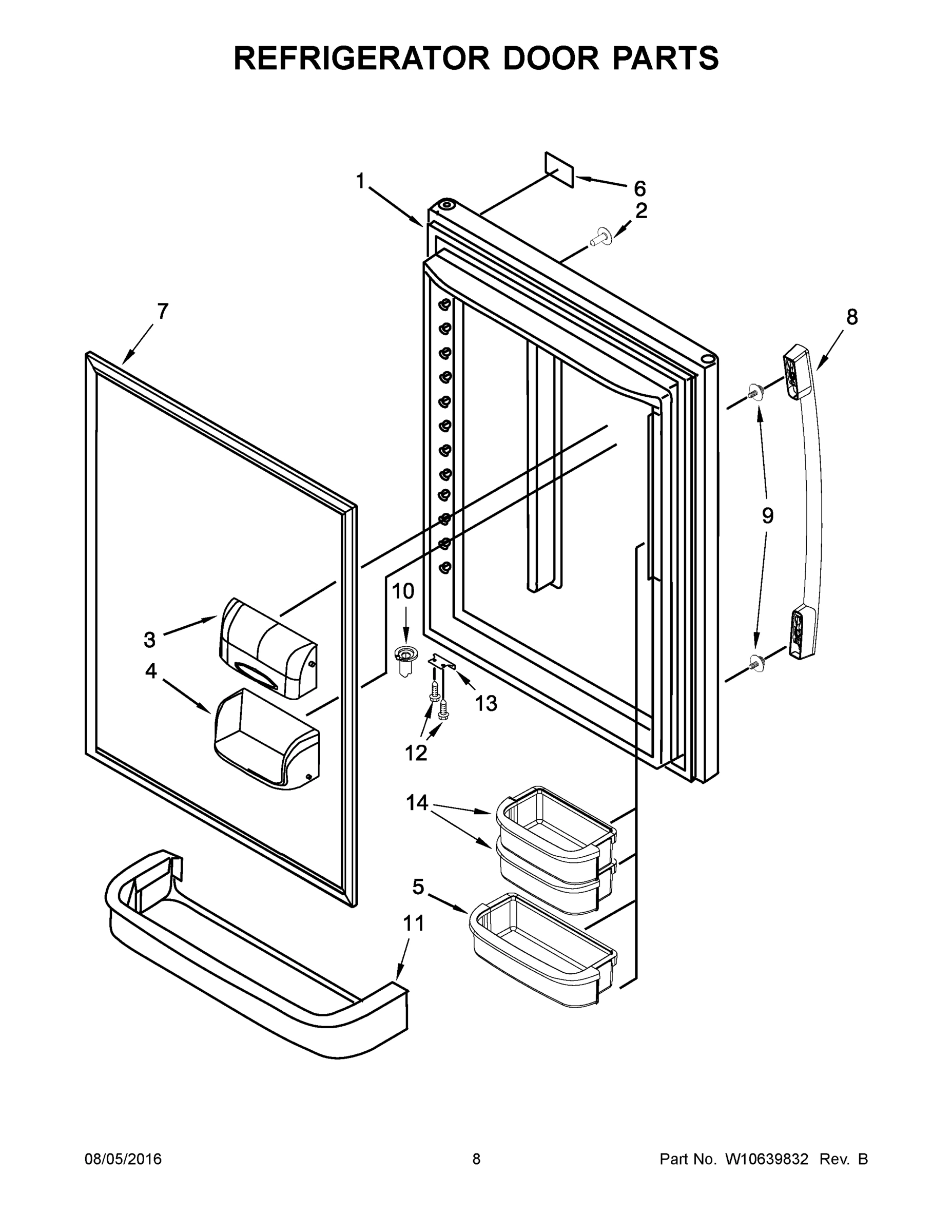

05 - REFRIGERATOR DOOR PARTS
06 - FREEZER DOOR PARTS

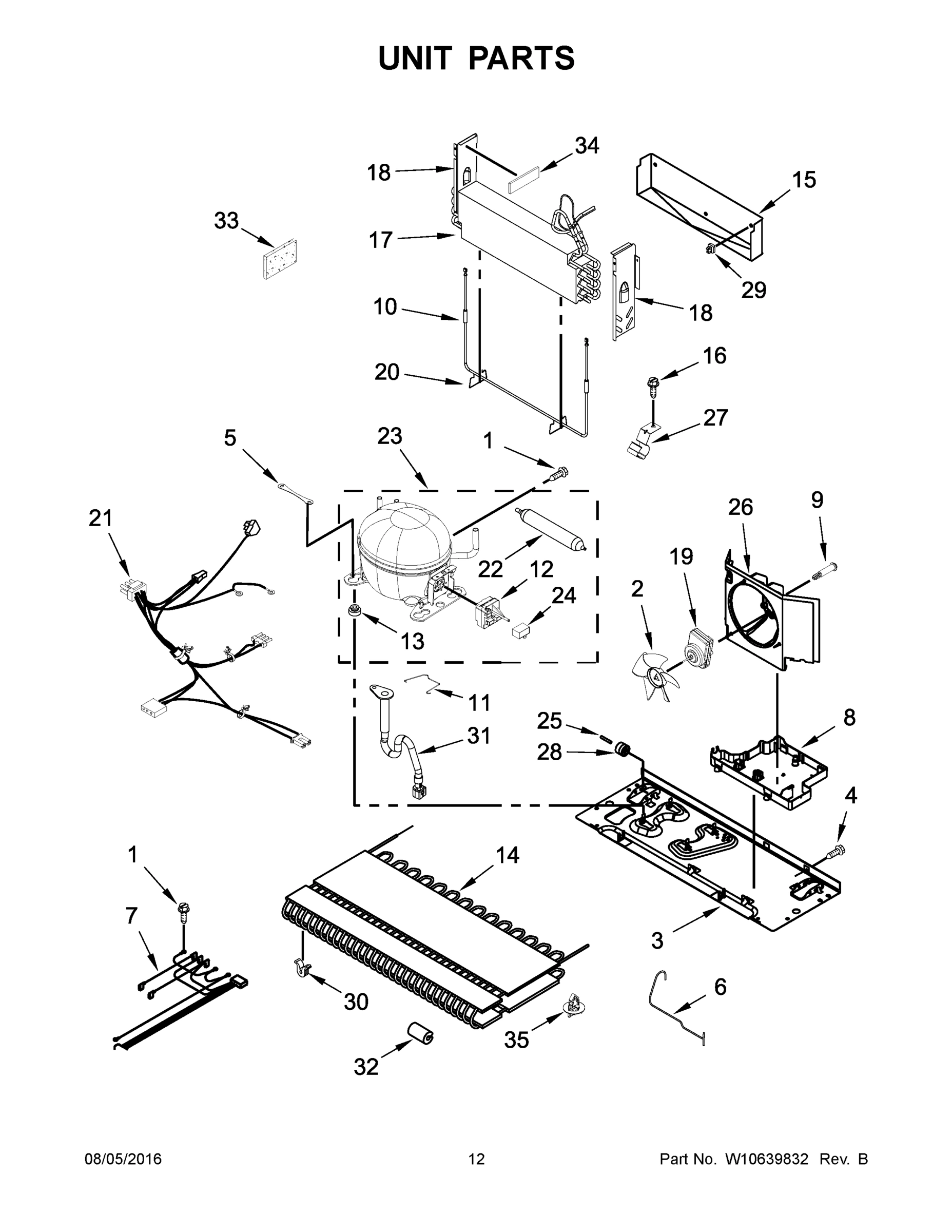

07 - UNIT PARTS

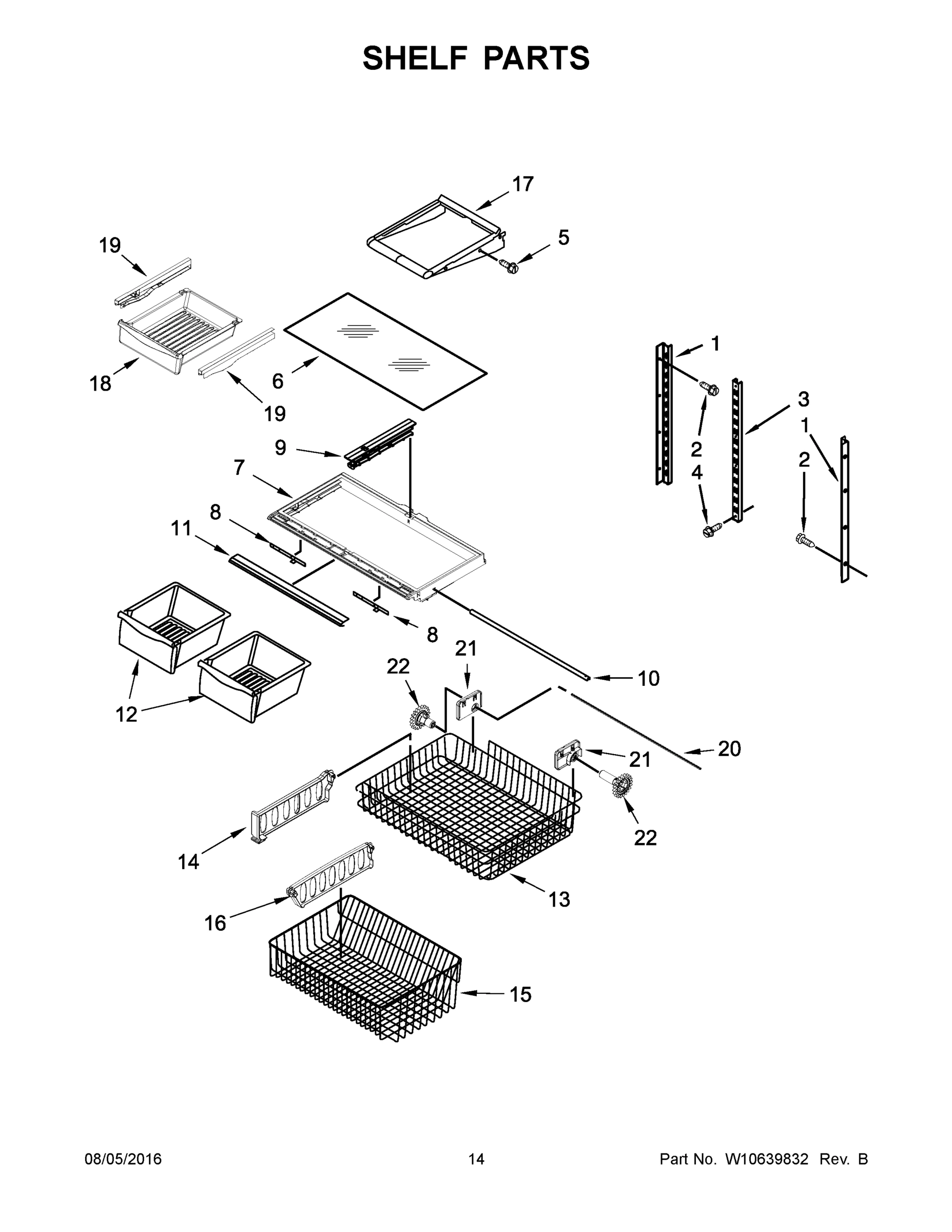

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag ABB1924BRB00 REFRIGERATOR, BOTTOM MOUNT
1
MAY 13109402W MAY 13109402W Contact Us For Availability
1
MAY 13109220W MAY 13109220W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY W10251970 MAY W10251970 Contact Us For Availability
1A
DOOR, REFRIGERATOR (BLACK) MAY 13109402B Contact Us For Availability
1A
DOOR, FREEZER (BLACK) MAY 13109220B Contact Us For Availability
1B
MAY 13107553S MAY 13107553S Contact Us For Availability
1B
DOOR, FREEZER (STAINLESS) MAY 13109223S Contact Us For Availability
2
MAY W10464757 MAY W10464757 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
PLUG, BUTTON (WHITE) MAY 12246607 Contact Us For Availability
2
MAY W10222984 MAY W10222984 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2A
MAY 2218872 MAY 2218872 Contact Us For Availability
2A
HANDLE, DOOR (BLACK) MAY W10222985 Contact Us For Availability
2B
MAY 12246610 MAY 12246610 Contact Us For Availability
2B
MAY W10223019 MAY W10223019 Contact Us For Availability
3
MAY 12249902 MAY 12249902 Contact Us For Availability
3
MAY W10593588 MAY W10593588 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10288153 MAY W10288153 Contact Us For Availability
3
MAY W10480107 MAY W10480107 Contact Us For Availability
3
MAY W10273463 MAY W10273463 Contact Us For Availability
4
MAY W10515763 MAY W10515763 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464769 MAY W10464769 Contact Us For Availability
4
MAY 12932103 MAY 12932103 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10443311 MAY W10443311 Contact Us For Availability
4
MAY W10215666 MAY W10215666 Contact Us For Availability
4A
MAY W10515762 MAY W10515762 Contact Us For Availability
4A
MAY W10436247 MAY W10436247 Contact Us For Availability
4B
MAY W10443312 MAY W10443312 Contact Us For Availability
5
MAY 10351006 MAY 10351006 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
MAY W10802329 MAY W10802329 Contact Us For Availability
5
BUCKET, MEDIUM MAY 12557204 Contact Us For Availability
5
MAY W10236396 MAY W10236396 Contact Us For Availability
5
MAY 12990302V MAY 12990302V Contact Us For Availability
6
MAY 12992602 MAY 12992602 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
NAMEPLATE (STAINLESS) MAY 12528501 Contact Us For Availability
6
MAY W10294014 MAY W10294014 Contact Us For Availability
6
MAY 12204823N MAY 12204823N Contact Us For Availability
7
MAY 12477501 MAY 12477501 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12791409SP MAY 12791409SP Contact Us For Availability
7
MAY W10443309 MAY W10443309 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10292244 Contact Us For Availability
7
MAY W10671240 MAY W10671240 Contact Us For Availability
7A
MAY W10436245 MAY W10436245 Contact Us For Availability
7B
MAY W10443310 MAY W10443310 Contact Us For Availability
8
MAY W10673840 MAY W10673840 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY W10655367 MAY W10655367 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
9
BULB, LIGHT MAY 2311792 Contact Us For Availability
9
MAY W10622701 MAY W10622701 Contact Us For Availability
9
MAY W10671238 MAY W10671238 Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12028505W MAY 12028505W Contact Us For Availability
10
HEATER, EVAPORATOR MAY 12729127 Contact Us For Availability
10
MAY 12227302WD MAY 12227302WD Contact Us For Availability
10A
MAY 12028505B MAY 12028505B Contact Us For Availability
10B
MAY 12028505AP MAY 12028505AP Contact Us For Availability
11
MAY 12992403 MAY 12992403 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308414 MAY W10308414 Contact Us For Availability
11
MAY 12557904 MAY 12557904 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY W10231481 MAY W10231481 Contact Us For Availability
12
MAY 12607103WD MAY 12607103WD Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY 12990504 MAY 12990504 Contact Us For Availability
12
MAY W10796752 MAY W10796752 Contact Us For Availability
12
MAY 12531305 MAY 12531305 Contact Us For Availability
12A
MAY 12607104ED MAY 12607104ED Contact Us For Availability
12B
MAY 12607103AP MAY 12607103AP Contact Us For Availability
13
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10330991 MAY W10330991 Contact Us For Availability
13
MAY 10447111 MAY 10447111 Contact Us For Availability
13
GROMMET MAY 10835903 Contact Us For Availability
13
MAY W10348236 MAY W10348236 Contact Us For Availability
13A
MAY W10330993 MAY W10330993 Contact Us For Availability
13A
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
13B
MAY 10447114 MAY 10447114 Contact Us For Availability
14
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
BUCKET, SMALL MAY 12557202 Contact Us For Availability
14
MAY W10346423 MAY W10346423 Contact Us For Availability
14
MAY W10241046 MAY W10241046 Contact Us For Availability
14A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
14B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
15
MAY 12566606ED MAY 12566606ED Contact Us For Availability
15
MAY W10594330 MAY W10594330 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY W10292801 MAY W10292801 Contact Us For Availability
15
MAY W10503182 MAY W10503182 Contact Us For Availability
16
MAY 12820505 MAY 12820505 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12990701 MAY 12990701 Contact Us For Availability
16
MAY W10146440 MAY W10146440 Contact Us For Availability
17
MAY W10709365 MAY W10709365 Contact Us For Availability
17
MAY 12815301 MAY 12815301 Contact Us For Availability
17
MAY W10317012 MAY W10317012 Contact Us For Availability
17
MAY 12463608 MAY 12463608 Contact Us For Availability
18
MAY 12477601W MAY 12477601W Contact Us For Availability
18
MAY W10280608 MAY W10280608 Contact Us For Availability
18
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
18
MAY 12656504V MAY 12656504V Contact Us For Availability
18A
MAY 12477601B MAY 12477601B Contact Us For Availability
18A
MAY W10280613 MAY W10280613 Contact Us For Availability
18A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
18B
MAY 12477601AP MAY 12477601AP Contact Us For Availability
19
ASSEMBLY, GRILLE (WHITE) MAY W10534166 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
MAY W10609117 MAY W10609117 Contact Us For Availability
19
MAY 12656601V MAY 12656601V Contact Us For Availability
19A
ASSEMBLY, GRILLE (BLACK) MAY W10534167 Contact Us For Availability
19A
MAY 12656602V MAY 12656602V Contact Us For Availability
19B
ASSEMBLY, GRILLE (GREY) MAY W10534165 Contact Us For Availability
20
MAY A3189394 MAY A3189394 Contact Us For Availability
20
MAY W10802340 MAY W10802340 Contact Us For Availability
21
MAY W10217701 MAY W10217701 Contact Us For Availability
21
MAY W10284684 MAY W10284684 Contact Us For Availability
21
MAY W10679216 MAY W10679216 Contact Us For Availability
21
MAY W10348259 MAY W10348259 Contact Us For Availability
21A
MAY W10284685 MAY W10284685 Contact Us For Availability
21A
MAY W10348260 MAY W10348260 Contact Us For Availability
22
MAY W10210978 MAY W10210978 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
DRIER MAY W10177049 Contact Us For Availability
22
MAY W10474716 MAY W10474716 Contact Us For Availability
22A
MAY W10474715 MAY W10474715 Contact Us For Availability
23
MAY B5759655 MAY B5759655 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
MAY W10485433 MAY W10485433 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10350564 MAY W10350564 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
MAY 12477202 MAY 12477202 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10189184 MAY W10189184 Contact Us For Availability
27
MAY W10662407 MAY W10662407 Contact Us For Availability
27
MAY W10281329 MAY W10281329 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
ROLLER MAY 12477102 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY W10137529 MAY W10137529 Contact Us For Availability
31
MAY W10516603 MAY W10516603 Contact Us For Availability
31
MAY W10622098 MAY W10622098 Contact Us For Availability
31A
MAY W10516602 MAY W10516602 Contact Us For Availability
32
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
33
SEALER, INSULATION MAY 2169104 Contact Us For Availability
34
MAY A3189397 MAY A3189397 Contact Us For Availability
35
MAY W10815863 MAY W10815863 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
