Model Whirlpool A25CAE WASHER – Common Parts & Diagrams

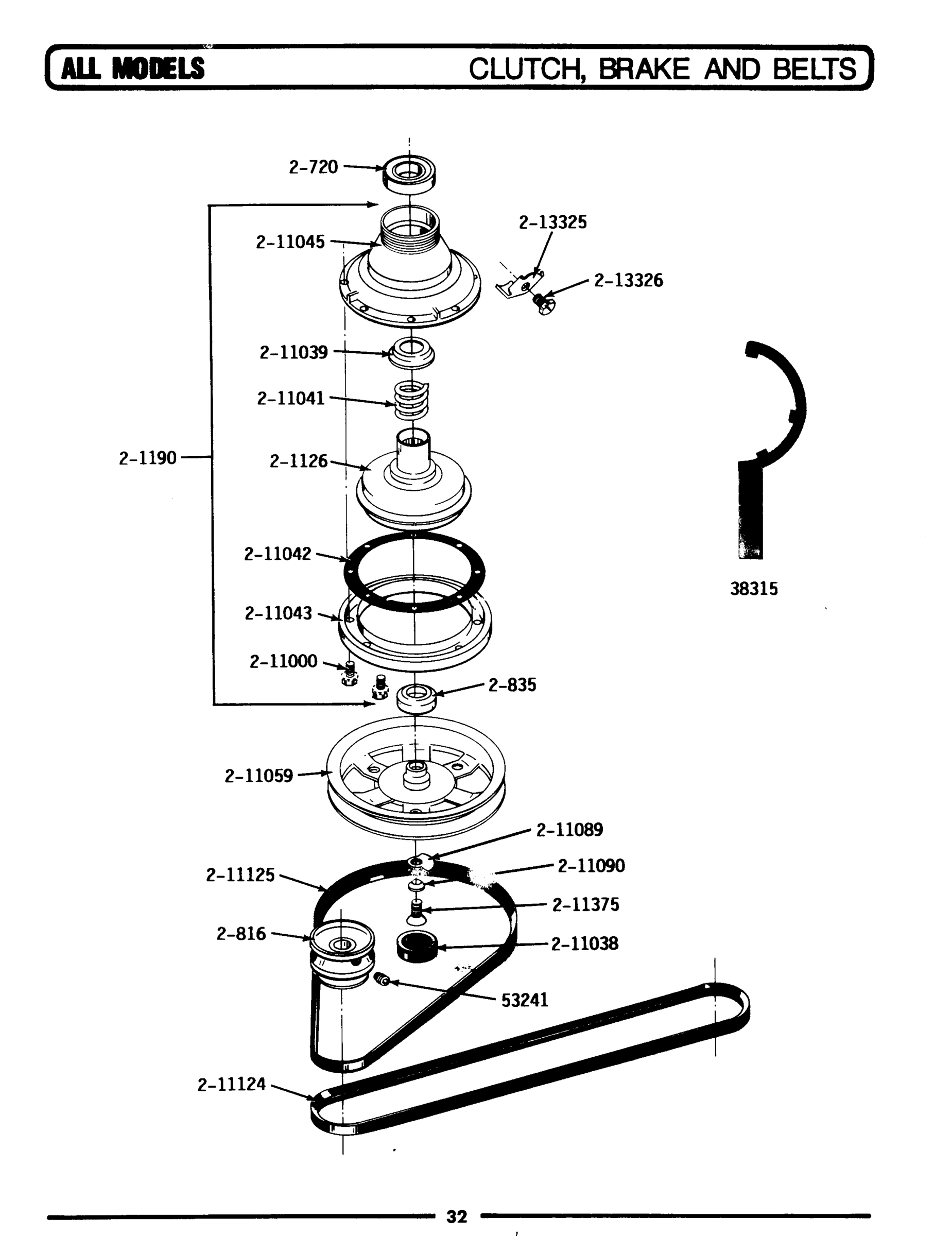

08 - CLUTCH, BRAKE & BELTS
09 - 50HZ CONVERSION LIST

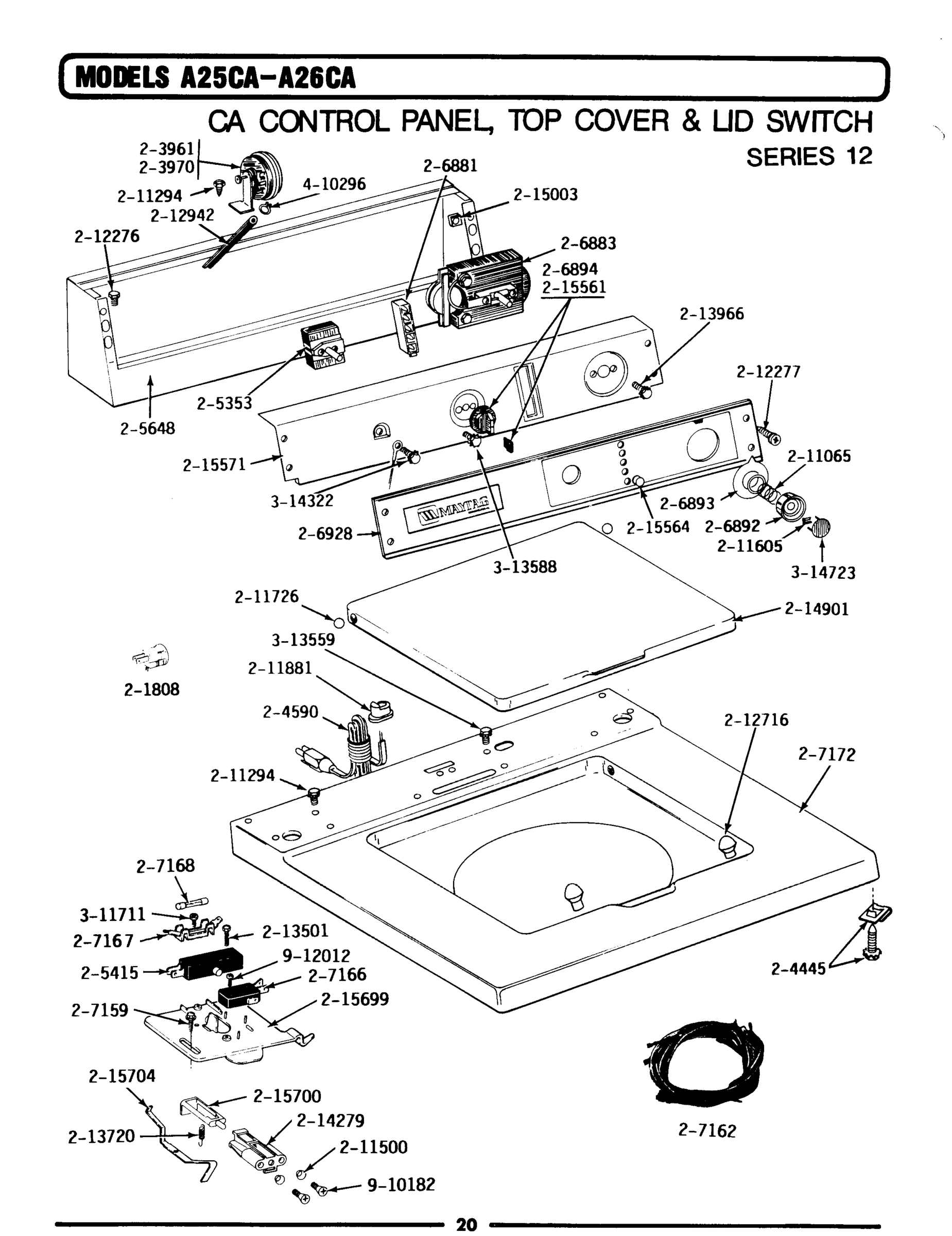

02 - CONTROL PANEL, TOP CVR & LID SWTCH (12)

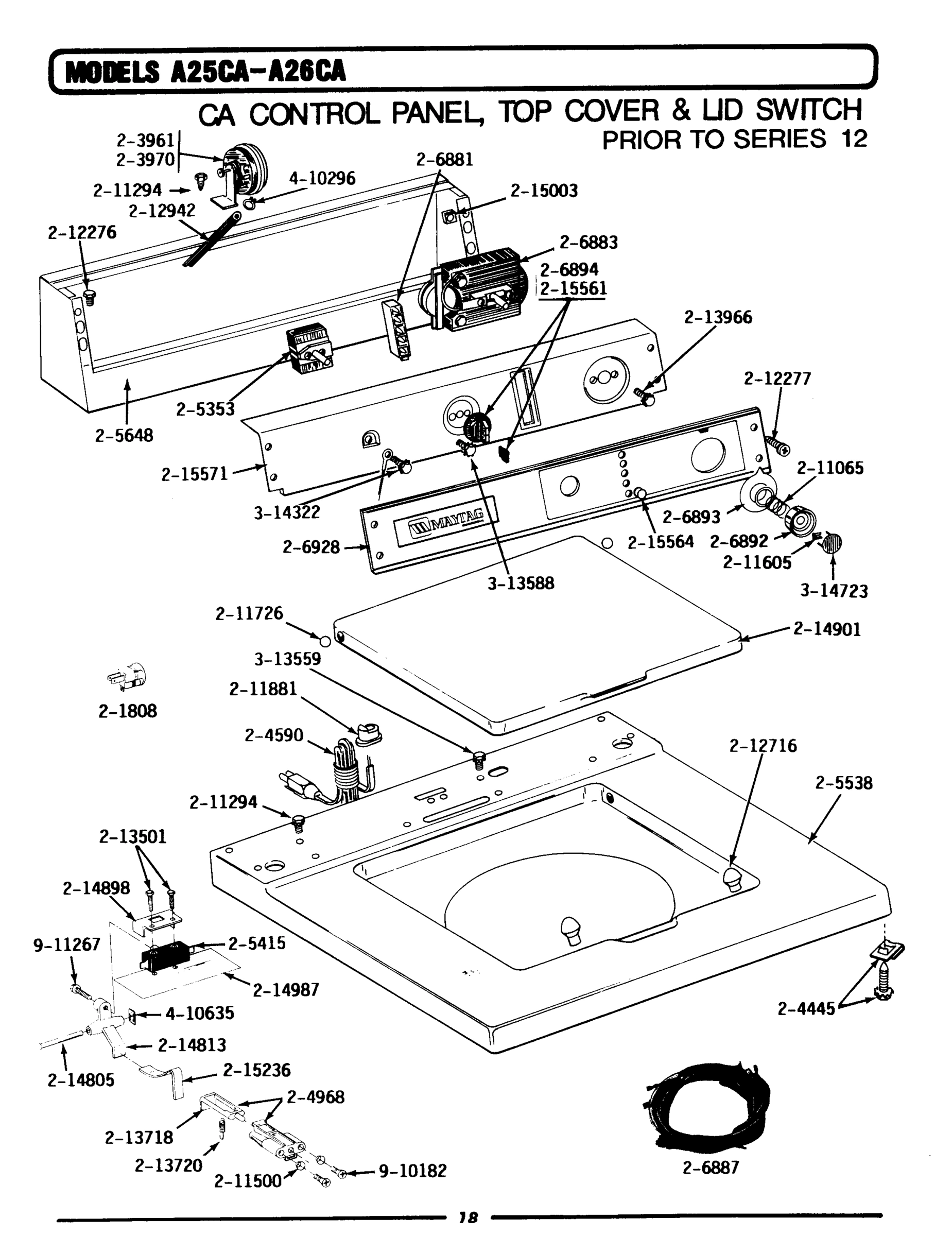

01 - CONTROL PANEL, TOP CVR & LID SWTCH (00)

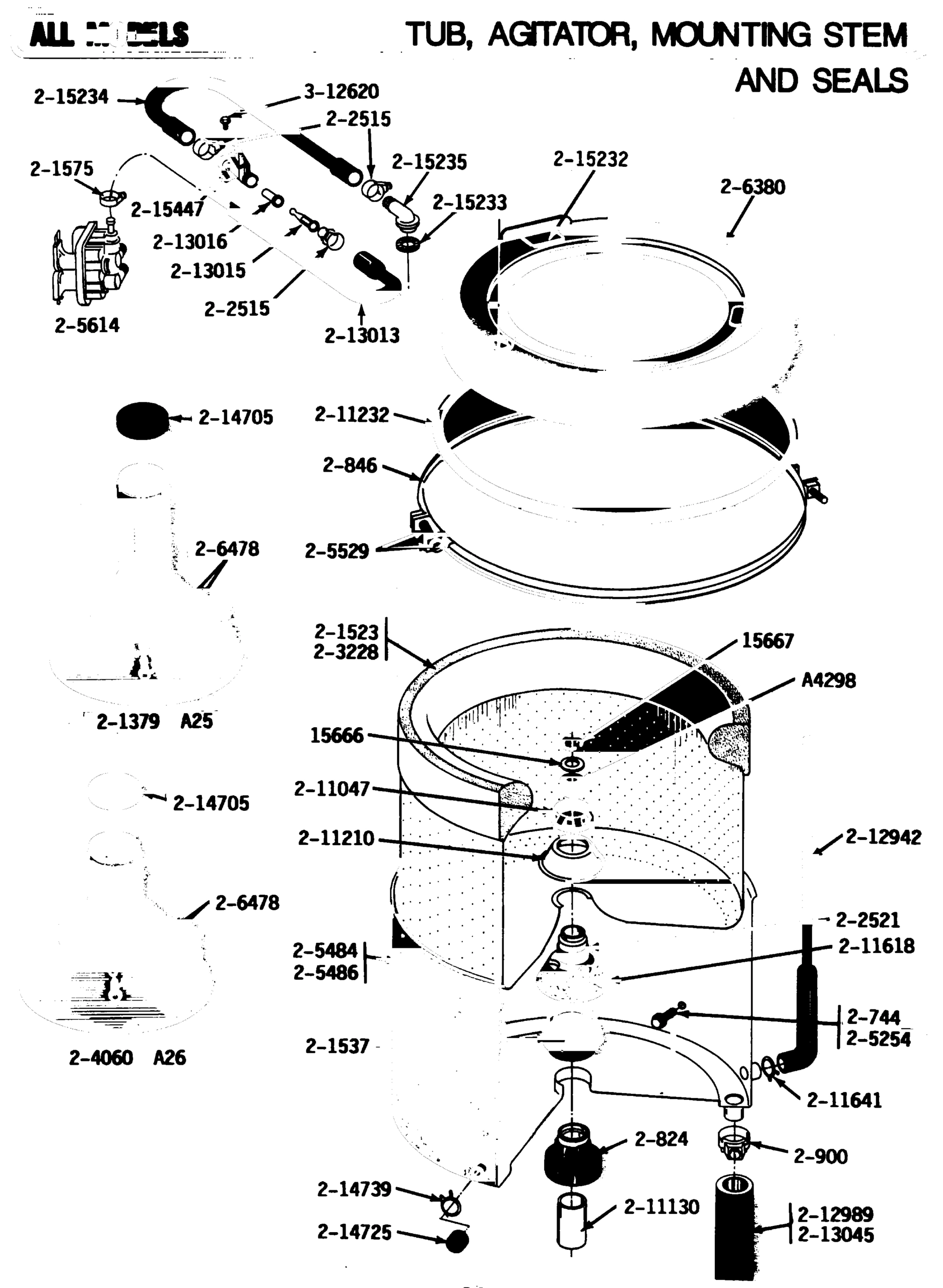

04 - TUB, AGITATOR, MOUNTING STEM & SEAL

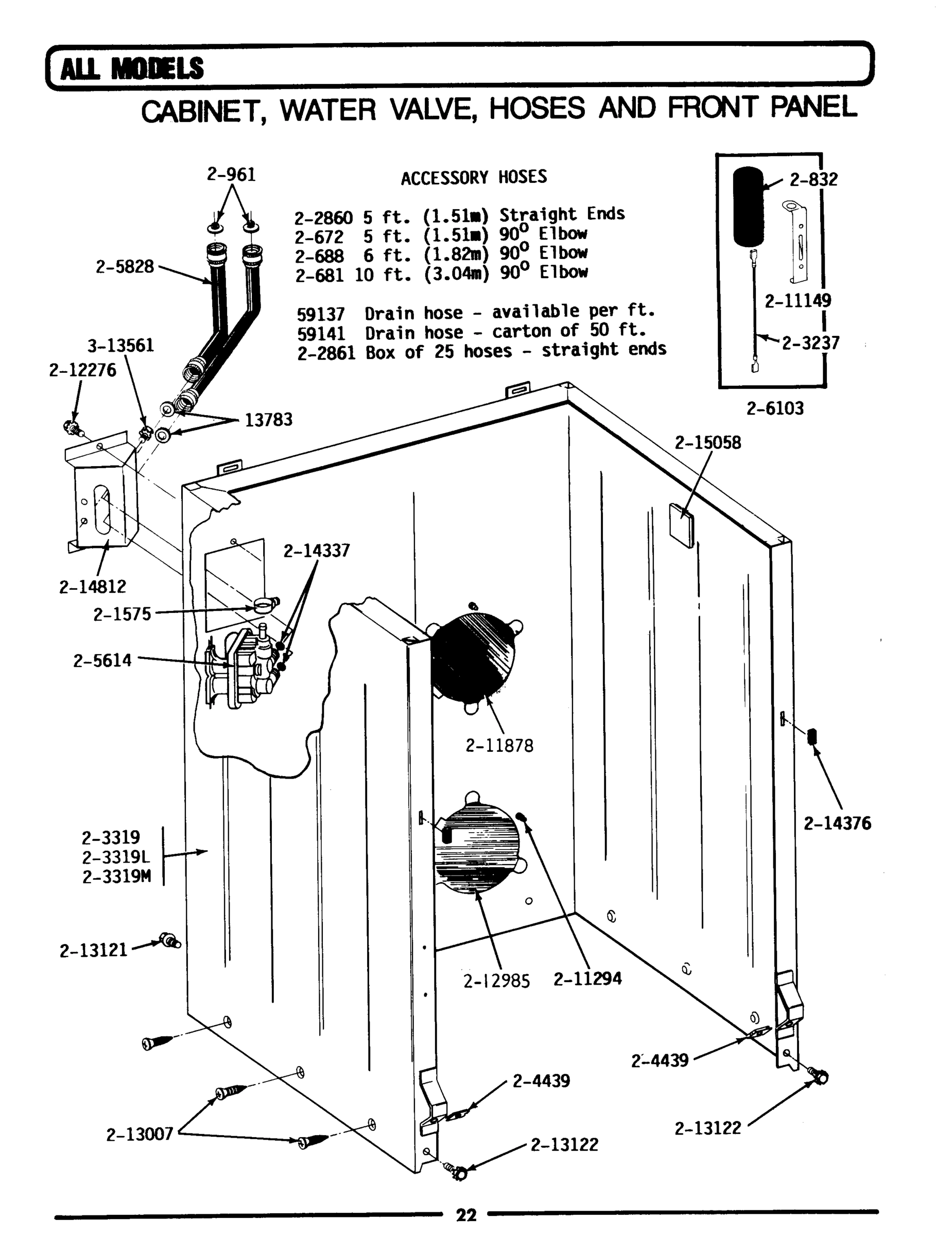

03 - CABINET, WATER VALVE, HOSES & FRNT PANEL

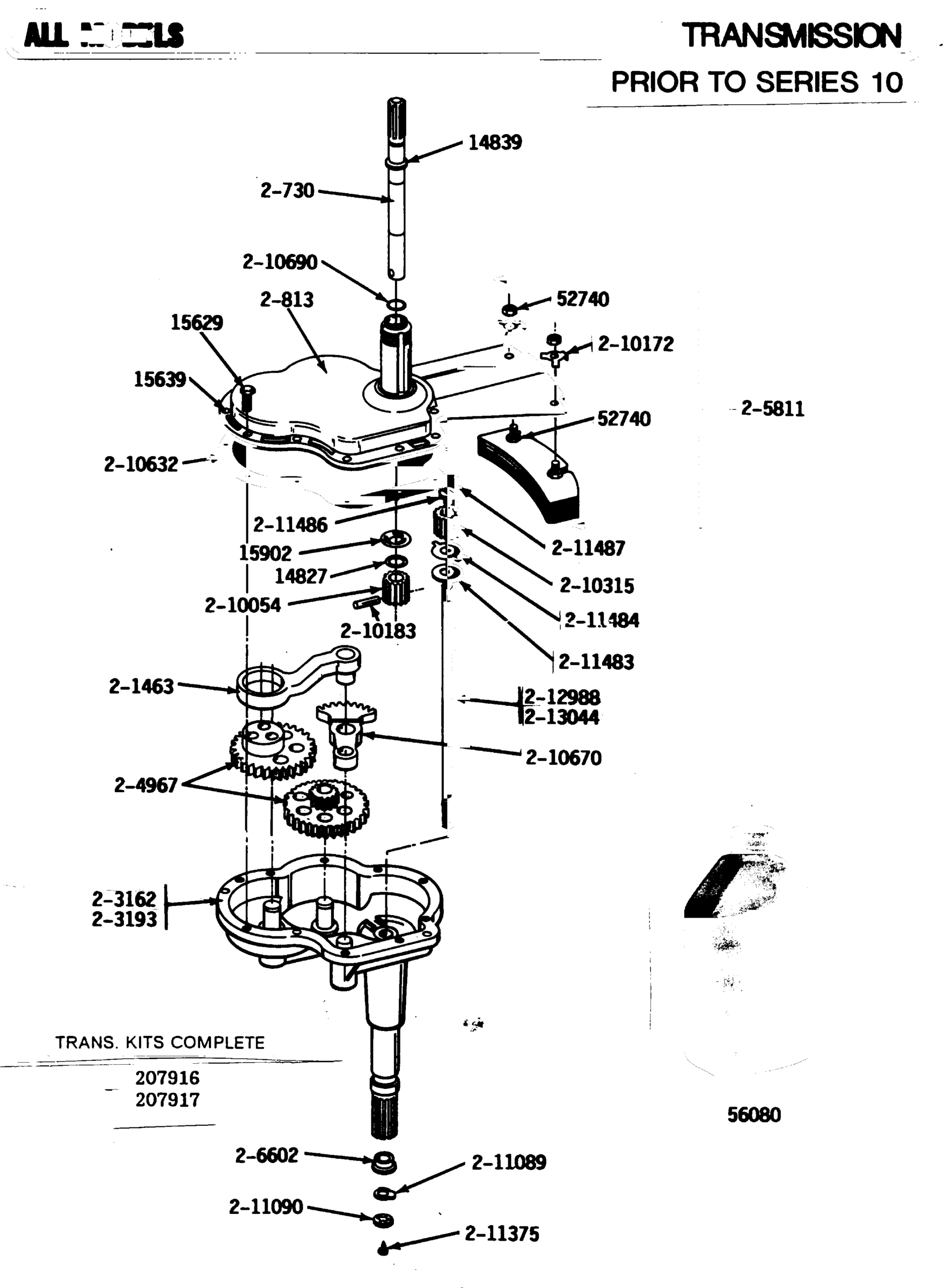

05 - TRANSMISSION (SERIES 00)

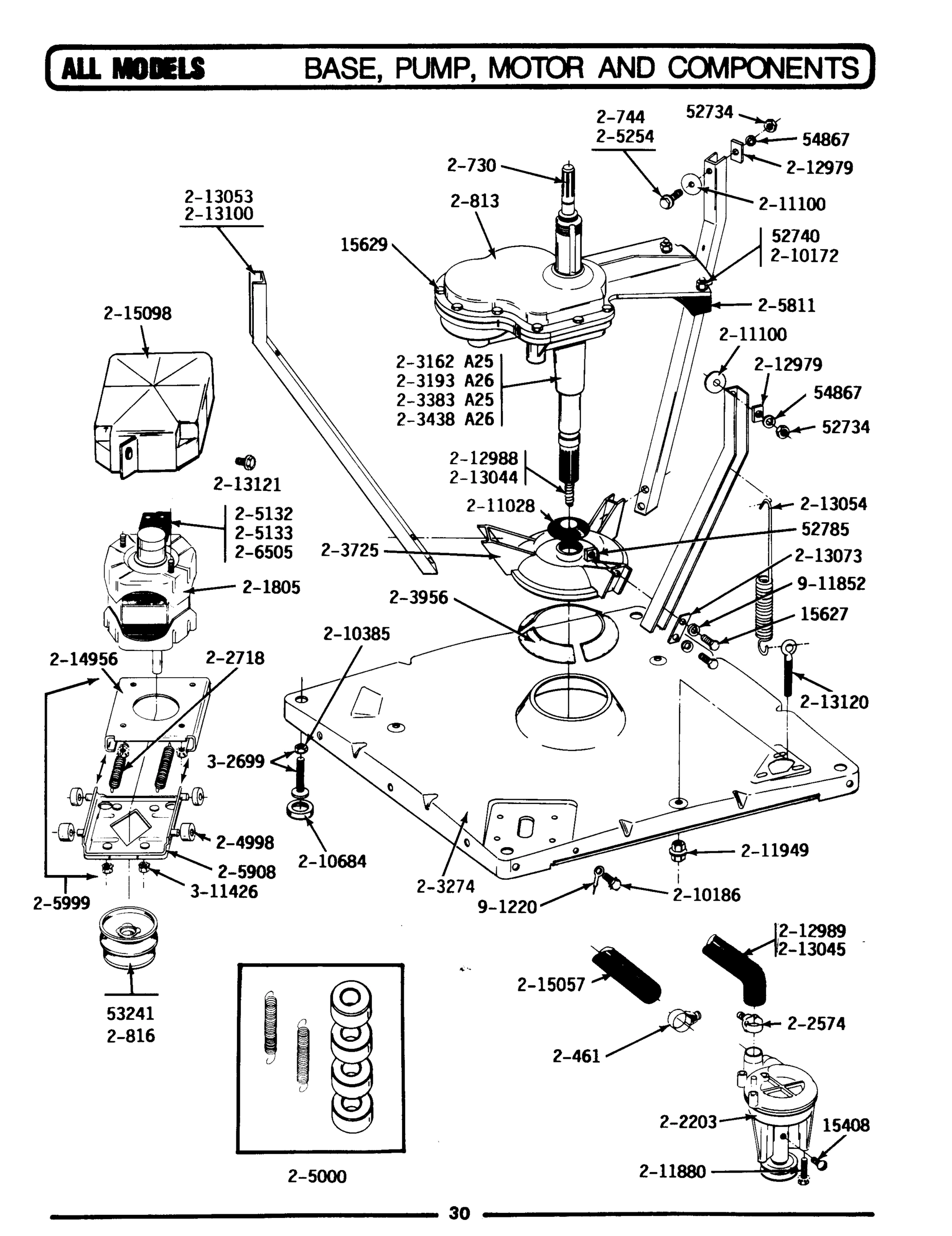

07 - BASE, PUMP, MOTOR & COMPONENTS

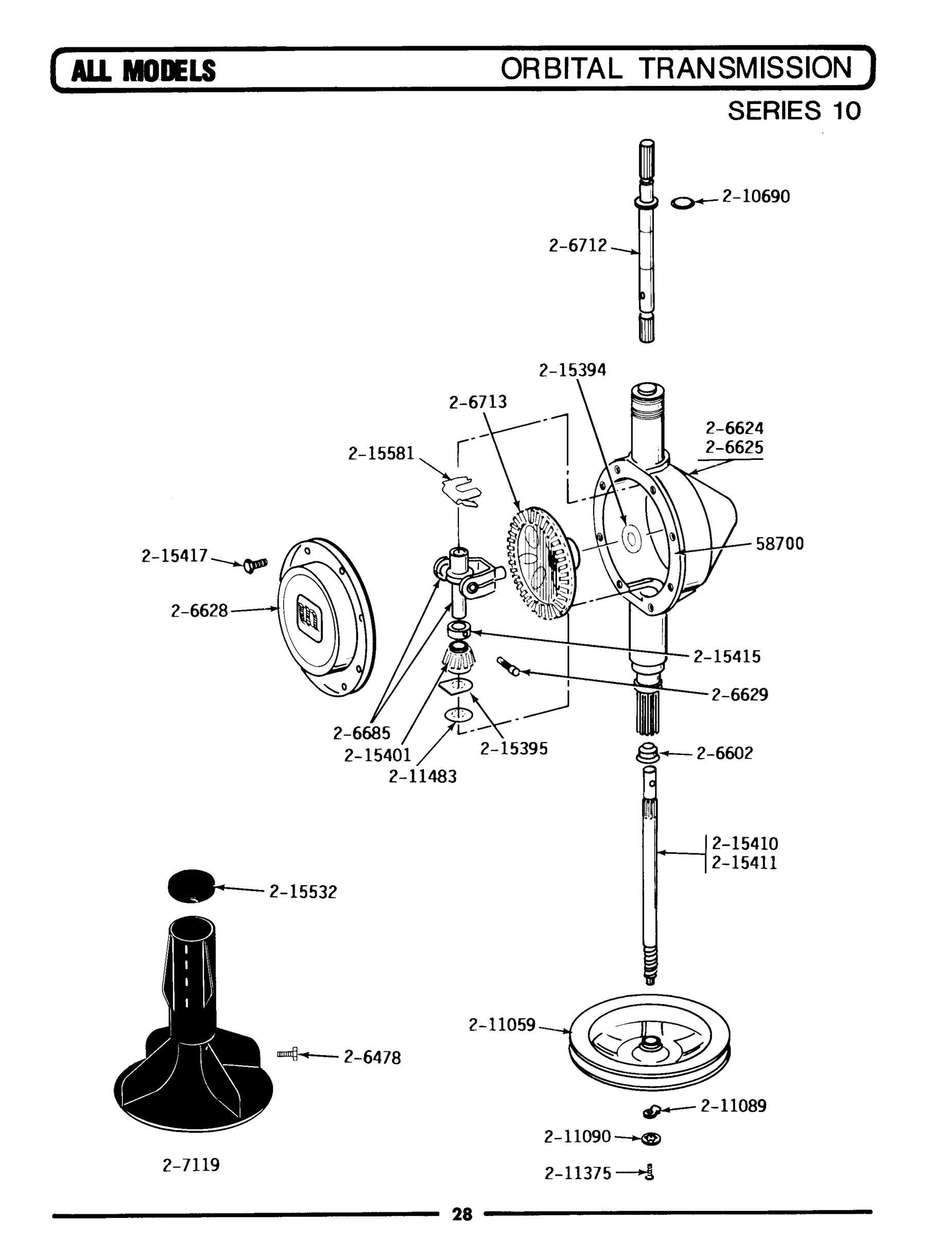

06 - ORBITAL TRANSMISSION (SERIES 10)
Common parts from model Whirlpool A25CAE WASHER
001
GREEN WIRE WPL 200803 Contact Us For Availability
001
CONVERTER WPL Y201808 Contact Us For Availability
001
WASHER, INLET HOSE WPL Y013783 Contact Us For Availability
001
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
002
WASHER, RETAINING (CNTR SEAL) WPL Y015666 Contact Us For Availability
002
CAPACITOR WPL 201101 Contact Us For Availability
002
PART NOT USED WPL 203961 Contact Us For Availability
002
SCREW & WASHER, AGITATOR WPL 206478 Contact Us For Availability
002
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
002
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
003
SWITCH WPL 203970 Contact Us For Availability
003
RETAINING RING WPL Y015667 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
003
BOLT, GRINDING CHAMBER (DRAIN) WPL Y015629 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL Y202496 Contact Us For Availability
004
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
004
NUT, BRACE (TUB) WPL Y052734 Contact Us For Availability
004
HOUSING, TRANSMISSION WPL 206624 Contact Us For Availability
005
POWER CORD WPL 204590 Contact Us For Availability
005
SPRING, AGITATOR WPL Y015902 Contact Us For Availability
005
NUT, BRACE (DAMPER) WPL Y052785 Contact Us For Availability
005
HOUSING, TRANSMISSION WPL 206625 Contact Us For Availability
006
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
006
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
006
INDICATIOR (5 LIGHT 230V) WPL 206882 Contact Us For Availability
006
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
006
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
006
COVER, TRANSMISSION WPL 206628 Contact Us For Availability
007
WIRE HARNESS WPL 206891 Contact Us For Availability
007
SWITCH, TEMP. WPL 205353 Contact Us For Availability
007
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
007
WASHER, LOCK WPL Y054867 Contact Us For Availability
008
AGITATOR - BLACK WPL 201379 Contact Us For Availability
008
CAPACITOR WPL Y200832 Contact Us For Availability
008
BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability
009
TIMER MOTOR 120-60 WPL 205448 Contact Us For Availability
009
AGITATOR SHAFT WPL 200730 Contact Us For Availability
009
ASSEMBLY, AGITATOR SHAFT WPL 206712 Contact Us For Availability
010
SEAL & SPRING WPL 201537 Contact Us For Availability
010
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
010
GEAR, BEVEL WPL 206713 Contact Us For Availability
011
SPRING, BRAKE WPL 211041 Contact Us For Availability
011
AGITATOR W/LOCK SCREW WPL 207119 Contact Us For Availability
012
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
012
INDICATOR, 5 LIGHT 115V WPL 206881 Contact Us For Availability
012
SEAL, RUBBER WPL 210690 Contact Us For Availability
012
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
013
DRUM, BRAKE WPL 211043 Contact Us For Availability
013
LABEL, ELECTRICAL INSTR. WPL 214519 Contact Us For Availability
013
MOUNTING STEM WPL 202521 Contact Us For Availability
013
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
014
HOUSING, BRAKE WPL 211045 Contact Us For Availability
014
PART NOT USED WPL 203228 Contact Us For Availability
014
PUMP AS PAK WPL 202203 Contact Us For Availability
015
CONTROL KNOB WPL 206892 Contact Us For Availability
015
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
015
No.17 WIRE W/TERMINAL WPL 203237 Contact Us For Availability
016
SKIRT, TIMER DIAL WPL 206893 Contact Us For Availability
016
PINION WPL 210054 Contact Us For Availability
017
KNOB W/BUMP WPL 206894 Contact Us For Availability
017
PART NOT USED WPL 204060 Contact Us For Availability
017
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
018
CONTROL PANEL W/LENS WPL 206928 Contact Us For Availability
018
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
018
WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability
019
BLOCK, FUSE WPL 207167 Contact Us For Availability
019
PART NOT USED WPL 205484 Contact Us For Availability
019
PINION WPL 210315 Contact Us For Availability
019
BASE W/DAMPER PADS WPL 203274 Contact Us For Availability
020
FUSE WPL 207168 Contact Us For Availability
020
TUB, OUTER WPL 205486 Contact Us For Availability
020
CAPACITOR KIT WPL 206103 Contact Us For Availability
020
GASKET WPL 210632 Contact Us For Availability
020
TRANS & CENTER ASSY. (REG) WPL 203383 Contact Us For Availability
021
NUT & BOLT KIT, TUB CLAM WPL 205529 Contact Us For Availability
021
WASHER, BRACKET WPL 211500 Contact Us For Availability
021
PART NOT USED WPL 203438 Contact Us For Availability
021
CENTER SHAFT - LARGER WPL 215410 Contact Us For Availability
022
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
022
SHAFT, CENTER WPL NLA Contact Us For Availability
022
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
022
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
022
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
023
TUB COVER WPL 206380 Contact Us For Availability
023
COLLAR, LOWER WPL 215415 Contact Us For Availability
024
GROMMET, CORD WPL 211881 Contact Us For Availability
024
CLAMP WPL 211448 Contact Us For Availability
024
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
024
SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability
025
AGITATOR CAP - BLACK WPL 215532 Contact Us For Availability
026
SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-166 WPL 205132 Contact Us For Availability
027
LUG WASHER WPL 211484 Contact Us For Availability
027
2-1664-8 AND 2-5463 WPL 205133 Contact Us For Availability
028
LINER, TUB BEARING WPL 211130 Contact Us For Availability
028
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
028
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
029
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
029
WASHER, CLAMPING NUT (STNLSS) WPL 211210 Contact Us For Availability
029
FRONT PANEL (WHT) WPL 212998 Contact Us For Availability
030
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
030
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
031
MOTOR MOUNT ASSY. (COMP) WPL 205999 Contact Us For Availability
032
2-1664-11 AND 2-5463-1 WPL 206505 Contact Us For Availability
033
PIN, UNBALANCE LEVER WPL 214805 Contact Us For Availability
033
GUARD, BELT WPL 213846 Contact Us For Availability
034
LEVER, LID SWITCH WPL 214813 Contact Us For Availability
035
BRACKET, LID SWITCH PLUNGE WPL 214279 Contact Us For Availability
035
COVER, LID SWITCH WPL 214898 Contact Us For Availability
035
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
036
LID (WHT) WPL 214901 Contact Us For Availability
036
DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability
037
MOISTURE BARRIER, SWITCH WPL 214987 Contact Us For Availability
037
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
037
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
038
FASTENER WPL 215003 Contact Us For Availability
038
WASHER, CUSHION WPL 211100 Contact Us For Availability
039
UNBALANCE LEVER WPL 215236 Contact Us For Availability
039
AGITATOR CAP WPL 214705 Contact Us For Availability
039
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
040
LID BUMPER WPL 215561 Contact Us For Availability
040
CAP, SPOUT (OUTER TUB) WPL 214725 Contact Us For Availability
040
SCREW WPL Y310842 Contact Us For Availability
041
SCREW----NA WPL Y313561 Contact Us For Availability
041
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
042
BACKUP PLATE (WHT) WPL 215571 Contact Us For Availability
042
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
042
CENTER SHAFT WPL 212988 Contact Us For Availability
043
UNBALANCE LEVER WPL 215704 Contact Us For Availability
044
SCREW WPL Y311711 Contact Us For Availability
044
PART NOT USED WPL 213044 Contact Us For Availability
045
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
045
INJECTOR TUBE WPL 215235 Contact Us For Availability
046
PART NOT USED WPL 213053 Contact Us For Availability
047
SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability
047
CENTE WPL 213054 Contact Us For Availability
048
FASTENER WPL 410635 Contact Us For Availability
048
WPL 213073 WPL 213073 Contact Us For Availability
049
WPL 213100 WPL 213100 Contact Us For Availability
050
SCREW WPL 912012 Contact Us For Availability
050
SCREW, PUMP COVER WPL 911267 Contact Us For Availability
052
WPL 214956 WPL 214956 Contact Us For Availability
053
WPL 215057 WPL 215057 Contact Us For Availability
054
WPL 215098 WPL 215098 Contact Us For Availability
057
WPL 901220 WPL 901220 Contact Us For Availability
058
WPL 911852 WPL 911852 Contact Us For Availability
× ![]()
