Model Whirlpool A21CT WASHER – Common Parts & Diagrams
01 - FRONT VIEW
02 - REAR VIEW

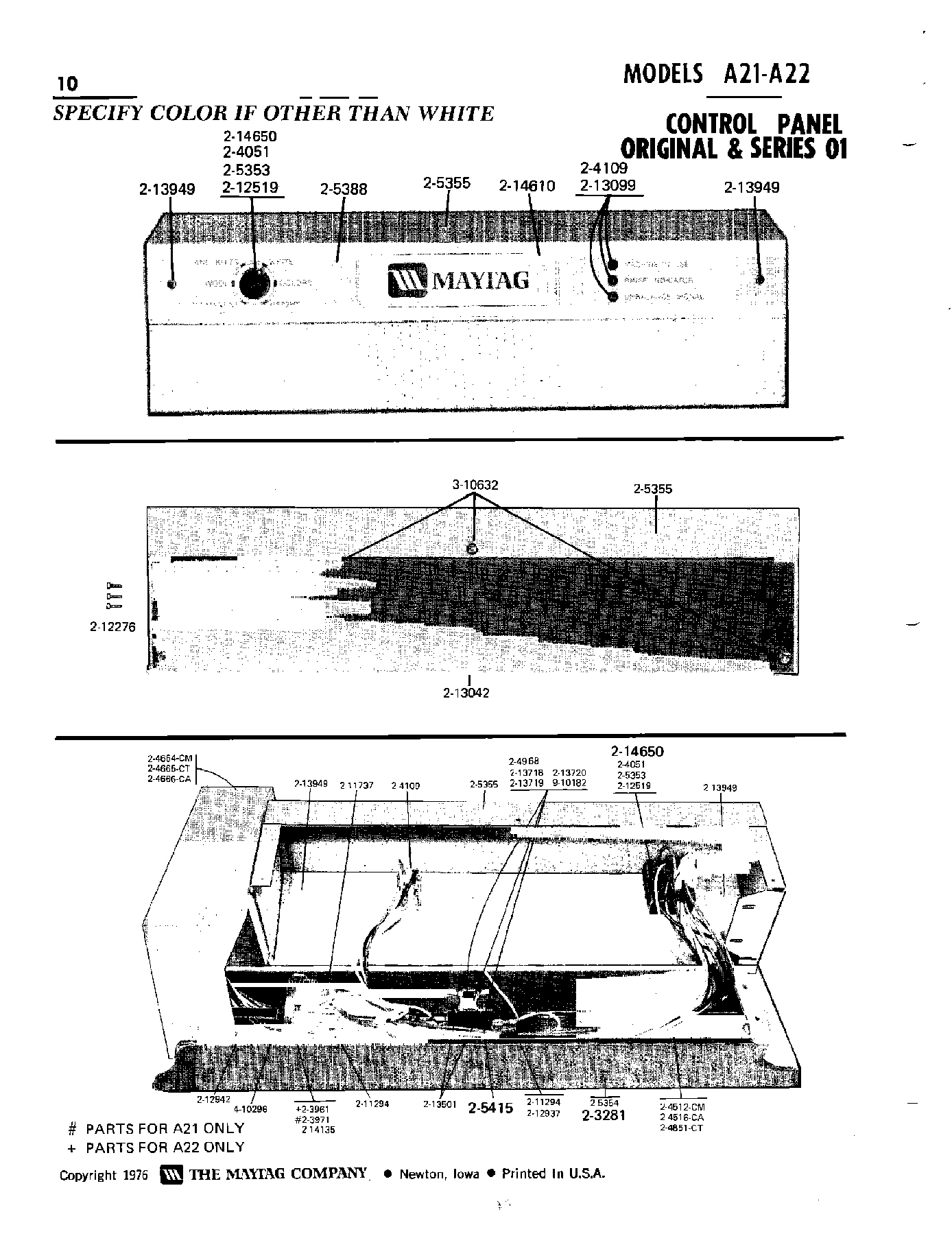

05 - CONTROL PANEL

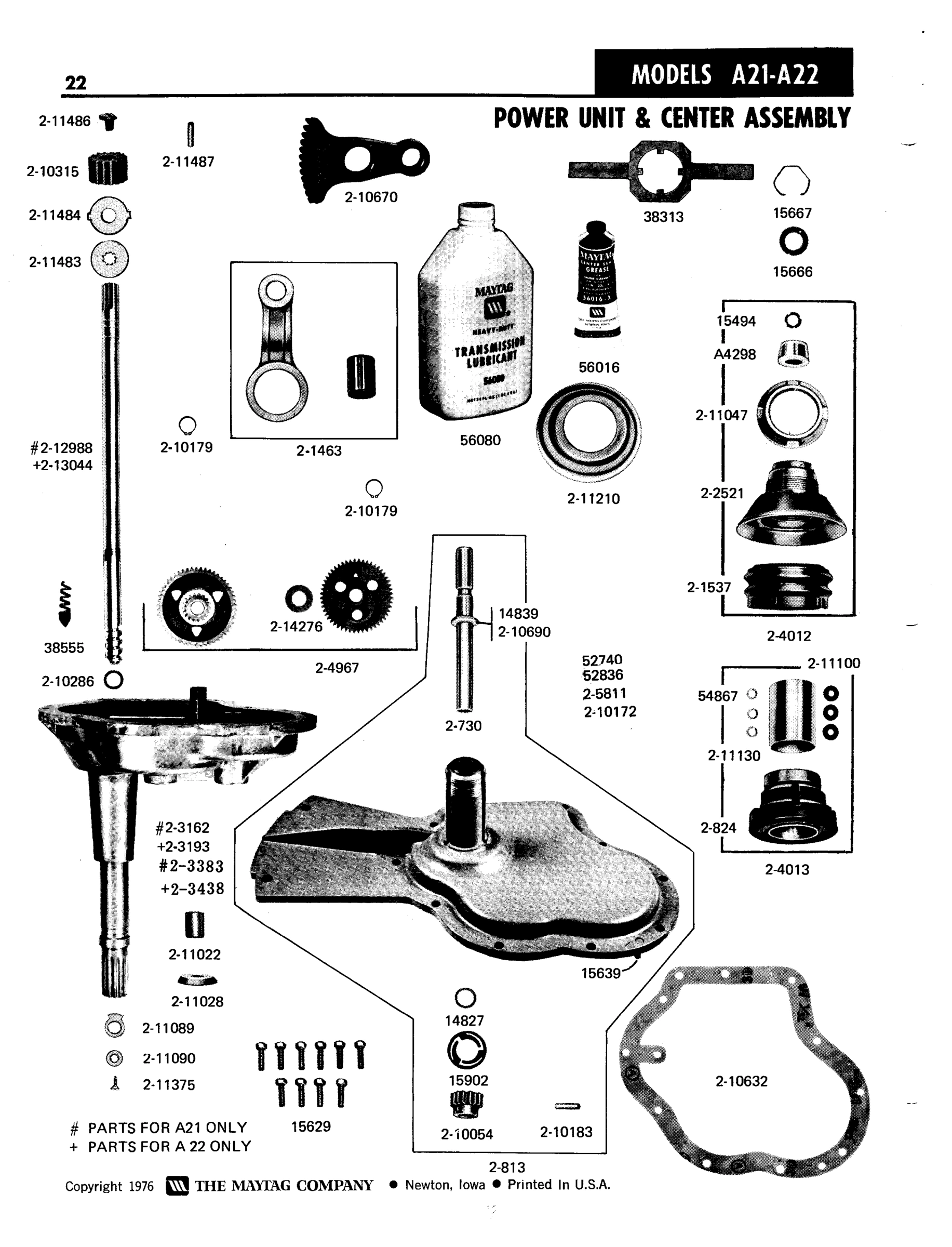

09 - POWER UNIT & CENTER ASSEMBLY

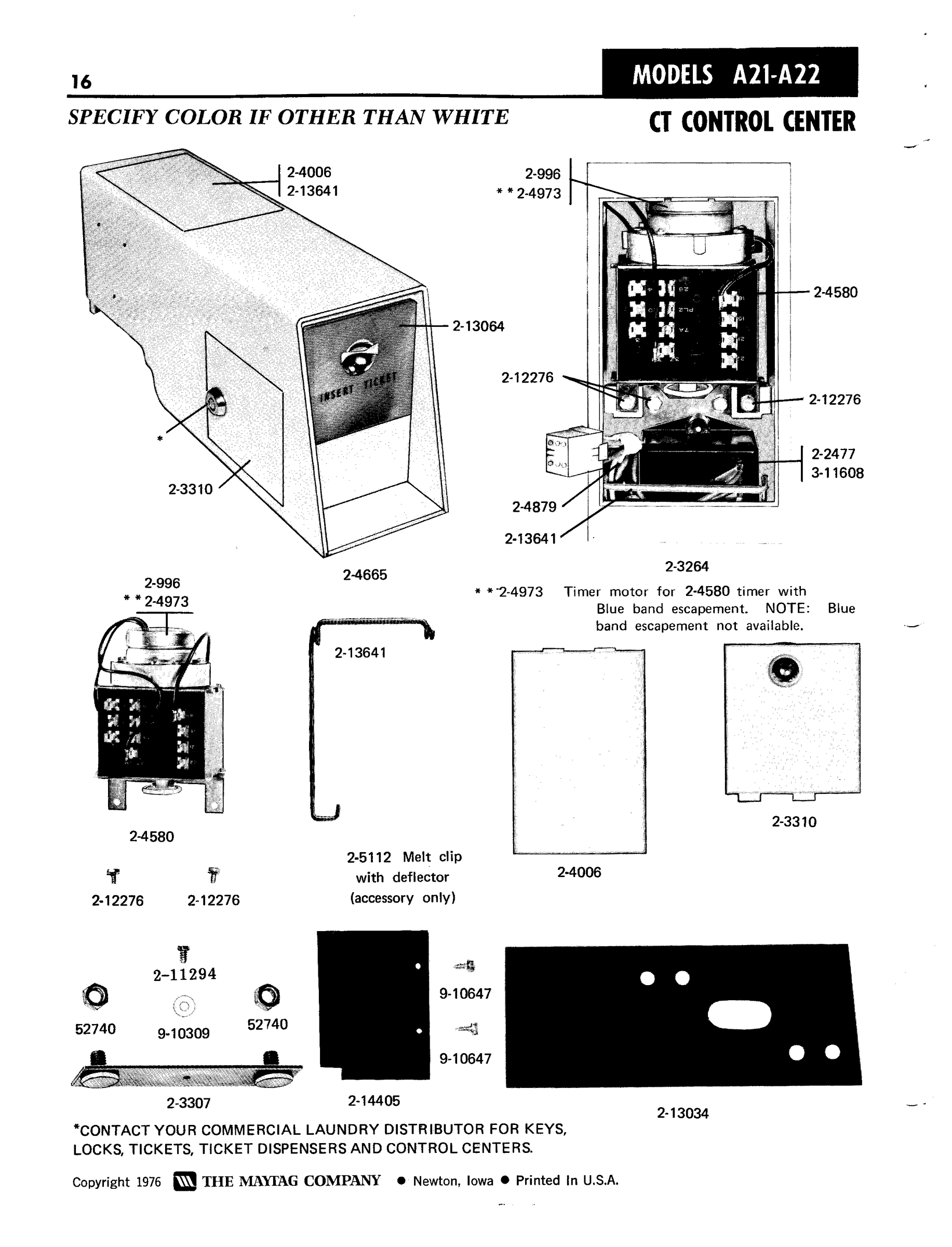

06 - CT CONTROL CENTER

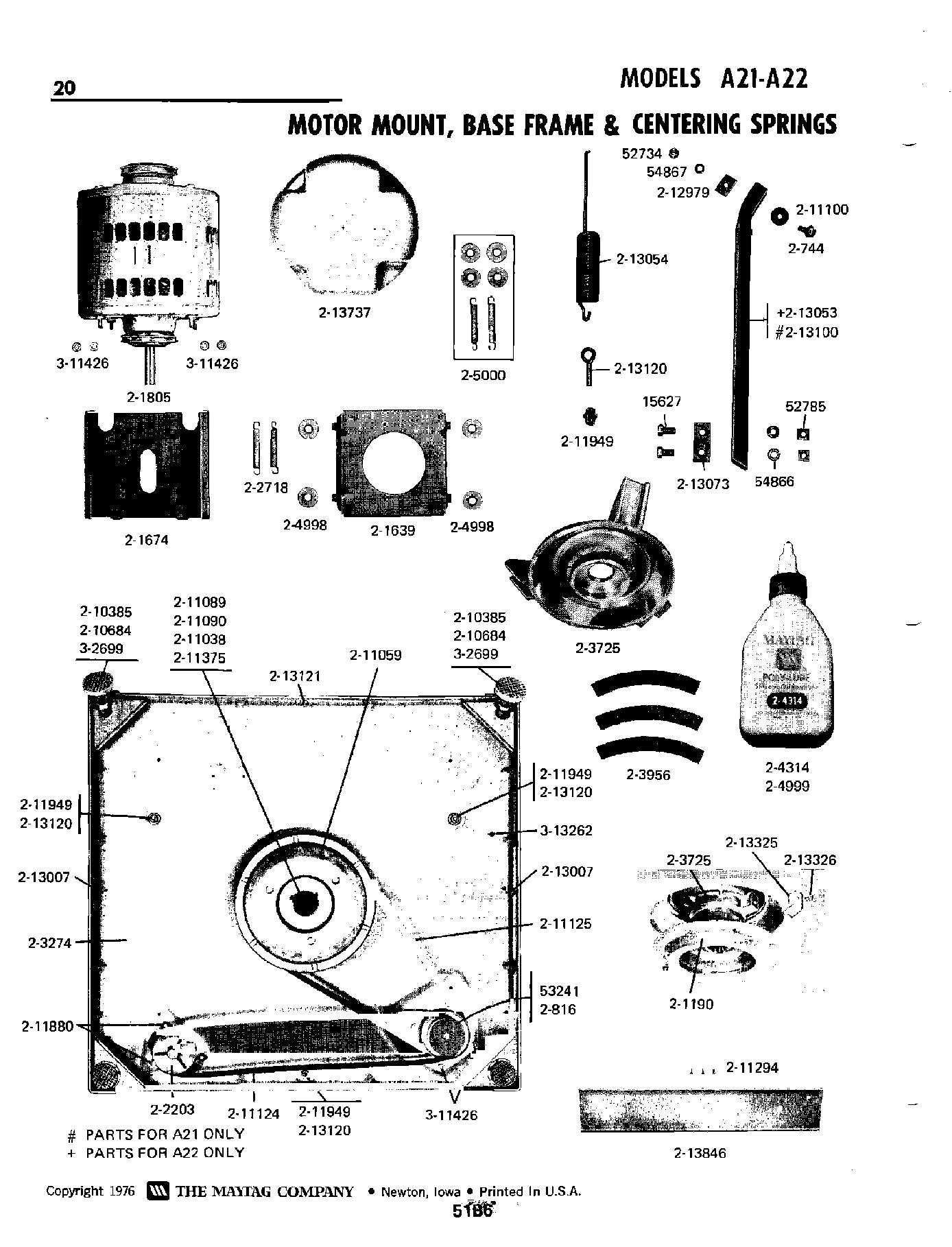

08 - MOTOR MOUNT, BASE FRAME & CENTERING SPRS
10 - `POLY` PUMP

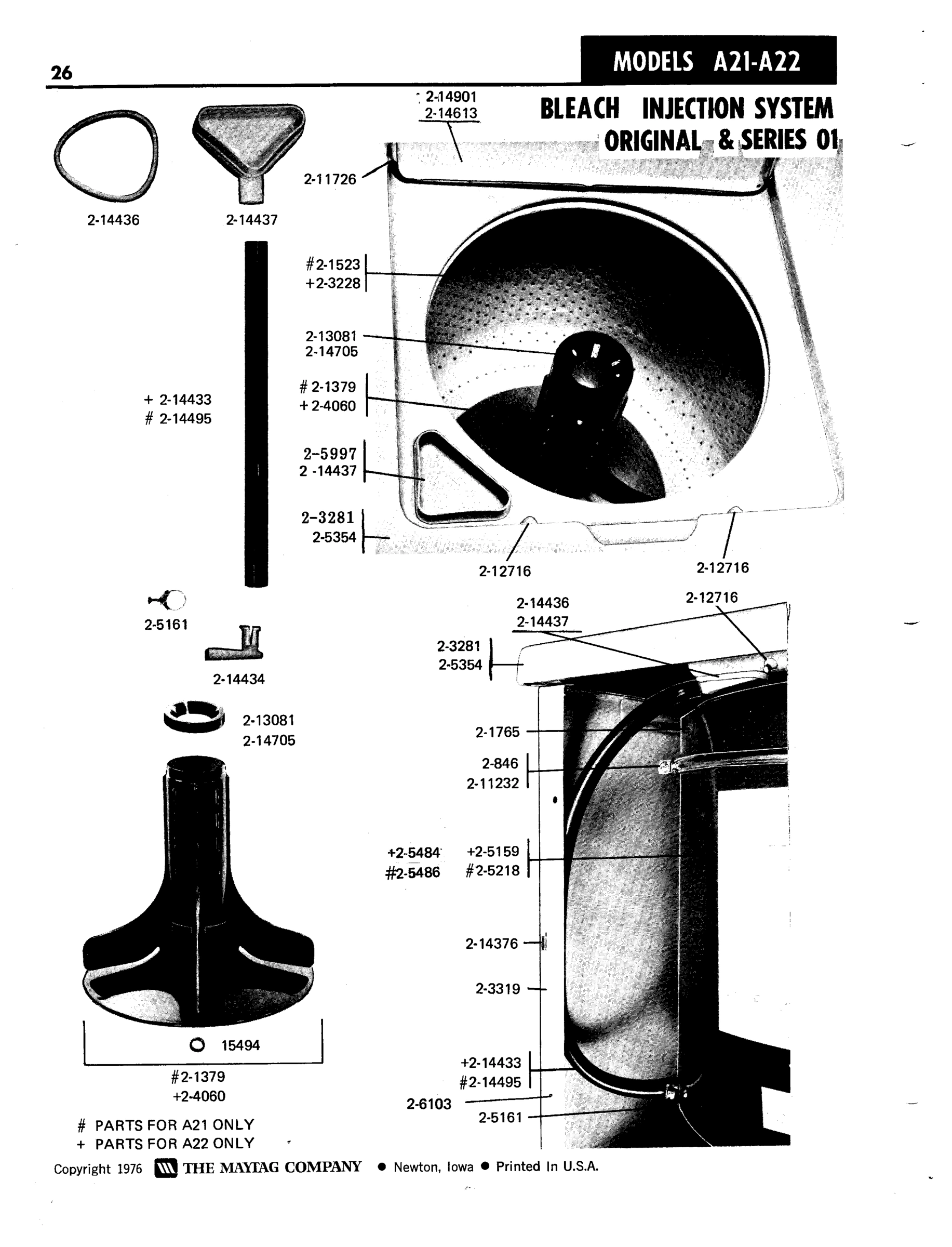

12 - BLEACH INJECTION SYSTEM

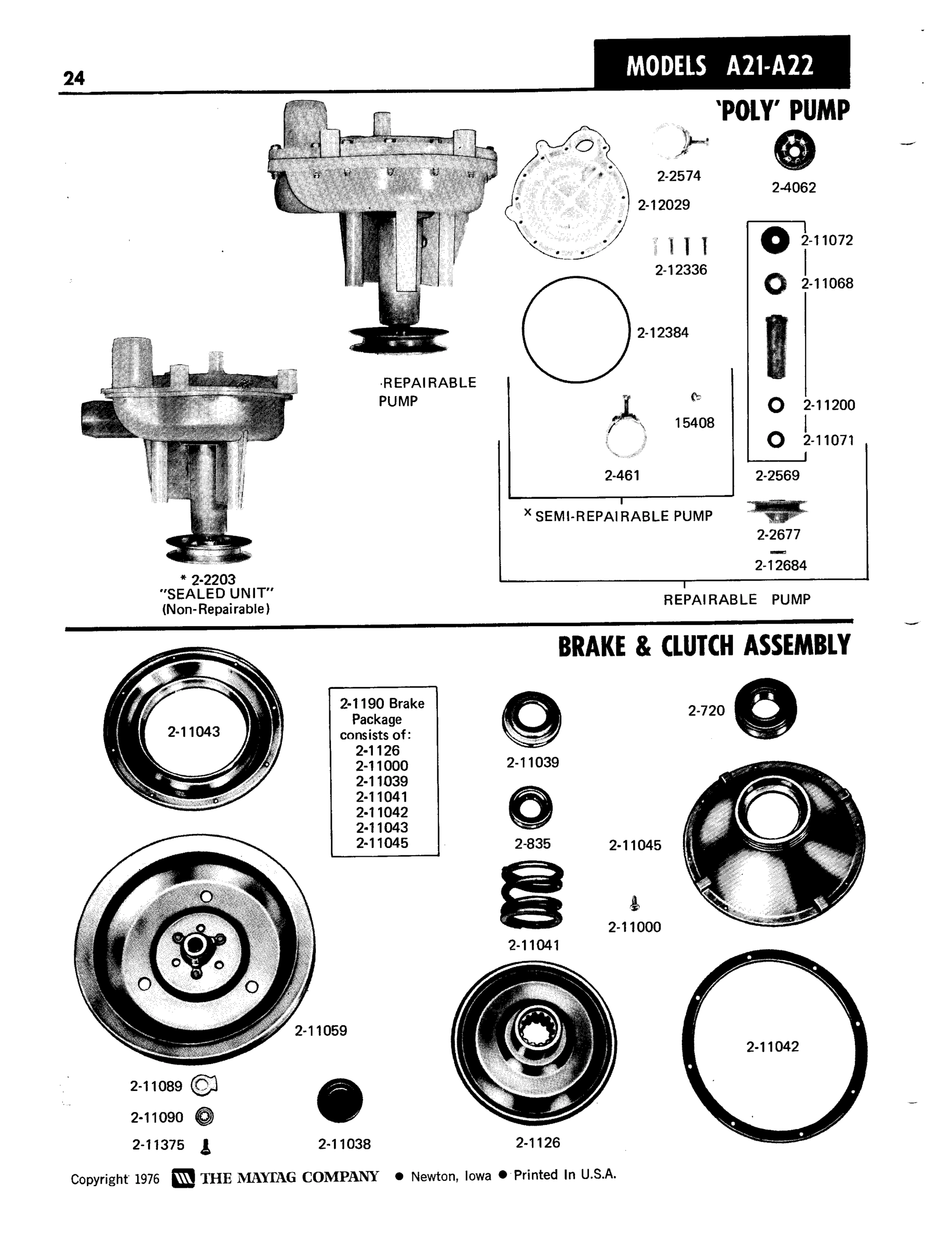

11 - BRAKE & CLUTCH ASSEMBLY

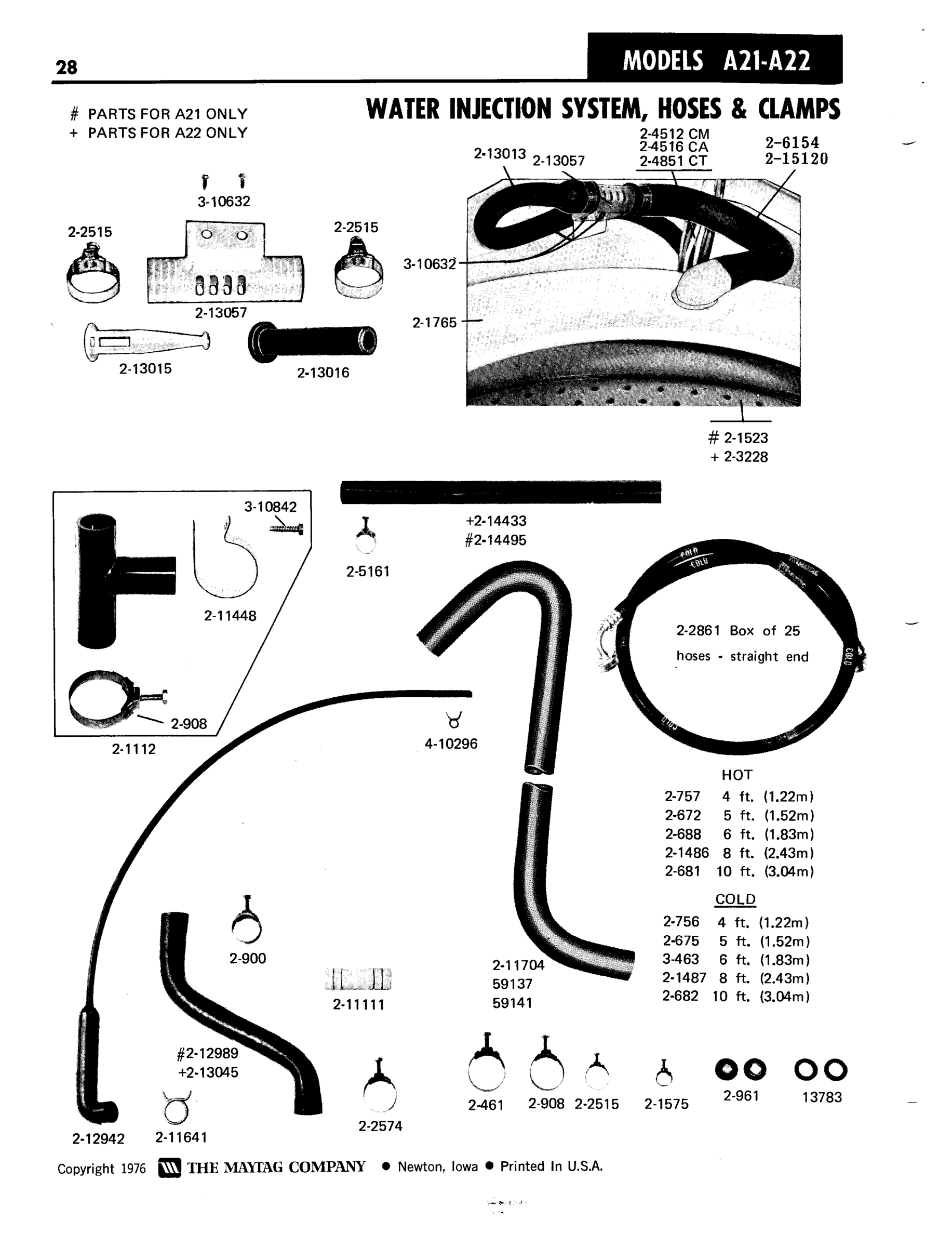

13 - WATER INJECTION SYSTEM, HOSES & CLAMPS

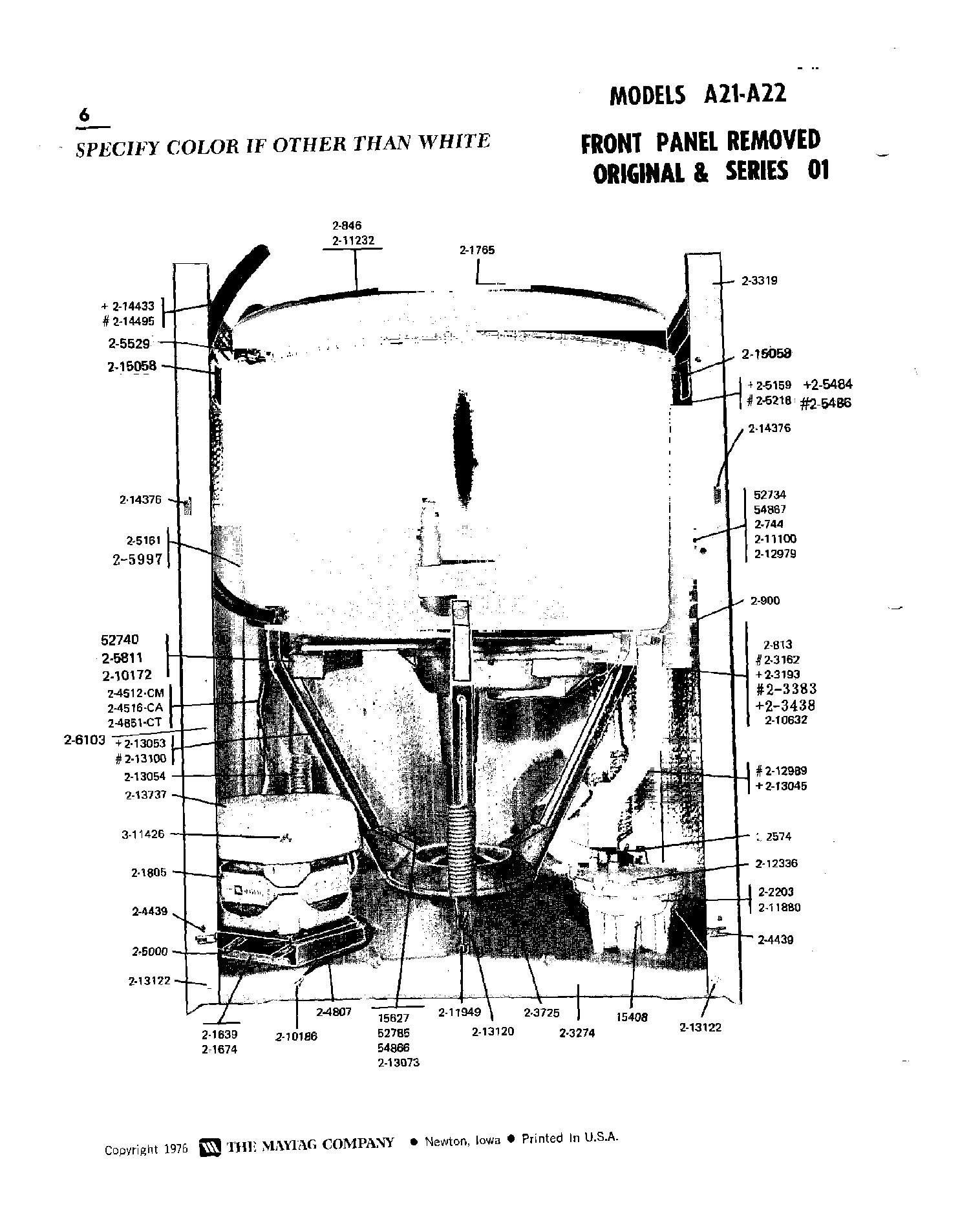

03 - FRONT PANEL REMOVED

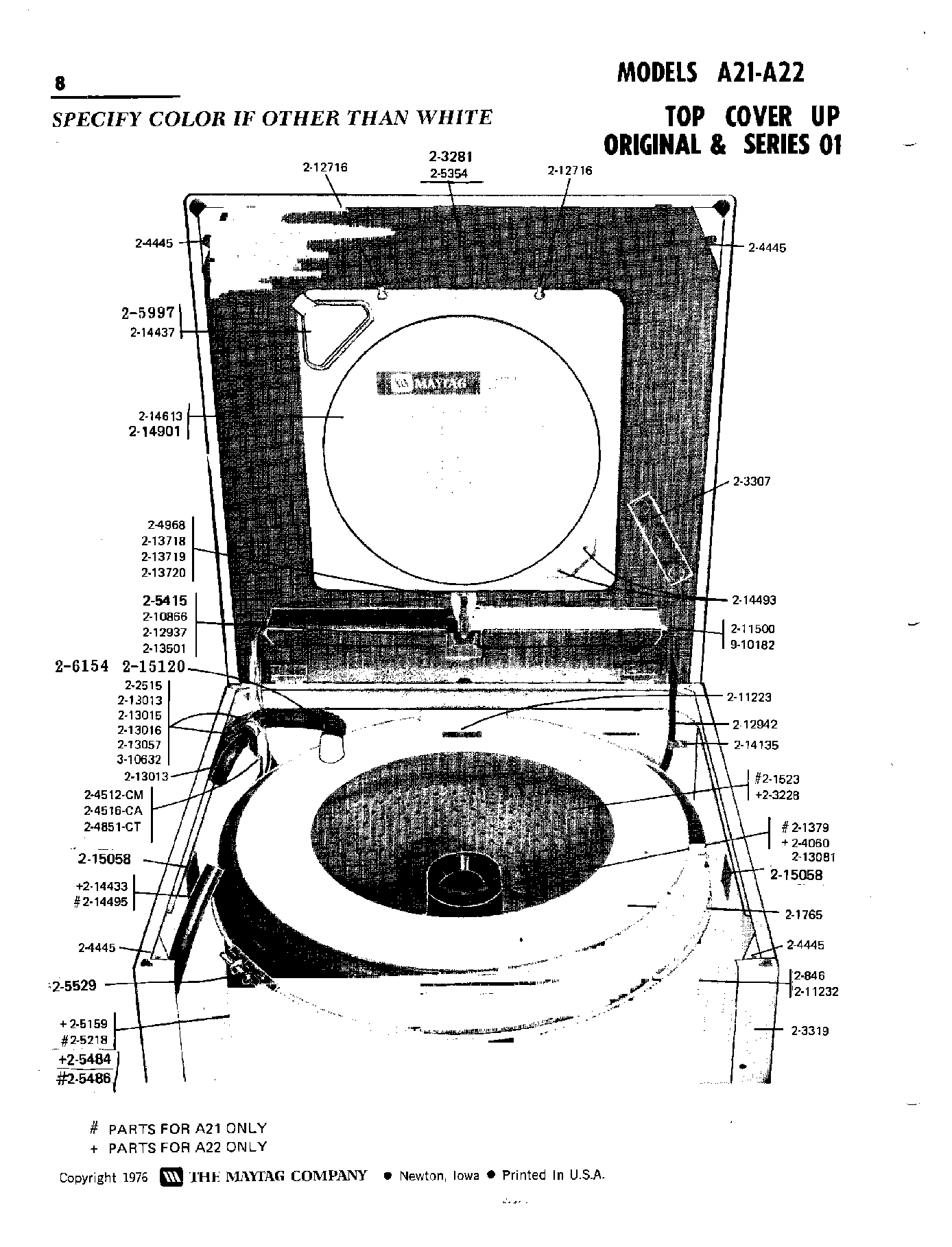

04 - TOP COVER UP

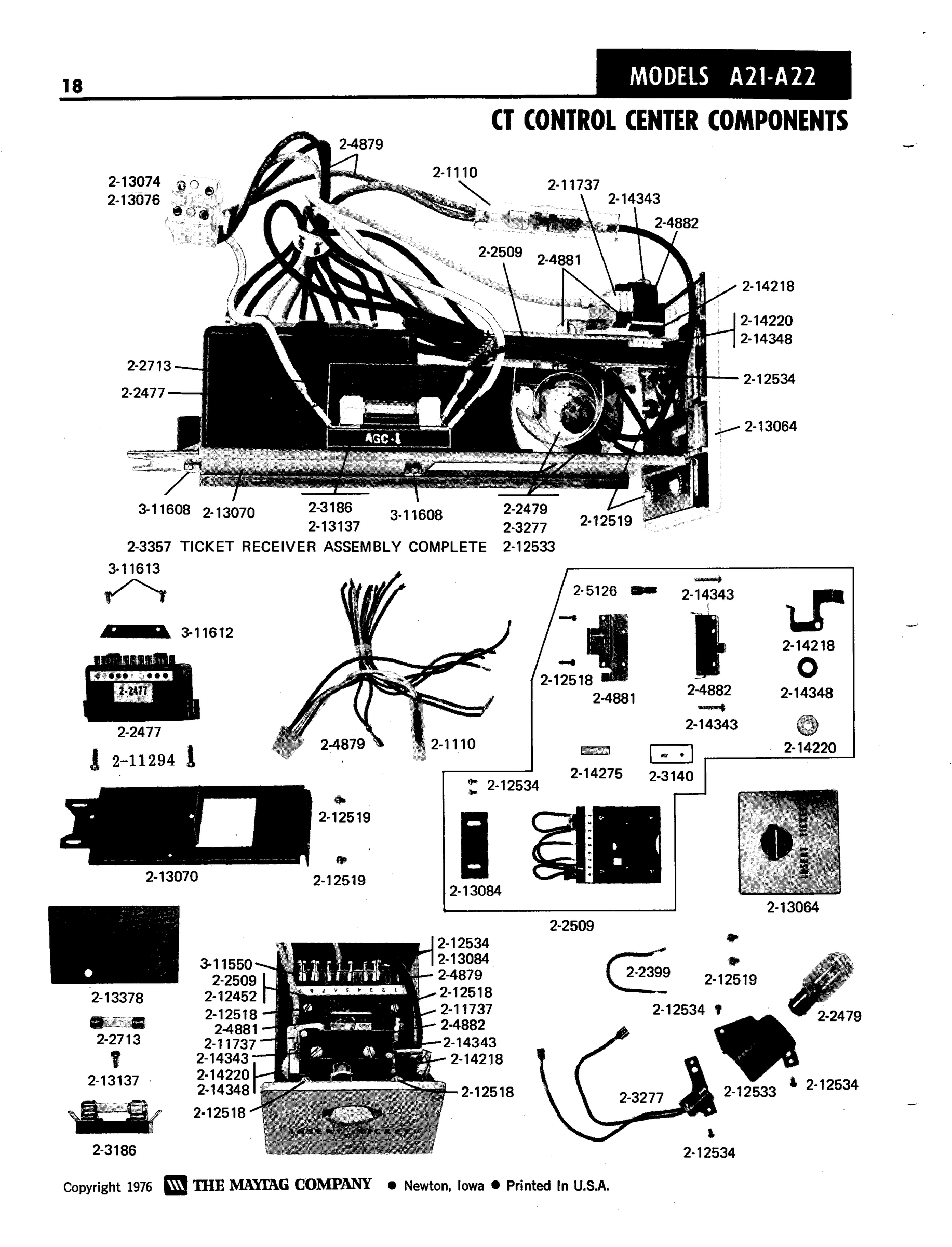

07 - CT CONTROL CENTER COMPONENTS
14 - 230 VOLT, 50 CYCLE PARTS
Common parts from model Whirlpool A21CT WASHER
001
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
001
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
001
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
001
WASHER, INLET HOSE WPL Y013783 Contact Us For Availability
002
AGITATOR (BLK) WPL 201379 Contact Us For Availability
002
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
002
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
002
CONNECTOR, WIRE WPL Y201110 Contact Us For Availability
002
CAPACITOR WPL 201101 Contact Us For Availability
003
SWITCH, PRESSURE PART NOT USED WPL 203961 Contact Us For Availability
003
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
003
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
003
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOSE WPL Y059141 Contact Us For Availability
004
SWITCH, PRESSURE WPL 203971 Contact Us For Availability
004
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
004
NUT, BRACE (TUB) WPL Y052734 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
004
COVER, TUB WPL 201765 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL Y202496 Contact Us For Availability
005
KNOB WPL 204051 Contact Us For Availability
005
BRASS WASHER-AGITATOR SEAL WPL Y015149 Contact Us For Availability
005
CONTROL, ELECTRONIC WPL 202477 Contact Us For Availability
005
NUT, BRACE (DAMPER) WPL Y052785 Contact Us For Availability
006
LIGHT, SIGNAL (3 BULB) WPL 204109 Contact Us For Availability
006
SEAL, IMPELLER WPL 204062 Contact Us For Availability
006
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
006
LAMP, TICKET CONTROL WPL 202479 Contact Us For Availability
007
BOLT, GRINDING CHAMBER WPL Y015629 Contact Us For Availability
007
LOCK WASHER WPL Y054866 Contact Us For Availability
007
WICKING-TOP WPL 211068 Contact Us For Availability
007
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
007
HOSE, INLET (HOT 10 FT.) WPL 200681 Contact Us For Availability
007
CONTROL, TICKET WPL 202509 Contact Us For Availability
007
INDICATOR (3-LIGHT) WPL 204110 Contact Us For Availability
008
WASHER, LOCK WPL Y054867 Contact Us For Availability
008
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
008
SPRING, BRAKE WPL 211041 Contact Us For Availability
008
TUB, INNER PART NOT USED WPL 203228 Contact Us For Availability
008
TIMER 240-50 WPL 204579 Contact Us For Availability
009
WASHER, RETAINING WPL Y015666 Contact Us For Availability
009
OIL & WATER SLINGER-TOP WPL 211072 Contact Us For Availability
009
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
009
CONTACT BALL KIT WPL 203140 Contact Us For Availability
010
RETAINING RING WPL Y015667 Contact Us For Availability
010
DRUM, BRAKE WPL 211043 Contact Us For Availability
010
HOSE, INLET (COLD 4 FT.) WPL 200756 Contact Us For Availability
011
SPRING, AGITATOR WPL Y015902 Contact Us For Availability
011
HOUSING, BRAKE WPL 211045 Contact Us For Availability
011
WASHER WPL 211200 Contact Us For Availability
011
HOSE, INLET (HOT 4 FT.) WPL 200757 Contact Us For Availability
011
AGITATOR (BLK) PART NOT USED WPL 204060 Contact Us For Availability
012
WRENCH, SPANNER WPL 038313 Contact Us For Availability
012
MOTOR, TIMER WPL 204973 Contact Us For Availability
012
SCREW & FASTENER ASSEMBLY WPL 204445 Contact Us For Availability
013
TOOL-INSTALL CENTER SHAFT WPL Y038555 Contact Us For Availability
013
MOTOR MOUNT (UPR) WPL 201639 Contact Us For Availability
013
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
014
GROMMET, CORD WPL 211881 Contact Us For Availability
014
SWITCH, TEMPERATURE WPL 205353 Contact Us For Availability
014
MOTOR MOUNT (LWR) WPL 201674 Contact Us For Availability
014
GASKET, POLY PUMP WPL 212384 Contact Us For Availability
014
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
016
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
016
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
016
HOSE, INLET (HOT 8 FT.) WPL 201486 Contact Us For Availability
016
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
016
LID (WHT) WPL 212073 Contact Us For Availability
017
SET SCREW, MOTOR PULLEY WPL NLA Contact Us For Availability
017
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
017
AGITATOR SHAFT WPL 200730 Contact Us For Availability
017
PUMP AS PAK WPL 202203 Contact Us For Availability
017
TUB, OUTER PART NOT USED WPL 205159 Contact Us For Availability
017
SWITCH, TICKET CONTROL WPL 204882 Contact Us For Availability
018
POLY LUBE - 4 OZ WPL 204314 Contact Us For Availability
018
OUTER TUB ASSEMBLY WPL 205218 Contact Us For Availability
019
CORD, POWER WPL 204590 Contact Us For Availability
019
SPOUT, DEFLECTOR WPL 214434 Contact Us For Availability
019
BUMPER WPL Y202734 Contact Us For Availability
020
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
020
WASHER WPL 910309 Contact Us For Availability
020
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
020
GASKET WPL 214436 Contact Us For Availability
020
NUT, TWIN SPEED WPL 210866 Contact Us For Availability
021
SEAL & SPRING WPL 201537 Contact Us For Availability
021
PART NOT USED WPL 203193 Contact Us For Availability
021
BUMPER, UNBALANCE WPL 211223 Contact Us For Availability
021
BOARD, CIRCUIT WPL 212452 Contact Us For Availability
022
SCREW----NA WPL Y313561 Contact Us For Availability
022
MOUNTING STEM WPL 202521 Contact Us For Availability
022
BASE W/DAMPER PADS WPL 203274 Contact Us For Availability
023
WASHER, BRACKET WPL 211500 Contact Us For Availability
024
PANEL, BACK WPL 213042 Contact Us For Availability
024
TRANSMISSION & CENTER ASSY. PART NOT USED WPL 203438 Contact Us For Availability
024
SHIELD, HEAT LAMP WPL 212533 Contact Us For Availability
025
LENS, CONTROL PANEL WPL 213099 Contact Us For Availability
025
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
025
CAP, CAPACITOR WPL 214705 Contact Us For Availability
026
BARRIER, MOISTURE WPL 212937 Contact Us For Availability
026
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
026
TRANSMISSION & CENTER ASSY. WPL 203383 Contact Us For Availability
027
PLUNGER, LID SWITCH WPL 213718 Contact Us For Availability
027
SCREW & FASTNER ASSEMBLY WPL 204439 Contact Us For Availability
028
POWER UNIT (W/FAST GEARS) WPL 204437 Contact Us For Availability
029
POWER FIN AGITATOR GEAR KIT WPL 204967 Contact Us For Availability
029
CLAMP WPL 211448 Contact Us For Availability
030
PINION WPL 210054 Contact Us For Availability
031
HOSE, DRAIN WPL 211704 Contact Us For Availability
031
TUBE, INJECTOR WPL 213055 Contact Us For Availability
031
LEVER, SWITCH WPL 214218 Contact Us For Availability
032
BUMPER, LID WPL 214610 Contact Us For Availability
032
GROOVE PIN (1/4 X 1-1/4``) WPL 210183 Contact Us For Availability
032
CAPACITOR KIT WPL 206103 Contact Us For Availability
032
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
033
SEAL WPL 210286 Contact Us For Availability
033
CAP, DISPENSER (BLK) WPL 213081 Contact Us For Availability
033
ROLLER, CAM WPL 214275 Contact Us For Availability
034
SCREW (No.6-20 X 1-1/8``) WPL 213501 Contact Us For Availability
034
PINION WPL 210315 Contact Us For Availability
035
WIRE, CRATE WPL Y312718 Contact Us For Availability
036
SCREW, KNOB WPL 214650 Contact Us For Availability
036
LEVER, UNBALANCE WPL 213719 Contact Us For Availability
036
GROUND WIRE, SUPPORT PLATE WPL 204807 Contact Us For Availability
036
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
037
SEAL, RUBBER WPL 210690 Contact Us For Availability
038
CLIP, FASTENER WPL 214135 Contact Us For Availability
038
COVER, CIRCUIT BOARD WPL 311612 Contact Us For Availability
039
DEFLECTOR, WATER WPL 211028 Contact Us For Availability
039
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
040
INLET, BLEACH WPL 214437 Contact Us For Availability
040
PIN RECEPTACLE, PLUG WPL 213074 Contact Us For Availability
041
RIVET (PLASTIC) WPL 214493 Contact Us For Availability
041
SCREW WPL Y310842 Contact Us For Availability
042
TUBE, INLET (TUB) WPL 214495 Contact Us For Availability
044
SCREW WPL Y310632 Contact Us For Availability
044
LINER, TUB BEARING WPL 211130 Contact Us For Availability
044
GASKET WPL 210632 Contact Us For Availability
045
WASHER, CLAMPING NUT (STNLS) WPL 211210 Contact Us For Availability
046
WASHER, CUSHION WPL 211100 Contact Us For Availability
047
BOLT, RETAINING CLIP WPL 213326 Contact Us For Availability
047
TUB, OUTER PART NOT USED WPL 205484 Contact Us For Availability
048
WASHER, LUG WPL 211484 Contact Us For Availability
048
TUB, OUTER WPL 205486 Contact Us For Availability
049
TUB CLAMP NUT & BOLT KIT WPL 205529 Contact Us For Availability
049
SCREW (3/8-16 X 1/2``) WPL 211486 Contact Us For Availability
049
GUARD, BELT WPL 213846 Contact Us For Availability
050
LID (WHT) WPL 214901 Contact Us For Availability
051
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
051
NON-BLEACH CONVERSION KIT WPL 205997 Contact Us For Availability
052
INJECTOR TUBE W/SEAL WPL 206154 Contact Us For Availability
052
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
053
SHAFT, CENTER WPL 212988 Contact Us For Availability
054
WPL 213053 WPL 213053 Contact Us For Availability
055
WPL 213054 WPL 213054 Contact Us For Availability
056
WPL 213073 WPL 213073 Contact Us For Availability
057
WPL 213100 WPL 213100 Contact Us For Availability
060
WPL 213737 WPL 213737 Contact Us For Availability
061
WPL 214376 WPL 214376 Contact Us For Availability
× ![]()
