Model Maytag A21CA WASHER – Common Parts & Diagrams
01 - FRONT VIEW

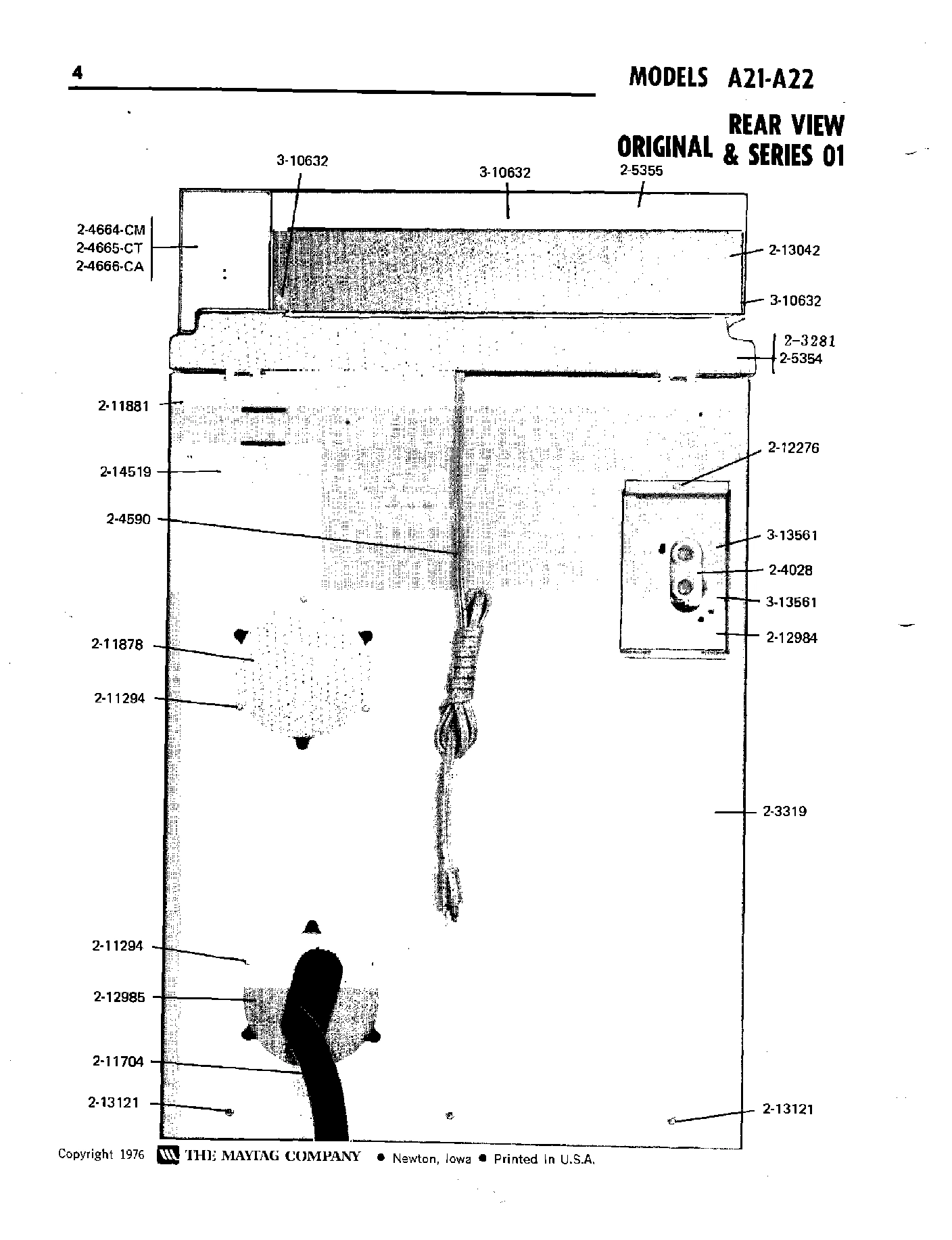

02 - REAR VIEW

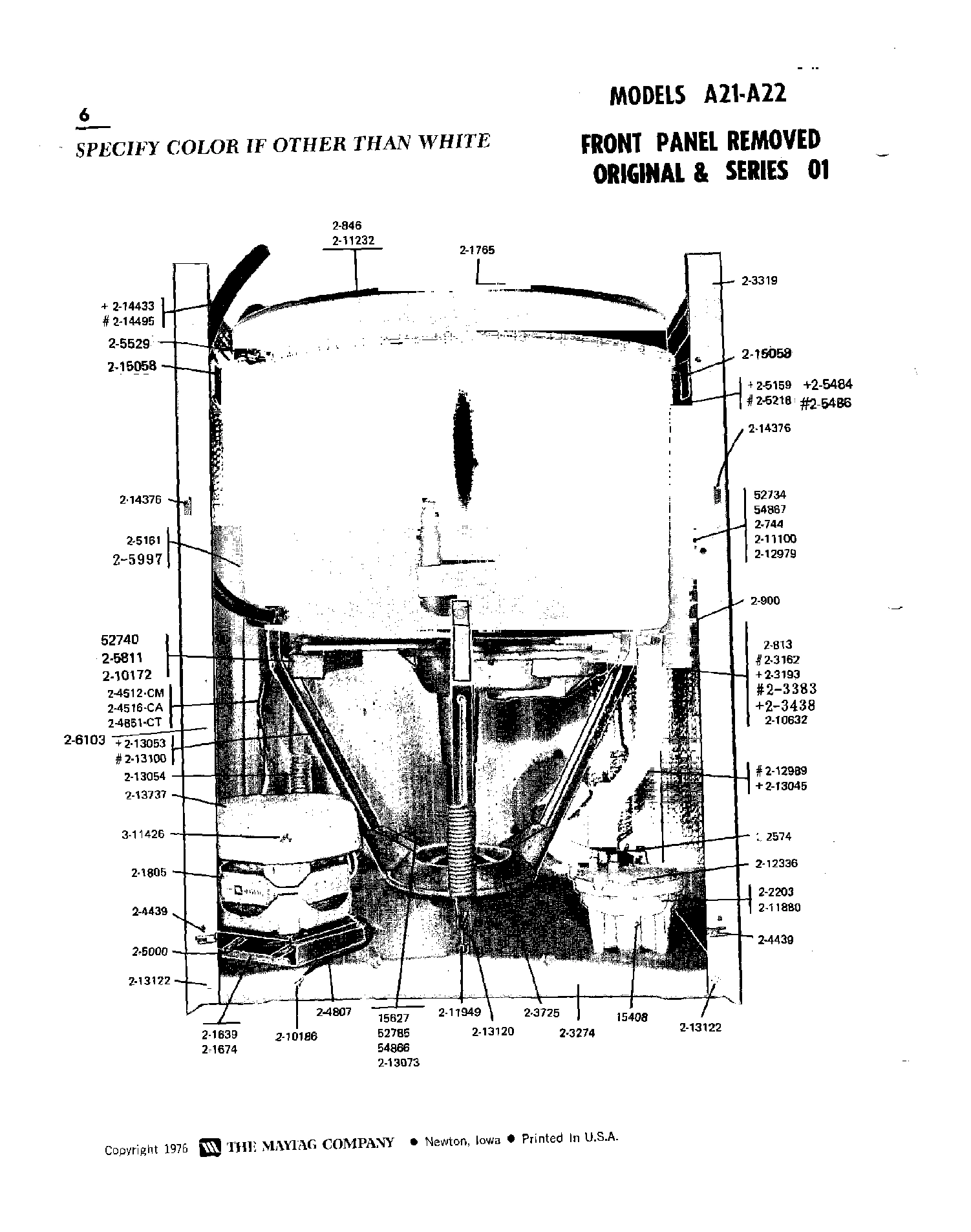

03 - FRONT PANEL REMOVED

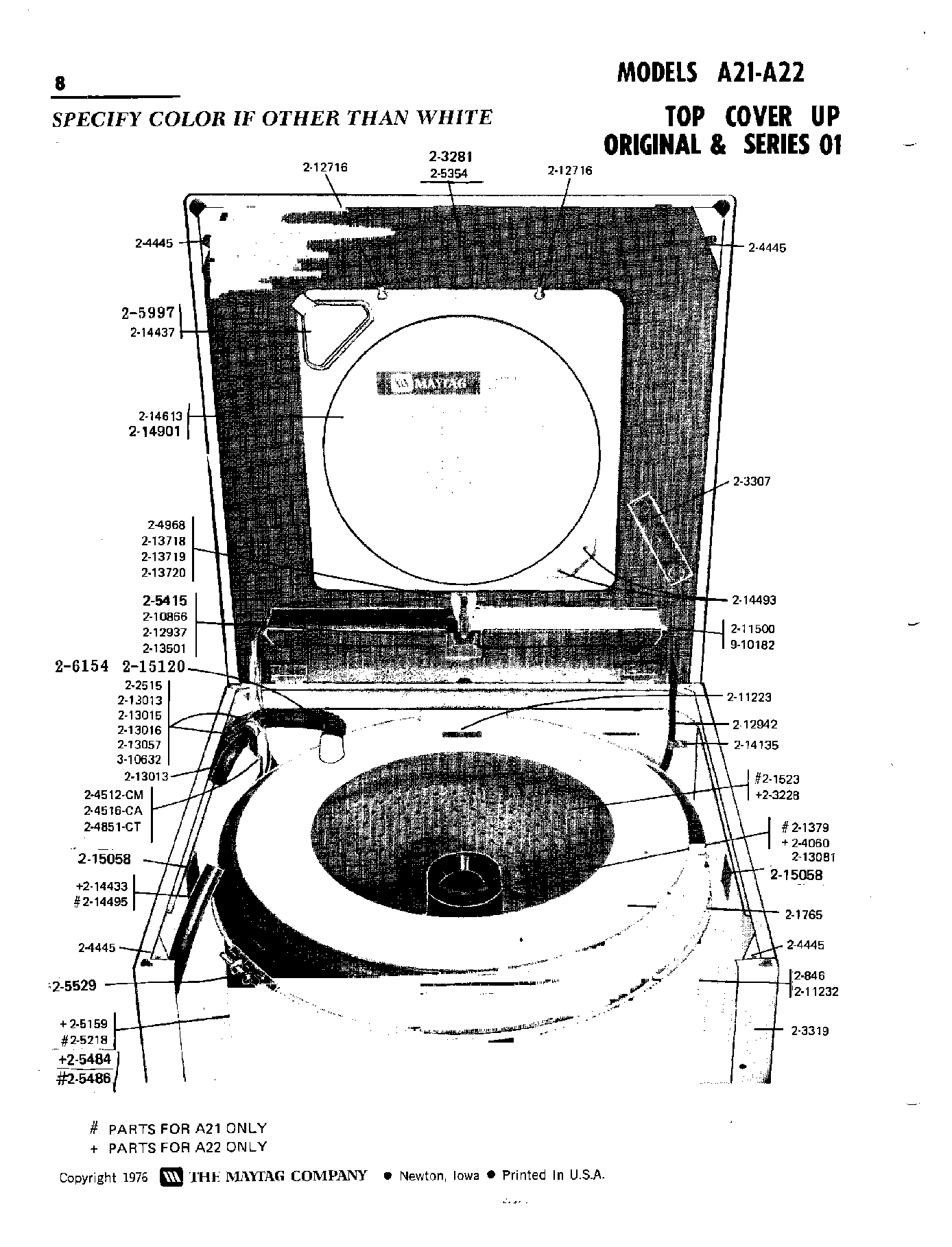

04 - TOP COVER UP

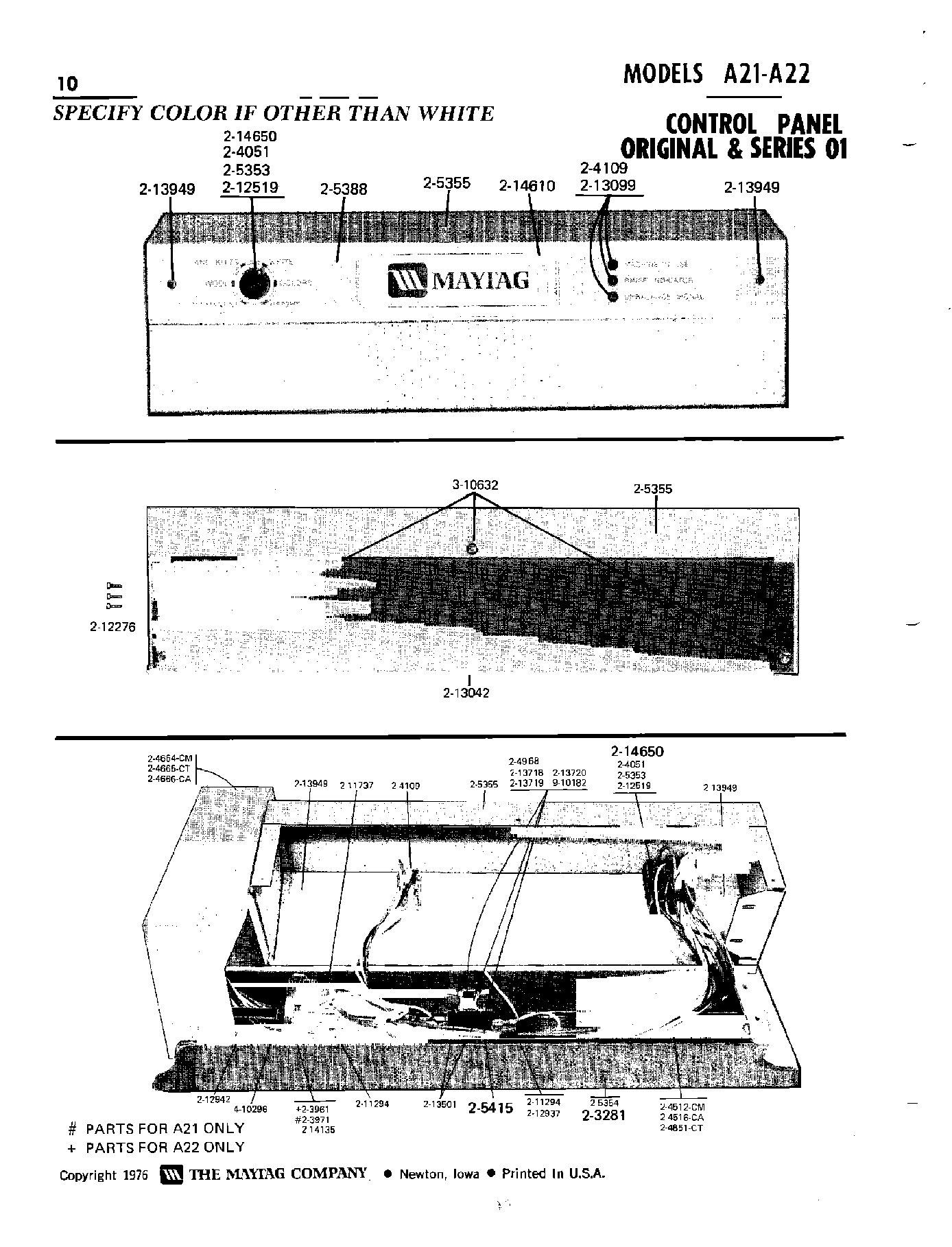

05 - CONTROL PANEL

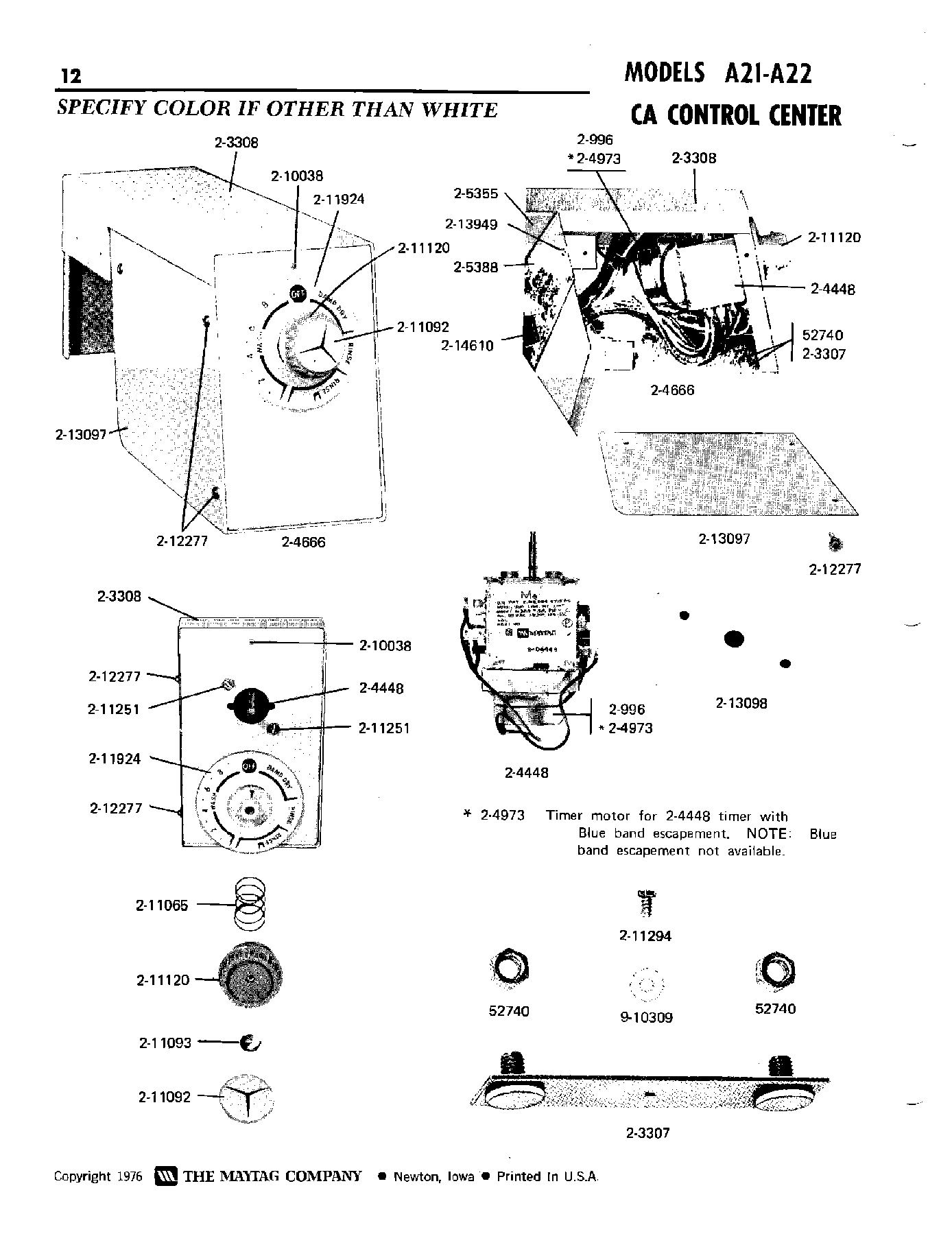

06 - CA CONTROL CENTER

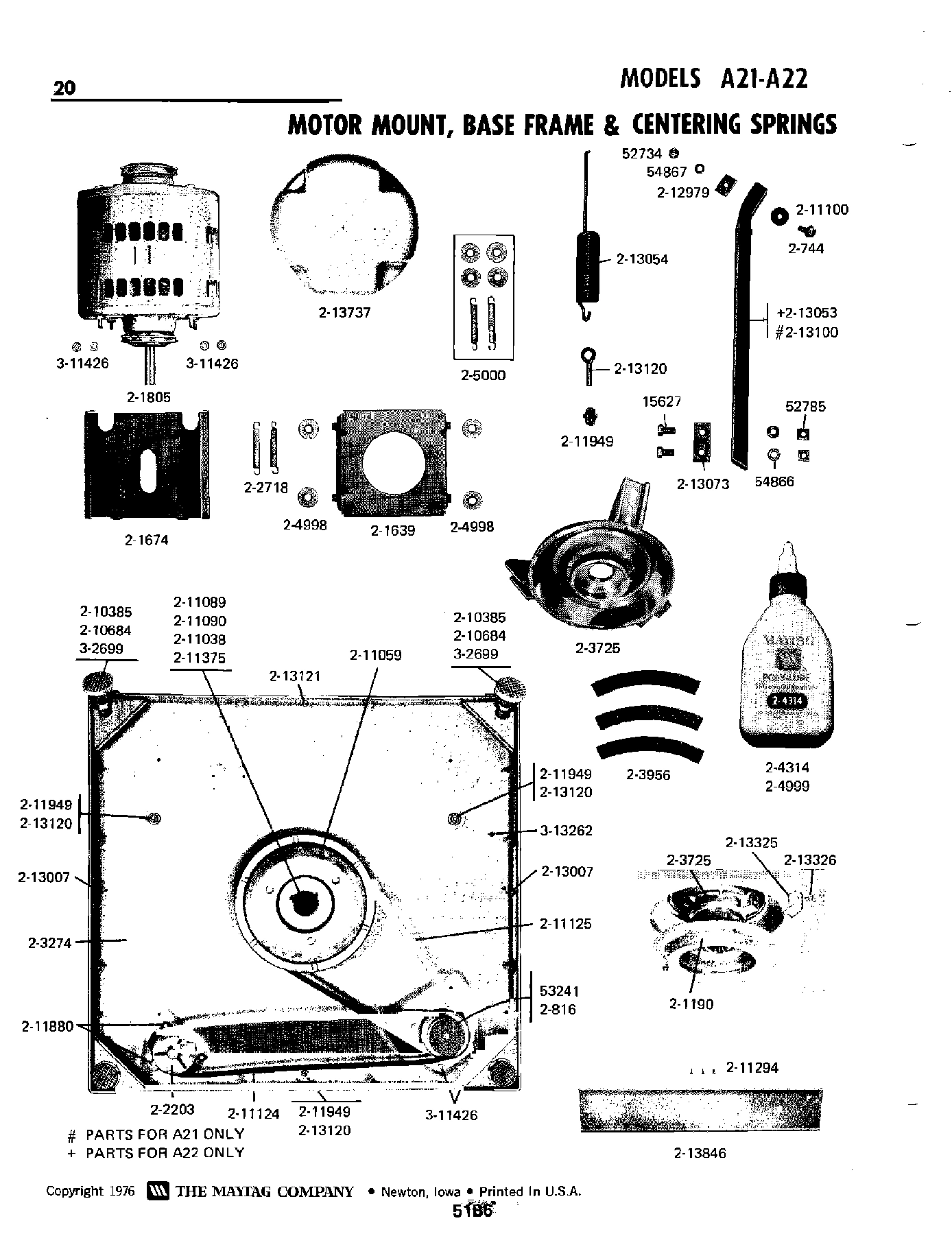

07 - MOTOR MOUNT, BASE FRAME & CENTERING SPRS

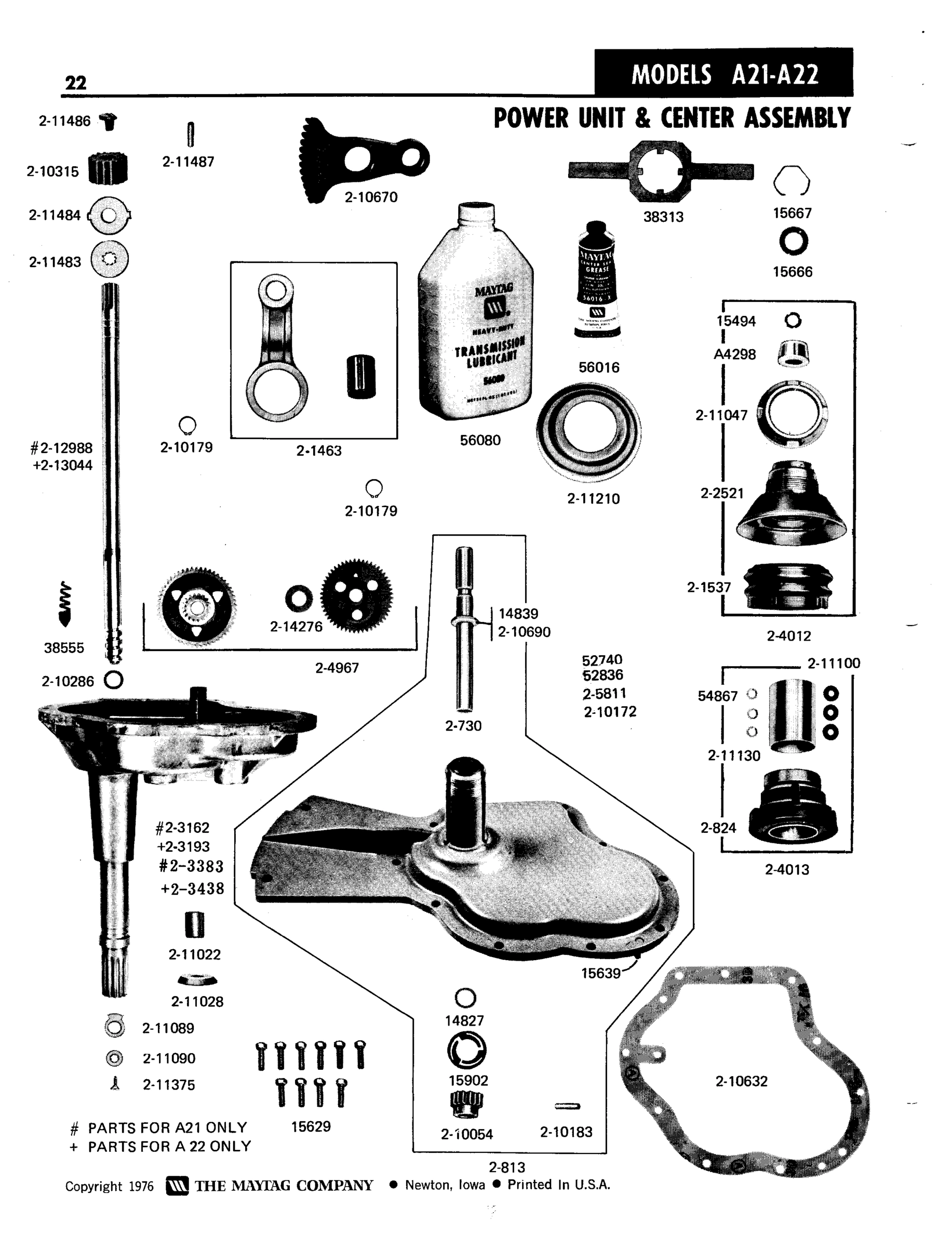

08 - POWER UNIT & CENTER ASSEMBLY
09 - `POLY` PUMP

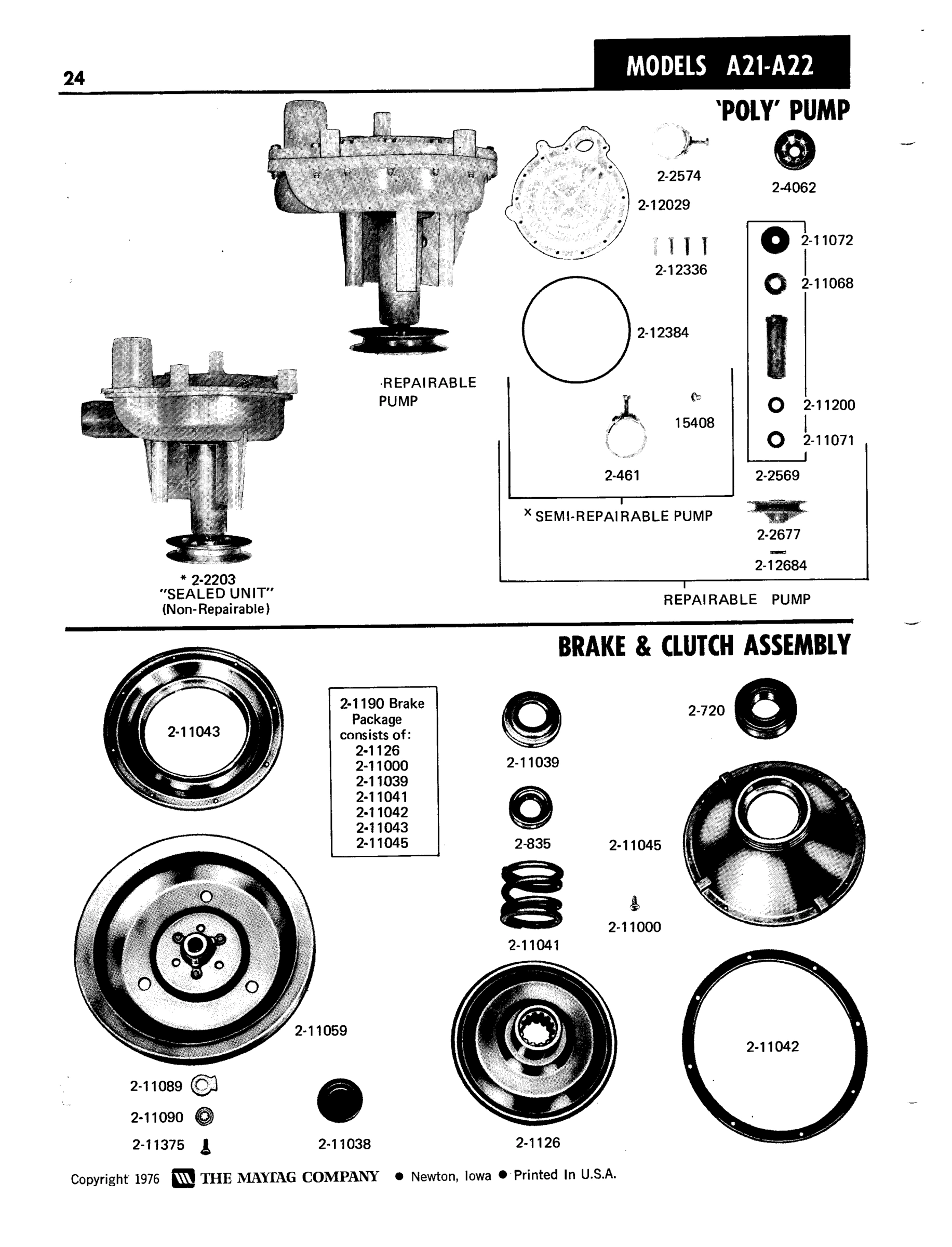

10 - BRAKE & CLUTCH ASSEMBLY

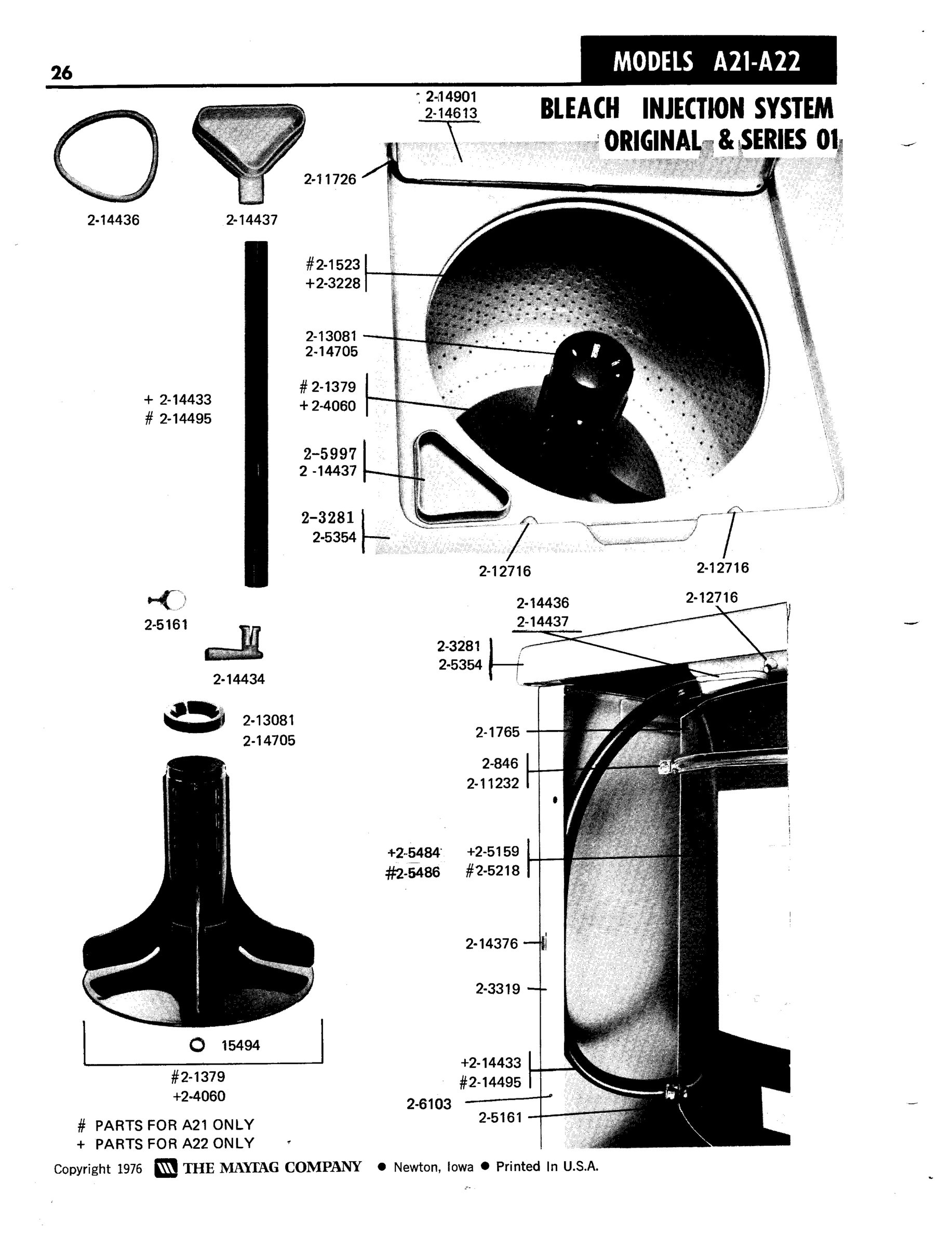

11 - BLEACH INJECTION SYSTEM

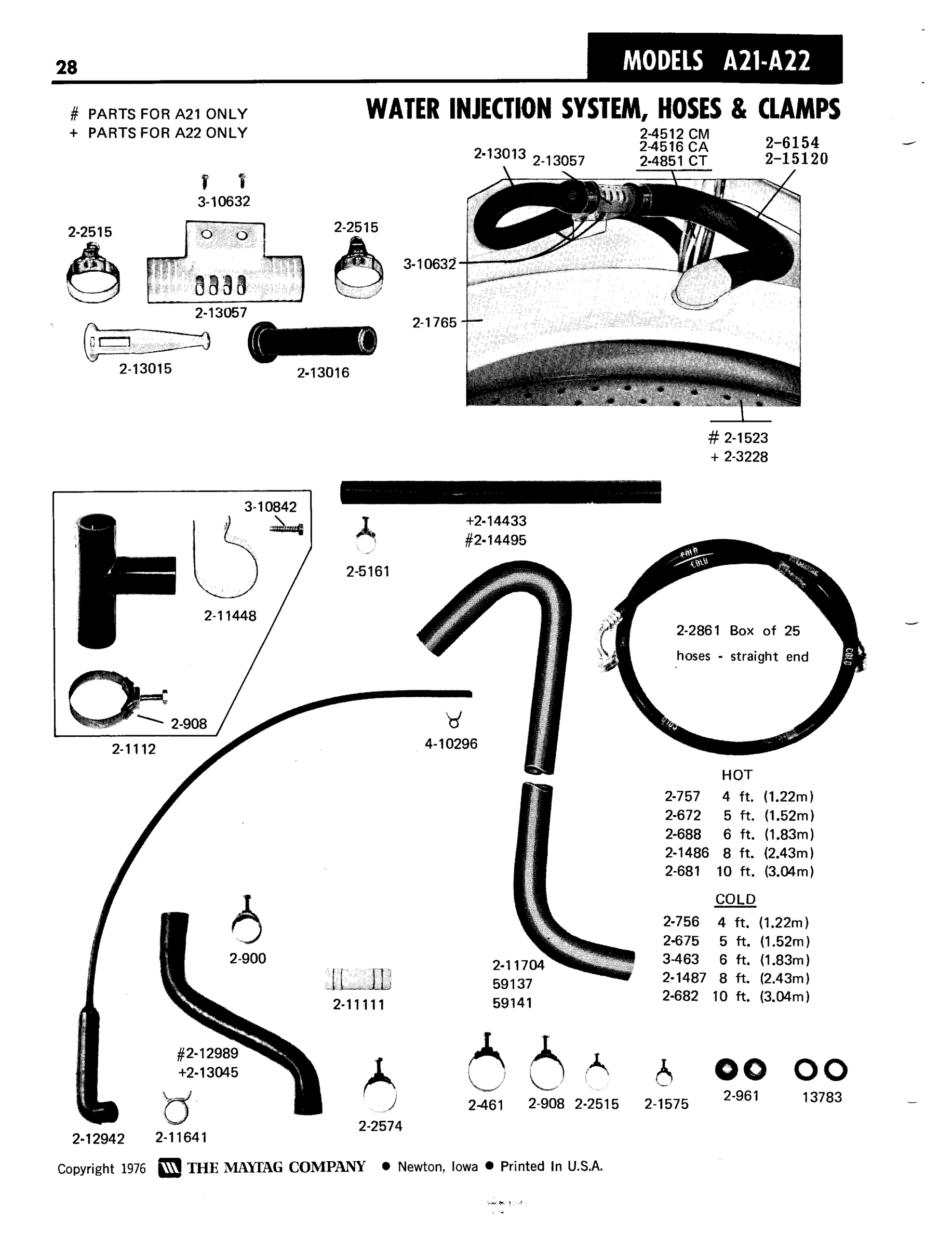

12 - WATER INJECTION SYSTEM, HOSES & CLAMPS
13 - 230 VOLT, 50 CYCLE PARTS
Common parts from model Maytag A21CA WASHER
001
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
001
MAY Y015494 MAY Y015494 Contact Us For Availability
001
MAY Y015408 MAY Y015408 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
002
MAY Y014792 MAY Y014792 Contact Us For Availability
002
MAY Y059137 MAY Y059137 Contact Us For Availability
002
MAY 201101 MAY 201101 Contact Us For Availability
003
AGITATOR (BLK) MAY 201379 Contact Us For Availability
003
SWITCH, PRESSURE PART NOT USED MAY 203961 Contact Us For Availability
003
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
003
MAY 202203 MAY 202203 Contact Us For Availability
003
MAY Y014827 MAY Y014827 Contact Us For Availability
003
MAY 201126 MAY 201126 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOSE MAY Y059141 Contact Us For Availability
003
MAY 202157 MAY 202157 Contact Us For Availability
004
SWITCH, PRESSURE MAY 203971 Contact Us For Availability
004
MAY Y053241 MAY Y053241 Contact Us For Availability
004
MAY 201190 MAY 201190 Contact Us For Availability
004
MAY Y014839 MAY Y014839 Contact Us For Availability
004
CLAMP, HOSE (1-5/8``) MAY 200461 Contact Us For Availability
004
MAY Y202496 MAY Y202496 Contact Us For Availability
005
MAY 204051 MAY 204051 Contact Us For Availability
005
MAY Y054866 MAY Y054866 Contact Us For Availability
005
MAY Y015149 MAY Y015149 Contact Us For Availability
006
MAY 215058 MAY 215058 Contact Us For Availability
006
LIGHT, SIGNAL (3 BULB) MAY 204109 Contact Us For Availability
006
SEAL, IMPELLER MAY 204062 Contact Us For Availability
006
HOSE, INLET (COLD 5 FT.) MAY 200675 Contact Us For Availability
007
MOTOR, TIMER MAY 204973 Contact Us For Availability
007
BOLT, GRINDING CHAMBER MAY Y015629 Contact Us For Availability
007
MAY 211068 MAY 211068 Contact Us For Availability
007
MAY 211039 MAY 211039 Contact Us For Availability
007
HOSE, INLET (HOT 10 FT.) MAY 200681 Contact Us For Availability
007
MAY 204110 MAY 204110 Contact Us For Availability
008
TUB, INNER PART NOT USED MAY 203228 Contact Us For Availability
008
MAY 205218 MAY 205218 Contact Us For Availability
008
MAY 200816 MAY 200816 Contact Us For Availability
008
MAY 211041 MAY 211041 Contact Us For Availability
008
HOSE, INLET (COLD 10 FT.) MAY 200682 Contact Us For Availability
008
MAY 204579 MAY 204579 Contact Us For Availability
009
MAY 211072 MAY 211072 Contact Us For Availability
009
MAY 211042 MAY 211042 Contact Us For Availability
010
MAY Y015667 MAY Y015667 Contact Us For Availability
010
MOTOR MOUNT (UPR) MAY 201639 Contact Us For Availability
010
MAY 211043 MAY 211043 Contact Us For Availability
010
HOSE, INLET (COLD 4 FT.) MAY 200756 Contact Us For Availability
011
MAY 211065 MAY 211065 Contact Us For Availability
011
AGITATOR (BLK) PART NOT USED MAY 204060 Contact Us For Availability
011
MOTOR MOUNT (LWR) MAY 201674 Contact Us For Availability
011
MAY 211045 MAY 211045 Contact Us For Availability
011
SPRING, AGITATOR MAY Y015902 Contact Us For Availability
011
MAY 211200 MAY 211200 Contact Us For Availability
011
HOSE, INLET (HOT 4 FT.) MAY 200757 Contact Us For Availability
012
SCREW & FASTENER ASSEMBLY MAY 204445 Contact Us For Availability
012
MAY 211059 MAY 211059 Contact Us For Availability
012
MAY 038313 MAY 038313 Contact Us For Availability
012
MAY 200900 MAY 200900 Contact Us For Availability
013
PLUNGER & BRACKET ASSEMBLY--W MAY 204968 Contact Us For Availability
013
MAY 211093 MAY 211093 Contact Us For Availability
013
MAY Y038555 MAY Y038555 Contact Us For Availability
013
CLAMP, HOSE (1-1/2``) MAY 200908 Contact Us For Availability
013
MAY 211149 MAY 211149 Contact Us For Availability
014
MAY 205353 MAY 205353 Contact Us For Availability
014
KNOB, TIMER MAY 211120 Contact Us For Availability
014
MAY Y054867 MAY Y054867 Contact Us For Availability
014
GASKET, POLY PUMP MAY 212384 Contact Us For Availability
014
MAY 200961 MAY 200961 Contact Us For Availability
015
BASE W/DAMPER PADS MAY 203274 Contact Us For Availability
015
CENTER SEAL GREASE (4 OZ TUBE) MAY Y056016 Contact Us For Availability
016
CAP, DISPENSER (BLK) MAY 213081 Contact Us For Availability
016
MAY 211251 MAY 211251 Contact Us For Availability
016
MAY Y056080 MAY Y056080 Contact Us For Availability
016
HOSE, INLET (HOT 8 FT.) MAY 201486 Contact Us For Availability
016
LID (WHT) MAY 212073 Contact Us For Availability
017
MAY 214376 MAY 214376 Contact Us For Availability
017
MAY 205159 MAY 205159 Contact Us For Availability
017
SET SCREW, MOTOR PULLEY MAY NLA Contact Us For Availability
017
MAY 200730 MAY 200730 Contact Us For Availability
017
HOSE, INLET (COLD 8 FT.) MAY 201487 Contact Us For Availability
018
MAY 212276 MAY 212276 Contact Us For Availability
018
MAY 204314 MAY 204314 Contact Us For Availability
019
MAY 211737 MAY 211737 Contact Us For Availability
019
CORD, POWER MAY 204590 Contact Us For Availability
019
MAY 214434 MAY 214434 Contact Us For Availability
020
COVER, TUB MAY 201765 Contact Us For Availability
020
NUT, TWIN SPEED MAY 210866 Contact Us For Availability
020
MAY Y204998 MAY Y204998 Contact Us For Availability
020
MAY 214436 MAY 214436 Contact Us For Availability
021
BUMPER, UNBALANCE MAY 211223 Contact Us For Availability
021
INLET, BLEACH MAY 214437 Contact Us For Availability
021
SCREW (No.8-32 X 1/4``) MAY 212519 Contact Us For Availability
021
SEAL & SPRING MAY 201537 Contact Us For Availability
022
BARRIER, MOISTURE MAY 212937 Contact Us For Availability
022
PLASTIC RIVET MAY 214493 Contact Us For Availability
022
MAY 202521 MAY 202521 Contact Us For Availability
023
WASHER, BRACKET MAY 211500 Contact Us For Availability
023
MAY 214610 MAY 214610 Contact Us For Availability
023
CARTON OF 25 FIVE FOOT HOSES MAY 202861 Contact Us For Availability
024
PANEL, BACK MAY 213042 Contact Us For Availability
024
MAY 910309 MAY 910309 Contact Us For Availability
025
MAY 203725 MAY 203725 Contact Us For Availability
025
CAP, CAPACITOR MAY 214705 Contact Us For Availability
025
LENS, CONTROL PANEL MAY 213099 Contact Us For Availability
026
SCREW (No.6-20 X 1-1/8``) MAY 213501 Contact Us For Availability
026
MAY 204012 MAY 204012 Contact Us For Availability
027
SCREW & FASTNER ASSEMBLY MAY 204439 Contact Us For Availability
027
PLUNGER, LID SWITCH MAY 213718 Contact Us For Availability
027
MAY 205486 MAY 205486 Contact Us For Availability
028
LEVER, UNBALANCE MAY 213719 Contact Us For Availability
028
MAY 214901 MAY 214901 Contact Us For Availability
028
POWER UNIT (W/FAST GEARS) MAY 204437 Contact Us For Availability
029
POWER FIN AGITATOR GEAR KIT MAY 204967 Contact Us For Availability
029
MAY 211448 MAY 211448 Contact Us For Availability
030
MAY 210054 MAY 210054 Contact Us For Availability
030
MAY 205997 MAY 205997 Contact Us For Availability
031
TUBE, INJECTOR MAY 213055 Contact Us For Availability
031
CLIP, FASTENER MAY 214135 Contact Us For Availability
031
HOSE, DRAIN MAY 211704 Contact Us For Availability
032
MAY 206103 MAY 206103 Contact Us For Availability
032
AIR DOME & TUBE MAY 212942 Contact Us For Availability
032
GROOVE PIN (1/4 X 1-1/4``) MAY 210183 Contact Us For Availability
033
MAY 210286 MAY 210286 Contact Us For Availability
034
MAY 210315 MAY 210315 Contact Us For Availability
035
MAY Y312718 MAY Y312718 Contact Us For Availability
035
MAY 910182 MAY 910182 Contact Us For Availability
036
SCREW, KNOB MAY 214650 Contact Us For Availability
037
MAY 210690 MAY 210690 Contact Us For Availability
037
SLEEVE, INJECTOR MAY 213057 Contact Us For Availability
038
MAY 214495 MAY 214495 Contact Us For Availability
038
MAY 212979 MAY 212979 Contact Us For Availability
039
DEFLECTOR, WATER MAY 211028 Contact Us For Availability
040
MAY Y310632 MAY Y310632 Contact Us For Availability
041
SPRING, CENTERING MAY 213054 Contact Us For Availability
041
MAY Y310842 MAY Y310842 Contact Us For Availability
042
MAY 213073 MAY 213073 Contact Us For Availability
043
MAY 206154 MAY 206154 Contact Us For Availability
043
MAY 213100 MAY 213100 Contact Us For Availability
043
MAY 211100 MAY 211100 Contact Us For Availability
044
MAY 211130 MAY 211130 Contact Us For Availability
044
MAY 215120 MAY 215120 Contact Us For Availability
044
EYE BOLT, CENTER SPRING MAY 213120 Contact Us For Availability
045
WASHER, CLAMPING NUT (STNLS) MAY 211210 Contact Us For Availability
047
TUB, OUTER PART NOT USED MAY 205484 Contact Us For Availability
047
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
048
SHIELD, MOTOR (POLY) MAY 213737 Contact Us For Availability
048
WASHER, LUG MAY 211484 Contact Us For Availability
049
MAY 213846 MAY 213846 Contact Us For Availability
049
SCREW (3/8-16 X 1/2``) MAY 211486 Contact Us For Availability
050
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
051
SET SCREW, MOUNTING STEM MAY 211618 Contact Us For Availability
052
MAY Y313262 MAY Y313262 Contact Us For Availability
053
SHAFT, CENTER MAY 212988 Contact Us For Availability
× ![]()
