Model Maytag A16CM WASHER – Common Parts & Diagrams
01 - FRONT VIEW
02 - CM CONTROL CENTER

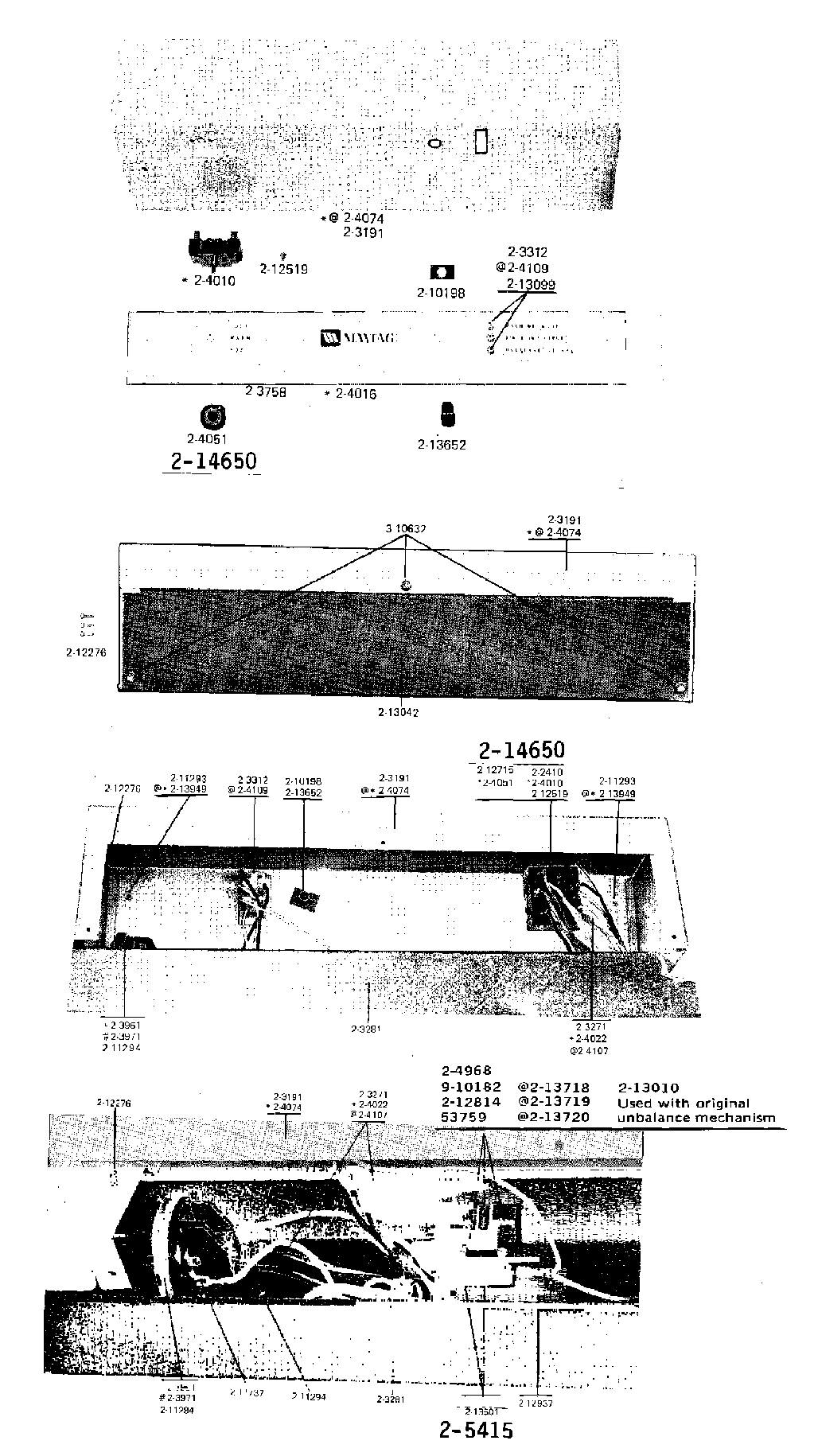

03 - CONTROL PANELS

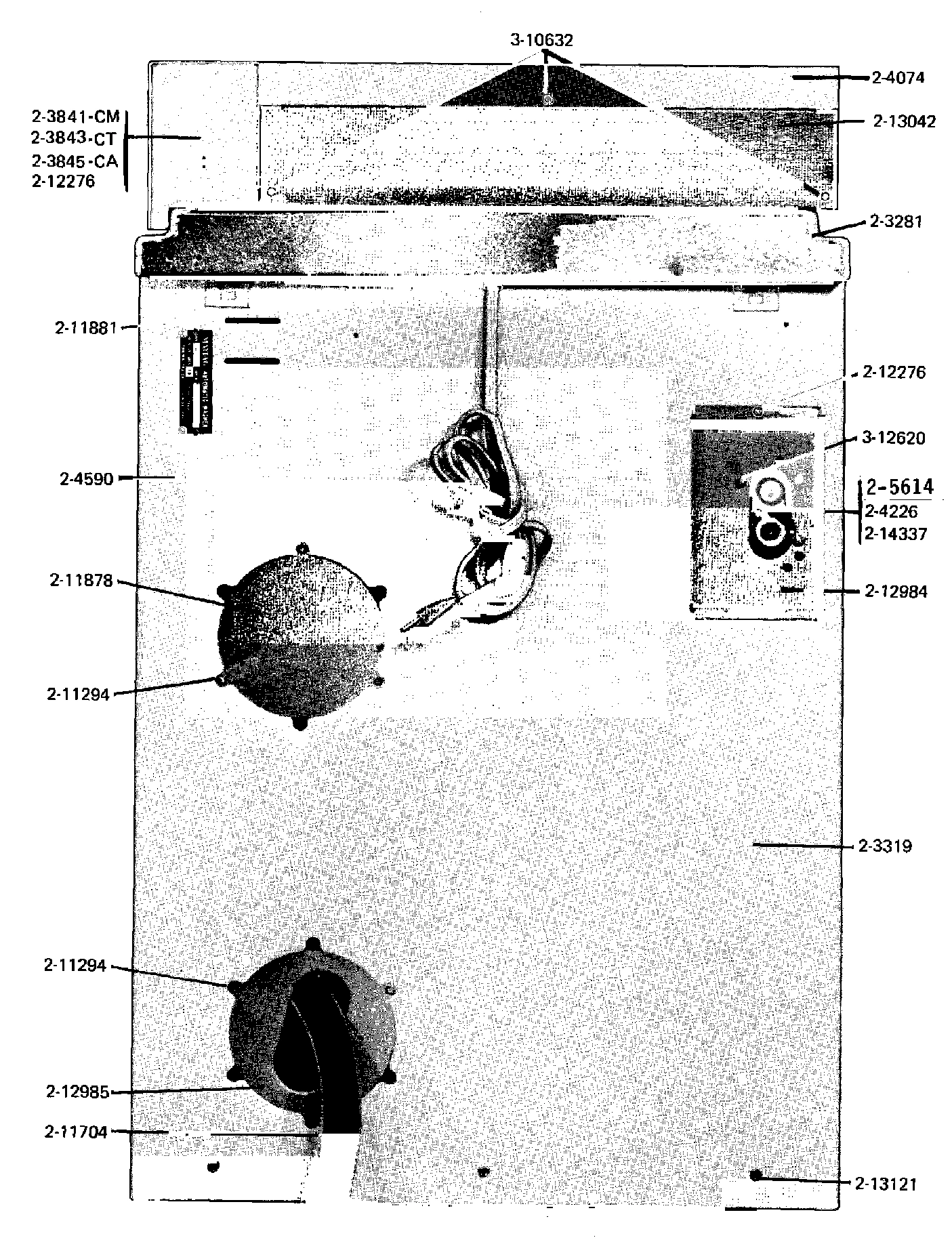

04 - REAR VIEW

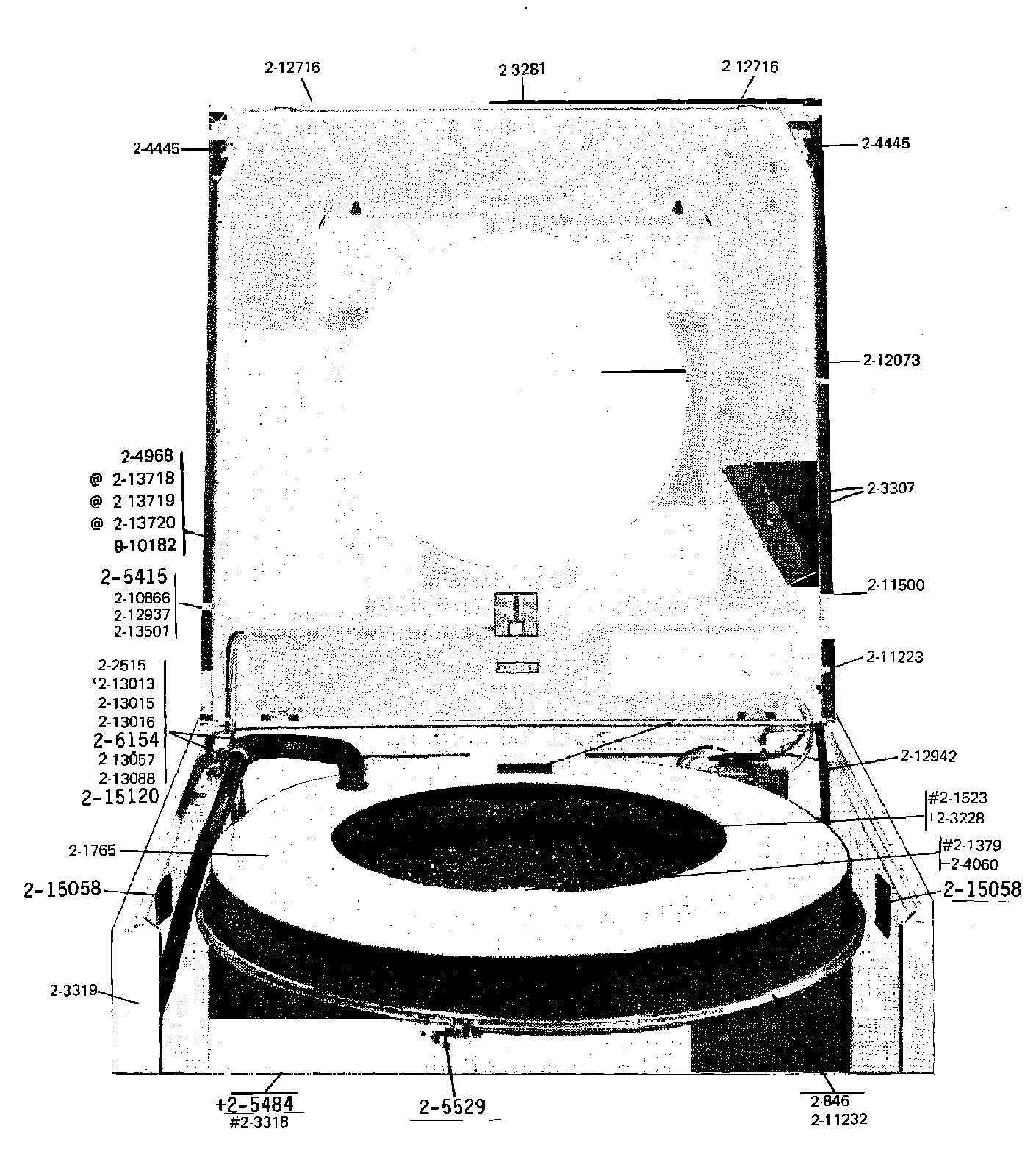

05 - TOP COVER

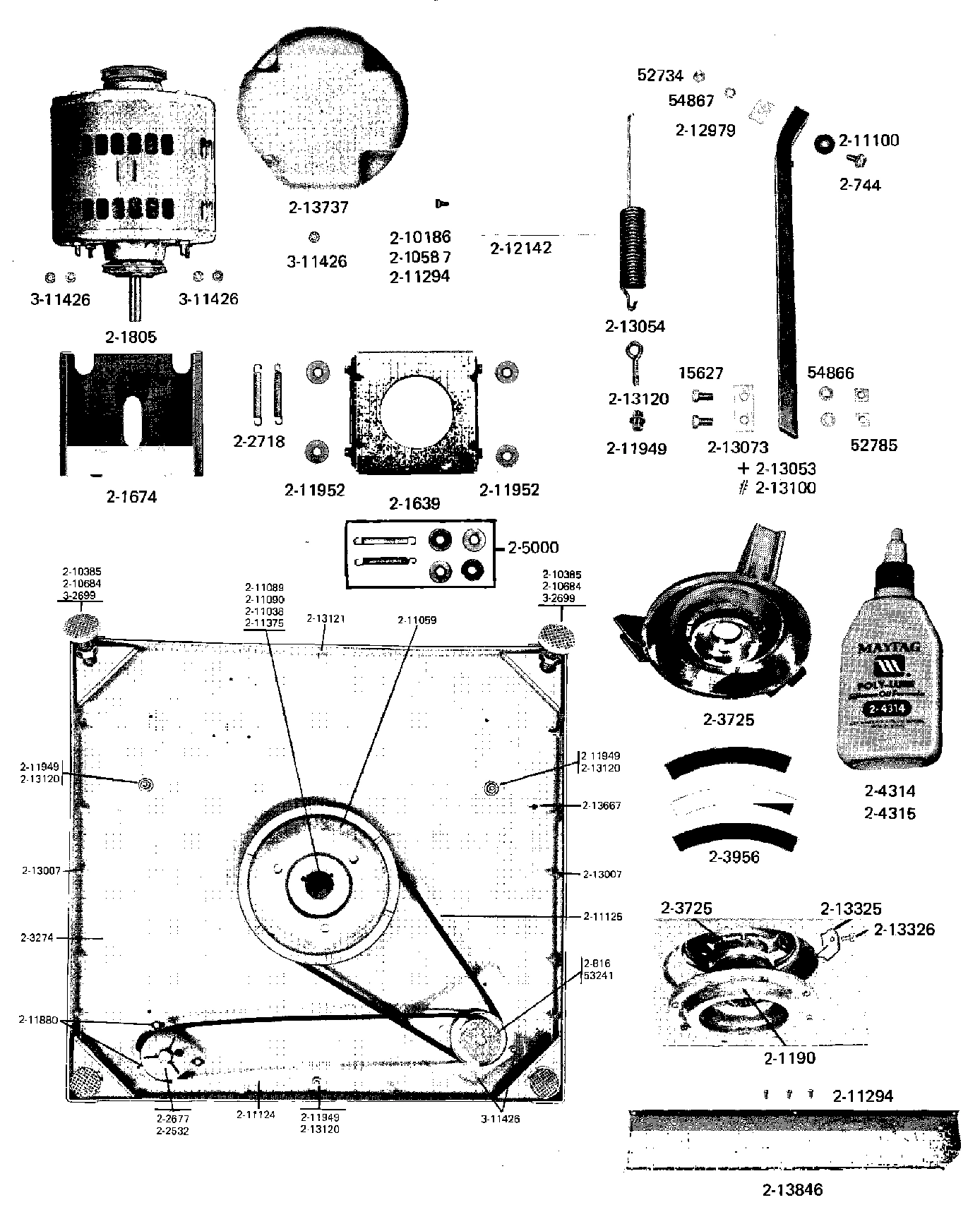

06 - MOTOR MOUNT, BASE FRAME & CENTERING SPRS

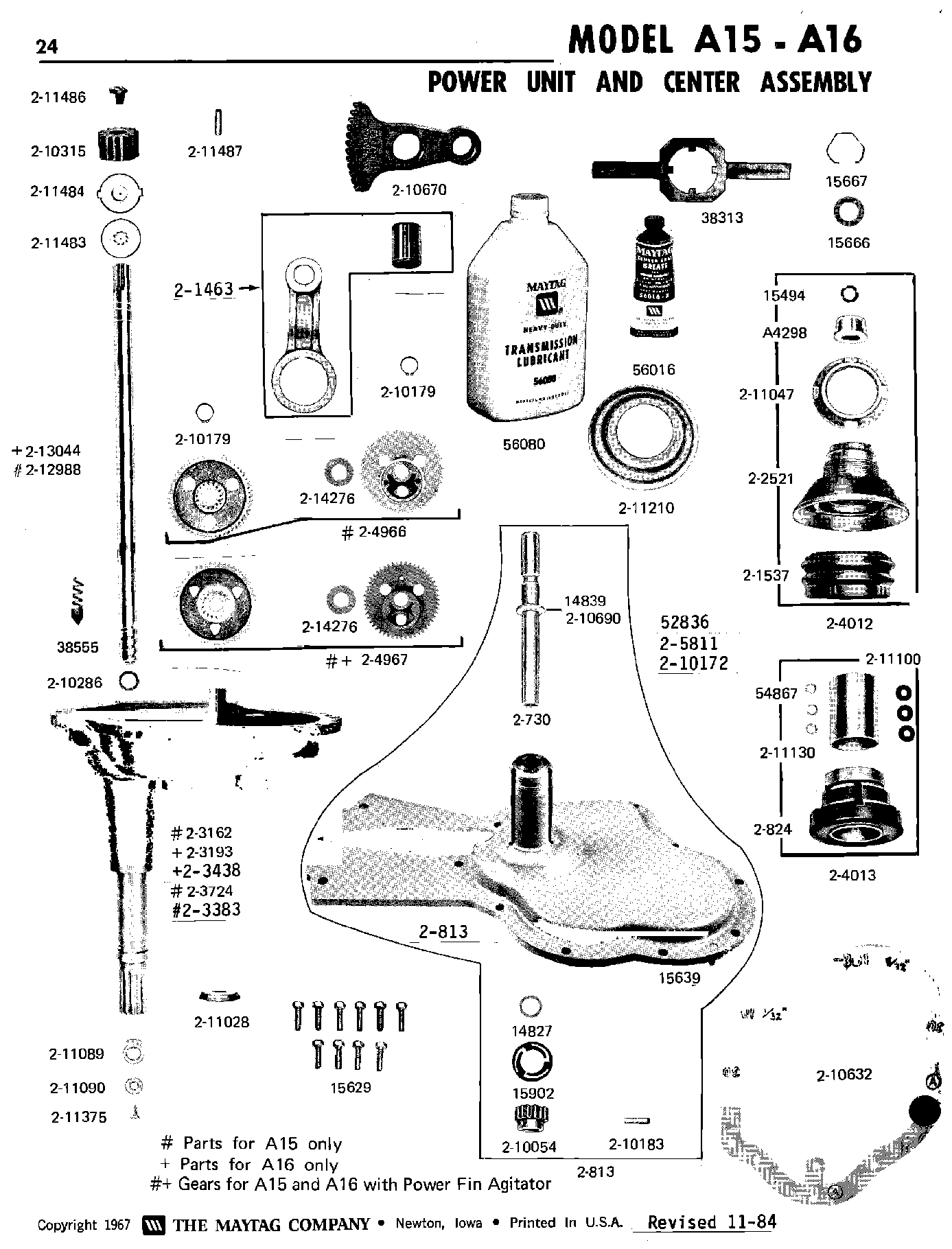

07 - POWER UNIT & CENTER ASSEMBLY

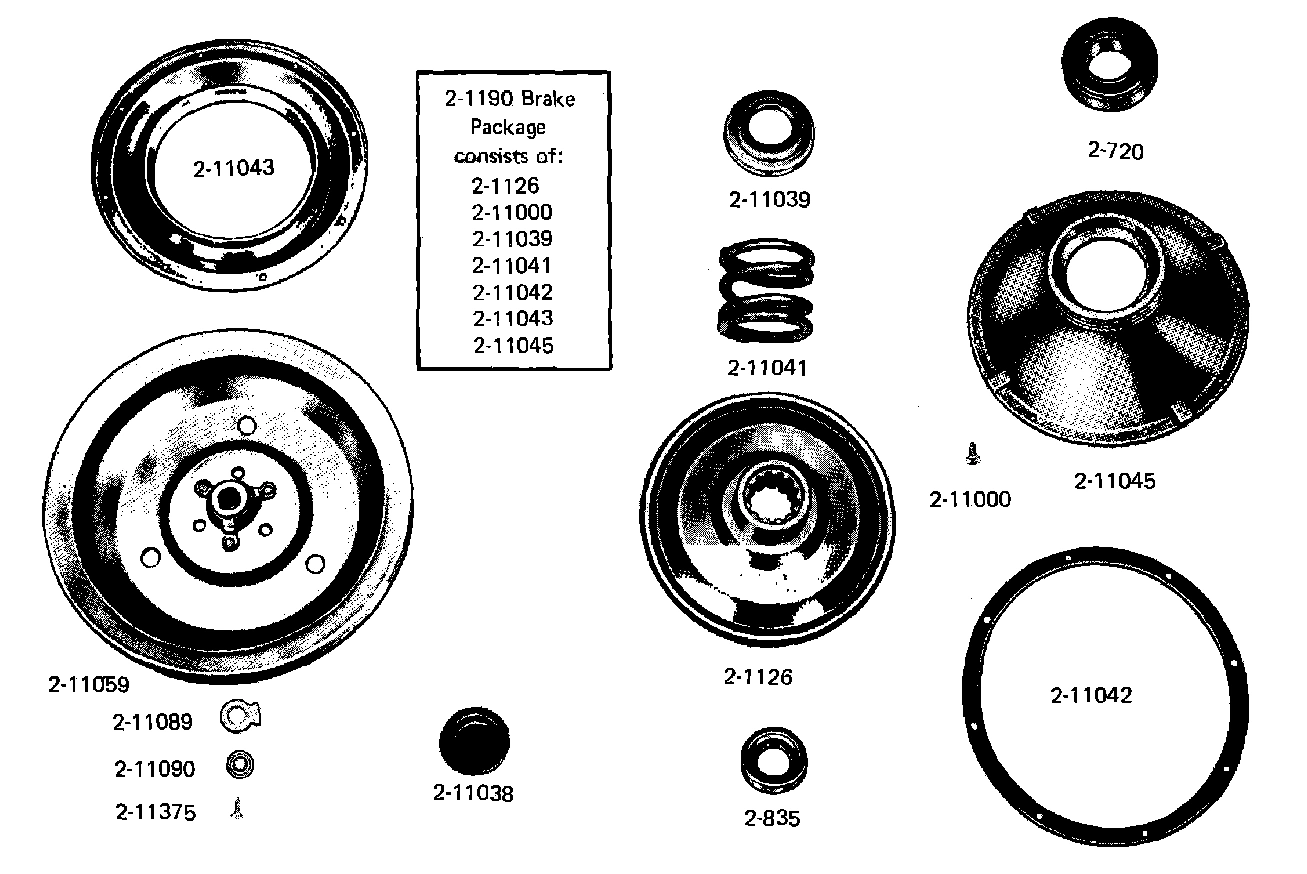

08 - BRAKE & CLUTCH ASSEMBLY
09 - AGITATOR

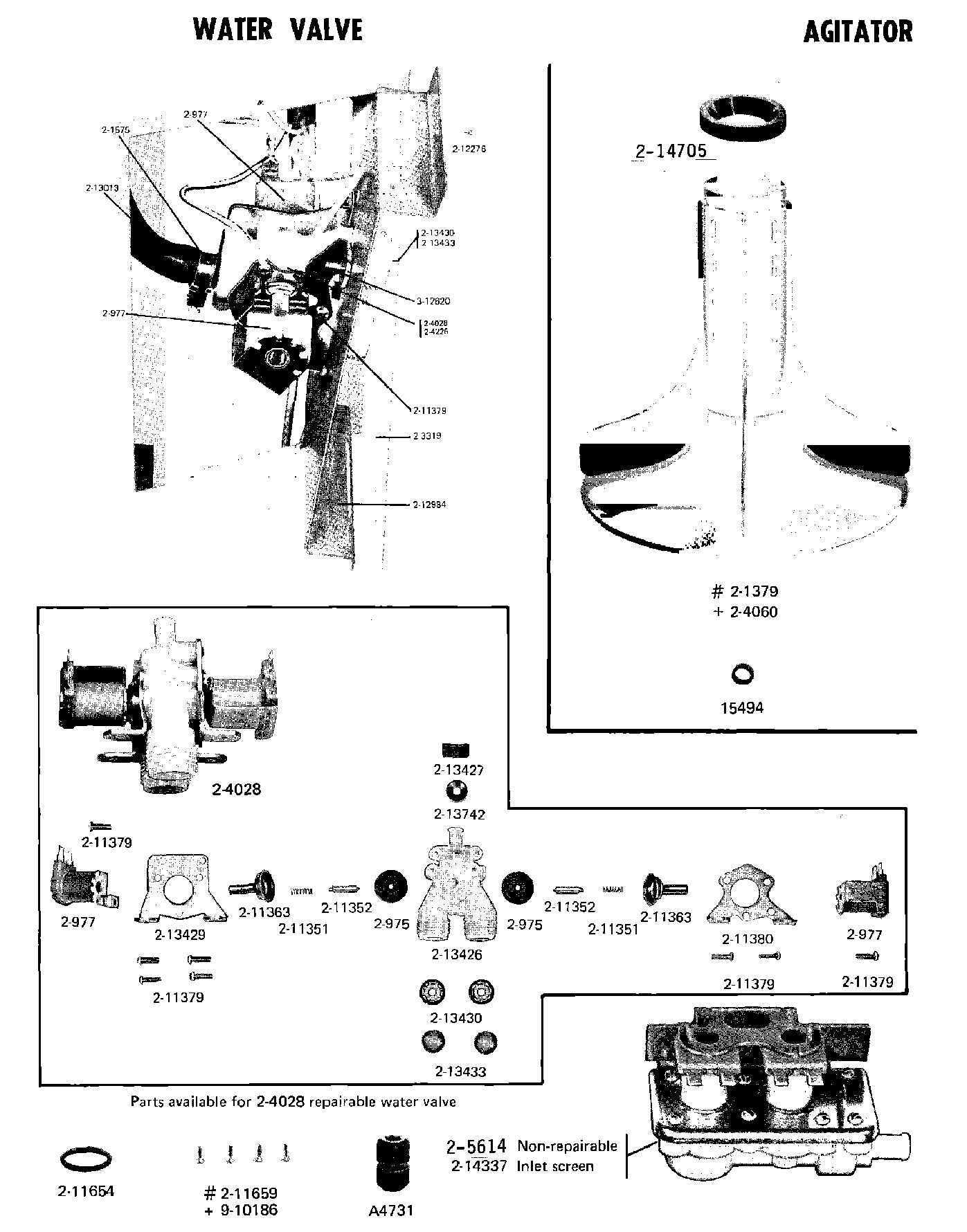

10 - WATER VALVE

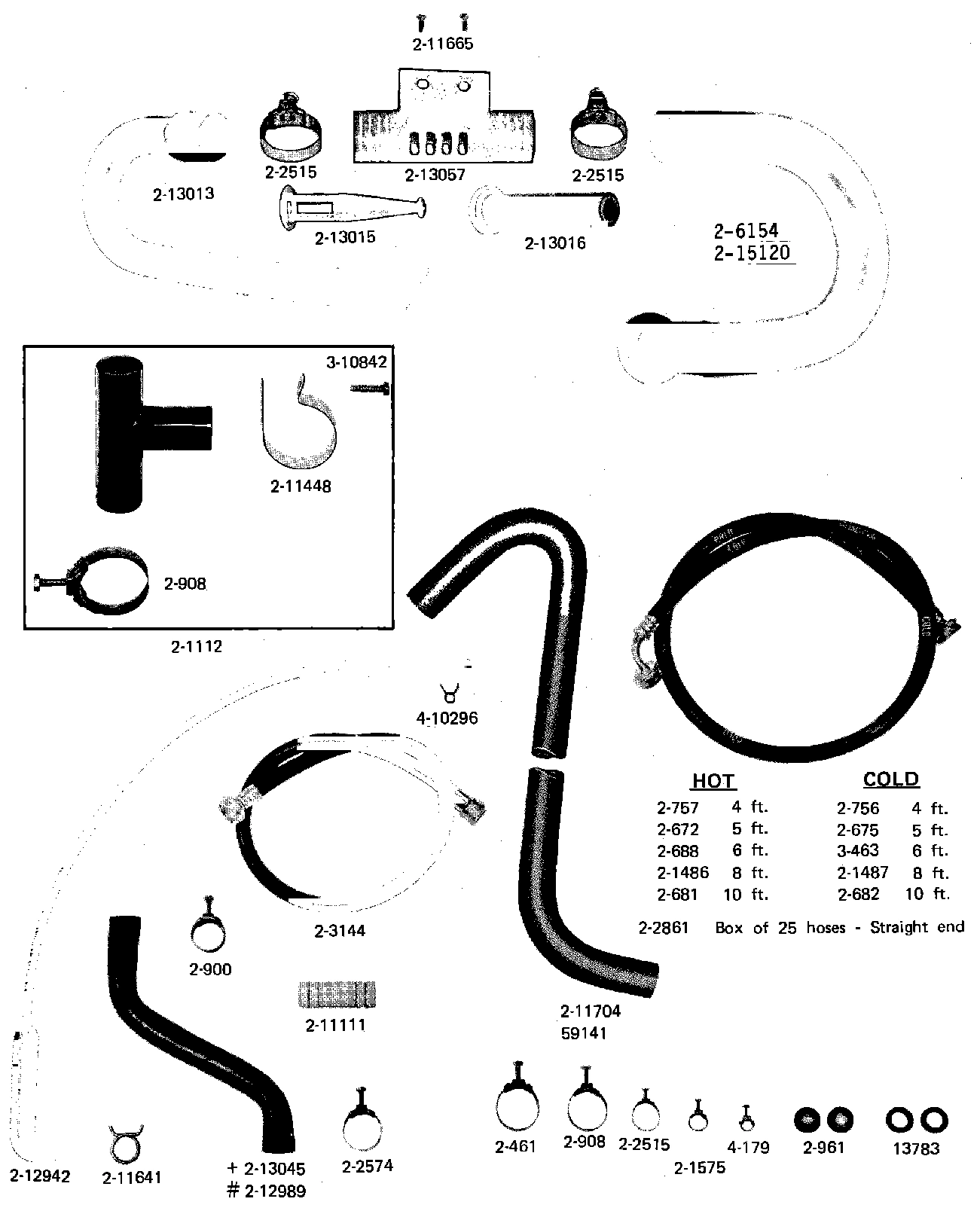

11 - WATER INJECTION SYSTEM, HOSES & CLAMPS

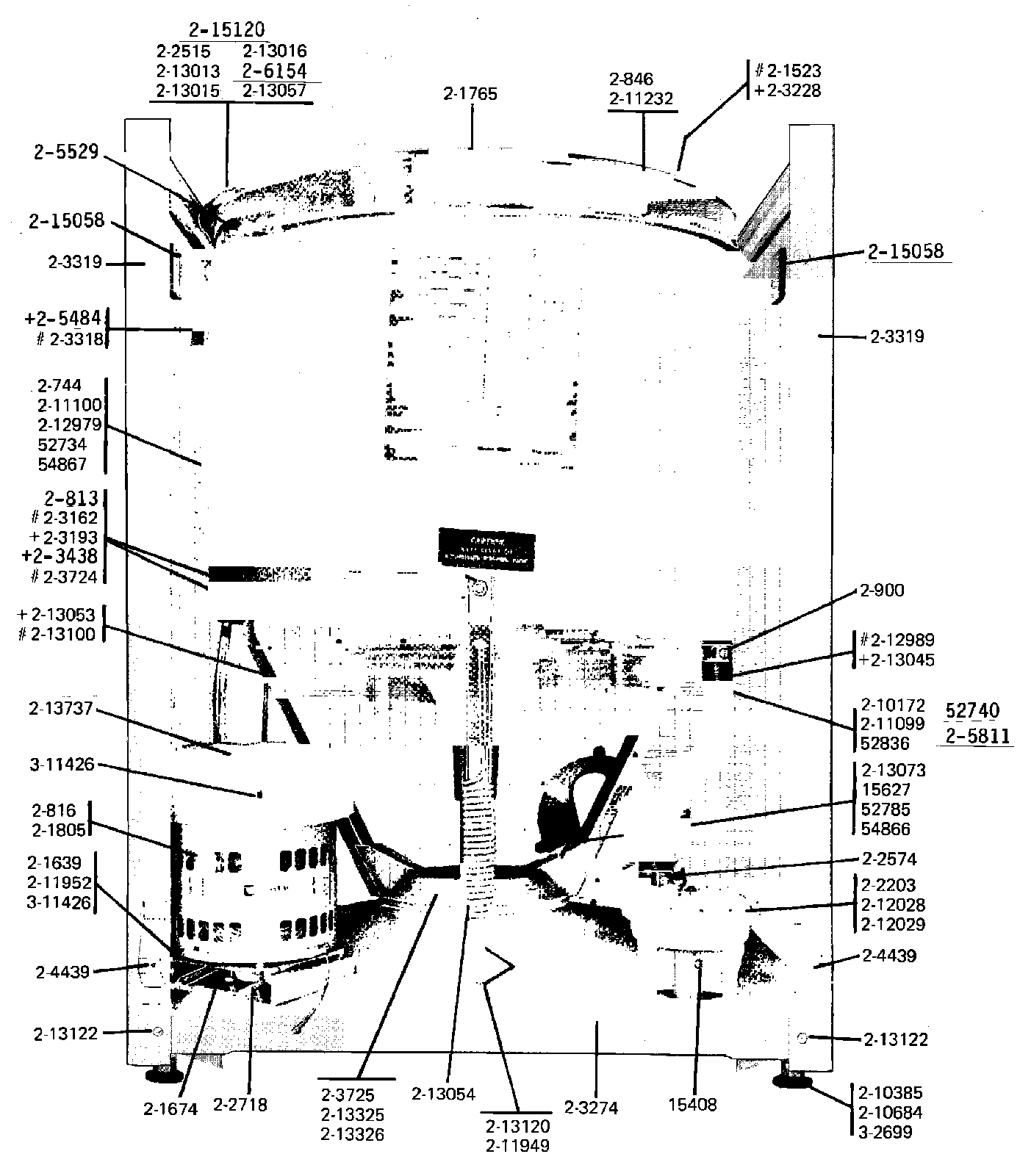

12 - FRONT PANEL REMOVED
Common parts from model Maytag A16CM WASHER
001
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
001
MAY 200975 MAY 200975 Contact Us For Availability
001
MAY Y015408 MAY Y015408 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
MAY Y014792 MAY Y014792 Contact Us For Availability
002
MAY Y015494 MAY Y015494 Contact Us For Availability
002
SOLENOID, WATER VALVE MAY 200977 Contact Us For Availability
002
MAY Y059137 MAY Y059137 Contact Us For Availability
003
MAY 204060 MAY 204060 Contact Us For Availability
003
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
003
MAY Y014827 MAY Y014827 Contact Us For Availability
003
MAY 201126 MAY 201126 Contact Us For Availability
003
MAY Y059141 MAY Y059141 Contact Us For Availability
004
MAY 201190 MAY 201190 Contact Us For Availability
004
MAY Y014839 MAY Y014839 Contact Us For Availability
005
MAY 214705 MAY 214705 Contact Us For Availability
005
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
005
MAY Y015149 MAY Y015149 Contact Us For Availability
006
MAY 910186 MAY 910186 Contact Us For Availability
006
MAY 200675 MAY 200675 Contact Us For Availability
007
MAY Y053241 MAY Y053241 Contact Us For Availability
007
BOLT, GRINDING CHAMBER (DRAIN) MAY Y015629 Contact Us For Availability
007
MAY 211039 MAY 211039 Contact Us For Availability
007
SPRING, PLUNGER MAY 211351 Contact Us For Availability
007
MAY 200681 MAY 200681 Contact Us For Availability
008
MAY Y054866 MAY Y054866 Contact Us For Availability
008
MAY 211041 MAY 211041 Contact Us For Availability
008
MAY 200682 MAY 200682 Contact Us For Availability
009
MAY Y054867 MAY Y054867 Contact Us For Availability
009
MAY 211042 MAY 211042 Contact Us For Availability
009
MAY 211363 MAY 211363 Contact Us For Availability
010
MAY Y055978 MAY Y055978 Contact Us For Availability
010
MAY Y015667 MAY Y015667 Contact Us For Availability
010
MAY 204445 MAY 204445 Contact Us For Availability
010
MAY 211043 MAY 211043 Contact Us For Availability
010
INLET HOSE, COLD 4 FT. MAY 200756 Contact Us For Availability
011
MAY 204968 MAY 204968 Contact Us For Availability
011
MAY 211045 MAY 211045 Contact Us For Availability
011
SPRING, AGITATOR MAY Y015902 Contact Us For Availability
011
MAY 200757 MAY 200757 Contact Us For Availability
012
MAY 211059 MAY 211059 Contact Us For Availability
012
MAY 038313 MAY 038313 Contact Us For Availability
012
MAY 212276 MAY 212276 Contact Us For Availability
012
MAY 200461 MAY 200461 Contact Us For Availability
013
MAY Y038555 MAY Y038555 Contact Us For Availability
013
MAY 200908 MAY 200908 Contact Us For Availability
014
MAY 200961 MAY 200961 Contact Us For Availability
015
INJECTOR TUBE W/SEAL MAY 206154 Contact Us For Availability
015
MAY 200816 MAY 200816 Contact Us For Availability
016
MAY 210866 MAY 210866 Contact Us For Availability
016
MAY 201486 MAY 201486 Contact Us For Availability
017
MAY 211223 MAY 211223 Contact Us For Availability
017
MAY 200900 MAY 200900 Contact Us For Availability
017
MAY 201487 MAY 201487 Contact Us For Availability
018
MAY Y055977 MAY Y055977 Contact Us For Availability
019
WASHER, BRACKET MAY 211500 Contact Us For Availability
019
MAY 201639 MAY 201639 Contact Us For Availability
019
SCREEN, VALVE INLET MAY 213433 Contact Us For Availability
020
MAY Y056016 MAY Y056016 Contact Us For Availability
020
MAY 201674 MAY 201674 Contact Us For Availability
021
MAY 201765 MAY 201765 Contact Us For Availability
021
MAY 212073 MAY 212073 Contact Us For Availability
021
MAY Y056080 MAY Y056080 Contact Us For Availability
021
MAY 202861 MAY 202861 Contact Us For Availability
022
MAY 312620 MAY 312620 Contact Us For Availability
022
MAY 204314 MAY 204314 Contact Us For Availability
022
MAY 200730 MAY 200730 Contact Us For Availability
023
MAY 212937 MAY 212937 Contact Us For Availability
023
MAY 202203 MAY 202203 Contact Us For Availability
023
MAY 204590 MAY 204590 Contact Us For Availability
024
MAY 211448 MAY 211448 Contact Us For Availability
026
MAY 213035 MAY 213035 Contact Us For Availability
026
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
026
SEAL & SPRING MAY 201537 Contact Us For Availability
027
AIR DOME & TUBE MAY 212942 Contact Us For Availability
027
MAY 202521 MAY 202521 Contact Us For Availability
028
MAY Y202734 MAY Y202734 Contact Us For Availability
029
MAY 213081 MAY 213081 Contact Us For Availability
029
MAY 204967 MAY 204967 Contact Us For Availability
030
MAY 203228 MAY 203228 Contact Us For Availability
031
MAY 210054 MAY 210054 Contact Us For Availability
031
MAY 213501 MAY 213501 Contact Us For Availability
031
BASE W/DAMPER PADS MAY 203274 Contact Us For Availability
032
MAY 213718 MAY 213718 Contact Us For Availability
033
MAY 213719 MAY 213719 Contact Us For Availability
033
MAY 213055 MAY 213055 Contact Us For Availability
033
TRANS & CENTER ASSY. (LG) MAY 203438 Contact Us For Availability
034
MAY 203725 MAY 203725 Contact Us For Availability
034
MAY 210183 MAY 210183 Contact Us For Availability
035
SCREW & FSTNER ASSY (FT. PNL) MAY 204439 Contact Us For Availability
035
SEAL, INJECTOR TUBE MAY 215120 Contact Us For Availability
035
MAY 210286 MAY 210286 Contact Us For Availability
036
MAY 205484 MAY 205484 Contact Us For Availability
036
MAY 210315 MAY 210315 Contact Us For Availability
038
MAY 910182 MAY 910182 Contact Us For Availability
038
MAY 210632 MAY 210632 Contact Us For Availability
038
MAY Y310842 MAY Y310842 Contact Us For Availability
039
MAY 400179 MAY 400179 Contact Us For Availability
043
MAY 211028 MAY 211028 Contact Us For Availability
045
MAY 211100 MAY 211100 Contact Us For Availability
046
BEARING LINER, TUB BEARING MAY 211130 Contact Us For Availability
047
WASHER, CLAMPING NUT (STNLS) MAY 211210 Contact Us For Availability
047
MAY 211704 MAY 211704 Contact Us For Availability
050
MAY Y211952 MAY Y211952 Contact Us For Availability
050
MAY 211484 MAY 211484 Contact Us For Availability
051
MAY 211486 MAY 211486 Contact Us For Availability
052
MAY 212979 MAY 212979 Contact Us For Availability
053
MAY 211618 MAY 211618 Contact Us For Availability
057
MAY 213053 MAY 213053 Contact Us For Availability
057
MAY 213846 MAY 213846 Contact Us For Availability
058
CENTERING SPRING MAY 213054 Contact Us For Availability
059
SLEEVE, INJECTOR MAY 213057 Contact Us For Availability
060
WASHER, DBLE. (BRACE) MAY 213073 Contact Us For Availability
060
MAY Y311916 MAY Y311916 Contact Us For Availability
061
MAY 213088 MAY 213088 Contact Us For Availability
062
EYE BOLT, CENTER SPRING MAY 213120 Contact Us For Availability
065
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
066
WIRE RETAINING CLIP MAY NLA Contact Us For Availability
067
MAY 213737 MAY 213737 Contact Us For Availability
069
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
070
MAY Y310632 MAY Y310632 Contact Us For Availability
× ![]()
